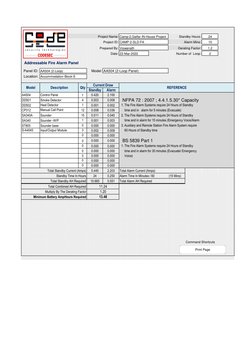

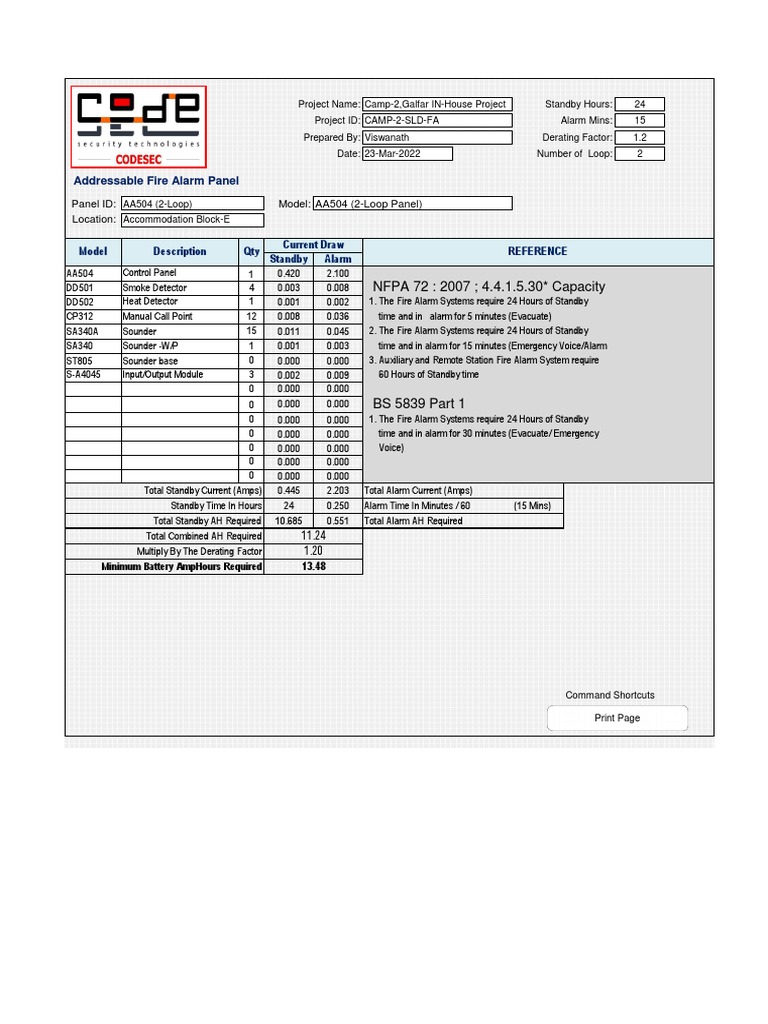

  • Addressable Fire Alarm Panel Specification

Project Name: Camp-2,Galfar IN-House Project Standby Hours: 24

Project ID: CAMP-2-SLD-FA Alarm Mins: 15


Prepared By: Viswanath Derating Factor: 1.2
Date: 23-Mar-2022 Number of Loop: 2

Addressable Fire Alarm Panel

Panel ID: AA504 (2-Loop) Model: AA504 (2-Loop Panel)


Location: Accommodation Block-E

Current Draw
Model Description Qty REFERENCE
Standby Alarm
AA504 Control Panel 1 0.420 2.100
DD501 Smoke Detector 4 0.003 0.008 NFPA 72 : 2007 ; 4.4.1.5.30* Capacity
DD502 Heat Detector 1 0.001 0.002 1. The Fire Alarm Systems require 24 Hours of Standby
CP312 Manual Call Point 12 0.008 0.036 time and in alarm for 5 minutes (Evacuate)
SA340A Sounder 15 0.011 0.045 2. The Fire Alarm Systems require 24 Hours of Standby
SA340 Sounder -W/P 1 0.001 0.003 time and in alarm for 15 minutes (Emergency Voice/Alarm
ST805 Sounder base 0 0.000 0.000 3. Auxiliary and Remote Station Fire Alarm System require
S-A4045 Input/Output Module 3 0.002 0.009 60 Hours of Standby time
0 0.000 0.000
0 0.000 0.000 BS 5839 Part 1
0 0.000 0.000 1. The Fire Alarm Systems require 24 Hours of Standby
0 0.000 0.000 time and in alarm for 30 minutes (Evacuate/ Emergency
0 0.000 0.000 Voice)
0 0.000 0.000
0 0.000 0.000
Total Standby Current (Amps) 0.445 2.203 Total Alarm Current (Amps)
Standby Time In Hours 24 0.250 Alarm Time In Minutes / 60 (15 Mins)
Total Standby AH Required 10.685 0.551 Total Alarm AH Required
Total Combined AH Required 11.24
Multiply By The Derating Factor 1.20
Minimum Battery AmpHours Required 13.48

Wire resistance
Wire resistance is
is taken
taken from
from Chapter
Chapter 9 Table 8 of the National Electric Code (NFPA70).
