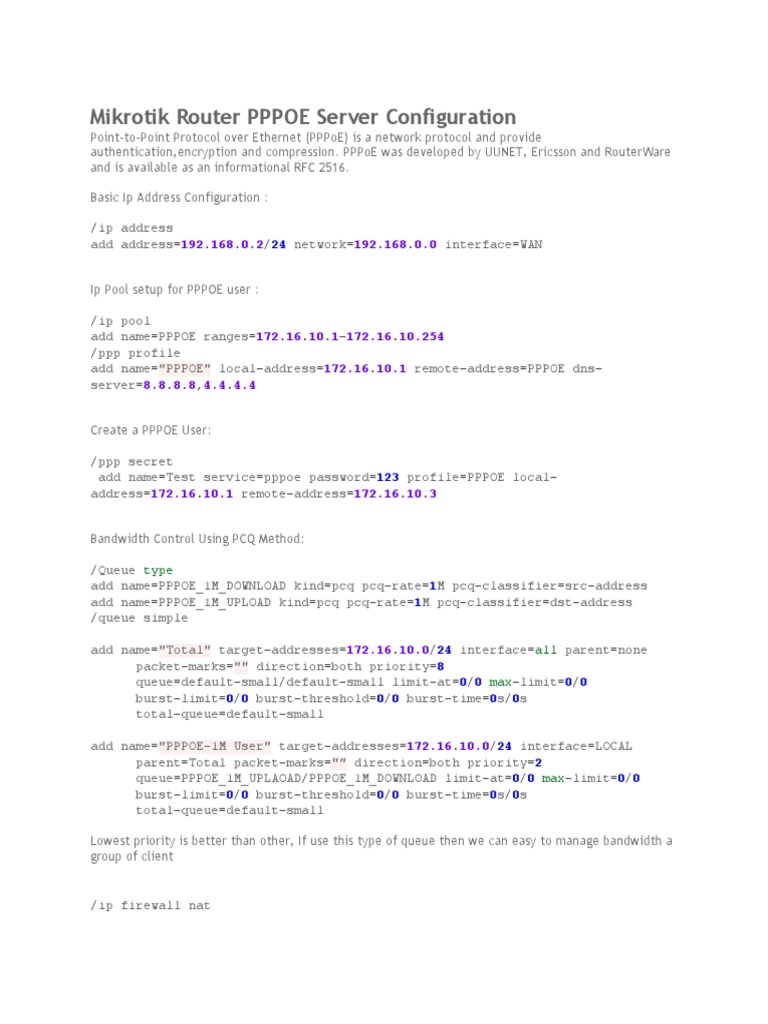

Mikrotik Router PPPOE Server Configuration

Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol and provide

authentication,encryption and compression. PPPoE was developed by UUNET, Ericsson and RouterWare
and is available as an informational RFC 2516.

Basic Ip Address Configuration :

/ip address
add address=192.168.0.2/24 network=192.168.0.0 interface=WAN

Ip Pool setup for PPPOE user :

/ip pool
add name=PPPOE ranges=172.16.10.1-172.16.10.254
/ppp profile
add name="PPPOE" local-address=172.16.10.1 remote-address=PPPOE dns-
server=8.8.8.8,4.4.4.4

Create a PPPOE User:

/ppp secret
add name=Test service=pppoe password=123 profile=PPPOE local-
address=172.16.10.1 remote-address=172.16.10.3

Bandwidth Control Using PCQ Method:

/Queue type
add name=PPPOE_1M_DOWNLOAD kind=pcq pcq-rate=1M pcq-classifier=src-address
add name=PPPOE_1M_UPLOAD kind=pcq pcq-rate=1M pcq-classifier=dst-address
/queue simple

add name="Total" target-addresses=172.16.10.0/24 interface=all parent=none

packet-marks="" direction=both priority=8
queue=default-small/default-small limit-at=0/0 max-limit=0/0
burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s
total-queue=default-small

add name="PPPOE-1M User" target-addresses=172.16.10.0/24 interface=LOCAL

parent=Total packet-marks="" direction=both priority=2
queue=PPPOE_1M_UPLAOAD/PPPOE_1M_DOWNLOAD limit-at=0/0 max-limit=0/0
burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s
total-queue=default-small

Lowest priority is better than other, If use this type of queue then we can easy to manage bandwidth a
group of client

/ip firewall nat

add chain=srcnat action=masquerade src-address=172.16.10.0/24 out-
interface=WAN

IP Route Configuration:

/ip route
add dst-address=0.0.0.0/0 gateway=192.168.0.1
