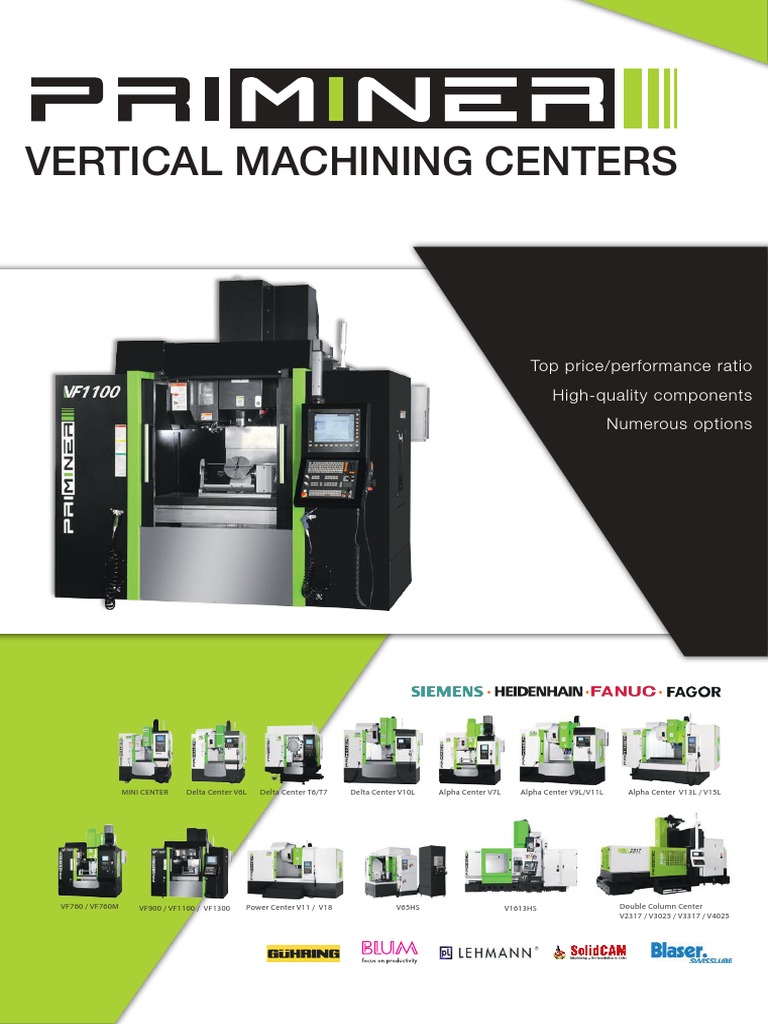

VERTICAL MACHINING CENTERS

Top price/performance ratio

High-quality components
Numerous options

· · ·

MINI CENTER Delta Center V6L Delta Center T6/T7 Delta Center V10L Alpha Center V7L Alpha Center V9L/V11L Alpha Center V13L / V15L

VF760 / VF760M VF900 / VF1100 / VF1300 Power Center V11 / V18 V65HS V1613HS Double Column Center
V2317 / V3025 / V3317 / V4025
PRIMINER
The Company

Jack Chen | CEO Priminer Company Group

Benjamin Kaehlcke | General Manager, Germany
We stay up to date
“Only employees which are regular trained and involved in the
development of our production process can understand the requirements
of present and future as a whole.” According to Mr.   Kaehlcke GF of
Priminer Germany. “This is the case for our German and China team
members. We have an intensive exchange program between our two
major spots, additional to our permanent training course at our global
leading sub-suppliers.”

HOW WE DO IT
Consequent QC-management according to international norms, a higly motivated
team of specialists, advantages of serial production and reliable top sub-suppliers
with global leading positions are columns of our success. An open and result-oriented
company culture through all levels is the basement for a permanent high level of our
reliability and products.
Our Team
International, competent, highly motivated and always
open for new ideas… This is our team. The cooperate
PRIMINER Global TEAM
culture is a mirror of these attitudes. Our management
has got a “open ear” from bottom to top and we are and
we practise flat hierarchy.
 OUR KNOW-HOW
FOR YOUR BUSINESS
Technology & Know-how
We think and plan the future already now. A growing
in-house R&D department with experienced engineers
which develop our machine concepts are our warrantor
that we are prepared for the upcoming trends of the
machine tools busines. We are listening to the market.
Flexibility in the matter of CNC controlers is for us a
must, here we only go with the market leaders. W ithout
any compromise!
 Vertical machining center · VF 900 / 1100 / 1300 VF 900 / 1100 / 1300

VF900 · 1100 · 1300

• VF series ultra high performance center is
specially designed for high speed and high
efficiency machining applications
• Advanced design with reinforced body
structure through FEM analysis. VF series
offers superb cutting performance and reduced
vibration to meet the highest machining demands
• Extra wide machine column and base
design ensures the high rigidity during high speed
movement
• Motor mounting block cooling circuit
(VF1100 & VF1300)
• Coolant through ballscrew
(VF1100 & VF1300)
• Linear encoder (option)

Cast iron tempered for stress relief to ensure

structural stability without deformation

Standard configuration: Optional configuration:

✔✔ Fully enclosed splash guard n Direct drive spindle 10.000 min-1, BBT50 (VF110 & VF1300)
✔✔ Direct drive spindle 12.000 min-1 n Direct drive spindle 15.000 min-1, BBT40
✔✔ 24 pocket arm tool changer n Motor spindle 20.000 min-1, HSK A63
✔✔ Two screw type and one chain type (VF 1100/1300) n CTS coolant through spindle
✔✔ Chain type chip conveyor (VF900) n Oil cooled ballscrew
✔✔ Spindle cooling system n Linear encoder
✔✔ Air-conditioned electrical cabinet n 4th axis
✔✔ Motor mounting block cooling circuit (VF1100 & VF1300) n 4/5th axis
✔✔ Rigid tapping n Workpiece probe
✔✔ Ethernet, CF card and USB interface n Tool probe
✔✔ Automatic lubrication system
✔✔ Coolant system
✔✔ Oil separator
✔✔ LED working lamp
✔✔ End of program light Two screw type chip conveyors in Y-axis (VF110 & VF1300) Coolant water-jet around spindle
✔✔ Electronic handwheel (MPG)
✔✔ Tool box
✔✔ Leveling bolts and blocks
✔✔ Coolant gun
✔✔ Air gun
✔✔ Air blast during cutting
✔✔ User manuals

Lehmann 4th & 5th axis HIWIN linear guideways Oil cooled ballscrews (VF1100 & VF1300)

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
10 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 11
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · VF900 / 1100 / 1300 VF900 / 1100 / 1300

Torque chart for standard Siemens version Technical Specifications

Technical Specifications VF900 VF1100 VF1300
Table
Table size mm 1060 x 600 1300 x 600 1500 x 650
T-slot (width x number x distance) mm 18 x 5 x 100
Max. load kg 650 800 1000
Travel
X/Y/Z Travel mm 900 / 600 / 600 1100 / 650 / 600 1300 / 650 / 600
Spinlde nose to table distance mm 150 - 750
Spindle center to column
mm 652 697
distance
Spindle
Spindle taper - SK40 / BBT40 / CAT 40
Spindle servo motor kW 9 / 22 Siemens, 11 / 15 Fanuc 15 / 38 Siemens, 15 / 18.5 Fanuc
Spindle speed min-1 12.000
Feed
Rapid feed X/Y/Z m/min 36
Cutting feed m/min 1 - 12.000
Tool changer
Number of tools pcs. 24
Max. tool length mm 300
Max. tool diameter mm 78 (125)
Max. tool weight kg 8
Accuracy (VDI 3441)
Positioning accuracy
mm 0.010 0.012
(without linear encoder)
VF1100 Positioning repeatability
mm 0.006 0.008
(without Linear encoder)
Positioning accuracy
Work table (VF1100) (with linear encoder)
mm 0.006 0.008
Positioning repeatability
mm 0.004 0.006
(with linear encoder)
Dimensions & weight
Dimensions mm 2800 x 2345 x 3000 2930 x 2250 x 3150 3150 x 3100 x 3150
Weight kg 6000 7500 7800

Dimensions (VF1100)

Cooling unit with CTS

Keyarrow telescopic covers in all axes

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
12 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 13
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · VF 760 / VF 760 M VF 760 / VF 760 M

VF760 · VF760M Work table

• Cast iron is tempered for stress relief to ensure structural stability

without deformation
• C3 class ballscrews ensures the highest accuracy and durability
• Pre-tension on all axis minimizes thermal distortion

Technical Specifications VF760 VF760M

Table
Table size mm 900 x 420
T-slot (width x number x distance) mm 14 x 3 x 125 BT40 tool holder and pull stud (optional SK40)
Max. load kg 350
Travel
Dimensions
Standard configuration: X / Y / Z Travel mm 760 / 450 / 520
✔✔ Fully enclosed splash guard Spindle nose to table distance mm 100 - 620
✔✔ Direct drive spindle 12.000 min-1 (VF760) Spindle center to column distance mm 517
✔✔ Motor spindle 20.000 min-1, HSK A63 (VF760M)
Spindle
✔✔ Spindle cooling system
✔✔ 24 pocket arm tool changer SK 40 / BBT 40
Spindle taper - HSK A63
CAT 40
✔✔ Air-conditioned electrical cabinet
✔✔ Rigid tapping 9 / 22 Siemens 20 / 24
Spindle servo motor kW
11 / 15 Fanuc Siemens
✔✔ Ethernet, CF card and USB interface
✔✔ Automatic lubrication system Spindle speed min-1 12.000 20.000
✔✔ Coolant system
Feed
✔✔ Oil separator
✔✔ LED working lamp Rapid feed X/Y/Z m/min 48 24
✔✔ End of program light mm/
Cutting feed 1-12.000
✔✔ Electronic handwheel (MPG)
min
✔✔ Tool box Tool changer
✔✔ Leveling bolts and blocks Number of tools pcs. 24
✔✔ Coolant gun Max. tool length mm 300
✔✔ Air gun
Max. tool diameter mm 78 (125)
✔✔ Air blast during cutting
Max. tool weight kg 8
✔✔ User manuals
Accuracy (VDI 3441)
Positioning accuracy
mm 0.010
(without linear encoder)
Optional configuration:
Positioning repeatability
n Coolant through spindle mm 0.006
(without linear encoder)
n Motor spindle 32.000 min-1, HSK E40 (VF760M) Positioning accuracy
n Chain type chip conveyor mm 0.006
(with linear encoder)
n 4th axis Positioning repeatability
n 4/5th axis mm 0.004
(with linear enoder)
n Workpiece probe
Dimesions & weight
n Tool probe
n Linear encoder
Dimensions mm 2400 x 2120 x 2900
Weight kg 4500

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
14 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 15
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Mini Center Mini Center

Mini Center
•  Training
• Tool room workshop
• Metal parts machining
•  Model making
• R&D
• Cast iron is tempered for stress relief to ensure
structural stability without deformation
12 station umbrella tool changer LED Internal lamp Chip flushing system

Workpiece probe (optional) Tool probe (optional) Chip collector & Coolant tank

Work table

Technical Specifications Mini Center

Table
Table size mm 650 x 300
T-slot (width x number x distance) mm 14 x 3 x 100
Max. load kg 200
Travel
X / Y / Z Travel mm 500 / 300 / 400
Spinlde nose to table distance mm 120 - 520
Spindle center to column distance mm 340
Spindle
Spindle taper - SK 40 / BT 40 / CAT 40
Standard configuration:
4.8 / 19 Siemens
Spindle servo motor kW ✔✔ Fully enclosed splash guard ✔✔ Oil separator
5.5 / 7.5 Fanuc
✔✔ Belt drive spindle 10.000 min-1 ✔✔ LED working lamp
Spindle speed min -1
10.000
✔✔ 12 position umbrella tool ✔✔ End of program light
Feed changer ✔✔ Electronic handwheel (MPG) Dimensions BT40 Tool holder and pull stud (optional SK40)
Rapid speed m/min X/Y: 20, Z: 12 ✔✔ Heat exchanger for electrical ✔✔ Tool box
Cutting speed mm/min 1-10.000 cabinet ✔✔ Leveling bolts and blocks
Tool changer ✔✔ Rigid tapping ✔✔ Coolant gun
Number of tools pcs. 12 ✔✔ Ethernet, CF card and USB ✔✔ Air gun
Max. tool length mm 280 interface ✔✔ Chip flushing system
✔✔ Automatic lubrication system ✔✔ User manuals
Max. tool diameter mm 78 / 125
✔✔ Coolant system
Max. tool weight kg 8
Accuracy
Positioning accuracy 0.012
VDI 3441 (Full travel) mm
Positioning repeatability 0.008
Optional configuration:
Dimensions & weight n Spindle cooling system
Dimensions mm 1660 x 2000 x 2500 n Workpiece probe
n Tool probe
Weight kg 1800

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
16 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 17
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Delta Center T6 / T7 Delta Center T6 / T7

Delta Center T6 · T7
Work table (T6)
• Highly rigid machine frame for high acceleration
• High speed and low noise ballscrew and linear
guideways on three axes
• Direct drive spindle with standard speed 12.000 min-1
• Rapid feed 48 m/min to reduce non-machining time

Dimensions

Standard configuration: Technical specifications T6 T7

✔✔ Fully enclosed splash guard
Table
✔✔ Direct drive spindle with 12.000 min-1
Table mm 700 × 420 900 x 420
✔✔ 21 pocket tool changer
✔✔ Heat exchanger for electrical cabinet T-slot (width x number x distance) mm 14 x 3 x 125
✔✔ Rigid tapping Max. load kg 350
✔✔ Ethernet and CF card and USB interface Travel
✔✔ Automatic lubrication system X / Y / Z Travel mm 600 / 400 / 300 760 / 450 / 420
✔✔ Coolant system Spindle nose to table distance mm 150 - 450
✔✔ Oil separator Spindle center to column mm 465 517
✔✔ LED working lamp
Spindle
✔✔ End of program light
Spindle taper - BT 30 BBT 30
✔✔ Spindle cooling system
✔✔ Electronic handwheel (MPG) 4.8 / 19 Siemens
Spindel servo motor kW
3.7 / 5.5 Fanuc
✔✔ Tool box
✔✔ Leveling bolts and blocks Spindle speed min-1 12.000
✔✔ Coolant gun Feed
✔✔ Air gun Rapid feed m/min 48
✔✔ Chip flushing system mm/
Cutting feed 1-12.000
✔✔ User manuals min
Tool changer
Number of tools pcs. 21
Optional configuration: Max. tool length mm 250
n Spindle speed 20.000 min-1 Max. tool diameter mm 60 (80)
n 21 pocket servo tool changer Max. tool weight kg 3
n 4th axis
Accuracy
n Workpiece probe
Positioning accuracy 0.010
n Tool probe VDI 3441 (Full travel) mm
Positioning repeatability 0.006
n Coolant through spindle
Dimensions & weight
Dimensions mm 1760 x 2450 x 2300 2200 x 2600 x 2500
Weight kg 3000 3700

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
18 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 19
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Delta Center V6L Delta Center V6L

Delta Center V6L

Technical Specifications Delta Center V6L
Table
Table size mm 750 x 400
T-slot (width x number x
mm 14 x 3 x 125
distance)
Max. load kg 350
Travel
X/Y/Z Travel mm 600 / 400 / 450
Spindle nose to table distance mm 80 - 530
Spindle center to column
mm 434
distance
Spindle
Spibdle taper - SK 40 / BT 40 / CAT 40
20 pocket arm tool changer 4th axis optional
Spindle speed min-1 10.000
7 / 15 Siemens
Spindle servo motor kW
5.5 / 7.5 Fanuc
Feed Work table
Rapid feed m/min 48
Cutting speed mm/min 1-12.000
Tool changer
Number of tools pcs. 20
Max. tool length mm 280
Max. tool diameter mm 78 (125)
• Training Max. tool weight kg 8
Accuracy
• Tool room workshop
Positioning accuracy 0.010
• Metal parts machining VDI 3441 (Full travel) mm
Positioning repeatability 0.006
• Mold making, R  &D Dimensions & Weight
• Cast iron is tempered for stress relief to ensure structural
Dimensions mm 1800 × 2530 × 2700
stability without deformation Weight kg 3500
• C3 class ballscrews ensures the highest accuracy and
durability
Standard configuration:
• Pre-tension on all axes minimizes thermal distortion
✔✔ Fully enclosed splash guard
✔✔ Belt drive spindle 10.000 min-1
✔✔ 20 pocket arm tool changer
✔✔ Heat exchanger for electrical cabinet
✔✔ Rigid tapping
✔✔ Ethernet CF card and USB interface
✔✔ Automatic lubrication system
✔✔ Coolant system BT40 tool holder and pull stud (optional SK40)
✔✔ Oil separator
✔✔ LED working lamp
Dimensions
✔✔ End of program light
✔✔ Electronic handwheel (MPG)
✔✔ Tool box
✔✔ Leveling bolts and blocks
✔✔ Coolant gun
✔✔ Air gun
✔✔ Chip flushing system
✔✔ User manuals

Optional configuration:
n Spindle speed 12.000 min-1, direct drive
n Spindle cooling system
n Coolant through spindle
n  th axis
4
n Workpiece probe
n  o ol probe
T

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
20 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 21
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Delta Center V10L Delta Center V10L

Delta Center V10L Work table

• Cast iron is tempered for stress relief to ensure

structural stability without deformation
• Pre-tension on all axes minimizes thermal distortion
• C3 class ballscrews ensures the highest accuracy and
durability

BT40 tool changer and pull stud (optional SK40)

Dimensions

Technical Spesifications Delta Center V10L

Table
Table size mm 1100 x 500
T-slot (width x number x distance) mm 18 x 5 x 100
Max. load kg 600
Travel
X/Y/Z Travel mm 1020 / 520 / 550
Spindle nose to table distance mm 120 - 670 Standard configuration:
Spindle center to column distance mm 566
✔✔ Fully enclosed splash guard ✔✔ LED working lamp
Spindle ✔✔ Belt drive spindle 10.000 min-1 ✔✔ End of program light
Spindle taper - SK 40 / BT 40 / CAT 40 ✔✔ 24 pocket arm tool changer ✔✔ Electronic handwheel (MPG)
Spindle speed min-1 1-12.000 ✔✔ Air-conditioned electrical cabinet ✔✔ Tool box
9 / 22 Siemens ✔✔ Rigid tapping ✔✔ Leveling bolts and blocks
Spindle servo motor kW
7.5 / 11 Fanuc ✔✔ Ethernet, CF card and USB ✔✔ Coolant gun
interface ✔✔ Air gun
Tool changer
✔✔ Automatic lubrication system ✔✔ Chip flushing system
Number of tools pcs. 24
✔✔ Coolant system ✔✔ User manuals
Max. tool diameter
mm 78 (125) ✔✔ Oil separator
(without adjacent tool)
Max. tool length mm 300
Max. tool weight kg 8
Feed Optional configuration:
Rapid feed m/min 30 (opt. 48) n Spindle speed 12.000 min-1, direct drive
Cutting speed mm/min 1-12.000 n Spindle cooling system
Accuracy n Coolant through spindle
n Chain type chip conveyor
Positioning accuracy 0.010
VDI 3441 (Full travel) mm n 4th axis
Positioning repeatability 0.006
n 4/5th axis
Dimensions & weight
n Workpiece probe
Dimensions mm 2570 x 2160 x 2850
n Tool probe
Weight kg 5000
4th axis, different sizes

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
22 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 23
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machning center · Delta Center V7L Vertical machning center · Delta Center V7L

Alpha Center V7L Working table

Technical Specifications Alpha Center V7L

Table
Table size mm 900 x 420
T-slot (width x number x distance) mm 14 x 3 x 125
Max. load kg 350
Travel
X/Y/Z Travel mm 760 / 450 / 520
Spindle nose to table distance mm 100 - 620
Spindle center to column
mm 517
distance
Spindle
Spibdle taper - SK 40 / BT 40 / CAT 40
Spindle speed min-1 10.000
9 / 22 Siemens
Spindle servo motor kW
7.5 / 11 Fanuc
Feed
Rapid feed m/min 48
mm/
Cutting speed 1-12.000
min
Tool changer BT40 tool holder and pull stud (optional SK40)
Number of tools pcs. 24
Max. tool length mm 300 Dimensions
Max. tool diameter mm 78 (125)
Max. tool weight kg 8
Accuracy
Positioning accuracy 0.010
VDI 3441 (Full travel) mm
Positioning repeatability 0.006
Dimension & Weight
Dimension mm 2575 x 2760 x 2900
Weight kg 4500

Standard configuration:
✔✔ Fully enclosed splash guard ✔✔ Oil separator
✔✔ Belt drive spindle 10.000 min-1 ✔✔ LED working lamp
✔✔ 24 pocket arm tool changer ✔✔ End of program light
✔✔ Air-conditioned electrical ✔✔ Electronic handwheel (MPG)
cabinet ✔✔ Tool box
✔✔ Rigid tapping ✔✔ Leveling bolts and blocks
✔✔ Ethernet CF card and USB ✔✔ Coolant gun
interface ✔✔ Air gun
✔✔ Automatic lubrication system ✔✔ Chip flushing system
✔✔ Coolant system ✔✔ User manuals

Optional configuration:

n Spindle speed 12.000 min-1, direct drive

n Spindle cooling system
n C  oolant through spindle
n W  orkpiece probe
n Chain  type chip conveyor
n 4  th axis
n 4/5th axis
n Tool probe

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
24 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 25
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Alpha Center V9L / V11L Alpha Center · V9L / V11L

Alpha Center V9L · V11L Work table (V11L)

• Cast iron is tempered for stress relief to ensure

structural stability without deformation
• C3 class ballscrews ensures the highest accuracy
and durability
• Pre-tension on all axis minimizes thermal distortion

BT40 Tool holder and pull stud (optional SK40)

Dimensions (V11L)
Technical Specifications V9L V11L
Table
Table size mm 1000 x 500 1200 x 600 Standard configuration:
T-slots ✔✔ Fully enclosed splash guard
mm 18 x 5 x 100
(width x number x distance) ✔✔ Belt drive spindle 10.000 min-1
Max. load kg 650 800 ✔✔ 24 pocket arm tool changer
✔✔ Air-conditioned for electrical cabinet
Travel
✔✔ Rigid tapping
X/Y/Z Travel mm 900 / 550 / 600 1100 / 600 / 600 ✔✔ Ethernet, CF card and USB interface
Spindle nose to table distance mm 80 - 680 150 - 750 ✔✔ Automatic lubrication system
Spindle center to column distance mm 585 652 ✔✔ Coolant system
Spindle ✔✔ Oil separator
Spindle taper - SK 40 / BT 40 / CAT 40 ✔✔ LED working lamp
✔✔ End of program light
9 / 22 Siemens
Spindle servo motor kW ✔✔ Electronic handwheel (MPG)
11 / 15 Fanuc
✔✔ Tool box
Spindle speed min-1 10.000
✔✔ Leveling bolts and blocks
Feed ✔✔ Coolant gun
Rapid feed m/min 36 ✔✔ Air gun
mm/ ✔✔ Chip flushing system
Cutting speed 1-12.000
min ✔✔ User manuals
Tool changer
Number of tools pcs. 24
Max. tool length mm 300 Optional configuration:
Max. tool diameter mm 78 (125) n Spindle speed 12.000 min-1, direct drive
Max. weigth kg 8 n Spindle cooling system
Accuracy n Coolant through spindle
Positioning accuracy 0.010 n Chain type chip conveyor
VDI 3441 (Full travel) mm
Positioning repeatability 0.006 n 4th axis
Dimensions & weight n 4/5th axis
Dimensions mm 2700 x 2330 x 2900 n Workpiece probe
n Tool probe
Weight kg 6000 6500 4 th axis, different sizes

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
26 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 27
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Alpha Center V13L / V15L Alpha Center V13L / V15L

Alpha Center V13L · V15L

Work table (V15L)

• Cast iron is tempered for stress relief to ensure structural stability

without deformation
• C3 class ballscrews ensures the highest accuracy and durability
• Pre-tension on all axis minimizes thermal distortion

Technical Specifications V13L V15L BT40 Tool holder and pull stud (optional SK40)

Table
Table size mm 1400 x 600 1700 x 600 Dimensions (V15L)
T-slot (width x number x distance) mm 18 x 5 x 100
Max. load kg 1000 1200 Standard configuration:
✔✔ Fully enclosed splash guard
Travel
✔✔ Belt drive spindle 10.000 min-1
X / Y / Z Travel mm 1300 / 760 / 670 1500 / 760 / 670
✔✔ 24 pocket arm tool changer
Spindle nose to table distance mm 80 - 750 ✔✔ Air-conditioned electrical cabinet
Spindle center to column ✔✔ Rigid tapping
mm 797
distance ✔✔ Ethernet, CF card and USB interface
Spindle ✔✔ Automatic lubrication system
Spindle taper - SK 40 / BT 40 / CAT 40 ✔✔ Coolant system
✔✔ Oil separator
Spindle speed min-1 10.000
✔✔ LED working lamp
15 / 38 Siemens
Spindle servo motor kW ✔✔ End of program light
11 / 15 Fanuc
✔✔ Electronic handwheel (MPG)
Tool changer ✔✔ Tool box
Number of tools pcs. 24 ✔✔ Leveling bolts and blocks
Max. tool length mm 300 ✔✔ Coolant gun
Max. tool diameter mm 78 (125) ✔✔ Air gun
✔✔ Air blast during cutting
Max. tool weigth kg 8
✔✔ User manuals
Feed
Rapid feed m/min 24
Optional configuration:
Cutting speed mm/min 1-12.000
n Spindle speed 12.000 min-1, direct drive
Accuracy (VDI 3441 Full travel) n Spindle cooling system
n Coolant through spindle
Positioning accuracy mm 0.012 0.015
n Chain type chip conveyor
Positioning repeatability mm 0.008 n 4th axis
n 4/5th axis
Dimnesions & weight
n Workpiece probe
Dimensions mm 3700 x 2640 x 3100
n Tool probe
Weight kg 8000 8500
5th axis, different sizes

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
28 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 29
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Power Center V11 Power Center V11

Power Center V11 Working table

Dimensions

• Pre-tension on all axis minimizes thermal distortion

• C3 class ballscrews ensures the highest accuracy and durability

Standard configuration:
✔✔ Fully enclosed splash guard ✔✔ LED working lamp
✔✔ Belt drive spindle 8000 min-1 ✔✔ End of program light
✔✔ 24 pocket arm tool changer ✔✔ Electronic handwheel (MPG)
✔✔ Air-conditioned electrical cabinet ✔✔ Tool box
✔✔ Rigid tapping ✔✔ Leveling bolts and blocks
✔✔ Ethernet, CF card and USB ✔✔ Coolant gun
interface ✔✔ Air gun
✔✔ Automatic lubrication system ✔✔ Air blast during cutting
✔✔ Coolant system ✔✔ User manuals
✔✔ Oil separator

Technical Specifications Power Center V11 Technical Specifications Power Center V11 Optional configuration:
Table Feed n Spindle cooling system
Table size mm 1200 x 600 Rapid feed m/min 20 n 4th axis,
T-slot (width x number x Cutting speed mm/min 1-8.000 n 4/5th axis
mm 18 x 5 x 110
distance) n Spindle speed 8.000 min-1 with 16 pocket ATC, CAT50, SK50, BT50
Max. load kg 850 Tool changer n Chain type chip conveyor
Travel Number of tools pcs. 24 n Coolant through spindle
X/Y/Z Travel mm 1100 / 600 / 560 Max. tool length mm 300 n Workpiece probe
Spindle nose to table distance mm 100 - 660 Max. tool diameter mm 78 (125) n Tool probe
Spindle center to column Max. tool weight kg 8
mm 638
distance Accuracy
Spindle Positioning accuracy 0.012
VDI 3441 (Full travel) mm
Spindle taper - CAT 40 / SK 40 / BT 40 Positioning repeatability 0.008
15 / 38 Siemens Dimensions & weight
Spindle servo motor kW
15 / 18.5 Fanuc Dimensions mm 3110 x 2450 x 2950
Spindle speed min-1 8.000 Weigth kg 8000

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
30 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 31
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Power Center V18 Power Center V18

Power Center V18 Working table

Dimensions

• C3 class ballscrews ensures the highest accuracy and durability • Pre-tension on all axis minimizes thermal distortion

Technical Specifications Power Center V18 Standard configuration:

Table ✔✔ Fully enclosed splash guard
Table size mm 1900 x 900 ✔✔ Belt drive spindle 6.000 min-1
T-slot (width x number x ✔✔ 24 pocket arm tool changer
mm 18 x 7 x 120 ✔✔ Air-conditioned electrical cabinet
distance)
Max. load kg 3000 ✔✔ Rigid tapping
✔✔ Ethernet, CF card and USB interface
Travel
✔✔ Automatic lubrication system
X / Y / Z Travel mm 1800 / 900 / 700
✔✔ Coolant system
Spindle nose to table distance mm 200 - 900 ✔✔ Oil separator
Spindle center to column ✔✔ LED working lamp
mm 1025
distance ✔✔ End of program light
Spindle ✔✔ Electronic handwheel (MPG)
Spindle taper - SK 50 / BT 50 / CAT 50 ✔✔ Tool box
18.5 / 48 Siemens ✔✔ Leveling bolts and blocks
Spindle servo motor kW
22 / 26 Fanuc ✔✔ Coolant gun
Spindle speed min-1 6.000 ✔✔ Air gun
Feed ✔✔ Air blast during cutting
Rapid speed m/min 15 ✔✔ User manuals
Cutting speed mm/min 1-7.000
Tool changer
Number of tools pcs. 24 Optional configuration:
Max. tool length mm 350 n Spindle cooling system
Max. tool diameter mm 125 / 245 (next release) n Chip conveyor (two screw type and one chain type)
Max. tool weight kg 15 n Gear head spindle 6.000 min-1 with transmission ratio 1:4
n Coolant through spindle
Accuracy
n 4th axis,
Positioning accuracy 0.020 n 4/5th axis
VDI 3441 (Full travel) mm
Positioning repeatability 0.010
n Workpiece probe
Dimensions & weight n Tool probe
Dimensions mm 4500 x 3450 x 3200
Weight kg 17500

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
32 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 33
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machning center · V65HS Vertical machning center V1613HS

High Speed Double Column Center
V65HS • Electrodes for EDM machine
• HIWIN linear guideways in all 3 axes
• Art jobs
High Speed Double Column Center
V1613HS
• Cast iron is tempered for stress relief to ensure structural
stability without deformation
• C3 class ballscrews ensures the highest accuracy and
durability
• Pre-tension on all axes minimizes thermal distortion
• Roller type linear guideway, which offers supper high
rigidity and loading capacity

Also with Graphit Machining

Preparation!

• High rigidity of machine frame for high •C

 3 class ballscrews ensures the highest
acceleration accuracy and durability
• Cast iron is tempered for stress relief •P
 re-tension on all axes minimizes
to ensure structural stability without thermal distortion
deformation

Technical Specifications V65HS

Table
Table size mm 600 x 500 Standard configuration:
T-slot (width x number x distance) mm 18 x 5 x 100 ✔✔ Fully enclosed splash guard ✔✔ LED working lamp
✔✔ Direct drive spindle 12.000 min-1 ✔✔ End of program light
Max. load kg 300
✔✔ Air-conditioned electrical cabinet ✔✔ Electronic handwheel (MPG)
Travel
✔✔ Rigid tapping ✔✔ Tool box
X/Y/Z Travel mm 600 / 500 / 250 Optional configuration:
✔✔ Ethernet, CF card and USB ✔✔ Leveling bolts and blocks
Spindle nose to table distance mm 80 - 330 n Direct drive spindle 15.000 min-1
interface ✔✔ Coolant gun
Spindle center to column distance mm 760 ✔✔ Automatic lubrication system ✔✔ Air gun n Motor spindle 20.000 min-1, HSK A63
Spindle ✔✔ Coolant system ✔✔ User manuals n 32 pocket arm tool changer
Spindle taper - HSK E40 ✔✔ Spindle cooling system n Chip conveyor (two screw type and one chain type)
Spindle servo motor kW 5.5 Standard configuration:
Spindle speed min-1 30.000 ✔✔ Fully enclosed splash guard ✔✔ Automatic lubrication system
Technical Specifications V1613HS Technical Specifications V1613HS
Feed HIWIN linear guideways in 3 axis ✔✔ Coolant system
Rapid feed m/min 15 ✔✔ Motor spindle 30.000 min-1, ✔✔ LED working lamp Table Rapid speed mm/min 20
Cutting speed mm/min 1-8.000 HSK E40 ✔✔ End of program light Table size mm 1700 x 1200 Cutting speed mm/min 1-12.000
Tool changer ✔✔ 12 position umbrella tool ✔✔ Electronic handwheel (MPG) T-slot (width x number x distance) mm 18 x 7 x 150 Tool changer
Number of tools pcs. 12 changer ✔✔ Chip flushing system Max. load kg 3000 Number of tools pcs. 32 (option)
✔✔ Spindle cooling system ✔✔ Leveling bolts and blocks Travel
Max. tool length mm 150 Max. tool length mm 300
✔✔ Ethernet, CF card and USB ✔✔ Air gun X/Y/Z Travel mm 1600 / 1300 / 600
Max. tool diameter mm 16
interface ✔✔ User manuals Max. tool diamter mm 78 (125)
Max. tool weight kg 3 Spindle nose to table distance mm 200 - 800
Spindle center to column distance mm 1380 Max. tool weight kg 8
Accuracy
Positioning accuracy 0.009 Spindle Accuracy
VDI 3441 (Full travel) mm
Positioning repeatability 0.006 Optional configuration: Spindle taper - SK40 / BT40 / CAT40 Positioning accuracy 0.015
VDI 3442 (Full travel) mm
Dimensions & weight n Graphite machining preparation 9 /22 Siemens Positioning repeatability 0.012
Spindle servo motor kW Dimensions & weight
Dimensions mm 1750 x 2000 x 2300 n Spindle nose to table change to 180-430 mm / 280-530 mm 7.5/11 Fanuc
n Tool probe Spindle speed min-1 12.000 Dimensions mm 4500 x 2800 x 3200
Weight kg 3500
Feed Weight kg 13000

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
34 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 35
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Double Column Center V2317 / V3317 Double Column Center V3025 / V4025

Double Column Center

V2317 · V3317· V3025 · V4025 • Extra wide column to increase to connection surface with the crossbeam to
avoid vibration during cutting
• All axes are moved by high quality precision gear box to ensure high torque and
rigidity during movement (V3317 on all axes and V3025 / V4025 on X axis)
• Roller type linear guideway, which offers super high rigidity and loading capacity
• Hydraulic balancing system on Z axis

Hydraulic balancing system

Gear drive

Standard configuration:
✔✔ Fully enclosed splash guard ✔✔ LED working lamp
✔✔ Air-conditioned electrical cabinet ✔✔ End of program light
✔✔ Rigid tapping ✔✔ Electronic handwheel (MPG)
✔✔ Ethernet, CF card and USB ✔✔ Tool box
interface ✔✔ Leveling bolts and blocks Optional configuration:
✔✔ Automatic lubrication system ✔✔ Coolant gun n 24 pocket arm tool changer
✔✔ Coolant system ✔✔ Air gun n Chip conveyor (two screw type and one chain type)
✔✔ Spindle cooling system ✔✔ User manuals n Gear box
Chip conveyour

Technical Specifications V2317 V3317 Technical Specifications V2317 V3317 Technical Specifications V3025 V4025 Technical Specifications V3025 V4025
Table Feed Table Feed
Table size mm 2300 x 1500 3300 x 1500 m/ Table size mm 3000 x 2100 4000 x 2100 m/
Rapid feed 15 / 15 / 12 Rapid feed 12 / 12 / 10 10 / 12 / 10
min min
T-slot (width x number x T-slot (width x number x
mm 22 x 8 x 150 22 x 8 x 170 mm/ mm 28 x 9 x 220 mm/
distance) Cutting speed 1-10.000 distance) Cutting speed 1-10.000
min min
Max. load kg 8.000 10.000 Max. load kg 8.000 10.000
Tool changer Tool changer
Travel Travel
Number of tools pcs. 24 (option) Number of tools pcs. 24 (option)
X/Y/Z Travel mm 2300 / 1600 / 800 3300 / 1600 / 800 X/Y/Z Travel mm 3000 / 2500 / 1000 4000 / 2500 / 1000
Max. tool length mm 400 Max. tool length mm 400
Spindle nose to table Spindle nose to table
mm 240 - 1040 Max. tool diameter mm 120 / 250 (next release) mm 105 - 1105 Max. tool diameter mm 120 / 250 (next release)
distance distance
Spindle center to column Max. tool weight kg 15 Spindle center to column Max. tool weight kg 15
mm 1680 mm 2480
distance distance
Accuracy (VDI 3441 Full travel) Accuracy (VDI 3441 (Full travel)
Spindle Spindle
Positioning accuracy mm 0.016 0.019 Positioning accuracy mm 0.018 0.025
Spindle taper - SK50 / BT50 / CAT 50 Spindle taper - SK50 / BT50 / CAT 50
Positioning repeatability mm 0.013 0.015 Positioning repeatability mm 0.015 0.020
Spindle servo motor kW 22 / 60 Siemens, 22 / 26 Fanuc Spindle servo motor kW 22 / 60 Siemens, 22 / 26 Fanuc
Dimensions & weight Dimensions & weight
Spindle speed min-1 6.000 Spindle speed min-1 6.000
Dimensions mm 6700x4700x4550 8700x4700x4550 Dimensions mm 7800x5300x4950 9800x5300x4950
Spindle transmission direct drive Spindle transmission direct drive
Weight kg 24000 26000 Weight kg 29000 33000

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
36 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 37
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Vertical machining center · Torque Charts Vertical milling centers · Torque Charts

Torque charts / Standard Siemens Torque charts / Standard Siemens

VF1100 · 1300 / Alpha Center V13L · V15L / Power Center V11 Mini Center / Delta Center T6 · T7 High Speed Double Column Center V65HS High Speed Double Column Center V1613HS

Delta Center V6L VF760 · 900 / Delta Center V10L / Alpha Center V7L · V9L · V11L VF760M · 20000 rpm · HSK A63 VF760M · 32000 rpm · HSK A63

Double Column Center V2317 · V3317 · V3025 · V4025 Power Center V18

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
38 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 39
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 Machine structure and components Quality management

Machine structure Measurements control during the producting

High rigidity of headstock

Well balanced spindle

Extra wide column

Heavy duty and precise linear

guideways

X-axis with 6 blocks

Hand scraping

The bearing and motor seat in Y-axis

Pre-loaded ballscrew with double nut are connected in one piece to have
better performance during high speed
moment

High quality machine components

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
40 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 41
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 5 Axis Rotary Table 5 Axis Rotary Table

R R
Alloy steel worm gear
Worm shaft

R a t a rRya ttaarbyl et a b l e

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
42 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 43
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
 CNC Controller Siemens CNC Controller FANUC · Heidenhain

Siemens Sinumerik 828D FANUC 0i MF Heidenhain TNC 620

Turning and milling operations on standardized machines Rugged
as well as functions for the easy automation of grinding An operator panel front made of magnesium die cast, the
machines – this where SINUMERIK 828D ADVANCED, panel-based CNC design with well-conceived interfaces,
SINUMERIK 828D and SINUMERIK 828D BASIC, with as well as the high degree of protection IP 65 make the
their unique CNC performance, set standards regarding SINUMERIK 828 controls a reliable partner even in harsh
productivity. environments.
Milling on standardized machines – SINUMERIK 828 Maintenance-free
CNCs are setting the benchmark with their unique CNC Thanks to the configuration without fan or hard disk and the
performance. NV-RAM storage technology without back-up battery, the
SINUMERIK 828 controls are completely maintenance free.
Features
Intelligente User-friendly
✔✔ Panel-based compact CNC
Thanks to a fully fledged QWERTY CNC keyboard with
✔✔ Technologies: Turning, milling, grinding functions
short stroke keys and a high-resolution 10.4“ TFT color
✔✔ Up to 10 axes/spindles + 2 auxiliary axes
display / 15.6’’ touch display, the SINUMERIK 828 controls
✔✔ Up to 2 machining channels
can be easily operated. The USB, CF card (only 10.4’’) and
✔✔ 10.4“ color display / 15.6’’ touch display
RJ45 interfaces on the operator panel front allow to quickly
✔✔ S7-200 PLC based
transfer the CNC data in an uncomplicated manner.
The CNC series 0i model F provides the ideal basic solution The TNC 620 is compact and easy to read. The TNC 620
for multiple control applications. Ready to use, it boasts is a compact but versatile contouring control for up to five
latest generation hardware and a complete package of controlled axes. Thanks to its flexible operating concept—
standard software. To maximise productivity on more workshop-oriented programmability with HEIDENHAIN
specific applications, it can be easily customised using a conversational programming or offl ine programming—and
range of additional functions. Combining unbeatable value its scope of features, it is especially suited for use on universal
for money with unrivalled performance and reliability, it milling, drilling and boring machines for the following:
includes features and functions usually associated with high
performance systems. ✔✔ Series and single-part production
✔✔ Toolmaking Machine building
Key features:
✔✔ Research and development
✔✔ up to 12 axes, 6 spindle axes and 2 paths
✔✔ Prototypes and pilot plants
✔✔ up to 2 additional loader paths
✔✔ Repair departments
✔✔ 4-axis simultaneous and 3+2 axis machining
✔✔ Training and education facilities
✔✔ ready to use with integrated software package
✔✔ excellent performance-to-cost ratio Universal milling machines
✔✔ integrated FANUC Dual Check Safety function ✔✔ Free contour programming
✔✔ shop-floor programming via MANUAL GUIDE i or ✔✔ Milling cycles for complex contours
TURN MATE i ✔✔ Fast presetting with HEIDENHAIN touch probe
✔✔ additional functions for simple customisation

✔✔ integrated high-speed PMC Drilling and boring machines

✔✔ high speed and high quality machining package ✔✔ Cycles for drilling, boring and spindle alignment

✔✔ maximum look-ahead blocks 400 ✔✔ Cycles for linear and circular point patterns

✔✔ common operability, maintainability, network and

PMC function with CNC Series 30i-MODEL B

* The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment.
44 * The above specifications are subject to change without prior notice, no liability for mistakes. Machines may be shown with optional equipment. 45
w w w . p r i m i n e r. d e w w w . p r i m i n e r. d e
PRIMINER Werkzeugmaschinen GmbH
Gadelander Str. 172 · D-24539 Neumünster / Germany
Tel: +49 (0) 4321-53 9946 -0
Fax: +49 (0) 4321-25 20 03 -90
E-mail: info@priminer.de

PRIMINER SOUTH EAST EUROPE · PRIMINER d.o.o. BEOGRAD

Vladimira Popovica 38-40 · GTC - 11070 Beograd / Srbija
Tel: +381 69 702 705
Fax: +381 11 715 69 00
E-mail: office@priminer.de

PRIMINER MACHINE TOOLS DONGGUAN CO., LTD

XinRuYi Industrial Park, Fuxing Road, Xingguang Village, Huangjiang Town, Dongguan, P.R.China
Tel: +86 769 838 490 61
Fax: +86 769 838 490 62
E-mail: export@priminer.com
www.priminer.de
