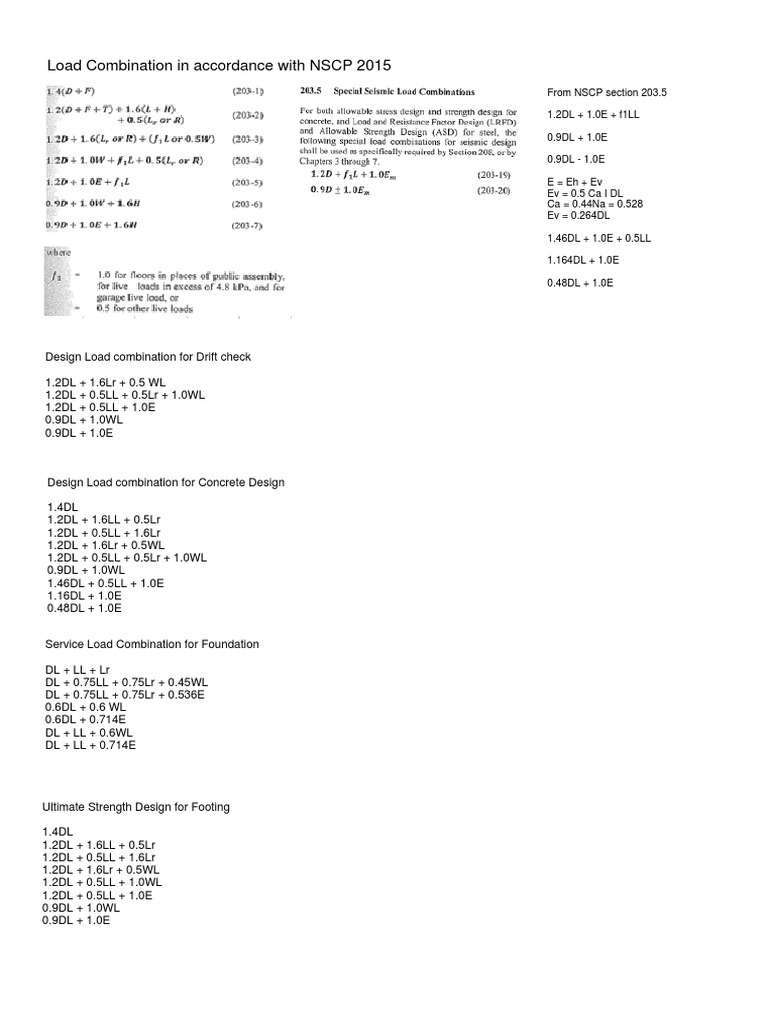

    Load Combination in accordance with NSCP 2015

    From NSCP section 203.5

    1.2DL + 1.0E + f1LL

    0.9DL + 1.0E

    0.9DL - 1.0E

    E = Eh + Ev
    Ev = 0.5 Ca I DL
    Ca = 0.44Na = 0.528
    Ev = 0.264DL

    1.46DL + 1.0E + 0.5LL

    1.164DL + 1.0E

    0.48DL + 1.0E

    Design Load combination for Drift check

    1.2DL + 1.6Lr + 0.5 WL


    1.2DL + 0.5LL + 0.5Lr + 1.0WL
    1.2DL + 0.5LL + 1.0E
    0.9DL + 1.0WL
    0.9DL + 1.0E

    Design Load combination for Concrete Design

    1.4DL
    1.2DL + 1.6LL + 0.5Lr
    1.2DL + 0.5LL + 1.6Lr
    1.2DL + 1.6Lr + 0.5WL
    1.2DL + 0.5LL + 0.5Lr + 1.0WL
    0.9DL + 1.0WL
    1.46DL + 0.5LL + 1.0E
    1.16DL + 1.0E
    0.48DL + 1.0E

    Service Load Combination for Foundation

    DL + LL + Lr
    DL + 0.75LL + 0.75Lr + 0.45WL
    DL + 0.75LL + 0.75Lr + 0.536E
    0.6DL + 0.6 WL
    0.6DL + 0.714E
    DL + LL + 0.6WL
    DL + LL + 0.714E

    Ultimate Strength Design for Footing

    1.4DL
    1.2DL + 1.6LL + 0.5Lr
    1.2DL + 0.5LL + 1.6Lr
    1.2DL + 1.6Lr + 0.5WL
    1.2DL + 0.5LL + 1.0WL
    1.2DL + 0.5LL + 1.0E
    0.9DL + 1.0WL
    0.9DL + 1.0E
