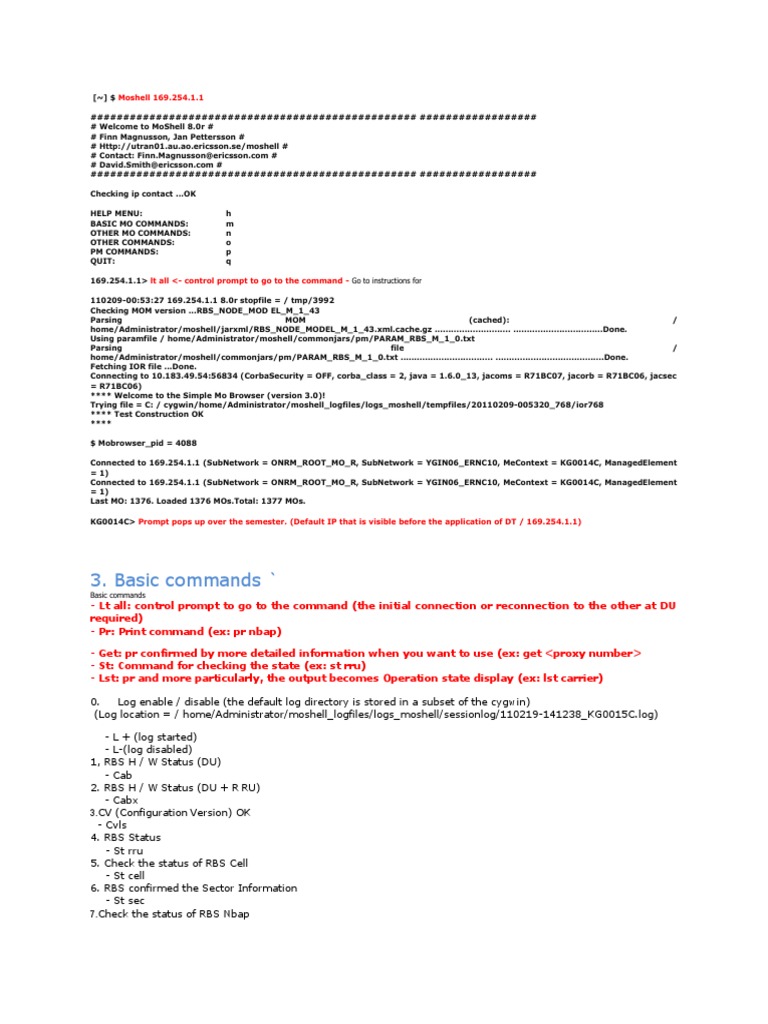

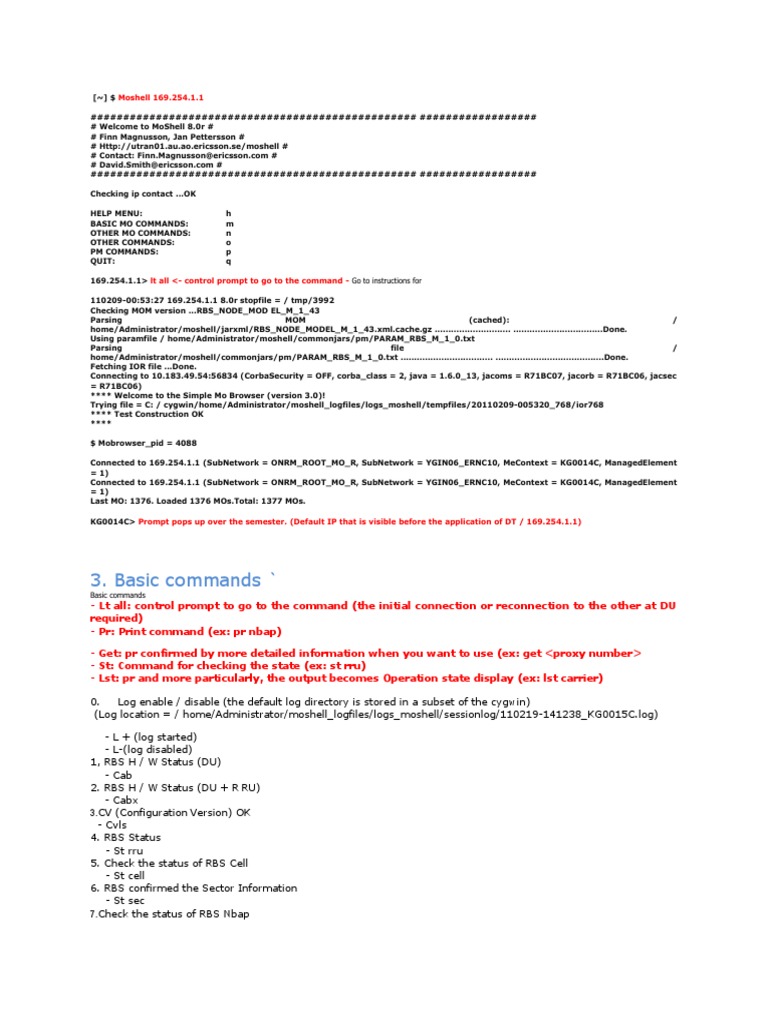

[~] $ Moshell 169.254.1.

1

################################################## ##################
# Welcome to MoShell 8.0r #
# Finn Magnusson, Jan Pettersson #
# Http://utran01.au.ao.ericsson.se/moshell #
# Contact: Finn.Magnusson@ericsson.com #
# David.Smith@ericsson.com #
################################################## ##################

Checking ip contact ...OK

HELP MENU: h
BASIC MO COMMANDS: m
OTHER MO COMMANDS: n
OTHER COMMANDS: o
PM COMMANDS: p
QUIT: q

169.254.1.1> lt all <- control prompt to go to the command - Go to instructions for

110209-00:53:27 169.254.1.1 8.0r stopfile = / tmp/3992
Checking MOM version ...RBS_NODE_MOD EL_M_1_43
Parsing MOM (cached): /
home/Administrator/moshell/jarxml/RBS_NODE_MODEL_M_1_43.xml.cache.gz ............................ .................................Done.
Using paramfile / home/Administrator/moshell/commonjars/pm/PARAM_RBS_M_1_0.txt
Parsing file /
home/Administrator/moshell/commonjars/pm/PARAM_RBS_M_1_0.txt .................................. ........................................Done.
Fetching IOR file ...Done.
Connecting to 10.183.49.54:56834 (CorbaSecurity = OFF, corba_class = 2, java = 1.6.0_13, jacoms = R71BC07, jacorb = R71BC06, jacsec
= R71BC06)
**** Welcome to the Simple Mo Browser (version 3.0)!
Trying file = C: / cygwin/home/Administrator/moshell_logfiles/logs_moshell/tempfiles/20110209-005320_768/ior768
**** Test Construction OK
****

$ Mobrowser_pid = 4088

Connected to 169.254.1.1 (SubNetwork = ONRM_ROOT_MO_R, SubNetwork = YGIN06_ERNC10, MeContext = KG0014C, ManagedElement
= 1)
Connected to 169.254.1.1 (SubNetwork = ONRM_ROOT_MO_R, SubNetwork = YGIN06_ERNC10, MeContext = KG0014C, ManagedElement
= 1)
Last MO: 1376. Loaded 1376 MOs.Total: 1377 MOs.

KG0014C> Prompt pops up over the semester. (Default IP that is visible before the application of DT / 169.254.1.1)





3. Basic commands `
Basic commands
- Lt all: control prompt to go to the command (the initial connection or reconnection to the other at DU
required)
- Pr: Print command (ex: pr nbap)

- Get: pr confirmed by more detailed information when you want to use (ex: get <proxy number>
- St: Command for checking the state (ex: st rru)
- Lst: pr and more particularly, the output becomes Operation state display (ex: lst carrier)

0.       Log enable / disable (the default log directory is stored in a subset of the cygwin)
(Log location = / home/Administrator/moshell_logfiles/logs_moshell/sessionlog/110219-141238_KG0015C.log)

- L + (log started)
- L-(log disabled)
1, RBS H / W Status (DU)
- Cab
2. RBS H / W Status (DU + R RU)
- Cabx
3.CV (Configuration Version) OK
  - Cvls
4. RBS Status
- St rru
5. Check the status of RBS Cell
- St cell
6. RBS confirmed the Sector Information
- St sec
7.Check the status of RBS Nbap
 - St nbap
8. RNC & RBS RBS of the Cell by the state of OK
- Get cell av
9. Sector block / unblock: (Sector is a proxy no confirmation of any sort would do this after!)
   - St rru after checking the state
=> Bl <proxy no>
=> Deb <proxy no>
10.DU Reset
   - Acc 0 manualrestart / + option ex) warm restart = acc 0 manualrestart / y / 0 / 0 / warm
11. RRU Reset
   - Plug in the unit status is OK
- St plug
  - Acl <proxy no>: acknowledge proxy no abbreviations and instructions can be performed on Display
  - Acc <proxy no> restartAuxUnit: Perform the RRU Reset
12.Reference Clock Status
- Get Sync
13.Is set to output (RF power) OK
- Get. maxdl
14.RBS set to star in the functional verification of the Cell
- Get rbslocal
15.Check Node-id
- Get all finger
16. Check License
- License server
17. Package Status
- Pr upg
- Del <proxy no> (Package delete command!)
18. RBS time check / reset
- Readclock
- Setclock xxxx-xx-xx xx: xx: xx (ex 2011-02-12 12:15:30)
19. RRU Node-id check (DU and RU is not connected between Node-id can not read)
-Lh ru nodeid read
20. RBS (Node-B) Function Check (License permit and a limited functional verification phase)
- Get nodebfunction
21. Disk Mirror Status
- Mirror status
22. Check iub section
- Lst e1
- Lst ima
- Lst iub
- Lst ch
- Lst sync
23. Check CV / create / delete / Activation
- Cvls (cv OK)
- Cvms R3AF11_03_20110129 twobooks After DT loaded (Package version created after that date and the name and CV, make sure that any write
operation)
- Cvrm R3AF11_03_20110129 (CV Delete)
- Cvset R3AF11_03_20110129 (CV Activation)
  => Cvset performed after the rbs Reset (acc 0 manualrestart/y/0/0/warm)
24. Carrier Check
- Lst carrier (FA confirmed by the state)
25. VSWR Status
  - Lget. antennasupervision (antenna threshold value determination)
- Lh ru fui get vswr (normal is 17 ~ 22db)
26. Check Antenna
- Lget. sectorantenna
27. Check the status of ATM (Transportnetwork)
- Lst atm
28. FA confirm assignment
- Lget sector = 1, carrier dbccDeviceRef
=> The output of the slot number and DU (P or S) and the FA Im Carrier
29. Check IP address
  - Get. ipadd
30. Check power setting value
- Get all power
31. Check the subscriber is connected
 - Get rad no
32. Check alarm port / block / unblock
- Pr alarmport
- Lst alarmport
- Deb alarmport
- Bl alarmport


1, Change Synchronization

1. get 10
2. acl 10
3. acc 10 removeSyncRefResource (y / IpSystem = 1, IpAccessHostEt = 1, IpSyncRef = 7)
4. acc 10 removeSyncRefResource (y / IpSystem = 1, IpAccessHostEt = 1, IpSyncRef = 8)
5. get 10
6. st e1
7. acl 10
8. acc 10 addSyncRefResource (y / Equipment = 1, Subrack = 1, Slot = 1, PlugInUnit = 1, ExchangeTerminal = 1,
E1PhysPathTerm = pp1)
9. acc 10 addSyncRefResource (y / Equipment = 1, Subrack = 1, Slot = 1, PlugInUnit = 1, ExchangeTerminal = 1,
E1PhysPathTerm = pp2)
10. acc 10 addSyncRefResource (y / Equipment = 1, Subrack = 1, Slot = 1, PlugInUnit = 1, ExchangeTerminal =
1, E1PhysPathTerm = pp3)
11. acc 10 addSyncRefResource (y / Equipment = 1, Subrack = 1, Slot = 1, PlugInUnit = 1, ExchangeTerminal =
1, E1PhysPathTerm = pp4)
12. acc 10 addSyncRefResource (y / IpSystem = 1, IpAccessHostEt = 1, IpSyncRef = 7
13. acc 10 addSyncRefResource (y / IpSystem = 1, IpAccessHostEt = 1, IpSyncRef = 8
14 cvls
15. cvms CXP9016868_1_R3AF11_01 twobooks After Synch prior
16. acc 0 manualrestart (y/0/0)
17. pol


2. Switchover Active to Standby

1. cab
2. st plug
3. bl 17 (Proxy number)
4. acl 17 (Proxy number)
5. acc 17 manualRestart (y/0/1)
6. lt all
7. cab
8. deb 17 (Proxy number)















3. Change finger print

[Moshell Ver 8.0 or more available]
*** RRU has been made and performed in Sync
1. cabx
2. get all finger
3. lh ru nodeid read
4. lh ru nodeid write 3 1 3 7 3 5 3 4 3 8 3 6 5f 3 1 3 2 3 3 3 4 3 5 3 6
   -> Ex) 175486_123456 (the second number of digits consisting of a combination Im Finger print)
       *** Back seat of the first 6 digits Serial number 6 digits and the Hard-disk Format automatically converted to.
5. lh ru nodeid read
6. cabx
7. acc 0 manualrestart (y/0/1)
8. get all finger








4. DU Format (dual stack)

[Use Tools: Teratemm, ws_ftp, RS-232 Cable, UTP Cable, EM, moshell]
1, Power off (DU / P, DU / S)
2. DU / P and DU / S Cable Remove everything in between
3. DU / P Power on
4. Connect to DU / P (RS-232 & UTP)
5. [Using RS-232]
1) rbs / rbs
  2) reload -
  3) vols
  4) formathd / c2 ("vols" when checking into the security is c2 "mount_c2" format and will mount to)
  5) formathd / d
  6) reload
  7) vols (/ c2, / d capacity of the disk check)
  8) ifconfig le0 169.254.1.1 netmask 255.255.0.0
  9) ifconfig (IP and netmask set up OK)
6. Basic CV file a laptop c2 and d C: / is copied below. (DU Format Copy from another source, it must be even
used)
7. [Using ws_FTP]
    1) ftp to the laptop to the Basic CV DU Harddisk Transfer (DU's Directory of the WS_FTP "ChgDir" in the "/" as a
byeongyeongham)
      - C2 & d

8. Check transmission is completed, and then takes an Action.
[Using RS-232]
1) reload
  - "Login Server Ready" and wait until the climb.
9. DU / S Power on
10. Clauses 4 to 8 times the same hangkkaji DU / S is also performed.
11. DU Power off (DU / P, DU / S)
12. DU / P and DU / S Cable connection between
13. DU / P -> DU / Power on sequence
14. [Using EM]
1) Cabinet Equipment Configuration (Script RBS does not have to manually code in the top center Enabled)
  Ex)
  - Product Date: 20100826
- Prouduct Name: RBS 6601
- Productor Number: 103/BFL 901 009
  - Product Revision: R2B
  - Serial Number: CB4E140152
15. [Using moshell]
    1) cab (Active DU and Sync between Standby DU will be ready to wait until)
      - Standbywriting -> Standbysync -> StandbyReady proceeded in order.
16. [Using EM]
    1) O & M Access Configuration do
    2) Site Equipment Configuration do
    3) MO Configuration
17. [Using moshell]
    1) Setclock
18. [Using EM]
    1) Create CV














3. Alarm related
1) Alarm check
1, After connecting Moshell "alt" to determine the current alarm is raised.

2) Clear alarm [password alm]
[RS 232C Debug use]
1, Once connected, "passwd"
2. rbs (password change)
3. Password alarm clear that after the connection was Moshell OK.





4. Change external alarm configuration

1. lpr alm
2. get <proxy no>
3. set <proxy no> normallyOpen false <- Alarm code change (proxy 2 switchable required)
4. set <proxy no> alarmSlogan AC_Failure <-proxy number that the Fast Set AC
5. set <proxy no> alarmSlogan Rectifire_Failure <-proxy number that is followed by setting Rectifire
6. deb <proxy no> <proxy no> <- to unblock the state will
7. st alm <-UNLOCK Status
8. al
9.ala <-active alarm status check
