    Product Specification

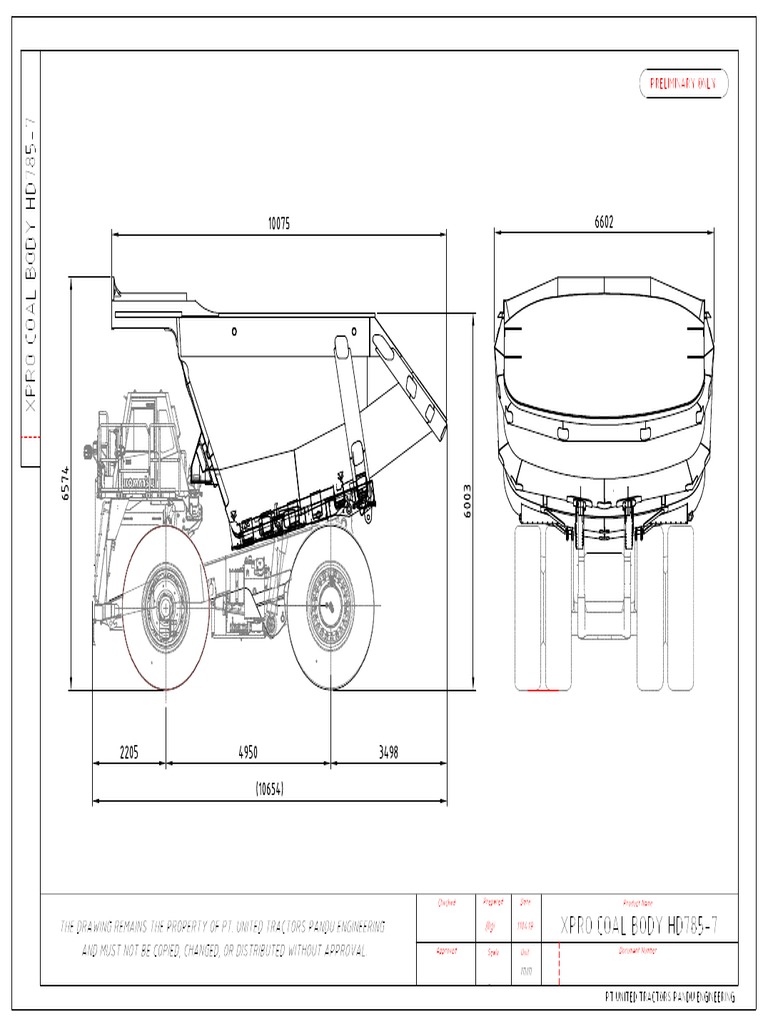

    COAL BODY GATELESS HD785-7


    MODEL : COAL BODY GATELESS - LIGHT VESSEL

    TRUCK : KOMATSU HD 785-7

    CAPACITY : 120 M3 ( FULL HEAPED VOLUME)


    WITH REPOSE ANGLE OF MATERIAL 32°

    DESCRIPTION : BODY HAS ROUNDED FLOOR DESIGN


    BODY CANOPY IS FULL DECK COVERING TYPE
    BODY SIDE IS SMOOTH/BOLSTERED WITH HOLLOW ROUND TOP RAIL BAR
    BODY COMPLETED WITH BRACKET OF WHEEL PROTECTOR & STONE EJECTOR

    MATERIAL : HIGH TENSILE STEEL PLATE FOR THE STRUCTURE


    INSIDE VESSEL IS WEAR RESISTANT STEEL PLATE
    MATERIAL THICKNESS : - FLOOR : 16 mm WEAR RESISTANT STEEL PLATE 450HBN
    - SIDE WALL : 8 mm WEAR RESISTANT STEEL PLATE 450HBN
    - FRONT WALL : 10 mm WEAR RESISTANT STEEL PLATE 450HBN
    - PROTECTOR : 6 mm GRADE 700 STEEL PLATE

    PAINTING : SHOOTBLASTED , PRIMED & PAINTED FOR HEAVY DUTY APPLICATION ( PRIMER AND TOP COAT)

    COLOUR : Yellow (As Requirement)

    No.DOCUMENT DATE PREPARED BY APPROVED BY

    19 JUL 2017 Agi Yogiansyah

    PAINTING STYLE COLOUR BRAND PAINT NO.

    SPECIFICATION APPROVAL
    SUPPLIER CUSTOMER

    SIGN BY : SIGN BY :
    DATE : DATE :
