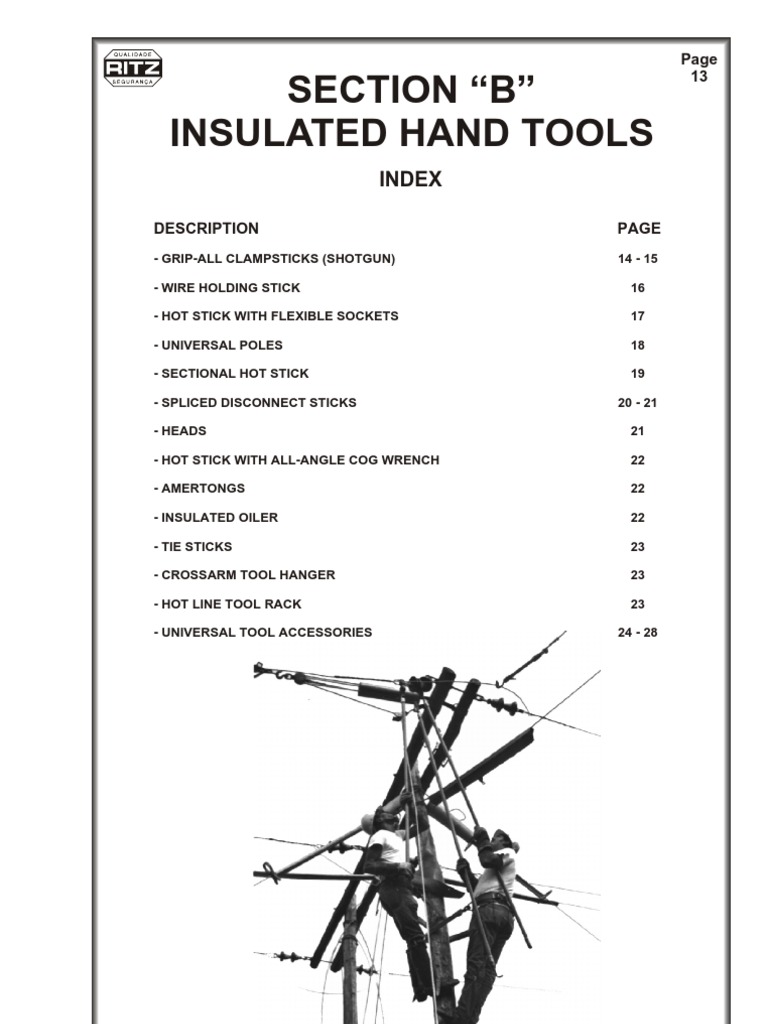

SECTION B INSULATED HAND TOOLS

INDEX
DESCRIPTION
- GRIP-ALL CLAMPSTICKS (SHOTGUN) - WIRE HOLDING STICK - HOT STICK WITH FLEXIBLE SOCKETS - UNIVERSAL POLES - SECTIONAL HOT STICK - SPLICED DISCONNECT STICKS - HEADS - HOT STICK WITH ALL-ANGLE COG WRENCH - AMERTONGS - INSULATED OILER - TIE STICKS - CROSSARM TOOL HANGER - HOT LINE TOOL RACK - UNIVERSAL TOOL ACCESSORIES

Page 13

PAGE
14 - 15 16 17 18 19 20 - 21 21 22 22 22 23 23 23 24 - 28

Page 14

SECTION B - INSULATED HAND TOOLS

GRIP-ALL CLAMPSTICKS (Shotgun)

RITZGLAS GRIP-ALL CLAMPSTICK is the most used HOT LINE TOOL and makes part of any toolset of electrical live line maintenance. The position of the hook is operated through a voidfree pulltruded fiberglass rod operated from the handle, allowing three different basic positions:

OPEN

CLOSED

DRAWN BACK

Position to hook the grounding clamp eye or some other part to be handled.

In this position the hook closes the grounding clamp eye, allowing it to be swivelled, including in angles.

When drawn back into the head, the hook keeps the grounding clamp completely locked to the grip-all stick, which is ideal for its installation and removal. Grip-All Clampstick Assist Ring

HINGED STYLE

CS-U Universal head on handle end

E403-2543 Universal Adapter

M1867

C403-0298

For universal head on handle end of any Single Piece or Hinged Grip-All, add suffix A to Catalog No.

DRAWN BACK

C403-0294

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

SECTION B - INSULATED HAND TOOLS

GRIP-ALL CLAMPSTICKS (Shotgun)
RITZGLAS GRIP-ALL CLAMPSTICK is manufactured in three versions: STANDARD - using a 32mm pole. LIGHT - using a 25mm pole (exclusivity of RITZ). HINGED - using a 32mm pole.

Page 15

STANDARD MODEL
Catalog N C403-0291 C403-0292 C403-0293 C403-0294 C403-0295 Model Standard Standard Standard Standard Standard (mm) 32 32 32 32 32 Total Length (mm) 1.350 1.970 2.580 3.190 3.800 Max. Voltage (kV) 15 35 138 230 345 Approx. Weight (kg) 2,70 3,00 3,40 3,70 4,10

LIGHT MODEL (EXCLUSIVITY OF RITZ) offering considerable economic and operational advantages
Catalog N C403-0291/L C403-0292/L C403-0293/L C403-0294/L C403-0295/L Model Light Light Light Light Light (mm) 25 25 25 25 25 Total Length (mm) 1.350 1.970 2.580 3.190 3.800 Max. Voltage (kV) 15 35 138 230 345 Approx. Weight (kg) 1,90 2,20 2,50 2,80 3,10

HINGED MODEL
Catalog N C403-0296 C403-0297 C403-0298 C403-0299 C403-0342 C403-0343 (mm)

32 32 32 32 32 32

Folded 1.015 1.320 1625 1.930 2.235 2.540

Dimensions (mm) Extended 2.005 2.590 3.200 3.810 4.420 5.030

Approx. Weight (kg) 3,60 4,10 4,50 4,70 5,00 5,20

The Grip-All Stick bags are the ones with an S before the reference of each model.

ACCESSORIES

Grip-All Extension - C403-0377

Catalog N C403-0377 C403-0378 E403-2543 M1867

Description
32mm x 1.200mm Grip-All Extension 32mm x 1.800mm Grip-All Extension

Approx. Weight (kg) 2,00 2,60 0,68 0,10

Grip-All Assist Ring Universal Adapter

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

Page 16

SECTION B - INSULATED HAND TOOLS

WIRE HOLDING STICK

With handle positioned as shown in square photo, above, the knurled nut can be turned to adjust the gripper to the exact wire size.

Head of the tool locks in three positions... enables lineman to handle conductor from any angle.

The gripper is equipped with an eye so that other sticks can assist with heavy bending. Will handle N. 6 solid copper (4,11mm ) through 1.590 kcmil ACSR (38,1mm ).

Catalog N C403-3068 C403-3069

Pole Dia. & Overall Length 32mm x 1.956mm 32mm x 2.565mm

Approx. Weight (kg) 3,00 3,60

C403-3068

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

SECTION B - INSULATED HAND TOOLS

HOT STICK WITH FLEXIBLE SOCKETS
A B

Page 17

38mm

H1891-2

38mm

H1891-4 A B

38mm

H1891-5

38mm
Catalog N H1891-2 H1891-3 H1891-4 H1891-5 H1891-6 H1891-7 H1891-8

H1891-7
Description Dimensions (mm) A 1.930 2.505 1.905 1.905 2.520 1.905 2.520 B 1.750 2.350 1.760 1.715 2.325 1.650 2.260 Approx. Weight (kg) 2,40 2,60 1,90 1,80 2,90 2,40 2,80

with flexible socket and fix socket with flexible socket and fix socket with Ratchet Wrench with Flexible socket and universal head with Flexible socket and universal head with Flexible socket and Ratchet wrench with Flexible socket and Ratchet wrench

38 38 38 38 38 38 38

ACCESSORIES

066780
Approx. Weight (kg) 0,45 2,10

Catalog N 066780

Description Ratchet wrench Includes 8 deep-well 6 point sockets in sizes of 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16.

C403-1085EP

C403-1085EP

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

Page 18

SECTION B - INSULATED HAND TOOLS

UNIVERSAL POLES
400mm

H1760-4

tie wire assistant

H1761

H1760-5 Pole hanger

Pole Diam. (mm) 32 32 32 32 32 32 32 32 32 32 32 38 38 38 38 32 38 Overall Length (mm) 2.575 1.885 1.245 + 1.220 1.940 2.550 1.245 + 1.245 3.100 3.750 4.344 2.495 2.490 2.555 3.100 3.755 4.344 --Approx. Weight (kg) 1,70 1,30 2,30 1,60 2,10 2,60 2,20 2,50 2,90 1,80 2,00 2,80 3,10 3,50 4,50 0,30 0,40

Catalog N H-1760 H1760-1 H1760-2 H1760-3 H-1760-4 H1760-6

Description Pole with one spline tie wire assistant Pole with one spline pole hanger Rigid splice pole with one spline tie wire assistant Pole with two splines tie wire assistant Pole with two splines tie wire assistant Rigid splice pole with two splines tie wire assistant

H1760-10 Pole with two splines pole hanger H1760-12 Pole with two splines pole hanger H1760-14 Pole with two splines pole hanger Spline universal storm tool with two skirts pole hanger H1761 H1770 H1790-8 Hinged pole with one spline pole hanger Pole with two splines, pole hanger

Hinge

H1790-10 Pole with two splines pole hanger H1790-12 Pole with two splines pole hanger H1790-14 H4455 H4455A Pole with two splines pole hanger Spline universal head only Spline universal head only

Splice

ACCESSORIES

M3002
Catalog N M3002 M3002-1 C403-0799 H1760-5

C403-0799
Description Distance-Limiting device for 32mm pole Distance-Limiting device for 38mm pole Distance-Limiting device for 32mm pole Plastisol coated hanger fits on 32mm and 38mm - pole Approx. Weight (kg) 0,055 0,060 0,060 0,120

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

SECTION B - INSULATED HAND TOOLS

SECTIONAL HOT STICK
Total length 1.450mm (ALL SECTIONS) Working Length 1.250mm Top-section with UNIVERSAL HEAD CS-U Working Length 1.250mm Intermediary section Working Length 1.450mm Base Section

Page 19

STANDARD Model:
Catalog N VMR-15 VMR-30 VMR-45 VMR-70 VMR-90 Hot Stick - 1 section Hot Stick - 2 sections (base + top) Hot Stick - 3 sections (base + intermediary + top) Hot Stick - 4 sections (base + 2 intermediary + top) Hot Stick - 5 sections (base + 3 intermediary + top) Description Total length (mm) 1.250 2.700 3.950 5.200 6.450 Max. Voltage (kV) 20 150 300 400 500 Approx. Weight (kg) 0,90 2,30 3,50 4,70 5,90

Diameter of base and intermediary section is 38mm , top section is 32mm

LIGHT MODEL - Exclusivity of RITZ DO BRASIL

with considerable economic and operational advantages
Catalog N VMR-15/L VMR-30/L VMR-45/L VMR-70/L VMR-90/L Hot Stick - 1 section Hot Stick - 2 sections (base + top) Hot Stick - 3 sections (base + intermediary + top) Hot Stick - 4 sections (base + 2 intermediary + top) Hot Stick - 5 sections (base + 3 intermediary + top) Description Total length (mm) 1.250 2.700 3.950 5.200 6.450 Max. Voltage (kV) 20 150 300 400 500 Approx. Weight (kg) 0,80 1,70 2,50 3,30 4,20

Diameter of base and intermediary section is 32mm , top section is 25mm

Brass fitting pin

Stainless steel protection ring

RITZGLAS Fiberglass-epoxy tube, filled with polyurethane foam.

The RITZGLAS poles, are submitted to 100 kV electrical tests in each 300mm, assuring an ideal insulation. Tests are made according to NBR 6936, ASTM F 711, IEC 855.
NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

Page 20

SECTION B - INSULATED HAND TOOLS

SPLICED DISCONNECT STICKS

H3046-13

Disconnect Sticks provide insulation safety for linemen in operating disconnect switches and fuse cutouts. They are also used for installing and removing open-link fuse links. All poles are made of RITZGLAS. Below you find dimensions of 3 typical disconnect heads. However different models according to your requirements are available.

Light Disconnect Stick

Cat. N. H3046 H3046-11 H3046-12 H3046-13 H3046-14 H3046-17 Poles Diam. & Length (mm) Head Only 32 x 1.220 32 x 1.830 32 x 2.440 32 x 3.050 32 x 3.650 Weight (kg) 0,11 0,60 0,70 1,00 1,20 1,60

44 mm 32mm (1 1/4) Switch Stick Head

Standard Disconnect Stick

Cat. N. H3046-2 H3046-22 H3046-23 H3046-24 H3046-15 H3046-16 H3046-18 H3046-20 Poles Diam. & Length (mm) Head Only 38 x 1.860 38 x 2.460 38 x 3.070 38 x 3.650 38 x 4.900 38 x 5.510 38 x 6.120 Weight (kg) 0,14 1,00 1,30 1,60 1,80 2,40 2,60 3,00

38 mm

38mm (1 1/2) Disconnect Head

2 Sections Spliced Disconnect Stick

Cat. N. H3146-12 H3146-16 H3146-18 H3146-20 H3146-24 Poles Diam. & Length - (mm) (1) 32 x 1.830 and (1) 38 x 1.860 (1) 32 x 2.430 and (1) 38 x 2.460 (1) 32 x 2.430 and (1) 38 x 3.070 (1) 32 x 3.050 and (1) 38 x 3.070 (1) 32 x 3.650 and (1) 38 x 3.670 Weight (kg) 2,70 3,40 3,70 4,10 4,80

38 mm

32mm (1 1/4) Disconnect Head

32mm

38mm

3650mm

3670mm

Cat. N.: H3146-24

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

SECTION B - INSULATED HAND TOOLS

SPLICED DISCONNECT STICKS

Page 21

3 Sections Spliced Disconnect Stick

Cat. N. H3246-12 H3246-24 H3246-28 Poles Diam. & Length - mm (1) 38 x 1.860 and (2) 32 x 1.830 (1) 38 x 2.430 and (2) 32 x 2.430 (1) 38 x 3.070 and (2) 32 x 2.430 Weight (kg) 4,65 5,75 6,25

Standard UNIVERSAL Head for: 32mm (1) or 38mm (1) poles

32mm

32mm

38mm

2.430mm

2.430mm

2.430mm

Cat. N.: H3246-24

HEADS

CP-1/U

CP-3/U

CP-5/U

CP-11/U

CP-13/U

CP-14/U

NOTE: Different heads can be supplied according clients specifications.

Catalog N CP-1/U CP-3/U CP-5/U CP-11/U CP-13/U CP-14/U

Description Brass-silicium head, with circuit-breaker operation shaft and fitting for cartridge cutout catch. Inclined aluminum head, with circuit-breaker operation shaft and fitting for cartridge cutout catch. Steel head for HXO switches operation. Inclined steel head, with circuit-breaker operation shaft and fitting for cartridge cutout catch. Brass-silicium head, with circuit-breaker operation shaft and fitting for cartridge cutout catch. Brass-silicium head, with circuit-breaker operation shaft

Approx. Weight (kg) 0,20 0,20 0,30 0,35 0,25 0,15

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

Page 22

SECTION B - INSULATED HAND TOOLS

HOT STICK WITH ALL-ANGLE COG WRENCH
A B

38mm
Approx. Weight (kg) 2,60 3,20 3,60 4,20

Catalog N C403-0184 C403-0185 C403-0186 C403-0187

Dimensions (mm) 38 38 38 38 A 1.840 2.450 3.060 3.670 B 835 1.435 2.040 2.500

AMERTONGS

Catalog N H1968-6 H1968-8 H1978-6* H1978-8*

Dimensions (mm) 32 32 32 32 Length 1.795 2.410 1.906 2.516

Approx. Weight (kg) 1,90 2,30 3,30 3,70

32mm

* Hinged Amertong

INSULATED OILER
32mm

Catalog N H1980-8

Description Insulated Oiler

Overall Length (mm) 2.600

Approx. Weight (kg) 1,50

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

SECTION B - INSULATED HAND TOOLS

TIE STICKS

Page 23

H1855-26

32mm

Rotary Prong

Rotary Blade

Two-Prong

Catalog N H1855-19 H1855-20 H1855-25 H1855-26

TIE STICKS Head Rotary Prong Two-Prong Rotary Prong Rotary Blade End Universal Universal Rotary Blade Universal

Overall Length (mm) 2.375 2.375 2.375 2.375

Approx. Weight (kg) 1,80 1,70 1,70 1,85

NOTE: All above HOT STICKS can be supplied with WATERPROOF CARRYING BAG, with reinforced plastic handle and inside dividers in order to separate the sections, with EXTRA BAG for heads.

CROSSARM TOOL HANGER

Catalog N M1860

Description Crossarm Tool Hanger

Approx. Weight (kg) 1,00

M1860

HOT LINE TOOL RACK

Catalog N M4660

Description 1 Tool Rack*

Approx. No. of Tools Weight Accommodated (kg) 12 3,60

* These are normally used in pairs: Quantities of two M4660 should be specified.

M4660

Page 24

SECTION B - INSULATED HAND TOOLS

UNIVERSAL TOOL ACCESSORIES

PIN HOLDER
Cat. N: M4455-2
Approx. Weight: 0,18 kg

CUTOUT TOOL
Cat. N: M4455-5
Approx. Weight: 0,76 kg

RATCHET WRENCH
Cat. N.: M4455-6
Approx. Weight: 0,75 kg

DISCONNECT
Cat. N.: M4455-9
Approx. Weight: 0,07 kg

CHUCK BLANK
Cat. N.: M4455-10
Approx. Weight: 0,12 kg

SNAPOUT COTTER KEY REMOVER

Cat. N: M4455-12
Approx. Weight: 0,17 kg

SNAPOUT DISCONNECT
Cat. N.: M4455-13
Approx. Weight: 0,20 kg

LOCATING PIN
Cat. N.: M4455-15
Approx. Weight: 0,29 kg

FOLDING RULE
Cat. N.: M4455-16
Approx. Weight: 0,24 kg

FIXED PRONG TIE STICK HEAD

Cat. N.: M4455-17
Approx. Weight: 0,45 kg

COTTER KEY INSTALLING TOOL

Cat. N.: M4455-18
Approx. Weight: 0,10 kg

COTTER KEY PUSHER

Cat. N.: M4455-19
Approx. Weight: 0,30 kg

SECTION B - INSULATED HAND TOOLS

UNIVERSAL TOOL ACCESSORIES

Page 25

BALL SOCKET ADJUSTER

Cat. N.: M4455-22
Approx. Weight: 0,34 kg

HACK SAW
Cat. N.: M4455-23
Approx. Weight: 0,37 kg

PAINT BRUSH
Cat. N.: M4455-25
Approx. Weight: 0,18 kg

PRUNING SAWS
Cat. N.: M4455-26A
Approx. Weight: 0,27 kg

SCREW DRIVER
Cat. N.: M4455-28
Approx. Weight: 0,12 kg

CLAMP STICK HEAD

Cat. N.: M4455-29B
Approx. Weight: 0,28 kg

LINK STICK HEAD

Cat. N.: M4455-36
Approx. Weight: 0,35 kg

CHUCK BLANK
Cat. N.: M4455-37
Approx. Weight: 0,13 kg

CLEAR VISION MIRROR

Cat. N.: M4455-38
Approx. Weight: 0,32 kg

SHEPHERD HOOK
Cat. N.: M4455-39
Approx. Weight: 0,36 kg

FIXED BLADE TIE STICK HEAD

Cat. N.: M4455-40
Approx. Weight: 0,19 kg

FLEXIBLE WRENCH HEAD 12MM-SQUARE DRIVE

Cat. N.: M4455-46
Approx. Weight: 0,46 kg

Page 26

SECTION B - INSULATED HAND TOOLS

UNIVERSAL TOOL ACCESSORIES

= 32mm

A = 495mm

CONDUCTOR CLEANING BRUSH SKINNING KNIFE

Cat. N.: M4455-50
Approx. Weight: 0,12 kg

Cat. N.: M4455-63

Approx. Weight: 0,18 kg

STORM TOOL
Cat. N.: M4455-64
Peso aproximado: 1,08 kg

M1889 with hand grip

Approx. Weight: 0,36 kg

PISTOL GRIP SAW HANDLE

Cat. N.: M4455-66
Approx. Weight: 0,18 kg

ADJUSTABLE INSULATOR FORKS

Cat. N.: M4455-67
Approx. Weight: 1,10 kg

ROTARY PRONG TIE STICK HEAD

Cat. N.: M4455-69
Approx. Weight: 0,28 kg

ROTARY BLADE TIE STICK HEAD

Cat. N.: M4455-70
Approx. Weight: 0,24 kg

CONDUCTOR GAUGE
Cat. N.: M4455-72
Approx. Weight: 0,09 kg

SPLIT-BOLT CONNECTOR TOOL

Cat. N.: M4455-73
Approx. Weight: 1,50 kg

FUSE PULLER
Cat. N.: M4455-77
Max.: 38mm - Min.: 12,7mm Approx. Weight: 0,95 kg

Cat. N.: M4455-78

Max.: 64mm - Min.: 25,4mm Approx. Weight: 0,95 kg

SPIRAL DISCONNECT
Cat. N.: M4455-79
Approx. Weight: 0,18 kg

ALL-PURPOSE COTTER KEY TOOL

Cat. N.: M4455-82
Approx. Weight: 0,10 kg

SECTION B - INSULATED HAND TOOLS

UNIVERSAL TOOL ACCESSORIES

Page 27

UNIVERSAL ADAPTER
Cat. N.: M4455-84
Approx. Weight: 0,10 kg

HAMMER
Cat. N.: M4455-85
Approx. Weight: 0,40 kg

BALL SOCKET ADJUSTER

Cat. N.: M4455-87
Approx. Weight: 0,28 kg

CONDUCTOR CLEANING BRUSH

Cat. N.: M4455-92
Approx. Weight: 0,37kg

Cat. N.: C403-0320

Approx. Weight: 0,17kg

BOLT HEAD WRENCH

Cat. N.: M4455-88
Approx. Weight: 0,43 kg

RATCHET WRENCH
Cat. N.: M4455-89
Approx. Weight: 1,12 kg

Cat. N.: M4455-93

Approx. Weight: 0,14kg

COTTER KEY PULLER

Cat. N.: M4455-96
Approx. Weight: 0,28 kg

FLEXIBLE WRENCH HEAD 12,7mm-SQUARE DRIVE

Cat. N.: M4455-100
Approx. Weight: 0,65 kg

CLEVIS PIN INSTALLER

Cat. N.: M4455-102
Approx. Weight: 0,40 kg

COTTER KEY HOLDER

Cat. N.: M4455-103
Approx. Weight: 0,26 kg

COTTER KEY TOOL

Cat. N.: C403-0006
Approx. Weight: 0,35 kg

KNOCKER
Cat. N.: C403-0011
Approx. Weight: 0,26 kg

Page 28

SECTION B - INSULATED HAND TOOLS

UNIVERSAL TOOL ACCESSORIES

BALL SOCKET ADJUSTER

Cat. N.: C403-0126
Approx. Weight: 0,30 kg

PLASTIC INSULATOR TOOL

Cat. N.: C403-0175
Approx. Weight: 0,30 kg

ALL-ANGLE PLIERS
Cat. N.: C403-0177
Aprox. Weight: 0,88 kg

CONDUCTOR SANDER
Cat. N.: C403-0314
Approx. Weight: 0,23 kg

HOT RODDER TOOL

Cat. N.: C403-0834
Approx. Weight: 0,10 kg

TIE WIRE CLAW

Cat. N.: C403-1416/B
Approx. Weight: 0,24 kg

UTILITY HEAD
Cat. N.: C403-1417/B
Approx. Weight: 0,26 kg

AEROSOL CAN HOLDER

Cat. N.: C403-2270
Approx. Weight: 0,30 kg
