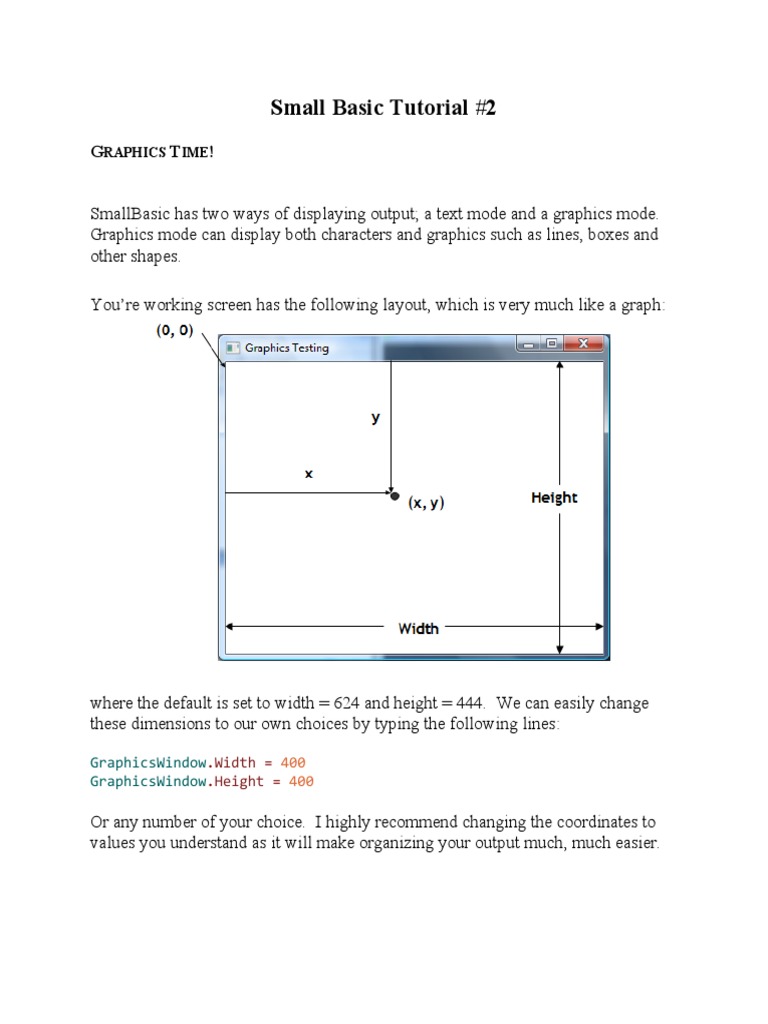

Small Basic Tutorial #2

GRAPHICS TIME!

SmallBasic has two ways of displaying output; a text mode and a graphics mode.
Graphics mode can display both characters and graphics such as lines, boxes and
other shapes.

You’re working screen has the following layout, which is very much like a graph:

where the default is set to width = 624 and height = 444. We can easily change
these dimensions to our own choices by typing the following lines:

GraphicsWindow.Width = 400
GraphicsWindow.Height = 400

Or any number of your choice. I highly recommend changing the coordinates to

values you understand as it will make organizing your output much, much easier.
So for example, on a window that’s 400 x 400 pixels, a dot placed a x=100, y=50
looks like the following

100

50

One placed at x=300, y = 300 looks like:

300

300

Remember, the top left corner is always (0,0).

Drawing Time:
The first method I’d like to show you is DrawLine. This method does exactly what
is says, it draws a line on the screen. Its code looks like the following:

GraphicsWindow.DrawLine(x1,y1,x2,y2)

Where
x1 = the position along the x-axis
y1 = the position along the y-axis
x2 = the position along the x-axis
y2 = the position along the y-axis

So for example try typing in

GraphicsWindow.DrawLine(10,200,200,200)

Pen Colour & Width:

The PenColor property will change the line color of the item you are drawing. The
PenWidth property will change the border/line width of the item you are drawing.

Try the following:

GraphicsWindow.PenColor = "blue"
GraphicsWindow.PenWidth = 10
GraphicsWindow.DrawLine(10,200,200,200)

Activity: Draw a vertical line and a diagonal line.

Activity: Try drawing a box using only lines commands. Create each line as a
different color.

For example, mine looks like this when I run it:

Drawing Shapes:

Now that we’ve learned the basics of how to draw lines, lets look a bit closer at
shapes. SmallBasic has commands that draw boxes and ovals.

Rectangle

The command is

GraphicsWindow.DrawRectangle(x,y,width,height)

where
x = the top left corner position along the x-axis
y = the top left corner position along the y-axis
width = determines how wide the rectangle will be
height = determines how high the rectangle will be

Oval

The command is

GraphicsWindow.DrawEllipse(x,y,width,height)

where
x = the top left corner position along the x-axis
y = the top left corner position along the y-axis
width = determines how wide the oval will be
height = determines how high the oval will be
Triangle

The command is

GraphicsWindow.DrawTriangle(x1,y1,x2,y2,x3,y3)

where
x1 = the x co-ordinate of the first point.
y1 = the y co-ordinate of the first point.
x2 = the x co-ordinate of the second point.
y2 = the y co-ordinate of the second point.
x3 = the x co-ordinate of the third point.
y3 = the y co-ordinate of the third point.

Activity:

Use rectangles, ovals, triangles and lines draw a house.

Brush Colour:

The BrushColor property allows you to fill a shape with a color. Try the
following:

GraphicsWindow.BrushColor = "blue"

When wanting to fill a shape you have to use the BrushColor property and then one
of the following fill statements:

GraphicsWindow.FillRectangle(x,y,width,height)

GraphicsWindow.FillEllipse(x,y,width,height)

GraphicsWindow.FillTriangle(x1,y1,x2,y2,x3,y3)

Colours in SmallBasic

There are several ways to create color in SmallBasic. The following will all output
the same colour.

GraphicsWindow.BrushColor = "blue"
GraphicsWindow.BrushColor = "#0000FF"
GraphicsWindow.BrushColor = GraphicsWindow.GetColorFromRGB(0,0,255)

The following link will provide you with many color names and their related HEX
codes.

Link → COLOURS

For additional color details visit this link.

The following chart may also help you with some hex codes for the colours.
Drawing Font:
The font used to draw text in the graphics window is specified by four different
properties:

GraphicsWindow.FontName
GraphicsWindow.FontSize
GraphicsWindow.FontBold
GraphicsWindow.FontItalic

● The FontName property is the name of the font, or font face. The default
value is “Tahoma”. Other font names can be found by opening a word
processor and selecting the change font option.
● The FontSize property defines the size of the font, where the default is 12.
● FontBold can have one of two values. If “true”, the font will be bold. If
“false”, it will not be bold. The default value is “true”.
● FontItalic indicates if a font is italicized. The default value is “false” – no
italics.

Try the following code. What are all the properties in the following code doing?

GraphicsWindow.Show()
GraphicsWindow.Title="Font Styles"
GraphicsWindow.Width=400
GraphicsWindow.Height=150
GraphicsWindow.BackgroundColor="Yellow"
GraphicsWindow.FontName = "Cooper Black"
GraphicsWindow.FontSize=36
GraphicsWindow.FontBold="true"
GraphicsWindow.FontItalic="true"
GraphicsWindow.BrushColor="Black"
GraphicsWindow.DrawText(20,40,"Graphics Window")
Activity: Recreate your house, but add colour and text. Attempt other class
appropriate drawings to practice your coordinates.
CHALLENGE:

Create a scene like mine (but finish the sun rays).

Movement:

To make a shape move you need to think about your intended start and end point.
For example if I want a box to move horizontal from x = 100 to x = 300 I could
create the following program.

For x = 1 to 200
GraphicsWindow.DrawRectangle(100+x, 190, 20, 20)
endfor

If you wanted your shape to move up and down which number would you change?
What would you change if you wanted it to grow bigger?

Try inputting the following code. What is each line of code doing?

'setting the graphics window to 400 x 400

GraphicsWindow.Width = 400
GraphicsWindow.Height = 400

'preventing user from changing size of window

GraphicsWindow.CanResize = "false"

'Loop to move square from x = 100 to x = 300.

'x location increases for every iteration of the loop
For x = 1 To 200
GraphicsWindow.Clear() ' clear the screen
GraphicsWindow.BrushColor = "blue" 'brush fill colour
GraphicsWindow.DrawRectangle(100+x,190,20,20) ' draws square outline
GraphicsWindow.FillRectangle(100+x,190,20,20) 'draws fill square
Program.Delay(20) ' delaying program to show speed
endfor
DrawImage:

We have learned how to draw our own images using draw functions but in many
cases we would want to include a saved image

When importing an image make sure it is saved in the same folder as your
SmallBasic file. If this is the care you can use “Program.Directory” in place of the
entire directory link. You MUST use this so that your programs work when you
submit them to your teacher.

First save the image in a variable. In this case I created a variable called “Image”.
This variable is equal to the program directory.

Image = Program.Directory+"image.jpg"

Second there are two ways to put the image on the screen. Using just
“DrawImage” will place the image at the specified location, and maintain the size
of the image.

GraphicsWindow.DrawImage(ImageName,x,y)

Example:
GraphicsWindow.DrawImage(Image,100,100)

When using “DrawResizedImage” you have to place the image at a x and y

location and then specify a width and height.

GraphicsWindow.DrawResizedImage(ImageName,x,y,width,height)

Example:
GraphicsWindow.DrawResizedImage(Image,100,100,10,10)

Example Code & Output:

Image = Program.Directory + "\Boom.png"

GraphicsWindow.DrawImage(image,200,100)

GraphicsWindow.DrawResizedImage(image,20,100,50,50)
Shapes

Although we have now learned how to draw and move shapes, there is a separate
way to complete these tasks without using loops and without seeing the glitchy
result.

SmallBasic has an object called “Shapes” which allows you to apply several
modifications to the image including adding, moving, rotating and zooming.

Keep in mind that shapes still work in layers. Layers are created in the same order
your program is coded.
Creating Shapes

GraphicsWindow.BrushColor = "green"
Rectangle = Shapes.AddRectangle(100,100)

GraphicsWindow.BrushColor = "yellow"
Circle = Shapes.AddEllipse(50,50)

Moving Shapes

GraphicsWindow.BrushColor = "green"
Rectangle = Shapes.AddRectangle(100,100)

GraphicsWindow.BrushColor = "yellow"
Circle = Shapes.AddEllipse(50,50)

Shapes.Move(Rectangle, 200,200)
Shapes.Move(Circle, 300,200)

Animating Shapes

The “Animate” command is not allowed!

Hiding Shapes

GraphicsWindow.BrushColor = "green"
Rectangle = Shapes.AddRectangle(100,100)

For counter = 1 To 5
Program.Delay(1000)
Shapes.HideShape(Rectangle)
Program.Delay(1000)
Shapes.ShowShape(Rectangle)
EndFor

Rotating

'creates rectangle
GraphicsWindow.BrushColor = "Purple"
rotateshape = Shapes.AddRectangle(150, 100)
Shapes.Move(rotateshape, 200, 150)

' repeats rotation of rectangle for 12 iterations (30 * 12 = 360)

For i = 0 To 12
'Rotataing image by 30 degree intervals
Shapes.Rotate(rotateshape, 30 * i)

'Printing the degree value on the screen

GraphicsWindow.DrawText(20,20*i,30*i)
Program.Delay(1000)
EndFor
Zooming & Opacity

Shapes.SetOpacity(ShapeName, level)
● Level range is 0 for completely transparent to 100 for solid

Shapes.Zoom(ShapeName, X-level, Y-level)

● Range allowed is 0.1 to 20

'Creating two rectangles

GraphicsWindow.BrushColor = "Purple"
rectangle1 = Shapes.AddRectangle(100, 100)
Shapes.Move(rectangle1, 50, 80)
rectangle2 = Shapes.AddRectangle(100, 100)
Shapes.Move(rectangle2, 300, 80)

For i = 1 To 4
Program.Delay(1000)

'Setting Opacity in increments of 25

Shapes.SetOpacity(rectangle1, i * 25)

'Zooming the image by 1/2 intervals.

Shapes.Zoom(rectangle2, i * 0.5, i * 0.5)
EndFor

Creating repeating shapes

GraphicsWindow.Height = 500
GraphicsWindow.Width = 700
'loop to create 20 boxes
For i = 0 To 20
GraphicsWindow.PenWidth = 0.5 'creates a thin border

'determining a random colour

GraphicsWindow.BrushColor = GraphicsWindow.GetRandomColor()

'creating a new rectangle in multiples of 20 wide, 10 high

rectangle1 = Shapes.AddRectangle(i * 20, i * 10)

'moves the rectangle to locations of multiples of 10

Shapes.Move(rectangle1, i * 10, i * 10)
Program.Delay(500)
EndFor
Activity
Write a program to display a graphics window, and perform the following steps:

● Add a line and a circle to the window.

● Set the color, size, and location of the shapes.
● Use loops to make the circle move on top of the line from the left side to the
right side of the graphics window.
