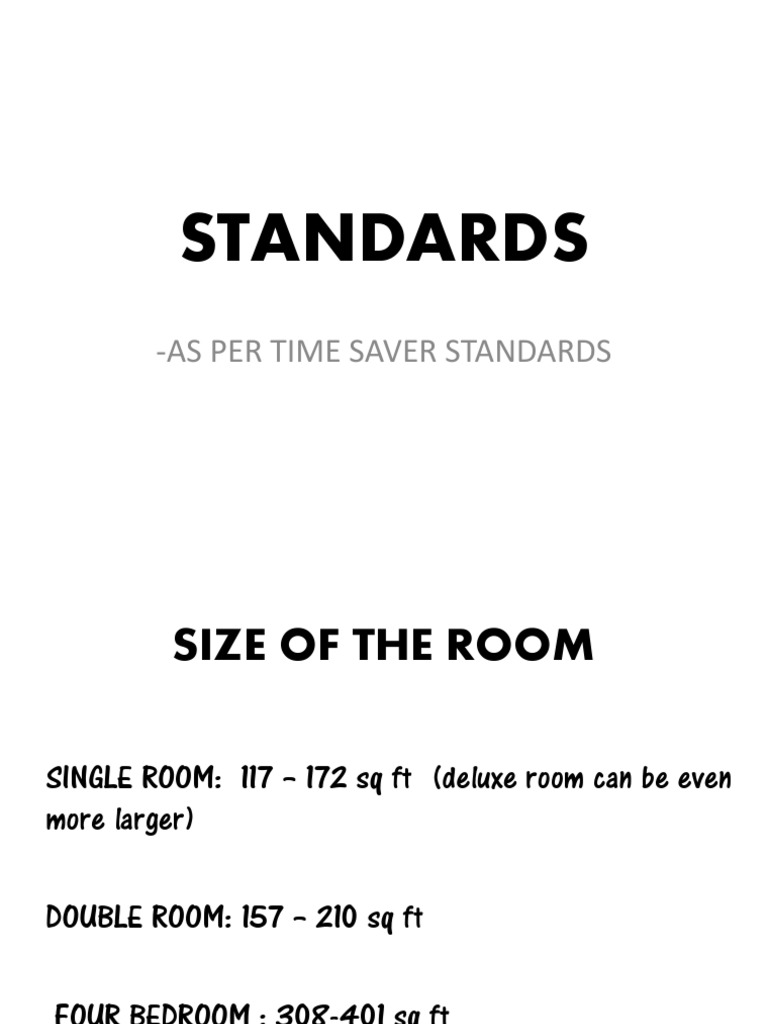

STANDARDS

-AS PER TIME SAVER STANDARDS


SIZE OF THE ROOM

SINGLE ROOM: 117 – 172 sq ft (deluxe room can be even


more larger)

DOUBLE ROOM: 157 – 210 sq ft

FOUR BEDROOM : 308-401 sq ft


DEPTH OF THE ROOM
• SINGLE ROOM: 14’ 6” (OR) 15”

• DOUBLE ROOM: 21’8”

• FOUR ROOM : 21’8”

• In double or four bedroom there is a distance of 14’


between two beds with side tables
CLOSET
• INBUILT HANGING AND WADROBE IS PROVIDED IN
EACH ROOM

• INBUILT WADROBE ARE PLACED WITH MIRROR IN


SOME CASE

• INCASE OF THE ABOVE SCENERIO MIRROR SHOULD


NOT BE PLACED AS IT REFLECTS TO THE PATIENTS
EYE
FURNITURE
• BEDS SHOULD BE PARELLEL TO EXTERIOR WALLS SO
THAT PATIENTS CAN LOOK OUT WINDOW WITHOUT
FACING DIRECTLY TO THE BRIGHT SKY.

• MOTOR OPERATED HIGH – LOW BEDS SHOULD BE 7’3”


IN OVERALL LENGTH.

• ACCORDING TO FACING OF THE BED SIDE TABLE


SHOULD BE PLACED MAY BE TO THE LEFT OR TO THE
RIGHT OF DIMENSION 16”*20”
PLUMBING FIXTURES
• ATTACHED BATHROOM TO A BEDROOM IS REGARDED AS A BASIC
FEAUTURE .

• 2’10”-3’2” BY 3’10”-4’10” ARE THE DIMENSION NOTED FOR


INDUVIDUALS TOILET ROOM WITH GRAB BAR ON EITHER OR ONE
SIDE OF THE WALL.

• SOME TOILETS HAVE BEDPANS TO THE CORNER OR BESIDE SIDE


TABLES.

• LAVATORY IS SET AT 3’ ABOVE FLOOR LEVEL TO SIDE OF TOILET.


DOOR AND WINDOWS
• DOOR WIDTH: 3’10” (OR) 4’.

• TOILET DOOR: 2’ (OR) 2’4” (SWINGING OUT).

• SURFACE BOLTED OR PIVOTED HINGES ARE USED SO


THAT BATHROOM DOORS CAN BE REMOVED IN CASE OF
EMERGENCY.

• WINDOW’S CAN BE PLACED LOW SO THAT THE


PATIENT’S CAN VIEW, EVEN IF MOTORIZED BED IS LOW
ROOM FURNISHES
• ACOUSTICAL SYSTEM IS MORE VALUABLE FOR
ACCESS TO MECHANICAL WORK THAN FOR ITS
ACOUSTICS PROPERTIES.

• THERE IS NO STRONG PREFERANCE FOR ONE TYPE


OF FLOORING MATERIAL OVER ANOTHER.
BUIILT IN EQUIPMENT
• WADROBE WITH MIRRORS AS MENTIONED ABOVE.

• FLOWER SHELVES BRACKETED ON WALL BESIDES


OR OPPOSITRE TO BED ABOUT 4’6” ABOVE FLOOR.

• CUBICLE CURTAIN ARRANGEMENTS IN MULTIBED


ROOMS.
LIGHTING
• ROOMS HAVE CEILING FIXTURES FOR GREAT
ILLUMINATIONS

• ALL ROOMS THERE IS A WALL FIXTURE OVER HEAD


OF BED,MOUNTED FROM 5’2”-6’6” ABOVE FLOOR
OXYGEN AND SUCCTION
• OXYGEN IS PIPED IN FORM OF A CENTRAL SOURCES
IN MOST ROOM STUDIED.

• OUTLETS ARE: 4’-5’6” ABOVE FLOOR LEVEL.


AIR CONDITIONING
• INDUVIDUAL ROOM UNITS PRESENT NO PROBLEM
OF CROSS CONTAMINATION OF AIR FROM ONE
ROOM TO ANOTHER.

• CENTRAL SYSTEM DO CREATES PROBLEM IF


RECIRCULATION IS DSIRED.

• ITS BETTER TO AVOID RECIRCULATION IN WARD


ROOMS
• TREATMENT ROOMS: NORTH WEST AND NORTH EAST DIRECTION.

• NURSING WARDS: SOUTH-SOUTH WEST DIRECTION.

• SPECIAL ROOMS : NORTH.

• ACCESS CORRIDOR : 1.5 M


• PATIENTS CORRIDOR : 2.25M
• NORMAL DOOR : 2.2 M
• VEHICLE ENTRANCE : 2.5M
• TRANSPORT : 2.8M
• STAIRS : 1.5-2M
• STEP HEIGHT : 170MM
• TREAD DEPTH : 280MM
• LIFT CAR : 0.9-1.2M
• SHAFT :1.25-1.5 M
PARKING
• INPATIENT AND ADMIN STAFF AREA

• OUTPATIENT AREA

• RESERVED PARKING FOR DOCTORS

• CAR PARKING

• TWO WHEELER

• AMBULENCE AREA
