* E

D **
F

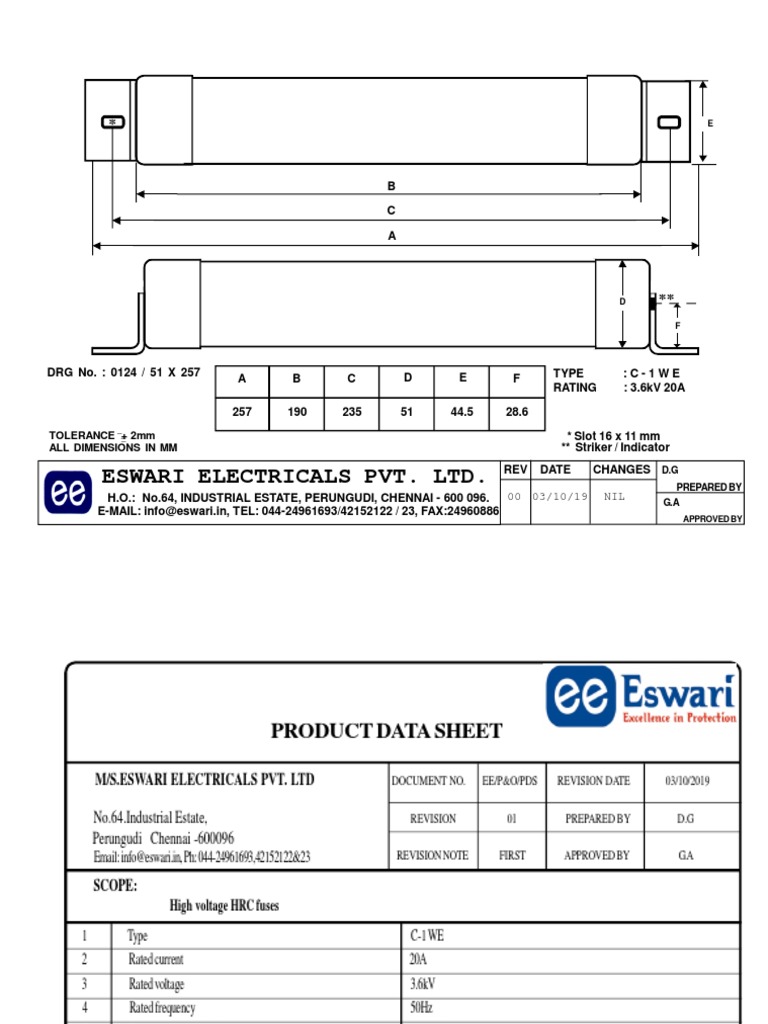

DRG No. : 0124 / 51 X 257 D E TYPE :C-1WE


A B C F
RATING : 3.6kV 20A

257 190 235 51 44.5 28.6


TOLERANCE --
+ 2mm * Slot 16 x 11 mm
-
ALL DIMENSIONS IN MM ** Striker / Indicator
REV DATE CHANGES D.G
ESWARI ELECTRICALS PVT. LTD. PREPARED BY
H.O.: No.64, INDUSTRIAL ESTATE, PERUNGUDI, CHENNAI - 600 096. 00 03/10/19 NIL
G.A
E-MAIL: info@eswari.in, TEL: 044-24961693/42152122 / 23, FAX:24960886
APPROVED BY
PRODUCT DATA SHEET

M/S.ESWARI ELECTRICALS PVT. LTD DOCUMENT NO. EE/P&O/PDS REVISION DATE 03/10/2019

No.64.Industrial Estate, REVISION 01 PREPARED BY D.G


Perungudi Chennai -600096
Email: info@eswari.in, Ph: 044-24961693,42152122&23 REVISION NOTE FIRST APPROVED BY G.A

SCOPE:
High voltage HRC fuses

1 Type C-1 WE
2 Rated current 20A
3 Rated voltage 3.6kV
4 Rated frequency 50Hz
5 Permissible variation frequency +/- 10%
6 Reference Standard IS 9385-1, IEC - 60282-1
7 Rated Breaking Capacity 40kA
8 Maximum Transient Voltage 3.6kV
9 Maximum Temperature rise at terminals within the limits specified in IS 9385-1, IEC- 60282-1
10 Dimensional details 0124 / 51 X 257
11 Medium of arc quenching Silica Sand
12 Material of the fuse body Porcelain
13 Material of the end terminals Copper alloy
14 Type of coating material at end terminals Nickel
15 Basic impulse withstand voltage 40 kV
16 Power frequency withstand voltage 10 kV
17 Electrical characteristics Graph No. FEE01107
18 Fitted with Striker / Indicator Yes
19 System parameters :
Nominal system voltage 3.6kV
Highest system voltage 3.6kV
System frequency 50Hz

20 Service condition :
Max.Ambient temperature + 55OC
Min. Ambient temperature - 5OC
Max. Relative humidity between 85% and 100%

21 Be suitable for indoor and outdoor applications Yes


Issue No: 001 Issue date: 03-10-2019
