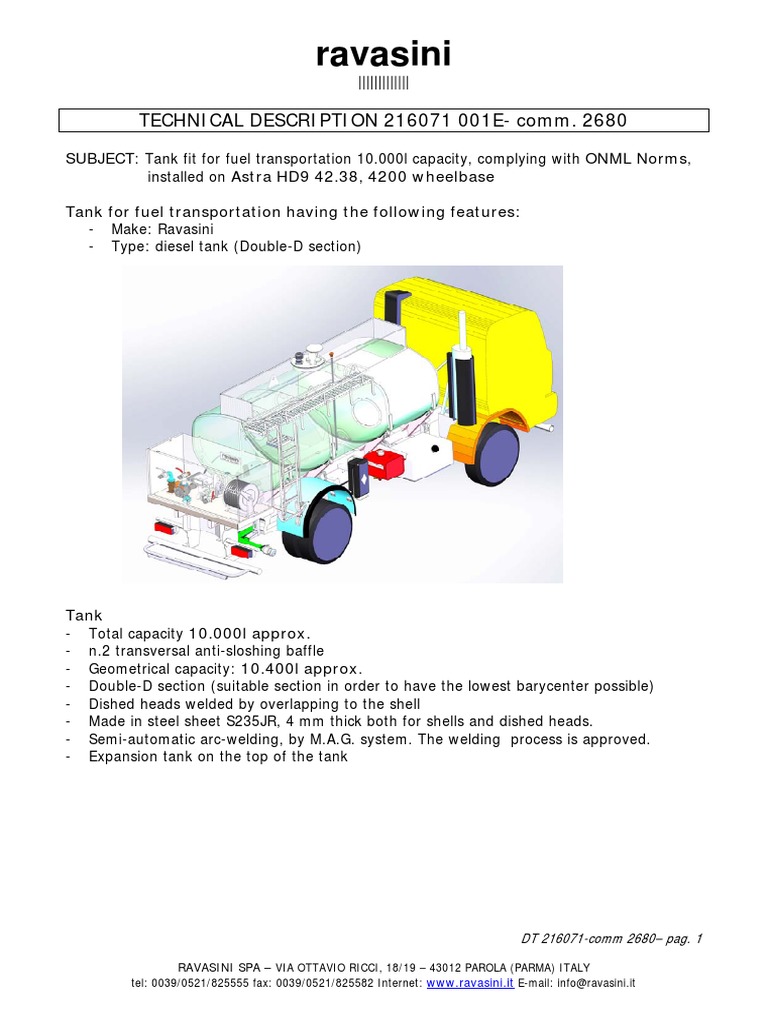

TECHNICAL DESCRIPTION 216071 001E- comm. 2680
SUBJECT: Tank fit for fuel transportation 10.000l capacity, complying with ONML Norms,
installed on Astra HD9 42.38, 4200 wheelbase
Tank for fuel transportation having the following features:
- Make: Ravasini
- Type: diesel tank (Double-D section)
Tank
- Total capacity 10.000l approx.
- n.2 transversal anti-sloshing baffle
- Geometrical capacity: 10.400l approx.
- Double-D section (suitable section in order to have the lowest barycenter possible)
- Dished heads welded by overlapping to the shell
- Made in steel sheet S235JR, 4 mm thick both for shells and dished heads.
- Semi-automatic arc-welding, by M.A.G. system. The welding process is approved.
- Expansion tank on the top of the tank
DT 216071-comm 2680– pag. 1
RAVASINI SPA – VIA OTTAVIO RICCI, 18/19 – 43012 PAROLA (PARMA) ITALY
tel: 0039/0521/825555 fax: 0039/0521/825582 Internet: [Link] E-mail: info@[Link]
ravasini
|||||||||||||
Pumping unit
Positive displacement pump, for diesel distribution, 400l/min. capacity at 4 bar maxi., driven
by the vehicle PTO through the hydraulic system.
Positive displacement meter with mechanical head, partial measuring at 5 digits and total
measuring at 8 digits, complete with degasser and aircheck valve, 300l/min capacity.
Automatic gun, 120l/min capacity with automatic hose reel equipped with 20m of 1’’ hose.
Stainless steel lockable case placed on the rear side of the truck to contain the pumping
unit.
Accessories
- Manhole with bolted cover, diameter 500, with 5 effects safety valve, breather, loading
hatch with quick opening/closing cover
- n.1 graduated level indicator
- n.1 bottom valve in aluminium with pneumatic remote control.
- Discharge pipes with valve.
- Working pressure: atmospheric pressure
Supporting structure
Counterframe in carbon steel highly resistant to torsions.
The counterframe is solidly fixed on the truck chassis in compliance with the bodybuilder
directives.
Supporting saddles with steel tie rods suitable for fitting the tank onto the chassis. A rimmed
rubber strip is placed between saddle and tank to ensure the tank stability
Access and safety devices
Fixed protections: Access ladder to manhole, with anti-slip walkway and manually operated
foldable safety hand-rail
Unit earthing
Bronze plaits to ensure the electrical continuity between tank and vehicle chassis
Earthing plate
Regulatory installation of electrostatic charges with brass earthing plug
DT 216071-comm 2680– pag. 2
RAVASINI SPA – VIA OTTAVIO RICCI, 18/19 – 43012 PAROLA (PARMA) ITALY
tel: 0039/0521/825555 fax: 0039/0521/825582 Internet: [Link] E-mail: info@[Link]
ravasini
|||||||||||||
Accessories
n.2 pieces of flexible hose suitable for fuel, diam. 50 mm, with symmetrical half-connectors,
fit for fuel loading and unloading
n.2 stainless steel carriers diam. 150mm
ID plate with tank serial number
n.1 fire extinguisher 2 kg inside the cab
n.1 fire extinguisher 9 kg for the tank
Set of signs on the front and rear sides to indicate the transportation of inflammable fluids.
Manometer for tires pressure control
Mud-guards for rear wheels
Lockable toolbox
Front underrun bar
Side underrun bars
Clearance light
Tank external anticorrosion protection
Cleaning and degreasing of all the surfaces
Shot-blasting SA 2,5 and cleaning of all the surfaces
Application of epoxy primer
Final finishing with two layers of epoxy paint in white color
