- K9 Body Control Module X4
415122, 11.07 Document ID: 2287873,
2010 Chevrolet Cruze | Cruze Service Manual | Document ID: 2287873

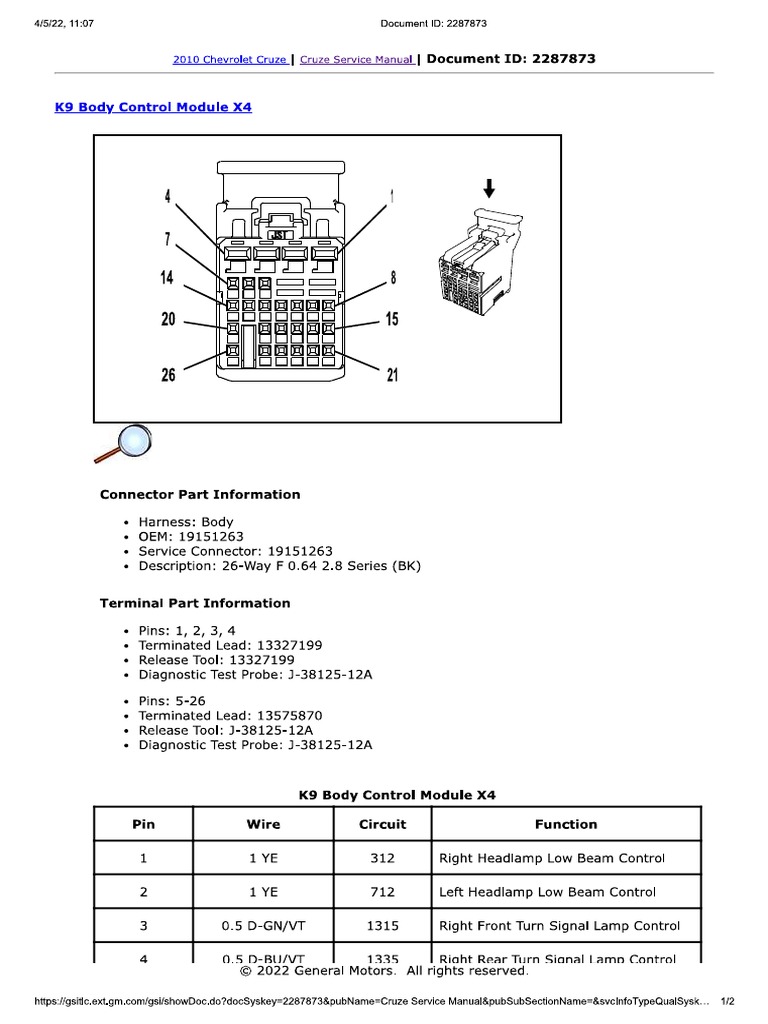

K9 Body Control Module x4
A
Connector Part Information
+ Harness: Body
+ OEM: 19151263
+ Service Connector: 19151263
+ Description: 26-Way F 0.64 2.8 Series (BK)
Terminal Part Information
Pins: 1, 2, 3,4
Terminated Lead: 13327199
Release Tool: 13327199
Diagnostic Test Probe: J-38125-12A,
Pins: 5-26
Terminated Lead: 13575870
Release Tool: J-38125-12A
Diagnostic Test Probe: J-38125-12A,
K9 Body Control Module X4
| Pin | Wire | Circuit | Function |
| 2 | 1YE | 712 Left Headlamp Low Beam Control |
[3 | esecuvr | aaie [ane rront tum Seaton convo |
© 2022 General Motors. All rights reserved.
[Link] [Link]?docSyskey=22878738pubName=Cruze Service Manual&pubSubSectionNameBsvclnfoTypeQualSysk.. 1 415122, 11.07
Document 1D: 2287873,
Wire Cire Function
5 0.5 GY/BN 309 Right Park Lamp Control
6 0.5 VI/GY 709 Left Park Lamp Control
7 0.5 GY/YE 7542 | Left Rear Stop Lamp Supply Voltage
8 0.75 VI/YE 3267 _| Child Security Lock Relay Control
9 0.5 YE 7546 —_| Logistics Relay Control
u 0.5 VT/WH 5065 _| Stop Lamp Relay Coil Control
12 0.5 VT/BK 3 Run/Crank Ignition 1 Voltage
13 0.5 D-GN/YE 6846 _| Rear License Lamp Control
14 0.5 BN/GY 2268 | Windshield Washer Relay Control
15 0.5 BN/VT 1594 | Ignition 3 Relay Control
16 os GY 91 Windshield Wiper Motor Relay Coll
7 0.5 BN/D-GN 196 Windshela Wiper Motor Park Switch
18 0.5 WH/YE 5075 _| Current Sensor Signal
19 - - Not Used
20 0.5 RD/YE 40 Battery Positive Voltage
21 0.5 D-BU/VT 5076 _| Current Sensor Supply Voltage
22 0.5 VIVE 5985 | Accessory Wakeup Serial Data
23 0.5 WH/D-BU 5986 _| Serial Data Communication Enable
24-25 - - Not Used
26 1.5 BK 50 Ground
