Service Information Page 1 of 2

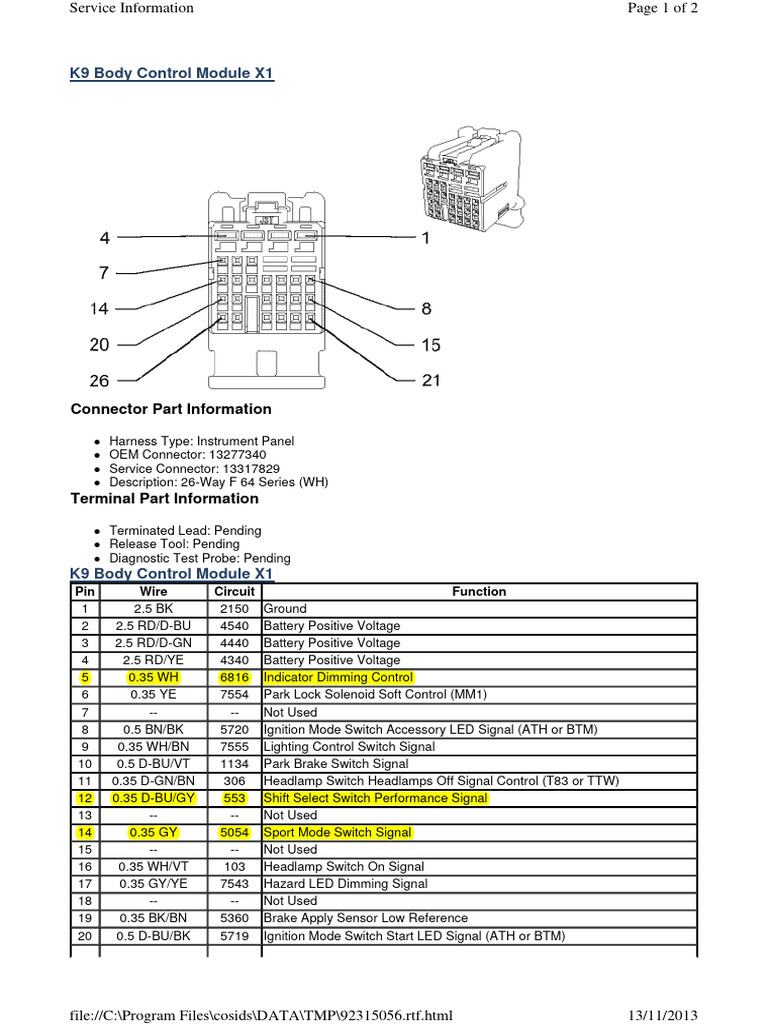

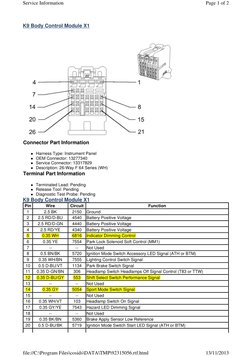

K9 Body Control Module X1

Connector Part Information

Harness Type: Instrument Panel

OEM Connector: 13277340
Service Connector: 13317829
Description: 26-Way F 64 Series (WH)
Terminal Part Information

Terminated Lead: Pending

Release Tool: Pending
Diagnostic Test Probe: Pending
K9 Body Control Module X1
Pin Wire Circuit Function
1 2.5 BK 2150 Ground
2 2.5 RD/D-BU 4540 Battery Positive Voltage
3 2.5 RD/D-GN 4440 Battery Positive Voltage
4 2.5 RD/YE 4340 Battery Positive Voltage
5 0.35 WH 6816 Indicator Dimming Control
6 0.35 YE 7554 Park Lock Solenoid Soft Control (MM1)
7 -- -- Not Used
8 0.5 BN/BK 5720 Ignition Mode Switch Accessory LED Signal (ATH or BTM)
9 0.35 WH/BN 7555 Lighting Control Switch Signal
10 0.5 D-BU/VT 1134 Park Brake Switch Signal
11 0.35 D-GN/BN 306 Headlamp Switch Headlamps Off Signal Control (T83 or TTW)
12 0.35 D-BU/GY 553 Shift Select Switch Performance Signal
13 -- -- Not Used
14 0.35 GY 5054 Sport Mode Switch Signal
15 -- -- Not Used
16 0.35 WH/VT 103 Headlamp Switch On Signal
17 0.35 GY/YE 7543 Hazard LED Dimming Signal
18 -- -- Not Used
19 0.35 BK/BN 5360 Brake Apply Sensor Low Reference
20 0.5 D-BU/BK 5719 Ignition Mode Switch Start LED Signal (ATH or BTM)

file://C:\Program Files\cosids\DATA\TMP\92315056.rtf.html 13/11/2013

Service Information Page 2 of 2

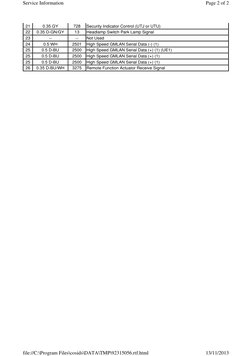

21 0.35 GY 728 Security Indicator Control (UTJ or UTU)

22 0.35 D-GN/GY 13 Headlamp Switch Park Lamp Signal
23 -- -- Not Used
24 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1)
25 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1) (UE1)
25 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1)
25 0.5 D-BU 2500 High Speed GMLAN Serial Data (+) (1)
26 0.35 D-BU/WH 3275 Remote Function Actuator Receive Signal
