2015 Chevrolet Prisma | Onix, Prisma Service Manual 7527615 | | Engine Controls and Fuel - 1.0L LKL or 1.4L LKJ LKK |
Engine/Propulsion
Schematic and Routing Diagrams | Document ID: 3641701

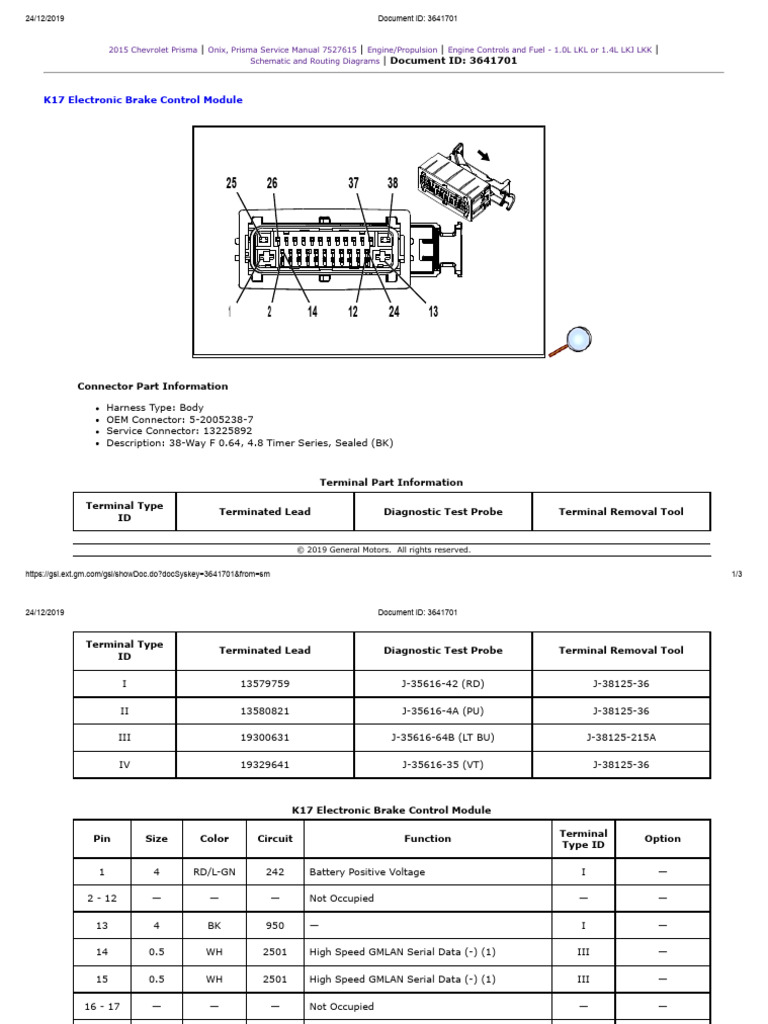

K17 Electronic Brake Control Module

25 26 37 38

1 2 14 12 24 13

Connector Part Information

Harness Type: Body

OEM Connector: 5-2005238-7
Service Connector: 13225892
Description: 38-Way F 0.64, 4.8 Timer Series, Sealed (BK)

Terminal Part Information

Terminal Type
Terminated Lead Diagnostic Test Probe Terminal Removal Tool
ID

© 2019 General Motors. All rights reserved.

https://gsi.ext.gm.com/gsi/showDoc.do?docSyskey=3641701&from=sm 1/3
24/12/2019 Document ID: 3641701

Terminal Type
Terminated Lead Diagnostic Test Probe Terminal Removal Tool
ID

I 13579759 J-35616-42 (RD) J-38125-36

II 13580821 J-35616-4A (PU) J-38125-36

III 19300631 J-35616-64B (LT BU) J-38125-215A

IV 19329641 J-35616-35 (VT) J-38125-36

K17 Electronic Brake Control Module

Terminal
Pin Size Color Circuit Function Option
Type ID

1 4 RD/L-GN 242 Battery Positive Voltage I —

2 - 12 — — — Not Occupied — —

13 4 BK 950 — I —

14 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) III —

15 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) III —

16 - 17 — — — Not Occupied — —

18 0.5 GY/BN 7065 Wheel Speed Sensor Control Right Front III —

19 0.5 GY/YE 7128 Wheel Speed Sensor Control Right Rear III —

20 0.5 L-BU 884 Wheel Speed Sensor Signal Left Rear III —

21 0.5 GY 830 Wheel Speed Sensor Signal Left Front III —

© 2019 General Motors. All rights reserved.

https://gsi.ext.gm.com/gsi/showDoc.do?docSyskey=3641701&from=sm 2/3
24/12/2019 Document ID: 3641701

Terminal
Pin Size Color Circuit Function Option
Type ID

22 0.5 L-GN/GY 333 Brake Fluid Level Sensor Signal III —

23 - 24 — — — Not Occupied — —

2.5 RD/GY 142 II —

25 Battery Positive Voltage
2.5 RD/GY 142 IV —

26 0.5 L-BU 2500 High Speed GMLAN Serial Data (+) (1) III —

27 0.5 L-BU 2500 High Speed GMLAN Serial Data (+) (1) III —

28 — — — Not Occupied — —

29 0.5 WH/L-BU 5986 Serial Data Communication Enable III —

30 — — — Not Occupied — —

31 0.5 YE 872 Wheel Speed Sensor Signal Right Front III —

32 0.5 VT 882 Wheel Speed Sensor Signal Right Rear III —

33 0.5 GY/BK 7127 Wheel Speed Sensor Control Left Rear III —

34 0.5 GY/WH 7064 Wheel Speed Sensor Control Left Front III —

35 - 37 — — — Not Occupied — —

2.5 BK 950 II —
38 —
2.5 BK 950 IV —
