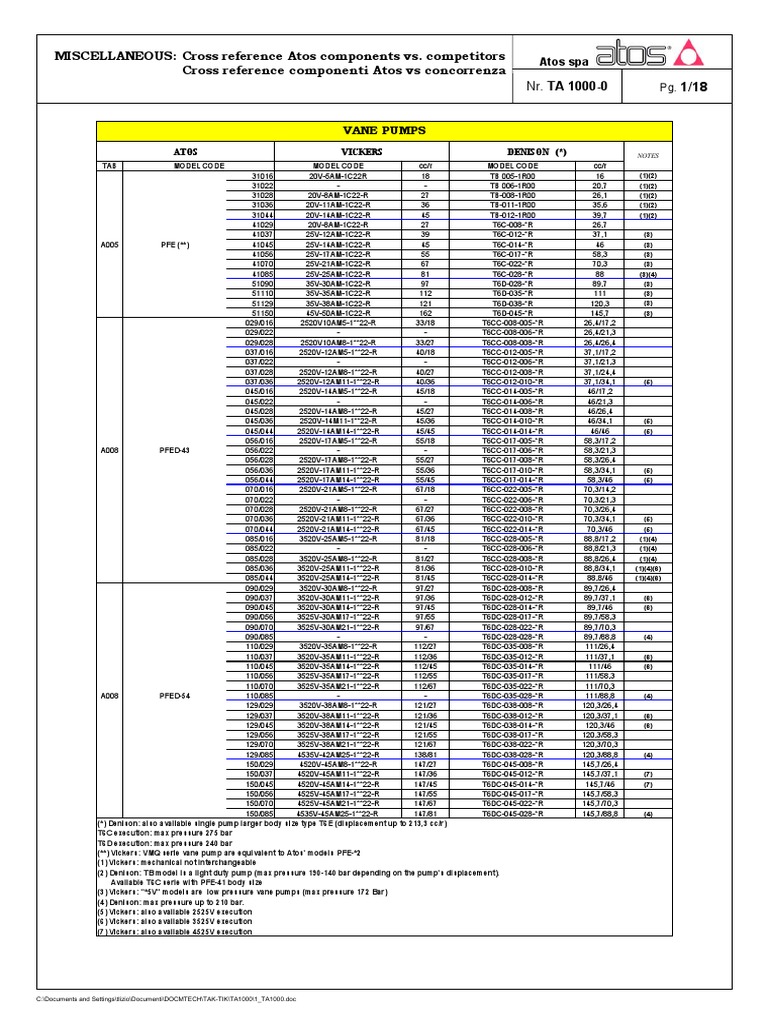

MISCELLANEOUS: Cross reference Atos components vs.

competitors Atos spa

Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 1/18

VANE PUMPS
ATOS VICKERS DENISON (*) NOTES
TAB MODEL CODE MODEL CODE cc/r MODEL CODE cc/r
31016 20V-5AM-1C22R 18 TB 005-1R00 16 (1)(2)
31022 - - TB 006-1R00 20,7 (1)(2)
31028 20V-8AM-1C22-R 27 TB-008-1R00 26,1 (1)(2)
31036 20V-11AM-1C22-R 36 TB-011-1R00 35,6 (1)(2)
31044 20V-14AM-1C22-R 45 TB-012-1R00 39,7 (1)(2)
41029 20V-8AM-1C22-R 27 T6C-008-*R 26,7
41037 25V-12AM-1C22-R 39 T6C-012-*R 37,1 (3)
A005 PFE (**) 41045 25V-14AM-1C22-R 45 T6C-014-*R 46 (3)
41056 25V-17AM-1C22-R 55 T6C-017-*R 58,3 (3)
41070 25V-21AM-1C22-R 67 T6C-022-*R 70,3 (3)
41085 25V-25AM-1C22-R 81 T6C-028-*R 88 (3)(4)
51090 35V-30AM-1C22-R 97 T6D-028-*R 89,7 (3)
51110 35V-35AM-1C22-R 112 T6D-035-*R 111 (3)
51129 35V-38AM-1C22-R 121 T6D-038-*R 120,3 (3)
51150 45V-50AM-1C22-R 162 T6D-045-*R 145,7 (3)
029/016 2520V10AM5-1**22-R 33/18 T6CC-008-005-*R 26,4/17,2
029/022 - - T6CC-008-006-*R 26,4/21,3
029/028 2520V10AM8-1**22-R 33/27 T6CC-008-008-*R 26,4/26,4
037/016 2520V-12AM5-1**22-R 40/18 T6CC-012-005-*R 37,1/17,2
037/022 - - T6CC-012-006-*R 37,1/21,3
037/028 2520V-12AM8-1**22-R 40/27 T6CC-012-008-*R 37,1/24,4
037/036 2520V-12AM11-1**22-R 40/36 T6CC-012-010-*R 37,1/34,1 (5)
045/016 2520V-14AM5-1**22-R 45/18 T6CC-014-005-*R 46/17,2
045/022 - - T6CC-014-006-*R 46/21,3
045/028 2520V-14AM8-1**22-R 45/27 T6CC-014-008-*R 46/26,4
045/036 2520V-14M11-1**22-R 45/36 T6CC-014-010-*R 46/34,1 (5)
045/044 2520V-14AM14-1**22-R 45/45 T6CC-014-014-*R 46/46 (5)
056/016 2520V-17AM5-1**22-R 55/18 T6CC-017-005-*R 58,3/17,2
A008 PFED-43 056/022 - - T6CC-017-006-*R 58,3/21,3
056/028 2520V-17AM8-1**22-R 55/27 T6CC-017-008-*R 58,3/26,4
056/036 2520V-17AM11-1**22-R 55/36 T6CC-017-010-*R 58,3/34,1 (5)
056/044 2520V-17AM14-1**22-R 55/45 T6CC-017-014-*R 58,3/46 (5)
070/016 2520V-21AM5-1**22-R 67/18 T6CC-022-005-*R 70,3/14,2
070/022 - - T6CC-022-006-*R 70,3/21,3
070/028 2520V-21AM8-1**22-R 67/27 T6CC-022-008-*R 70,3/26,4
070/036 2520V-21AM11-1**22-R 67/36 T6CC-022-010-*R 70,3/34,1 (5)
070/044 2520V-21AM14-1**22-R 67/45 T6CC-022-014-*R 70,3/46 (5)
085/016 3520V-25AM5-1**22-R 81/18 T6CC-028-005-*R 88,8/17,2 (1)(4)
085/022 - - T6CC-028-006-*R 88,8/21,3 (1)(4)
085/028 3520V-25AM8-1**22-R 81/27 T6CC-028-008-*R 88,8/26,4 (1)(4)
085/036 3520V-25AM11-1**22-R 81/36 T6CC-028-010-*R 88,8/34,1 (1)(4)(6)
085/044 3520V-25AM14-1**22-R 81/45 T6CC-028-014-*R 88,8/46 (1)(4)(6)
090/029 3520V-30AM8-1**22-R 97/27 T6DC-028-008-*R 89,7/26,4
090/037 3520V-30AM11-1**22-R 97/36 T6DC-028-012-*R 89,7/37,1 (6)
090/045 3520V-30AM14-1**22-R 97/45 T6DC-028-014-*R 89,7/46 (6)
090/056 3525V-30AM17-1**22-R 97/55 T6DC-028-017-*R 89,7/58,3
090/070 3525V-30AM21-1**22-R 97/67 T6DC-028-022-*R 89,7/70,3
090/085 - - T6DC-028-028-*R 89,7/88,8 (4)
110/029 3520V-35AM8-1**22-R 112/27 T6DC-035-008-*R 111/26,4
110/037 3520V-35AM11-1**22-R 112/36 T6DC-035-012-*R 111/37,1 (6)
110/045 3520V-35AM14-1**22-R 112/45 T6DC-035-014-*R 111/46 (6)
110/056 3525V-35AM17-1**22-R 112/55 T6DC-035-017-*R 111/58,3
110/070 3525V-35AM21-1**22-R 112/67 T6DC-035-022-*R 111/70,3
A008 PFED-54 110/085 - - T6DC-035-028-*R 111/88,8 (4)
129/029 3520V-38AM8-1**22-R 121/27 T6DC-038-008-*R 120,3/26,4
129/037 3520V-38AM11-1**22-R 121/36 T6DC-038-012-*R 120,3/37,1 (6)
129/045 3520V-38AM14-1**22-R 121/45 T6DC-038-014-*R 120,3/46 (6)
129/056 3525V-38AM17-1**22-R 121/55 T6DC-038-017-*R 120,3/58,3
129/070 3525V-38AM21-1**22-R 121/67 T6DC-038-022-*R 120,3/70,3
129/085 4535V-42AM25-1**22-R 138/81 T6DC-038-028-*R 120,3/88,8 (4)
150/029 4520V-45AM8-1**22-R 147/27 T6DC-045-008-*R 145,7/26,4
150/037 4520V-45AM11-1**22-R 147/36 T6DC-045-012-*R 145,7/37,1 (7)
150/045 4520V-45AM14-1**22-R 147/45 T6DC-045-014-*R 145,7/46 (7)
150/056 4525V-45AM17-1**22-R 147/55 T6DC-045-017-*R 145,7/58,3
150/070 4525V-45AM21-1**22-R 147/67 T6DC-045-022-*R 145,7/70,3
150/085 4535V-45AM25-1**22-R 147/81 T6DC-045-028-*R 145,7/88,8 (4)
(*) Denison: also available single pump larger body size type T6E (displacement up to 213,3 cc/r)
T6C execution: max pressure 275 bar
T6D execution: max pressure 240 bar
(**) Vickers: VMQ serie vane pump are equivalent to Atos' models PFE-*2
(1) Vickers: mechanical not interchangeable
(2) Denison: TB model is a light duty pump (max pressure 190-140 bar depending on the pump's displacement).
Available T6C serie with PFE-41 body size
(3) Vickers: "*5V" models are low pressure vane pumps (max pressure 172 Bar)
(4) Denison: max pressure up to 210 bar.
(5) Vickers: also available 2525V execution
(6) Vickers: also available 3525V execution
(7) Vickers: also available 4525V execution

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 2/18

CYLINDERS
CONFORM ITY TO STANDARD

ISO 6020-2 '91 ISO 6022

M ANUFACTURES SIM ILAR ISO 6020-2
DIN 24554 (1) (CETOP RP73H) ISO 6020-3 '94 (2)
(JIC-NFPA)
(DIN 24333)
W ITHO UT TRASDUCER W ITH TRASDUCER

CK-CH CK* (P,F,M ,V) CE CC CH big bore Ø

ATOS
(tab.B137) (tab.B310) (tab.B060) (tab.B241) (tab.B160)

BOSCH (CPOAC) C160CH H160CA SV C80H-C210J H250C

CM B A3 T3 09

CONFORTI CD-DK TD-TK

FLEM CO (ex. V & B) HM HM tem p HR

LHM (ex. HYDROLINE) IHM -DHM IHM electronic N5 ISM

M ECM AN 204 HYDROSENSE 218

PARKER HM I-HM D HM X 3L-2H MMA

REXROTH CD160-CDT3 CDW CD70-CD210 CD251

NOTE:
(1) DIN 24554 standard are equivalent to ISO 6020/2 but less attachm ents and rod threads are foreseen
(2) This type of cylinder is STD (on a catalogue) only for Atos; but very often the other com panies do it as a special

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 3/18

CONVENTIONAL VALVES
ATOS
BOSCH REXROTH VICKERS NOTES
TAB MODEL CODE (*)
C020 ARE-06 350 - DBDS-6-G-1X/315 C-175-F-11UB (1)
500 - DBDS-6-G-1X/400 -
15 0 532 002 010 DBDS-10-G-1X/25 -
C020 ARE-15 75 0 532 002 052 DBDS-10-G-1X/100 -
150 0 532 002 001 DBDS-10-G-1X/200 -
250 0 532 002 004 DBDS-10-G-1X/315 -
100 - DB-15-G2-5X/100 ECT-06B-10TB
C045 ARAM-20 210 - DB-15-G2-5X/200 ECT-06C-10TB (2)
350 - DB-15-G2-5X/350 ECT-06F-10TB (2)
100 - DBW-15-BG2-5X/100 ECT5-06B-OB-VM-U-*5-30TB
C045 ARAM-20/10 210 - DBW-15-BG2-5X/200 ECT5-06C-OB-VM-U-*5-30TB (2)
350 - DBW-15-BG2-5X/350 ECT5-06F-OB-VM-U-*5-30TB (2)
100 - DB-25-G2-5X/100 ECT-10B-10TB
C045 ARAM-32 210 - DB-25-G2-5X/200 ECT-10C-10TB (2)
350 - DB-25-G2-5X/350 ECT-10F-10TB (2)
100 - DBW-25-BG2-5X/100 ECT5-10B-OB-VM-U*5-30TB
C045 ARAM-32/10 210 - DBW-25-BG2-5X/200 ECT5-10C-OB-VM-U*5-30TB (2)
350 - DBW-25-BG2-5X/350 ECT5-10F-OB-VM-U*5-30TB (2)
50 - DB-10-2-5X/50 CG2V-6BW-10
100 - DB-10-2-5X/100 CG2V-6CW-10
C066 AGAM-10 210 0 811 101 300 DB-10-2-5X/200 CG2V-6FW-10 (3)
350 0 811 101 301 DB-10-2-5X/350 CG2V-6GW-10 (3)
50 DB-20-2-5X/50 CG2V-8BW-10
100 - DB-20-2-5X/100 CG2V-8CW-10
C066 AGAM-20 210 0 811 102 300 DB-20-2-5X/200 CG2V-8FW-10 (3)
350 0 811 102 301 DB-20-2-5X/350 CG2V-8GW-10 (3)
50 - DB-30-2-5X/50 -
100 - DB-30-2-5X/100 -
C066 AGAM-32 210 - DB-30-2-5X/200 -
350 - DB-30-2-5X/350 -
50 - DBW-10-B2-5X/50 CG5V-6BW-D-VM-U-*5-20
100 - DBW-10-B2-5X/100 CG5V-6CW-D-VM-U-*5-20
C066 AGAM-10/10 210 - DBW-10-B2-5X/200 CG5V-6FW-D-VM-U-*5-20 (3)
350 0 811 101 303 DBW-10-B2-5X/350 CG5V-6GW-D-VM-U-*5-20 (3)
50 DBW-20-B2-5X/50 CG5V-8BW-D-VM-U-*5-20
100 - DBW-20-B2-5X/100 CG5V-8CW-D-VM-U-*5-20
C066 AGAM-20/10 210 - DBW-20-B2-5X/200 CG5V-8FW-D-VM-U-*5-20 (3)
350 0 811 102 303 DBW-20-B2-5X/350 CG5V-8GW-D-VM-U-*5-20 (3)
50 - DBW-30-B2-5X/50 -
100 - DBW-30-B2-5X/100 -
C066 AGAM-32/10 210 - DBW-30-B2-5X/200 -
350 - DBW-30-B2-5X/350 -
50 DR-10-5-5X/50YM XG2V-6BW-1*
100 0 811 145 056 DR-10-5-5X/100YM XG2V-6CW-1*
C070 AGIR-10 210 0 811 145 052 DR-10-5-5X/200YM XG2V-6FW-1*
350 0 811 145 050 DR-10-5-5X/350YM XG2V-6GW-1*
50 - DR-20-5-5X/50YM XG2V-8BW-1*
100 - DR-20-5-5X/100YM XG2V-8CW-1*
C070 AGIR-20 210 0 811 146 052 DR-20-5-5X/200YM XG2V-8FW-1*
350 0 811 146 050 DR-20-5-5X/350YM XG2V-8GW-1*
50 - DR-30-5-5X/50YM -
100 - DR-30-5-5X/100YM -
C070 AGIR-32 210 - DR-30-5-5X/200YM -
350 - DR-30-5-5X/350YM -
50 - DR-10-5-5X/50Y XCG2V-6BW-1*
100 0 811 145 057 DR-10-5-5X/100Y XCG2V-6CW-1*
C070 AGIRR-10 210 0 811 145 055 DR-10-5-5X/200Y XCG2V-6FW-1*
350 0 811 145 053 DR-10-5-5X/315Y XCG2V-6GW-1*
50 - DR-20-5-5X/50Y XCG2V-8BW-1*
100 - DR-20-5-5X/100Y XCG2V-8CW-1*
C070 AGIRR-20 210 0 811 146 054 DR-20-5-5X/200Y XCG2V-8FW-1*
350 - DR-20-5-5X/315Y XCG2V-8GW-1*
50 - DR-30-5-5X/50Y
100 - DR-30-5-5X/100Y -
C070 AGIRR-32 210 - DR-30-5-5X/200Y -
350 - DR-30-5-5X/315Y -
100 - DZ-10-2-5X/100YM - (4) (6)
C070 AGIS-10 210 0 811 130 022 DZ-10-2-5X/200YM - (4) (6)
350 - DZ-10-2-5X/315YM - (4) (6)
100 - DZ-20-2-5X/100YM RG-06-D2 (5)(6)(7)
C070 AGIS-20 210 - DZ-20-2-5X/200YM RG-06-F2 (5)(6)(7)
350 - DZ-20-2-5X/315YM - (5)(6)(7)
100 - DZ-30-2-5X/100YM RG-10-D2 (6) (7)
C070 AGIS-32 210 - DZ-30-2-5X/200YM RG-10-F2 (6) (7)
350 - DZ-30-2-5X/315YM - (6) (7)

(1) Vickers: regulating pressure range P=104 ÷ 207 bar

(2) Vickers: valves with pressure adjustment type C ( 35 ÷ 140 bar); type F (100 ÷ 250 bar)
(3) Bosch: also available valve with mounting surface ISO/Cetop *P
(4) Vickers also available CG2V-6*W-1 poppet type sequence valves as alternative (mounting surface according to ISO/Cetop */R)
(5) Vickers also available CG2V-8*W-1 poppet type sequence valve as alternative (mounting surface according to ISO/Cetop /R)
(6) Rexroth: also available with external pilot line
(7) Vickers: spool type model

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 4/18

CONVENTIONAL VALVES
ATOS BOSCH REXROTH VICKERS NOTES
TAB MODEL CODE (*)
100 - DZ10-2-5X/100Y - (6)
C070 AGISR-10 210 - DZ10-2-5X/200Y - (6)
350 0 811 130 021 DZ10-2-5X/315Y - (6)
100 - DZ20-2-5X/100Y RCG-06-D2 (6) (7)
C070 AGISR-20 210 - DZ20-2-5X/200Y RCG-06-F2 (6) (7)
350 - DZ20-2-5X/315Y - (6) (7)
100 - DZ30-2-5X/100Y RCG-10-D2 (6) (7)
C070 AGISR-32 210 - DZ30-2-5X/200Y RCG-10-F2 (6) (7)
350 - DZ30-2-5X/315Y - (6) (7)
100 - DA10-2-5X/100-10Y EURG1-06C-13UG (9)(18)
C070 AGIU-10 210 0 811 115 011 DA10-2-5X/200-10Y EURG1-06F-13UG (8)(9)(18)
350 0 811 115 010 DA10-2-5X/315-10Y - (8) (18)
100 - DA20-2-5X/100-10Y - (10) (18)
C070 AGIU-20 210 0 811 116 011 DA20-2-5X/200-10Y - (8)(10)(18)
350 0 811 116 010 DA20-2-5X/315-10Y - (8)(10)(18)
100 - DA30-2-5X/100-10Y EURG1-10C-13UG (9)(10)(18)
C070 AGIU-32 210 - DA30-2-5X/200-10Y EURG1-10F-13UG (9)(10)(18)
350 - DA30-2-5X/315-10Y - (9)(10)(18)
100 - DAW10-B2-5X/100-10Y - (10) (18)
C070 AGIU-10/10 210 - DAW10-B2-5X/200-10Y - (10) (18)
350 - DAW10-B2-5X/315-10Y - (10) (18)
100 - DAW20-B2-5X/100-10Y - (10) (18)
C070 AGIU-20/10 210 - DAW20-B2-5X/200-10Y - (10) (18)
350 - DAW20-B2-5X/315-10Y - (10) (18)
100 - DAW30-B2-5X/100-10Y - (10) (18)
C070 AGIU-32/10 210 - DAW30-B2-5X/200-10Y - (10) (18)
350 - DAW30-B2-5X/315-10Y - (10) (18)
1 0 811 332 103 2FRM-6B-76-2X/1,5Q R FCG-3-16-H-10 (11)
6 0 811 332 105 2FRM-6B-76-2X/6Q R FCG-3-63-H-10 (11)
C210 QV-06 11 0 811 332 114 2FRM-6B-76-2X/10Q R FCG-3-120-H-10 (11)
16 - 2FRM-6B-76-2X/16Q R FCG-3-180-H-10
24 0 811 332 110 2FRM-6B-76-2X/25Q R - (11)
C231 QV-10/2 0 811 330 030 2FRM-10-3X/50L FCG-02-2300 (12)
C231 QV-20/2 0 811 331 015 2FRM-16-3X/160L FCG-03-28-22
10 0 811 323 008 MK-8G-1X FN-03-20-B (13)
15 - MK-10G-1X -
C280 AQFR 20 - MK-15G-1X EFN-06-21-B
25 0 811 321 002 MK-20G-1X - (13)
32 - MK-25G-1X EFN-10-11-B
06 0 532 400 001 S6A1 DT8P1-02-*-10-UB (14) (15)
10 - S8A1 DT8P1-03-*-10-UB (15)
C406 ADR 15 - S10A1 -
20 - S15A1 DT8P1-06-*-11-UNB (15)
25 - S20A1 -
32 - S25A1 DT8P1-10-*-11-UNB (15)
10 - - -
C450 ADRL 15 0 532 405 003 SV 10GB1-4X -
20 - SV 16GB1-4X 4CT1-06-A-UB (16)
32 - SV 25GB1-4X 4CT1-10-A-UB (16)
10 0 811 020 021 SV 10PA1-4X PCGV-6-AD-10 (16)
C450 AGRL 20 0 811 021 021 SV 20PA1-4X PCGV-8-AD-10 (16)
32 - SV 30PB1-4X 4CG-10-A-UG (16)
10 0 811 020 020 SL 10PA1-4X PCGV-6-AD1-10 (16)
C450 AGRLE 20 0 811 021 020 SL 20PA1-4X PCGV-8-AD-1-10 (16)
32 - SL 30PB1-4X 4CG2-10-A-UG (16)
(*) Light type model codes not included in KT06

(6) Rexroth: also available with external pilot line

(7) Vickers: spool type model
(8) Bosch: valve with internal drain
(9) Vickers: mounting surface differs from Atos/Bosch one (ISO/Cetop *P)
(10) Rexroth: mounting surface differs from Atos/Bosch one (ISO/Cetop *P)
(11) Bosch: execution without by pass check valve
(12) Vickers: max controlled flow-rate Q=38 l/1'
(13) Bosch: execution with setting knob
(14) Bosch: 90° body
(15) Vickers: available "angle model" type C2-8**-UB in the 1/4", 3/8", 3/4", 1", 1¼, 1½" nominal bore pipe sizes
(16) Vickers: execution with 2 bar min cracking pressure
(17) Rexroth & Vickers: also available with external pilot line
(18) Rexroth & Vickers: with integral check valve

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 5/18

MODULAR VALVES
ATOS
BOSCH REXROTH (°) VICKERS NOTES
TAB MODEL CODE
011/50/100/210/350 0 811 109 122/123 ZDB6VP2-4X/50/100/200/315 DGMC-3-PT/P/A/B/C/G-W (12)
012/50/100/210/350 - Z2DB6VC2-4X/50/100/210/315 DGMC2-3-AT*W-BT-*-W
D120 HM 013/50/100/210/350 - ZDB6VA2-4X/50/100/210/315 DGMC-3-AT/P/A/B/C/G-W
014/50/100/210/350 - ZDB6VB2-4X/50/100/210/350 DGMC-3-BT/P/A/B/C/G-W
015/50/100/210/350 0 811 109 023/024 Z2DB6VD2-4X/50/100/210/315 DGMC2-3-AB*W-BA*W (1)(12)
011/50/100/210/350 0 811 101 210/211/212 ZDB10VP2-4X/50/100/210/315 DGMC-5-PT/A/B/F/G-W (12)
012/50/100/210/350 0 811 101 265/266/267 Z2DB10VC2-4X/50/100/210/315 DGMC2-5-AT*W-BT*W (2)(12
D120 KM 013/50/100/210/350 0 811 101 255/256/257 ZDB10VA2-4X/50/100/210/315 DGMC-5-AT/A/B/F/G-W (2)(12
014/50/100/210/350 0 811 101 260/261/262 ZDB10VB2-4X/50/100/210/315 DGMC-5-BT/A/B/F/G-W (2)(12
015/50/100/210/350 0 811 101 270/271/272 Z2DB10VD2-4X/50/100/210/315 DGMC2-5-AB*W-BA*W (2)(12
011/50/100/210/350 0 811 109 /*/131/132/133 - -
012/50/100/210/350 0 811 109 /*/143/144/145 - -
D120 HMP 013/50/100/210/350 0 811 109 /*135/136/137 - -
014/50/100/210/350 0 811 109 /*/139/140/141 - -
015/50/100/210/350 0 811 109 /*/147/148/149 - -
D130 HS 011/* - - DGMR1-3-PP*W
D130 KS 011/* - - DGMR1-5-PP*W
031/32/75/210 0 811 150 232/233/234 ZDR6DP2-4X/25/75/150/210YM DGMX2-3-PP-A/B/C/F-W
D140 HG 033/32/75/210 0 811 150 238/239/240 ZDR6DA2-4X/25/75/150/210YM DGMX2-3-PA-A/B/C/F-W
034/32/75/210 0 811 150 244/245/246 ZDR6DB2-4X/25/75/150/210YM DGMX2-3-PB-A/B/C/F-W
031/100/210 0 811 145 115/116/117/118 ZDR10VP5-5X/75/210YM DGMX2-5-PP-A/B/F-W
D140 KG 033/100/210 0 811 145 123/124/125/126 ZDR10VA5-5X/75/210YM DGMX2-5-PA-A/B/F-W (3)
034/100/210 0 811 145 131/132/133/134 ZDR10VB5-5X/75/210YM DGMX2-5-PB-A/B/F-W (3)
D140 JPG 211/100/210 - - DGMX-7-PP-B/G-H-10
D140 JPG 311/100/210 DGX-H06-2/3
D150 HC 011/30 - - KDGMH-3-616261-10
011/ 8 0 811 401 200
D150 KC 011/30 0 811 401 223 ZDC10P-2X/M KDGMH-5-459062-10 (4) (5)
D150 JPC 211/30 0 819 024 920 ZDC16P-2X/M KDGMH-7-616268/DGMA-7-W (6)
012(/U) 0 811 324 015 Z2FS6-2-4X/2Q(/1Q) DGMFN-3-Y-A2W-B2W (7)
013(/U) - Z2FS6A2-4X/2Q(/1Q) DGMFN-3-Y-A2W (7)
D160 HQ 014(/U) - Z2FS6B2-4X/2Q(/1Q) DGMFN-3-Y-B2W (7)
022(/U) 0 811 324 016 Z2FS6-2-4X/2Q(/1Q) DGMFN-3-X-A2W-B2W (7)
023(/U) 0 811 324 017 Z2FS6A2-4X/2Q(/1Q) DGMFN-3-X-A2W (7)
024(/U) - Z2FS6B2-4X/2Q(/1Q) DGMFN-3-X-B2W (7)
012 0 811 320 025 Z2FS10-5-3X DGMFN-5-Y-A2W-B2W (7) (8)
013 - Z2FS10A-5-3X/S2 DGMFN-5-X-A2W-B2W
D160 KQ 014 - Z2FS10B5-3X/S2 DGMFN-5-Y-A2W
022 0 811 320 025 Z2FS10B5-3X DGMFN-5-Y-B2W (7) (8)
023 - Z2FS10A5-3X/S DGMFN-5-X-A2W
024 - Z2FS10B5-3X/S DGMFN-5-X-B2W
212 0 811 321 050 Z2FS16-3X/S2 DGMFN-7-Y-A2H-B2H
D160 JPQ 213 - - DGMFN-7-Y-A2H
214 - - DGMFN-7-Y-B2H
222 - Z2FS16-3X/S -
D160 JPQ 312 0 811 321 055 Z2FS22-3X/S2 -
322 - Z2FS22-3X/S -
003 - Z1S6C1-2X DGMDC-3-Y-AK
004 - Z1S6D1-2X DGMDC-3-Y-BK
011 0 811 004 106 Z1S6P1-3X DGMDC-3-Y-PK
D180 HR 016 0 811 004 107 Z1S6T1-3X DGMDC-3-X-TK
012 0 811 024 105 Z2S6-1-6X DGMPC-3-ABK-BAK (9)
013 0 811 024 103 Z2S6A-1-6X DGMPC-3-ABK (9)
014 0 811 024 104 Z2S6B-1-6X DGMPC-3-BAK (9)
003 - Z1S10C1-3X DGMDC-5-Y-AK
004 - Z1S10D1-3X DGMDC-5-Y-BK
011 0 811 000 025 Z1S10P1-3X DGMDC-5-Y-PK
D180 KR 016 0811 000 026 Z1S10T1-3X DGMDC-5-X-TK
012 0 811 020 027 Z2S10-1-3X DGMPC-5-ABK-BAK (9)(10)(11)
013 0 811 020 025 Z2S10A-1-3X DGMPC-5-ABK (9)(10)(11)
014 0 811 020 026 Z2S10B-1-3X DGMPC-5-BAK (9)(10)(11)
212 0 811 021 051 Z2S161-5X DGMPC-7-ABK-BAK (10)
D180 JPR 213 - Z2S16A1-5X DGMPC-7-ABK (10)
214 - Z2S16B1-5X DGMPC-7-BAK (10)
312 0 811 021 055 Z2S22-1-5X - (10)
D180 JPR 313 - Z2S22A1-5X - (10)
314 - Z2S22B1-5X - (10)
(°) Rexroth: new NG 6 Modular valves with aluminium bodies for pressure up to 210 bar are identified by K letter: for example ZDRK6*
(1) Bosch: also available low pressure execution (Pmax 250 bar)
(2) Bosch: direct operated pressure relief valves by Bosch
(3) Bosch: executions with check valve
(4) Bosch: fixed ∆ P = 8 bar
(5) Bosch: without integral shuttle valve and with "C" load sensing ports
(6) Vickers: modular pressure compensator codes / shuttle valve codes.
(7) Rexroth: meter in and meter-out exchangeable function depending on the way in which the valve is installed
(8) Bosch: meter in and meter-out exchangeable function depending on the way in which the valve is installed
(9) Vickers: execution available with decompression feature
(10) Rexroth: execution with decompression feature
(11) Bosch: pilot ratio 5,5:1.
(12) Bosch: not available execution 50 bar

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 6/18

DIRECTIONAL CONTROL VALVES

ATOS BOSCH REXROTH VICKERS NOTES
TAB MODEL CODE 24DC 230/50 AC
0630/2 0 810 091 225 0 810 091 453 4WE6C 5X/A*NZ4 DG4V-3S-0A-VM-M-U-*5-60
0631/2 0 810 091 227 0 810 091 456 4WE6D 5X/A*NZ4 DG4V-3S-2A-M-U-*5-60
0632/2 0 810 091 251 - 3WE6A 5X/A*NZ4 DG4V-3S-22A-M-U-*5-60 (1)
0610 0 810 091 253 0 810 091 475 4WE6HA 5X/A*NZ4 DG4V-3S-0B-M-U-*5-60
0611 0 810 091 260 0 810 091 479 4WE6EA 5X/A*NZ4 DG4V-3S-2B-M-U-*5-60 (2)
0613 0 810 091 238 - 4WE6JA 5X/A*NZ4 DG4V-3S-6B-M-U-*5-60
0614 0 810 091 233 0 810 091 461 4WE6 GA 5X/A*NZ4 DG4V-3S-8BL-M-U-*5-60
0710 0 810 091 201 0 810 091 434 4WE6H 5X/A*NZ4 DG4V-3S-0C-M-U-*5-60
E010 DHU/I (·) 0711 0 810 091 203 0 810 091 437 4WE6E 5X/A*NZ4 DG4V-3S-2C-M-U-*5-60
0713 0 810 091 212 0 810 091 442 4WE6J 5X/A*NZ4 DG4V-3S-6C-M-U-*5-60
0713/1 0 810 091 240 0 810 091 465 4WE6W 5X/A*NZ4 DG4V-3S-33C-M-U-*5-60 (3)
0714 0 810 091 207 0 810 091 439 4WE6G 5X/A*NZ4 DG4V-3S-8C-M-U-*5-60
0715 0 810 091 217 0 810 091 446 4WE6F 5X/A*NZ4 -
0716 0 810 091 246 0 810 091 471 4WE6L 5X/A*NZ4 -
0717 0 810 091 258 0 810 091 477 4WE6U 5X/A*NZ4 - (4)
0718 0 810 091 216 0 810 091 444 4WE6M 5X/A*NZ4 DG4V-3S-7C-M-U-*5-60
07119 0 810 091 284 0 810 091 476 4WE6R 5X/A*NZ4 DG4V-3S-52C-M-U-*5-60 (4)
1630/2 0 810 001 754 0 810 001 758 5-4WE10C 3X/C*NZ4 DG4V-5-0A-VM-U*-6
1631/2 0 810 001 760 0 810 001 764 5-4WE10D 3X/C*NZ4 DG4V-5-2A-J-VM-U*-6
1632/2 0 810 001 825 0 810 001 829 5-3WE10A 3X/C*NZ4 DG4V-5-22A-J-VM-U*-6 (1) (2)
1610 0 810 001 804 0 810 001 807 5-4WE10HA 3X/C*NZ4 DG4V-5-0B-J-VM-U*-6
1611 0 810 001 816 0 810 001 819 5-4WE10EA 3X/C*NZ4 DG4V-5-2B-J-VM-U*-6
1613 0 810 001 788 0 810 001 791 5-4WE10JA 3X/C*NZ4 DG4V-5-6B-J-VM-U*-6
1614 0 810 001 767 0 810 001 770 5-4WE10GA 3X/C*NZ4 DG4V-5-8BL-J-VM-U*-6
1710 0 810 001 708 0 810 001 713 5-4WE10H 3X/C*NZ4 DG4V-5-0C-J-VM-U*-6
E020 DKE 1711 0 810 001 715 0 810 001 721 5-4WE10E 3X/C*NZ4 DG4V-5-2C-J-VM-U*-6
DKER 1713 0 810 001 731 0 810 001 735 5-4WE10J 3X/C*NZ4 DG4V-5-6C-J-VM-U*-6
1713/1 1 810 001 776 1 810 001 781 5-4WE10W 3X/C*NZ4 DG4V-5-33C-J-VM-U*-6 (3)
1714 0 810 001 724 0 810 001 729 5-4WE10G 3X/C*NZ4 DG4V-5-8C-J-VM-U*-6
1715 0 810 001 741 0 810 001 743 5-4WE10F 3X/C*NZ4 DG4V-5-1C-J-VM-U*-6
1716 0 810 001 793 0 810 001 796 5-4WE10L 3X/C*NZ4 DG4V-5-3C-J-VM-U*-6
1717 0 810 001 814 - 5-4WE10U 3X/C*NZ4 DG4V-5-31C-J-VM-U*-6
1718 0 810 001 737 0 810 001 740 5-4WE10M 3X/C*NZ4 DG4V-5-7C-J-VM-U*-6
17119 0 810 001 808 0 810 001 810 5-4WE10R 3X/C*NZ4 DG4V-5-52C-J-VM-U*-6
2A-UX** - - M-3SEWP3X/420 - (5)
E041 DLOH 2C-UX** - - M-3SEW6N3X/420 - (5)
3A-UX** 0 810 091 269 - M-3SED6U1X/350 DG3VP-3-103A-VM-UH-10 (5) (6)
3C-UX** - - M-3SED6C1X/350 DG3VP-3-102A-VM-UH-10 (5)
E041 DLOK 3A-UX** - - M-3SED6U1X/350 - (6)
3C-UX** - - M-3SED6C1X/350 -
1630/2 0 810 002 611 - H-4WEH10C4X/6A* DG5V-5-0A-VM-*-20
1631/2 0 810 002 612 - H-4WEH10D4X/6A* DG5V-5-2A-VM-*-20
1610 - - H-4WEH10HA4X/6A* DG5V-5-0BVM-*-20
1611 - - H-4WEH10EA4X/6A* DG5V-5-2B-VM-*-20
1613 - - H-4WEH10JA4X/6A* DG5V-5-6B-VM-*-20
1614 - - H-4WEH10GA4X/6A* DG5V-5-8B-VM-*-20
1710 0 810 002 607 - H-4WEH10H4X/6A* DG5V-5-0C-VM-*-20
E070 DPHU/I (···) 1711 0 810 002 608 - H-4WEH10E4X/6A* DG5V-5-2C-VM-*-20
1713 0 810 002 610 - H-4WEH10J4X/6A* DG5V-5-6C-VM-*-20
1714 0 810 002 609 - H-4WEH10G4X/6A* DG5V-5-8C-VM-*-20
1715 - - H-4WEH10F4X/6A* DG5V-5-1C-VM-*-20
1716 0 810 002 614 - H-4WEH10L4X/6A* -
1717 0 810 002 616 - H-4WEH10U4X/6A* DG5V-5-31C-VM-*-20
1758 - - H-4WEH10P4X/6A* DG5V-5-11C-VM-*-20
1710/1 - - H-4WEH10V4X/6A* -
1713/1 0 810 002 613 - H-4WEH10W4X/6A* DG5V-5-33C-VM-*-20 (3)
(·) The listed Bosch valves are equivalent to DHO - Rexroth high performance valves are equivalent to DHO and identified by code "/E" (instead of final "/A")
The listed Vickers valves are equivalent to DHI; Vickers offers also an alternative to DHU valves identified by the same code without "S"
(··) Rexroth valves are also available without 5 chambers body; they are indentified by the same code without "5".
Vickers valves codes do not require "J" letter if supplied by Vac alternate current except 8B(L) and 8C spool spring arrangement
(···) Rexroth standard valves are with external drain and pilot pressure (equivalent /E option); low pressure distributors also available for
max pressure up to P=280 bar (same code without first letter "H"). Bosch codes are referred to different X, Y configuration
(1) Rexroth valve has 3 only useful ports ("T" port not foreseen).
(2) Bosch valve is equivalent to /A execution
(3) "Q" spool by Rexroth, 34C by Vickers and other Bosch spools, also available with different transient connections.
(4) Bosch code is referred to 110/50 Vac power supply
(5) Rexroth & Vickers: raccomended flow-rate up to Q=25LPM
(6) Rexroth: A port is connected to P port when the valve is in rest position. "A" port connect to "T" port when it is energized.

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 7/18

DIRECTIONAL CONTROL VALVES

ATOS BOSCH
REXROTH VICKERS NOTES
TAB MODEL CODE 24DC 230/50 AC
2630/2 0 810 050 120 - H-4WEH16C 6X/6A DG5V-7-0A-VM-U-*5-40 (7)
2631/2 0 810 050 121 - H-4WEH16D 6X/6A DG5V-7-2A-VM-U-*5-40 (7)
2610 - - H-4WEH16HA 6X/6A DG5V-7-0B-VM-U-*5-40 (7)
2611 0 810 050 136 0 810 050 144 H-4WEH16EA 6X/6A DG5V-7-2B-VM-U-*5-40 (4) (7)
2613 - - H-4WEH16JA 6X/6A DG5V-7-6B-VM-U-*5-40 (7)
2614 - - H-4WEH16GA 6X/6A DG5V-7-4BL-VM-U-*5-40 (7)
2710 0 810 050 110 - H-4WEH16H 6X/6A DG5V-7-0C-VM-U-*5-40 (8)
E075 DPHU/I (···) 2711 0 810 050 113 0 810 050 138 H-4WEH16E 6X/6A DG5V-7-2C-VM-U-*5-40 (4) (8)
2713 0 810 050 118 0 810 050 140 H-4WEH16J 6X/6A DG5V-7-6C-VM-U-*5-40 (4) (8)
2714 0 810 050 116 0 810 050 139 H-4WEH16T 6X/6A DG5V-7-4C-VM-U-*5-40 (4) (8)
2715 - - H-4WEH16F 6X/6A DG5V-7-1C-VM-U-*5-40 (8)
2716 0 810 050 130 0 810 050 143 H-4WEH16L 6X/6A DG5V-7-3C-VM-U-*5-40 (4) (8)
2717 0 810 050 134 0 810 010 960 H-4WEH16U 6X/6A DG5V-7-31C-VM-U-*5-40 (8) (9)
2718 - - H-4WEH16M 6X/6A - (8)
27119 - - - DG5V-7-521C-VM-U-*5-40 (8)
2710/1 - - H-4WEH16V 6X/6A DG5V-7-9C-VM-U-*5-40 (8)
2713/1 0 810 050 125 - H-4WEH16W 6X/6A DG5V-7-33C-VM-U-*5-40 (3) (8)
3630/2 0 810 010 940 0 810 010 944 H-4WEH25C 6X/6A DG5V-H8-0A-VM-U-*5-30 (7)
3631/2 0 810 010 946 0 810 010 951 H-4WEH25D 6X/6A DG5V-H8-2A-VM-U-*5-30 (7)
3610 - - H-4WEH25HA 6X/6A DG5V-H8-0B-VM-U-*5-30 (7)
3611 - 0 810 010 962 H-4WEH25EA 6X/6A DG5V-H8-2B-VM-U-*5-30 (4) (7)
3613 - - H-4WEH25JA 6X/6A DG5V-H8-6B-VM-U-*5-30 (7)
3614 - - H-4WEH25GA 6X/6A DG5V-H8-4BL-VM-U-*5-30 (7)
3710 0 810 010 910 0 810 010 912 H-4WEH25H 6X/6A DG5V-H8-0C-VM-U-*5-30 (8)
E075 DPHU/I (···) 3711 0 810 010 915 0 810 010 924 H-4WEH25E 6X/6A DG5V-H8-2C-VM-U-*5-30 (8)
3713 0 810 010 930 0 810 010 936 H-4WEH25J 6X/6A DG5V-H8-6C-VM-U-*5-30 (8)
3714 0 810 010 925 0 810 010 928 H-4WEH25T 6X/6A DG5V-H8-4C-VM-U-*5-30 (8)
3715 - - H-4WEH25F 6X/6A DG5V-H8-1C-VM-U-*5-30 (8)
3716 0 810 010 956 - H-4WEH25L 6X/6A DG5V-H8-3C-VM-U-*5-30 (8)
3717 0 810 010 958 0 810 010 960 H-4WEH25U 6X/6A DG5V-H8-31C-VM-U-*5-30 (8)
3718 0 810 010 938 - H-4WEH25M 6X/6A - (8) (10)
37119 - - - DG5V-H8-521C-VM-U-*5-30 (8)
3710/1 - - H-4WEH25V 6X/6A DG5V-H8-9C-VM-U-*5-30 (8)
3713/1 0 810 010 954 - H-4WEH25W6X/6A DG5V-H8-33C-VM-U-*5-30 (3) (8)
6630/2 - - H-4WEH32C 6X/6A DG5S4-10-0A-VM-U*-5-90 (7)
6631/2 - - H-4WEH32D 6X/6A DG5S4-10-2A-VM-U*-5-90 (7)
6610 - - H-4WEH32HA 6X/6A - (7)
6611 - - H-4WEH32EA 6X/6A - (7)
6613 - - H-4WEH32JA 6X/6A - (7)
6614 - - H-4WEH32GA 6X/6A - (7)
6710 - - H-4WEH32H 6X/6A DG5S4-10-0C-VM-U*-5-90 (8)
E075 DPHU/I (···) 6711 - - H-4WEH32E 6X/6A DG5S4-10-2C-VM-U*-5-90 (8)
6713 - - H-4WEH32J 6X/6A DG5S4-10-6C-VM-U*-5-90 (8)
6714 - - H-4WEH32T 6X/6A DG5S4-10-4C-VM-U*-5-90 (8)
6715 - - H-4WEH32F 6X/6A DG5S4-10-1C-VM-U*-5-90 (8)
6716 - - H-4WEH32L 6X/6A DG5S4-10-3C-VM-U*-5-90 (8)
6717 - - H-4WEH32U 6X/6A DG5S4-10-31C-VM-U*-5-90 (8)
6718 - - H-4WEH32M 6X/6A - (8)
6710/1 - - H-4WEH32V 6X/6A DG5S4-10-9C-VM-U*-5-90 (8)
6713/1 - - H-4WEH32W 6X/6A DG5S4-10-33C-VM-U*-5-90 (3) (8)

(···) Rexroth standard valves are with external drain and pilot pressure (equivalent /E option); low pressure distributors also available for
max pressure up to P=280 bar (same code without first letter "H"). Bosch codes are referred to different X, Y configuration

(3) "Q" spool by Rexroth, 34C by Vickers and other Bosch spools, also available with different transient connections.
(4) Bosch code is referred to 110/50 Vac power supply
(7) Competitors' valves are equivalent to Atos one with solenoid on side of port A
(8) Atos valves have an opposite port connection when "a" and "b" solenoids are excited with respect to competitors'valves
(9) Bosch valve with internal pilot and drain
(10) Bosch valve with external pilot and drain

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 8/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
L3 ; (L3/B) (0 811 403 105) 4WRA 6 EB15 ; (4WRA 6 EA15) -
F160 DHZO-A-051 S3/B - - KTG4V-3-2B13N-VM-U (1) (7)
L5 ; (L5/B) (0 811 403 104) 4WRA 6 EB30 ; (4WRA 6 EA30) KTG4V-3-2B28S-VM-U (1) (7)
L1/B - - KTG4V-3-2B03F-VM-U (1) (7)
L3 ; (L3/B) - 4WRA 6 WB15 ; (4WRA 6 WA15) - (7)
F160 DHZO-A-053 S3/B - - KTG4V-3-33B13N-VM-U (1) (7)
L5 ; (L5/B) - 4WRA 6 WB30 ; (4WRA 6 WA30) KTG4V-3-33B20N-VM-U (1) (7)
L1/B - - KTG4V-3-33B03F-VM-U (1) (7)
G110 DHZO-AE-051 L3 ; (L3/B) - 4WRAE 6 EB15 ; (4WRAE 6 EA15) - (7)
L5 ; (L5/B) - 4WRAE 6 EB30 ; (4WRAE 6 EA30) - (7)
G110 DHZO-AE-053 L3 ; (L3/B) - 4WRAE 6 WB15 ; (4WRAE 6 WA15) - (7)
L5 ; (L5/B) - 4WRAE 6 WB30 ; (4WRAE 6 WA30) - (7)
L3/B 0 811 403 101 4WRE 6 EA 16 KFTG4V-3-2B-13N-Z-V-M-U1 (7)
F160 DHZO-T-051 L5/B 0 811 403 126 4WRE 6 EA 32 - (7)
S5/B - - KFTG4V-3-2B-20N-Z-VM-U1 (7)
L1/B 0811 403 100 - KFTG4V-3-2B-03F-Z-VM-U1 (7)
F160 DHZO-T-053 L3/B - 4WRE 6 WA 16 - (7)
L5/B - 4WRE 6 WA 32 - (7)
F160 DHZO-TE-051 L3 ; (L3/B) (0 811 403 129) 4WREE6 EB16;(4WREE6 EA 16) (KBFTG4V-3-2C-13N-Z-VMPC7) (7)
L5 ; (L5/B) (0 811 403 128) 4WREE6 EB32;(4WREE6 EA 32) (KBFTG4V-3-2C-20N-Z-VMPC7) (7)
F160 DHZO-TE-053 L3 ; (L3/B) - 4WREE6 WB16;(4WREE6 WA 16) - (7)
L5 ; (L5/B) - 4WREE6 WB32;(4WREE6 WA 32) - (7)
L3 0 811 404 115 4WRA 6 E 15 -
S3 - - KDG4V-3-2C-13N-VM-U (1)
F160 DHZO-A-071 D3 - 4WRA 6 E1 15 -
L5 0 811 404 114 4WRA 6 E 30 KDG4V-3S-2C-28N-VM-U
D5 - 4WRA 6 E1 30 KDG4V-3-2C-20N10-VM-U (1)
L1 0 811 404 123 - KDG4V-3-2C-03F-VM-U (1)
L3 0 811 404 117 4 WRA 6 W 15 -
S3 - - KDG4V-3-33C-13N-VM-U (1)
F160 DHZO-A-073 D3 - 4 WRA 6 W1 15 -
L5 0 811 404 116 4 WRA 6 W 30 KDG4V-3-33C-20N-VM-U (1)
D5 - 4 WRA 6 W1 30 KDG4V-3-33C-20N10-VM-U (1)
L1 0 811 404 125 - KDG4V-3-33C-03F-VM-U (1)
L3 0 811 404 151 4WRAE 6 E 15 -
D3 - 4WRAE 6 E1 15 -
G110 DHZO-AE-071 L5 0 811 404 150 4WRAE 6 E 30 -
D5 - 4WRAE 6 E1 30 -
L1 - - -
L3 0 811 404 153 4 WRAE 6 W 15 -
D3 - 4 WRAE 6 W1 15 -
G110 DHZO-AE-073 L5 0 811 404 152 4 WRAE 6 W 30 -
D5 - 4 WRAE 6 W1 30 -
L1 - - -
L3 0 811 404 100 4 WRE 6 E 16 KFDG4V-3-2C-13N-Z-VM-U1
D3 - 4 WRE 6 E1-16 KFDG4V-3-2C-20N10-Z-VM-U1
F160 DHZO-T-071 L5 0 811 404 119 4 WRE 6 E 32 -
S5 - - KFDG4V-3-2C-20N-Z-VM-U1 (2)
D5 - 4 WRE 6 E1-32 -
L1 0811 404 101 - KFDG4V-3-2C-03F-Z-VM-U1
L3 0 811 404 120 4 WRE 6 W 16 KFDG4V-3-33C-13N-Z-VM-U1
D3 - 4 WRE 6 W1-16 KFDG4V-3-33C-20N10-Z-VM-U1
F160 DHZO-T-073 L5 0 811 404 121 4 WRE 6 W 32 -
S5 - - KFDG4V-3-33C-20N-Z-VM-U1
D5 - 4 WRE 6 W1-32 -
L1 0811 404 126 - KFDG4V-3-33C-03F-Z-VM-U1
L3 0 811 404 140 4WREE6 E 16 KBFDG4V-3-2C-3N-Z-VM-PC7 (3)
D3 - 4WREE6 E1 16 KBFDG4V-3-2C-20N10-Z-VM-PC7 (3)
F160 DHZO-TE-071 L5 0 811 404 141 4WREE6 E 32 - (3)
S5 - - KBFDG4V-3-2C-20N-Z-VM-PC7 (2)
D5 - 4WREE6 E1 32 - (3)
L1 - - KBFDG4V-3-2C-03F-Z-VM-PC7
L3 0 811 404 142 4WREE6 W 16 KBFDG-4V-3-33C13N-Z-VM-PC7 (3)
S3 - - -
D3 - 4WREE6 W1 16 KBFDG4V-3-33C-20N10-Z-VM-PC7 (3)
F160 DHZO-TE-073 L5 0 811 404 143 4WREE6 W 32 - (3)
S5 - - KBFDG-4V-3-33C20N-Z-VM-PC7
D5 - 4WREE6 W1 32 - (3)
L1 0811 404 145 - KBFDG4V-3-33COBF-Z-VM-U1-PC7

(1) Vickers: still available serie KTG4V-3S-*, standard performance series (reccomended pressure on T port: P=100 bar)
(2) Vickers: also available meter-out execution (spool type: 28S)
(3) Rexroth: also available high-performance versions:1L3 = 4WRSE6E 20; 1D3 = 4WRSE6E1 20; 1L5 = 4 WRSE6E 35; 1D5 = 4WRSE6E1 35;
3L3= 4WRESE6W6 20; 3D3=4WRSE6W8 20; 3L5=4WRSE6W6 35; 3D3=4WRSE6W8 35.
(7) Atos standard versions (without option /B), is with solenoid at side of B port

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 9/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
L3 ; (L3/B) (0 811 403 020) 4WRA10 EB 30;(4WRA10 EA 30) - (7)
F160 DKZOR-A-151 S3/B - - KTG4V-5-2B30N-Z-VM-U (7)
L5 ; (L5/B) (0 811 403 021) 4WRA10 EB 60;(4 WRA 10 EA 60) - (7)
S5/B - - KTG4V-5-2B50N-Z-VM-U (7)
L3 ; (L3/B) - 4WRA10 WB 30; (4WRA10 WA 30) - (7)
F160 DKZOR-A-153 S3/B - - - (7)
L5 ; (L5/B) - 4WRA10 WB 30; (4WRA10 WA 30) - (7)
S5/B - - - (7)
L3 ; (L3/B) - 4WRAE10 EB 30;(4WRAE10 EA 30) - (7)
G110 DKZOR-AE-151 S3/B - - KATG4V-5-2B30N-Z-VM-PC7 (7)
L5 ; (L5/B) - 4WRAE10 EB 60;(4 WRAE 10 EA 60 - (7)
S5/B - - KATG4V-5-2B50N-Z-VM-PC7 (7)
G110 DKZOR-AE-153 L3 ; (L3/B) - 4WRAE10 WB30;(4WRAE10 WA 30) - (7)
L5 ; (L5/B) - 4WRAE10 WB60;(4WRAE10 WA 60) - (7)
L3/B 0 811 403 002 4 WRE 10 EA 32 - (7)
F160 DKZOR-T-151 S3/B - - KFTG4V-5-2B30N-Z-V-M-U1 (7)
L5/B 0 811 403 001 4 WRE 10 EA 64 - (7)
S5/B - - KFTG4V-5-2B50N-Z-V-M-U1 (7)
F160 DKZOR-T-153 L3/B - 4 WRE 10 WA 32 - (7)
L5/B - 4 WRE 10 WA 64 - (7)
L3/B 0 811 404 751 - - (7)
S3/B - - KBFTG4V-5-2B-30N-Z-V-M-PC7 (7)
F160 DKZOR-TE-151 L5/B 0 811 404 750 - - (7)
D5/B - - - (7)
S5/B - - KBFTG4V-5-2B-50N-Z-V-M-PC7 (7)
L3/B - - - (7)
S3/B - - - (7)
F160 DKZOR-TE-153 L5/B - - - (7)
D5/B - - - (7)
S5/B - - - (7)
L3 0 811 404 830 4 WRA 10 E 30 -
S3 - - KDG4V-5-2C30N-Z-VM-U
F160 DKZOR-A-171 D3 - 4 WRA 10 E1-30 -
L5 0 811 404 832 4 WRA 10 E 60 -
S5 - - KDG4V-5-2C50N-Z-VM-U
D5 - 4 WRA 10 E1-60 KDG4V-5-2C50N25-Z-VM-U
L3 0 811 404 831 4 WRA 10 W 30 -
S3 - - KDG4V-5-33C30N-Z-VM-U
F160 DKZOR-A-173 D3 - 4 WRA 10 W1 30 -
L5 0 811 404 833 4 WRA 10 W 60 -
S5 - - KDG4V-5-33C50N-Z-VM-U
D5 - 4 WRA 10 W1 60 -
L3 0 811 404 852 4 WRAE 10 E 30 -
S3 - - KADG4V-5-2C30N-Z-VM-PC7
G110 DKZOR-AE-171 D3 - 4 WRAE 10 E1-30 -
L5 0 811 404 850 4 WRAE 10 E 60 -
S5 - - KADG4V-5-2C50N-Z-VM-PC7
D5 - 4 WRAE 10 E1-60 KADG4V-5-2C50N25-Z-VM-PC7
L3 0 811 404 853 4 WRAE 10 W 30 -
S3 - - KADG4V-5-33C30N-Z-VM-PC7
G110 DKZOR-AE-173 D3 - 4 WRAE 10 W1 30 -
L5 0 811 404 851 4 WRAE 10 W 60 -
S5 - - KADG4V-5-33C50N-Z-VM-PC7
D5 - 4 WRAE 10 W1 60 -
L3 0 811 404 003 4 WRE 10 E 32 -
S3 - - KFDG4V-5-2C30N-Z-VM-U1
F160 DKZOR-T-171 D3 - 4 WRE 10 E1-32 -
L5 0 811 404 001 4 WRE 10 E 64 -
S5 - - KFDG4V-5-2C50N-Z-VM-U1
D5 0 811 404 086 4 WRE 10 E1-64 KFDG4V-5-2C50N25-Z-VM-U1
L3 0 811 404 081 4 WRE 10 W 32 -
S3 - - KFDG4V-5-33C30N-Z-VM-U1
F160 DKZOR-T-173 D3 - 4 WRE 10 W1-32 -
L5 0 811 404 080 4 WRE 10 W 64 -
S5 - - KFDG4V-5-33C50N-Z-VM-U1
D5 0 811 404 087 4 WRE 10 W1-64 KFDG4V-5-33C50N25-Z-VM-U1
L3 0 811 404 770 4 WRSE10 E 25 -
S3 - - KBFTG4V-5-2C30N-Z-V-PC7
F160 DKZOR-TE-171 D3 - 4 WRSE10 E1 25 -
L5 0 811 404 771 4 WRSE10 E 50 -
S5 - - KBFTG4V-5-2C50N-Z-V-PC7
D5 0 811 404 774 4 WRSE10 E1 50 KBFTG4V-5-2C50N25-Z-V-PC7
L3 0 811 404 772 4 WRSE10 W6 25 -
S3 - - KBFTG4V-5-33C30N-Z-V-PC7
F160 DKZOR-TE-173 D3 - 4 WRSE10 W8 25 -
L5 0 811 404 773 4 WRSE10 W6 50 -
S5 - - KBFTG4V-5-33C50N-Z-V-PC7
D5 0 811 404 777 4 WRSE10 W8 50 KBFTG4V-5-33C50N25-Z-V-PC7

(7) Atos standard versions (without option /B), is with solenoid at side of B port

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 10/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
F172 DPZO-A-151 L5;(L5/B) - 4 WRZ10EB85; (4WRZ10EA85) -
F172 DPZO-A-153 L5;(L5/B) - 4 WRZ10WB85; (4WRZ10WA85) -
F172 DPZO-AE-151 L5;(L5/B) - 4 WRZE10EB85; (4WRZE10EA85) -
F172 DPZO-AE-153 L5;(L5/B) - 4 WRZE10WB85; (4WRZE10WA85) -
F172 DPZO-T-151 - - -
F172 DPZO-T-153 - - -
F172 DPZO-TE-151 - - -
F172 DPZO-TE-153 - - -
F172 DPZO-A-171 L5 - 4 WRZ 10 E 85-50/6A E KDG5V-5-2C90N-VM
D5 - 4 WRZ 10 E1 85-50/6A E KDG5V-5-2C70N45-VM
F172 DPZO-A-173 L5 - 4 WRZ 10 W 85-50/6A E KDG5V-5-33C80N-VM
D5 - 4 WRZ 10 W1 85-50/6A E -
G110 DPZO-AE-171 L5 - - KADG5V-5-2C90N-VM
D5 - - KADG5V-5-2C70N45-VM
G110 DPZO-AE-173 L5 - - KADG5V-5-33C80N-VM
F172 DPZO-T-171 L5 - 4 WRK 10 E 100-2X/6AE KFDG5V-5-2-C-100N-X-VM-U1 (4)
D5 - 4 WRK 10 E1 100-2X/6AE KFDG5V-5-2-C-70N45-X-VM-U1 (4)
F172 DPZO-T-173 L5 - 4 WRK 10 W 100-2X/6AE KFDG5V-5-33-C-80N-X-VM-U1 (4)
D5 - 4 WRK 10 W1 100-2X/6AE KFDG5V-5-33-C-65N40-X-VM-U1 (4)
F172 DPZO-TE-171 L5 0 811 404 911 4 WRKE 10 E 100-2X/6AE KAFDG5V-5-2-C-100N-X-VM-U1 (4) (5)
D5 0 811 404 912 4 WRKE 10 E1 100-2X/6AE KAFDG5V-5-2-C-70N45-X-VM-U1 (4) (5)
F172 DPZO-TE-173 L5 0 811 404 915 4 WRKE 10 W 100-2X/6AE KAFDG5V-5-33-C-80N-X-VM-U1 (4) (5)
D5 0 811 404 916 4 WRKE 10 W1 100-2X/6AE KAFDG5V-5-33-C-65N40-X-VM-U1 (4) (5)
F170 DPZO-A-251 S3;(S3/B) - 4WRZ16EB100; (4WRZ16EA 100) -
L5;(L5/B) - 4WRZ16EB150; (4WRZ16EA 150) -
F170 DPZO-A-253 S3;(S3/B) - 4WRZ16WB 100 ;(4WRZ16WA 100) -
L5;(L5/B) - 4WRZ16WB 150; (4WRZ16WA 150) -
F170 DPZO-AE-251 S3;(S3/B) - 4WRZE16EB100; (4WRZE16EA 100) -
L5;(L5/B) - 4WRZE16EB150; (4WRZE16EA 150) -
F170 DPZO-AE-253 S3;(S3/B) - 4WRZE16WB 100 ;(4WRZE16WA 100 -
L5;(L5/B) - 4WRZE16WB 150; (4WRZE16WA 150 -
F170 DPZO-T-251 - - -
F170 DPZO-T-253 - - -
F170 DPZO-TE-251 - - -
F170 DPZO-TE-253 - - -
L3 - 4 WRZ 16 E 100-6X/6A E -
D3 - 4 WRZ 16 E1-100-6X/6A E -
F170 DPZO-A-271 L5 - 4 WRZ 16 E 150-6X/6A E -
S5 - - KDG5V-7-2C180N-VM
D5 - 4 WRZ 16 E1-150-6X/6A E KDG5V-7-2C180N100-VM
L3 - 4 WRZ 16 W 100-6X/6A E -
D3 - 4 WRZ 16 W1-100-6X/6A E -
F170 DPZO-A-273 L5 - 4 WRZ 16 W 150-6X/6A E -
S5 - - KDG5V-7-33C170N-VM
D5 - 4 WRZ 16 W1-150-6X/6A E -
G110 DPZO-AE-271 S5 - - KADG5V-7-2C180N-VM
D5 - - KADG5V-7-2C180N100-VM
G110 DPZO-AE-273 L5 - 4 WRZ 16 W 150-6X/6A E -
L3 - 4 WRK 16E 125-2X/6AE -
F170 DPZO-T-271 D3 - 4 WRK 16E1-125-2X/6AE -
L5 - 4 WRK 16E 200-2X/6AE KFDG5V-7-2-C-200N-X-VM-U1 (4)
D5 - 4 WRK 16 E1-200-2X/6AE KFDG5V-7-2-C-150N85-X-VM-U1 (4)
L3 - 4 WRK 16W 125-2X/6AE -
F170 DPZO-T-273 D3 - 4 WRK 16 W1-125-2X/6AE KFDG5V-7-33-C-130N65-X-VM-U1 (4)
L5 - 4 WRK 16W 200-2X/6AE KFDG5V-7-33-C-160N-X-VM-U1 (4)
D5 - 4 WRK 16 W1-200-2X/6AE -
L3 - 4 WRKE 16E 125-2X/6AE -
F170 DPZO-TE-271 D3 - 4 WRKE 16E1-125-2X/6AE -
L5 0 811 404 928 4 WRKE 16E 200-2X/6AE KAFDG5V-7-2-C-200N-X-VM-U1 (4)
D5 0 811 404 929 4 WRK 16 E1-200-2X/6AE KFDG5V-7-2-C-150N85-X-VM-U1 (4)
L3 - 4 WRKE 16W 125-2X/6AE -
F170 DPZO-TE-273 D3 - 4 WRKE 16 W1-125-2X/6AE KAFDG5V-7-33-C-130N65-X-VM-U1 (4)
L5 0 811 404 932 4 WRKE 16W 200-2X/6AE KAFDG5V-7-33-C-160N-X-VM-U1 (4)
D5 0 811 404 933 4 WRK 16 W1-200-2X/6AE -

(4) Vickers: with modular pressure reducing valve on proportional pilot

(5) Bosch: external pilot and drain

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 11/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
F170 DPZO-A-351 L5 ;(L5/B) - 4WRZ25EB 325; (4WRZE25EA 325) -
F170 DPZO-A-353 L5 ;(L5/B) - 4WRZ25WB 325; (4WRZE25WA 325 -
F170 DPZO-AE-351 L5 ;(L5/B) - 4WRZE25EB 325; (4WRZE25EA 325 -
F170 DPZO-AE-353 L5 ;(L5/B) - WRZE25WB 325; (4WRZE25WA 325 -
F170 DPZO-T-351 - - -
F170 DPZO-T-353 - - -
F170 DPZO-TE-351 - - -
F170 DPZO-TE-353 - - -
L5 - 4 WRZ 25 E 325-5X/6A E -
F170 DPZO-A-371 S5 - - KDG5V-8-2C280N-VM
D5 - 4 WRZ 25 E1-325-5X/6A E -
L5 - 4 WRZ 25 W 325-5X/6A E -
F170 DPZO-A-373 S5 - - KDG5V-8-33C270N-VM
D5 - 4 WRZ 25 W1-325-5X/6A E KDG5V-8-33C250N170-VM
G110 DPZO-AE-371 L5 - 4 WRZE 25 E 325-5X/6A E -
G110 DPZO-AE-373 L5 - 4 WRZE 25 W 325-5X/6A E -
D5 - - KADG5V-8-33C250N170-VM
F170 DPZO-T-371 L5 - 4 WRK 25 E 350-2X/6A E KFDG5V-8-2-C-300N-X-VM-U (4)
D5 - 4 WRK 25 E1-350-2X/6A E KFDG5V-8-2-C-280N200-X-VM-U (4)
L5 - - KFDG5V-8-33-C-270N-X-VM-U (4)
F170 DPZO-T-373 S5 - 4 WRK 25 W 350-2X/6A E -
D5 - 4 WRK 25 W1-350-2X/6A E KFDG5V-8-33-C-250N170-X-VM-U (4)
F170 DPZO-TE-371 L5 0811 404 954 4 WRKE 25 E 350-2X/6A E KFDG5V-8-2-C-300N-X-VM-U (4) (6)
D5 0811 404 955 4 WRKE 25 E1-350-2X/6A E KFDG5V-8-2-C-280N200-X-VM-U (4) (6)
L5 0811 404 962 - KFDG5V-8-33-C-270N-X-VM-U (4)
F170 DPZO-TE-373 S5 - 4 WRKE 25 W 350-2X/6A E -
D5 0811 404 963 4 WRKE 25 W1-350-2X/6A E KFDG5V-8-33-C-250N170-X-VM-U (4) (6)
DPZO-A-651 L5 ;(L5/B) - 4WRZ32EB 520; (4WRZ32EA 520) -
DPZO-A-653 L5 ;(L5/B) - 4WRZ32WB 520; (4WRZ32WA 520) -
DPZO-AE-651 L5 ;(L5/B) - 4WRZE32EB 520; (4WRZE32EA 520 -
DPZO-AE-653 L5 ;(L5/B) - WRZE32WB 520; (4WRZE32WA 520 -
DPZO-T-651 - - -
DPZO-T-653 - - -
DPZO-TE-651 - - -
DPZO-TE-653 - - -
L5 - 4 WRZ 32 E 520-5X/6A E -
DPZO-A-671 S5 - - KDG5V-8-2C550N-VM
D5 - 4 WRZ 32 E1-520-5X/6A E KDG5V-8-2C550N310-VM
L5 - 4 WRZ 32 W 520-5X/6A E -
DPZO-A-673 S5 - - KDG5V-8-33C550N-VM
D5 - 4 WRZ 32 W1-520-5X/6A E KDG5V-8-33C550N310-VM
G110 DPZO-AE-671 S5 - - KADG5V-8-2C550N-VM
D5 - - KADG5V-8-2C550N310-VM
G110 DPZO-AE-673 S5 - - KADG5V-8-33C550N-VM
D5 - - KADG5V-8-33C550N310-VM
DPZO-T-671 L5 - 4 WRK 32 E 600-2X/6A E -
D5 - 4 WRK 32 E1-600-2X/6A E -
DPZO-T-673 L5 - 4 WRK 32 W 600-2X/6A E -
D5 - 4 WRK 32 W1-600-2X/6A E -
DPZO-TE-671 L5 0811 404 977 4 WRKE 32 E 600-2X/6A E - (6)
D5 0811 404 978 4 WRKE 32 E1-600-2X/6A E -
DPZO-TE-673 L5 0811 404 981 4 WRKE 32 W 600-2X/6A E - (6)
D5 0811 404 982 4 WRKE 32 W1-600-2X/6A E -
(*) Light type model codes not included in KT06

(4) Vickers: with modular pressure reducing valve on proportional pilot

(6): Bosch: only available with larger diameter of inlet/oulet ports than those stipulated by the standard Cetop rules

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 12/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
F172 DPZO-L-151 - - -
F172 DPZO-L-153 - - -
F172 DPZO-LE-151 - - -
F172 DPZO-LE-153 - - -
F172 DPZO-L-170 L3 0 811 404 093 - - (5)
L5 0 811 404 094 - KHDG5V-5-5-C-85N-X-VM-U1 (4) (5) (9)
F172 DPZO-L-171 L5 0 811 404 180 - KHDG5-V-5-2-C-85N-X-VM-U1 (4) (5)
D5 0 811 404 181 - KHDG5V-5-2-C-70N45-X-VM-U1 (4) (5) (10)
F172 DPZO-L-173 L5 0 811 404 183 - KHDG5V-5-33-C-80-X-VM-U1 (4) (5)
D5 0 811 404 184 - KHDG5-5-33-C-65N40-X-VM-U1 (4) (5) (10)
F172 DPZO-LE-170 L3 0 811 404 652 - - (5) (9)
L5 0 811 404 653 4 WRTE 10 V 100-3X/6BE KAHDG5V-5-5-C-85N-X-VM-PD7 (4) (5) (9) (11)
F172 DPZO-LE-171 L5 0 811 404 700 4 WRTE 10 E 100-3X/6BE KAHDG5V-5-2-C-85V-X-VM-PD7 (4) (5) (11)
D5 0 811 404 701 4 WRTE 10 E1 100-3X/6BE KAHDG5V-5-2-C-70N45-X-VM-PD7 (4) (5) (10) (11)
F172 DPZO-LE-173 L5 0 811 404 702 4 WRTE 10 W 100-3X/6BE KAHDG5V-5-33-C-80N-X-VM-PD7 (4) (5) (11)
D5 0 811 404 703 4 WRTE 10 W1 100-3X/6BE KAHDG5V-5-33-C-65N40-X-VM-PD7 (4) (5) (10) (11)
F175 DPZO-L-270 L3 0 811 404 206 - - (5) (12)
L5 0 811 404 207 - KHDG5V-7-5-C-200N-X-VM-U1 (4) (5) (12)
D3 - - KHDG5V-7-20-C-150N85-X-VM (4)
F175 DPZO-L-271 L5 0 811 404 210 - KHDG5V-7-2-C-200N-X-VM (4) (5) (12)
D5 0 811 404 212 - - (4) (5) (10) (12)
D3 - - KHDG5V-7-33-C-130N65-X-VM (4)
F175 DPZO-L-273 L5 0 811 404 209 - KHDG5V-7-33-C-160N-X-VM (4) (5) (12)
D5 0 811 404 213 - - (5) (10) (12)
F175 DPZO-LE-270 L3 0 811 404 250 4 WRTE 16 V 125-3X/6BE - (5)
L5 0 811 404 251 4 WRTE 16 V200-3X/6BE KAHDG5V-7-2-C-200N-X-VM-PD7 (4) (5)
L3 - 4 WRTE 16 E 125-3X/6BE -
F175 DPZO-LE-271 D3 - 4 WRTE 16 E1 125-3X/6BE -
L5 0 811 404 305 4 WRTE 16 E 200-3X/6BE KAHDG5V-7-2-C-200N-X-VM-PD7 (4) (5) (12)
D5 0 811 404 306 4 WRTE 16 E1 200-3X/6BE KAHDG5V-7-2-C-150N85-X-VM-PD7 (4) (5) (10) (12)
L3 - 4 WRTE 16 W 125-3X/6BE -
F175 DPZO-LE-273 D3 - 4 WRTE 16 W1 125-3X/6BE KAHDG5V-7-33-C-130N65-X-VM-PD7 (4)
L5 0 811 404 307 4 WRTE 16 W 200-3X/6BE KAHDG5V-7-33-C-160N-X-VM-PD7 (4) (5) (12)
D5 0 811 404 308 4 WRTE 16 W1 200-3X/6BE - (5) (10) (12)
F175 DPZO-L-370 L5 0 811 404 405 - KHDG5V-8-5-C-300N-X-VM (4) (5) (9)
F175 DPZO-L-371 L5 0 811 404 407 - KHDG5V-8-2-C-300N-X-VM (4) (5) (12)
D5 0 811 404 408 - KHDG5V-8-2-C-280N200-X-VM (4) (5) (10) (12)
F175 DPZO-L-373 L5 0 811 404 406 - KHDG5V-8-33-C-270N-X-VM (4) (5) (12) (13)
D5 0 811 404 409 - KHDG5V-8-33-C-250N170-X-VM (4)(5)(10)(12)(13)
F175 DPZO-LE-370 L5 0 811 404 430 4 WRTE 25 V 350-3X/6BE - (5)
F175 DPZO-LE-371 L5 0 811 404 454 4 WRTE 25 E 350-3X/6BE KAHDG5V-8-2-C-300N-X-VM-PD7 (4) (5) (12)
D5 0 811 404 455 4 WRTE 25 E1 350-3X/6BE KAHDG5V-8-2-C-280N200-X-VM-PD7 (4) (5) (10) (12)
F175 DPZO-LE-373 L5 0 811 404 456 4 WRTE 25 W 350-3X/6BE KAHDG5V-8-33-C-270N-X-VM-PD7 (4) (5) (12)
D5 0 811 404 457 4 WRTE 25 W1 350-3X/6BE KAHDG5V-8-33-C-250N170-X-VM-PD7 (4) (5) (10) (12)
DPZO-LE-651 - - -
DPZO-LE-653 - - -
DPZO-L-671 L5 0 811 404 500 - - (5)
DPZO-L-670 L5 0 811 404 560 - - (5)
DPZO-LE-671 L5 - 4 WRTE 32 E 600-3X/6BE -
D5 - 4 WRTE 32 E1 600-3X/6BE -
DPZO-LE-673 L5 0 811 404 504 4 WRTE 32 W 600-3X/6BE - (5)
D5 - 4 WRTE 32 W1 600-3X/6BE -
DPZO-LE-670 L5 B 810 035 157 - - (5)
(*) Light type model codes not included in KT06

(4) Vickers: with modular pressure reducing valve on proportional pilot

(5) Bosch: external pilot and drain
(9) Bosch: low hydraulic gain on +/-40% across zero lapping
(10) Bosch: with linear characteristics
(11) Rexroth: also available direct operated cetop 5 version with integral electronic (WRSE 10*80/G24)
(12) Bosch: with C1 and C2 additional ports
(13) Vickers: low hydraulic gain on +-40% across zero overlapping

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 13/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
03/01 0 811 404 600/610 - -
13/11 - - KBSDG4V-3-96L-05/92L-05
F180 DLHZO-TE-040-L 33/31 0 811 404 601/611 - KBSDG4V-3-96L-12/92L-12
53/51 0 811 406 602/612 4 WRSE 6 V 10-3X KBSDG4V-3-96L-24/92L-24
73/71 0 811 404 603/613 4 WRSE 6 V 20-3X KBSDG4V-3-96L-40/92L-40
F10 DLHZO-TE-060-L 1 0 811 404 741 - -
7 0 811 404 639 - -
03/01 0 811 404 033/160 - - (14)
13/11 - 4 WRS 6 D08-2X KSDG4V-3-96L-05/92L-05 (15)
F180 DLHZO-T-040-L 33/31 0 811 404 034/037 4 WRS 6 D16-2X KSDG4V-3-96L-12/92L-12 (14) (15)
53/51 0 811 404 035/038 4 WRS 6 D32-2X KSDG4V-3-96L-24/92L-24 (14) (15)
73/71 0 811 404 036/039 4 WRS 6 D40-2X KSDG4V-3-96L-40/92L-40 (14) (15)
F190 DLHZO-T-040-T 53/51 0 811 404 043/045 - - (16)
73/71 0 811 404 044/046 - - (16)
F180 DLKZOR-TE-140-L 33/31 0 811 404 800/802 - KBSDG4V-5-96L-50/92L-50
73/71 0 811 404 801/803 4 WRSE 10 V 25 KBSDG4V-5-96L-80/92L-80
F190 DLKZOR-TE-160-L 7 0 811 404 809 - -
F180 DLKZOR-T-140-L 33/31 0 811 404 058/060 - KSDG4V-5-96L-50/92L-50
73/71 0 811 404 059/061 - KSDG-4V-5-96L-80/92L-80
F190 DLKZOR-T-140-T 73 0 811 404 063 - - (17)
71 0 811 404 065 - - (17)
F320 LIQZO-T 252L4 0 811 402 515 FE 25L 2X/315L CVU-25-EFP1-B29-45
322L4 0 811 402 614 FE 32L 2X/450L CVU-32-EFP1-B29-70
402L4 0 811 402 620 FE 40L 2X/670L CVU-40-EFP1-B29-90
502L4 0 811 402 633 FE 50L 2X/1180L -
F320 LIQZO-TE 252L4 0 811 402 516 - -
322L4 0 811 402 615 - -
402L4 0 811 402 621 - -
502L4 0 811 402 641 - -
F330 LIQZO-L 252L4 - - -
322L4 - 2 WRC 32 K-1X -
402L4 - 2 WRC 50 K-1X -
502L4 - 2 WRC 63KL-1X -
632L4 - 2 WRC 80 K-1X -
802L4 - - -
F330 LIQZO-LE 252L4 - - -
322L4 - 2 WRCE -32 S 650L-2XP -
402L4 - 2 WRCE -40 S 1000L-2XP -
502L4 - 2 WRCE -50 S 1600L-2XP -
632L4 - - -
802L4 - - -
F340 LIQZO-LE 253L4 0 811 402 514/0 811 404 601 3 WRCE -32 V 650L-2XP (22)
323L4 0 811 402 611/0 811 404 602 3 WRCE -40 V 1000L-2XP CVU-32-EQP/KBSDG4V (22)
503L4 0 811 402 639/0 811 404 603 3 WRCE -50 V 1600L-2XP CVU-50-EQP/KBSDG4V (22)
253L4 0 811 402 514/0 811 404 034 - - (22)
F340 LIQZO-L 323L4 0 811 402 611/0 811 404 035 3 WRC 32 L-1X - (22)
503L4 0 811 402 639/0 811 404 036 3 WRC 50 L-1X - (22)
633L4 3 WRC 63 L-1X
803L4 3 WRC 80 L-1X

(14) Bosch: also available a cost effective alternative with reduced static and dynamic characteristics (03=811404122;
33/31=081140411/112; 53/51= 0811404106/118; 73= 0811404113)
(15) Rexroth: double solenoid valves
(16) Bosch: also available different spool for Q=15 L/min at Dp = 70 bar and ± 60% zero overlapping
(17) Bosch: also available version with differential - linear characteristic of the spool
(21) Rexroth: also available low-performance version type FE**C
(22) Bosch/Vickers: cartridge code/pilot code. Pilot valve is not directly mounted on the main cartridge cover

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 14/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
50 0 811 402 034 DBET 6-5X/50 KCG-3-40-D-Z-M-U
100 0 811 402 030 DBET 6-5X/100 KCG-3-100-D-Z-M-U
F007 RZMO-A-010 210 0 811 402 031 DBET 6-5X/200 KCG-3-250-D-Z-M-U
315 0 811 402 032 DBET 6-5X/315 KCG-3-350-D-Z-M-U
50 - DBETE 6-5X/50 KACG-3-40-D-Z-M-2-PD7-H1
100 - DBETE 6-5X/100 KACG-3-100-D-Z-M-2-PD7-H1
F007 RZMO-AE-010 210 - DBETE 6-5X/200 KACG-3-250-D-Z-M-2-PD7-H1
315 - DBETE 6-5X/315 KACG-3-350-D-Z-M-2-PD7-H1
100 0 811 402 072 - - (23)
F007 RZMO-TERS-PS-010 210 0 811 402 071 - - (23)
315 0 811 402 070 - - (23)
AGMZO-A-10 50/100/210/315 0 811 402/*/*/117/118 DBEM 10-5X/50Y/100Y/200Y/315Y KCG6-W40/100/250/350-Z-M-U (24) (25)
F035 AGMZO-A-20 50/100/210/315 - DBEM 20-5X/50Y/100Y/200Y/315Y KCG8-W40/100/250/350-Z-M-U (25)
AGMZO-A-32 50/100/210/315 - DBEM 30-3X/50Y/100Y/200Y/315Y - (25)
AGMZO-AE-10 50/100/210/315 - DBEME 10-5X/100Y/200Y/315Y ACG-6W40/100/250/350-Z-M-2-PD7-H (25)
F035 AGMZO-AE-20 50/100/210/315 - DBEME 20-5X/100Y/200Y/315Y ACG-8W40/100/250/350-Z-M-2-PD7-H (25)
AGMZO-AE-32 50/100/210/315 - - -
F035 AGMZO-TERS-PS-10 100/210/315 0 811 402/*/*/115/116 - - (23)
AGMZO-TERS-PS-20 100/210/315 - - -
F015 RZGO-A-010 32 - 3DREP6A-1X/45 -
F035 RZGO-TERS-PS-010 - - -
AGRZO-A-10/P 50/100/210/315 0 811 402/*/*/153/154 DREM10-5X/50Y/100Y/200Y/315Y KXG-6-W40/100/250/330-Z-M-U (31)
F040 AGRZO-A-20/P 50/100/210/315 - DREM20-5X/100Y/50Y/200Y/315Y KXG-8-W40/100/250/330-Z-M-U (31)
AGRZO-A-32/P 50/100/210/315 - DREM30-4X/50Y/100Y/200Y/315Y - (31)
AGRZO-AE-10/P 50/100/210/315 - DREME10-5X/50Y/100Y/200Y/315YKAXG-6W40/100/250/350-Z-M-P07-H (31)
F040 AGRZO-AE-20/P 50/100/210/315 - DREME20-5X/50Y/100Y/200Y/315YKAXG-8W40/100/250/350-Z-M-P07-H (31)
AGRZO-AE-32/P 50/100/210/315 - - -
F040 AGRZO-TERS-PS-10 100/210/315 0 811 402/*/*/155/152 - - (23)
AGRZO-TERS-PS-20 100/210/315 - - -
50 - DBE6-1X/50 -
100 0 811 402 040 DBE6-1X/100 -
F060 RZMO-A-030 210 0 811 402 041 DBE6-1X/200 -
315 0 811 402 042 DBE6-1X/315 -
50 - DBEE6-1X/50
100 - DBEE6-1X/100 -
F060 RZMO-AE-030 210 - DBEE6-1X/200 -
315 - DBEE6-1X/315 -
100 0 811 402 078 - - (23)
F060 RZMO-TERS-PS-030 210 0 811 402 077 - - (23)
315 0 811 402 076 - - (23)
F060 HZMO-A-030 50/100/210/315 - ZDBE6VP1-1X/50/100/200/315 - (26)
50 DRE61-1X/50
100 0 811 402 059 DRE61-1X/100 -
F060 RZGO-A-033 210 0 811 402 055 DRE61-1X/210 -
315 0 811 402 058 - -
50
100 - - -
F060 RZGO-AE-033 210 - - -
315 - - -
100 0 811 402 082 - - (23)
F060 RZGO-TERS-PS-033 210 0 811 402 080 - - (23)
315 0 811 402 081 - - (23)
F060 HZGO-A-031 50/100/210/315 - ZDRE6VP1-1X/50/100/210 - (26)
F060 KZGO-A-031 50/100/210/315 - ZDRE10VP1-1X/50/100/210/315 - (26)
F020 DHRZO-A 010/25 - 3DREP6A-1X/25A -
012/25 - 3DREP6C-1X/25A -
(*) Light type model codes not included in KT06

(23) Bosch: position transducer

(24) Bosch: mounting surface according to ISO/Cetop 06P
(25) Rexroth model with external pilot drain
(26) Rexroth: also available with integral electronic
(31) Rexroth: the code corresponds to Atos version AGRCZO

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 15/18

PROPORTIONAL VALVES
ATOS BOSCH REXROTH VICKERS
NOTES
TAB MODEL CODE (*)
12 0 811 403 112 - -
F410 QVHZO-A-06 35 0 811 403 113 -
45 - -
12 - - -
F410 QVHZO-AE-06 35 - - -
45 - - -
F410 QVKZOR-A-10 65 0 811 403 010 - EPV16-A-06-S-5C-12D-V (27)
F410 QVKZOR-AE-10 65 - - -
3 0 811 403 121 2FRE6B-2X/3Q -
12 0 811 403 117 2FRE6B-2X/10Q - (28)
F410 QVHZO-T-06 18 - 2FRE6B-2X/16Q -
35 0 811 403 114 2FRE6B-2X/25Q - (28)
45 - -
F410 QVKZOR-T-10 65 - - -
90 0 811 403 012 - -
12 0 811 403 150 - -
F410 QVHZO-TE-06 35 0 811 403 151 - -
45 - - -
F410 QVKZOR-TE-10 65 - - -
90 0 811 403 019 - -
F430 QVZO-A-10/2 L4 0 811 403 010 2FRE10-4X/60L - (29)(30)
F430 QVZO-A-20/2 L4 - 2FRE16-4X/125L - (29)
F430 QVZO-AE-10/2 L4 - - -
F430 QVZO-AE-20/2 L4 - - -

(27) Vickers: available only without integral pressure compensator

(28) Vickers: execution similar to Atos QVZO-*-06
(29) Rexroth: available only with integral transducer
(30) Bosch: not interchangeable

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 MISCELLANEOUS: Cross reference Atos components vs. competitors Atos spa
Cross reference componenti Atos vs concorrenza
Nr. TA 1000-0 Pg. 16/18

ELECTRONIC DRIVERS
ATOS
BOSCH REXROTH VICKERS NOTES
TAB MODEL CODE (*) OPTION
G010 E-MI-AC-01F - - - -
RR 0 811 405 143 - EHH AMP-702-D-2* (1)
7 - - EHH AMP-702-D-2*
E-BM-AC-01F RR 0 811 405 127 VT-11010-1X -
G025 E-BM-AC-011F RR - VT-11016-1X -
E-BM-AC-05F RR 0 811 405 106 VT-11011/12/13 -
- - VT-3024-5X EEA-PAM-52*-A-14 (2)
- - - EEA-PAM-513-A-14 (3)
G035 E-ME-AC-01F - EEA-PAM-5**-A-32 (2)
RR 0 811 405 079 VT-2000-5X EEA-PAM-513-A-32 (3)
I - VT-VSPA-*-1X-T1 -
RR-4 - VT-3000-3X EEA-PAM-5**-B-32 (2) (4)
4R-4 - VT-3006-3X EEA-PAM-5**-C-32 (2) (4)
- - VT-3024-3X EEA-PAM-52*-A-14 (2)
G035 E-ME-AC-05F RR 0 811 405 079 - EAA-PAM-5**-C-32 (2) (5)
I - VT-VSPA*-1X-T1 -
RR-4 - VT-3000-3X EEA-PAM-5**-B-32 (2) (4)
4R-4 - VT-3006-3X EEA-PAM-5**-C-32 (2) (4)
G140 E-ME-T-01H - 0 811 405 10*/0 811 405 06* VT-50*S2X/R5 EEA-PAM-5**-A-32 (2)(6)(7)(8)
CS - VT-11115 -
G140 E-ME-T-05H - 0 811 405 120 VT-500*S1X/R5 EEA-PAM-5**-A-32 (2)
CS - VT 11115 -
G150 E-ME-L-01H 0 811 405 063 - EEA-PAM-5**-A-32 (2)
G160 E-ME-T-01H /T . 0 811 405 06* - - (6)
G170 E-ME-T-21H B 830 303 208 - -
G230 E-ME-K-0PQ 0 811 405 157 VT-PVPQ1-1X/* -
G310 E-ME-Y-0FG - 0 811 405 094 VTS-0311-1X EEA-DSG-450-A-10 (9)
I - - -
G460 E-ATR-6/100 - - - - (10)
I 0 811 405 548 - - (11) (12)
G460 E-ATR-6/160 - - - - (10)
I - - - (11)
G460 E-ATR-6/250 - 0 811 405 523 HM-12-1X/250 - (10)(12)(13)
I 0 811 405 524 HM-12-1X/250/C - (11)(12)(13)
G460 E-ATR-6/400 - 0 811 405 530 HM-12-1X/400 - (10)(12)(13)
I 0 811 405 525 HM-12-1X/400/C - (11)(12)(13)
(*) Light model codes not included in KT06

(1) Bosch: not included dissimmetrical ramp regulation. Also available version with 4-20mA reference signal.
(2) Vickers & Rexroth: pre calibration are identified by a changement of the final driver model code according to the size
of the proportional valve
(3) Vickers & Rexroth: card for proportional pressure control valves
(4) Rexroth: also available driver type VT-VSPA-2-1-1X/T* suitable for valves type 4WRA6 and 4WRA10.
(5) Bosch: suitable to drive two single solenoids valves, like our E-BM-AC-011F
(6) Bosch: pre calibration are identified by a changement of the final driver model code according to the size of the proportional valve
(7) Bosch: also available version with symmetrical ramp regulation.
(8) Bosch: code suitable for valves type D*ZO-T and QV*ZO-T/ code suitable for valve type DL*ZO-T
(9) Rexroth: not included the ramp generator function
(10) Rexroth: also available high performance pressure transducer: HM-14-1X/100/200/400
(11) Rexroth: also available high performance pressure transducer: HM-15-1X/100/200/400
(12) Bosch: also available versions with different connector types and voltage signal values
(13) Rexroth: female attachment

C:\Documents and Settings\tlizio\Documenti\DOCMTECH\TAK-TIK\TA1000\1_TA1000.doc

 COMPARISON ATOS-BOSCH

MISCELLANEOUS: Cross reference Atos components vs competitors

PROPORTIONAL VALVES WITH INTEGRAL TRANSDUCER PLUS OPTIONAL INTEGRAL ELECTRONICS
SIZE Qmax at total ∆p WITH INTEGRAL ELECTRONICS WITHOUT INTEGRAL ELECTRONICS NOTES SIZE Qmax at total ∆p WITH INTEGRAL ELECTRONICS WITHOUT INTEGRAL ELECTRONICS NOTES
TABLE [l/min] [bar] ATOS CODE (*) BOSCH CODE ATOS CODE (*) BOSCH CODE TABLE [l/min] [bar] ATOS CODE (*) BOSCH CODE ATOS CODE (*) BOSCH CODE
AXIS CONTROLS - linear spools for high position accuracy AXIS CONTROLS - linear and differential spools for speed controls
4 70 DLHZO-TE-040-L01 0 811 404 610 DLHZO-T-040-L01 0 811 404 160 50 30 DHZO-TE-071-L5 0 811 404 141 DHZO-T-071-L5 0 811 404 119 (D)

Cross reference componenti Atos vs concorrenza

4 70 DLHZO-TE-040-L03 0 811 404 600 DLHZO-T-040-L03 0 811 404 033 NG6 50 30 DHZO-TE-073-L5 0 811 404 143 DHZO-T-073-L5 0 811 404 121 (D)
14 70 DLHZO-TE-040-L31 0 811 404 611 DLHZO-T-040-L31 0 811 404 037 F160 50/30 30 DHZO-TE-071-D5 - DHZO-T-071-D5 - (D)
NG6 14 70 DLHZO-TE-040-L33 0 811 404 601 DLHZO-T-040-L33 0 811 404 034 50/30 30 DHZO-TE-073-D5 - DHZO-T-073-D5 - (D)
F180 28 70 DLHZO-TE-040-L51 0 811 404 612 DLHZO-T-040-L51 0 811 404 038 130 30 DKZOR-TE-171-L5 0 811 404 771 DKZOR-T-171-L5 0 811 404 001 (D)
28 70 DLHZO-TE-040-L53 0 811 404 602 DLHZO-T-040-L53 0 811 404 035 NG10 130 30 DKZOR-TE-173-L5 0 811 404 773 DKZOR-T-173-L5 0 811 404 080 (D)
40 70 DLHZO-TE-040-L71 0 811 404 613 DLHZO-T-040-L71 0 811 404 039 F160 130/80 30 DKZOR-TE-171-D5 - DKZOR-T-171-D5 0 811 404 086 (D)
40 70 DLHZO-TE-040-L73 0 811 404 603 DLHZO-T-040-L73 0 811 404 036 130/80 30 DKZOR-TE-173-D5 - DKZOR-T-173-D5 0 811 404 087 (D)
28 70 DLHZO-TE-040-T51 0 811 404 725 DLHZO-T-040-T51 0 811 404 043 (A) 80 10 DPZO-TE-171-L5 0 811 404 911 DPZO-T-171-L5 - (D)
28 70 DLHZO-TE-040-T53 0 811 404 725 DLHZO-T-040-T53 0 811 404 045 (A) NG10 80 10 DPZO-TE-173-L5 0 811 404 915 DPZO-T-173-L5 - (D)
NG6 40 70 DLHZO-TE-040-T71 - DLHZO-T-040-T71 0 811 404 046 F172 80/50 10 DPZO-TE-171-D5 0 811 404 912 DPZO-T-171-D5 - (D)
F190 40 70 DLHZO-TE-040-T73 - DLHZO-T-040-T73 0 811 404 044 80/50 10 DPZO-TE-173-D5 0 811 404 916 DPZO-T-173-D5 - (D)
60 70 DLKZOR-TE-140-L31 0 811 404 802 DLKZOR-T-140-L31 0 811 404 060 200 10 DPZO-TE-271-L5 0 811 404 928 DPZO-T-271-L5 - (D) (E)
NG10 60 70 DLKZOR-TE-140-L33 0 811 404 800 DLKZOR-T-140-L33 0 811 404 058 NG16 200 10 DPZO-TE-273-L5 0 811 404 932 DPZO-T-273-L5 - (D) (E)
F180 100 70 DLKZOR-TE-140-L71 0 811 404 803 DLKZOR-T-140-L71 0 811 404 061 F170 180/130 10 DPZO-TE-271-D5 0 811 404 929 DPZO-T-271-D5 - (D) (E)
100 70 DLKZOR-TE-140-L73 0 811 404 801 DLKZOR-T-140-L73 0 811 404 059 180/130 10 DPZO-TE-273-D5 0 811 404 933 DPZO-T-273-D5 - (D) (E)
NG10 100 70 DLKZOR-TE-140-T71 - DLKZOR-T-140-T71 0 811 404 065 390 10 DPZO-TE-371-L5 0 811 404 954 DPZO-T-371-L5 - (D) (E)
F190 100 70 DLKZOR-TE-140-T73 - DLKZOR-T-140-T73 0 811 404 063 NG25 390 10 DPZO-TE-373-L5 0 811 404 962 DPZO-T-373-L5 - (D) (E)
NG10 50 10 DPZO-LE-170-L3 0 811 404 652 DPZO-L-170-L3 0 811 404 093 F170 360/220 10 DPZO-TE-371-D5 0 811 404 955 DPZO-T-371-D5 - (D) (E)
F172 80 10 DPZO-LE-170-L5 0 811 404 653 DPZO-L-170-L5 0 811 404 094 360/220 10 DPZO-TE-373-D5 0 811 404 963 DPZO-T-373-D5 - (D) (E)
NG16 130 10 DPZO-LE-270-L3 0 811 404 250 DPZO-L-270-L3 0 811 404 206 80 10 DPZO-LE-171-L5 0 811 404 700 DPZO-L-171-L5 0 811 404 180 (D)
NG16 200 10 DPZO-LE-270-L5 0 811 404 251 DPZO-L-270-L5 0 811 404 207 NG10 80 10 DPZO-LE-173-L5 0 811 404 702 DPZO-L-173-L5 0 811 404 183 (D)
NG25 390 10 DPZO-LE-370-L5 0 811 404 430 DPZO-L-370-L5 0 811 404 405 F172 80/50 10 DPZO-LE-171-D5 0 811 404 701 DPZO-L-171-D5 0 811 404 181 (D)
F175 80/50 10 DPZO-LE-173-D5 0 811 404 703 DPZO-L-173-D5 0 811 404 184 (D)
3-WAYS INJECTION CONTROLS FOR PRESSES 200 10 DPZO-LE-271-L5 0 811 404 305 DPZO-L-271-L5 0 811 404 210 (D) (E)
NG25 260 10 LIQZO-LE-253L4 0 811 402 514 LIQZO-L-253L4 0 811 402 514 (B) NG16 200 10 DPZO-LE-273-L5 0 811 404 307 DPZO-L-273-L5 0 811 404 209 (D) (E)
NG32 470 10 LIQZO-LE-323L4 0 811 402 611 LIQZO-L-323L4 0 811 402 611 (B) F170 180/130 10 DPZO-LE-271-D5 0 811 404 306 DPZO-L-271-D5 0 811 404 212 (D) (E)
NG50 1100 10 LIQZO-LE-503L4 0 811 402 639 LIQZO-L-503L4 0 811 402 639 (B) 180/130 10 DPZO-LE-273-D5 0 811 404 308 DPZO-L-273-D5 0 811 404 213 (D) (E)
F320 380 10 DPZO-LE-371-L5 0 811 404 454 DPZO-L-371-L5 0 811 404 407 (D) (E)
2-WAYS CONTROLS FOR DIE-CASTING,CERAMIC, INJECTION MOLDING PRESSES NG25 380 10 DPZO-LE-373-L5 0 811 404 456 DPZO-L-373-L5 0 811 404 406 (D) (E)
NG25 700 10 LIQZO-TE-252L4 0 811 402 516 LIQZO-T-252L4 0 811 402 515 F170 360/220 10 DPZO-LE-371-D5 0 811 404 455 DPZO-L-371-D5 0 811 404 408 (D) (E)
NG32 1100 10 LIQZO-TE-322L4 0 811 402 615 LIQZO-T-322L4 0 811 402 614 360/220 10 DPZO-LE-373-D5 0 811 404 457 DPZO-L-373-D5 0 811 404 409 (D) (E)
NG40 1700 10 LIQZO-TE-402L4 0 811 402 621 LIQZO-T-402L4 0 811 402 620 PRESSURE PROPORTIONAL CONTROLS
NG50 2800 10 LIQZO-TE-502L4 0 811 402 641 LIQZO-T-502L4 0 811 402 633 NG6 6 - RZMO-TERS-010/315 0 811 402 070 (F)
F330 F007 6 - RZMO-TERS-010/210 0 811 402 071 (F)
FLOW PROPORTIONAL CONTROLS 6 - RZMO-TERS-010/100 0 811 402 072 (F)
35 - QVHZO-TE-06/35 0 811 403 151 QVHZO-T-06/35 0 811 403 114 NG6 40 - RZMO-TERS-030/315 0 811 402 076 (F)
NG6 18 - QVHZO-TE-06/18 - QVHZO-T-06/18 - F060 40 - RZMO-TERS-030/210 0 811 402 077 (F)
F160 12 - QVHZO-TE-06/12 0 811 403 150 QVHZO-T-06/12 0 811 404 117 40 - RZMO-TERS-030/100 0 811 402 078 (F)
3,5 - QVHZO-TE-06/3 - QVHZO-T-06/3 0 811 403 121

Atos spa
NG10 90 QVKZOR-TE-10/90 0 811 403 019 QVKZOR-T-10/90 0811 403 012

Nr. TA 1000-0
NG6 30 30 DHZO-TE-051-L3/B 0 811 403 129 DHZO-T-051-L3/B 0 811 403 101
F160 50 30 DHZO-TE-051-L5/B 0 811 403 128 DHZO-T-051-L5/B 0 811 403 126
NG10 80 30 DKZOR-TE-151-L3/B 0 811 404 751 DKZO-T-151-L3/B 0 811 403 002 (D) On Bosch valve the "dead zone is ± 0,5 V. On Atos valve the "dead zone" is ± 1 V.
F160 130 30 DKZOR-TE-151-L5/B 0 811 404 750 DKZO-T-151-L5/B 0 811 403 001 (E) Bosch valve has load sensing port C
(F) Atos valve with integral pressure transducer, Bosch with integral position transducer
(A) Bosch valve type HRC-OBE without fail safe spool position
(B) Atos code identifies cartridge and pilot valve, Bosch code for main stage only (cartridge),

Pg. 17/18
2_TA1000.xls/Foglio 17-18
 MISCELLANEOUS:
FIXED DISPLACEMENT VANE PUMPS
COMPARISON ATOS - DENISON - VICKERS - PARKER - SUMMA - B & C
GENERAL TECHNICAL CHARACTERISTICS

ATOS DENISON VICKERS SUMMA PARKER B & C (*)

PFE-31 PFE-41 PFE-51 T6C T6D T6E 20V 25V 35V 45V SVP25I SVP35I SVP45I PFVH series BV01 BV02 BV04 BV05

16,5 29,3 90 10,8 62,5 142,4 18 39 81 138 38 79 132 40 69 138 18 40,1 55,2 69 112,7 138,6
Displacement [cm³/rev] 44 85 150 79 89 136 146 40 45 40 46
35,6 69,9 129,2 70,3 120,3 213,3 36 67 121 193 66 120 189 68 122 193 36,4 45,4 67,5 97,7 121,6 193,4
23 41 128 16,7 93,7 213,6 24 57 118 199 56,8 118 199 60 103 207 26,1 58,8 80,2 101,4 167,2 203,4
Single pumps displacement at 1500 rpm - 7 bar [l/min] 63 124 215 118,9 133,2 204 218,5 57 66 59 70
51 101 186 105,4 180,4 320,4 52 99 180 284 99,5 180 284 102 183 289 52,6 65,7 99,8 141,2 177,3 285

Double pumps displacement at 1500 rpm - 7 bar [l/min] 64 ÷ 339 (2) 32 ÷ 539 87 ÷ 470 80 ÷ 464 102 ÷ 472 84,9 ÷ 472

600 ÷ 1800 (6)

Confronto Atos - Concorrenza

Comparison Atos - Competitors
Max rotation speed with mineral hydraulic oil [rpm] 2800 2500 2000 2200 1800 2800 2500 2500 2200 1800 2700 (3) 2700 2500 2400 2200
1000 ÷1800 (7)

Max continuative pressure (1) [bar] 210 275 210 240 210 160 140 170 172 210 (3) 210 160 140 210 210 175

Fluid temperature [°C] < 70°C -18°C ÷ +100°C < 65°C < 65°C -40°C ÷ +85°C -10°C ÷ +70°C

Fixing flange SAE A SAE B SAE C SAE B SAE C SAE B SAE C SAE B SAE C SAE B SAE C SAE B SAE C

19,05
Cylindrical keyed ∅ mm - - - - - - - - - - - - - - - - - - -
19,00
22,22
Cylindrical keyed SAE B ∅ mm - (4) - - - - - - - - - -
22,20
25,38
Cylindrical keyed SAE B-B ∅ mm - - - - - - - - - - - - - - - -
25,36
31,75
Cylindrical keyed SAE C ∅ mm - - - (4) - - - - - -
31,70 (4)
34,90
Cylindrical keyed ∅ mm - - - - - - - - - - - - - - - -
SHAFT TYPE

34,70
38,10
Cylindrical keyed SAE C-C ∅ mm - - - - - - - - - - - - - - - -
38,04

Splined 16/32-9T SAE A - - - - - - - - - - - - - - - - - -

Splined 16/32-13T SAE B - - - - - - - - - -

Splined 12/24-14T SAE C - - (4) - - - - - - - -

Splined 16/32-15T SAE B-B - - - - - - - - - - - - - - - - - - -

Splined 12/24-17T SAE C-C - - - - - - - - - - - - - - - - - - -

Nr. TA 1000-0
(*) = corresponding to Rexroth vane pump model "PVV"
(1) = both Atos and, recently, Vickers have also high pressure versions (type PFE-*2). Not available versions for Parker, Summa and B & C
(2) = double vane pump type PFED

Atos spa
(3) = variable according to the versions
(4) = available also with key lenght enlarged
(5) = available also with toothing lenght enlarged
(6) = minimum rpm at P < 1000 PSI
(7) = maximum rpm at P> 1000 PSI

Pg. 18/18
