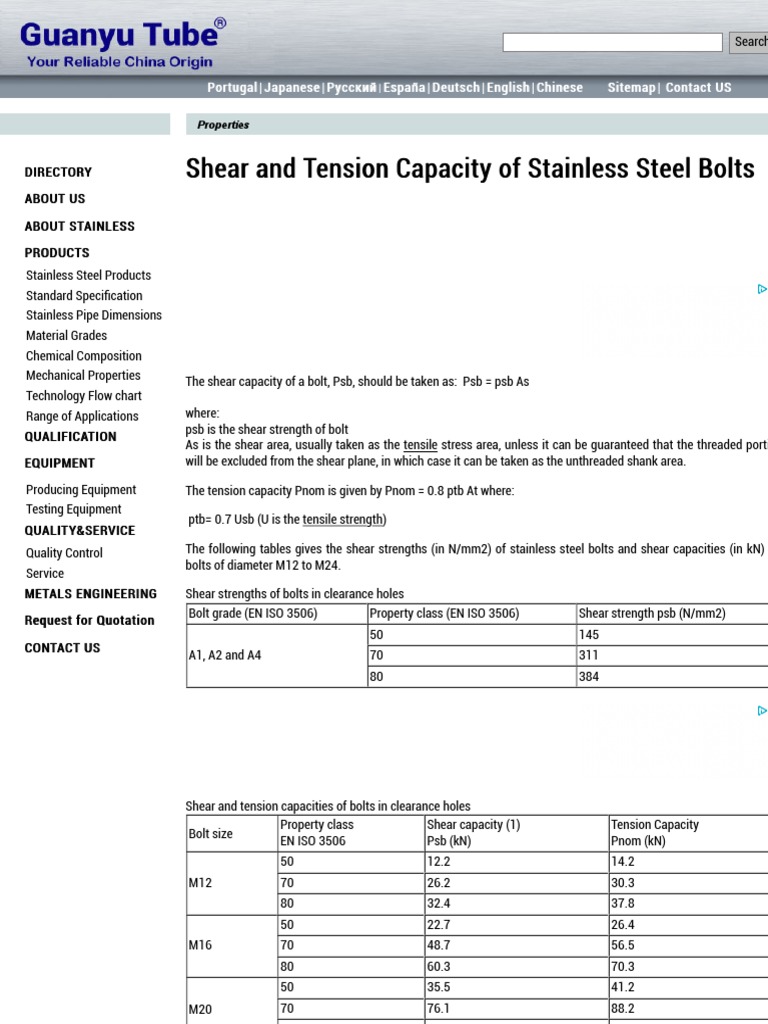

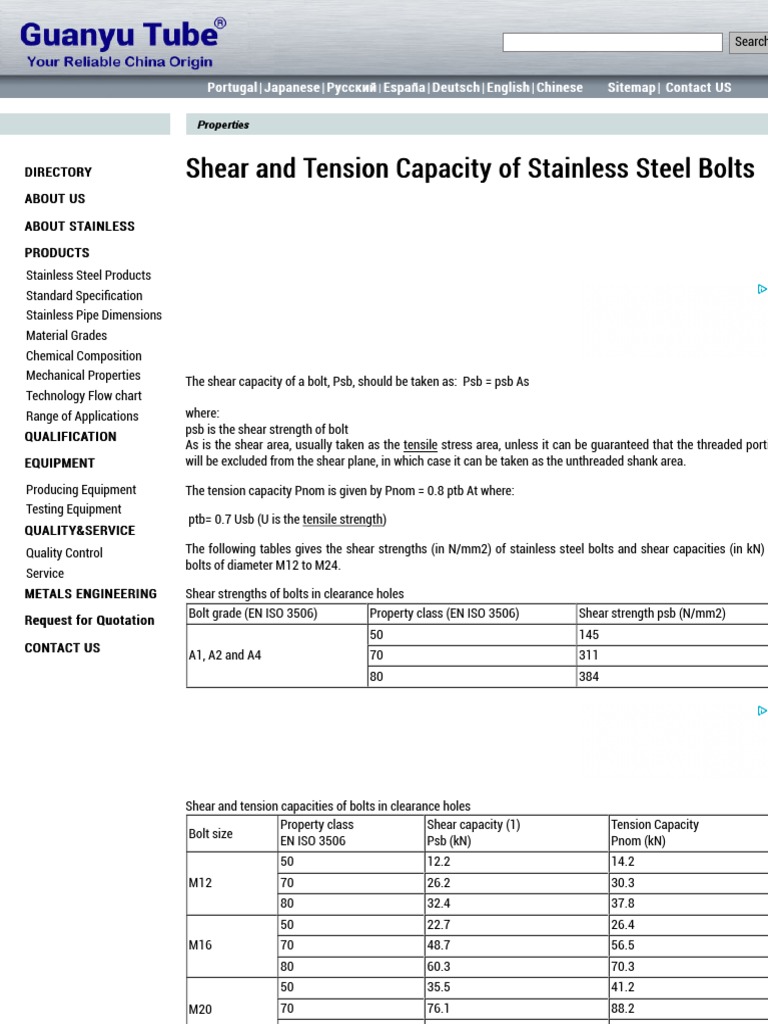

    DIRECTORY Shear and Tension Capacity of Stainless Steel Bolts


    ABOUT US

    ABOUT STAINLESS

    PRODUCTS
    Stainless Steel Products
    Standard Specification
    Stainless Pipe Dimensions
    Material Grades
    Chemical Composition
    Mechanical Properties The shear capacity of a bolt, Psb, should be taken as: Psb = psb As
    Technology Flow chart
    Range of Applications where:
    psb is the shear strength of bolt
    QUALIFICATION
    As is the shear area, usually taken as the tensile stress area, unless it can be guaranteed that the threaded porti
    EQUIPMENT will be excluded from the shear plane, in which case it can be taken as the unthreaded shank area.

    Producing Equipment The tension capacity Pnom is given by Pnom = 0.8 ptb At where:
    Testing Equipment
    ptb= 0.7 Usb (U is the tensile strength)
    QUALITY&SERVICE
    Quality Control The following tables gives the shear strengths (in N/mm2) of stainless steel bolts and shear capacities (in kN)
    bolts of diameter M12 to M24.
    Service
    METALS ENGINEERING Shear strengths of bolts in clearance holes
    Bolt grade (EN ISO 3506) Property class (EN ISO 3506) Shear strength psb (N/mm2)
    Request for Quotation
    50 145
    CONTACT US
    A1, A2 and A4 70 311
    80 384

    Shear and tension capacities of bolts in clearance holes


    Property class Shear capacity (1) Tension Capacity
    Bolt size
    EN ISO 3506 Psb (kN) Pnom (kN)
    50 12.2 14.2
    M12 70 26.2 30.3
    80 32.4 37.8
    50 22.7 26.4
    M16 70 48.7 56.5
    80 60.3 70.3
    50 35.5 41.2
    M20 70 76.1 88.2
    80 94.1 109.8
    50 51.1 59.3
    M24 70 109.6 127.1
    80 135.6 158.1
    (1) The shear area As has been taken as the tensile stress area of the bolt, At

    Note: These values of shear capacity should be used in conjunction with FACTORED loads. The relevant load factor
    can be obtained from BS 5950 The structural use of steelwork in building, Part 1 Code of practice for design - rolle
    and welded sections.
