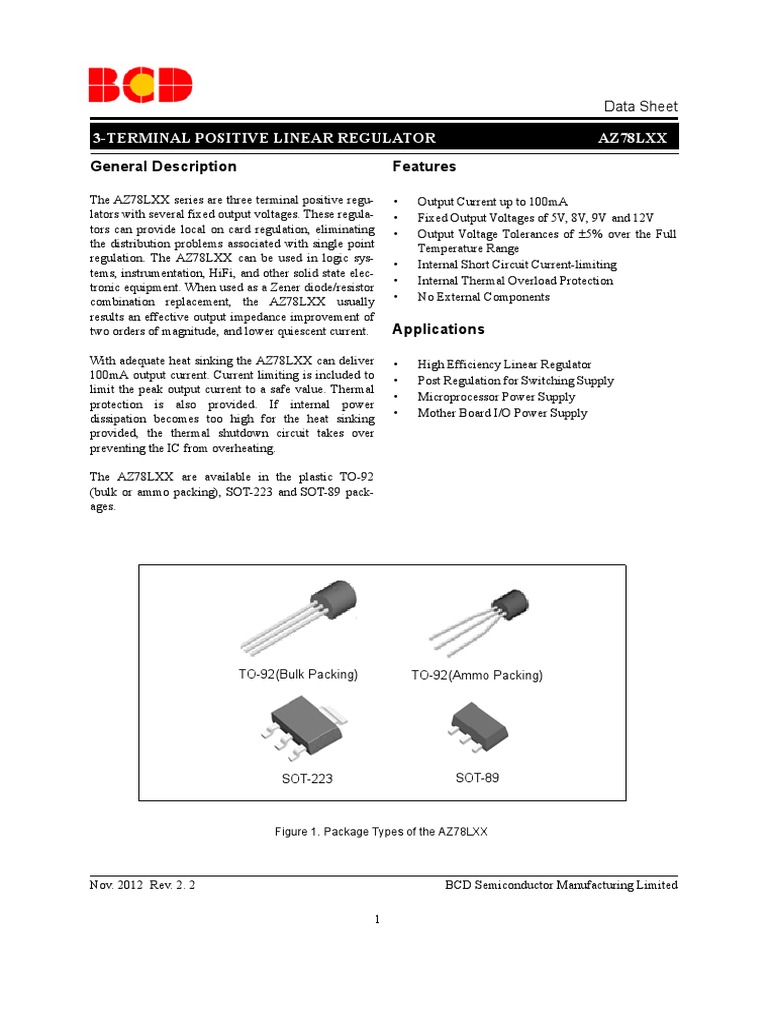

Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

General Description Features

The AZ78LXX series are three terminal positive regu- · Output Current up to 100mA
lators with several fixed output voltages. These regula- · Fixed Output Voltages of 5V, 8V, 9V and 12V
tors can provide local on card regulation, eliminating · Output Voltage Tolerances of ±5% over the Full
the distribution problems associated with single point Temperature Range
regulation. The AZ78LXX can be used in logic sys-
· Internal Short Circuit Current-limiting
tems, instrumentation, HiFi, and other solid state elec-
· Internal Thermal Overload Protection
tronic equipment. When used as a Zener diode/resistor
combination replacement, the AZ78LXX usually · No External Components
results an effective output impedance improvement of
two orders of magnitude, and lower quiescent current. Applications

With adequate heat sinking the AZ78LXX can deliver · High Efficiency Linear Regulator
100mA output current. Current limiting is included to · Post Regulation for Switching Supply
limit the peak output current to a safe value. Thermal
· Microprocessor Power Supply
protection is also provided. If internal power
dissipation becomes too high for the heat sinking · Mother Board I/O Power Supply
provided, the thermal shutdown circuit takes over
preventing the IC from overheating.

The AZ78LXX are available in the plastic TO-92

(bulk or ammo packing), SOT-223 and SOT-89 pack-
ages.

TO-92(Bulk Packing) TO-92(Ammo Packing)

SOT-223 SOT-89

Figure 1. Package Types of the AZ78LXX

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

1
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Pin Configuration

Z Package Z Package
(TO-92(Bulk Packing)) (TO-92(Ammo Packing))

3 INPUT
3 INPUT

2 GND 2 GND

1 OUTPUT 1 OUTPUT

H Package R Package
(SOT-223) (SOT-89)

3 INPUT 3 INPUT

GND 4 2 GND GND 4 2 GND

1 OUTPUT 1 OUTPUT

Connect pin 4 to pin 2 or leave

pin 4 electrically isolated

Figure 2. Pin Configuration of the AZ78LXX (Top View)

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

2
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Functional Block Diagram

3 (8)
INPUT

1
OUTPUT

A(B)
A for 3-pin
B for 8-pin

2, 4 (2, 3, 6, 7)
GND

Figure 3. Functional Block Diagram of the AZ78LXX

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

3
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Ordering Information
AZ78L -

E1: Lead Free

Circuit Type
G1: Green
Output Voltage TR: Tape and Reel or Ammo
05: 5V Blank: Tube or Bulk
08: 8V Package
09: 9V Z: TO-92
12: 12V R: SOT-89
H: SOT-223

Temperature Part Number Marking ID

Package Packing Type
Range Lead Free Green Lead Free Green
AZ78L05Z-E1 AZ78L05Z-G1 AZ78L05Z-E1 AZ78L05Z-G1 Bulk
AZ78L05ZTR-E1 AZ78L05ZTR-G1 AZ78L05Z-E1 AZ78L05Z-G1 Ammo
AZ78L08Z-E1 AZ78L08Z-G1 AZ78L08Z-E1 AZ78L08Z-G1 Bulk
AZ78L08ZTR-E1 AZ78L08ZTR-G1 AZ78L08Z-E1 AZ78L08Z-G1 Ammo
TO-92 -40 to 125oC
AZ78L09Z-E1 AZ78L09Z-G1 AZ78L09Z-E1 AZ78L09Z-G1 Bulk
AZ78L09ZTR-E1 AZ78L09ZTR-G1 AZ78L09Z-E1 AZ78L09Z-G1 Ammo
AZ78L12Z-E1 AZ78L12Z-G1 AZ78L12Z-E1 AZ78L12Z-G1 Bulk
AZ78L12ZTR-E1 AZ78L12ZTR-G1 AZ78L12Z-E1 AZ78L12Z-G1 Ammo
AZ78L05RTR-E1 AZ78L05RTR-G1 E78A G78A Tape & Reel
AZ78L08RTR-E1 AZ78L08RTR-G1 E78B G78B Tape & Reel
SOT-89 -40 to 125oC
AZ78L09RTR-E1 AZ78L09RTR-G1 E78C G78C Tape & Reel
AZ78L12RTR-E1 AZ78L12RTR-G1 E78D G78D Tape & Reel
AZ78L05HTR-E1 AZ78L05HTR-G1 EH78A GH78A Tape & Reel
AZ78L08HTR-E1 AZ78L08HTR-G1 EH78B GH78B Tape & Reel
SOT-223 -40 to 125oC
AZ78L09HTR-E1 AZ78L09HTR-G1 EH78C GH78C Tape & Reel
AZ78L12HTR-E1 AZ78L12HTR-G1 EH78D GH78D Tape & Reel

BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with
"G1" suffix are available in green packages.

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

4
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Absolute Maximum Ratings (Note 1)
Parameter Symbol Value Unit

Input Voltage VIN 20 V

Operating Junction Temperature TJ 150 o
C
Lead Temperature (Soldering, 10sec) TLEAD 260 oC

TO-92 0.65
o PD W
Power Dissipation (TA=25 C) SOT-223 0.7
SOT-89 0.65
Storage Temperature Range TSTG -65 to 150 oC

ESD (Human Body Model) ESD 2000 V

ESD (Machine Model) ESD 200 V

Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Max-
imum Ratings" for extended periods may affect device reliability.

Recommended Operating Conditions

Parameter Symbol Min Max Unit

AZ78L05 15
AZ78L08 18
Input Voltage VIN V
AZ78L09 18
AZ78L12 18
Operating Junction Temperature TJ -40 125 o
C

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

5
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Electrical Characteristics
AZ78L05 Electrical Characteristics
Limits in standard typeface are for TJ=25oC, Bold typeface applies over -40oC to 125oC, IOUT=40mA, CIN
=0.33μF, COUT=0.1μF, VIN=10V, unless otherwise specified.

Parameter Symbol Conditions Min Typ Max Unit

4.8 5 5.2
Output Voltage VOUT 4.75 5.25 V
7.0V ≤ VIN ≤ 15V
1.0mA ≤ IOUT ≤ 40mA (Note 2)
Line Regulation VRLINE 7.0V ≤ VIN ≤ 15V 18 75 mV
Load Regulation VRLOAD 1.0mA ≤ IOUT ≤ 100mA 20 60 mV
Dropout Voltage VDROP 1.6 V
Current Limit ILIMIT TJ=25oC 150 mA
Quiescent Current IQ IOUT=0 3 5 mA
Quiescent Current Change ΔIQ 8.0V ≤ VIN ≤ 15V 1.0 mA
1.0mA ≤ IOUT ≤ 40mA 0.1
Output Noise Voltage NO 10Hz ≤ f ≤ 100kHz (Note 3) 40 μV
Ripple Rejection PSRR f=120Hz, 8.0V ≤ VIN ≤ 15V 47 62 dB
Peak Output Current IPK 150 mA
Average Temperature Coefficient of ΔVOUT/ ΔT IOUT = 5.0mA 0.65 mV/ oC
Output Voltage
Minimum Value of Input Voltage
Required to Maintain Line Regula- VIN (Min) 6.7 7 V
tion
TO-92 81

Thermal Resistance θJC SOT-89 29.8 o

C/W
SOT-223 71

Note 2: Power Dissipation ≤ 0.6W

Note 3: Recommended minimum load capacitance of 0.01μF to limit high frequency noise.

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

6
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Electrical Characteristics (Continued)
AZ78L08 Electrical Characteristics
Limits in standard typeface are for TJ=25oC, Bold typeface applies over -40oC to 125oC, IOUT=40mA, CIN
=0.33μF, COUT=0.1μF, VIN=14V, unless otherwise specified.

Parameter Symbol Conditions Min Typ Max Unit

7.7 8.0 8.3
Output Voltage VOUT 7.6 8.4 V
11V ≤ VIN ≤ 18V
1.0mA ≤ IOUT ≤ 40mA (Note
Line Regulation VRLINE 11V ≤ VIN ≤ 18V 18 75 mV
Load Regulation VRLOAD 1.0mA ≤ IOUT ≤ 100mA 20 90 mV
Dropout Voltage VDROP 1.6 V
Current Limit ILIMIT TJ=25oC 150 mA
Quiescent Current IQ IOUT=0 3 5 mA
Quiescent Current Change ΔIQ 11V ≤ VIN ≤ 18V 1.5 mA
1.0mA ≤ IOUT ≤ 40mA 0.1
Output Noise Voltage NO 10Hz ≤ f ≤ 100kHz (Note 3) 60 μV
Ripple Rejection PSRR f=120Hz, 11V ≤ VIN ≤ 18V 39 45 dB
Peak Output Current IPK 150 mA
Average Temperature Coefficient of ΔVOUT/ ΔT IOUT= 5.0mA 0.8 mV/ oC
Output Voltage
Minimum Value of Input Voltage VIN (Min) 9.7 V
Required to Maintain Line Regula-
tion
TO-92 81

Thermal Resistance θJC SOT-89 84 o

C/W
SOT-223 71

Note 2: Power Dissipation ≤ 0.6W

Note 3: Recommended minimum load capacitance of 0.01μF to limit high frequency noise.

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

7
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Electrical Characteristics (Continued)
AZ78L09 Electrical Characteristics
Limits in standard typeface are for TJ=25oC, Bold typeface applies over -40oC to 125oC, IOUT=40mA, CIN
=0.33μF, COUT=0.1μF, VIN =15V, unless otherwise specified.

Parameter Symbol Conditions Min Typ Max Unit

8.6 9 9.4
Output Voltage VOUT 8.55 9.45 V
12V ≤ VIN ≤ 18V
1.0mA ≤ IOUT ≤ 40mA (Note 2)
Line Regulation VRLINE 12V ≤ VIN ≤ 18V 18 75 mV
Load Regulation VRLOAD 1.0mA ≤ IOUT ≤ 100mA 20 90 mV
Dropout Voltage VDROP 1.6 V
Current Limit ILIMIT TJ=25oC 150 mA
Quiescent Current IQ IOUT=0 3 5 mA
Quiescent Current Change ΔIQ 12V ≤ VIN ≤ 18V 1.5 mA
1.0mA ≤ IOUT ≤ 40mA 0.1
Output Noise Voltage NO 10Hz ≤ f ≤ 100kHz (Note 3) 70 μV
Ripple Rejection PSRR f=120Hz, 12V ≤ VIN ≤ 18V 38 44 dB
Peak Output Current IPK 150 mA
Average Temperature Coefficient of ΔVOUT/ ΔT IOUT= 5.0mA 0.9 mV/ oC
Output Voltage
Minimum Value of Input Voltage VIN (Min) 10.7 V
Required to Maintain Line Regula-
tion
TO-92 81

Thermal Resistance θJC SOT-89 84 o

C/W
SOT-223 71

Note 2: Power Dissipation ≤ 0.6W

Note 3: Recommended minimum load capacitance of 0.01μF to limit high frequency noise.

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

8
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Electrical Characteristics (Continued)
AZ78L12 Electrical Characteristics
Limits in standard typeface are for TJ=25oC, Bold typeface applies over -40oC to 125oC, IOUT=40mA, CIN
=0.33μF, COUT=0.1μF, VIN=18V, unless otherwise specified.

Parameter Symbol Conditions Min Typ Max Unit

11.5 12 12.5
Output Voltage VOUT 11.4 12.6 V
15V ≤ VIN ≤ 18V
1.0mA ≤ IOUT ≤ 40mA (Note 2)
Line Regulation VRLINE 15V ≤ VIN ≤ 18V 18 75 mV
Load Regulation VRLOAD 1.0mA ≤ IOUT ≤ 100mA 20 90 mV
Dropout Voltage VDROP 1.6 V
Current Limit ILIMIT TJ=25oC 150 mA
Quiescent Current IQ IOUT=0 3 5 mA
Quiescent Current Change ΔIQ 15V ≤ VIN ≤ 18V 1.5 mA
1.0mA ≤ IOUT ≤ 40mA 0.1
Output Noise Voltage NO 10Hz ≤ f ≤ 100kHz (Note 3) 80 μV
Ripple Rejection PSRR f=120Hz, 15V ≤ VIN ≤ 18V 40 54 dB
Peak Output Current IPK 150 mA
Average Temperature Coefficient of ΔVOUT/ ΔT IOUT = 5.0mA 1.0 mV/ oC
Output Voltage
Minimum Value of Input Voltage VIN (Min) 13.7 V
Required to Maintain Line Regula-
tion
TO-92 81

Thermal Resistance θJC SOT-89 84 o

C/W
SOT-223 71

Note 2: Power Dissipation ≤ 0.6W

Note 3: Recommended minimum load capacitance of 0.01μF to limit high frequency noise.

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

9
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Typical Performance Characteristics

2.0

5
IOUT=40mA IOUT=100mA
1.8
AZ78L05
VOUT=5V 1.6
4 IOUT=100mA
TJ =25 oC 1.4

Dropout Voltage (V)

Output Voltage (V)

3 IOUT=40mA 1.2

1.0 IOUT=1mA
2 IOUT=1mA
0.8

0.6
1
AZ78L05
0.4
ΔV=1%*VOUT

0 0.2

0.0
0 2 4 6 8 10 -40 -20 0 20 40 60 80 100 120

VI input voltage(V)
Input Voltage (V) o
Junction Temperature ( C)

Figure 4. Dropout Characteristics Figure 5. Dropout Voltage vs. Junction Temperature

3.0 3.0

2.9 AZ78L05
VIN=10V 2.5

2.8 IOUT=5mA
Input Bias Current (mA)
Quiescent Current (mA)

2.0
2.7

2.6 1.5
AZ78L05
VOUT=5.0V
2.5
1.0
IOUT=40mA
o
2.4 TJ=25 C
0.5
2.3

0.0
2.2 0 2 4 6 8 10 12 14 16 18 20
-40 -20 0 20 40 60 80 100 120
o Input Voltage (V)
Junction Temperature ( C)

Figure 6. Quiescent Current vs. Junction Temperature Figure 7. Input Bias Current vs. Input Voltage

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

10
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Typical Performance Characteristics (Continued)

11.5 75
AZ78L05

IOUT (25mA/Div)
VIN (0.5V/Div)

11 50 AZ78L05

10.5 25

10 0

ΔVOUT (100mV/Div)
ΔVOUT (20mV/Div)

20 0

0 -100

-20 -200

-40 -300

Time (4μs/Div) Time (10μs/Div)

Figure 8. Line Transient Response Figure 9. Load Transient Response

(Conditions: VIN=10 to 11V, VOUT=5V, IOUT=40mA) (Conditions: VIN=10V, VOUT=5V, IOUT=1 to 50mA)

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

11
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Typical Application

VIN 3 1 VOUT
AZ78L05

+ +
0.1μF
0.33μF 2 (Note 4)
(Note 4)

Note 4: Bypass capacitors are recommended for optimum stability and transient response and should be located
as close as possible to the regulator.

Figure 10. Typical Application of the AZ78LXX

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

12
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Mechanical Dimensions

TO-92(Bulk Packing) Unit: mm(inch)

1.000(0. 039)
1.400(0. 055) 3.430(0.135)
MIN
3.300(0.130)
3.700(0.146)

0.320(0. 013)
0.510(0. 020)

0. 000(0. 000)
0. 380(0. 015)
Φ1. 600(0. 063)
MAX
4.400(0.173)
4.800(0.189)
4.300(0.169)
4.700(0.185)

0.360(0. 014)
0.760(0. 030)
12.500(0.492)
15.500(0.610)

1.270(0. 050)
TYP 2.420(0.095)
2.660(0.105)

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

13
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Mechanical Dimensions (Continued)

TO-92(Ammo Packing) Unit: mm(inch)

4.400(0.173)
4.800 (0.189 )

4.300(0.169)
1. 100(0. 043) 4.700(0.185) 1.270(0.050)
1. 400(0.055) 3. 430(0.135) Typ
MIN

2.500(0.098)
0.320(0. 013)
3.300(0.130)
3.800(0.150)

4.000 (0.157 )
0. 510(0. 020)
12.500(0.492)
14.500(0.571)

0. 000(0.000)
0. 380(0.015) 13.000(0. 512)
15.000 (0.591 )
Φ1. 600(0. 063)
MAX

0.380(0.015)
0.550(0.022 )

2.540(0.100)
Typ

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

14
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Mechanical Dimensions (Continued)

SOT-223 Unit: mm(inch)

6.300(0.248)
6.700(0.264)
)
0.250(0.010
2.900(0.114) 14 )
0.350(0.0
3.100(0.122)
0.900(0.035)
MIN
6.700(0.264)
7.300(0.287)

3.300(0.130)
3.700(0.146)
0.250(0.010)

1.750(0.069)
TYP

2.300(0.091) 0.610(0.024)
TYP 0.810(0.032) 0°
10°
4.500(0.177)
4.700(0.185)

0.020(0.001)
0.100(0.004)

1.500(0.059) 1.520(0.060)
1.700(0.067) 1.800(0.071)

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

15
 Data Sheet

3-TERMINAL POSITIVE LINEAR REGULATOR AZ78LXX

Mechanical Dimensions (Continued)

SOT-89 Unit: mm(inch)

4.400(0.173)
1.550(0.061)REF 4.600(0.181)
1.400(0.055)
1.030(0.041)REF
1.600(0.063)

45

3.950(0.156) 2.300(0.091) 2.060(0.081)REF

2.600(0.102)
4.250(0.167)

3 10
0.900(0.035)
1.100(0.043)
0.320(0.013) 0.350(0.014)
0.320(0.013)
0.520(0.020) 0.450(0.018)
0.520(0.020)
0.480(0.019)
3.000(0.118)
TYP

1.500(0.059)
1.800(0.071)

0.320(0.013)REF
3

1.620(0.064)REF
2.210(0.087)REF

R0.150(0.006)
10

Nov. 2012 Rev. 2. 2 BCD Semiconductor Manufacturing Limited

16
 BCD Semiconductor Manufacturing Limited

http://www.bcdsemi.com

IMPORTANT NOTICE
IMPORTANT NOTICE

BCD Semiconductor
BCD Semiconductor Manufacturing
Manufacturing Limited
Limited reserves
reserves the
the right
right to
to make
make changes
changes without
without further
further notice
notice to
to any
any products
products oror specifi-
specifi-
cations herein.
cations herein. BCD
BCD Semiconductor
Semiconductor Manufacturing
Manufacturing Limited
Limited does
does not
not assume
assume any
any responsibility
responsibility for
for use
use of
of any
any its
its products
products for
for any
any
particular purpose,
particular purpose, nor
nor does
does BCD
BCD Semiconductor
Semiconductor Manufacturing
Manufacturing Limited
Limited assume
assume any
any liability
liability arising
arising out
out of
of the
the application
application or
or use
use
of any
of any its
its products
products or
or circuits.
circuits. BCD
BCD Semiconductor
Semiconductor Manufacturing
Manufacturing Limited
Limited does
does not
not convey
convey anyany license
license under
under its
its patent
patent rights
rights or
or
other rights
other rights nor
nor the
the rights
rights of
of others.
others.

MAIN SITE
MAIN SITE
- Headquarters
BCD Semiconductor Manufacturing Limited - Wafer
BCD FabSemiconductor Manufacturing Limited
BCD Semiconductor
- Wafer Fab Manufacturing Limited Shanghai SIM-BCD
- IC Design GroupSemiconductor Manufacturing Co., Ltd.
No. 1600, Zi
Shanghai Xing Road,
SIM-BCD Shanghai ZiZhu
Semiconductor Science-basedLimited
Manufacturing Industrial Park, 200241, China 800 Yi Shan Road,
Advanced Shanghai
Analog 200233,
Circuits China Corporation
(Shanghai)
Tel:
800,+86-21-24162266, Fax: +86-21-24162277
Yi Shan Road, Shanghai 200233, China Tel: +86-21-6485 1491,YiFax:
8F, Zone B, 900, Shan+86-21-5450 0008200233, China
Road, Shanghai
Tel: +86-21-6485 1491, Fax: +86-21-5450 0008 Tel: +86-21-6495 9539, Fax: +86-21-6485 9673
REGIONAL SALES OFFICE
Shenzhen OfficeSALES OFFICE
REGIONAL Taiwan Office USA Office
Shanghai
Shenzhen SIM-BCD
Office Semiconductor Manufacturing Co., Ltd., Shenzhen Office BCD Taiwan
Semiconductor
Office (Taiwan) Company Limited BCD Office
USA Semiconductor Corp.
Unit A Room
Shanghai 1203, Skyworth
SIM-BCD Bldg., Gaoxin
Semiconductor Ave.1.S., Nanshan
Manufacturing Co., Ltd.District,
Shenzhen Shenzhen,
Office 4F, 298-1,
BCDRui Guang Road,(Taiwan)
Semiconductor Nei-Hu District,
Company Taipei,
Limited 30920Semiconductor
BCD Huntwood Ave.Corporation
Hayward,
China
Advanced Analog Circuits (Shanghai) Corporation Shenzhen Office Taiwan4F, 298-1, Rui Guang Road, Nei-Hu District, Taipei, CA 94544,
30920 USA Ave. Hayward,
Huntwood
Tel:
Room +86-755-8826
E, 5F, Noble 7951 Tel: +886-2-2656
Center, No.1006, 3rd Fuzhong Road, Futian District, Shenzhen 518026, China Taiwan 2808 Tel :94544,
CA +1-510-324-2988
U.S.A
Fax: +86-755-88267951
Tel: +86-755-8826 7865 Fax: +886-2-2656 28062808
Tel: +886-2-2656 Fax:: +1-510-324-2988
Tel +1-510-324-2788
Fax: +86-755-8826 7865 Fax: +886-2-2656 2806 Fax: +1-510-324-2788
