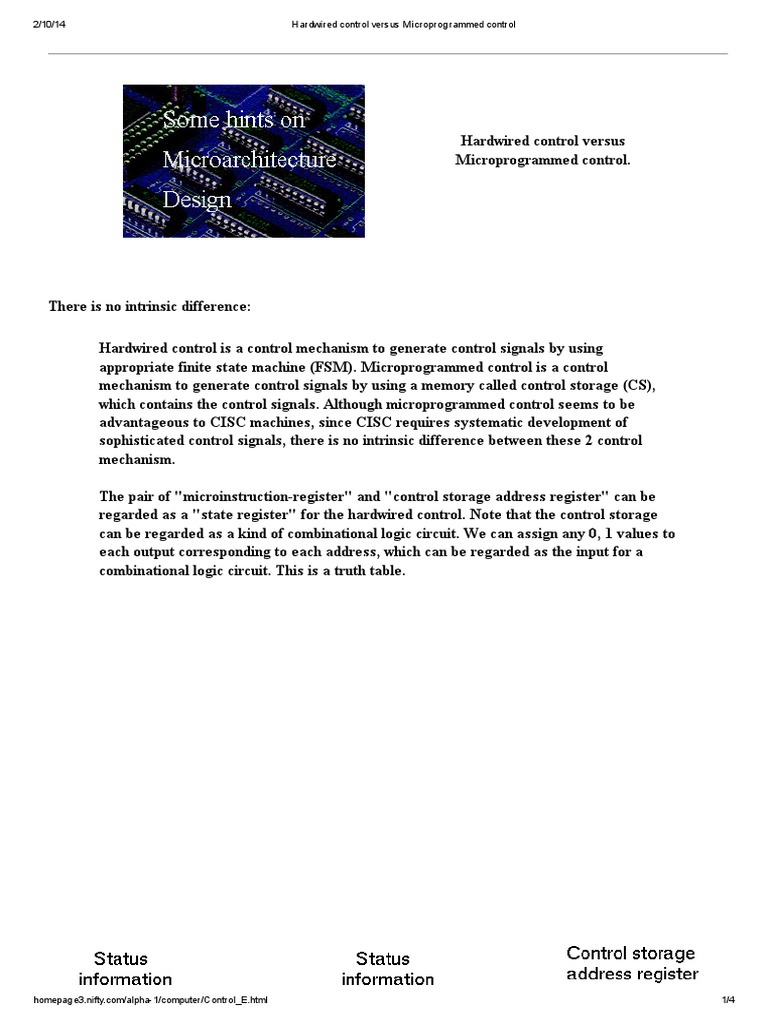

Hardwired control versus

Microprogrammed control.

There is no intrinsic difference:

Hardwired control is a control mechanism to generate control signals by using

appropriate finite state machine (FSM). Microprogrammed control is a control
mechanism to generate control signals by using a memory called control storage (CS),
which contains the control signals. Although microprogrammed control seems to be
advantageous to CISC machines, since CISC requires systematic development of
sophisticated control signals, there is no intrinsic difference between these 2 control
mechanism.

The pair of "microinstruction-register" and "control storage address register" can be

regarded as a "state register" for the hardwired control. Note that the control storage
can be regarded as a kind of combinational logic circuit. We can assign any 0, 1 values to
each output corresponding to each address, which can be regarded as the input for a
combinational logic circuit. This is a truth table.

homepage3.nifty.com/alpha-1/computer/Control_E.html 1/4
2/10/14 Hardwired control versus Microprogrammed control

CISC also can be implemented by using hardwired control:

In the above sense, the microprogrammed control is not always necessary to implement
CISC machines. Hardwired control also can be used for implementing sophisticated
CISC machines. The bases of this opinion are as follows:

1. The same field configuration (state assignment) can be used for both of these two
types of control. This is clear because of the above identification.

2. We can use any large FSM ,which has horizontal microcode like state assignment,
since the delay for the hardwired control logic (FSM) does not matter at all so long
as it is less than or equal to the delay for the data-path, which includes adders,
shifters and so on, since the control logic circuit works in parallel with the data-
path.

3. The horizontal microcode like state assignment has become very easy to be
implemented because of the spread of the hardware description language(HDL)s.
In Verilog HDL, `define statements enable us to get perfect net-list for the large
FSM in a very short time by using appropriate logic synthesizer. The "parameter"
statement also can be used for the state assignment in Verilog HDL.

CISC and RISC are the major two different types of ordinary SISD machines. Since the
hardwired control have been historically faster, both of these two types of machines are
implemented by using the hardwired control in our microcomputer design educational
environment known as the City-1.

In 1996, which is the first year of the City-1, an example description named CISC-1,
which used a horizontal microcode like state assignment for the FSM in the control unit
to implement a CISC machine, had been given to all of the junior students in Hiroshima
City University. They succeeded.

We decided to call the digital system with a control unit which generates horizontal
microcode by using the FSM "hardwired microcode machine(HM^2)".
homepage3.nifty.com/alpha-1/computer/Control_E.html 2/4
2/10/14 Hardwired control versus Microprogrammed control

microcode by using the FSM "hardwired microcode machine(HM^2)".

Ryuichi TAKAHASHI

Related publications:

1. Ryuichi TAKAHASHI: "System Development and Design Using Verilog HDL"

Kyoritu-pub.(2008)ISBN978-4-320-12222-2...in Japanese

...HM^2 is clearly described in this book.

2. Ryuichi TAKAHASHI, Kenta KANDA, Yuji KIHARA, Hajime OHIWA: "CS

Education for High School Students Focusing on Energy Consumption on FPGA,"
Supplementary Proc. ICCE2007:15th International Conference on Computers in
Education pp.39-40 (2007)

...We called the machine "hardwired microcode machine(HM^2)" in this

paper for the first time. HM^2 contains the control unit which generates
the horizontal microcode by using the FSM.

3. Ryuichi TAKAHASHI and Noriyoshi YOSHIDA: "Diagonal Examples for Design

Space Exploration in an Educational Environment CITY-1"...ACM, IEEE
IEEE Proc. MSE 1999: International Conference on Microelectronic Systems
Education, pp.71-73 (1999)

...The second English paper introducing the horizontal microcode like

state assignment for the control unit.

4. Ryuichi TAKAHASHI and Takeshi YOSHIMURA: "Strategies for High Level

Synthesis" The Trans. of the IEICE, VolJ74-A, No.2, pp.143-151 (1991)...in
Japanese

...The above idea is clearly described in this paper.

5. Ryuichi TAKAHASHI, Takeshi YOSHIMURA and Satoshi GOTO: "A VLSI

Architecture Evaluation System," ACM, IEEE Proc. ICCD 1986 :International
Conference on Computer Design, pp.60-63 (1986)

...This is the first

homepage3.nifty.com/alpha-1/computer/Control_E.html paper, which illustrates the above identification, where 3/4
2/10/14 Hardwired control versus Microprogrammed control
...This is the first paper, which illustrates the above identification, where
the idea had been used for a quick quantitative evaluation of hardware
resources. Although I had been working for NEC Corp., I didn't write any
patent on the above idea. Hardwired microcode machine is free to use.
