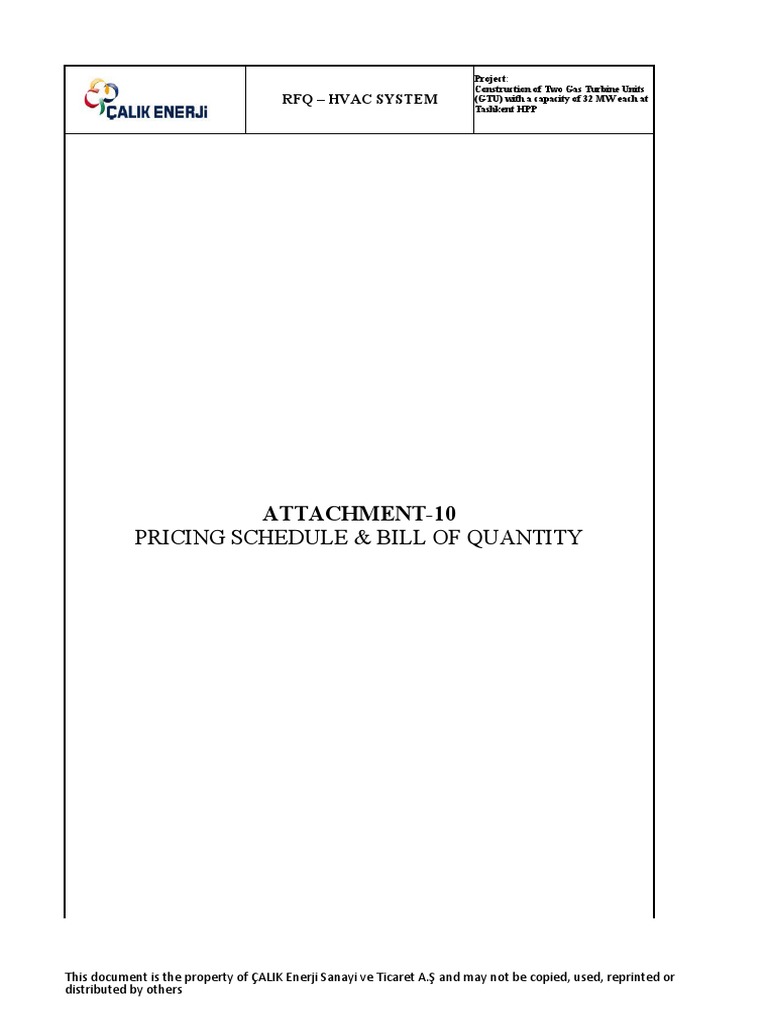

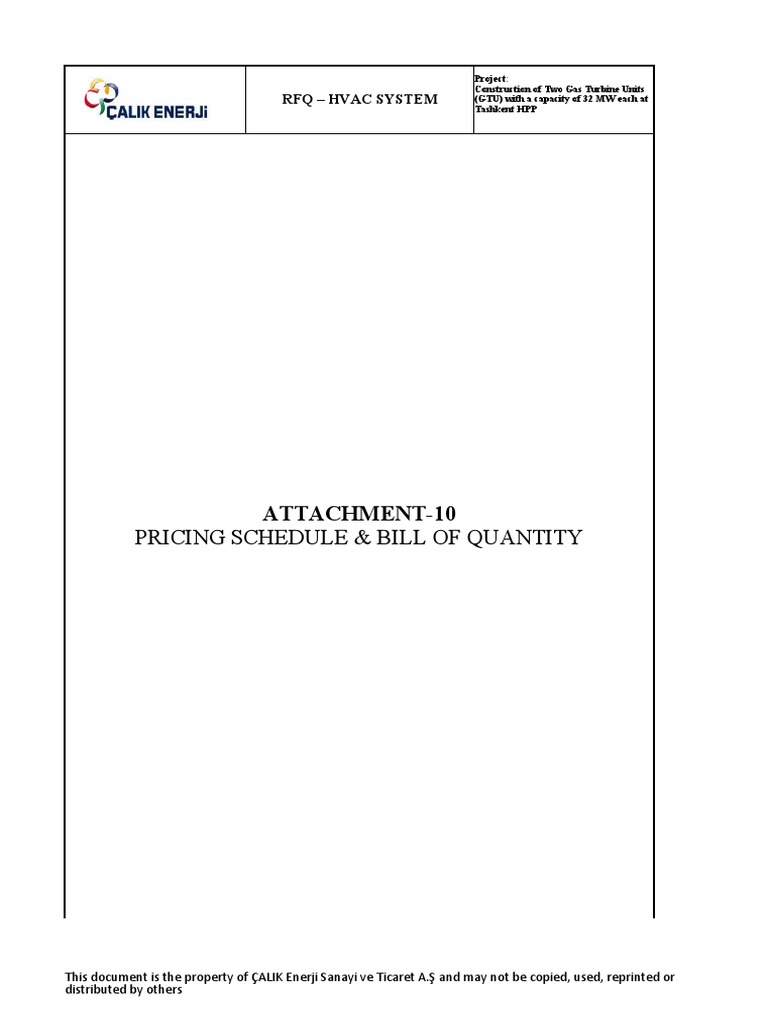

Project:

Construction of Two Gas Turbine Units

RFQ – HVAC SYSTEM (GTU) with a capacity of 32 MW each at
Tashkent HPP

ATTACHMENT-10
PRICING SCHEDULE & BILL OF QUANTITY

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or
distributed by others
This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or
distributed by others
 Project:
Construction of Two Gas Turbine Units (GTU) with a capacity of
32 MW each
RFQ – HVAC SYSTEM at Tashkent HPP

Bidder Details
Company Name Proposal No.
Company Address Rev
Country Date

Pricing Schedule & Bill of Quantity

Price Price Amount Amount Total Delivery Period Delivery Place of

Sl. No Description Quantity Unit
Supply Erection Supply Erection Amount (Months) Terms delivery

A AIR CONDITIONING SYSTEM

A1 GTG BUILDING
Hot water AHU of capacity 7400 CMH for GTG Hall 4 Nos.
A2 CENTRAL CONTROL BUILDING
1.0 AIR COOLED ROOF TOP UNITS (RTU)

RTU 1,2 (1W+1S) 246.2 kW / 57546 CMH, 57 KW heater

1.1 2 Nos.
for Switchgear areas with coil free velocity of 2.0 - 2.8 m/s

RTU 3 (1W+0S) 45 kW / 8597 CMH, 91 KW heater for

1.2 Battery room,kitchen and freash air supply with coil free 1 Nos.
velocity of 2.0 - 2.8 m/s
Ceiling mounted cassette type
1.3 VRF indoor units for office areas and electrical control 18 Nos.
rooms
Fresh air intake unit with sand trap louvers, pre filters with
velocity of 1.5 - 2.8 m/sec and fine filters with velocity of 1.5
1.4 Lot Lot
- 2.5 m/s with integral control panel etc.. with all
accessories for completion of system

1.5 (3W+3S)VRF Outdoor Unit of capacity 45.2 HP(33.9 kW) 6 Nos

A3 FWPH BUILDING

Air cooled reversible split type air conditioners with indoor

and outdoor units, refrigerant piping, drain piping,
1.0 insulation, remote control etc for completion of system.(Hi-
Wall Mounted Split type AC unit to be provided. During
winter SAC units will be operated in heat pump mode)

a)(6W+1S) for Equipment hall with cooling capacity of 10.5

1.1 7 Nos.
kW and heating capacity 2 kW
b)Wall mounted electric unit heater of capacity 5 kW with
1.2 1 Nos.
recirculation fan

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 A4 RPH

Air cooled reversible split type air conditioners with indoor

and outdoor units, refrigerant piping, drain piping,
1.0 insulation, remote control etc for completion of system.(Hi-
Wall Mounted Split type AC unit to be provided. During
winter SAC units will be operated in heat pump mode)

a) (3W+1S) for Equipment hall with cooling capacity of 9

1.1 4 Nos.
kW and heating capacity 2 kW
b)Wall mounted electric unit heater of capacity 6 kW with
1.2 2 Nos.
recirculation fan
A5 GCB

Air cooled reversible split type air conditioners with indoor

and outdoor units, refrigerant piping, drain piping,
1.0 insulation, remote control etc for completion of system.(Hi-
Wall Mounted Split type AC unit to be provided. During
winter SAC units will be operated in heat pump mode)

a) (3W+1S) for Equipment hall with cooling capacity of 10

1.1 4 Nos.
kW and heating capacity 4 kW
b)Wall mounted electric unit heater of capacity 6 kW with
1.2 2 Nos.
recirculation fan
A6 WWTP

Air cooled reversible split type air conditioners with indoor

and outdoor units, refrigerant piping, drain piping,
1.0 insulation, remote control etc for completion of system.(Hi-
Wall Mounted Split type AC unit to be provided. During
winter SAC units will be operated in heat pump mode)

a) (2W+1S) for Equipment hall with cooling capacity of 10

1.1 3 Nos.
kW and heating capacity 6 kW
b)Wall mounted electric unit heater of capacity 6 kW with
1.2 3 Nos.
recirculation fan
A7 ACB

Air cooled reversible split type air conditioners with indoor

and outdoor units, refrigerant piping, drain piping,
1.0 insulation, remote control etc for completion of system.(Hi-
Wall Mounted Split type AC unit to be provided. During
winter SAC units will be operated in heat pump mode)

a) (1W+1S) for Equipment hall with cooling capacity of 5.5

1.1 2 Nos.
kW and heating capacity 3 kW
b)Wall mounted electric unit heater of capacity 6 kW with
1.2 2 Nos.
recirculation fan
TOTAL ELECTRICAL COST FOR AIR CONDITIONING
A8 1 Lot
SYSTEM
A9 TOTAL I&C COST FOR AIR CONDITIONING SYSTEM 1 Lot

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 B MECHANICAL VENTILATION SYSTEM
B1 GTG BUILDING
a) EAF 1 to 14 (14W) of capacity 25500 CMH roof
14 Nos
extractors @ 150 Pa
B2 CENTRAL CONTROL BUILDING
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES
a) EAF 1,2,3 (3W) of capacity 10500 CMH @ 250 Pa
explosion proof exhaust air fans with louvered shutters for 2 Nos.
Cable cellar
b) EAF 4,5(1W+1S) of capacity 5500 CMH @ 80 Pa
explosion proof exhaust air fans with louvered shutters for 2 Nos.
Battery Room

c) EAF 6 (1W) of capacity 700 CMH @60 Pa exhaust air

1 No
fans with louvered shutters for FM200 GAS Cylinder room

d) EAF 7 (1W) of capacity 700 CMH @60 Pa exhaust air

1 No
fans with louvered shutters for Toilet
e) EAF 8 (1W) of capacity 900 CMH @80 Pa exhaust air
1 No
fans with louvered shutters for Kitchen
f) EAF 9 (1W) of capacity 400 CMH @60 Pa exhaust air
1 No
fans with louvered shutters for Utility room
B3 FWPH
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES
a) EAF 1 (1W) of capacity 5100 CMH @250 Pa exhaust air
1 Nos.
fans with louvered shutters for Pump room
b)Fresh Air Fan of capacity 997 CMH @ 50 Pa for
1 Nos.
Switchgear Room
B4 RPH
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES
a) EAF 1,2,3(3W) of capacity 10000 CMH @250 Pa
3 Nos.
exhaust air fans with louvered shutters for Pump room
b)Fresh Air Fan of capacity 997 CMH @ 50 Pa for
1 Nos.
Switchgear Room
B5 GCB
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES
a) EAF 1,2,(2W) of capacity 5200 CMH @250 Pa exhaust
2 Nos.
air fans with louvered shutters for Pump room
b)Fresh Air Fan of capacity 724 CMH @ 50 Pa for
1 Nos.
Switchgear Room
B6 WTP
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES

a) EAF 1,2,(2W) of capacity 3200 CMH @250 Pa exhaust

2 Nos.
air fans with louvered shutters for Water treatment area

b)Fresh Air Fan of capacity 536 CMH @ 50 Pa for

1 Nos.
Switchgear Room
B7 ACB
EXHAUST AIR FANS (EAF) INCLUDING ALL
ACCESSORIES
a) EAF 1,2,(2W) of capacity 2500 CMH @250 Pa exhaust
air fans with louvered shutters for compressor cum N2 2 Nos.
cylinder room
b) EAF 3 (1W) of capacity 500 CMH @ 60 Pa exhaust air
1 No
fans with louvered shutters for Toilet
c)Fresh Air Fan of capacity 119 CMH @ 50 Pa for
1 Nos.
Switchgear Room

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.11 GALVANIZED STEEL SHEET
HVAC GSS ductwork, bracing and support shall be
fabricated from galvanized steel. Duct Construction
a Standards : SMACNA. Sealing and fire stopping of vertical
duct / pipe risers at each floor level with Modular Block
Sealing System after installation of duct / pipe
0.55t (26 Gage) 0 m2
0.7t (24 Gage) 337 m2
0.85t (22 Gage) 816 m2
1.0t (20 Gage) 1192 m2
1.31t (18 Gage) 0 m2

Gen Cooler ductwork, bracing and support shall be

fabricated from galvanized steel. Duct Construction
b Standards : SMACNA. Sealing and fire stopping of vertical 500 m2
duct / pipe risers at each floor level with Modular Block
Sealing System after installation of duct / pipe

1.12 DUCT INSULATION

25 mm (minimum) thick liner, shall meet Class 1 flame
spread accordance with ASTM E84, no water absorption,
2452 m2
minimum density 48 kg/cum, thermal conductivity 0.032
W/m.K

1.13 VOLUME DAMPER

Damper shall be fabricated from aluminium or galvanized
steel, 'Control Dampers shall be AMCA certified and
leakage rating shall be class 1
950 x 500 2 Nos.
1850 x 500 6 Nos.
900 x 400 1 Nos.
200 x 200 4 Nos
150 x 100 4 Nos
900x2500 20 Nos
900X1300 3 Nos
900x300 2 Nos
2100x550 3 Nos
1100x350 3 Nos
700x350 3 Nos
800x350 2 Nos
1.14 MOTORIZED FIRE CUM SMOKE DAMPER
Fire and Smoke Dampers shall be 1-1/2 hour fire
resistance and UL listed with UL 555 and leakage class 1
classified.
1800 x 1250 2 Nos
900 x 600 1 Nos

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.15 ACCESS DOOR
Insulated, w/ Hinges, Rubber gasket at edges
300 X 300 3 Nos
1.16 REGISTER
Air grilles, Registers & Diffusers shall be fabricated from
anodized aluminium. Air grilles & Diffusers which installed
in central control building, the finised color shall be white
powder coated.
600X600 74 Nos.
1000x300 6 Nos.
1.19 FRESH / EXHAUST AIR LOUVER
Air inlet louver size shall be designed by inlet air core
velocity not exceed 2.0 m/s.
900x2500 20 Nos.
900X1300 3 Nos.
300x300 3 Nos.
200x250 1 Nos.
900x300 2 Nos.
2100x550 3 Nos.
1100x350 3 Nos.
700x350 3 Nos.
800x350 2 Nos.
1.20 TESTING, ADJUSTING & BALANCING
HVAC Instrument, Test, Adjusting & Balancing for HVAC
1 Lot
System
1.21 MISCELLANEOUS MATERIAL

Miscellaneous construction material for ducting

construction (Angle, Rivet, Clip, Bolts & Nuts,
Gasket, Rust Prevent Paint, Compound, Bond And Etc.)
Consumptive material and support
1 Lot
(Angle, Hanger Rod, Anchor, Bolts & Nuts, Etc.)
All support for duct, refrigerant pipe including for yard.
Flexible duct hose, clamp/clip for diffuser and other
materials.

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.22 REFRIGERANT PIPING WORK

ASTM B88 Type K hard drawn copper tube.

Fittings shall be constructed of materials which are
equivalent to the pipes.
Brazed joint fittings shall be wrought copper, bronze, or 1 Lot
brass conforming to ANSI B16.22. Piping connections
made between dissimilar metals shall utilize dielectric
fittings.

1.23 PIPE INSULATION (Indoor)

- Foamed plastic insulation conforming to MIL-P-15280-D
Type II and having an inside and outside skin. 1 Lot
- Insulation Thickness : 13mm
1.24 PIPE INSULATION (Outdoor)
EPDM, Armaflex class (19 mm) wirh Aluminium Jacketing
0.5T (for carbon steel or low alloy steels). Steel shall be
1 Lot
painted with zinc chromate, then painted with aluminum
paint. Lead base paints shall be avoided.
1.25 MISCELLANEOUS MATERIAL
- All fittings for pipe installation & connection
- Miscellaneous construction material for piping
construction.
1 Lot
- Consumptive material and support etc.
(Adhesive, Solvent, Angle, Hanger Rod, Anchor,
Bolts & Nuts, Etc.)
1.26 EQUIPMENT DRAIN PIPING WORKS
PVC : TIS 17(Class 8 .5) 1 Lot
1.27 PIPE INSULATION
- Closed cell elastometric thermal insulation tube
material with magic tape 1 Lot
- Insulation Thickness : 19mm
1.28 MISCELLANEOUS MATERIAL
- All fittings for pipe installation & connection
- Miscellaneous construction material for piping
construction.
1 Lot
- Consumptive material and support etc.
(Adhesive, Solvent, Angle, Hanger Rod, Anchor,
Bolts & Nuts, Etc.)

TOTAL ELECTRICAL COST FOR MECHANICAL

B13 Lot Lot
VENTILATION SYSTEM
TOTAL I&C COST FOR MECHANICAL VENTILATION
B14 Lot Lot
SYSTEM

Notes:
1 Bidder is required to furnish list of all the mechanical and electrical components as are offered in the subject package.
2 Bidder to furnish the BOQ for the civil works based on the offered design. This shall be required for the estimation
of the civil works to be performed by the Employer.
3 Bidder to furnish the detail general arrangement drawing of the offered equipment clearly listing out the components,
and supported by product catalogues for the components for the better clarity

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 Project:
Construction of Two Gas Turbine Units (GTU) with a capacity of
32 MW each
RFQ – HVAC SYSTEM at Tashkent HPP

Bidder Details
Company Name Proposal No.
Company Address Rev
Country Date

Pricing Schedule & Bill of Quantity

Price Price Amount Amount Delivery Period Delivery Place of
Sl. No Description Quantity Unit Total Amount
Supply Erection Supply Erection (Months) Terms delivery
A AIR CONDITIONING SYSTEM
A1 GTG BUILDING
Hot water AHU of capacity 22000 CMH Heating capacity
1.1 4 Nos.
(236 kw) for GTG Hall.

1.2 Anti-Icing System for Generator cooler Inlet duct. 0 Nos.

A2 CENTRAL CONTROL BUILDING

1.0 AIR COOLED ROOF TOP UNITS (RTU)
RTU 1,2 (1W+1S) Cooling capacity 200.1 kW / 45400
CMH, for Switchgear areas with coil free velocity of 2.0 -
1.1 2 Nos.
2.8 m/s (Recirculating the internal air through a return
ductwork system).
RTU 3 (1W+0S) Cooling capacity 45 kW / 8200 CMH,
1.2 Heating capacity 91 KW for Battery room, kitchen and 1 Nos.
freash air supply with coil free velocity of 2.0 - 2.8 m/s
Ceiling mounted cassette type
1.3 VRF indoor units for office areas and electrical control Nos.
rooms
Cassette unit (8W) of 4.5kW/870 CMH cooling and 0.67
1.3.1 8 Nos.
kW heating capacity for Electronic equipment room
Cassette unit (2W) of 14 kW/1812.6 CMH cooling and 0.3
1.3.2 2 Nos.
kW heating capacity for Server room
Cassette unit (3W) of 11.2 kW/1645.2 CMH cooling and
1.3.3 3 Nos.
2.3kW heating capacity for Control room
Cassette unit (2W) of 9 kW/1494 CMH cooling and 0.7 kW
1.3.4 2 Nos.
heating capacity for Engineering room
Cassette unit (2W) of 2.2 kW/450 CMH cooling and
1.3.5 2 Nos.
0.85kW heating capacity for Operation staff
Cassette unit (2W) of 4.5 kW/801 CMH cooling and 0.6 kW
1.3.6 2 Nos.
heating capacity for Communication Room
Cassette unit (1W) of 2.8 kW/601 CMH cooling and 1.4 kW
1.3.7 1 No.
heating capacity for Instrument Lab
Cassette unit (1W) of 3.6 kW/705.6 CMH cooling and 1.2
1.3.8 1 No.
kW heating capacity for Operation Manager Room
Cassette unit (2W) of 2.2 kW/270 CMH cooling and 0.65
1.3.9 2 Nos.
kW heating capacity for Passage
Cassette unit (1W) of 2.2 kW/450 CMH cooling and 0.9kW
1.3.10 1 Nos.
heating capacity for Operation staff
1.4 (3W+3S)VRF Outdoor Unit of capacity 16 HP(46.7 kW) 6 Nos
TOTAL ELECTRICAL COST FOR AIR CONDITIONING
A3 1 Lot
SYSTEM
A4 TOTAL I&C COST FOR AIR CONDITIONING SYSTEM 1 Lot

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 B MECHANICAL VENTILATION SYSTEM
B1 GTG BUILDING
a) EAF 1 to 14 (14W) of capacity 25500 CMH roof
1.1 14 Nos
extractors @ 150 Pa
B2 CENTRAL CONTROL BUILDING
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES
a) EAF 1,2,3 (3W) of capacity 10500 CMH @ 250 Pa
1.1 explosion proof exhaust air fans with louvered shutters for 3 Nos.
Cable cellar
b) EAF 4,5(1W+1S) of capacity 5500 CMH @ 80 Pa
1.2 explosion proof exhaust air fans with louvered shutters for 2 Nos.
Battery Room

c) EAF 6 (1W) of capacity 700 CMH @60 Pa exhaust air

1.3 1 No
fans with louvered shutters for FM200 GAS Cylinder room

d) EAF 7 (1W) of capacity 400 CMH @60 Pa exhaust air

1.4 2 No
fans with louvered shutters for Toilet
e) EAF 8 (1W) of capacity 900 CMH @80 Pa exhaust air
1.5 1 No
fans with louvered shutters for Kitchen
f) EAF 9 (1W) of capacity 400 CMH @60 Pa exhaust air
1.6 1 No
fans with louvered shutters for Utility room
B3 FWPH
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES
a) EAF 1 (1W) of capacity 5100 CMH @250 Pa exhaust air
1.1 1 Nos.
fans with louvered shutters for Pump room
b)Fresh Air Fan of capacity 997 CMH @ 50 Pa for
1.2 1 Nos.
Switchgear Room
B4 RPH
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES
a) EAF 1,2,3(3W) of capacity 10000 CMH @250 Pa
1.1 3 Nos.
exhaust air fans with louvered shutters for Pump room
b)Fresh Air Fan of capacity 655 CMH @ 50 Pa for
1.2 1 Nos.
Switchgear Room
B5 GCB
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES

a) EAF 1,2,(2W) of capacity 18250 CMH @200 Pa exhaust

1.1 2 Nos.
air fans with louvered shutters for Compressor room

b) EAF 3,(1W) of capacity 100 CMH @60 Pa exhaust air

1.2 1 Nos.
fans with louvered shutters for Dry Chemical room
c)Fresh Air Fan of capacity 382 CMH @ 50 Pa for MCC
1.3 1 Nos.
Room
d)Fresh Air Fan of capacity 382 CMH @ 50 Pa for Local
1.4 1 Nos.
Control Room
B6 WWTP
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES

a) EAF 1,2,(2W) of capacity 2600 CMH @200 Pa exhaust

1.1 2 Nos.
air fans with louvered shutters for Water treatment area

b)Fresh Air Fan of capacity 306 CMH @ 50 Pa for

1.2 1 Nos.
Switchgear Room
B7 ACB
EXHAUST AIR FANS (EAF) INCLUDING ALL
1.0
ACCESSORIES

a) EAF 1,2,(2W) of capacity 9800 CMH @200 Pa exhaust

1.1 2 Nos.
air fans with louvered shutters for compressor room

b) EAF 3,(1W) of capacity 1500 CMH @200 Pa exhaust air

1.2 1 No
fans with louvered shutters for Pump room potable water

c) EAF 4 (1W) of capacity 500 CMH @ 60 Pa exhaust air

1.3 1 No
fans with louvered shutters for Toilet
d)Fresh Air Fan of capacity 173 CMH @ 50 Pa for PLC
1.4 1 Nos.
Room
TOTAL ELECTRICAL COST FOR MECHANICAL
B8 1 Lot
VENTILATION SYSTEM
TOTAL I&C COST FOR MECHANICAL VENTILATION
B9 1 Lot
SYSTEM

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.11 GALVANIZED STEEL SHEET
HVAC GSS ductwork, bracing and support shall be
fabricated from galvanized steel. Duct Construction
a Standards : SMACNA. Sealing and fire stopping of vertical
duct / pipe risers at each floor level with Modular Block
Sealing System after installation of duct / pipe
1.1 0.55t (26 Gage) 0 m2
1.2 0.7t (24 Gage) 296.7 m2
1.3 0.85t (22 Gage) 1606 m2
1.4 1.0t (20 Gage) 295 m2
1.5 1.31t (18 Gage) 0 m2

Gen Cooler ductwork, bracing and support shall be

b fabricated from galvanized steel. Duct Construction as per 500 m2
SMACNA Standards and accessories.

GT enclosure exhaust ductwork, bracing and support shall

be fabricated from Mild Steel 3.1mm thick . Sealing and fire
c 380 m2
stopping of vertical duct risers at necessary floor level with
Modular Block Sealing System after installation of duct

1.12 DUCT INSULATION

25 mm (minimum) thick liner, shall meet Class 1 flame
spread accordance with ASTM E84, no water absorption,
2452 m2
minimum density 48 kg/cum, thermal conductivity 0.032
W/m.K

1.13 VOLUME DAMPER

Damper shall be fabricated from aluminium or galvanized
steel, 'Control Dampers shall be AMCA certified and
leakage rating shall be class 1
950 x 500 3 Nos.
1050 x 500 3 Nos.
850 x 500 2 Nos.
200 x 200 8 Nos
150 x 100 2 Nos
500 x 300 1 Nos
1400 x 1000 1 Nos
1600 x 1000 1 Nos
1200 x 500 3 Nos
950 x 1000 1 Nos
900 x 1000 1 Nos
900 x 600 1 Nos
500 x 300 1 Nos
1.14 MOTORIZED FIRE CUM SMOKE DAMPER
Fire and Smoke Dampers shall be 1-1/2 hour fire
resistance and UL listed with UL 555 and leakage class 1
classified.
1400 x 1000 1 Nos
1600 x 1000 1 Nos
950 x 1000 1 Nos
900 x 1000 1 Nos
900 x 600 1 Nos

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.15 ACCESS DOOR
Insulated, w/ Hinges, Rubber gasket at edges
450 X 450 RO Nos
1.16 REGISTER
Air grilles, Registers & Diffusers shall be fabricated from
anodized aluminium. Air grilles & Diffusers which installed
in central control building, the finised color shall be white
powder coated.
600X600 Diffuser 68 Nos.
1000x500 Grille 6 Nos.
1350 x 500 Grille 4 Nos.
300x300 Grille 10 Nos.
500 x 300 Grille 3 Nos.
300 x 300 Grille 3 Nos.
200 x 250 Grille 1 Nos.
1.17 FRESH / EXHAUST AIR LOUVER with pre filter and VCD
Air inlet louver size shall be designed by inlet air core
velocity not exceed 2.0 m/s.
900x2500 20 Nos.
900X1300 3 Nos.
900x300 2 Nos.
2100x550 3 Nos.
1100x350 3 Nos.
700x350 3 Nos.
800x350 2 Nos.
1.18 TESTING, ADJUSTING & BALANCING
HVAC Instrument, Test, Adjusting & Balancing for HVAC
1 Lot
System
1.19 MISCELLANEOUS MATERIAL

Miscellaneous construction material for ducting

construction (Angle, Rivet, Clip, Bolts & Nuts,
Gasket, Rust Prevent Paint, Compound, Bond And Etc.)
Consumptive material and support
1 Lot
(Angle, Hanger Rod, Anchor, Bolts & Nuts, Etc.)
All support for duct, refrigerant pipe including for yard.
Flexible duct hose, clamp/clip for diffuser and other
materials.

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
 1.20 REFRIGERANT PIPING WORK

ASTM B88 Type K hard drawn copper tube.

Fittings shall be constructed of materials which are
equivalent to the pipes.
Brazed joint fittings shall be wrought copper, bronze, or
brass conforming to ANSI B16.22. Piping connections
made between dissimilar metals shall utilize dielectric
fittings.

6.4 mm 0 m
9.5 mm 92.5 m
12.7 mm 61 m
15.8 mm 68 m
19 mm 24.5 m
28.6 mm 61 m
34.9 mm RO m
41.3 mm RO m

1.21 PIPE INSULATION

- Foamed plastic insulation conforming to MIL-P-15280-D
Type II and having an inside and outside skin.
- Insulation Thickness : 13mm
6.4 mm 0 m
9.5 mm 92.5 m
12.7 mm 61 m
15.8 mm 68 m
19 mm 24.5 m
28.6 mm 61 m
34.9 mm RO m
41.3 mm RO m

1.22 MISCELLANEOUS MATERIAL

- All fittings for pipe installation & connection
- Miscellaneous construction material for piping
construction.
1 Lot
- Consumptive material and support etc.
(Adhesive, Solvent, Angle, Hanger Rod, Anchor,
Bolts & Nuts, Etc.)
1.23 EQUIPMENT DRAIN PIPING WORKS
PVC : TIS 17(Class 8 .5)
25 mm 209.1 m
40 mm 69 m
1.24 PIPE INSULATION
- Closed cell elastometric thermal insulation tube
material with magic tape 1 Lot
- Insulation Thickness : 19mm
1.25 MISCELLANEOUS MATERIAL
- All fittings for pipe installation & connection
- Miscellaneous construction material for piping
construction.
1 Lot
- Consumptive material and support etc.
(Adhesive, Solvent, Angle, Hanger Rod, Anchor,
Bolts & Nuts, Etc.)
HOT WATER PIPING WORKS (Hot water supply shall be
1.27 by CE upto the equipment connection)

MS pipes as per scpecification

25 mm - m
32 mm - m
80 mm - m
100 mm - m
MISCELLANEOUS MATERIAL FOR HOT WATER
1.28
SYSTEM

- All necessary VALVES for AHU and Hot water heaters.

- All fittings for pipe installation & connection
- Miscellaneous construction material for piping
construction. 1 Lot
- Consumptive material and support etc.
(Adhesive, Solvent, Angle, Hanger Rod, Anchor,
Bolts & Nuts, Etc.)
HVAC automation system is as per the HVAC design
C 1 Lot
criteria clause 17. HVAC CONTROL SYSTEM

TOTAL OPTIONAL COST FOR CABLING FROM DB TO

D 1 Lot
HVAC EQUIPMENT (FOR ALL HVAC EQUIPMENTS)

Notes:
1 Bidder is required to furnish list of all the mechanical and electrical components as are offered in the subject package.
2 Bidder to furnish the BOQ for the civil works based on the offered design. This shall be required for the estimation
of the civil works to be performed by the Employer.
3 Bidder to furnish the detail general arrangement drawing of the offered equipment clearly listing out the components,
and supported by product catalogues for the components for the better clarity

This document is the property of ÇALIK Enerji Sanayi ve Ticaret A.Ş and may not be copied, used, reprinted or distributed by others
