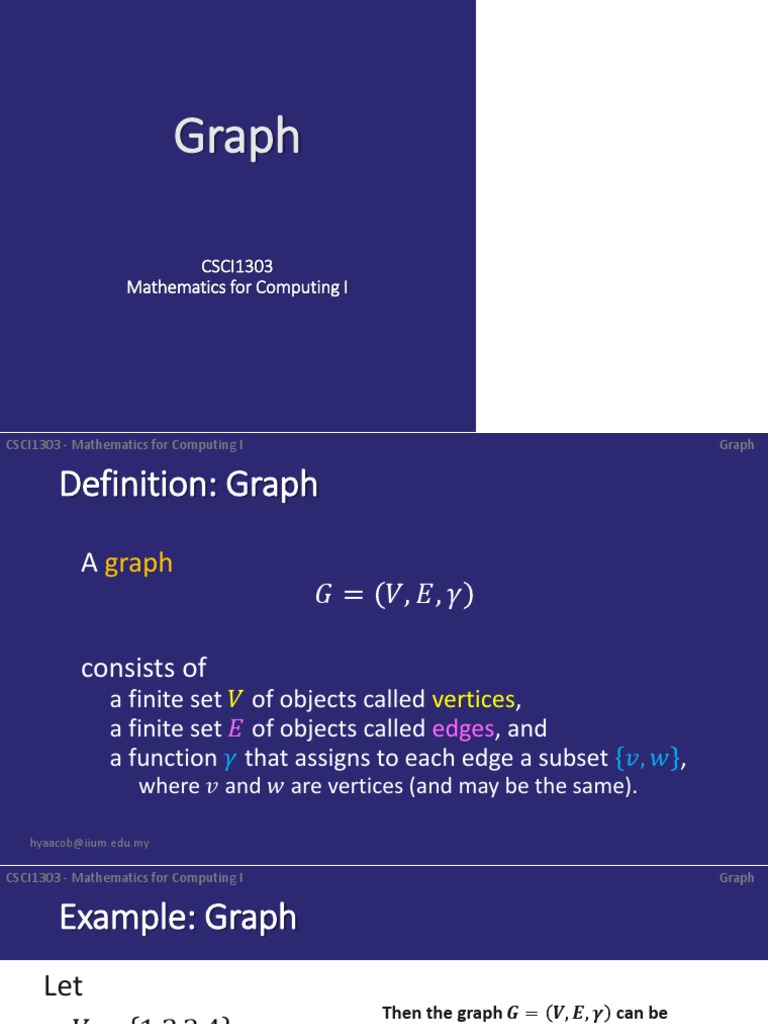

Graph
CSCI1303
Mathematics for Computing I
CSCI1303 - Mathematics for Computing I Graph
Definition: Graph
A graph
𝐺 = 𝑉, 𝐸, 𝛾
consists of
a finite set 𝑉 of objects called vertices,
a finite set 𝐸 of objects called edges, and
a function 𝛾 that assigns to each edge a subset 𝑣, 𝑤 ,
where 𝑣 and 𝑤 are vertices (and may be the same).
hyaacob@iium.edu.my
Example: Graph
Let
Then the graph 𝑮 = 𝑽, 𝑬, 𝜸 can be
𝑉 = 1,2,3,4 represented as the following structures
𝐸 = 𝑒1 , 𝑒2 , 𝑒3 , 𝑒4 , 𝑒5
𝛾 𝑒1 = 𝛾 𝑒5 = 1,2 1 2 1 2
𝛾 𝑒2 = 4,3
3 4 4 3
𝛾 𝑒3 = 1,3
𝛾(𝑒4 ) = 2,4 𝑮 = { 𝟏, 𝟐 , 𝟒, 𝟑 , 𝟏, 𝟑 , 𝟐, 𝟒 }
hyaacob@iium.edu.my
Definition: degree
Degree
number of edges having the specified vertex
as an end point
A B deg(A) = 3
deg(B) = 3
E C deg(C) = 1
deg(D) = 3
D deg(E) = 2
hyaacob@iium.edu.my
Definition: loop
Loop
an edge from a vertex to itself
A B
E C
D
loop
hyaacob@iium.edu.my
Definition: Path
A path 𝑝 in a graph 𝐺 consists of a pair 𝑉𝑝 , 𝐸𝑝 :
• 𝑉𝑝 ∶ 𝑣1 , 𝑣2 , … , 𝑣𝑘 is a vertex sequence
• 𝐸𝑝 ∶ 𝑒1 , 𝑒2 , … , 𝑒𝑘−1 is an edge sequence
where
1. Each successive pair 𝑣𝑖 , 𝑣𝑖+1 of vertices is adjacent in
𝐺,
2. and edge 𝑒𝑖 has 𝑣𝑖 and 𝑣𝑖+1 as end points for 𝑖 =
1, 2, … , 𝑘 − 1;
3. No edge occurs more than once in the edge sequence.
hyaacob@iium.edu.my
Definition: Types of Path

Circuit (cycle)
a path that begins and ends at the same vertex
Simple
a path which has no vertex appears more than
once in the vertex sequence, except possibly if
𝑣1 = 𝑣𝑘
In this case, the path is called a simple circuit
hyaacob@iium.edu.my
Definition: Connected, Disconnected & Component
Connected graph Example of Connected graph

A graph that contains a A B
path from any vertex to
any other vertex in the
graph E C
hyaacob@iium.edu.my
Definition: Connected, Disconnected & Component
Disconnected graph Example of Disconnected graph
• Graph that is not A B
connected
Component
• Subgraphs in a C
disconnected graph
are considered as D
components of the Component

graph E F
hyaacob@iium.edu.my
Types of Graph
Discrete graph
A discrete graph on 𝑛 vertices, denoted by 𝑼𝒏 , is a
graph with 𝒏 vertices {𝑣1 , 𝑣2 , …, 𝑣𝑛 } and no edges
Example of Discrete Graph
𝑼𝟐 𝑼𝟓
hyaacob@iium.edu.my
Types of Graph
Linear graph
A linear graph on 𝑛 vertices, denoted by 𝑳𝒏 , is a
graph with 𝒏 vertices 𝑣1 , 𝑣2 , … , 𝑣𝑛 and edges
𝑣𝑖 , 𝑣𝑖+1 for 𝑖 = 1,2, … , 𝑛
Example of Discrete Graph
𝑼𝟐 𝑼𝟓
hyaacob@iium.edu.my
Types of Graph
Complete graph
A complete graph on 𝑛 vertices, denoted by
𝐾𝑛 , is a graph with 𝑛 vertices 𝑣1 , 𝑣2 , … , 𝑣𝑛
and with an edge for every 𝑖 and 𝑗
Example of Complete Graph
𝐾3 𝐾4 𝐾5
hyaacob@iium.edu.my
Euler Path & Circuit
Euler path
is a path (in a graph, 𝐺) that contains every
edge (of graph 𝐺) exactly once
Euler circuit
is a circuit (in a graph, 𝐺) containing every
edge (of graph 𝐺) exactly once
hyaacob@iium.edu.my
Example: Euler Path & Circuit
1
A 2
Has Euler path:
E = {A, B, D, C} one of possible
paths
B C
Has Euler circuit:
3
D
4 E = {A, B, D, C} one of possible Euler
paths
G = {{1, 2}, {1, 4}, {2, 3}, {3, 4}}
hyaacob@iium.edu.my
1
A 2
No Euler path:
No path containing each edge exactly
E F once
B C
No Euler circuit:
3
D
4 No Euler path
G = {{1, 2}, {1, 3}, {1, 4}, {2, 3},{2, 4},{3,4}}

hyaacob@iium.edu.my

G
A
Has Euler path:
E = {D, C, A, G, E, B, F} one of
E F possible paths
B C
No Euler circuit:
D The Euler path is not a circuit
hyaacob@iium.edu.my
Theorems for Euler Path and Circuit

• If 𝐺 is a connected graph and every vertex has
even degree, then there is an Euler circuit in 𝐺
• If a graph 𝐺 has more than two vertices of odd
degree, then there can be no Euler path in 𝐺
• If 𝐺 is connected and has exactly two vertices of
odd degree, there is an Euler path in 𝐺. Any Euler
path in 𝐺 must begin at one vertex of odd degree
and end at the other
hyaacob@iium.edu.my
There has exactly two vertices of

odd degree. There is no Euler
Each of the four vertices has degree 3. circuit, but there must be an Euler
path.
There is no Euler path and Euler circuit.
Every vertex has even degree, thus the graph

must have an Euler circuit.
hyaacob@iium.edu.my
Hamilton Path & Circuit

Hamilton path
is a path (in a graph, 𝐺) that contains every
vertex (of graph 𝐺) exactly once
Hamilton circuit
is a circuit (in a graph, 𝐺) that contains every
vertex (of graph 𝐺) exactly once except for the
first vertex
hyaacob@iium.edu.my
Example: Hamilton Path & Circuit

E
Has Hamiltonian path:

V = {E, D, A, B, C} one of possible paths
D
A C No Hamiltonian circuit:
Hamiltonian path is not a circuit
B
G = {{E, D}, {D, A}, {A, B}, {B, C}, {C, D}}
hyaacob@iium.edu.my
A B Has Hamiltonian path:

V = {A, B, D, C} one of possible paths
Has Hamiltonian circuit:

C D
V = {A, B, D, C, A} one of possible
Hamiltonian paths
G = {{A, B}, {A, C}, {A, D}, {B, D}, {C, D}}
hyaacob@iium.edu.my
a b
No Hamiltonian path:
Disconnected graph
c
d No Hamiltonian circuit:
Disconnected graph
f e
