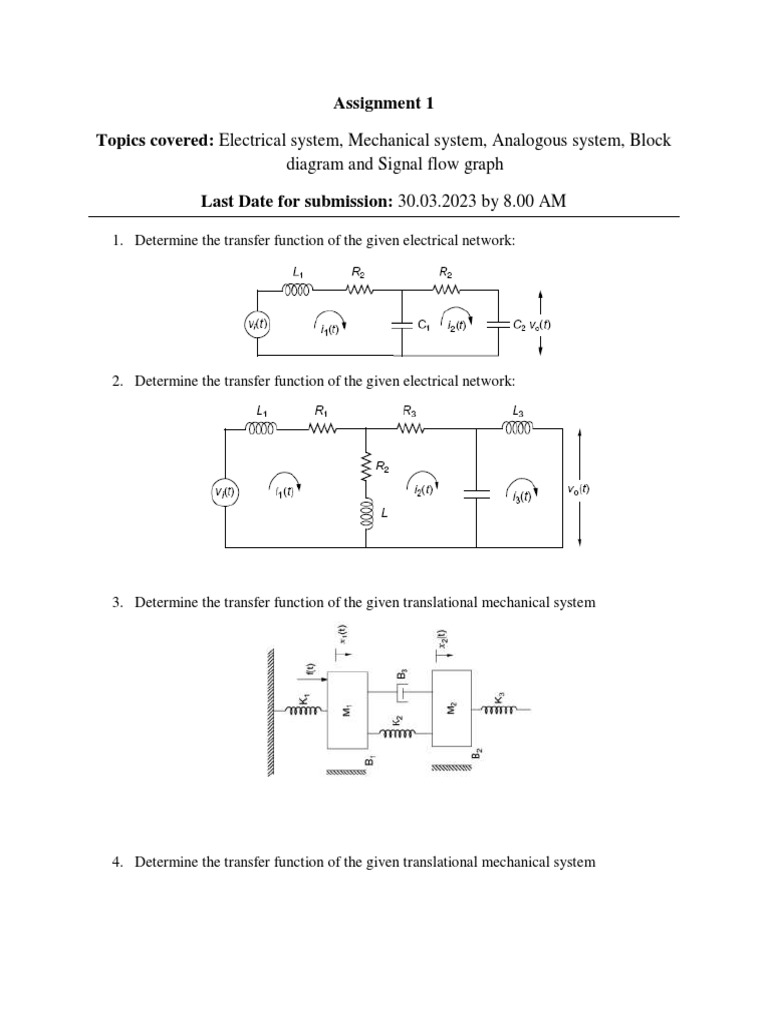

Assignment 1

Topics covered: Electrical system, Mechanical system, Analogous system, Block

diagram and Signal flow graph

Last Date for submission: 30.03.2023 by 8.00 AM

1. Determine the transfer function of the given electrical network:

2. Determine the transfer function of the given electrical network:

3. Determine the transfer function of the given translational mechanical system

4. Determine the transfer function of the given translational mechanical system

5. Determine the transfer function of the given rotational mechanical system

6. For the mechanical rotational system shown below, obtain the (a) differential equations
and (b) transfer function of the system.

7. For the mechanical system shown below, obtain (i) differential equations, (ii) force–
voltage electrical analogous circuit and (iii) force–current electrical analogous circuit.
8. For the mechanical system shown below, obtain (i) differential equations, (ii) force–
voltage electrical analogous circuit and (iii) force–current electrical analogous circuit.

9. For the mechanical system shown below, obtain (i) differential equations, (ii) force–
voltage electrical analogous circuit and (iii) force–current electrical analogous circuit.
10. For the mechanical system shown below, obtain (i) differential equations, (ii) force–
voltage electrical analogous circuit and (iii) force–current electrical analogous circuit.

11. For the mechanical system shown below, obtain (i) differential equations, (ii) force–
voltage electrical analogous circuit and (iii) force–current electrical analogous circuit.

12. For the mechanical rotational system shown below, obtain (i) differential equations, (ii)
T–V analogous circuit and (iii) T–I analogous circuit.
13. For the mechanical rotational system shown below, obtain (i) differential equations, (ii)
T–V analogous circuit and (iii) T–I analogous circuit.

14. Represent the electrical circuit shown below using block diagram

15. For the block diagram of the system which is shown below, determine the transfer
C1 s  C s 
functions and 2 using block diagram reduction technique.
R1 s  R1 s 
16. For the block diagram of the system which is shown below, determine the output by
block diagram reduction technique when(a) input R(s) only acts on the system(b)
disturbance input D(s) only acts on the system and(c) both the inputs act on the system.

17. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.

18. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.

19. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.
20. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.

21. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.

22. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.
23. For the block diagram of the system shown below, determine the transfer function using
the block diagram reduction technique.

24. The block diagram of the system is shown below. Determine the transfer function using
Mason's gain formula

25. The block diagram of the system is shown below. Determine the transfer function using
Mason's gain formula
26. The block diagram of the system is shown below. Determine the transfer function using
Mason's gain formula

27. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.

28. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.
29. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.

30. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.
31. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.

32. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.

33. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.

34. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.
35. The SFG for a system is shown below. Obtain the transfer function of the system using
Mason’s gain formula.
