1994 Chevrolet Pickup K3500

FUSES & CIRCUIT BREAKERS Fuses & Circuit Breakers 1992-94 General Motors Corp.

FUSES & CIRCUIT BREAKERS

Fuses & Circuit Breakers 1992-94 General Motors Corp.

FUSES & CIRCUIT BREAKERS

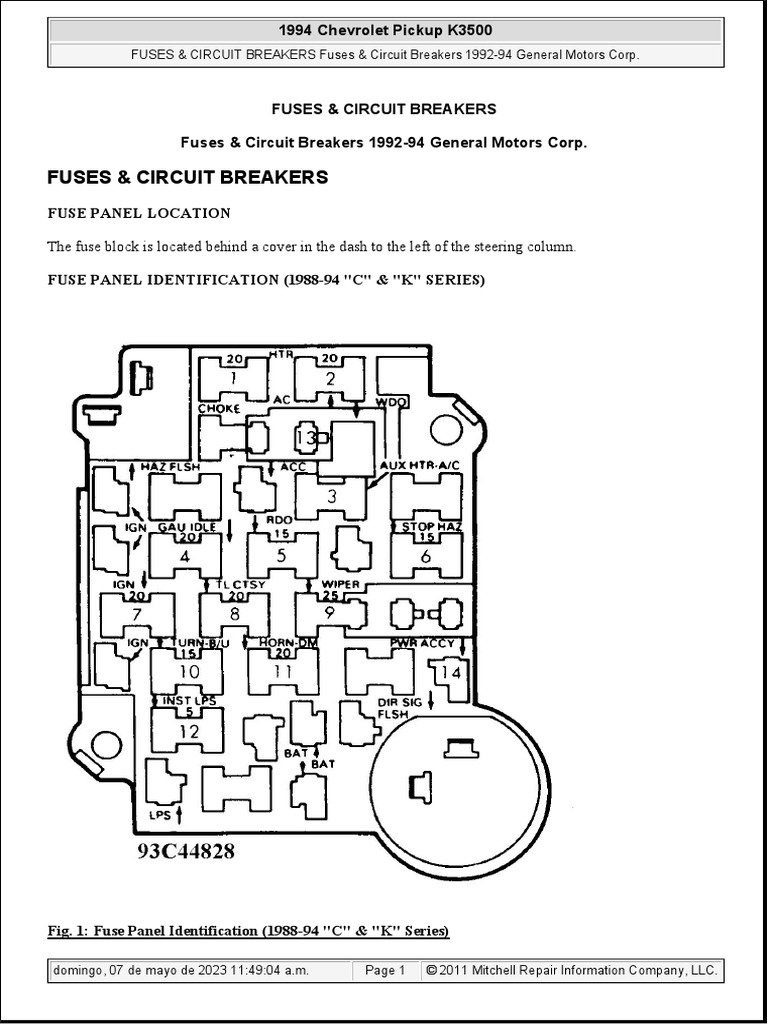

FUSE PANEL LOCATION

The fuse block is located behind a cover in the dash to the left of the steering column.

FUSE PANEL IDENTIFICATION (1988-94 "C" & "K" SERIES)

Fig. 1: Fuse Panel Identification (1988-94 "C" & "K" Series)

domingo, 07 de mayo de 2023 11:49:04

11:49:02 a.m. Page 1 © 2011 Mitchell Repair Information Company, LLC.
 1994 Chevrolet Pickup K3500
FUSES & CIRCUIT BREAKERS Fuses & Circuit Breakers 1992-94 General Motors Corp.

Courtesy of GENERAL MOTORS CORP.

Fuse & Circuit Breaker Identification

 1 - Gauges 20 Amp Cruise Control, Rear Window Defogger Timer, 4-Wheel Drive Display
Illumination, Auxiliary Battery Relay, Seat Belt Reminder, Cluster Ignition Feed
 2 - Turn-B/U 15 Amp Back-Up Lights, Turn Signals
 3 - EMC/Ign 10 Amp Torque Converter Clutch, Air Injection Reactor Diverter, Electronic Spark
Control, EGR, Electronic Control Module, Anti-Lock Switch
 4 - Inj A 10 Amp Throttle Body Injectors
 5 - Brake 15 Amp Anti-Lock Brakes, Cluster Speedometer
 6 - A/C Htr 25 Amp HVAC, 4-Wheel Drive, Auxiliary Battery
 7 - Ctsy 20 Amp Courtesy Lights, Glove Box Light, Radio
 8 - Park Lt 20 Amp Horn Relay, Horn Feed, Cigarette Lighter, Parking Lights
 9 - P Lps 5 Amp; 20 Amp ("C" & "K" Series) C49 Switch Illumination, Headlight ON Warning,
Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
 10 - Stop/Haz 15 Amp Hazard Flasher, Seat Belt Reminder, Stoplights, Rear Anti-lock Memory
 11 - Wiper 25 Amp Windshield Washer/Wiper
 12 - Radio 10 Amp Radio Feed
 13 - Acc/Ign 30 Amp (Circuit Breaker) Power Windows
 14 - Acc/Batt 30 Amp (Circuit Breaker) Door Locks, Rear Window Defogger
 15 - Crank 5 Amp Discreet Crank
 16 - 4WD 25 Amp 4WD; 15 Amp ("C" & "K" Series) Speedometer;
 17 - 15 Amp DRL (Canada)
