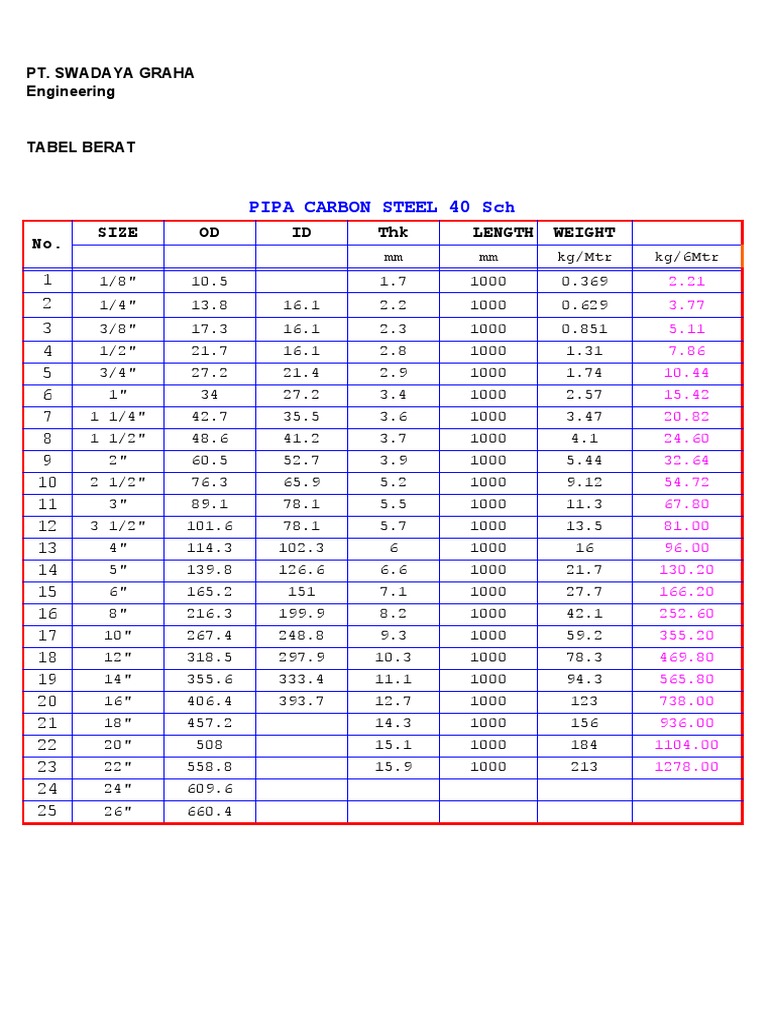

PT.

SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA CARBON STEEL 40 Sch

SIZE OD ID Thk LENGTH WEIGHT
No.
mm mm kg/Mtr kg/6Mtr
1 1/8" 10.5 1.7 1000 0.369 2.21
2 1/4" 13.8 16.1 2.2 1000 0.629 3.77
3 3/8" 17.3 16.1 2.3 1000 0.851 5.11
4 1/2" 21.7 16.1 2.8 1000 1.31 7.86
5 3/4" 27.2 21.4 2.9 1000 1.74 10.44
6 1" 34 27.2 3.4 1000 2.57 15.42
7 1 1/4" 42.7 35.5 3.6 1000 3.47 20.82
8 1 1/2" 48.6 41.2 3.7 1000 4.1 24.60
9 2" 60.5 52.7 3.9 1000 5.44 32.64
10 2 1/2" 76.3 65.9 5.2 1000 9.12 54.72
11 3" 89.1 78.1 5.5 1000 11.3 67.80
12 3 1/2" 101.6 78.1 5.7 1000 13.5 81.00
13 4" 114.3 102.3 6 1000 16 96.00
14 5" 139.8 126.6 6.6 1000 21.7 130.20
15 6" 165.2 151 7.1 1000 27.7 166.20
16 8" 216.3 199.9 8.2 1000 42.1 252.60
17 10" 267.4 248.8 9.3 1000 59.2 355.20
18 12" 318.5 297.9 10.3 1000 78.3 469.80
19 14" 355.6 333.4 11.1 1000 94.3 565.80
20 16" 406.4 393.7 12.7 1000 123 738.00
21 18" 457.2 14.3 1000 156 936.00
22 20" 508 15.1 1000 184 1104.00
23 22" 558.8 15.9 1000 213 1278.00
24 24" 609.6
25 26" 660.4
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA CARBON STEEL 80 Sch

SIZE OD ID Thk LENGTH WEIGHT REMARK
No.
mm mm kg/Mtr kg/6Mtr
1 1/8" 10.5 19.4 2.4 1000 0.48 2.874
2 1/4" 13.8 19.4 3 1000 0.80 4.794
3 3/8" 17.3 19.4 3.2 1000 1.11 6.66
4 1/2" 21.7 14.3 3.7 1000 1.64 9.84
5 3/4" 27.2 19.4 3.9 1000 2.24 13.44
6 1" 34 25 4.5 1000 3.27 19.62
7 1 1/4" 42.7 32.9 4.9 1000 4.57 27.42
8 1 1/2" 48.6 38.4 5.1 1000 5.47 32.82
9 2" 60.5 49.5 5.5 1000 7.46 44.76
10 2 1/2" 76.3 62.3 7 1000 12.00 72
11 3" 89.1 73.9 7.6 1000 15.30 91.8
12 3 1/2" 101.6 73.9 8.1 1000 18.70 112.2
13 4" 114.3 97.1 8.6 1000 22.40 134.4
14 5" 139.8 120.8 9.5 1000 30.50 183
15 6" 165.2 143.2 11 1000 41.80 250.8
16 8" 216.3 190.9 12.7 1000 63.80 382.8
17 10" 267.4 237.2 15.1 1000 93.90 563.4
18 12" 318.5 283.7 17.4 1000 129.00 774
19 14" 355.6 317.6 19 1000 158.00 948
20 16" 406.4 21.4 1000 203.00 1218
21 18" 457.2 23.8 1000 254.00 1524
22 20" 508 26.2 1000 311.00 1866
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA SGP
Inch mm O.D Thk LENGTH WEIGHT REMARK
No.
mm mm kg/Mtr kg/6Mtr
1 1/8" 6 10.5 2 1000 0.42 2.514
2 1/4" 8 13.8 2.3 1000 0.65 3.912
3 3/8" 10 17.3 2.3 1000 0.85 5.106
4 1/2" 15 21.7 2.8 1000 1.31 7.86
5 3/4" 20 27.2 2.8 1000 1.68 10.08
6 1" 25 34 3.2 1000 2.43 14.58
7 1 1/4" 32 42.7 3.5 1000 3.38 20.28
8 1 1/2" 40 48.6 3.5 1000 3.89 23.34
9 2" 50 60.5 3.8 1000 5.31 31.86
10 2 1/2" 65 76.3 4.2 1000 7.47 44.82
11 3" 80 89.1 4.2 1000 8.79 52.74
12 3 1/2" 90 101.6 4.2 1000 10.10 60.6
13 4" 100 114.3 4.5 1000 12.20 73.2
14 5" 125 139.8 4.5 1000 15.00 90
15 6" 150 165.2 5 1000 19.80 118.8
16 7" 175 190.7 5.3 1000 24.20 145.2
17 8" 200 216.3 5.8 1000 30.10 180.6
18 9" 225 241.8 6.2 1000 36.00 216
19 10" 250 267.4 6.6 1000 42.40 254.4
21 12" 300 318.5 6.9 1000 53.00 318
23 14" 350 355.6 7.9 1000 67.70 406.2
24 16" 400 406.4 7.9 1000 77.60 465.6
25 18" 450 457.2 7.9 1000 87.50 525
26 20" 500 508 7.9 1000 97.40 584.4
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA MEDIUM
Inch mm O.D Thk OD MIN WEIGHT REMARK
No.
mm kg/Mtr kg/6Mtr
1 3/8" 10 17.4 2.35 16.8 0.86 5.172
2 1/2" 15 21.7 2.65 21.7 1.22 7.32
3 3/4" 20 27.2 2.65 26.4 1.58 9.48
4 1 25 34.2 3.25 33.4 2.44 14.64
5 1 1/4" 32 42.9 3.25 42.1 3.14 18.84
6 1 1/2" 40 48.8 3.25 48 3.61 21.66
7 2 50 60.8 3.65 69.8 5.10 30.6
8 2 1/2" 65 76.6 3.65 75.4 6.51 39.06
9 3 80 89.5 4.05 88.1 8.47 50.82
10 4 100 114.9 4.5 113.8 12.10 72.6
11 5 125 140.6 4.85 138.7 16.20 97.2
12 6 150 166.1 4.85 164.1 19.20 115.2
13 8 200 216.3 5.8 30.10 180.6
14 10 250 267.4 6.6 42.40 254.4
15 12 300 318.5 6.9 53.00 318
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA PERSEGI
SIZE Thickness WEIGHT
No.
mm mm Kg/m
1 12 1/2x12 1/2 0.9 0.332
2 15x15 0.9 0.403
3 20x20 0.9 0.544
4 25x25 1 0.759
5 30x30 1 0.915
6 40x40 1.2 1.468
7 10x20 0.9 0.403
8 12 1/2x27 1/2 0.9 0.544
9 15x30 0.9 0.615
10 20x40 1 0.915
11 25x50 1.4 1.597
12 20x60 1.4 1.926
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

PIPA HITAM STK 41

SIZE OD THK Kg/m
No.
mm mm
2 1/2" 76.3 2.8 5.08
3.2 5.77
3" 89.1 3.2 6.78
4" 114.3 3.5 9.56
4.5 12.2
5" 139.8 4.5 15
6.0 19.8
6" 165.2 4.5 17.8
5.0 19.8
6.0 23.6
7" 190.7 5.3 24.2
8" 216.3 5.8 30.1
8.2 42.1
10" 267.4 6.6 42.4
12" 318.5 6.9 53
14" 355.6 7.9 67.7
PT. SWADAYA GRAHA
Engineering

TABEL BERAT

ELBOW 90'
 mm in OD Thk R
NO.
mm mm mm
1 25 1 33.7 2.6 38
2 32 1 ¼" 42.4 2.6 48
3 40 1 ½" 48.3 2.6 57
4 50 2 60.3 2.9 76
5 65 2 ½" 76.1 2.9 95
6 80 3 88.9 3.2 114
7 100 4 114.3 3.6 152
8 125 5 139.7 4 190
9 150 6 168.3 4.5 229
10 200 8 219.1 5.9 305
11 250 10 273 6.3 381
12 300 12 323.9 7.1 457
13 350 14 355.6 8 533
14 400 16 406.4 8.8 610
15 450 18 457 10 686
16 500 20 508 11 762
Weight
Kg
0.25
0.40
0.50
0.88
1.5
2.2
4.0
7.2
11.2
25
42
68
95
131
195
265
 Flange

Flange Weight
5Kx15A 0.27
5Kx20A 0.87
5Kx25A 0.45
5Kx32A 0.78
5Kx40A 0.83
5Kx50A 1.07
5Kx65A 1.49
5Kx80A 1.99
5Kx100A 2.39
5Kx125A 3.23
5Kx150A 4.41
5Kx175A 5.51
5Kx200A 6.33
5Kx250A 9.45
5Kx300A 10.30
5Kx350A 14.00
5Kx400A 16.90
5Kx450A 24.80
5Kx500A 26.90
10Kx10A 0.52
10Kx15A 0.57
10Kx20A 0.73
10Kx25A 1.13
10Kx32A 1.48
10Kx40A 1.56
10Kx50A 1.88
10Kx65A 2.60
10Kx80A 2.61
10Kx100A 3.14
10Kx125A 4.77
10Kx150A 6.34
10Kx175A 6.82
10Kx200A 7.53
10Kx250A 12.70
10Kx300A 13.80
10Kx350A 18.20
10Kx400A 25.20
10Kx450A 33.00
10Kx500A 37.90
