Total marks = 20

Digital Logic Design Practical

(CS302P) Deadline
Assignment # 02 28 of Aug, 2022
th

Spring 2022

Vu I’d: mc220202534

Question Statement Marks (20)

Draw the circuit diagram for a complete 6-bit Gray Code to Binary converter using EWB application.
Also submit the Truth Table for the stated circuit as well.
Solution:

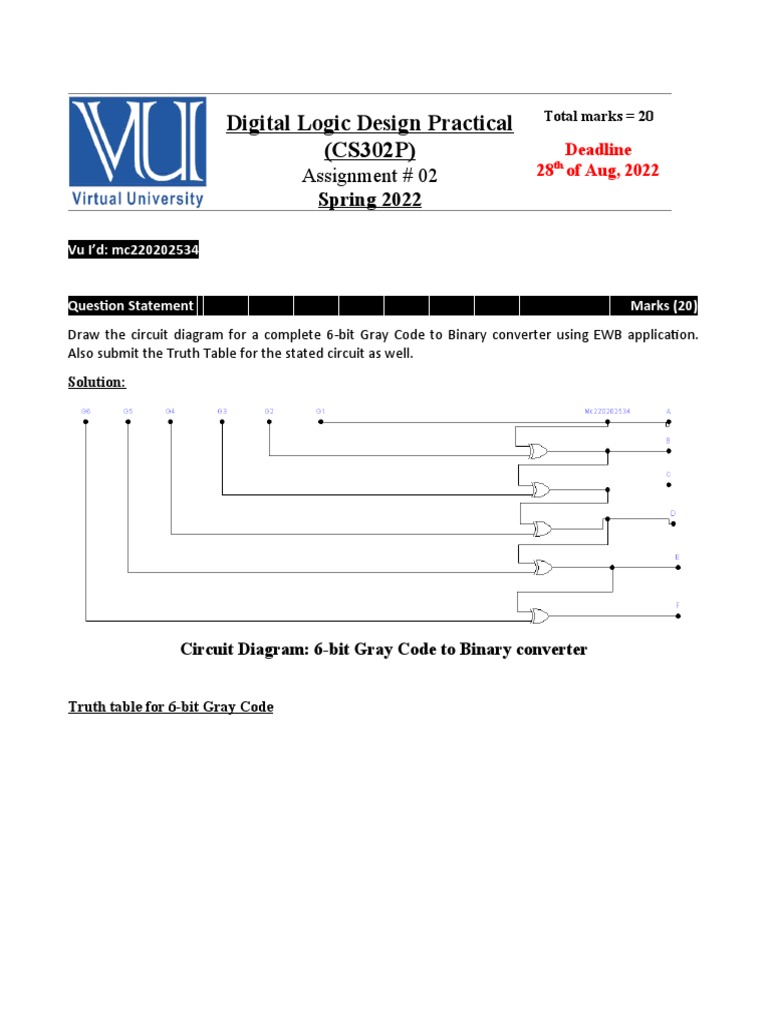

Circuit Diagram: 6-bit Gray Code to Binary converter

Truth table for 6-bit Gray Code

 A B C D E F G1 G2 G3 G4 G5 G6
1 0 0 0 0 0 0 1 0 0 0 0 0 0
2 0 0 0 0 0 1 2 0 0 0 0 0 1
3 0 0 0 0 1 0 3 0 0 0 0 1 1
4 0 0 0 0 1 1 4 0 0 0 0 1 0
5 0 0 0 1 0 0 5 0 0 0 1 1 0
6 0 0 0 1 0 1 6 0 0 0 1 1 1
7 0 0 0 1 1 0 7 0 0 0 1 0 1
8 0 0 0 1 1 1 8 0 0 0 1 0 0
9 0 0 1 0 0 0 9 0 0 1 1 0 0
10 0 0 1 0 0 1 10 0 0 1 1 0 1
11 0 0 1 0 1 0 11 0 0 1 1 1 1
12 0 0 1 0 1 1 12 0 0 1 1 1 0
13 0 0 1 1 0 0 13 0 0 1 0 1 0
14 0 0 1 1 0 1 14 0 0 1 0 1 1
15 0 0 1 1 1 0 15 0 0 1 0 0 1
16 0 0 1 1 1 1 16 0 0 1 0 0 0
17 0 1 0 0 0 0 17 0 1 1 0 0 0
18 0 1 0 0 0 1 18 0 1 1 0 0 1
19 0 1 0 0 1 0 19 0 1 1 0 1 1
20 0 1 0 0 1 1 20 0 1 1 0 1 0
21 0 1 0 1 0 0 21 0 1 1 1 1 0
22 0 1 0 1 0 1 22 0 1 1 1 1 1
23 0 1 0 1 1 0 23 0 1 1 1 0 1
24 0 1 0 1 1 1 24 0 1 1 1 0 0
25 0 1 1 0 0 0 25 0 1 0 1 0 0
26 0 1 1 0 0 1 26 0 1 0 1 0 1
27 0 1 1 0 1 0 27 0 1 0 1 1 1
28 0 1 1 0 1 1 28 0 1 0 1 1 0
29 0 1 1 1 0 0 29 0 1 0 0 1 0
30 0 1 1 1 0 1 30 0 1 0 0 1 1
31 0 1 1 1 1 0 31 0 1 0 0 0 1
32 0 1 1 1 1 1 32 0 1 0 0 0 0
33 1 0 0 0 0 0 33 1 1 0 0 0 0
34 1 0 0 0 0 1 34 1 1 0 0 0 1
35 1 0 0 0 1 0 35 1 1 0 0 1 1
36 1 0 0 0 1 1 36 1 1 0 0 1 0
37 1 0 0 1 0 0 37 1 1 0 1 1 0
38 1 0 0 1 0 1 38 1 1 0 1 1 1
39 1 0 0 1 1 0 39 1 1 0 1 0 1
40 1 0 0 1 1 1 40 1 1 0 1 0 0
41 1 0 1 0 0 0 41 1 1 1 1 0 0
42 1 0 1 0 0 1 42 1 1 1 1 0 1
43 1 0 1 0 1 0 43 1 1 1 1 1 1
44 1 0 1 0 1 1 44 1 1 1 1 1 0
45 1 0 1 1 0 0 45 1 1 1 0 1 0
46 1 0 1 1 0 1 46 1 1 1 0 1 1
47 1 0 1 1 1 0 47 1 1 1 0 0 1
48 1 0 1 1 1 1 48 1 1 1 0 0 0
49 1 1 0 0 0 0 49 1 0 1 0 0 0
50 1 1 0 0 0 1 50 1 0 1 0 0 1
51 1 1 0 0 1 0 51 1 0 1 0 1 1
