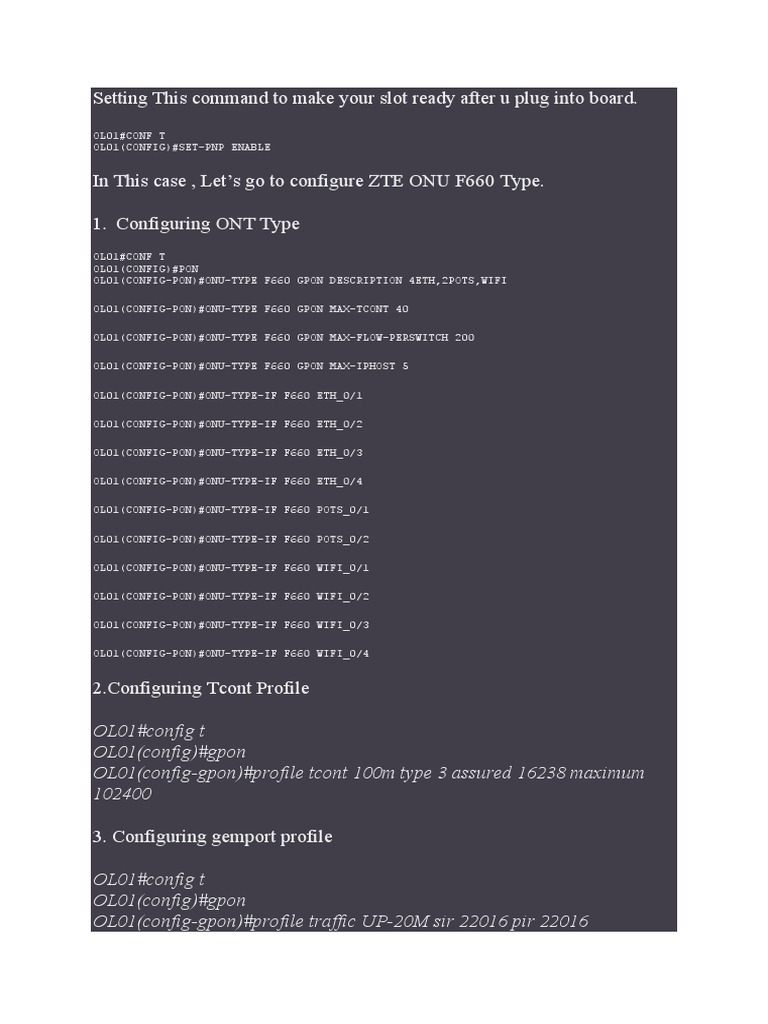

Setting This command to make your slot ready after u plug into board.
OL01#CONF T
OL01(CONFIG)#SET-PNP ENABLE
In This case , Let’s go to configure ZTE ONU F660 Type.
1. Configuring ONT Type
OL01#CONF T
OL01(CONFIG)#PON
OL01(CONFIG-PON)#ONU-TYPE F660 GPON DESCRIPTION 4ETH,2POTS,WIFI
OL01(CONFIG-PON)#ONU-TYPE F660 GPON MAX-TCONT 40
OL01(CONFIG-PON)#ONU-TYPE F660 GPON MAX-FLOW-PERSWITCH 200
OL01(CONFIG-PON)#ONU-TYPE F660 GPON MAX-IPHOST 5
OL01(CONFIG-PON)#ONU-TYPE-IF F660 ETH_0/1
OL01(CONFIG-PON)#ONU-TYPE-IF F660 ETH_0/2
OL01(CONFIG-PON)#ONU-TYPE-IF F660 ETH_0/3
OL01(CONFIG-PON)#ONU-TYPE-IF F660 ETH_0/4
OL01(CONFIG-PON)#ONU-TYPE-IF F660 POTS_0/1
OL01(CONFIG-PON)#ONU-TYPE-IF F660 POTS_0/2
OL01(CONFIG-PON)#ONU-TYPE-IF F660 WIFI_0/1
OL01(CONFIG-PON)#ONU-TYPE-IF F660 WIFI_0/2
OL01(CONFIG-PON)#ONU-TYPE-IF F660 WIFI_0/3
OL01(CONFIG-PON)#ONU-TYPE-IF F660 WIFI_0/4
[Link] Tcont Profile
OL01#config t
OL01(config)#gpon
OL01(config-gpon)#profile tcont 100m type 3 assured 16238 maximum
102400
3. Configuring gemport profile
OL01#config t
OL01(config)#gpon
OL01(config-gpon)#profile traffic UP-20M sir 22016 pir 22016
OL01(config-gpon)#profile traffic DOWN-20M sir 23552 pir 23552
OL01(config-gpon)#profile traffic UP-25M sir 27136 pir 27136
OL01(config-gpon)#profile traffic DOWN-25M sir 28160 pir 28160
4. Configuring Vlan
OL01#config t
OL01(config)#vlan 222
OL01(config-vlan)#name test1
OL01(config-vlan)#exi
OL01(config)#vlan 333
OL01(config-vlan)#name test2
OL01(config-vlan)#
5. Detecting Unregistered ONU
OL01#sho gpon onu uncfg
OnuIndex Sn State
———————————————————————
gpon-onu_1/2/4:1 AAABBBCCC unknown
That Ont locating at slot 2 port 4 (“:1″you can ignore this sign)
Unregistered ONU, At this phase , PON indicator is blinking.
6. Registering Onu / ONT
OL01#sho gpon onu sta gpon-olt_1/2/4
OnuIndex Admin State OMCC State O7 State Phase State
—————————————————————————-
gpon-onu_1/2/4:1 enable enable operation working
gpon-onu_1/2/4:2 enable enable operation working
First , Checking how many registered onu existing at that port ?
Why ? Look at the end of gpon-onu there’s onu id number with “:1” and
“:2”
so You have to registered with another onu id number.
OL01#sho run int gpon-olt_1/2/4
Building configuration…
!
interface gpon-olt_1/2/4
onu 1 type F660 sn bbbdddeee
onu 2 type F660 sn fffggghhh
OL01#conf t
OL01(config)#int gpon-olt_1/2/4
OL01(config-if)#onu 3 type F660 sn AAABBBCCC — > after configured
this command . the PON indicator change into solid.
OL01(config)#int gpon-onu_1/2/4:3
OL01(config-if)#description test
OL01config-if)#tcont 1 profile 100m
OL01(config-if)#gemport 1 name V111 unicast tcont 1 dir both
OL01(config-if)#gemport 1 traffic-limit upstream UP-20M downstream
DOWN-20M
OL01(config-if)#gemport 2 name V222 unicast tcont 1 dir both
OL01(config-if)#gemport 2 traffic-limit upstream UP-25M downstream
DOWN-25M
OL01(config-if)#switchport vlan 222 tag vport 1
OL01(config-if)#switchport vlan 333 tag vport 2
OL01(config-if)#exit
OL01(config)#pon-onu-mng gpon-onu_1/2/4:3
OL01(gpon-onu-mng)#flow 2 switch switch_0/1
You don’t have to configure “flow 1 switch switch_0/1” because this is
default.
OL01(gpon-onu-mng)#flow mode 1 tag-filter vid-filter untag-filter discard
OL01(gpon-onu-mng)#flow mode 2 tag-filter vid-filter untag-filter discard
OL01(gpon-onu-mng)#flow 1 priority 0 vid 222
OL01(gpon-onu-mng)#flow 2 priority 0 vid 333
OL01(gpon-onu-mng)#gemport 1 flow 1
OL01(gpon-onu-mng)#gemport 2 flow 2
OL01(gpon-onu-mng)#switchport-bind switch_0/1 iphost 1
OL01(gpon-onu-mng)#ip-host 1 dhcp-enable true ping-response true
traceroute-response true
OL01(gpon-onu-mng)#vlan-filter-mode iphost 1 tag-filter vid-filter untag-
filter discard
OL01(gpon-onu-mng)#vlan-filter iphost 1 priority 0 vid 222
OL01(gpon-onu-mng)#vlan port eth_0/2 mode tag vlan 333
and Finished.
That’s Meaning for Vlan 222 routing Mode and Vlan 333 is bridging mode
at port 2
You can configure 1 tcont for 1 gemport for 2 VLAN
OL01(config-if)#description test
OL01config-if)#tcont 1 profile 100m
OL01(config-if)#gemport 1 name V111 unicast tcont 1 dir both
OL01(config-if)#gemport 1 traffic-limit upstream UP-20M downstream
DOWN-20M
OL01(config-if)#switchport vlan 222 tag vport 1
OL01(config-if)#switchport vlan 333 tag vport 1
OL01(config-if)#exit
OL01(config)#pon-onu-mng gpon-onu_1/2/4:3
OL01(gpon-onu-mng)#flow 2 switch switch_0/1
OL01(gpon-onu-mng)#flow mode 1 tag-filter vid-filter untag-filter discard
OL01(gpon-onu-mng)#flow 1 priority 0 vid 222
OL01(gpon-onu-mng)#flow 1 priority 0 vid 333
OL01(gpon-onu-mng)#gemport 1 flow 1
OL01(gpon-onu-mng)#switchport-bind switch_0/1 iphost 1
OL01(gpon-onu-mng)#ip-host 1 dhcp-enable true ping-response true
traceroute-response true
OL01(gpon-onu-mng)#vlan-filter-mode iphost 1 tag-filter vid-filter untag-
filter discard
OL01(gpon-onu-mng)#vlan-filter iphost 1 priority 0 vid 222
OL01(gpon-onu-mng)#vlan port eth_0/2 mode tag vlan 333
How to make Vlan 222 routing mode also.
OL01(config)#pon-onu-mng gpon-onu_1/2/4:3
OL01(gpon-onu-mng)#flow 2 switch switch_0/1
OL01(gpon-onu-mng)#flow mode 1 tag-filter vid-filter untag-filter discard
OL01(gpon-onu-mng)#flow 1 priority 0 vid 222
OL01(gpon-onu-mng)#flow 1 priority 0 vid 333
OL01(gpon-onu-mng)#gemport 1 flow 1
OL01(gpon-onu-mng)#switchport-bind switch_0/1 iphost 1
OL01(gpon-onu-mng)#switchport-bind switch_0/1 iphost 2
OL01(gpon-onu-mng)#ip-host 1 dhcp-enable true ping-response true
traceroute-response true
OL01(gpon-onu-mng)#ip-host 2 dhcp-enable true ping-response true
traceroute-response true
OL01(gpon-onu-mng)#vlan-filter-mode iphost 1 tag-filter vid-filter untag-
filter discard
OL01(gpon-onu-mng)#vlan-filter-mode iphost 2 tag-filter vid-filter untag-
filter discard
OL01(gpon-onu-mng)#vlan-filter iphost 1 priority 0 vid 222
OL01(gpon-onu-mng)#vlan-filter iphost 2 priority 0 vid 333
I Hope this article can help you sometime.
