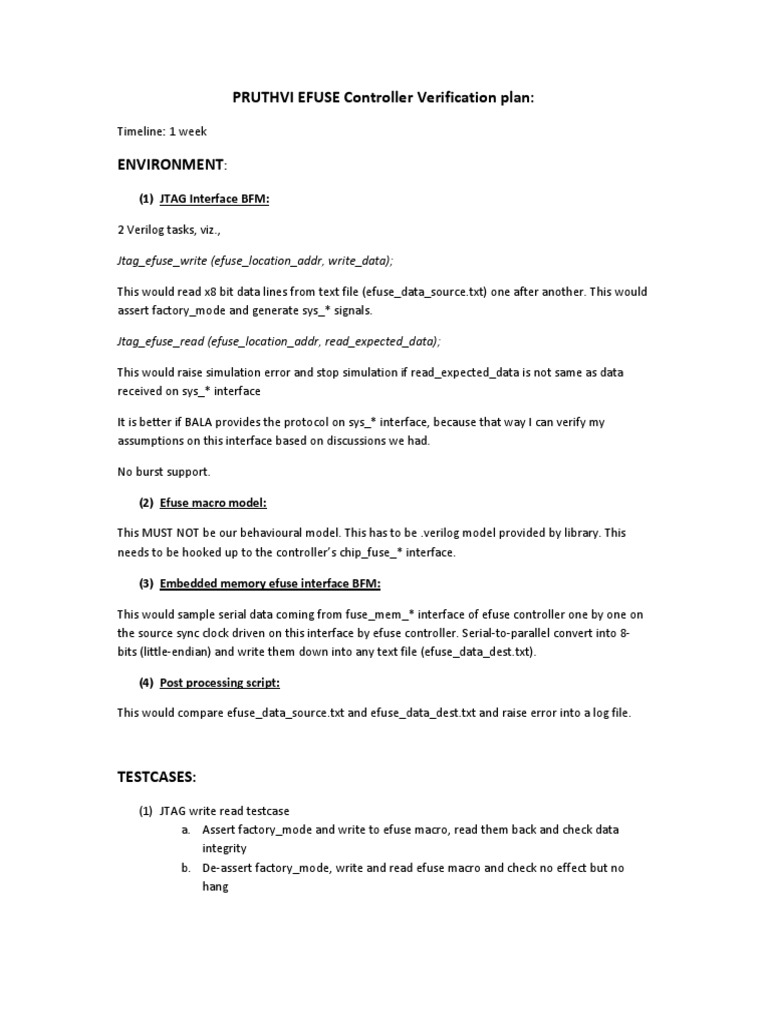

PRUTHVI EFUSE Controller Verification plan:

Timeline: 1 week

ENVIRONMENT:
(1) JTAG Interface BFM:

2 Verilog tasks, viz.,

Jtag_efuse_write (efuse_location_addr, write_data);

This would read x8 bit data lines from text file (efuse_data_source.txt) one after another. This would
assert factory_mode and generate sys_* signals.

Jtag_efuse_read (efuse_location_addr, read_expected_data);

This would raise simulation error and stop simulation if read_expected_data is not same as data
received on sys_* interface

It is better if BALA provides the protocol on sys_* interface, because that way I can verify my
assumptions on this interface based on discussions we had.

No burst support.

(2) Efuse macro model:

This MUST NOT be our behavioural model. This has to be .verilog model provided by library. This
needs to be hooked up to the controller’s chip_fuse_* interface.

(3) Embedded memory efuse interface BFM:

This would sample serial data coming from fuse_mem_* interface of efuse controller one by one on
the source sync clock driven on this interface by efuse controller. Serial-to-parallel convert into 8-
bits (little-endian) and write them down into any text file (efuse_data_dest.txt).

(4) Post processing script:

This would compare efuse_data_source.txt and efuse_data_dest.txt and raise error into a log file.

TESTCASES:
(1) JTAG write read testcase
a. Assert factory_mode and write to efuse macro, read them back and check data
integrity
b. De-assert factory_mode, write and read efuse macro and check no effect but no
hang
(2) De-assert factory_mode, assert por_reset and init_start signals, wait for init_done. After
init_done, do post_processing to see if efuse_data_source.txt and efuse_data_dest.txt and
check for data equivalence.
(3) Combine JTAG write/read amidst loading and check JTAG interface does not hang
