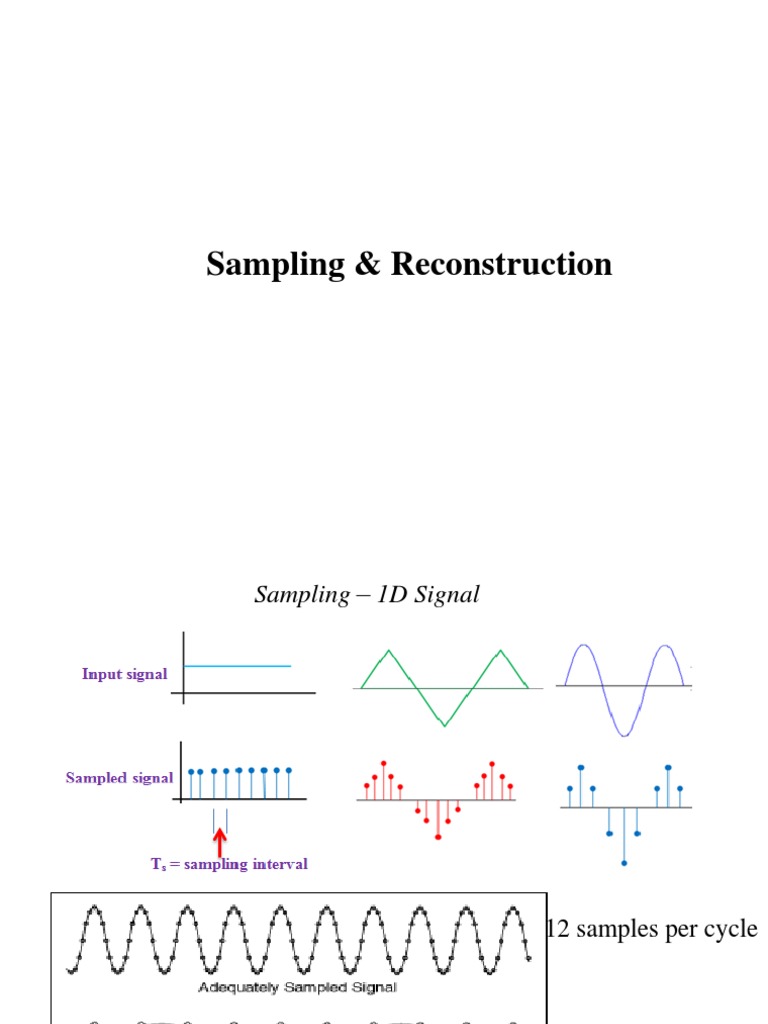

Sampling & Reconstruction

Sampling – 1D Signal

12 samples per cycle

3/5 samples per cycle


Sampling – 1D Signal
1 sample per cycle

∆𝑡 in sec
2 samples per cycle
∆s = ∆t/2
1 2
𝑓𝑠 = = =2.f
∆𝑠 ∆𝑡 ∆𝑠 𝑖𝑛 𝑠𝑒𝑐
4/3 samples per cycle
𝑓𝑠 in hz
f in hz ∆𝑡
Frequency = f : =1/f in sec
𝑐𝑦𝑐𝑙𝑒
Frequency
Recoverable
Aliasing –
Original Frequency Lost-
Lower Frequency Appears-
Nyquist Theorem

The highest frequency component in an continuous signal


determines the bandwidth of that signal. Suppose the highest
frequency component for a given analog signal is fmax. Such a
signal is called bandlimited signal.

According to the Nyquist Theorem, in order to perfectly


reconstruct the continuous bandlimited signal from samples, the
sampling frequency must be at least [Link]. If the sampling rate is
less than [Link] , some of the highest frequency components in the
analog input signal will not be correctly represented. When such a
discrete signal is converted back to continuous form, false
frequency components appear that were not in the original
continuous signal. This undesirable condition is a form of
distortion called aliasing.
Nyquist –
Reconstruction of Discrete Signals

r(t) = σ∞
𝑆𝑖𝑛(𝜋 𝑡−𝑛𝑇 ) f(t) to x(n)
𝑛=−∞ 𝑥(n). 𝜋(𝑡−𝑛𝑇)

x(n) to r(t)
