Section Valid for Ref. Date Issue Document No. Page

11 Piston W46, W46GD WFI-S 09-Jul-2012 05 4611V007 1(1)

Installation name: Engine No: Engine ref. type:

Engine type: Application: Ambient temp: °C Fuel type: Engine rhrs:

Measuerment tool(s) id:

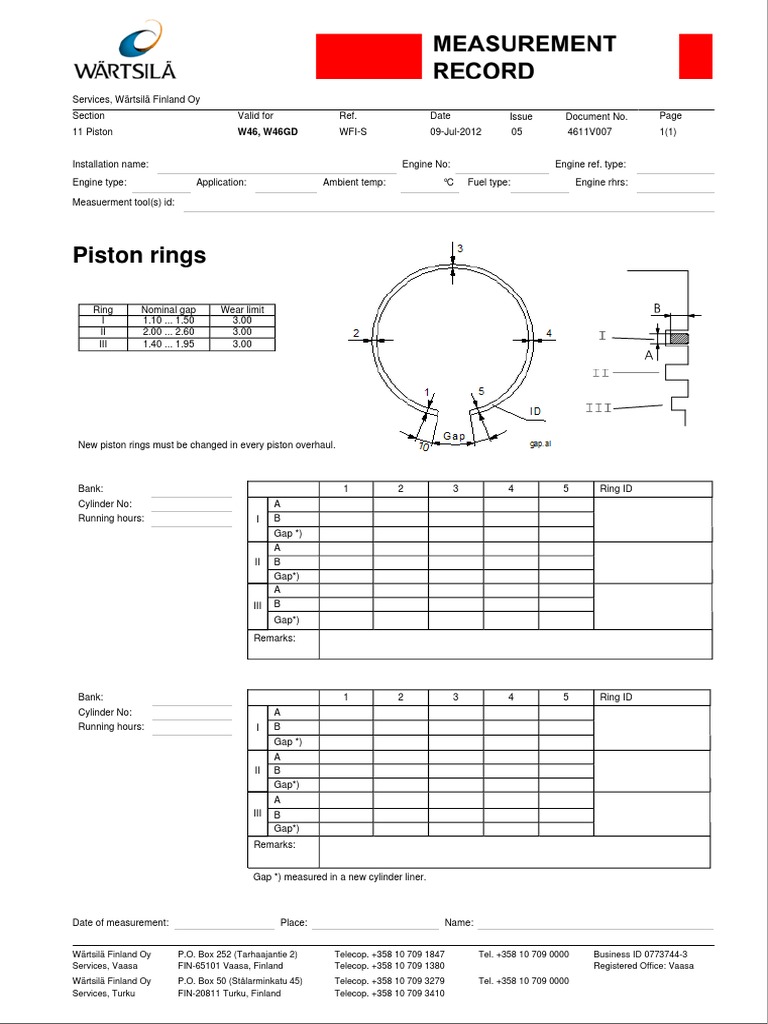

Piston rings

Ring Nominal gap Wear limit

I 1.10 ... 1.50 3.00
II 2.00 ... 2.60 3.00
III 1.40 ... 1.95 3.00

New piston rings must be changed in every piston overhaul.

Bank: 1 2 3 4 5 Ring ID
Cylinder No: A
Running hours: I B
Gap *)
A
II B
Gap*)
A
III B
Gap*)

Remarks:

Bank: 1 2 3 4 5 Ring ID
Cylinder No: A
Running hours: I B
Gap *)
A
II B
Gap*)
A
III B
Gap*)
Remarks:

Gap *) measured in a new cylinder liner.

Date of measurement: Place: Name:
