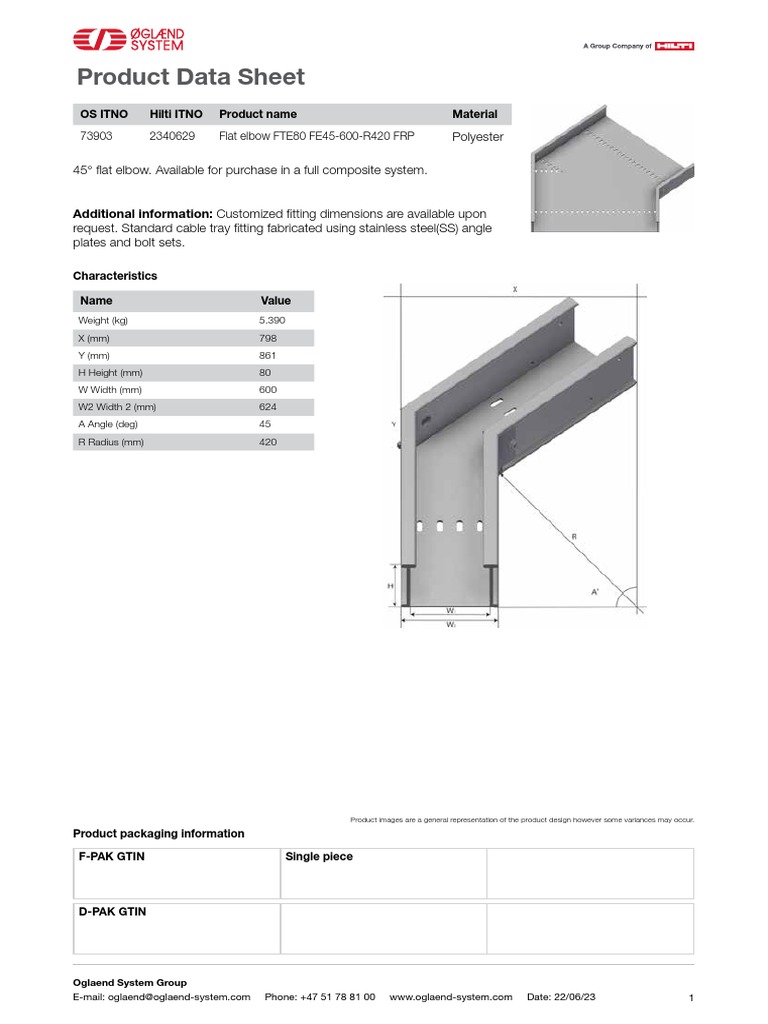

Product Data Sheet

OS ITNO Hilti ITNO Product name Material

73903 2340629 Flat elbow FTE80 FE45-600-R420 FRP Polyester

45° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 5.390
X (mm) 798
Y (mm) 861
H Height (mm) 80
W Width (mm) 600
W2 Width 2 (mm) 624
A Angle (deg) 45
R Radius (mm) 420

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 1
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74616GA 2391098 Flat elbow FOE150GA FE90-750-R300 Polyester
FRP

90º flat elbow that is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 10.630
X (mm) 1214
Y (mm) 1214
H Height (mm) 150
W1 Width 1 (mm) 750
W2 Width 2 (mm) 776
A Angle (deg) 90
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 2
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74276GA Riser FOE150GA RI1-IN90-750-R400 FRP Polyester

Pre-assembled inside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 3.270
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 750
W2 Width 2 (mm) 776
R Radius (mm) 482
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 3
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74634GA Flat elbow FOE150GA FE45-750-R300 Polyester
FRP

45º flat elbow is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 6.200
X (mm) 962
Y (mm) 1005
H Height (mm) 150
W1 Width 1 (mm) 750
W2 Width 2 (mm) 776
A Angle (deg) 45
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 4
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74294GA Riser FOE150GA RI1-OU90-750-R400 FRP Polyester

Pre-assembled outside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 3.270
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 750
W2 Width 2 (mm) 776
R Radius (mm) 393
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 5
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74880 2298941 Splice connector FTE50 SC SS Polyester
Straight splice connector used to connect lengths of FTE50 cable tray. Availa-
ble in SS or FRP material.

Additional information: Splice connector in SS is supplied with 2x M6x16

bolts.
Splice connector in FRP is supplied with 2x M6x16 bolts.
74880 consists of:
OS ITNO Hilti ITNO Product name Qty. Unit
74554 2230508 FTE50 SC PT SS 1 STK

74140 2205219 LB-SET-LN-AV-M6x16 A4 2 STK

Characteristics
Name Value
Weight (kg) 0.100
T Material Thickness (mm) 1.5
X (mm) 175
H Height (mm) 37.5
A Hole Size (mm) 7
CC (mm) 50

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 6
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74881 2298942 Splice connector FTE80 SC PT SS Polyester
Straight splice connector used to connect lengths of FTE80 cable tray. Availa-
ble in SS or FRP material.

Additional information: Splice connector in SS is supplied with 4x M6x16

bolts.
Splice connector in FRP is supplied with 4x M6x16 bolts.
74881 consists of:
OS ITNO Hilti ITNO Product name Qty. Unit
74555 2230511 FTE80 SC PT SS 1 STK

74140 2205219 LB-SET-LN-AV-M6x16 A4 4 STK

Characteristics
Name Value
Weight (kg) 0.180
T Material Thickness (mm) 1.5
X (mm) 175
H Height (mm) 67.5
A Hole Size (mm) 7
CC (mm) 50

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 7
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74859 2298775 Splice connector FOE150 SC SS Polyester
Straight splice connector used to connect lengths of FOE150 cable ladder.
Available in SS or FRP material.

Additional information: SS splice is supplied with 4 M10x20 bolts.

FRP splice is supplied with 4 M10x25 bolts.
74859 consists of:
OS ITNO Hilti ITNO Product name Qty. Unit
74552 2230505 FOE150 SC PT SS 1 STK

74145 2205218 BO-SET-LN-AV-PH3-M10x20 A4 4 STK

Characteristics
Name Value
Weight (kg) 0.470
T Material Thickness (mm) 1.5
X (mm) 220
H Height (mm) 135.8
A Hole Size (mm) 10.5
CC (mm) 115

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 8
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74589 2205560 Flat elbow FTE80 FE45-150-R420 FRP Polyester

45° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.560
X (mm) 346
Y (mm) 540
H Height (mm) 80
W Width (mm) 150
W2 Width 2 (mm) 172
A Angle (deg) 45
R Radius (mm) 420

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 9
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74591 2205559 Flat elbow FTE80 FE45-100-R420 FRP Polyester

45° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.370
X (mm) 296
Y (mm) 505
H Height (mm) 80
W Width (mm) 100
W2 Width 2 (mm) 122
A Angle (deg) 45
R Radius (mm) 420

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 10
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74272GA 2239420 Riser FOE150GA RI1-IN-90-150-R400 FRP Polyester

Pre-assembled inside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 2.850
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 150
W2 Width 2 (mm) 176
R Radius (mm) 482
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 11
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74612GA 2239331 Flat elbow FOE150GA FE90-150-R300 Polyester
FRP

90º flat elbow that is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 5.710
X (mm) 614
Y (mm) 614
H Height (mm) 150
W1 Width 1 (mm) 150
W2 Width 2 (mm) 176
A Angle (deg) 90
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 12
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74409 2205600 Cable tray FTE80 CT-150-3000 FRP Polyester

Cable tray made of fibreglass (FRP/GRP). Suitable for electrical and instru-
mentation installations.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 7.500
T1 Material Thickness (mm) 3.0
T2 Material Thickness (mm) 4.0
L Length (mm) 3000
H Height (mm) 80
W Width (mm) 150
W2 Width 2 (mm) 172
A Hole Size (mm) 7
B Hole Size (mm) 6.5x20
CC (mm) 300
S Spacing (mm) 150

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 13
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74675 2264587 Riser FTE80 RI-100-R400 FRP Polyester

Pre-assembled riser with stainless steel(SS) angle plates. Supplied as inside

riser. Turn the splice plates over to make an outside riser.

Additional information: Standard cable tray fitting fabricated using stainless

steel(SS) angle plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.100
X (mm) 212.1
Y (mm) 212.1
H Height (mm) 67.5
W1 Width 1 (mm) 100
A Angle (deg) 90
R Radius (mm) 400
S Spacing (mm) 45

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 14
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74411 2205599 Cable tray FTE80 CT-100-3000 FRP Polyester

Cable tray made of fibreglass (FRP/GRP). Suitable for electrical and instru-
mentation installations.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 6.660
T1 Material Thickness (mm) 3.0
T2 Material Thickness (mm) 4.0
L Length (mm) 3000
H Height (mm) 80
W Width (mm) 100
W2 Width 2 (mm) 122
A Hole Size (mm) 7
B Hole Size (mm) 6.5x20
CC (mm) 300
S Spacing (mm) 150

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 15
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71459 2205512 Cover clamp FTE80 CC SS Polyester

Quick and easy clip-on cover clamp for the FTE cable tray system. Different
heights available to fit the FTE50 or FTE80 cable tray system.

Additional information: Material type SS316L.

Characteristics

Name Value
Weight (kg) 0.020
T Material Thickness (mm) 1.0
X (mm) 33
Y (mm) 87.5
Z (mm) 20

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 16
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74630GA 2239328 Flat elbow FOE150GA FE45-150-R300 Polyester
FRP

45º flat elbow is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 3.580
X (mm) 368
Y (mm) 584
H Height (mm) 150
W1 Width 1 (mm) 150
W2 Width 2 (mm) 176
A Angle (deg) 45
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 17
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71570 2239306 Cover FTE CO-CT-600-3000 FRP Polyester

Straight covers for FTE cable trays. Cover widths from 50-300mm have snap-
on feature. These covers uses a quick-snap shape that allows quick installati-
ons without the need for cover clamps. Covers from 400mm must be fixed to
the cable tray with additional cover clamps.

Additional information:

Characteristics

Name Value
Weight (kg) 10.560
T Material Thickness (mm) 3
L Length (mm) 3000
W Width (mm) 624

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 18
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74583 2205564 Flat elbow FTE80 FE90-100-R250 FRP Polyester

90° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 2.040
X (mm) 499.5
Y (mm) 499.5
H Height (mm) 80
W Width (mm) 100
W2 Width 2 (mm) 122
A Angle (deg) 90
R Radius (mm) 250

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 19
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74581 2205565 Flat elbow FTE80 FE90-150-R250 FRP Polyester

90° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 2.380
X (mm) 550
Y (mm) 550
H Height (mm) 80
W Width (mm) 150
W2 Width 2 (mm) 172
A Angle (deg) 90
R Radius (mm) 250

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 20
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71475 2264565 Cover FOE CO-CL-750-- FRP Polyester

Flat cover for the FOE cable ladder system. Covers are supplied in 3 metre
lengths, consisting of 4 interlocking sections.

Additional information: Available with self-locking bolt sets for quick instal-
lation and a range of fixing clamps to suit any situation.

Characteristics

Name Value
Weight (kg) 15.870
T Material Thickness (mm) 3
X (mm) 783
L Length (mm) 3000
H Height (mm) 9
W Width (mm) 776

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 21
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
73906 2247219 Riser FTE80 RI1-90-600-R400 FRP Polyester

Additional information:

Characteristics

Name Value
Weight (kg) 2.620
X (mm) 212.1
Y (mm) 212.1
H Height (mm) 67.5
W1 Width 1 (mm) 600
A Angle (deg) 90
R Radius (mm) 400
S Spacing (mm) 45

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 22
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74631GA 2239329 Flat elbow FOE150GA FE45-300-R300 Polyester
FRP

45º flat elbow is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 3.990
X (mm) 518
Y (mm) 690
H Height (mm) 150
W1 Width 1 (mm) 300
W2 Width 2 (mm) 326
A Angle (deg) 45
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 23
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74678 2264177 Riser FTE80 RI-150-R400 FRP Polyester

Pre-assembled riser with stainless steel(SS) angle plates. Supplied as inside

riser. Turn the splice plates over to make an outside riser.

Additional information: Standard cable tray fitting fabricated using stainless

steel(SS) angle plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.240
X (mm) 212.1
Y (mm) 212.1
H Height (mm) 67.5
W1 Width 1 (mm) 150
A Angle (deg) 90
R Radius (mm) 400
S Spacing (mm) 45

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 24
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
73902 2247217 Flat elbow FTE80 FE90-600-R250 FRP Polyester

90° flat elbow. Available for purchase in a full composite system.

Additional information: Customized fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 8.840
X (mm) 1002
Y (mm) 1002
H Height (mm) 80
W Width (mm) 600
W2 Width 2 (mm) 624
A Angle (deg) 90
R Radius (mm) 250

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 25
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
73879 2246733 Cable tray FTE80 CT-600-3000 FRP Polyester

Cable tray made of fibreglass (FRP/GRP). Suitable for electrical and instru-
mentation installations.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 20.900
T1 Material Thickness (mm) 4.5
T2 Material Thickness (mm) 5.0
L Length (mm) 3000
H Height (mm) 80
W Width (mm) 600
W2 Width 2 (mm) 624
A Hole Size (mm) 7
B Hole Size (mm) 6.5x20
CC (mm) 300
S Spacing (mm) 150

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 26
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74613GA 2239333 Flat elbow FOE150GA FE90-300-R300 Polyester
FRP

90º flat elbow that is available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable ladder fittings are fabricated using SS angle plates
and SS bolt sets.

Characteristics

Name Value
Weight (kg) 6.590
X (mm) 764
Y (mm) 764
H Height (mm) 150
W1 Width 1 (mm) 300
W2 Width 2 (mm) 326
A Angle (deg) 90
R Radius (mm) 300
D Loading depth (mm) 121

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 27
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74291GA 2239427 Riser FOE150GA RI1-OU90-300-R400 FRP Polyester

Pre-assembled outside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 2.960
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 300
W2 Width 2 (mm) 326
R Radius (mm) 393
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 28
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74273GA 2239422 Riser FOE150GA RI1-IN90-300-R400 FRP Polyester

Pre-assembled inside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 2.960
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 300
W2 Width 2 (mm) 326
R Radius (mm) 482
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 29
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
70264 2205472 Cable ladder FOE150GA CL-150-3000 Polyester
FRP

Composite cable ladder certified for NEMA 16B loading.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 14.770
T Material Thickness (mm) 4.0
T1 Material Thickness (mm) 5
X (mm) 42
Y (mm) 24
L Length (mm) 3000
H Height (mm) 150
W1 Width 1 (mm) 150
W2 Width 2 (mm) 176
A Hole Size (mm) 10.5
B Hole Size (mm) 6.5x20
CC1 (mm) 25
F Flange (mm) 21
S Spacing (mm) 150
R.S Rung Spacing (mm) 300
D Loading depth (mm) 119.7

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 30
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
70265 2205473 Cable ladder FOE150GA CL-300-3000 Polyester
FRP

Composite cable ladder certified for NEMA 16B loading.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 15.868
T Material Thickness (mm) 4.0
T1 Material Thickness (mm) 5
X (mm) 42
Y (mm) 24
L Length (mm) 3000
H Height (mm) 150
W1 Width 1 (mm) 300
W2 Width 2 (mm) 326
A Hole Size (mm) 10.5
B Hole Size (mm) 6.5x20
CC1 (mm) 25
F Flange (mm) 21
S Spacing (mm) 150
R.S Rung Spacing (mm) 300
D Loading depth (mm) 119.7

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 31
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74576 2205549 Flat elbow FTE50 FE45-100-R420 FRP Polyester

45º flat elbow. Available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.070
X (mm) 295
Y (mm) 506
H Height (mm) 50
W Width (mm) 100
W2 Width 2 (mm) 122
A Angle (deg) 45
R Radius (mm) 420

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 32
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74449 2205524 Cover FTE CO-CT-150-3000 FRP Polyester

Straight covers for FTE cable trays. Cover widths from 50-300mm have snap-
on feature. These covers uses a quick-snap shape that allows quick installati-
ons without the need for cover clamps. Covers from 400mm must be fixed to
the cable tray with additional cover clamps.

Additional information:

Characteristics

Name Value
Weight (kg) 3.890
T Material Thickness (mm) 3
L Length (mm) 3000
H Height (mm) 17.5
W Width (mm) 184

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 33
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74670 2230464 Riser FTE50 RI1-50-R400 FRP Polyester

Pre-assembled riser with stainless steel(SS) angle plates. Supplied as inside

riser. Turn the splice plates over to make an outside riser.

Additional information: Standard cable tray fitting fabricated using stainless

steel(SS) angle plates and bolt sets.

Characteristics

Name Value
Weight (kg) 0.640
X (mm) 212.1
Y (mm) 212.1
H Height (mm) 37.5
W1 Width 1 (mm) 50
A Angle (deg) 90
R Radius (mm) 411
S Spacing (mm) 43

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 34
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74290GA 2239425 Riser FOE150GA RI1-OU90-150-R400 FRP Polyester

Pre-assembled outside riser.

Additional information: Available in a full composite system. Customised

fitting dimensions are available upon request. Standard cable ladder fittings
are fabricated using SS angle plates and SS bolt sets.

Characteristics

Name Value
Weight (kg) 2.850
X (mm) 352.8
Y (mm) 352.8
H Height (mm) 150
W1 Width 1 (mm) 150
W2 Width 2 (mm) 176
R Radius (mm) 393
S Spacing (mm) 48

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 35
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74400 2205598 Cable tray FTE50 CT-50-3000 FRP Polyester

Cable tray made of fibreglass (FRP/GRP). Suitable for electrical and instru-
mentation installations.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 3.910
T1 Material Thickness (mm) 3.0
T2 Material Thickness (mm) 3.0
L Length (mm) 3000
H Height (mm) 50
W Width (mm) 50
W2 Width 2 (mm) 70
A Hole Size (mm) 7
B Hole Size (mm) 6.5x20
CC (mm) 300
S Spacing (mm) 150

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 36
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71470 2205407 Cover FOE CO-CL-300-- FRP Polyester

Flat cover for the FOE cable ladder system. Covers are supplied in 3 metre
lengths, consisting of 4 interlocking sections.

Additional information: Available with self-locking bolt sets for quick instal-
lation and a range of fixing clamps to suit any situation.

Characteristics

Name Value
Weight (kg) 6.720
T Material Thickness (mm) 3
X (mm) 783
L Length (mm) 3000
H Height (mm) 9
W Width (mm) 326

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 37
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74568 2205558 Flat elbow FTE50 FE90-50-R250 FRP Polyester

90° flat elbow. Available for purchase in a full composite system.

Additional information: Customised fitting dimensions are available upon

request. Standard cable tray fitting fabricated using stainless steel(SS) angle
plates and bolt sets.

Characteristics

Name Value
Weight (kg) 1.180
X (mm) 447.5
Y (mm) 447.5
H Height (mm) 50
W Width (mm) 50
W2 Width 2 (mm) 70
A Angle (deg) 90
R Radius (mm) 250

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 38
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74450 2205527 Cover FTE CO-CT-50-3000 FRP Polyester

Straight covers for FTE cable trays. Cover widths from 50-300mm have snap-
on feature. These covers uses a quick-snap shape that allows quick installati-
ons without the need for cover clamps. Covers from 400mm must be fixed to
the cable tray with additional cover clamps.

Additional information:

Characteristics

Name Value
Weight (kg) 2.230
T Material Thickness (mm) 3
L Length (mm) 3000
H Height (mm) 17.5
W Width (mm) 82

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 39
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71352 2205511 Cover clamp FTE50 CC SS Polyester

Quick and easy clip-on cover clamp for the FTE cable tray system. Different
heights available to fit the FTE50 or FTE80 cable tray system.

Additional information: Material type SS316L.

Characteristics

Name Value
Weight (kg) 0.010
T Material Thickness (mm) 1.0
X (mm) 29
Y (mm) 57.5
Z (mm) 20

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 40
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
74451 2205523 Cover FTE CO-CT-100-3000 FRP Polyester

Straight covers for FTE cable trays. Cover widths from 50-300mm have snap-
on feature. These covers uses a quick-snap shape that allows quick installati-
ons without the need for cover clamps. Covers from 400mm must be fixed to
the cable tray with additional cover clamps.

Additional information:

Characteristics

Name Value
Weight (kg) 3.080
T Material Thickness (mm) 3
L Length (mm) 3000
H Height (mm) 17.5
W Width (mm) 134

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 41
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
70268 2239374 Cable ladder FOE150GA CL-750-3000 Polyester
FRP

Composite cable ladder certified for NEMA 16B loading.

Additional information: Composites are lightweight and do not rust. All of

our products are available with a range of resin systems to fit your fire, an-
ti-static and chemical resistance needs.

Characteristics

Name Value
Weight (kg) 18.720
T Material Thickness (mm) 4.0
T1 Material Thickness (mm) 5
X (mm) 42
Y (mm) 24
L Length (mm) 3000
H Height (mm) 150
W1 Width 1 (mm) 750
W2 Width 2 (mm) 776
A Hole Size (mm) 10.5
B Hole Size (mm) 6.5x20
CC1 (mm) 25
F Flange (mm) 21
S Spacing (mm) 150
R.S Rung Spacing (mm) 300
D Loading depth (mm) 119.7

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 42
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71468 2205406 Cover FOE CO-CL-150-- FRP Polyester

Flat cover for the FOE cable ladder system. Covers are supplied in 3 metre
lengths, consisting of 4 interlocking sections.

Additional information: Available with self-locking bolt sets for quick instal-
lation and a range of fixing clamps to suit any situation.

Characteristics

Name Value
Weight (kg) 3.670
T Material Thickness (mm) 3
X (mm) 783
L Length (mm) 3000
H Height (mm) 9
W Width (mm) 176

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 43
Product Data Sheet
OS ITNO Hilti ITNO Product name Material
71486 2205405 Cover clamp FOE150 CC-HD PT SS Polyester

Heavy duty cover clamp for FOe150 cable ladder system. Available in SS or
FRP material.

Additional information: Recommended number of cover clamps is four per

3 metre ladder length. This provides protection against wind speeds up to
90km/h.

Characteristics

Name Value
Weight (kg) 0.110
T Material Thickness (mm) 2.0
X (mm) 46.5
Y (mm) 166.5
Z (mm) 23
A Hole Size (mm) 7x20
F Flange (mm) 76

Product images are a general representation of the product design however some variances may occur.

Product packaging information

F-PAK GTIN Single piece

D-PAK GTIN

Oglaend System Group

E-mail: oglaend@oglaend-system.com Phone: +47 51 78 81 00 www.oglaend-system.com Date: 22/06/23 44
