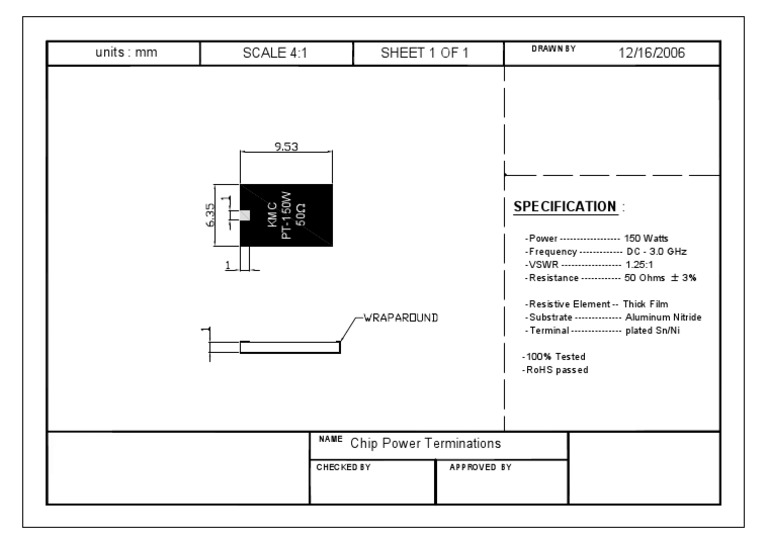

DRAWN BY

units : mm SCALE 4:1 SHEET 1 OF 1 12/16/2006

PT-150W
SPECIFICATION :

KMC

50W
-Power ------------------ 150 Watts
-Frequency ------------- DC - 3.0 GHz
-VSWR ------------------ 1.25:1
-Resistance ------------ 50 Ohms ± 3%

-Resistive Element -- Thick Film


-Substrate -------------- Aluminum Nitride
-Terminal --------------- plated Sn/Ni

-100% Tested
-RoHS passed

NAME
Chip Power Terminations TITLE
www.adckorea.co.kr
TEL. +82-2-2681-8890 FAX. +82-2-6008-4313

da-3207,jungang circulation complex,gurobon-dong,


CHECKED BY APPROVED BY
KPT-150CB
guro-gu,seoul, Korea, Republic of
