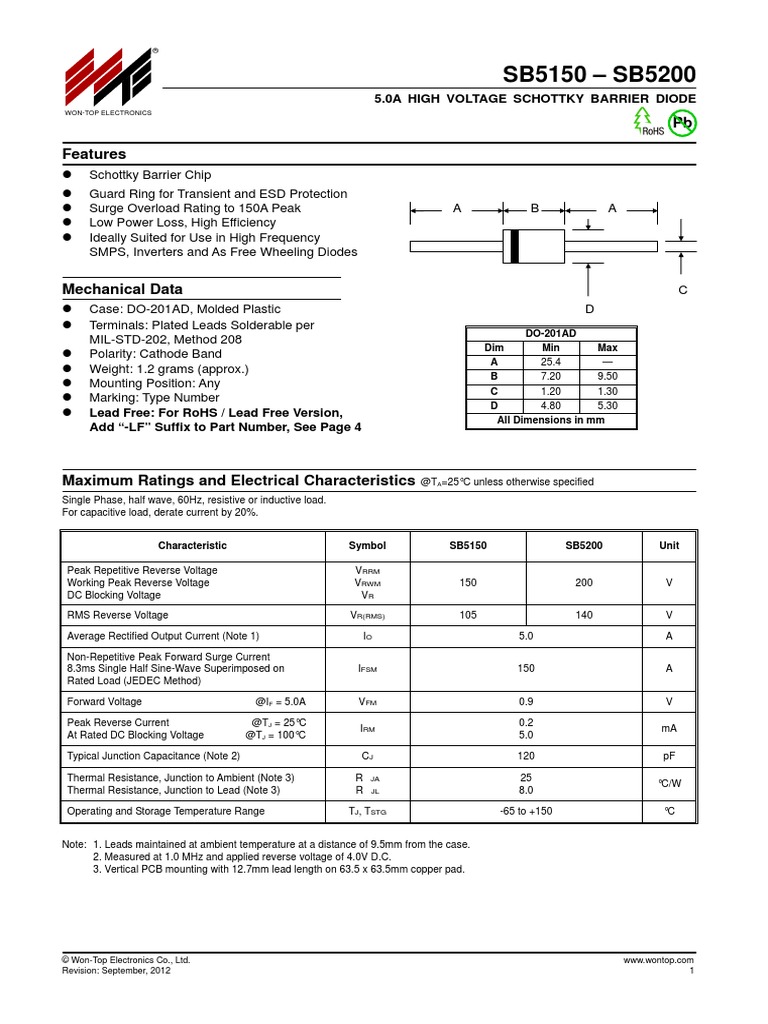

SB5150 – SB5200
5.0A HIGH VOLTAGE SCHOTTKY BARRIER DIODE
WON-TOP ELECTRONICS
Pb

Features
 Schottky Barrier Chip
 Guard Ring for Transient and ESD Protection
 Surge Overload Rating to 150A Peak A B A
 Low Power Loss, High Efficiency
 Ideally Suited for Use in High Frequency
SMPS, Inverters and As Free Wheeling Diodes

Mechanical Data C
 Case: DO-201AD, Molded Plastic D
 Terminals: Plated Leads Solderable per
DO-201AD
MIL-STD-202, Method 208
Dim Min Max
 Polarity: Cathode Band
A 25.4 —
 Weight: 1.2 grams (approx.)
B 7.20 9.50
 Mounting Position: Any
C 1.20 1.30
 Marking: Type Number
D 4.80 5.30
 Lead Free: For RoHS / Lead Free Version,
All Dimensions in mm
Add “-LF” Suffix to Part Number, See Page 4

Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified

Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

Characteristic Symbol SB5150 SB5200 Unit

Peak Repetitive Reverse Voltage VRRM

Working Peak Reverse Voltage VRWM 150 200 V
DC Blocking Voltage VR

RMS Reverse Voltage VR(RMS) 105 140 V

Average Rectified Output Current (Note 1) IO 5.0 A

Non-Repetitive Peak Forward Surge Current

8.3ms Single Half Sine-Wave Superimposed on IFSM 150 A
Rated Load (JEDEC Method)

Forward Voltage @IF = 5.0A VFM 0.9 V

Peak Reverse Current @TJ = 25°C 0.2

IRM mA
At Rated DC Blocking Voltage @TJ = 100°C 5.0

Typical Junction Capacitance (Note 2) CJ 120 pF

Thermal Resistance, Junction to Ambient (Note 3) RθJA 25

°C/W
Thermal Resistance, Junction to Lead (Note 3) RθJL 8.0

Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C

Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
3. Vertical PCB mounting with 12.7mm lead length on 63.5 x 63.5mm copper pad.

© Won-Top Electronics Co., Ltd. www.wontop.com

Revision: September, 2012 1
 ®

SB5150 – SB5200
WON-TOP ELECTRONICS
I(AV), AVERAGE FORWARD RECTIFIED CURRENT (A)

5 10

IF, INSTANTANEOUS FORWARD CURRENT (A)

4

1.0
3
TA = 125°C

2
TA = 85°C
0.1
TA = 25°C

1
Resistive or Pulse Width = 300µs
Inductive Load 1% Duty Cycle

0 0.01
0 15 30 45 60 75 90 105 120 135 150 0 0.2 0.4 0.6 0.8 1.0
TL, LEAD TEMPERATURE (°C) VF, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Forward Current Derating Curve Fig. 2 Typical Forward Characteristics

150 100
IR, INSTANTANEOUS REVERSE CURRENT (mA)
IFSM, PEAK FORWARD SURGE CURRENT (A)

Single Half-Sine-Wave
JEDEC Method

120 10 TJ = 125°C

90 1
TJ = 75°C

60 0.1
TJ = 25°C

30 0.01

0 0.001
1 10 100 0 20 40 60 80 100 120 140
NUMBER OF CYCLES AT 60Hz PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 3 Forward Surge Current Derating Curve Fig. 4 Typical Reverse Characteristics

200
CJ, JUNCTION CAPACITANCE (pF)

f = 1MHz
160

120

80

40

0
1 10 100 1000
VR, DC REVERSE VOLTAGE (V)
Fig. 5 Typical Junction Capacitance

www.wontop.com © Won-Top Electronics Co., Ltd.

2 Revision: September, 2012
 ®

SB5150 – SB5200
WON-TOP ELECTRONICS

MARKING INFORMATION TAPING SPECIFICATIONS

0.8mm
MAX

10mm
Cathode = Polarity Band 1.2mm
MAX
SB5xx SB5xx = Device Number
xx = 150 or 200

6mm
52.4mm 0.8mm
MAX

Cathode Tape: Red

Anode Tape: White

PACKAGING INFORMATION

TAPE & BOX

TAPE & REEL
Product ID Label

150mm Inspection Hole

(both ends)

330mm
255mm 75mm

BULK

80±5mm 40mm
Product ID Label 85mm

200mm

Reel Diameter / Quantity Carton Size Quantity Approx. Gross Weight

Packaging
Box Size (mm) (PCS) (mm) (PCS) (KG)

TAPE & REEL 330 1,200 370 x 370 x 420 6,000 10.0

TAPE & BOX 255 x 75 x 150 1,200 400 x 273 x 415 12,000 17.0

BULK 200 x 85 x 40 500 459 x 214 x 256 12,500 16.0

Note: 1. Paper reel, white or gray color. Core material: plastic or metal.
2. Components are packed in accordance with EIA standard RS-296-E.

© Won-Top Electronics Co., Ltd. www.wontop.com

Revision: September, 2012 3
 ®

SB5150 – SB5200
WON-TOP ELECTRONICS

ORDERING INFORMATION

Product No. Package Type Shipping Quantity

SB5xx-T3 DO-201AD 1200/Tape & Reel

SB5xx-TB DO-201AD 1200/Tape & Box

SB5xx DO-201AD 500 Units/Box

1. Products listed in bold are WTE Preferred devices.

2. Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
3. To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, SB5150-TB-LF.
