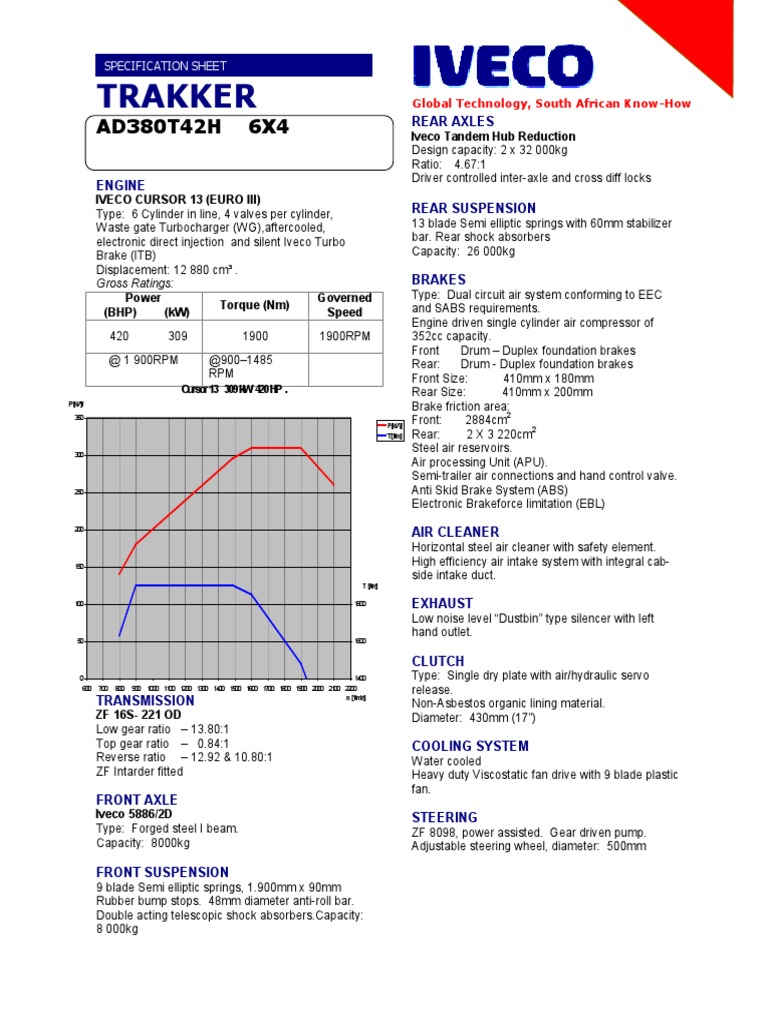

SPECIFICATION SHEET

TRAKKER Global Technology, South African Know-How

REAR AXLES
AD380T42H 6X4 Iveco Tandem Hub Reduction
Design capacity: 2 x 32 000kg
Ratio: 4.67:1
Driver controlled inter-axle and cross diff locks
ENGINE
IVECO CURSOR 13 (EURO III)
Type: 6 Cylinder in line, 4 valves per cylinder, REAR SUSPENSION
Waste gate Turbocharger (WG),aftercooled, 13 blade Semi elliptic springs with 60mm stabilizer
electronic direct injection and silent Iveco Turbo bar. Rear shock absorbers
Brake (ITB) Capacity: 26 000kg
Displacement: 12 880 cm³ .
Gross Ratings: BRAKES
Power Governed Type: Dual circuit air system conforming to EEC
Torque (Nm) and SABS requirements.
(BHP) (kW) Speed
Engine driven single cylinder air compressor of
420 309 1900 1900RPM 352cc capacity.
Front Drum – Duplex foundation brakes
@ 1 900RPM @900–1485 Rear: Drum - Duplex foundation brakes
RPM Front Size: 410mm x 180mm
Cursor 13 309kW 420HP . Rear Size: 410mm x 200mm
P[kW]
Brake friction area:
350 2800 2
P[kW]
Front: 2884cm
2
T[Nm] Rear: 2 X 3 220cm
300 2600
Steel air reservoirs.
Air processing Unit (APU).
Semi-trailer air connections and hand control valve.
250 2400 Anti Skid Brake System (ABS)
Electronic Brakeforce limitation (EBL)
200 2200
AIR CLEANER
Horizontal steel air cleaner with safety element.
150 2000 High efficiency air intake system with integral cab-
side intake duct.
T[Nm]

100 1800 EXHAUST

Low noise level “Dustbin” type silencer with left
hand outlet.
50 1600

CLUTCH
0 1400 Type: Single dry plate with air/hydraulic servo
600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 release.
n[1/min]
TRANSMISSION Non-Asbestos organic lining material.
ZF 16S- 221 OD Diameter: 430mm (17”)
Low gear ratio – 13.80:1
Top gear ratio – 0.84:1 COOLING SYSTEM
Reverse ratio – 12.92 & 10.80:1 Water cooled
ZF Intarder fitted Heavy duty Viscostatic fan drive with 9 blade plastic
fan.
FRONT AXLE
Iveco 5886/2D STEERING
Type: Forged steel I beam. ZF 8098, power assisted. Gear driven pump.
Capacity: 8000kg Adjustable steering wheel, diameter: 500mm

FRONT SUSPENSION
9 blade Semi elliptic springs, 1.900mm x 90mm
Rubber bump stops. 48mm diameter anti-roll bar.
Double acting telescopic shock absorbers.Capacity:
8 000kg

FUEL SYSTEM
2 x Square section steel fuel tank of 300 litres
capacity each.
Twin fuel filters with water separator and Raycor
filter
CHASSIS FRAME
High tensile carbon manganese steel
309x80x10mm section. The complete chassis is
bolted and riveted into position helping to create
chassis flexibility and allowing parts to be easily
replaced when necessary. Frame width at rear
776mm.
WHEELBASE
Centre line of front axle to centre line of bogie:
5190mm. Bogie spread 1380.
TURNING CIRCLE
15.5 metres (kerb to kerb)
ELECTRICAL SYSTEM
Type: 24 volt, negative to earth
Batteries: 2 x 12 volt x 220 amp/hr batteries with
isolation switch.
Alternator: 28V, 90 amps.
Headlamps: 70/75 watt, rectangular.
Roof marker lights
WHEELS & TYRES
Wheels: Steel disc, 10 stud 335mm PCD,
Tyres: 315/80R22.5, Spare wheel and tyre.
CAB
Construction
Type: 2 550mm wide, all steel, forward control
Short cab.
Four point heavy duty cab-mounting system, with
coil springs, dampers and anti-roll bar: Hydraulic
o
cab tilt to 60 .
Features:
Seats: Driver – Fully adjustable “Isri” self-levelling
air suspension type with headrests, adjustable
shock absorber and integral lap sash retractor seat
belt. Passenger - Height, longitudinal and back
o
inclination. 90 opening doors fitted with
mechanically operated windows.
Stowage compartments in overhead console, both
doors, document box complete with lid.
Accessories
• Three internal sun visors.
• Air conditioning. Heater demister with 4
speed fan. Demist ducts to door glasses.
• Manual controlled Roof hatch.
• Twin windscreen wipers/washers, 2 speed
with intermittent action.
• Grey acrylic exterior sunvisor.
• Warning triangles
• Front mudguards with spray suppression
• Steel front Bumper
• Provision for Radio
• Hour meter
• Spare wheel carrier and spare wheel
Finish
Exterior panels of double-sided zinc coated steel.
Electro-phoretic deposited undercoat with baked
acrylic enamel finish coat. Cab fully trimmed in
slate vinyl with seats, bunks and door trims in
matching fabric.
INSTRUMENTATION
Tachometer with trip mileage counter - Rpm counter
with coloured sectors - Fuel level with reserve
indicator and warning light - Water temperature with
warning light - Tachograph 2 drivers speed only.
ABS failure - PTO - Unlatched cab - Safety belts -
Opened doors - Battery charge - High engine
temperature - Engine oil pressure - Low front axle
brake air pressure - Low rear axle brake air
pressure - Low trailer brake air pressure - Low air
pressure for auxiliaries - Battery voltage - Engine oil
temperature - Engine coolant level - Windscreen
reservoir level - Air filter clogged - Fuel filter clogged
- Engine oil filter clogged - Water in fuel prefilter -
Lamps failure - Power steering fluid level (I) - EDC
failure - EBS/ABS failure - EBS/ABS failure (Trailer)
- Independent water heater failure - Air conditioning
system failure - Parking brake failure (low pressure)
- Fuel reserve – Tachograph Failure.
APPROVED OPTIONS
• Bullbar
• Tool Box
• Headlamp lens protection
• Hub Odometer
• Fleet Management and tracking*
WARNING
*No equipment of any description, including satellite or
tracking equipment, electrical receivers, short wave
radios, should be fitted without the authorization, in
writing of Iveco South Africa (Pty) Ltd. Failure to comply
could invalidate vehicle warranty.
MANUFACTURERS DESIGN RATING UNLADEN WEIGHTS (APPROX)

Front axle: 8 000kg Front axle 4975kg

Rear Bogie: 26 000kg Rear Axle combination 4955kg
GVM 34 000kg D/T 75 000kg Total: 9930kg

STARTING GRADIENT IN LOW GEAR PERMISSABLE PLATED WEIGHTS

34 000kg FAW: 7 700kg
Rear Bogie: 18 000kg
69% @ 1900rpm 5.6kph GVM(V): 25 700kg
GCM : 56 000kg
Speed Limited to 90kph

A WHEELBASE 5 190mm
B OVERALL LENGTH 9 413mm
C FRONT OVERHANG 1 440mm
D REAR OVERHANG 2 080mm
E MAX WIDTH 2 550mm
F BOGIE SPREAD 1 380mm
H C/L OF FRONT AXLE TO FRONT OF BODY 445mm
K OVERALL HEIGHT 3 132mm
L HEIGHT OF FRAME (UNLADEN) 1 098mm
M FRONT TRACK 2 042mm
N REAR TRACK 1 823mm
APPROACH ANGLE 26º
DEPARTURE ANGLE 15º
CHASSIS WIDTH 776mm
CA CAB REAR TO CENTRE BOGIE 4 745mm
BODY GAP TO CAB
 IMPORTANT
The illustrations, information and specifications (‘material”) in
this brochure were correct at the time of publication but are
subject to change without notice. The material is provided by
way of general description only, and all measurements and
specifications should be regarded as approximate.
Availability of the vehicles and other items referred to in this
brochure will depend on local and overseas supply conditions
from time to time. Accordingly, before placing an order you
should consult your nearest authorised Iveco dealer to obtain
accurate and up to date information on models,
specifications, features, availability and prices. Prior to the
fitting of any specialised equipment to an Iveco vehicle, full
approval must be obtained from IVECO SOUTH AFRICA
(PTY) LTD in writing. For weights and dimensions for
individual specifications and options, please consult Sales
Engineering.
