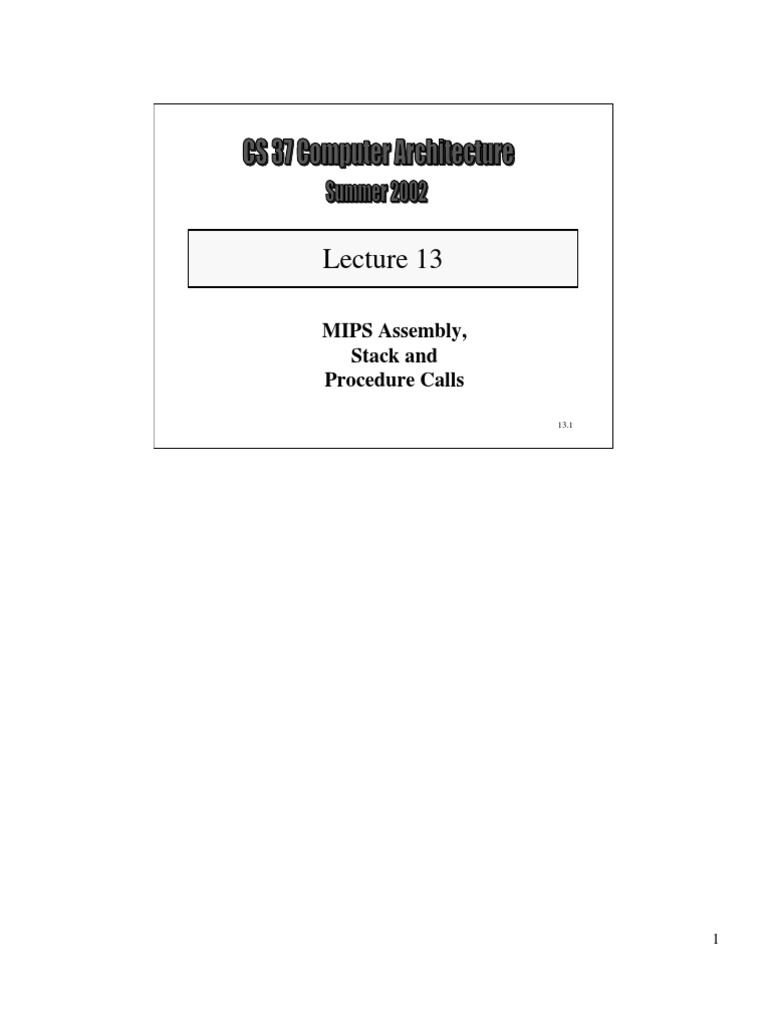

Alexander TaylorLecture 13
MIPS Assembly, Stack and Procedure Calls
13.1
Inside a MIPS 2000 Chip
CPU $0, $t0..$t9, $s0, $s7, $at, $k0, $k1, $a0..$a3, $v0, $v1, $ra, $fp, $sp, $gp HI, LO
13.2
FPU 32 FP registers or 16 FP registers: coprocessor
BadVaddr, Status, Cause, EPC
$f0, $f2, $f4, $f6, (double precision) $f1, $f3, $f5, (single precision)
system bus
$sp
7fff ffff hex
Stack
Memory Organization
Memory access is done via loads and stores exclusively: lw $t0, 64($gp) $t0=Memory[$gp+64] sw $t1, 32($gp) Memory[$gp+32]=$t1 byte offset lb, sb: bytes lh, sh: half-words
Dynamic data $gp 1000 8000 hex 1000 0000 hex Text pc 0040 0000 hex Reserved 0 Static data
$pc: another register
230 addressable words
13.3
Instruction Formats: The R-format
Arithmetic Instructions There are 32 general purpose registers: $s0..$s7=[16..23], $t0..$t7=[8..15], $zero=0, $fp=30, $gp=28, $ra=31, $sp=29
6 bits 5 bits 5 bits 5 bits 5 bits 6 bits
OP
rs
rt
rd
shamt
funct
first source operand second source operand
destination shift amount if applicable
13.4
Example: add (OP=0,funct=32), sub (OP=0,funct=34)
Instruction Formats: The I-format
Transfer, Branch and Immediate Instructions
6 bits 5 bits 5 bits 16 bits
OP
rs
rt
address/immediate
source or destination register
address base register
displacement (offset)
Example: addi $t0, $s0, 32 810 1610 810 3210 sw $t0, 12($s0) 4310 1610 810 1210
bne $s0, $s1, 100 510 1610 1710 2510
13.5
Instruction Formats: The J-format
Jump Instructions
6 bits 26 bits
OP Example:
target address
j 1000010 = 210 250010 jal 1000010 = 310 250010
13.6
Addressing Modes
Different Ways of Accessing Data in Assembly
(1) (2) (3) (4) (5) Register addressing: operands are registers. Displacement addressing: operand is at a memory location given by c($reg). Immediate addressing: operand is a constant in the instruction. PC-relative addressing: address is $pc plus a constant in the instruction. Pseudo-direct addressing: address is the constant in 26 bits of the instruction concatenated with the upper bits of $pc.
13.7
1. Immediate addressing op rs rt Immediate
Addressing Modes
Registers Register Memory
2. Register addressing op rs rt rd ... funct
3. Base addressing op rs rt Address
Register
Byte
Halfword
Word
4. PC-relative addressing op rs rt Address Memory
PC
Word
5. Pseudodirect addressing op Address PC Memory
Word
13.8
Procedure Call Convention: Caller
high
$sp
1) Arguments: if I have more than four: put the first four into registers $a0, $a1, $a2 and $a3, then push the rest onto the stack.
low
13.9
Procedure Call Convention: Caller
high
Argument 6 Argument 5
1) Arguments: if I have more than four: put the first four into registers $a0, $a1, $a2 and $a3, then push the rest onto the stack. $sp Note that: Argument 5 is at Memory[$sp+0] Argument 6 is at Memory[$sp+4] Argument 7 is at Memory[$sp+8]
low
13.10
10
Procedure Call Convention: Caller
high
2) Set the value of $fp to $sp. 3) Use the stack to save the value of registers that I want to preserve across the procedure call.
The procedure may re-use $a0-$a3 and $t0-$9 without saving the contents; if that info is valuable to me, I must save it myself. The procedure should not touch registers $s0-$s7.
Argument 6 Argument 5 Saved Registers
$fp
$sp
Note that arguments and registers can be easily addressed as $fp plus or minus some offset.
low
13.11
11
Procedure Call Convention: Caller
high
3) Jump to the procedure code using the jal instruction, which saves $pc+4 in register $ra.
Argument 6 Argument 5 Saved Registers
$fp
$sp
low
13.12
12
Procedure Call Convention: Callee
high
a) Allocate space for the callees frame, a portion of memory that is big enough to hold space for the variables in this procedure and also the registers that it manipulates: $sp = $sp frame size $sp frame
$fp Note that, by convention, a frame must be at least size 24 bytes: 4 words to save $a0..$a3 plus $ra padded to a double-word boundary. If you also need to save $fp, you need another double-word. Min. frame size = 32 bytes.
$sp
13.13
low
13
Procedure Call Convention: Callee
high
b) Save registers in the frame. At the very least, $fp needs to be saved (if this procedure calls another procedure, $ra must also be saved): Memory[$sp+0] = $fp Memory[$sp+4] = $ra Question: How do you frame size-8 know what registers should be saved? Check the conventions in Figure 3.13. $sp
13.14
frame
$ra $fp
low
14
Procedure Call Convention: Callee
high
c) Set the frame pointer: $fp = $sp frame size
$fp frame
$ra $fp
low
$sp
13.15
15
Procedure Call Convention: Callee
high
d) Do what the procedure has to do. Question: Where are the arguments that were passed in by the caller? Answer: Within some offset from the old value of $fp (when the callee started executing) saved on the frame. e) If there is a value to return to the caller, put it in $v0. $sp f) Restored saved registers.
13.16
$fp
frame
$ra $fp
low
16
Procedure Call Convention: Callee
high
g) Pop out stack frame: $sp = $sp + frame size h) Return to caller with a jump to $ra: $sp jr $ra Note: If the address of the jump is in a register, you cant use j! PH2 has a typo at p.A-28:
jr $ra # Return to caller
13.17
low
17
Procedure Call Convention: Caller
high
4) Use value saved on the stack to restore the saved registers.
Argument 6 Argument 5 Saved Registers
$fp
$sp
low
13.18
18
Procedure Call Convention: Caller
high
$sp
5) Use value saved on the stack to restore the saved registers. 6) Clean up the stack by popping out the saved registers and the arguments for the procedure call.
low
13.19
19
