Date: LAB section: 2021

Instructor: Amna k

Student Roll Number:

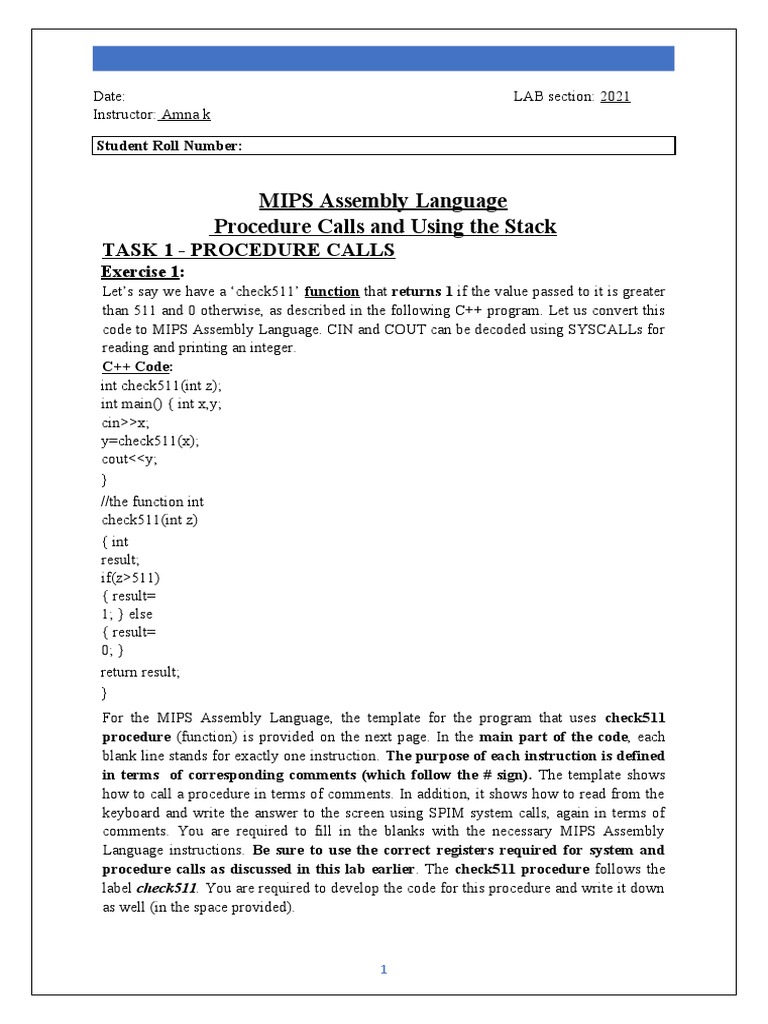

MIPS Assembly Language

Procedure Calls and Using the Stack
TASK 1 - PROCEDURE CALLS
Exercise 1:
Let’s say we have a ‘check511’ function that returns 1 if the value passed to it is greater
than 511 and 0 otherwise, as described in the following C++ program. Let us convert this
code to MIPS Assembly Language. CIN and COUT can be decoded using SYSCALLs for
reading and printing an integer.
C++ Code:
int check511(int z);
int main() { int x,y;
cin>>x;
y=check511(x);
cout<<y;
}
//the function int
check511(int z)
{ int
result;
if(z>511)
{ result=
1; } else
{ result=
0; }
return result;
}
For the MIPS Assembly Language, the template for the program that uses check511
procedure (function) is provided on the next page. In the main part of the code, each
blank line stands for exactly one instruction. The purpose of each instruction is defined
in terms of corresponding comments (which follow the # sign). The template shows
how to call a procedure in terms of comments. In addition, it shows how to read from the
keyboard and write the answer to the screen using SPIM system calls, again in terms of
comments. You are required to fill in the blanks with the necessary MIPS Assembly
Language instructions. Be sure to use the correct registers required for system and
procedure calls as discussed in this lab earlier. The check511 procedure follows the
label check511. You are required to develop the code for this procedure and write it down
as well (in the space provided).

1
 # Using a procedure in main

.text
.globl main
main:
# get input --- the cin part
addi $v0, $zero, 5 #use system call code 5
syscall #invoke system call
add $a0,$zero,$v0 # put the input integer into $a0 which is one of the

# argument registers for parameter passing

jal check511 # call check511 procedure
# cout y -- print output
add $a0, $zero, $v0 # put return value into $a0
addi $v0, $zero, 1 # Use system call 1 (print
integer) syscall # Invoke system call
Exit:

addi $v0, $zero, 10 # Use system call 10 (exit)

syscall # Invoke system call

check511

# Write your code for the function check511 here. Make sure the return value is in the
register $v0. The use of Pseudo instructions is not allowed within the Procedure.

addi $v0, $zero, 0 #Place 0 in the register $v0 addi $t0,

addi $t0,$zero, 511 #Place the number 511 in the register $t0
slt $v0, $t0, $a0 #Perform the check 511 < (Value in$a0)
# which is the same as checking ( Value of $a0) > 511
jr $ra # Last instruction of check511
# go back to the caller: main (chec4k511 ends here)

What value is stored in register $ra when jal check511 is executed: 0x00400034 .

Why? When the jal instruction is executed, it jumps to an address where the required
procedure is stored. This instruction also updates the value of $ra with the return address for

2
the procedure being called. At the end of the called procedure function the instruction jr $ra
is used which means an unconditional jump is made to the address stored in the register $ra.

Show the execution of your program to the Instructor during the lab time and get your
handout marked.

Output:

TASK 3 – USING THE STACK IN PCSPIM

Exercise 5:
Use the following instructions to load values in the registers.

.data

My Numbs: .word -100, 200, 300, -300

.text

3
 .globl main main:
la $s0, My Numbs #load base address of array

lw $t0, 0($s0) #load first number

lw $t1, 4($s0)
lw $t2, 8($s0)
lw $t3, 12($s0)
What is the value of the stack pointer at this time? 0x7fffeffc

Now write the code to push all the 4 register values on to the stack and fill the table
below. First push $t0, then $t1, then $t2 and then $t3.

Code: (given for the first push – write your code for all push instances below)

addi $sp, $sp, -4

Memory Stack Address Value
sw $t0, 0($sp)
addi $sp,$sp,-4 0x7fffeffc 0x00000000
sw $t1,0($sp) 0x7fffeff8 0xffffff9c
addi $sp,$sp,-4 0x7fffeff4 0x000000c8
sw $t2,0($sp) 0x7fffeff0 0x0000012c
addi $sp,$sp,-4 0x7fffefec 0xfffffed4
sw $t3,0($sp)

Stop and make a picture of the processor memory in your mind. You have code in the memory
starting at address: The text segment starts at 0x00400000 while your own code starts
at 0x00400024 You have data in the memory starting at address The data segment starts at
0x10000000 while the array that you initialized starts at 0x10010000.You have data
pushed in the stack area of the memory starting at address The stack pointer points towards
the top of the stack. In this case the final value for $sp for this program is 0x7fffefec
and ending at address The stack ends at the highest address allocated to the stack
space which is 0x7fffeffc Draw the memory map of the processor on the next page.

Memory Map of the Processor:

4
 Write the following code to change/mix all the registers:

add $t3, $t2, $t3

add $t0, $t1, $s0
add $t2, $s0, $t3
add $t1, $t2, $t0
Now pop all values from the stack to bring the same values in the registers as loaded in the
start. Be careful about the order. Write down the code for all pop instances below,
(Code of pop discussed in class):
lw $t3, 0($sp)
addi $sp, $sp, 4
lw $t2, 0($sp)
addi $sp, $sp, 4
lw $t1, 0($sp)
addi $sp, $sp, 4
lw $t0, 0($sp)
addi $sp, $sp, 4
Note how the Stack Pointer (SP) changes with each push and pop.

After the last pop, the original values of registers $t0, $t1, $t2 and $t3 have been
restored.

What is the value of the stack pointer after the last pop: It is 0x7fffeffc .Is the value of the stack
pointer same as before data was pushed on to the stack? Yes it is .What happens if you try to go
beyond your space and pop more values? You will see that the stack pointer will go beyond
the space meant for the stack and values will be loaded into registers. Thus the stack
pointer has intruded into the space meant for some other segment. This leads to severe
problems in the operation of an actual computer and such a situation must be avoided
at all costs.
