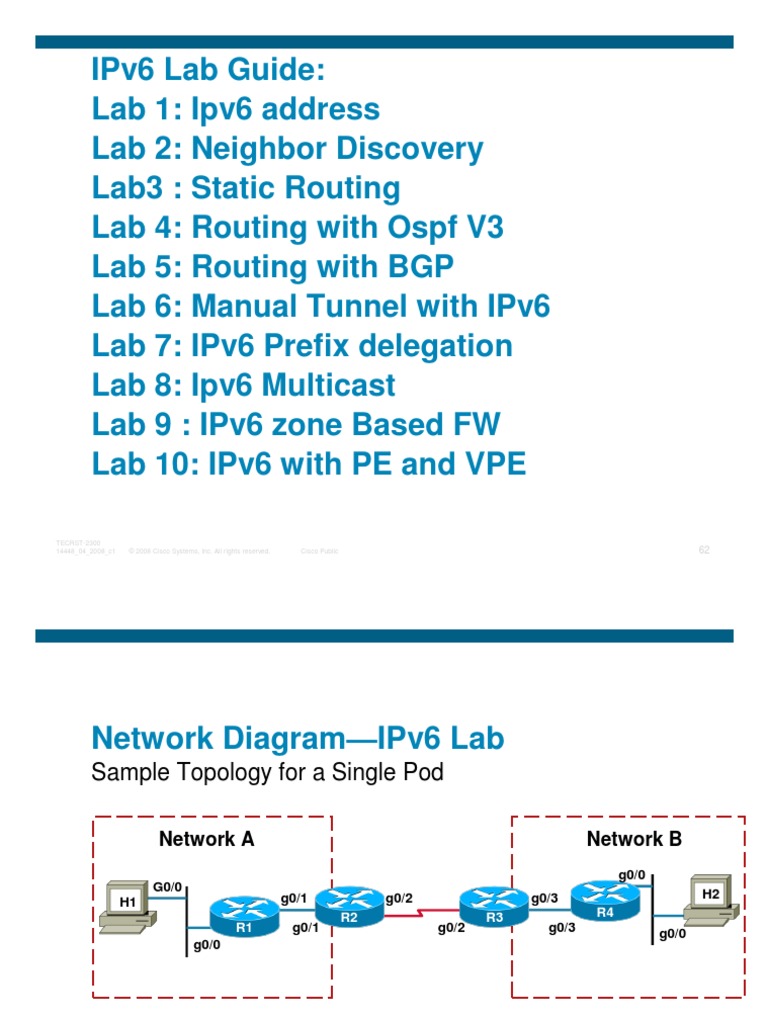

IPv6 Lab Guide:

Lab 1: Ipv6 address


Lab 2: Neighbor Discovery
Lab3 : Static Routing
Lab 4: Routing with Ospf V3
Lab 5: Routing with BGP
Lab 6: Manual Tunnel with IPv6
Lab 7: IPv6 Prefix delegation
Lab 8: Ipv6 Multicast
Lab 9 : IPv6 zone Based FW
Lab 10: IPv6 with PE and VPE

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 62
Network Diagram—IPv6 Lab
Sample Topology for a Single Pod

Network A Network B
g0/0
G0/0
g0/1 g0/2 g0/3 H2
H1
R2 R3 R4
R1 g0/1 g0/2 g0/3 g0/0
g0/0

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 63
All Routers/Hosts Basic Configuration

Configure the Following on Your Router and Host:


 For example: R1 and H1
hostname R1 / H1
!
no ip domain-lookup
!
line con 0
no login
exec-timeout 0 0
privilege level 15

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 64
Lab 1: IPv6 Addressing

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 64
Lab 1: Task Summary

 Enable IPv6 on all four routers (R1 to R4)


 Configure hosts (H1 and H2) to use stateless address
auto-configuration for IPv6
 Configure IPv6 addresses on Ethernet and serial
interfaces using addresses listed in Table 1
 Use show commands to view IPv6 configuration
and addresses
 Use ping to verify IPv6 connectivity

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 65
Lab 1: Configuring IPv6 Interfaces (1)

Table 1: IPv6 Prefixes


Router Unique-Local
Global IPv6 Prefix
Number IPv6 Prefix
R1 (g0/1) 2001:DB8:1122:12::1/64 fc00:1:2:12::1/64
R1 (g0/0) 2001:DB8:1234:1::/64 eui-64
R2 (g0/1) 2001:DB8:1122:12::2/64 fc00:1:2:12::2/64
R2 (g0/2) 2004:DB8:2233:23::2/64
R3 (g0/3) 2001:DB8:3344:34::3/64 fc00:3:4:34::3/64
R3 (g0/2) 2004:DB8:2233:23::3/64
R4 (g0/0) 2001:DB8:1234:4::/64 eui-64
R4 (g0/3) 2001:DB8:3344:34::4/64 fc00:3:4:34::4/64

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 66
Lab 1: Configuring IPv6 Interfaces (2)
Task: Configuring the IPv6 Ethernet Interface
 On routers R1 and R2, go to global configuration mode
#configure terminal
 Enable IPv6 unicast routing on the router
(config)#ipv6 unicast-routing
 Configure the g0/0 interface
(config)#interface g0/0
 Enable IPv6 on the interface
(config-if)#ipv6 enable
(config-if)#no shutdown
 Quit the configure mode
(config-if)#end
 Verify that the Ethernet interface is configured
#show ipv6 interface g0/0
 Identify the type of addresses that are configured
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 67
Lab 1: Configuring IPv6 Interfaces (3)
Task: Finding the Link-Local Address of a Host
 On hosts H1 and H2, go to global configuration mode
#configure terminal
 Configure the host g0/0 interface
(config)#interface g0/0
 Enable IPv6 on the interface
(config-if)#ipv6 enable
(config-if)#ipv6 address autoconfig
(config-if)#no shutdown
 Quit the configure mode
(config-if)#end
 Verify that the interface is configured
#show ipv6 interface g0/0

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 68
Lab 1: Configuring IPv6 Interfaces (4)
Task: Verifying IPv6 Link-Local Connectivity
 On routers R1 and R4, enable console debugging of ICMP
and Neighbor Discovery (ND) IPv6 packets
#debug ipv6 icmp
#debug ipv6 nd

 On the router, ping the local Ethernet interface of host


specifying the link-local address in the ping command
destination address
#ping fe80::<link local address of Host>
#ping ipv6 fe80::<link local address of Host>

 On the router, verify the list of IPv6 neighbors


#show ipv6 neighbors

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 69
Lab 1: Configuring IPv6 Interfaces (5)
Task: Configuring a Static IPv6 Address with EUI-64
 On routers R1 and R4, configure a global IPv6 address on
g0/0 interface using the /64 prefix of your subnet and the
EUI-64 format
 Subnet = router number, e.g., R1 = 2001:DB8:1234:1::/64 &
R4 = 2001:DB8:1234:4::/64)
#configure terminal
(config)#interface
g0/0
(config-if)#ipv6 address 2001:DB8:1234:<router #>::/64 eui-64
(config)#end
 Verify the configuration
 On the routers, disable all console debugging
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 70
Lab 1: Configuring IPv6 Interfaces (5)
#undebug all

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 71
Lab 1: Configuring IPv6 Interfaces (6)
Task: Configuring IPv6 addresses.
 On all four routers, configure a global and unique-local address on
other interfaces by using the IPv6 prefix assigned. Use the router
number for the host part. (Refer to table 1 for details)
 For example, on R1:
#configure terminal
(config)#interface g
0/1 (config-if)#ipv6
enable
(config-if)#ipv6 address fc00:1:2:12::<router #>/64
(config-if)#ipv6 address 2001:DB8:1122:12::<router #>/64
(config-if)#no shutdown
 Verify connectivity by using ping to next-hop router
#ping <global or unique-local address of next-hop router>
#show ipv6 neighbors
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 71
Lab 2: Using
Neighbor Discovery

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 72
Lab 2: Task Summary

 Enable Router Advertisements (RA) for global and


unique-local IPv6 prefixes on g0/0 (R1 and R2)
 Use show commands and debugs (debug ipv6 nd) to
view IPv6 configuration
 Use ping to verify IPv6 connectivity
 Renumber the g0/0 interfaces on R1 and R2 by
deprecating the old IPv6 prefixes and announcing a
new IPv6 prefix
Pick a new IPv6 global prefix (2003:DB8:ffff:<router #>::/64)
Deprecate the old prefix; hint: change the valid and
preferred lifetimes

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 73
Lab 2: Using Neighbor Discovery (1)
Task: Configuring Router Advertisements for Global Addresses
 Look at the configuration of hosts H1 and H2 and determine if they have received a
global address?
#show ipv6 interface g0/0
 Enable the debugging mode for IPv6 Neighbor Discovery (ND)
#debug ipv6 nd
 On routers R1 and R4, go to configuration mode and then under Ethernet
0/0 interface
#configure terminal
(config)#interface g0/0
 Enable RAs by using the ND command with the subnet prefix assigned to your
LAN. Because infinite lifetime is not desired, use five minutes (120 seconds) for
lifetime (both preferred and valid).
(config-if)#ipv6 nd prefix 2001:DB8:1234:<router #>::/64 120 120
 Verify that the hosts now have an IPv6 address that was automatically configured
with this subnet prefix. Note that the previously configured link-local address is still
present and valid. Also look at the valid and preferred lifetimes, are they
decrementing?
#show ipv6 interface g0/0
 Verify connectivity using the ping command on the router to the host using the
newly assigned address of the host as the ping destination
#ping <global address of Host>
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 74
Lab 2: Using Neighbor Discovery (2)
Task: Configuring Router Advertisements for Unique-Local Addresses
 Configure a unique-local address on g0/0 interface of Routers R1 and
R4 by using the subnet prefix for your LAN. Use EUI-64 format.
#configure terminal
(config)#interface g0/0
(config-if)#ipv6 address fc00:0:0:<router #>::/64 eui-64
 Enable RAs by using the ND command with subnet prefix assigned to
your LAN for unique-local addresses. Use five minutes (120 seconds)
for the lifetime.
(config-if)# ipv6 nd prefix fc00:0:0:<router #>::/64 120 120
 Change the RA interval to 30 seconds
(config-if)# ipv6 nd ra interval 30
 Verify that hosts H1 and H2 now have an IPv6 address configured with
this subnet prefix
#show ipv6 interface g0/0
 Verify connectivity to the host using the ping command on the router to
the host using the newly assigned address of the host as the ping
destination address
#ping <unique-local address of Host>
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 75
Lab 2: Using Neighbor Discovery (3)
Task: Renumbering the Local Network on the Router
 On routers R1 and R2, configure the new address of
workgroup g0/0 interface by using the new global
subnet prefix assigned to your LAN. Use EUI-64 format.
#configure terminal
(config)#interface g0/0
(config-if)#ipv6 address 2003:DB8:ffff:<router #>::/64 eui-64
 Enable RAs by using the ND command with the new subnet
prefix assigned to your LAN. Use five minutes (240 seconds)
for the lifetime.
(config-if)# ipv6 nd prefix 2003:DB8:ffff:<router #>::/64 240 240
 Verify that hosts H1 and H2 have a new address with the
new prefix
#show ipv6 interface g0/0
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 76
Lab 2: Using Neighbor Discovery (4)
 Modify the Neighbor Advertisement (NAs) for
2001:DB8:1234:<router #>::/64 (the old prefix) by making
the valid and preferred lifetimes equal to 60 and 0
respectively
#configure terminal
(config)#interface g0/0
(config-if)# ipv6 nd prefix 2001:DB8:1234:<router #>::/64 20 0
 Verify that the hosts deprecate the use of the “old” prefix and
prefers the “new” one
#show ipv6 interface g0/0
 Verify connectivity to the host by using the ping command on
the router using the new assigned address of host
#ping <new global address of Host>
#undebug all

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 77
Lab 3: IPv6
Static Routing

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 78
Lab 3: Task Summary

 Configure IPv6 default static routes on R1 and R4


 Configure IPv6 static routes on R3 and R4
 Use ping to verify IPv6 connectivity between R1 and R4
 Use show commands to view IPv6 routing table

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 79
Lab 3: IPv6 Static Routing (1)
Task: Configuring IPv6 Static Routing on Routers
 Configure static default routes on R1 and R4 pointing to R2
and R3 respectively (see table 1 for addressing details)
 On R1:
(config)#ipv6 route ::/0 2001:DB8:1122:12::2
 On R4:
(config)#ipv6 route ::/0 2001:DB8:3344:34::3
Configure static routes on R2 pointing to R4’s network; R3 pointing
to R1’s network. (see table 1 for addressing details)
 On R2:
(config)#ipv6 route 2001:DB8:3344:34::/64 2004:DB8:2233:23::3
 On R3:
(config)#ipv6 route 2001:DB8:1122:12::/64 2004:DB8:2233:23::2

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 80
Lab 3: IPv6 Static Routing (2)

Task: Verifying IPv6 Connectivity Using Static Routes


 Verify the routing table
#show ipv6 route

 Verify IPv6 connectivity using the ping command using


the peer’s IPv6 address
#ping <your peer’s Global IPv6 Address>

 Can you ping from R1 to R4 and vice versa? If not,


troubleshoot why the ping is not working.
 Hint: use “debug ipv6 icmp” and “debug ipv6 packet”
on R2 and R3 to see if traffic is being forwarded

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 81
Lab 4: Routing
with OSPFv3

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 82
Lab 4: Task Summary
 Enable debugs for IPv6 routing and IPv6 OSPFv3
#debug ipv6 routing
#debug ipv6 ospf event
 Configure OSPFv3 on all four routers
Look at topology diagram for details
Use 192.168.30.xx for router-id (where xx is the router number)
 Remove all IPv6 static and default routes on all routers
 Use ping to verify IPv6 connectivity between H1 and H2
 Use show commands to view IPv6 routing table
#show ipv6 route
#show ipv6 ospf neighbor
#show ipv6 ospf database
 Answer review questions at the end of this section
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 83
OSPFv3 Configuration Example

Network A Network B
g/0
g0/0
g0/1 g0/2 g03 H2
H1
R2 R3 R4
R1 g0/1 g0/2 g0/3 g/0
g0/0 …

Area 10 Area 0 Area 20

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 84
Lab 4: Routing with OSPFv3 (1)
Task: Configuring OSPFv3
 Enable the debugging mode for IPv6 routing and
IPv6 OSPFv3
#debug ipv6 routing
#debug ipv6 ospf event

 Configure an OSPFv3 process 1 on the routers with a router-ID


(config)#ipv6 router ospf 1
(config-rtr)#router-id 192.168.30.xx (where xx is your router #)

 Enable OSPFv3 on each interface on all four routers


For example on R1:
(config)#interface ethernet0/0
(config-if)#ipv6 ospf 1 area 10
(config-if)#interface g0/1
(config-if)#ipv6 ospf 1 area 10
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 85
OSPFv3 Configuration—Router R1 (2)
Router R1

ipv6 unicast-routing

interface g0/0
no ip address
ipv6 ospf 1 area 10

interface g0/1
no ip address
ipv6 ospf 1 area 10

ipv6 router ospf 1


router-id 192.168.30.1

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 86
OSPFv3 Configuration—Router R2 (3)
Router R2

ipv6 unicast-routing

interface g0/1
no ip address
ipv6 ospf 1 area 10

interface g0/2
no ip address
ipv6 ospf 1 area 0

ipv6 router ospf 1


router-id 192.168.30.2

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 87
Lab 4: Routing with OSPFv3 (4)
Task: Configuring OSPFv3
 Verify that the routing table is updated by entries coming from the other workgroup
routers, OSPFv3 Neighbor, OSPFv3 database
#show ipv6 route
#show ipv6 ospf neighbor
#show ipv6 ospf database

 Do you see the OSPFv3 routes in the routing table on R2 and R3? Why or why not?
 Remove the static routes on all 4 routers
#no ipv6 route <network> <next hop>

 Verify IPv6 connectivity using the ping command on Host. Use the remote host’s
global IPv6 address as the destination address of the ping command
#ping <Global IPv6 address of the remote host>
#undebug all

 On R4 define a loopback4 with address 2040::4/64 and do a redistribute connected


under ipv6 router ospf. Check the database of R1 and R2 with show ipv6 ospf
database external. Do you see the loopback address?
 On R1 and R2 under ipv6 router ospf configure “area 10 stub”. Do you see the
external routes now? Why not?
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 88
Lab 5: Routing
with BGP

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 89
Lab 5: Task Summary
 Enable debugging for BGP
#debug bgp ipv6 unicast
 Configure BGP AS number and router-id on all four routers using table 2
 Activate iBGP peering between R1 and R2 and R3 and R4 using the
interface global IPv6 address. Announce the global prefix and unique-local
prefix.
 Activate eBGP peering between R2 and R3 using their global
IPv6 addresses
 On R2 and R3, filter the unique-local prefix (fc00::/10) so that you do not
receive them from the peers
 Use show commands to view the BGP configuration
#show bgp ipv6 unicast summary
#show bgp ipv6 unicast neighbors <IP address> advertised-routes
#show bgp ipv6 unicast neighbors <IP address> routes
#show ipv6 route bgp
 Use show bgp ipv6 unicast to see the routes in the BGP table
 Answer review questions at the end of this section
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 90
BGP Configuration Example

iBGP iBGP

Network A Network B
g0/0
g0/0
g0/1 g0/2 g0/3 H2
H1
R2 R3 R4
R1 g0/1 g0/2 g0/3 g0/0
g0/0

AS 65012 EBGP AS 65034

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 91
Lab 5: Routing with BGP (1)
Task: Configuring BGP
 Refer to table 2 for the router address and autonomous system
(AS) number
 Enable the debugging of BGP
#debug bgp ipv6
 Define your router as a BGP router with your AS number
(config)#router bgp <AS number>
 Because IPv4 has not been configured yet and BGP protocol uses
the IPv4 address as an identifier, a specific command to identify
the router-id is needed. Use table 2 to find the router-id. Then
configure the router BGP router-id.
(config-router)#bgp router-id <your router-id>
 Deactivate the IPv4 default peering
(config-router)#no bgp default ipv4-unicast

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 92
Lab 5: Routing with BGP (2)

Table 2: Assigned AS Number and Router ID

Router Number AS Number Router ID

R1 65012 192.168.60.1

R2 65012 192.168.60.2

R3 65034 192.168.60.3

R4 65034 192.168.60.4

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 93
Lab 5: Routing with BGP (3)
 Activate iBGP peering between R1 and R2 and R3 and R4 using the
Ethernet 1/0 global IPv6 address. Announce your global prefix and
your unique-local prefix.
(config-router)#neighbor <peer’s global IPv6 address > remote-as <AS number>
(config-router)#neighbor <peer’s global IPv6 address > update-source

(config-router)#address-family ipv6
(config-router-af)#neighbor <peer’s global IPv6 address> activate
(config-router-af)#network global network prefix>/64 R1 and R4
(config-router-af)#network < unique local prefix>/64 only
(config-router-af)#exit

 Look at the BGP routing table to determine if you received BGP routes
from your neighbor
#show bgp ipv6 unicast summary
#show bgp ipv6 unicast neighbors <IP address> advertised-routes
#show bgp ipv6 unicast neighbors <IP address> routes
#show ipv6 route bgp
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 94
Lab 5: Routing with BGP (4)
 Activate eBGP peering between R2 and R3 using their global
IPv6 addresses
(config-router)#neighbor <peer’s global IPv6 address> remote-as <AS number>
(config-router)#neighbor <peer’s global IPv6 address>
(config-router)#address-family ipv6
(config-router-af)#neighbor <peer’s global IPv6 address> activate
(config-router-af)#end

 Look at the BGP routing table to determine if you received BGP routes
from your neighbor
#show bgp ipv6 unicast summary
#show bgp ipv6 unicast neighbors <IP address> advertised-routes
#show bgp ipv6 unicast neighbors <IP address> routes
#show ipv6 route bgp

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 95
Lab 5: Routing with BGP (5)
Task: Filtering BGP Routes
 On R2 and R3, filter the unique-local prefix (fc00::/10) so that you do not
receive them from the peers
(config)#ipv6 prefix-list lab5 deny fc00::/10 le 128
(config)#ipv6 prefix-list lab5 permit ::/0 le 64
(config)#router bgp <your AS number>
(config-router)#address-family ipv6
(config-router-af)#neighbor <peer’s global IPv6 address> prefix-list lab5 in
(config-router-af)#exit

 On R1 and R4, verify that you do not receive any unique-local routes via
BGP from the remote peer. Only the global IPv6 prefixes should
be received.
#clear bgp ipv6 unicast <peer AS number> in
#show bgp ipv6 unicast
#show bgp ipv6 unicast neighbors <IP address> advertised-routes
#show bgp ipv6 unicast neighbors <IP address> routes
#show ipv6 route bgp
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 96
Lab 6: Manual
Tunneling in IPv6

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 97
Lab 6: Task Summary
 Disable IPv6 routing protocols on all routers
 Remove the IPv6 addresses on g0/2 interface of R2 and R3
 Configure IPv4 address on g0/2 interface of R2 and R3, use
192.168.30.<router xx>/24
 Configure tunnel interfaces on R2 and R3 and configure them for
manual tunneling
 Enable RIPng on both tunnel endpoints and other relevant
interfaces on all four routers
 Enable EIGRPv6 over the tunnel
 Enable mutual redistribution between EIGRPv6 and RIPng on
R2 and R3
 Use show commands to view the IPv6 routing table and tunnel
interface statistics
 Use ping to verify IPv6 connectivity between H1 and H2
 Answer review questions at the end of section 7
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 98
Manual Tunnel Configuration Example

IPv6 IPv4 IPv6

Network A GRE Tunnel Network B

g/0 g0/2 g0/0


g0/1 g0/3
H1 H2
g0/1 R2 R3 g0/3 R4
R1 g0/2
g0/0 g0/0

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 99
Lab 6: Using Tunnels (Manual-1)
Task: Configuring the Tunnel
 First disable both OSPFv3 and BGP on all routers
 Remove the IPv6 address on g0/2 interface between R2
and R3
(config)#no ipv6 router ospf 1
(config)#no router bgp <your AS>
(config)#interface gxx
(config-if)#no ipv6 address
(config-if)#no ipv6 enable

 Configure IPv4 address on interface between R2 and R3


(config)#interface xxx
(config-if)#ip address 192.168.30.<router #> 255.255.255.0
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 100
Lab 6: Using Tunnels (Manual-2)
 Configure a tunnel interface using tunnel0
(config)#interface tunnel 0
 Use an IPv6 unnumbered address from the g0/1 @R2, g0/3@R3
(config-if)#ipv6 unnumbered g0/1@R2 (g0/3@R3)
 Identify the source and destination address of the tunnel, followed
by the tunnel mode
(config-if)#tunnel source g0/2@R2 (g0/2@R3)
(config-if)#tunnel destination <peer’s IPv4 address>
(config-if)#tunnel mode gre ip
 Enable RIPng on all four routers
(config)#ipv6 router rip lab
(config-rtr)#redistribute connected
 Enable RIPng 
(config-if)#ipv6 rip lab enable

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 101
Lab 6: Using Tunnels (Manual-3)
 Configure OSPFv3 on the routers R2 and R3 with a
Router-ID
(config)#ipv6 router ospf 1
(config-rtr)#router-id 192.168.30.xx (where xx is your router #)
 Enable OSPFv3 on tunnel interfaces on R2 and R3
(config)#interface tunnel 0
(config-if)#ipv6 ospf 1 are 0
 Enable mutual redistribution on R2 and R3 between
RIPng and OSPFv3
(config)#ipv6 router ospf 1
(config)#redistribute rip lab
(config)#ipv6 router rip lab
(config)#redistribute ospf 1
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 102
Lab 6: Using Tunnels (Manual-4)
 Verify that RIPng updates are carried over the tunnel
#show ipv6 route
 Look at Tunnel 0 debugs and statistics
#debug tunnel
#show interface tunnel 0 accounting
 Verify connectivity between R1 & R4 using the
ping command
#ping <global IPv6 address of peer>
 Verify connectivity between H1 and H2 using the
ping command
#ping <global IPv6 address of peer Host>

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 103
Lab 7:Prefix Delegation

TASK : CONFIG R2 AS ISP ROUTER FOR


PREFIX DELEGATION.THIS IS CONCEPT
USED SP FOR ALLOCATE GLOBAL PREFIX
TO VARIOUS COUSTOMER.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 104
CONFIG : ISP ROUTER(R2)
ipv6 unicast-routing
ipv6 local pool PREFIX 2002:10:10::/48 56……………PREFIX USED BY CUSTOMER
ipv6 dhcp pool PREFIX
prefix-delegation pool PREFIX……………………..ANNOUCE IT CREATING DHCP POOL

interface GigabitEthernet0/1
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address 2001:DB8:1122:12::2/64
ipv6 dhcp server PREFIX…………………….APPLY THE DHCP POOL.
no shut
R1 CONFIG: THIS IS ACT AS COUSTOMER:
ipv6 unicast-routing
ipv6 cef
ipv6 dhcp pool CLIENT
address prefix 2002:10:10:10::/64
interface GigabitEthernet0/0
no ip address
duplex auto
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 105
speed auto
media-type rj45
ipv6 address OK ::10:0:0:0:1/64……………………..IT GETTING /56 FROM ISP….10 IS SUBNET ID.
ipv6 dhcp server CLIENT
!
interface GigabitEthernet0/1
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address autoconfig default
ipv6 dhcp client pd OK…………………HERE OK IS LOCAL TAG USED BY THIS ROUTER LINK FACING INTERNAL(G0/0)
NO SHUT
H1 CONFIG:……….THIS IS ACT AS END POINT.
interface GigabitEthernet0/0
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address dhcp
ipv6 enable
VERIFY: HOW ISP SENDING PREFIXES:
ISP#SHOw IPV6 DHcp BInding
Client: FE80::5209:FF:FE03:1
DUID: 00030001500900030000
Username : unassigned
VRF : default
Interface : GigabitEthernet0/1
IA PD: IA ID 0x00030001, T1 302400, T2 483840
Prefix: 2002:10:10::/56
preferred lifetime 604800, valid lifetime 2592000
expires at Mar 13 2021 04:20 AM (2590579 seconds)
VERIFY HOW R1 IS GETTING THIS:
R1#show ipv6 route
IPv6 Routing Table - default - 7 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
B - BGP, HA - Home Agent, MR - Mobile Router, R - RIP
H - NHRP, I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea
IS - ISIS summary, D - EIGRP, EX - EIGRP external, NM - NEMO
ND - ND Default, NDp - ND Prefix, DCE - Destination, NDr - Redirect
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 106
RL - RPL, O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1
OE2 - OSPF ext 2, ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
la - LISP alt, lr - LISP site-registrations, ld - LISP dyn-eid
lA - LISP away, a - Application
ND ::/0 [2/0]
via FE80::5209:FF:FE04:1, GigabitEthernet0/1
NDp 2001:DB8:1122:12::/64 [2/0]
via GigabitEthernet0/1, directly connected
L 2001:DB8:1122:12:5209:FF:FE03:1/128 [0/0]
via GigabitEthernet0/1, receive
S 2002:10:10::/56 [1/0]…………….prefix allocate by isp
via Null0, directly connected
C 2002:10:10:10::/64 [0/0]
via GigabitEthernet0/0, directly connected
L 2002:10:10:10::1/128 [0/0]………………..ip config on internal interfaces.
via GigabitEthernet0/0, receive
L FF00::/8 [0/0]
via Null0, receive
verify how client is getting ip: H1:
Client#show ipv6 rou
Client#show ipv6 route
IPv6 Routing Table - default - 3 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
B - BGP, HA - Home Agent, MR - Mobile Router, R - RIP
H - NHRP, I1 - ISIS L1, I2 - ISIS L2, IA - ISIS interarea
IS - ISIS summary, D - EIGRP, EX - EIGRP external, NM - NEMO
ND - ND Default, NDp - ND Prefix, DCE - Destination, NDr - Redirect
RL - RPL, O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1
OE2 - OSPF ext 2, ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
la - LISP alt, lr - LISP site-registrations, ld - LISP dyn-eid
lA - LISP away, a - Application
ND ::/0 [2/0]
via FE80::5209:FF:FE03:0, GigabitEthernet0/0
LC 2002:10:10:10:4D05:8E15:275A:4898/128 [0/0]…………..prefix from dhcp server.
via GigabitEthernet0/0, receive
L FF00::/8 [0/0]
via Null0, receive
H1#show ipv6 interface g0/0
GigabitEthernet0/0 is up, line protocol is up
IPv6 is enabled, link-local address is FE80::5209:FF:FE01:0
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 107
No Virtual link-local address(es):
Global unicast address(es):
2002:10:10:10:4D05:8E15:275A:4898, subnet is 2002:10:10:10:4D05:8E15:275A:4898/128
Joined group address(es):
FF02::1
FF02::1:FF01:0
FF02::1:FF5A:4898
MTU is 1500 bytes
ICMP error messages limited to one every 100 milliseconds
ICMP redirects are enabled
ICMP unreachables are sent
ND DAD is enabled, number of DAD attempts: 1
ND reachable time is 30000 milliseconds (using 30000)
ND NS retransmit interval is 1000 milliseconds
Default router is FE80::5209:FF:FE03:0 on GigabitEthernet0/0
PING FROM H1 TO ISP ROUTER.
H1#PING 2001:DB8:1122:12::2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:DB8:1122:12::2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 8/12/19 ms

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 108
Lab 8:IPV6 MULTICAST

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 109
IPV6 MULTICAST WITH EMMBEDED RP
IF RP ADDRESS IS : 2001:DB8:33:3::3/64
THEN ERP IS : FF7E:0340:2001:DB8:33:3:10:10
FF = MULTICAST START
7= FLAG FOR ERP
E= GLOBAL SCOPE
0= FIX
3 IS RP ADDRESS LAST NUMBER:
40 IS /64 HEX NOTATION
2001:DB8:33:3/64 NETWORK PREFIX
10:10 LAST 32 BIT IS GROUP ADDRESSS
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 110
R1 ,R2,R3,R4 IS CONFIG WITH IP ADDRESS GIVEN IN TABLE AND OSPF 1 AREA 0 IS ENABLE
ENABLE THE IPV6 MULTICAST -ROUTING IN ALL THE DEVICES IN THE TOPOLOGY
ipv6 multicast-routing……………….config in all router and host.in global mode.
R3 IS ACT AS RP:
interface Loopback0
no ip address
ipv6 address 2001:DB8:33:3::3/64
ipv6 ospf 1 area 0
ipv6 pim rp-address 2001:DB8:33:3::3…………………….command to config rp.
He re H1 is receiver and H2 IS SENDER

H1 IS CONFIG WITH IPV6 MLD JOIN ERP GROUP ADDRESS:

interface GigabitEthernet0/0
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address dhcp
ipv6 address autoconfig default
ipv6 enable
ipv6 mld join-group FF7E:340:2001:DB8:33:3:10:10
end
verification: on R3:
R3#show ipv6 pim range-list
Static SSM Exp: never Learnt from : ::
FF33::/32 Up: 00:31:18
FF34::/32 Up: 00:31:18
FF35::/32 Up: 00:31:18
FF36::/32 Up: 00:31:18
FF37::/32 Up: 00:31:18
FF38::/32 Up: 00:31:18
FF39::/32 Up: 00:31:18
FF3A::/32 Up: 00:31:18
FF3B::/32 Up: 00:31:18
FF3C::/32 Up: 00:31:18
FF3D::/32 Up: 00:31:18
FF3E::/32 Up: 00:31:18
FF3F::/32 Up: 00:31:18
Static SM RP: 2001:DB8:33:3::3 Exp: never Learnt from : ::
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 111
FF00::/8 Up: 00:28:53
verify on R4:

R4#show ipv6 pim range-list


Static SSM Exp: never Learnt from : ::
FF33::/32 Up: 00:33:16
FF34::/32 Up: 00:33:16
FF35::/32 Up: 00:33:16
FF36::/32 Up: 00:33:16
FF37::/32 Up: 00:33:16
FF38::/32 Up: 00:33:16
FF39::/32 Up: 00:33:16
FF3A::/32 Up: 00:33:16
FF3B::/32 Up: 00:33:16
FF3C::/32 Up: 00:33:16
FF3D::/32 Up: 00:33:16
FF3E::/32 Up: 00:33:16
FF3F::/32 Up: 00:33:16
Embedded SM RP: 2001:DB8:33:3::3 Exp: never Learnt from : ::
FF7E:340:2001:DB8:33:3::/96 Up: 00:00:09
PING FROM H2:
H2#ping ff7e:0340:2001:db8:33:3:10:10
Output Interface: GigabitEthernet0/0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to FF7E:340:2001:DB8:33:3:10:10, timeout is 2 seconds:
Packet sent with a source address of 2001:DB8:1234:4:5209:FF:FE02:0

Reply to request 0 received from 2001:DB8:1234:1:5209:FF:FE01:0, 88 ms


Reply to request 1 received from 2001:DB8:1234:1:5209:FF:FE01:0, 41 ms
Reply to request 2 received from 2001:DB8:1234:1:5209:FF:FE01:0, 25 ms
Reply to request 3 received from 2001:DB8:1234:1:5209:FF:FE01:0, 33 ms
Reply to request 4 received from 2001:DB8:1234:1:5209:FF:FE01:0, 39 ms
Success rate is 100 percent (5/5), round-trip min/avg/max = 25/45/88 ms
5 multicast replies and 0 errors.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 112
Lab 9:IPV6 Zone Based FW

Introduction
The Cisco IOS Zone Based Firewall is one of the most advanced forms of stateful firewall used in the Cisco IOS devices. The zone based
firewall (ZFW) is the successor of Classic IOS firewall or CBAC (Context-Based Access Control). In Zone-Based Policy Firewall, multiple
security zones are defined. Each router interface is configured to be part of one of the zones. The traffic flow is unrestricted between
interfaces belonging to same zone, but traffic flow between two different zones is blocked unless an access policy is defined between
them. In traditional firewall, the policies are applied on the interface itself, whereas in zone-based firewall they are applied between the
zones. Cisco IOS Zone-Based Firewall for IPv6 coexists with Cisco IOS Zone-Based Firewall for IPv4 in order to support IPv6 traffic.

Configuration Example:
The below topology brings a simple network containing two security zones. Host H1 (Client) and H2 (Admin) are connected to inside
interface Gigabit Ethernet 0/1 accessing web server connected to outside interface Gigabit Ethernet 0/0. We will have the goal of allowing
1) Only HTTP and HTTPS traffic for H1 (Client) from the inside to the outside
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 113
2) HTTP, HTTPS and ICMP for H2 (Admin) from the inside to the outside
All other traffic should drop from inside to outside.

Topology Diagram:

Configuration Steps:
Configuration of Zone based firewall on router consists of 5 steps shown as follows:

Step 1: Create zones:


TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 114
ZFW(config)#zone security INSIDE

ZFW(config-sec-zone)#description inside_zone

ZFW(config-sec-zone)#exit

ZFW(config)#zone security OUTSIDE

ZFW(config-sec-zone)#description outside_zone

ZFW(config-sec-zone)#exit

Step 2: Configure interfaces in the zone you just have created:

ZFW(config)#interface gig0/1

ZFW(config-if)#zone-member security INSIDE

ZFW(config-if)#exit

ZFW(config-if)#interface gig0/0

ZFW(config-if)#zone-member security OUTSIDE

ZFW(config-if)#exit

By default, traffic between interfaces in different zones cannot talk to each other while these in the same zone can.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 115
Step 3: Configure the class-maps:
Class maps provide traffic classification and that will reference the traffic to inspect. It is based on one or more match conditions. It can
match based on ACL, protocol or another class map. Conditions can use OR (default), AND, or NOT.

ipv6 access-list IN-TO-OUT-ACL(For allowing ICMPV6 access to H2)

permit icmp host 2001::2 any echo-request sequence 10

class-map type inspect match-any IN-TO-OUT-CLASS

match protocol https

match protocol https

match access-group name IN-TO-OUT-ACL

Step 4: Define the policy for this traffic with a policy map:

Policy maps associate actions with traffic classes. Policy maps determine the firewall policy applied to a class, that can be Pass, drop,
Inspect, Log, Reset. There is always an implicit class-default as the last class in each policy-map. The default action of class-default is
drop.

ZFW(config)#policy-map type inspect IN-TO-OUT-POLICY


TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 116
ZFW(config-pmap)#class type inspect IN-TO-OUT-CLASS

ZFW(config-pmap-c)#inspect

ZFW(config-pmap-c)#exit

ZFW(config-pmap)#class class-default

ZFW(config-pmap-c)#drop

ZFW(config-pmap-c)#exit

You can also configure Parameter maps for connecting thresholds, timeouts, and other parameters pertaining to the inspect action.

ZFW(config)#parameter-map type inspect ipv6-header

ZFW(config-profile)#sessions maximum 10000

ZFW(config-profile)#ipv6 routing-header-enforcement loose

ZFW(config-profile)#exit

ZFW(config)#

Step 5: Apply policy-maps to zone pairs:


zone-pairs which essentially define directionality of traffic. Policy map is then applied to each configured zone pair.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 117
ZFW(config)#zone-pair security IN-TO-OUT source INSIDE destination OUTSIDE

ZFW(config-sec-zone-pair)#service-policy type inspect IN-TO-OUT-POLICY

ZFW(config-sec-zone-pair)#exit

ZFW(config)#

Verification:
1) To display zones, descriptions, and interfaces zones are applied to use "show zone security" command.

2) To display zone pairs and service policy associated with each zone pair use "show zone-pair security" command.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 118
3) Use "sh policy-map type inspect zone-pair sessions" to displays Cisco stateful packet inspection sessions created because a
policy map is applied on the specified zone pair.

The below output display, when session established by Host H2 (2001::2/128) to Server for HTTP and HTTPS.

4) The default action of class-default is drop and it is configured with log option. From the below output you can see, when Host
H1(2001::3) try to ping S1, firewall drops these packets and display log message on the terminal.

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 119
Lab 10:IPV6 PE&VPE

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 120
CONFIG IPV4 ADDRESS AND OSPF AREA 0
AND LDP IN MPLS CLOUD FROM R1 TO R4.
CONFIG BGP BEETWEEN R1 TO R5 AND R4
TO R6.
CONFIG INT LO0 WITH /32 ON R1 TO R4 SEE THE IP GIVEN IN TOPOLOGY
R1 BGP CONFIG :
router bgp 1234
bgp log-neighbor-changes
no bgp default ipv4-unicast
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 121
neighbor 2001:DB8:1234:1::5 remote-as 5
neighbor 192.168.60.4 remote-as 1234
neighbor 192.168.60.4 update-source Loopback0
!
address-family ipv4
exit-address-family
!
address-family ipv6
neighbor 2001:DB8:1234:1::5 activate
neighbor 192.168.60.4 activate
neighbor 192.168.60.4 next-hop-self
neighbor 192.168.60.4 send-label
exit-address-family
R4 BGP CONFIG:
router bgp 1234
bgp router-id 192.168.60.4
bgp log-neighbor-changes
no bgp default ipv4-unicast
neighbor 2001:DB8:1234:4::6 remote-as 6
neighbor 192.168.60.1 remote-as 1234
neighbor 192.168.60.1 update-source Loopback0
!
address-family ipv4
exit-address-family
!
address-family ipv6
neighbor 2001:DB8:1234:4::6 activate
neighbor 192.168.60.1 activate
neighbor 192.168.60.1 next-hop-self
neighbor 192.168.60.1 send-label
exit-address-family
VERIFY BGP TABLE ON R5
R5#show bgp ipv6 unicast
BGP table version is 9, local router ID is 5.5.5.5
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 122
Network Next Hop Metric LocPrf Weight Path
*> 2001:DB8:1234:1::/64
:: 0 32768 ?
*> 2001:DB8:1234:4::/64
2001:DB8:1234:1::1
0 1234 6 ?
*> 2005::/64 :: 0 32768 ?
*> 2006::/64 2001:DB8:1234:1::1
0 1234 6 ?
VERIFY BGP TABLE ON R6
R6#show bgp ipv6 unicast
BGP table version is 9, local router ID is 6.6.6.6
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

Network Next Hop Metric LocPrf Weight Path


*> 2001:DB8:1234:1::/64
2001:DB8:1234:4::4
0 1234 5 ?
*> 2001:DB8:1234:4::/64
:: 0 32768 ?
*> 2005::/64 2001:DB8:1234:4::4
0 1234 5 ?
*> 2006::/64 :: 0 32768 ?
R6#
ping from R5 to R6:
R5#ping 2006::6
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2006::6, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 18/27/40 ms
TRACE FROM R5 TO R6
R5#TRaceroute 2006::6
Type escape sequence to abort.
Tracing the route to 2006::6

1 2001:DB8:1234:1::1 17 msec 8 msec 4 msec


TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 123
2 ::FFFF:192.168.12.2 [MPLS: Labels 200/406 Exp 0] 28 msec 23 msec 17 msec
3 ::FFFF:192.168.23.3 [MPLS: Labels 300/406 Exp 0] 25 msec 17 msec 13 msec
4 2001:DB8:1234:4::4 [AS 6] [MPLS: Label 406 Exp 0] 23 msec 16 msec 17 msec
5 2001:DB8:1234:4::6 [AS 6] 33 msec 46 msec 19 msec
NOW FOR IPV6 VPE DIFFRENCE IS THAT PE TO CE LINK IS VRF AWARE. ONLY CHANGE IS REQ IN R1 AND R4.
R1 CONFIG :
vrf definition CUS1
rd 1234:14
route-target export 1234:14
route-target import 1234:14
!
address-family ipv6
exit-address-family
!
interface GigabitEthernet0/0
vrf forwarding CUS1
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address 2001:DB8:1234:1::1/64
router bgp 1234
bgp log-neighbor-changes
no bgp default ipv4-unicast
neighbor 192.168.60.4 remote-as 1234
neighbor 192.168.60.4 update-source Loopback0
!
address-family ipv4
exit-address-family
!
address-family vpnv6
neighbor 192.168.60.4 activate
neighbor 192.168.60.4 send-community extended
neighbor 192.168.60.4 next-hop-self
exit-address-family
!
address-family ipv6 vrf CUS1
neighbor 2001:DB8:1234:1::5 remote-as 5
neighbor 2001:DB8:1234:1::5 activate
exit-address-family
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 124
R4 CONFIG:
router bgp 1234
bgp log-neighbor-changes
no bgp default ipv4-unicast
neighbor 192.168.60.4 remote-as 1234
neighbor 192.168.60.4 update-source Loopback0
!
address-family ipv4
exit-address-family
!
address-family vpnv6
neighbor 192.168.60.4 activate
neighbor 192.168.60.4 send-community extended
neighbor 192.168.60.4 next-hop-self
exit-address-family
!
address-family ipv6 vrf CUS1
neighbor 2001:DB8:1234:1::5 remote-as 5
neighbor 2001:DB8:1234:1::5 activate
exit-address-family
interface GigabitEthernet0/0
vrf forwarding CUS1
no ip address
duplex auto
speed auto
media-type rj45
ipv6 address 2001:DB8:1234:4::4/64
router bgp 1234
bgp router-id 192.168.60.4
bgp log-neighbor-changes
no bgp default ipv4-unicast
neighbor 192.168.60.1 remote-as 1234
neighbor 192.168.60.1 update-source Loopback0
!
address-family ipv4
exit-address-family
!
address-family vpnv6
neighbor 192.168.60.1 activate
neighbor 192.168.60.1 send-community extended
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 125
neighbor 192.168.60.1 next-hop-self
exit-address-family
!
address-family ipv6 vrf CUS1
neighbor 2001:DB8:1234:4::6 remote-as 6
neighbor 2001:DB8:1234:4::6 activate
exit-address-family
ping from R6 TO R5
R6#PING 2005::5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2005::5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 12/26/63 ms
TRACE FROM R6 TO R5
R6#traceroute 2005::5
Type escape sequence to abort.
Tracing the route to 2005::5

1 2001:DB8:1234:4::4 27 msec 14 msec 10 msec


2 ::FFFF:192.168.34.3 [MPLS: Labels 302/106 Exp 0] 57 msec 27 msec 20 msec
3 ::FFFF:192.168.23.2 [MPLS: Labels 202/106 Exp 0] 34 msec 27 msec 24 msec
4 2001:DB8:1234:1::1 [AS 5] [MPLS: Label 106 Exp 0] 22 msec 23 msec 22 msec
5 2001:DB8:1234:1::5 [AS 5] 18 msec 29 msec 25 msec

TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public 126
TECRST-2300
14448_04_2008_c1 © 2008 Cisco Systems, Inc. All rights reserved. Cisco Public

You might also like
