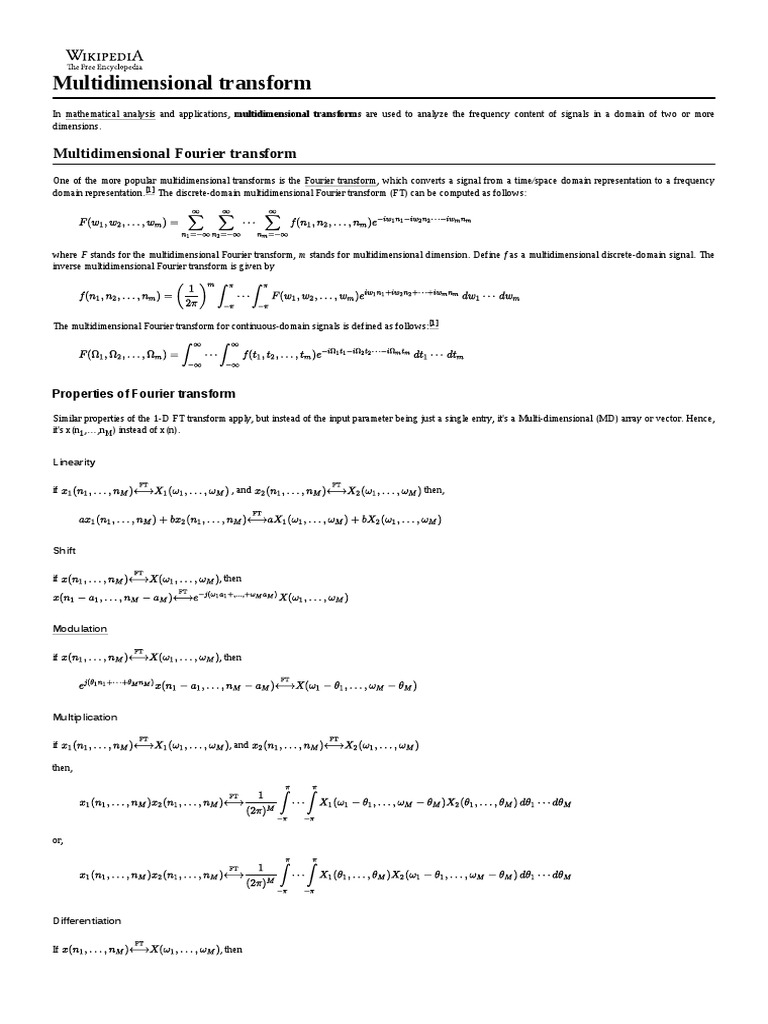

Multidimensional transform

In mathematical analysis and applications, multidimensional transforms are used to analyze the frequency content of signals in a domain of two or more
dimensions.

Multidimensional Fourier transform

One of the more popular multidimensional transforms is the Fourier transform, which converts a signal from a time/space domain representation to a frequency
domain representation.[1] The discrete-domain multidimensional Fourier transform (FT) can be computed as follows:

where F stands for the multidimensional Fourier transform, m stands for multidimensional dimension. Define f as a multidimensional discrete-domain signal. The
inverse multidimensional Fourier transform is given by

The multidimensional Fourier transform for continuous-domain signals is defined as follows:[1]

Properties of Fourier transform

Similar properties of the 1-D FT transform apply, but instead of the input parameter being just a single entry, it's a Multi-dimensional (MD) array or vector. Hence,
it's x(n1 ,…,nM ) instead of x(n).

Linearity

if , and then,

Shift

if , then

Modulation

if , then

Multiplication

if , and

then,



or,



Differentiation

If , then
Transposition

If , then

Reflection

If , then

Complex conjugation

If , then

Parseval's theorem (MD)

if , and then,

if , then

A special case of the Parseval's theorem is when the two multi-dimensional signals are the same. In this case, the theorem portrays the energy conservation of the
signal and the term in the summation or integral is the energy-density of the signal.

Separability

A signal or system is said to be separable if it can be expressed as a product of 1-D functions with different independent variables. This phenomenon allows
computing the FT transform as a product of 1-D FTs instead of multi-dimensional FT.

if , , ... , and if , then

, so

MD FFT

A fast Fourier transform (FFT) is an algorithm to compute the discrete Fourier transform (DFT) and its inverse. An FFT computes the DFT and produces exactly
the same result as evaluating the DFT definition directly; the only difference is that an FFT is much faster. (In the presence of round-off error, many FFT
algorithms are also much more accurate than evaluating the DFT definition directly).There are many different FFT algorithms involving a wide range of
mathematics, from simple complex-number arithmetic to group theory and number theory. See more in FFT.

MD DFT

The multidimensional discrete Fourier transform (DFT) is a sampled version of the discrete-domain FT by evaluating it at sample frequencies that are uniformly
spaced.[2] The N1 × N2 × ... Nm DFT is given by:
for 0 ≤ Ki ≤ Ni − 1, i = 1, 2, ..., m.

The inverse multidimensional DFT equation is

for 0 ≤ n1 , n2 , ... , nm ≤ N(1, 2, ... , m) – 1.

Multidimensional discrete cosine transform

The discrete cosine transform (DCT) is used in a wide range of applications such as data compression, feature extraction, Image reconstruction, multi-frame
detection and so on. The multidimensional DCT is given by:

for ki = 0, 1, ..., Ni − 1, i = 1, 2, ..., r.

Multidimensional Laplace transform

The multidimensional Laplace transform is useful for the solution of boundary value problems. Boundary value problems in two or more variables characterized
by partial differential equations can be solved by a direct use of the Laplace transform.[3] The Laplace transform for an M-dimensional case is defined[3] as

where F stands for the s-domain representation of the signal f(t).

A special case (along 2 dimensions) of the multi-dimensional Laplace transform of function f(x,y) is defined[4] as

is called the image of and is known as the original of . This special case can be used to solve the Telegrapher's equations.}

Multidimensional Z transform[5]
The multidimensional Z transform is used to map the discrete time domain multidimensional signal to the Z domain. This can be used to check the stability of
filters. The equation of the multidimensional Z transform is given by

where F stands for the z-domain representation of the signal f(n).

A special case of the multidimensional Z transform is the 2D Z transform which is given as

The Fourier transform is a special case of the Z transform evaluated along the unit circle (in 1D) and unit bi-circle (in 2D). i.e. at
Figure 1.1a
where z and w are vectors.

Region of convergence

Points (z1 ,z2 ) for which are located in the ROC.

An example:

If a sequence has a support as shown in Figure 1.1a, then its ROC is shown in Figure 1.1b. This follows that |F(z1 ,z2 )| < ∞ .

lies in the ROC, then all points that satisfy |z1|≥|z01| and |z2|≥|z02 lie in the ROC.

Therefore, for figure 1.1a and 1.1b, the ROC would be

Figure 1.1b
where L is the slope.

The 2D Z-transform, similar to the Z-transform, is used in multidimensional signal processing to relate a two-dimensional discrete-time signal to the complex
frequency domain in which the 2D surface in 4D space that the Fourier transform lies on is known as the unit surface or unit bicircle.

Applications
The DCT and DFT are often used in signal processing[6] and image processing, and they are also used to efficiently solve partial differential equations by spectral
methods. The DFT can also be used to perform other operations such as convolutions or multiplying large integers. The DFT and DCT have seen wide usage
across a large number of fields, we only sketch a few examples below.

Image processing

The DCT is used in JPEG image compression, MJPEG, MPEG, DV, Daala, and Theora video compression. There,
the two-dimensional DCT-II of NxN blocks are computed and the results are quantized and entropy coded. In this
case, N is typically 8 and the DCT-II formula is applied to each row and column of the block. The result is an 8x8
transform coefficient array in which the: (0,0) element (top-left) is the DC (zero-frequency) component and entries
with increasing vertical and horizontal index values represent higher vertical and horizontal spatial frequencies, as
shown in the picture on the right.

In image processing, one can also analyze and describe unconventional cryptographic methods based on 2D DCTs,
for inserting non-visible binary watermarks into the 2D image plane,[7] and According to different orientations, the 2-
D directional DCT-DWT hybrid transform can be applied in denoising ultrasound images.[8] 3-D DCT can also be
used to transform video data or 3-D image data in watermark embedding schemes in transform domain.[9][10]

Spectral analysis Two-dimensional DCT frequencies from

the JPEG DCT
When the DFT is used for spectral analysis, the {xn } sequence usually represents a finite set of uniformly spaced time-
samples of some signal x(t) where t represents time. The conversion from continuous time to samples (discrete-time)
changes the underlying Fourier transform of x(t) into a discrete-time Fourier transform (DTFT), which generally entails a type of distortion called aliasing. Choice
of an appropriate sample-rate (see Nyquist rate) is the key to minimizing that distortion. Similarly, the conversion from a very long (or infinite) sequence to a
manageable size entails a type of distortion called leakage, which is manifested as a loss of detail (aka resolution) in the DTFT. Choice of an appropriate sub-
sequence length is the primary key to minimizing that effect. When the available data (and time to process it) is more than the amount needed to attain the desired
frequency resolution, a standard technique is to perform multiple DFTs, for example to create a spectrogram. If the desired result is a power spectrum and noise or
randomness is present in the data, averaging the magnitude components of the multiple DFTs is a useful procedure to reduce the variance of the spectrum (also
called a periodogram in this context); two examples of such techniques are the Welch method and the Bartlett method; the general subject of estimating the power
spectrum of a noisy signal is called spectral estimation.

A final source of distortion (or perhaps illusion) is the DFT itself, because it is just a discrete sampling of the DTFT, which is a function of a continuous frequency
domain. That can be mitigated by increasing the resolution of the DFT. That procedure is illustrated at § Sampling the DTFT.

The procedure is sometimes referred to as zero-padding, which is a particular implementation used in conjunction with the fast Fourier
transform (FFT) algorithm. The inefficiency of performing multiplications and additions with zero-valued "samples" is more than offset by the
inherent efficiency of the FFT.
As already noted, leakage imposes a limit on the inherent resolution of the DTFT. So there is a practical limit to the benefit that can be
obtained from a fine-grained DFT.

Partial differential equations

Discrete Fourier transforms are often used to solve partial differential equations, where again the DFT is used as an approximation for the Fourier series (which is
recovered in the limit of infinite N). The advantage of this approach is that it expands the signal in complex exponentials einx, which are eigenfunctions of
differentiation: d/dx einx = in einx. Thus, in the Fourier representation, differentiation is simple—we just multiply by i n. (Note, however, that the choice of n is not
unique due to aliasing; for the method to be convergent, a choice similar to that in the trigonometric interpolation section above should be used.) A linear
differential equation with constant coefficients is transformed into an easily solvable algebraic equation. One then uses the inverse DFT to transform the result back
into the ordinary spatial representation. Such an approach is called a spectral method.

DCTs are also widely employed in solving partial differential equations by spectral methods, where the different variants of the DCT correspond to slightly
different even/odd boundary conditions at the two ends of the array.

Laplace transforms are used to solve partial differential equations. The general theory for obtaining solutions in this technique is developed by theorems on Laplace
transform in n dimensions.[3]

The multidimensional Z transform can also be used to solve partial differential equations.[11]

Image processing for arts surface analysis by FFT

One very important factor is that we must apply a non-destructive method to obtain those rare valuables information (from the HVS viewing point, is focused in
whole colorimetric and spatial information) about works of art and zero-damage on them. We can understand the arts by looking at a color change or by measuring
the surface uniformity change. Since the whole image will be very huge, so we use a double raised cosine window to truncate the image:[12]

where N is the image dimension and x, y are the coordinates from the center of image spans from 0 to N/2. The author wanted to compute an equal value for spatial
frequency such as:[12]
where "FFT" denotes the fast Fourier transform, and f is the spatial frequency spans from 0 to N/2 – 1. The proposed FFT-based imaging approach is diagnostic
technology to ensure a long life and stable to culture arts. This is a simple, cheap which can be used in museums without affecting their daily use. But this method
doesn’t allow a quantitative measure of the corrosion rate.

Application to weakly nonlinear circuit simulation [13]

The inverse multidimensional Laplace transform can be applied to simulate nonlinear circuits. This is
done so by formulating a circuit as a state-space and expanding the Inverse Laplace Transform based on
Laguerre function expansion.

The Laguerre method can be used to simulate a weakly nonlinear circuit and the Laguerre method can
invert a multidimensional Laplace transform efficiently with a high accuracy.
An example of a weakly nonlinear circuit
It is observed that a high accuracy and significant speedup can be achieved for simulating large nonlinear
circuits using multidimensional Laplace transforms.
