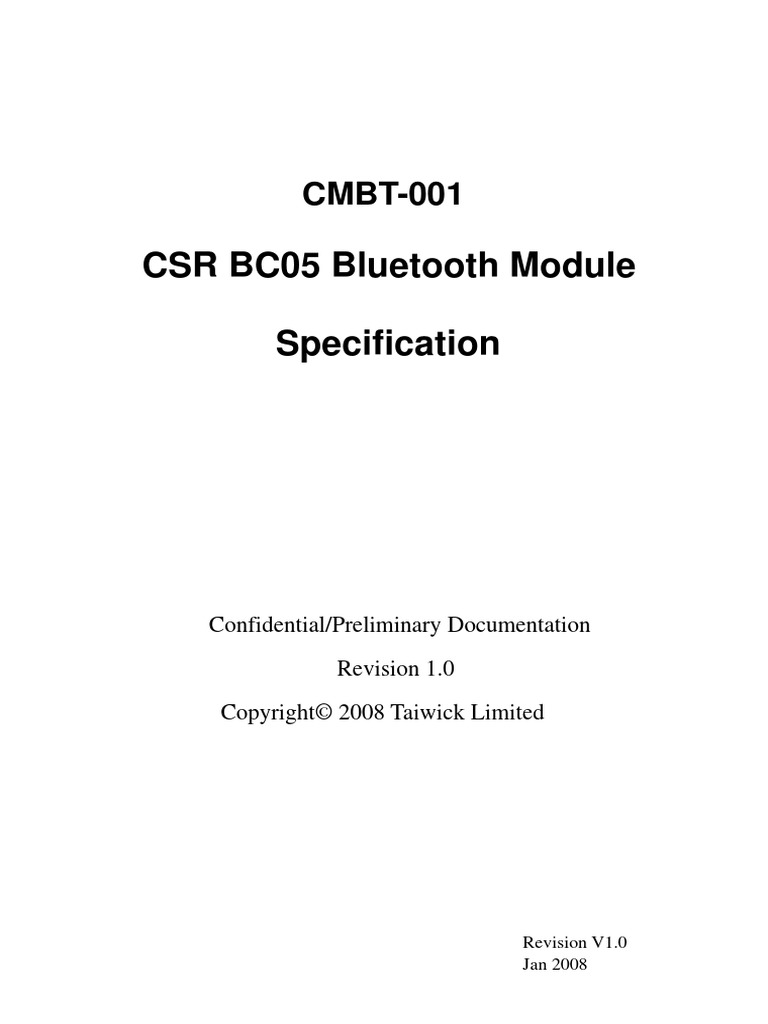

CMBT-001

CSR BC05 Bluetooth Module

Specification

Confidential/Preliminary Documentation
Revision 1.0
Copyright© 2008 Taiwick Limited

Revision V1.0
Jan 2008
1. General
Overview
This product is a Class 2 SMT Bluetooth Module used CSR
BC5-MultiMedia External. It provides data and voice communications.
It integrates RF& Baseband controller in small package and interfaces
with a host through USB or UART.

Block Diagram

Revision V1.0
Jan 2008
1.2 Features
Bluetooth Module
Fully Qualified Bluetooth v2.0+EDR
Enhanced Data Rate(EDR)
USB 1.1 and UART Host Interface
Integrate Switched –Mode regulator
Integrate battery charger
Integrate microphone bias
Integrate LED driver
Built in 16-bit stereo codec
Multi-configurable I2S,PCM or SPDIF interface
Enhanced audibility and noise cancellation
Support for 802.11 co-existence
Low power consumption
RoHS compliant

1.3 Application
Notebook PC, Desktop PC
PDA
Cordless headset
Digital camera & printer
GPS,POS, Barcode Reader
Domestic and industrial applications
Access Point
Serial Adapter

Revision V1.0
Jan 2008
1.4 Pin Configuration

Dimension: 21mm(L) x13.5mm(W) x 2.35mm(H)

Revision V1.0
Jan 2008
1.5 Device Terminal Functions

Revision V1.0
Jan 2008
2. Characteristics
2.1 Electrical Characteristics

Absolute Maximum Ratings

Rating Minimum Maximum

Storage temperature -40
85

Supply voltage: VDD 2.7V 3.6V

Recommended Operating Conditions
Operating Condition Minimum Maximum
Operating temperature range -20
75

Supply voltage: VDD 3.0V 3.6V
Battery Voltage VDD-BAT 3.3V 4.25V
Antenna gain 0dBi

Revision V1.0
Jan 2008
 2.2 RF Characteristics
Transmitter
Specification Condition Min Typ Max Unit
Output transmit power Normal -6 1 4 dBm
Transmit power density Normal 4 dBm
Transmit power control Normal 2 8 dBm
Frequency rang Normal 2400 2483.5 MHz
950 1000 kHz
20dB bandwidth for modulated carrier Normal

2MHz -20
Adjacent channel transmit power 3MHz -40 dBm
4MHz -40
F1avg 140 165 175 kHz
Modulation characteristics F2avg 115 140 kHz
F2avg/f1avg 90 80 %
Initial carrier frequency tolerance Normal -75 75 kHz
One slot packet(DH1) -25 25
Carrier frequency drift Three slot packet(DH3) -40 40 kHz
Five slot packet(DH5) -40 40
Transceiver
Specification Conditin Min Typ Max Unit
30MHz~1GHz -36
1GHz~12.75GHz -30
Adjacent channel transmit power
1.8GHz~5.1GHz -47 dBm
5.1GHz~5.3GHz -47
Receiver
Specification Condition Min Typ Max Unit
Sensitivity(0.1% BER) Single slot packets -70 -86 dBm
Tranmit power density Multi slot packets -70 -86 dBm
Co-channel 9 11
1MHz(Adjacent channel) -4 0
C/I performance dB
2MHz(2nd adjacent channel) -21 -20
3MHz(3rd adjacent channel) -45 -40

30MHz~2000MHz -10
2000MHz~2400MHz -27 dBm
Blocking performance
2500MHz~3000MHz -27
3000MHz~12.75GHz -10

Intermodulation performance n=5 -39 -30 dBm
