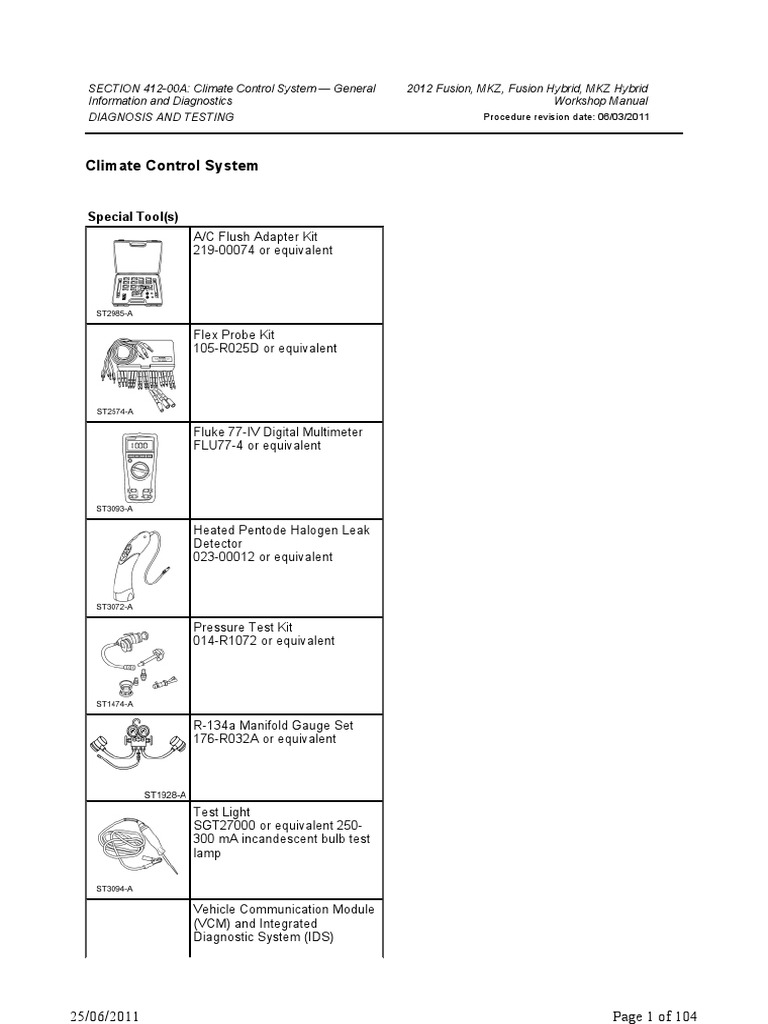

SECTION 412-00A: Climate Control System — General 2012 Fusion, MKZ, Fusion Hybrid, MKZ Hybrid
Information and Diagnostics Workshop Manual

DIAGNOSIS AND TESTING Procedure revision date: 06/03/2011
Climate Control System
Special Tool(s)
A/C Flush Adapter Kit
219-00074 or equivalent
Flex Probe Kit

105-R025D or equivalent
Fluke 77-IV Digital Multimeter

FLU77-4 or equivalent
Heated Pentode Halogen Leak

Detector
023-00012 or equivalent
Pressure Test Kit

014-R1072 or equivalent
R-134a Manifold Gauge Set

176-R032A or equivalent
Test Light
SGT27000 or equivalent 250-
300 mA incandescent bulb test
lamp
Vehicle Communication Module

(VCM) and Integrated
Diagnostic System (IDS)
25/06/2011 Page 1 of 104

software with appropriate
hardware, or equivalent scan
tool
Principles of Operation
There are 4 main principles involved with the basic theory of operation:
l Heat transfer
l Latent heat of vaporization
l Relative humidity
l Effects of pressure
Heat Transfer
If 2 substances of different temperature are placed near each other, the heat in the warmer substance
will transfer to the colder substance.
Latent Heat of Vaporization
When a liquid boils (converts to gas), it absorbs heat without raising the temperature of the resulting gas.
When the gas condenses (converts back to a liquid), it gives off heat without lowering the temperature of
the resulting liquid.
Relative Humidity
The amount of moisture (water vapor content) that the air can hold is directly related to the air
temperature. The more heat there is in the air, the more moisture the air can hold. The lower the
moisture content in the air, the more comfortable occupants feel. Removing the moisture from the air
lowers its relative humidity and improves personal comfort.
Effects of Pressure on Boiling or Condensation
As the pressure is increased on a liquid, the temperature at which the liquid boils (converts to gas) also
increases. Conversely, when the pressure on a liquid is reduced, its boiling point is also reduced. When
in the gas state, an increase in pressure causes an increase in temperature, while a decrease in
pressure will decrease the temperature of the gas.
Compressor Anti-Slugging Strategy (CASS)
Liquid refrigerant may accumulate in the A/C compressor under certain conditions. To alleviate damage
to the A/C compressor, Compressor Anti-Slugging Strategy (CASS) is utilized.
CASS is initiated only under specific conditions:
l The ignition is off for more than 8 hours

l The ambient temperature is above -4°C (25°F)
l Battery voltage is above 8.5 volts during engine cranking
When these conditions are present, the PCM will activate the A/C control relay prior to cranking of the
engine. The A/C control relay engages the A/C compressor for approximately 4-15 A/C compressor
25/06/2011 Page 2 of 104

revolutions or a maximum of 2 seconds (depending upon vehicle application), allowing the liquid
refrigerant to be pushed from the A/C compressor. CASS is initiated by the PCM regardless of the
system settings.
The Refrigerant Cycle
During stabilized conditions (A/C system shutdown), the refrigerant pressures are equal throughout the
system. When the A/C compressor is in operation, it increases pressure on the refrigerant vapor, raising
its temperature. The high-pressure and high-temperature vapor is then released into the top of the A/C
condenser core.
The A/C condenser, being close to ambient temperature, causes the refrigerant vapor to condense into
a liquid when heat is removed from the refrigerant by ambient air passing over the fins and tubing. The
now liquid refrigerant, still at high pressure, exits from the bottom of the A/C condenser and enters the
inlet side of the A/C receiver/drier. The receiver/drier is designed to remove moisture from the
refrigerant.
The outlet of the receiver/drier is connected to the Thermostatic Expansion Valve (TXV). The TXV
provides the orifice which is the restriction in the refrigerant system and separates the high and low
pressure sides of the A/C system. As the liquid refrigerant passes across this restriction, its pressure
and boiling point are reduced.
The liquid refrigerant is now at its lowest pressure and temperature. As it passes through the A/C
evaporator, it absorbs heat from the airflow passing over the plate/fin sections of the A/C evaporator.
This addition of heat causes the refrigerant to boil (convert to gas). The now cooler air can no longer
support the same humidity level of the warmer air and this excess moisture condenses on the exterior of
the evaporator coils and fins and drains outside the vehicle.
The refrigerant cycle is now repeated with the A/C compressor again increasing the pressure and
temperature of the refrigerant.
A thermistor which monitors the temperature of the air that has passed through the evaporator core
controls A/C clutch cycling. If the temperature of the evaporator core discharge air is low enough to
cause the condensed water vapor to freeze, the A/C clutch is disengaged by the vehicle PCM.
The high-side line pressure is also monitored so that A/C compressor operation will be interrupted if the
system pressure becomes too high or is determined to be too low (low charge condition).
The A/C compressor thermal protection switch will interrupt compressor operation if the compressor
housing exceeds temperature limits.
The A/C compressor relief valve will open and vent refrigerant to relieve unusually high system pressure.
Thermostatic Expansion Valve (TXV) Type Refrigerant System
25/06/2011 Page 3 of 104

Item Description
1 A/C evaporator core
2 A/C evaporator core temperature sensor
3 Thermostatic Expansion Valve (TXV)
4 A/C charge valve port (low side)
25/06/2011 Page 4 of 104

5 A/C suction line
6 A/C compressor
7 A/C pressure relief valve
8 A/C pressure transducer
9 Low-pressure vapor
10 High-pressure vapor
11 Low-pressure liquid
12 High-pressure liquid
13 Compressor discharge line
14 A/C desiccant cartridge
15 A/C condenser core with A/C receiver/drier
16 Condenser-to-evaporator line
17 A/C charge valve port (high side)
Inspection and Verification
1. Verify the customer's concern by operating the climate control system to duplicate the condition.
2. Inspect to determine if one of the following mechanical or electrical concerns apply:
Visual Inspection Chart

Mechanical Electrical
l Loose, missing or damaged A/C compressor l Battery Junction Box (BJB)
drive belt fuse:
l Loose or disconnected A/C clutch n 25 (10A)
l Broken or binding door/actuator n 35 (40A)
l Broken or leaking refrigerant lines n 47 (10A)
l Obstructed in-vehicle temperature sensor l Smart Junction Box (SJB) fuse:
l Disconnected in-vehicle temperature aspirator n 15 (10A)
hose n 45 (5A)
l Blower motor inoperative
l A/C compressor inoperative
l Circuitry open/shorted
l Disconnected electrical
connectors
l Cooling fan inoperative
3. If the inspection reveals obvious concerns that can be readily identified, repair as necessary.
4. NOTE: Make sure to use the latest scan tool software release.
If the cause is not visually evident, connect the scan tool to the Data Link Connector (DLC).
5. NOTE: The Vehicle Communication Module (VCM) LED prove-out confirms power and ground
from the DLC are provided to the VCM .
If the scan tool does not communicate with the VCM :

l check the VCM connection to the vehicle.
l check the scan tool connection to the VCM .
l refer to Section 418-00 , No Power To The Scan Tool, to diagnose no power to the scan
tool.
25/06/2011 Page 5 of 104

6. If the scan tool does not communicate with the vehicle:
l verify the ignition key is in the ON position.
l verify the scan tool operation with a known good vehicle.
l refer to Section 418-00 to diagnose no response from the PCM, HVAC module.
7. Carry out the network test.

l If the scan tool responds with no communication from one or more modules, refer to
Section 418-00 .
l If the network test passes, retrieve and record the Continuous Memory Diagnostic Trouble
Codes (CMDTCs).
8. Clear the continuous DTCs and carry out the self-test diagnostics from the PCM or HVAC
module.
9. NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose
those first. Refer to the PCM DTC Chart.
If the HVAC DTCs retrieved are related to the concern, go to the HVAC Module DTC Chart. If the
PCM DTCs retrieved are related to the concern, go to the PCM DTC Chart. For all other DTCs,
refer to Section 419-10 .
10. If no DTCs related to the concern are retrieved, GO to Symptom Chart - Climate Control Systems
or GO to Symptom Chart - NVH .
DTC Charts
PCM DTC Chart

DTC Description Action to Take
P0532 A/C Pressure GO to Pinpoint Test A .
Refrigerant Sensor
A Circuit Low
P0533 A/C Refrigerant GO to Pinpoint Test A .
Pressure Sensor A
Circuit High
P0645 Air Conditioning GO to Pinpoint Test B .
Clutch Relay
(A/CCR) Control
Circuit
P1464 A/C Demand Out Of If the HVAC selector was not in the OFF position, place it in the OFF
Self Test Range position, CLEAR the DTCs and REPEAT the self-test. If the DTC does
not return, ignore the DTC and continue diagnostics. If the DTC
returns, INSTALL a new HVAC module. CLEAR the DTCs and
REPEAT the self-test.
All — REFER to Powertrain Control/Emissions Diagnosis (PC/ED) manual.
Other
DTCs
HVAC Module DTC Chart
NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure
25/06/2011 Page 6 of 104

type code provides information about specific fault conditions such as opens or shorts to ground.
Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status
code suffix to assist in determining DTC history.
NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those
first. Refer to the PCM DTC Chart.
DTC Description Action to Take

B1081:07 Left Temperature Damper GO to Pinpoint Test P .
Motor: Mechanical Failure
Motor: Circuit Short to
Ground
Battery
Motor: Circuit Open
B1082:07 Right Temperature GO to Pinpoint Test P .
Damper Motor:
Mechanical Failure
Damper Motor: Circuit
Short to Ground
Short to Battery
Open
B1083:11 Recirculation Damper GO to Pinpoint Test J .
Ground
Battery
Motor: Circuit Open
B1086:07 Air Distribution Damper GO to Pinpoint Test K .
Motor: Mechanical
Failures
Ground
Battery
Motor: Circuit Open
B10AF:12 Blower Fan Relay: Circuit Electronic Manual Temperature Control (EMTC) systems, GO
Short to Battery to Pinpoint Test Q .
Dual Automatic Temperature Control (DATC) systems, GO to

Pinpoint Test S .
25/06/2011 Page 7 of 104

B10AF:14 Blower Fan Relay: Circuit For EMTC systems, if the blower motor is inoperative, GO to
Short to Ground or Open Pinpoint Test Q .
For EMTC systems, if the blower motor is always on, GO to

Pinpoint Test R .
For DATC systems, if the blower motor is inoperative, GO to

Pinpoint Test S .
For DATC systems, if the blower motor relay is always on, GO

to Pinpoint Test T .
B10B8:00 Push Buttons: No Sub Without navigation, button held too long may set DTC.
Type Information ATTEMPT to clean buttons. CLEAR the DTCs. REPEAT the
self-test. If code returns, INSTALL a new HVAC module.
With navigation, button held too long may set DTC. ATTEMPT
to clean buttons. CLEAR the DTCs. REPEAT the self-test. If
code returns, INSTALL a new Front Controls Interface Module
(FCIM).
B10B9:12 Blower Control: Circuit GO to Pinpoint Test S .
Short to Battery
B10B9:14 Blower Control: Circuit If the blower motor is inoperative, GO to Pinpoint Test S .
Short to Ground or Open
If the blower motor is always on or operates incorrectly, GO to
Pinpoint Test T .
B11E5:11 Left HVAC Damper GO to Pinpoint Test P .
Position Sensor: Circuit
Short to Ground
B11E5:15 Left HVAC Damper GO to Pinpoint Test P .
Short to Battery or Open
B11E6:11 Right HVAC Damper GO to Pinpoint Test P .
Short to Ground
B11E6:15 Right HVAC Damper GO to Pinpoint Test P .
B11E7:11 Air Distribution Damper GO to Pinpoint Test K .
Short to Ground
B11E7:15 Air Distribution Damper GO to Pinpoint Test K .
B1A61:11 Cabin Temperature GO to Pinpoint Test D .
Sensor: Circuit Short to
Ground
B1A61:15 Cabin Temperature GO to Pinpoint Test D .
Battery or Open
B1A63:11 Right Solar Sensor: Circuit GO to Pinpoint Test F .
Short to Ground
B1A63:15 Right Solar Sensor: Circuit GO to Pinpoint Test F .
B1A64:11 Left Solar Sensor: Circuit GO to Pinpoint Test F .
Short to Ground
25/06/2011 Page 8 of 104

B1A64:15 Left Solar Sensor: Circuit GO to Pinpoint Test F .
B1A68:11 Ambient Temperature GO to Pinpoint Test E .
Ground
B1A68:15 Ambient Temperature GO to Pinpoint Test E .
Battery or Open
B1B71:11 Evaporator Temperature GO to Pinpoint Test G .
Ground
B1B71:15 Evaporator Temperature GO to Pinpoint Test G .
Battery or Open
C1B14:11 Sensor Supply Voltage A: GO to Pinpoint Test C .
Circuit Short to Ground
C1B14:12 Sensor Supply Voltage A: GO to Pinpoint Test C .
Circuit Short to Battery
U0140:00 Lost Communication With REFER to Section 418-00 to diagnose lost communication
Body Control Module: No with the Smart Junction Box (SJB).
Sub Type Information
Instrument Panel Cluster with the IPC module.
(IPC) Module: No Sub
Type Information
navigation Control with the Audio Control Module (ACM).
Module: No Sub Type
Information
Front Controls Interface with the FCIM .
Module (FCIM) "A": No
Sub Type Information
U0422:68 Invalid Data Received This DTC can set due to a fault in the SJB or because the SJB
From Body Control is unable to communicate over the Controller Area Network
Module: Event Information (CAN) bus. CARRY OUT a self-test of the SJB . If the scan
tool indicates that the SJB is not responding, REFER to
Section 418-00 to diagnose the network communication
concern. If SJB DTCs are present, REFER to Section 419-10 .
U0423:68 Invalid Data Received This DTC can set due to a fault in the IPC or because the IPC
From Instrument Panel is unable to communicate over the CAN bus. CARRY OUT a
Cluster Control Module: self-test of the IPC . If the scan tool indicates that the IPC is
Event Information not responding, REFER to Section 418-00 to diagnose the
network communication concern. If IPC DTCs are present,
REFER to Section 413-01 to diagnose the IPC system fault
U0557:68 Invalid Data Received This DTC can set due to a fault in the FCIM or because the
From Front Controls FCIM is unable to communicate over the CAN bus. CARRY
Interface Module (FCIM) OUT a self-test of the FCIM . If the scan tool indicates that the
"A": Event Information FCIM is not responding, REFER to Section 418-00 to
diagnose the network communication concern. If FCIM DTCs
are present, REFER to Section 415-00 to diagnose the FCIM
fault
U1000:00 Solid State Driver INSTALL a new HVAC module. REFER to Section 412-01 .
Protection Activated-
Driver Disabled: No Sub
Type Information
25/06/2011 Page 9 of 104

U2100:00 Initial Configuration Not INSTALL a new HVAC module. REFER to Section 412-01 .
Complete: No Sub Type
Information
U3000:41 Control Module: General INSTALL a new HVAC module. REFER to Section 412-01 .
Checksum Failure
U3002:62 Vehicle Identification INSTALL a new HVAC module. REFER to Section 412-01 .
Number: Signal Compare
Failure
U3003:16 Battery Voltage: Circuit GO to Pinpoint Test H .
Voltage Below Threshold
U3003:17 Battery Voltage: Circuit GO to Pinpoint Test H .
Voltage Above Threshold
All Other — REFER to the Master DTC Chart in Section 419-10 .
DTCs
Symptom Chart — Climate Control Systems
Symptom Chart — Climate Control Systems
NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved,
diagnose those first. Refer to the PCM DTC Chart.
Condition Possible Sources Action
l No l Fuse(s) l REFER to Section 418-00 .
communication l Circuitry open
with the HVAC l HVAC module
module communication
network
l Unable to l HVAC system l GO to Pinpoint Test I .
duplicate the and/or related
customer concern components
and no DTCs
present
l Reduced outlet l Circuitry short l If the A/C compressor does not
airflow l A/C compressor cycle, GO to Pinpoint Test N .
clutch air gap l For Electronic Manual
l A/C cycling Temperature Control (EMTC)
switch systems, if the A/C compressor
l A/C clutch relay cycles normally, GO to Pinpoint
l Blower motor Test R .
l Blower motor l For Dual Automatic Temperature
control Control (DATC) systems, if the
l Blower motor A/C compressor cycles normally,
resistor GO to Pinpoint Test T .
l Blower motor
switch
l PCM
l The air inlet door l Circuitry l GO to Pinpoint Test J .
is inoperative open/shorted
l Door actuator
l Air inlet door
binding or stuck
l HVAC module
l Incorrect/erratic l Circuitry l GO to Pinpoint Test K .
25/06/2011 Page 10 of 104

direction of airflow open/shorted
from outlets l Door actuator
l Mode door
binding or stuck
l HVAC module
l Insufficient, erratic l Low engine l GO to Pinpoint Test L .
or no heat coolant level
l Engine
overheating
l Plugged or
partially plugged
heater core
l Temperature
blend door is
binding or stuck
l Temperature
blend door
actuator
l Heater hose is
kinked or
binding
l The air l Fuse(s) l GO to Pinpoint Test M .
conditioning (A/C) l Circuitry open
is inoperative l A/C system
discharged/low
charge
l PCM
l HVAC module
l A/C clutch relay
l A/C compressor
clutch air gap
l A/C pressure
transducer
l Evaporator
discharge
temperature
sensor
l A/C clutch field
coil
l The air l Circuitry shorted l GO to Pinpoint Test N .
conditioning (A/C) l PCM
is always on — l A/C clutch relay
A/C compressor l A/C compressor
does not cycle clutch air gap
l A/C pressure
transducer
l A/C clutch field
coil
l The air l Circuitry shorted l GO to Pinpoint Test O .
conditioning (A/C) l PCM
is always on — l HVAC module
A/C mode always
commanded ON
l Temperature l Circuitry l GO to Pinpoint Test P .
control is open/shorted
inoperative/does l HVAC module
not operate l Temperature
correctly blend door is
binding or stuck
l Temperature
blend door
25/06/2011 Page 11 of 104

actuator
l The blower motor l Fuse(s) l GO to Pinpoint Test Q .
is inoperative — l Circuitry open
EMTC l Blower motor
relay
l A/C blower
motor
l HVAC module
— EMTC
l The blower motor l Circuitry l GO to Pinpoint Test R .
does not operate open/shorted
correctly — EMTC l A/C blower
motor resistor
l HVAC module
— EMTC
l The blower motor l Fuse(s) l GO to Pinpoint Test S .
is inoperative — l Circuitry
DATC short/open
l Blower motor
relay
l A/C blower
motor
l HVAC module
l A/C blower
motor speed
control
l The blower motor l Circuitry l GO to Pinpoint Test T .
does not operate open/shorted
correctly — DATC l A/C blower
motor speed
control
l HVAC module
l The temperature l Fuse l CARRY OUT the HVAC Module
set point does not l Circuitry Cold Boot Process. If the
repeat after short/open condition returns, INSTALL a new
turning the ignition l HVAC module HVAC module.
switch OFF
l The temperature l HVAC module l INSTALL a new HVAC module.
display will not REFER to Section 412-01 .
switch between
Celsius and
Fahrenheit
l The dual l Temperature l NOTE: For the passenger side
temperature blend temperature setting on hybrid
control is door/actuator vehicles equipped with dual-zone
inoperative/does broken/binding Electronic Automatic
not operate l HVAC module Temperature Control (EATC) and
correctly — Electronic a Front Controls Interface Module
Automatic (FCIM) built on or after
Temperature 04/08/2009 to be functional, a
Control (EATC) passenger must be seated in the
l Low A/C front passenger seat. If the front
refrigerant passenger seat is not occupied,
charge the HVAC module will control the
system based only on the driver
side temperature setting. The
HVAC module receives a
Medium Speed Controller Area
Network (MS-CAN) signal from
the FCIM to indicate if the front
25/06/2011 Page 12 of 104

passenger seat is occupied.
CHECK that the A/C system

pressure is above 290 kPa (42
psi). If the pressure is below 290
kPa (42 psi), REFER to
Fluorescent Dye Leak Detection
in this section. CHECK the
temperature blend
doors/actuators for a binding or
broken condition. If no condition
is found, INSTALL a new HVAC
module.
l Inaccurate l HVAC module l REFER to description and
external l Ambient operation of the HVAC module
temperature temperature external temperature display. If
display sensor the external temperature display
is not operating as described and
no DTC is present, CARRY OUT
the Ambient Temperature Sensor
component test in this section. If
the sensor tests OK, INSTALL a
new HVAC module. REFER to
Section 412-01 . TEST the
system for normal operation.
l A/C pressure l High system l CHECK the high side system
relief valve pressure pressure. If the pressure is below
discharging l A/C pressure the A/C pressure relief valve
relief valve open pressure, REPLACE the
A/C pressure relief valve. If the
system pressure is above the A/C
pressure relief valve open
pressure, REPAIR the system for
a restriction.
Symptom Chart — NVH
Symptom Chart — NVH
NOTE: NVH symptoms will be identified using the diagnostic tools that are available.
For a list of these tools, an explanation of their uses and a glossary of common terms,
refer to Section 100-04 . Since it is possible any one of multiple systems may be the
cause of a symptom, it may be necessary to use a process of elimination type of
diagnostic approach to pinpoint the responsible system. If this is not the causal
system for the symptom, refer back to Section 100-04 for the next likely system and
continue diagnosis.
Condition Possible Sources Action
l Noisy A/C l A/C compressor l CHECK and ADJUST the A/C
compressor clutch air gap out compressor clutch gap if necessary.
clutch of specification REFER to Air Conditioning (A/C)
Clutch Air Gap Adjustment in this
section. TEST the system for normal
operation.
l If the A/C compressor clutch gap is
OK, INSTALL an A/C compressor
clutch. REFER to Section 412-01 .
TEST the system for normal
operation.
25/06/2011 Page 13 of 104

Pinpoint Tests
Pinpoint Test A: DTC P0532 or P0533
Refer to Wiring Diagrams Cell 23 ( Fusion/MKZ , Fusion Hybrid/MKZ Hybrid ), Electronic Engine
Controls — 2.3L for schematic and connector information.
Normal Operation
Under normal operation, the A/C pressure transducer receives a ground from the PCM through circuit
RE407 (YE/VT). A 5-volt reference voltage is supplied to the A/C pressure transducer from the PCM
through circuit LE424 (YE/GN). The A/C pressure transducer sends voltage to the PCM through circuit
VH433 (VT/OG) to indicate the A/C pressure.
l DTC P0532 (A/C Pressure Refrigerant Sensor A Circuit Low) — The A/C pressure transducer
inputs a voltage to the PCM. If the voltage is below the calibrated level, this DTC sets.
l DTC P0533 (A/C Pressure Refrigerant Sensor A Circuit High) — The A/C pressure transducer
inputs a voltage to the PCM. If the voltage is above the calibrated level, this DTC sets.
This pinpoint test is intended to diagnose the following:

l Wiring, terminals or connectors
l A/C pressure transducer
l PCM
PINPOINT TEST A: DTC P0532 OR P0533
Result / Action to
Test Step
Take
A1 CHECK THE PCM OUTPUT VOLTAGE
l Ignition OFF. Yes
l Disconnect: A/C Pressure Transducer C1260. GO to A2 .
l Ignition ON.
l Measure the voltage between ground and A/C pressure transducer No
C1260-2, circuit LE424 (YE/GN), harness side. REPAIR circuit LE424
(YE/GN) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 14 of 104

l Is the voltage between 4.7 and 5.1 volts?
A2 CHECK THE PCM SENSOR GROUND
l Measure the voltage between A/C pressure transducer C1260-1, Yes
circuit RE407 (YE/VT), harness side and A/C pressure transducer If diagnosing DTC
C1260-2, circuit LE424 (YE/GN), harness side. P0532 , GO to A3 . If
diagnosing DTC
P0533 , GO to A5 .
No
REPAIR circuit RE407
(YE/VT) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.

A3 CHECK THE A/C PRESSURE TRANSDUCER HIGH
l Enter the following diagnostic mode on the scan tool: A/C Pressure Yes
(ACP_PRESS) PCM PID. INSTALL a new A/C
l While observing the ACP_PRESS PCM PID, connect a fused pressure transducer.
jumper between A/C pressure transducer C2160-3, circuit VH433 CLEAR the DTCs.
(VT/OG), harness side and A/C pressure transducer C1260-2, REPEAT the self-test.
circuit LE424 (YE/GN), harness side. TEST the system for
normal operation.
No
GO to A4 .
l Does the ACP_PRESS PCM PID voltage read greater than 4

volts?
A4 CHECK CIRCUIT VH433 (VT/OG) FOR A SHORT TO GROUND
25/06/2011 Page 15 of 104

l Ignition OFF. Yes
l Disconnect: PCM C175B. GO to A7 .
l Measure the resistance between ground and A/C pressure
transducer C1260-3, circuit VH433 (VT/OG), harness side. No
REPAIR circuit VH433
(VT/OG) for a short to
ground. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
l Is the resistance greater than 10,000 ohms?

A5 CHECK THE A/C PRESSURE TRANSDUCER HIGH
l Enter the following diagnostic mode on the scan tool: A/C Pressure Yes
(ACP_PRESS) PCM PID. INSTALL a new A/C
l While observing the ACP_PRESS PCM PID, connect a fused pressure transducer.
jumper between A/C pressure transducer C1260-3, circuit VH433 CLEAR the DTCs.
(VT/OG), harness side and A/C pressure transducer C1260-1, REPEAT the self-test.
circuit RE407 (YE/VT), harness side. TEST the system for
normal operation.
No
GO to A6 .
l Does the ACP_PRESS PCM PID voltage read less than 4.9
volts?
A6 CHECK CIRCUIT VH433 (VT/OG) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: PCM C175B. REPAIR circuit VH433
l Ignition ON. (VT/OG) for a short to
l Measure the voltage between ground and A/C pressure transducer voltage. CLEAR the
C1260-3, circuit VH433 (VT/OG), harness side. DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
No
GO to A7 .
25/06/2011 Page 16 of 104

l Is any voltage present?
A7 CHECK CIRCUIT VH433 (VT/OG) FOR A SHORT TO CIRCUIT
LE424 (YE/GN) OR RE407 (YE/VT)
l Ignition OFF. Yes
l NOTE: For DTC P0532 only. GO to A8 .
l Measure the resistance between A/C pressure transducer C1260-
3, circuit VH433 (VT/OG), harness side and A/C pressure No
transducer C1260-1, circuit RE407 (YE/VT), harness side. REPAIR circuit VH433
(VT/OG) for a short to
circuit LE424 (YE/GN)
or RE407 (YE/VT).
CLEAR the DTCs.
TEST the system for
normal operation.
l NOTE: For DTC P0533 only.

l Measure the resistance between A/C pressure transducer C1260-
3, circuit VH433 (VT/OG), harness side and A/C pressure
transducer C1260-2, circuit LE424 (YE/GN), harness side.

A8 CHECK CIRCUIT VH433 (VT/OG) FOR AN OPEN
l For 2.5L and 3.0L only , measure the resistance between A/C Yes
pressure transducer C1260-3, circuit VH433 (VT/OG), harness side GO to A9 .
25/06/2011 Page 17 of 104

and PCM C175B-31, circuit VH433 (VT/OG), harness side.
No
(VT/OG) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.
l For 3.5L only , measure the resistance between A/C pressure

transducer C1260-3, circuit VH433 (VT/OG), harness side and
PCM C175B-63, circuit VH433 (VT/OG), harness side.
l Is the resistance less than 5 ohms?

A9 CHECK THE PCM CONNECTION
l Disconnect all the PCM connectors. Yes
l Inspect the module connectors for: INSTALL a new PCM.
n corrosion. TEST the system for
n pushed-out terminals. normal operation.
n damaged terminals.
l Connect and correctly seat all the PCM connectors. No
l Clear the DTCs. The system is
l Operate the system and verify the concern is still present. operating correctly at
l Is the concern still present? this time. The concern
may have been
caused by a loose or
corroded connector.
Pinpoint Test B: DTC P0645
Refer to Wiring Diagrams Cell 54 ( Fusion/MKZ , Fusion Hybrid/MKZ Hybrid ), Manual Climate Control
System for schematic and connector information.
Refer to Wiring Diagrams Cell 55 ( Fusion/MKZ , Fusion Hybrid/MKZ Hybrid ), Automatic Climate Control
Normal Operation
25/06/2011 Page 18 of 104

Under normal operation, voltage is provided to the A/C clutch relay coil through circuit CBK03 (GY).
When A/C is requested, and A/C line pressures allow, a ground is provided to the A/C clutch relay coil
from the PCM through circuit CH302 (WH/BN), energizing the A/C clutch relay.
l DTC P0645 (A/C Clutch Relay Control Circuit) — The DTC sets when the PCM grounds the relay
circuit and excessive current draw is detected on the relay circuit. The DTC also sets when the
relay circuit is OFF and no voltage is detected on the relay circuit. The PCM expects to detect
voltage coming through the relay coil to the relay circuit when it is not grounding it.

l A/C clutch relay
l PCM
PINPOINT TEST B: DTC P0645
Test Step Result / Action to Take

B1 CHECK THE VOLTAGE TO THE A/C CLUTCH RELAY
l Ignition OFF. Yes
l Disconnect: A/C Clutch Relay. CARRY OUT the A/C
l Ignition ON. clutch relay component
l Measure the voltage between ground and the A/C clutch relay test.
socket, circuit CBK03 (GY).
Refer to Wiring Diagrams
Cell 149 ( Fusion/MKZ ,
Fusion Hybrid/MKZ
Hybrid ) for component
testing.
If the relay tests OK, GO

to B2 .
No
REPAIR circuit CBK03
(GY) for an open.
CLEAR the DTCs.
TEST the system for
l Is the voltage greater than 10 volts? normal operation.
B2 CHECK CIRCUIT CH302 (WH/BN) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: PCM C175B. REPAIR circuit CH302
l Ignition ON. (WH/BN) for a short to
l For 2.5L and 3.0L only , measure the voltage between ground voltage. CLEAR the
and PCM C175B-12, circuit CH302 (WH/BN), harness side. DTCs. REPEAT the self-
test. TEST the system for
normal operation.
No
GO to B3 .
25/06/2011 Page 19 of 104

l For 3.5L only , measure the voltage between ground and PCM
C175B-64, circuit CH302 (WH/BN), harness side.

B3 CHECK CIRCUIT CH302 (WH/BN) FOR A SHORT TO GROUND
l Ignition OFF. Yes
l For 2.5L and 3.0L only , measure the resistance between GO to B4 .
ground and PCM C175B-12, circuit CH302 (WH/BN), harness
side. No
REPAIR circuit CH302
(WH/BN) for a short to
ground. CLEAR the
DTCs. REPEAT the self-
normal operation.
l For 3.5L only , measure the resistance between ground and

PCM C175B-64, circuit CH302 (WH/BN), harness side.
25/06/2011 Page 20 of 104

B4 CHECK CIRCUIT CH302 (WH/BN) FOR AN OPEN
l For 2.5L and 3.0L only , measure the resistance between A/C Yes
clutch relay socket, circuit CH302 (WH/BN) and PCM C175B-12, GO to B5 .
circuit CH302 (WH/BN), harness side.
No
(WH/BN) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.
l For 3.5L only , measure the resistance between A/C clutch

relay socket, circuit CH302 (WH/BN) and PCM C175B-64, circuit
CH302 (WH/BN), harness side.

B5 CHECK THE PCM CONNECTION
25/06/2011 Page 21 of 104

l Clear the DTCs. The system is operating
l Operate the system and verify the concern is still present. correctly at this time. The
l Is the concern still present? concern may have been
corroded connector.
Pinpoint Test C: DTCs C1B14:11 and 12
Normal Operation
Under normal operation, a 5-volt reference voltage is supplied to the sensors and actuators from the
HVAC module through circuit LH111 (BN/WH).
l DTC C1B14:11 (Sensor Supply Voltage A: Circuit Short to Ground) — The module senses less
than 0.1 volt on the sensor reference voltage circuit, indicating a short directly to ground.
l DTC C1B14:12 (Sensor Supply Voltage A: Circuit Short to Battery) — The module senses greater
than 4.9 volts on the sensor reference voltage circuit, indicating a short directly to voltage.

l HVAC module
PINPOINT TEST C: DTCs C1B14:11 AND 12
Result / Action to
Test Step
Take
C1 CHECK THE SENSOR RESISTANCE
l Check for HVAC DTCs. Yes
l Is DTC C1B14:11 present? GO to C2 .
No
GO to C4 .
C2 CHECK CIRCUIT LH111 (BN/WH) FOR A SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual Temperature GO to C3 .
Control (EMTC) C2357a.
l Disconnect: HVAC Module — Dual Automatic Temperature Control No
(DATC) C2356a. REPAIR circuit LH111
l Disconnect: HVAC Module — DATC C2356b. (BN/WH) for a short to
l Measure the resistance between ground and HVAC module — ground. CLEAR the
EMTC C2357a-11 or HVAC module — DATC C2356a-11, circuit DTCs. REPEAT the
LH111 (BN/WH), harness side. self-test. TEST the
system for normal
operation.
25/06/2011 Page 22 of 104

C3 CHECK CIRCUITS LH111 (BN/WH) AND RH111 (GY/BU) FOR A
SHORT TOGETHER
l Measure the resistance between HVAC module — EMTC C2357a- Yes
11 or HVAC module — DATC C2356a-11, circuit LH111 (BN/WH), GO to C5 .
harness side and HVAC module — EMTC C2357a-10 or HVAC
module C2356a-10, circuit RH111 (GY/BU), harness side. No
REPAIR circuits
LH111 (BN/WH) and
RH111 (GY/BU) for a
short together.
CLEAR the DTCs.
TEST the system for
normal operation.
l Is the resistance greater than 200 ohms?

C4 CHECK CIRCUIT LH111 (BN/WH) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. REPAIR circuit LH111
l Disconnect: HVAC Module — DATC C2356a. (BN/WH) for a short to
l Disconnect: HVAC Module — DATC C2356b. voltage. CLEAR the
l Ignition ON. DTCs. REPEAT the
l Measure the voltage between ground and HVAC module — EMTC self-test. TEST the
C2357a-11 or HVAC module — DATC C2356a-11, circuit LH111 system for normal
(BN/WH), harness side. operation.
No
GO to C5 .
25/06/2011 Page 23 of 104

C5 CHECK THE MODULE CONNECTION
l Inspect the module connectors for: Yes
n corrosion. INSTALL a new
n pushed-out terminals. HVAC module.
n damaged terminals. REFER to Section
l Connect and correctly seat all the HVAC module connectors. 412-01 . TEST the
l Clear the DTCs. system for normal
l Operate the system and verify the concern is still present. operation.
l Is the concern still present?
No
The system is
operating correctly at
this time. The concern
may have been
corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
Pinpoint Test D: DTCs B1A61:11 and 15
Normal Operation
Under normal operation, the in-vehicle air temperature sensor receives a ground from the HVAC module
through circuit RH111 (GY/BU). A 5-volt reference voltage is supplied to the in-vehicle air temperature
sensor from the HVAC module through circuit VH414 (GN/BU).
l DTC B1A61:11 (Cabin Temperature Sensor: Circuit Short to Ground) — The module senses
excessive voltage drop on the sensor reference voltage circuit, indicating a short directly to
ground.
l DTC B1A61:15 (Cabin Temperature Sensor: Circuit Short to Battery or Open) — The module
senses no voltage drop on the sensor reference voltage circuit, indicating a short directly to
voltage or an open circuit.

l In-vehicle air temperature sensor
l HVAC module
25/06/2011 Page 24 of 104

PINPOINT TEST D: DTCs B1A61:11 AND 15

D1 CHECK THE SENSOR RESISTANCE
l Ignition OFF. Yes
l Disconnect: In-Vehicle Temperature Sensor C233. GO to D2 .
l Measure the resistance between the in-vehicle temperature
sensor C233 terminals and compare to the table below. No
INSTALL a new in-
Ambient Temperature Resistance vehicle temperature
sensor. CLEAR the
-40°C (-40°F) 869,073-1,061,986 ohms DTCs. REPEAT the self-
-15°C (5°F) 196,465-231,213 ohms
normal operation.
0°C (32°F) 89,982-102,514 ohms
15°C (59°F) 44,261-49,503 ohms
25°C (77°F) 28,500-31,500 ohms
35°C (95°F) 18,563-20,751 ohms
60°C (140°F) 6,971-8,001 ohms
85°C (185°F) 2,959-3,474 ohms
l Is the resistance within the specified values for the

temperatures?
D2 CHECK THE SENSOR OUTPUT VOLTAGE
l Ignition ON. Yes
l Measure the voltage between in-vehicle temperature sensor INSTALL a new in-
C233-1, circuit VH414 (GN/BU), harness side and C233-3, vehicle sensor. CLEAR
circuit RH111 (GY/BU), harness side. the DTCs. REPEAT the
self-test. If code returns,
GO to D8 .
No
For DTC B1A68:15 , GO
to D3 .

to D6 .
25/06/2011 Page 25 of 104

D3 CHECK CIRCUIT VH414 (GN/BU) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — Dual Automatic Temperature REPAIR circuit VH414
Control (DATC) C2356a. (GN/BU) for a short to
l Disconnect: HVAC Module — DATC C2356b. voltage. CLEAR the
l Ignition ON. DTCs. REPEAT the self-
l Measure the voltage between ground and HVAC module — test. TEST the system for
DATC C2356b-21, circuit VH414 (GN/BU), harness side. normal operation.
No
GO to D4 .

D4 CHECK CIRCUIT VH414 (GN/BU) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between HVAC module — DATC GO to D5 .
C2356b-21, circuit VH414 (GN/BU), harness side and in-vehicle
temperature sensor C233-1, circuit VH414 (GN/BU), harness No
side. REPAIR circuit VH414
(GN/BU) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 26 of 104

D5 CHECK CIRCUIT RH111 (GY/BU) FOR AN OPEN
l Measure the resistance between HVAC module C2356a-10, Yes
circuit RH111 (GY/BU), harness side and in-vehicle temperature GO to D8 .
sensor C233-3, circuit RH111 (GY/BU), harness side.
No
REPAIR circuit RH111
(GY/BU) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.

D6 CHECK CIRCUIT VH414 (GN/BU) FOR A SHORT TO CIRCUIT
RH111 (GY/BU)
l Ignition OFF. Yes
l Disconnect: HVAC Module — DATC C2356b. GO to D7 .
l Measure the resistance between in-vehicle temperature sensor
C233-1, circuit VH414 (GN/BU), harness side and C233-3, No
circuit RH111 (GY/BU), harness side. REPAIR circuit VH414
(GN/BU) for a short to
circuit RH111 (GY/BU).
CLEAR the DTCs.
TEST the system for
normal operation.

D7 CHECK CIRCUIT VH414 (GN/BU) FOR A SHORT TO GROUND
l Measure the resistance between HVAC module — DATC Yes
C2356b-21, circuit VH414 (GN/BU), harness side and ground. GO to D8 .
No
(GN/BU) for a short to
ground. CLEAR the
normal operation.
25/06/2011 Page 27 of 104

D8 CHECK THE MODULE CONNECTION
n corrosion. INSTALL a new HVAC
n pushed-out terminals. module. REFER to
n damaged terminals. Section 412-01 . TEST
l Connect and correctly seat all the HVAC module connectors. the system for normal
l Clear the DTCs. operation.
l Operate the system and verify the concern is still present.
l Is the concern still present? No
The system is operating
correctly at this time. The
concern may have been
corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
Pinpoint Test E: DTCs B1A68:11 and 15
Normal Operation
Under normal operation, the ambient air temperature sensor receives a ground from the HVAC module
through circuit RH111 (GY/BU). A 5-volt reference voltage is supplied to the ambient air temperature
sensor from the HVAC module through circuit VH407 (YE/GN).
l DTC B1A68:11 (Ambient Temperature Sensor: Circuit Short to Ground) — The module senses
ground.
l DTC B1A68:15 (Ambient Temperature Sensor: Circuit Short to Battery or Open) — The module
senses no voltage drop on the sensor reference voltage circuit, indicating a short directly to
voltage or an open circuit.

l Ambient air temperature sensor
25/06/2011 Page 28 of 104

l HVAC module
PINPOINT TEST E: DTCs B1A68:11 AND 15

E1 CHECK THE SENSOR RESISTANCE
l Ignition OFF. Yes
l Disconnect: Ambient Air Temperature Sensor C132. GO to E2 .
l Measure the resistance between the ambient air temperature
sensor C132 terminals and compare to the table below. No
INSTALL a new ambient
Ambient Temperature Resistance air temperature sensor.
CLEAR the DTCs.
-40°C (-40°F) 832,519-1,017,523 ohms REPEAT the self-test.
TEST the system for
-15°C (5°F) 199,325-220,307 ohms
normal operation.
0°C (32°F) 91,058-100,644 ohms
15°C (59°F) 44,435-49,113 ohms
25°C (77°F) 28,500-31,500 ohms
35°C (95°F) 18,730-20,701 ohms
60°C (140°F) 7,171-7,925 ohms
85°C (185°F) 3,110-3,438 ohms

temperatures?
E2 CHECK THE SENSOR OUTPUT VOLTAGE
l Ignition ON. Yes
l Measure the voltage between ambient air temperature sensor INSTALL a new ambient
C132-1, circuit VH407 (YE/GN), harness side and C132-2, air temperature sensor.
circuit RH111 (GY/BU), harness side. CLEAR the DTCs.
REPEAT the self-test. If
code returns, GO to E8 .
No
to E3 .

to E6 .
25/06/2011 Page 29 of 104

E3 CHECK CIRCUIT VH407 (YE/GN) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual Temperature REPAIR circuit VH407
Control (EMTC) C2357a. (YE/GN) for a short to
l Disconnect: HVAC Module — Dual Automatic Temperature ground. CLEAR the
Control (DATC) C2356a. DTCs. REPEAT the self-
l Ignition ON. test. TEST the system for
l Measure the voltage between HVAC module — DATC C2356a- normal operation.
2, circuit VH407 (YE/GN), harness side and ground.
No
GO to E4 .

E4 CHECK CIRCUIT VH407 (YE/GN) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between HVAC module — DATC GO to E5 .
C2356a-2, circuit VH407 (YE/GN), harness side and ambient air
temperature sensor C132-1, circuit VH407 (YE/GN), harness No
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 30 of 104

E5 CHECK CIRCUIT RH111 (GY/BU) FOR AN OPEN
C2356a-10, circuit RH111 (GY/BU), harness side and ambient GO to E8 .
air temperature sensor C132-2, circuit RH111 (GY/BU), harness
side. No
CLEAR the DTCs.
TEST the system for
normal operation.

E6 CHECK CIRCUIT VH407 (YE/GN) FOR A SHORT TO CIRCUIT
RH111 (GY/BU)
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to E7 .
l Disconnect: HVAC Module — DATC C2356a.
l Measure the resistance between ambient air temperature sensor No
C132-1, circuit VH407 (YE/GN), harness side and C132-2, REPAIR circuit VH407
circuit RH111 (GY/BU), harness side. (YE/GN) for a short to
circuit RH111 (GY/BU).
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 31 of 104

E7 CHECK CIRCUIT VH407 (YE/GN) FOR A SHORT TO GROUND
C2356a-2, circuit VH407 (YE/GN), harness side and ground. GO to E8 .
No
(YE/GN) for a short to
ground. CLEAR the
normal operation.

E8 CHECK THE MODULE CONNECTION
corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
Pinpoint Test F: DTCs B1A63:11 and 15 or DTCs B1A64:11 and 15
Normal Operation
Under normal operation, the sunload sensor receives a ground from the HVAC module through circuit
GD116 (BK/VT). A 5-volt reference voltage is supplied to the sunload sensor from the HVAC module
through circuit VH417 (YE/OG) (RH) and circuit VH416 (VT/GY) (LH).
DTC Description Fault Trigger Conditions

l B1A63:11 — Right Solar Sensor: The module senses excessive voltage drop on the sensor
Circuit Short to Ground reference voltage circuit, indicating a short directly to ground.
l B1A63:15 — Right Solar Sensor: The module senses no voltage drop on the sensor reference
Circuit Short to Battery or Open voltage circuit, indicating a short directly to voltage or an
open circuit.
25/06/2011 Page 32 of 104

l B1A64:11 — Left Solar Sensor: The module senses excessive voltage drop on the sensor
Circuit Short to Ground reference voltage circuit, indicating a short directly to ground.
l B1A64:15 — Left Solar Sensor: The module senses no voltage drop on the sensor reference
Circuit Short to Battery or Open voltage circuit, indicating a short directly to voltage or an
open circuit.

l Sunload sensor
l HVAC module
PINPOINT TEST F: DTCs B1A63:11 AND 15 OR DTCs B1A64:11 AND 15

F1 CHECK THE SUNLOAD SENSOR REFERENCE VOLTAGE
l Ignition OFF. Yes
l Disconnect: Sunload Sensor C286. INSTALL a new sunload
l Ignition ON. sensor. CLEAR the
l Press the AUTO button. DTCs. REPEAT the self-
l Measure the voltage between sunload sensor C266-4, circuit test. If the code returns,
GD116 (BK/VT), harness side and sunload sensor: GO to F6 .
n For DTC B1A63 , C286-1, circuit VH417 (YE/OG),
harness side. No
n For DTC B1A64 , C286-3, circuit VH416 (VT/GY), If diagnosing DTC
harness side. B1A63:15 or DTC
B1A64:15 , GO to F2 .
If diagnosing DTC
B1A63:11 or DTC
B1A64:11 , GO to F5 .

F2 CHECK CIRCUIT VH416 (VT/GY) AND VH417 (YE/OG) FOR A
SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — Dual Automatic Temperature REPAIR circuit VH416
Control (DATC) C2356a. (VT/GY) or VH417
l Disconnect: HVAC Module — DATC C2356b. (YE/OG) for a short to
l Ignition ON. voltage. CLEAR the
l Measure the voltage between ground and sunload sensor: DTCs. REPEAT the self-
n For DTC B1A64:11 , C286-3, circuit VH416 (VT/GY), test. TEST the system for
harness side. normal operation.
n For DTC B1A63:11 , C286-1, circuit VH417 (YE/OG),
harness side. No
GO to F3 .
25/06/2011 Page 33 of 104

F3 CHECK CIRCUIT GD116 (BK/VT) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between ground and sunload sensor GO to F4 .
C286-4, circuit GD116 (BK/VT), harness side.
No
REPAIR circuit GD116
(BK/VT) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.

F4 CHECK CIRCUITS VH417 (YE/OG) AND VH416 (VT/GY) FOR
AN OPEN
C2356b-6, circuit VH416 (VT/GY), harness side and sunload GO to F6 .
sensor C286-3, circuit VH416 (VT/GY), harness side.
No
(VT/GY) or circuit VH417
(YE/OG) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.
l Measure the resistance between HVAC module — DATC

C2356b-3, circuit VH417 (YE/OG), harness side and sunload
sensor C286-1, circuit VH417 (YE/OG), harness side.
25/06/2011 Page 34 of 104

F5 CHECK CIRCUIT VH417 (YE/OG) OR CIRCUIT VH416 (VT/GY)
FOR A SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — DATC C2356a. GO to F6 .
l Disconnect: HVAC Module — DATC C2356b.
l Measure the resistance between ground and sunload sensor: No
n For DTC B1A64:11 , C286-3, circuit VH416 (VT/GY), REPAIR circuits VH417
harness side. (YE/OG) or VH416
n For DTC B1A63:11 , C286-1, circuit VH417 (YE/OG), (VT/GY) for a short to
harness side. circuit RH111 (GY/BU).
CLEAR the DTCs.
TEST the system for
normal operation.

F6 CHECK THE MODULE CONNECTION
corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 35 of 104

Pinpoint Test G: DTCs B1B71:11 and 15
Normal Operation
Under normal operation, the evaporator discharge air temperature sensor receives a ground from the
HVAC module through circuit RH111 (GY/BU). A 5-volt reference voltage is supplied to the evaporator
discharge air temperature sensor from the HVAC module through circuit VH406 (VT/BN).
l DTC B1B71:11 (Evaporator Temperature Sensor: Circuit Short to Ground) — The module senses
ground.
l DTC B1B71:15 (Evaporator Temperature Sensor: Circuit Short to Battery or Open) — The
module senses no voltage drop on the sensor reference voltage circuit, indicating a short directly
to voltage or an open circuit.

l Evaporator discharge air temperature sensor
l HVAC module
PINPOINT TEST G: DTCs B1B71:11 AND 15
Result / Action to
Test Step
Take
G1 CHECK THE SENSOR RESISTANCE
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual Temperature For DTC B1B71:11 ,
Control (EMTC) C2357a. GO to G2 .
l Disconnect: HVAC Module — Dual Automatic Temperature Control
(DATC) C2356a. For DTC B1B71:15 ,
l Measure the resistance between HVAC module — EMTC C2357a- GO to G3 .
6 or HVAC module — DATC C2356a-6, circuit VH406 (VT/BN),
harness side and HVAC module — EMTC C2357a-10 or HVAC No
module — DATC C2356a-10, circuit RH111 (GY/BU), harness For DTC B1B71:11 ,
side . GO to G4 .
For DTC B1B71:15 ,

GO to G5 .
l Compare the measurement to the chart and table of the Evaporator
25/06/2011 Page 36 of 104

Discharge Air Temperature Sensor component test in this section.
temperatures?
G2 CHECK CIRCUIT VH406 (VT/BN) FOR A SHORT TO GROUND
6 or HVAC module — DATC C2356a-6, circuit VH406 (VT/BN), GO to G7 .
harness side and ground.
No
(VT/BN) for a short to
ground. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.

G3 CHECK CIRCUIT VH406 (VT/BN) FOR A SHORT TO VOLTAGE
l Ignition ON. Yes
l Measure the voltage between ground and HVAC module — EMTC REPAIR circuit VH406
C2357a-6 or HVAC module — DATC C2356a-6, circuit VH406 (VT/BN) for a short to
(VT/BN), harness side and ground. voltage. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
No
GO to G7 .

G4 CHECK CIRCUIT VH406 (VT/BN) FOR A SHORT TO CIRCUIT
RH111 (GY/BU)
NOTE: Instrument panel removal is required to disconnect the Yes

INSTALL a new
sensor. Before carrying out this test step, visually inspect the wiring
between the HVAC module and sensor for shorts. If no damage is evaporator discharge
visually evident, proceed with the test. air temperature
sensor. CLEAR the
l Ignition OFF. DTCs. REPEAT the
l Disconnect: Evaporator Discharge Air Temperature Sensor C2295. self-test. TEST the
l Measure the resistance between HVAC module — EMTC C2357a- system for normal
6 or HVAC module — DATC C2356a-6, circuit VH406 (VT/BN), operation.
harness side and HVAC module — EMTC C2357a-10 or HVAC
module — DATC C2356a-10, circuit RH111 (GY/BU), harness No
(VT/BN) for a short to
circuit RH111
25/06/2011 Page 37 of 104

(GY/BU). CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.

G5 CHECK CIRCUITS VH406 (VT/BN) FOR AN OPEN
NOTE: Instrument panel removal is required to disconnect the Yes

sensor. Before carrying out this test step, visually inspect the wiring GO to G6 .
between the HVAC module and sensor for opens. If no damage is
visually evident, proceed with the test. No
l Ignition OFF. (VT/BN) for an open.
l Disconnect: Evaporator Discharge Air Temperature Sensor C2295. CLEAR the DTCs.
l Measure the resistance between HVAC module — EMTC C2357a- REPEAT the self-test.
6 or HVAC module — DATC C2356a-6, circuit VH406 (VT/BN), TEST the system for
harness side and inline ( EMTC ) C211-13 or ( DATC ) inline C213- normal operation.
13, circuit VH406 (VT/BN), instrument panel harness side.
l Measure the resistance between inline ( EMTC ) C211-13 or

( DATC ) inline C213-13, circuit VH406 (VT/BN), HVAC case
harness side and evaporator discharge air temperature sensor
C2295-1, circuit VH406 (VT/BN), harness side.
25/06/2011 Page 38 of 104

G6 CHECK CIRCUITS RH111 (GY/BU) FOR AN OPEN
10 or HVAC module — DATC C2356a-10, circuit RH111 (GY/BU), INSTALL a new
harness side and inline ( EMTC ) C211-15 or ( DATC ) inline C213- evaporator discharge
15, circuit RH111 (GY/BU), instrument panel harness side. air temperature
sensor. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
No
CLEAR the DTCs.
TEST the system for
normal operation.
l Measure the resistance between inline ( EMTC ) C211-15 or

( DATC ) inline C213-15, circuit RH111 (GY/BU), HVAC case
harness side and evaporator discharge air temperature sensor
C2295-2, circuit RH111 (GY/BU), harness side.

G7 CHECK THE MODULE CONNECTION
The system is
may have been
corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 39 of 104

Pinpoint Test H: DTCs U3003:16 and 17
NOTE: DTC U3003 can be set if the vehicle has been recently jump started, the battery has been
recently charged or the battery has been discharged. The battery may become discharged due to
excessive load(s) on the charging system from aftermarket accessories or if the battery has been left
unattended with the accessories on.
NOTE: Carry out a thorough inspection and verification before proceeding with the pinpoint test. Refer to
Inspection and Verification in this section.
Normal Operation
Under normal operation, the HVAC module receives a ground through circuit GD116 (BK/VT). The
HVAC module is supplied constant battery voltage through circuit SBP15 (WH/RD).
l DTC U3003:16 (Control Module Input Power "A": Circuit Voltage Below Threshold) — The module
senses when battery voltage is greater than 16 volts.
l DTC U3003:17 (Control Module Input Power "A": Circuit Voltage Above Threshold) — The
module senses when battery voltage is less than 9 volts.

l HVAC module
PINPOINT TEST H: DTCs U3003:16 AND 17
Result / Action to
Test Step
Take
H1 RETRIEVE ALL CMDTCs IN ALL MODULES
l Ignition ON. Yes
l Enter the following diagnostic mode on the scan tool: Self Test — REFER to Section 414-
All CMDTCs . 00 for diagnosis of the
l Is DTC B1317, B1318 or B1676 present in one or more battery and charging
modules and DTC P0563, P0620, P0625, P0626 or P065B system.
present in the PCM?
No
GO to H2 .
H2 CHECK BATTERY CONDITION
l Ignition OFF. Yes
l Refer to Section 414-01 and carry out the Battery — Condition If the battery passed
Test the condition test but
l Does the battery pass the condition test? required a recharge,
REFER to Section 414-
00 to diagnose the
charging system.
CLEAR all Continuous
Memory Diagnostic
Trouble Codes
(CMDTCs). TEST the
system for normal
25/06/2011 Page 40 of 104

operation.
If the battery passed

the condition test and
did not require a
recharge, GO to H3 .
No
INSTALL a new
battery. CLEAR all
CMDTCs . TEST the
system for normal
operation.
H3 CHECK THE CHARGING SYSTEM VOLTAGE
NOTE: Do not allow the engine rpm to increase above 2,000 rpm Yes
while performing this step or the generator may self excite and For DTC U3003:17 ,
result in default charging system output voltage. If engine rpm has GO to H4 .
gone above 2,000 rpm, shut the vehicle OFF and restart the
engine before performing this step. For DTC U3003:16 ,
INSTALL a new HVAC
l Start the engine. module. REFER to
l Measure the voltage of the battery: Section 412-01 .
n For DTC U3003:17 , turn off all accessories and run the CLEAR all CMDTCs .
engine at 1,500 rpm for a minimum of 2 minutes. REPEAT the self-test.
n For DTC U3003:16 , turn on headlights and HVAC fan on
high and run engine at 1,500 rpm for a minimum of 2 No
minutes. REFER to Section 414-
00 to diagnose the
charging system.
CLEAR all CMDTCs .
TEST the system for
normal operation.
l Is the battery voltage between 13-15.2 volts?

H4 CHECK CIRCUITS SBP15 (WH/RD) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual Temperature GO to H5 .
Control (EMTC) C2357a.
l Disconnect: HVAC Module — Dual Automatic Temperature No
Control (DATC) C2356a. VERIFY Smart
l Ignition ON. Junction Box (SJB)
l With the engine running, measure the voltage between HVAC fuse 15 (10A) is OK. If
module — EMTC C2357a-13 or HVAC module — DATC C2356a- OK, REPAIR circuit
13, circuit SBP15 (WH/RD), harness side and ground. SBP15 (WH/RD) for an
open. CLEAR all
CMDTCs . REPEAT
the self-test. If not OK,
REFER to the Wiring
Diagrams manual to
identify the possible
causes of the circuit
25/06/2011 Page 41 of 104

short.
l Is the voltage greater than 10 volts?

H5 CHECK CIRCUIT GD133 (BK) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between HVAC module — EMTC C2357a- GO to H6 .
23 or HVAC module — DATC C2356a-23, circuit GD116 (BK/VT),
harness side and ground. No
n Repeat this measurement while wiggling the harness. REPAIR circuit GD116
(BK/VT) for an open.
TEST the system for
normal operation.

H6 CHECK THE MODULE CONNECTION
The system is
may have been caused
by a loose or corroded
connector. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
Pinpoint Test I: Unable to Duplicate the Customer Concern and No DTCs Present
25/06/2011 Page 42 of 104

l Incorrect functioning of the HVAC system
PINPOINT TEST I: UNABLE TO DUPLICATE CUSTOMER CONCERN AND NO DTCs PRESENT
NOTE: Diagnose any HVAC module DTCs before carrying out the following pinpoint test.
NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those
first. Refer to PCM DTC Chart.

I1 CHECK THE BLOWER MOTOR OPERATION
l Ignition ON. Yes
l Select PANEL mode. GO to I2 .
l Observe blower motor operation and select
each blower motor speed. No
l Does the blower motor operate in all For Electronic Manual Temperature Control
selections and change speed in each? (EMTC) systems, if the blower motor does
not operate in any setting, GO to Pinpoint
Test Q .
For Dual Automatic Temperature Control

(DATC) systems, if the blower motor does
not operate in any setting, GO to Pinpoint
Test S .
For EMTC systems if the blower motor does

not properly change speeds or shut OFF,
GO to Pinpoint Test R .
For DATC systems if the blower motor does

not properly change speeds or shut OFF,
GO to Pinpoint Test T .
I2 CHECK AIRFLOW OPERATION
l Select the highest blower motor setting. Yes
l NOTE: Refer to Description and Operation in GO to I3 .
this section for proper airflow descriptions.
l While observing the airflow, select each of the No
airflow positions (PANEL, PANEL/FLOOR, GO to Pinpoint Test K .
FLOOR, FLOOR/DEFROST, DEFROST).
l Is the airflow directed to the proper
outlets?
I3 VERIFY TEMPERATURE CONTROL
OPERATION
l Start the vehicle and allow it to reach normal Yes
operating temperature. GO to I4 .
l With the A/C OFF, select PANEL mode.
l Change the temperature setting from the No
coldest to the warmest and back to the If the temperature does not get very warm,
coldest. GO to Pinpoint Test L .
l Does the temperature change between
very warm to cool? If the temperature does not change at all,
GO to Pinpoint Test P .
I4 VERIFY THE A/C CLUTCH DOES NOT
ENGAGE WITH A/C OFF
l With the A/C OFF, select PANEL mode. Yes
25/06/2011 Page 43 of 104

l Select the coldest temperature setting. GO to I5 .
l Is the outlet temperature close to ambient
temperature? No
If the temperature is warmer than ambient
temperature, GO to Pinpoint Test P and
diagnose for inoperative blend door.
If the outlet temperature is significantly

colder than ambient temperature and the
A/C compressor clutch cycles normally, GO
to Pinpoint Test O .
If the outlet temperature is significantly

colder than ambient temperature and the
A/C compressor clutch does not cycle, GO
to Pinpoint Test N .
I5 VERIFY A/C CLUTCH ENGAGEMENT IN THE
A/C MODE
l Make sure the ambient air temperature is Yes
above 2°C (35°F). GO to I6 .
l Select PANEL mode.
l Press the A/C button (indicator ON). No
l Does the A/C clutch engage when the GO to Pinpoint Test M .
PANEL and A/C button (indicator ON) is
pressed?
I6 CHECK THE RECIRC OPERATION
l Press the RECIRC button (indicator OFF). Yes
l Select PANEL mode. The system is operating normally.
l Select the highest blower motor setting.
l Observe airflow noise. No
l Press the RECIRC button (indicator ON). GO to Pinpoint Test J .
l Does the airflow noise increase when the
RECIRC mode is selected (indicator ON)?
Pinpoint Test J: The Air Inlet Door is Inoperative
Normal Operation
Under normal operation, to rotate the air inlet mode door actuator, the HVAC module supplies voltage or
ground to the air inlet mode door actuator through the circuit CH207 (BU/GY), and supplies ground or
voltage through circuit CH208 (GN/OG) depending on desired rotation direction.
l DTC B1083:11 (Recirculation Damper Motor: Circuit Short to Ground) — The module senses
excessive voltage drop on the actuator motor circuit, indicating a short directly to ground.
l DTC B1083:12 (Recirculation Damper Motor: Circuit Short to Battery) — The module senses no
voltage drop on the actuator motor circuit, indicating a short directly to voltage.
l DTC B1083:13 (Recirculation Damper Motor: Circuit Open) — The module senses no voltage
drop on the actuator motor circuit, indicating an open.

l Air inlet mode door actuator
25/06/2011 Page 44 of 104

l HVAC module
l Stuck or bound linkage or door
PINPOINT TEST J: THE AIR INLET DOOR IS INOPERATIVE

J1 CHECK THE HVAC MODULE FOR DTCs
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual Temperature For DTC B1083:11 ,
Control (EMTC) C2357a. GO to J2 .
l Disconnect: HVAC Module — Dual Automatic Temperature
Control (DATC) C2356a. For DTC B1083:12 ,
l Disconnect: HVAC Module — DATC C2356b. GO to J3 .
l Ignition ON.
l Check the HVAC module for DTCs. For DTC B1083:13 ,
l Are any DTCs present? GO to J4 .
No
INSPECT for
broken/binding linkage
or door. REPAIR as
necessary. If no
condition is found, GO
to J6 .
J2 CHECK CIRCUITS CH207 (BU/GY) AND CH208 (GN/OG) FOR A
SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to J5 .
l Disconnect: HVAC Module — DATC C2356b. No
l Measure the resistance between ground and: REPAIR circuit CH207
n HVAC module — EMTC C2357a-16 or HVAC module — (BU/GY) or circuit
DATC C2356a-16, circuit CH208 (GN/OG), harness side. CH208 (GN/OG) for a
n HVAC module — EMTC C2357a-15 or HVAC module — short to ground. CLEAR
DATC C2356a-15, circuit CH207 (BU/GY), harness side. the DTCs. REPEAT the
self-test. TEST the
system for normal
operation.

J3 CHECK CIRCUITS CH207 (BU/GY) AND CH208 (GN/OG) FOR A
SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. REPAIR circuit CH207
l Disconnect: HVAC Module — DATC C2356a. (BU/GY) or circuit
25/06/2011 Page 45 of 104

l Disconnect: HVAC Module — DATC C2356b. CH208 (GN/OG) for a
l Ignition ON. short to voltage. CLEAR
l Measure the voltage between ground and: the DTCs. REPEAT the
n HVAC module — EMTC C2357a-16 or HVAC module — self-test. TEST the
DATC C2356a-16, circuit CH208 (GN/OG), harness side. system for normal
n HVAC module — EMTC C2357a-15 or HVAC module — operation.
DATC C2356a-15, circuit CH207 (BU/GY), harness side.
No
GO to J5 .

J4 CHECK THE ACTUATOR MOTOR DRIVE CIRCUITS FOR AN
OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to J6 .
l Disconnect: Air Inlet Mode Door Actuator C289. REPAIR the circuit(s)
l Measure the resistance between HVAC module — EMTC for an open. TEST the
C2357a-15 or HVAC module — DATC C2356a-15, circuit CH207 system for normal
(BU/GY), harness side and air inlet mode door actuator C289-6, operation.
circuit CH207 (BU/GY), harness side.
l Measure the resistance between HVAC module — EMTC

C2357a-16 or HVAC module — DATC C2356a-16, circuit CH208
(GN/OG), harness side and air inlet mode door actuator C289-5,
circuit CH208 (GN/OG), harness side.
25/06/2011 Page 46 of 104

l Are the resistances less than 5 ohms?
J5 CHECK CIRCUIT CH207 (BU/GY) FOR A SHORT TO CIRCUIT
CH208 (GN/OG)
l Ignition OFF. Yes
l Measure the resistance between HVAC module — EMTC GO to J6 .
C2357a-15 or HVAC module — DATC C2356a-15, circuit CH207
(BU/GY), harness side and HVAC module — EMTC C2357a-16 No
or HVAC module — DATC C2356a-16, circuit CH208 (GN/OG), REPAIR circuit CH208
harness side. (GN/OG) for a short to
circuit CH207 (BU/GY).
CLEAR the DTCs.
TEST the system for
normal operation.

J6 CHECK THE ACTUATOR CONNECTION
l Disconnect the actuator connector. Yes
l Check for: CARRY OUT the Air
n corrosion. Inlet Mode Door
n pushed-out terminals. Actuator component
n damaged terminals. test in this section. If the
l Connect and correctly seat the actuator connector. actuator tests OK, GO
l Clear the DTCs. to J7 .
correctly at this time.
The concern may have
been caused by a loose
or corroded connector.
CLEAR the DTCs.
TEST the system for
normal operation.
J7 CHECK THE MODULE CONNECTION
25/06/2011 Page 47 of 104

CLEAR the DTCs.
TEST the system for
normal operation.
Pinpoint Test K: Incorrect/Erratic Direction of Airflow From Outlets
Normal Operation
Under normal operation, to rotate the mode door actuator, the HVAC module supplies voltage or ground
to the DEFROST/PANEL/FLOOR mode door actuator motor through circuit CH228 (YE/GY), and
supplies ground or voltage through circuit CH229 (WH/BU) depending on desired rotation direction.
The mode door actuator feedback resistor is supplied a ground from the HVAC module through circuit
RH111 (GY/BU) and a 5-volt reference voltage on circuit LH111 (BN/WH). The HVAC module reads the
voltage on the mode door actuator feedback circuit VH436 (YE/VT) to determine the mode door actuator
position by the position of the actuator feedback resistor wiper arm.

l B1086:07 — Air Distribution Damper The module senses no changes in the feedback circuit
Motor: Mechanical Failures when motor movement is commanded and no motor
DTCs are present.
l B1086:11 — Air Distribution Damper The module senses excessive voltage drop on the
Motor: Circuit Short to Ground actuator motor circuit, indicating a short directly to
ground.
l B1086:12 — Air Distribution Damper The module senses no voltage drop on the actuator
Motor: Circuit Short to Battery motor circuit, indicating a short directly to voltage.
l B1086:13 — Air Distribution Damper The module senses no voltage drop on the actuator
Motor: Circuit Open motor circuit, indicating an open.
l B11E7:11 — Air Distribution Damper The module senses excessive voltage drop on the
Position Sensor: Circuit Short to actuator feedback circuit, indicating a short directly to
Ground ground.
l B11E7:15 — Air Distribution Damper The module senses no voltage drop on the actuator
Position Sensor: Circuit Short to feedback circuit, indicating an open circuit or a short
Battery or Open directly to voltage.
25/06/2011 Page 48 of 104

l Defrost/panel/floor mode door actuator
l HVAC module
PINPOINT TEST K: INCORRECT/ERRATIC DIRECTION OF AIRFLOW FROM OUTLETS

K1 CHECK THE HVAC MODULE FOR DTCs
l Ignition ON. Yes
l Check the HVAC module for DTCs. For DTC B1086:07 ,
l Are any DTCs present? INSPECT for
binding/damaged linkage or
door. REPAIR as necessary.
If no condition is found,
INSTALL a new
defrost/panel/floor door
actuator. CLEAR the DTCs.
REPEAT the self-test. TEST
the system for normal
operation.
For DTC B1086:11 , GO to

K2 .

K3 .

K4 .
For DTC B11E7:11 , GO to

K6 .
For DTC B11E7:15 , GO to

K8 .
No
INSPECT for broken linkage
or door. REPAIR as
necessary. If no condition is
found, GO to K13 .
K2 CHECK THE ACTUATOR MOTOR DRIVE CIRCUITS FOR A
SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — Electronic Manual GO to K5 .
Temperature Control (EMTC) C2357a.
l Disconnect: HVAC Module — Dual Automatic Temperature No
Control (DATC) C2356a. REPAIR the circuit CH228
l Disconnect: HVAC Module — DATC C2356b. (YE/GY) or CH229 (WH/BU)
l Disconnect: Defrost/Panel/Floor Mode Door Actuator C2278. for a short to ground. TEST
l Measure the resistance between ground and: the system for normal
n HVAC module — EMTC C2357a-19 or HVAC module operation.
— DATC C2356a-19, circuit CH229 (WH/BU), harness
side.
n HVAC module — EMTC C2357a-20 or HVAC module
— DATC C2356a-20, circuit CH228 (YE/GY), harness
side.
25/06/2011 Page 49 of 104

l Are the resistances greater than 10,000 ohms?
SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. REPAIR the circuit CH228
l Disconnect: HVAC Module — DATC C2356a. (YE/GY) or CH229 (WH/BU)
l Disconnect: HVAC Module — DATC C2356b. for a short to voltage. TEST
l Disconnect: Defrost/Panel/Floor Mode Door Actuator C2278. the system for normal
l Ignition ON. operation.
l Measure the voltage between ground and:
n HVAC module — EMTC C2357a-19 or HVAC module No
— DATC C2356a-19, circuit CH229 (WH/BU), harness GO to K5 .
side.
n HVAC module — EMTC C2357a-20 or HVAC module
— DATC C2356a-20, circuit CH228 (YE/GY), harness
side.

K4 CHECK THE ACTUATOR MOTOR DRIVE CIRCUITS FOR
AN OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to K13 .
l Disconnect: Defrost/Panel/Floor Mode Door Actuator C2278. REPAIR the circuit CH228
l Measure the resistance between defrost/panel/floor door (YE/GY) or CH229 (WH/BU)
actuator C2278-5, circuit CH228 (YE/GY), harness side and for an open. TEST the
HVAC module — EMTC C2357a-20 or HVAC module — system for normal operation.
DATC C2356a-20, circuit CH228 (YE/GY), harness side.
25/06/2011 Page 50 of 104

l Measure the resistance between defrost/panel/floor door
actuator C2278-6, circuit CH229 (WH/BU), harness side and
HVAC module — EMTC C2357a-19 or HVAC module —
DATC C2356a-19, circuit CH229 (WH/BU), harness side.

SHORT TOGETHER
l Ignition OFF. Yes
l Measure the resistance between HVAC module — EMTC GO to K13 .
C2357a-20 or HVAC module — DATC C2356a-20, circuit
CH228 (YE/GY), harness side and HVAC module — EMTC No
C2357a-19 or HVAC module — DATC C2356a-19, circuit REPAIR circuits CH228
CH229 (WH/BU), harness side. (YE/GY) and CH229
(WH/BU) for a short
together. TEST the system
for normal operation.

K6 CHECK CIRCUIT VH436 (YE/VT) FOR A SHORT TO
GROUND
25/06/2011 Page 51 of 104

l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to K7 .
l Measure the resistance between ground and HVAC module REPAIR circuit VH436
— EMTC C2357a-8 or HVAC module — DATC C2356a-8, (YE/VT) for a short to
circuit VH436 (YE/VT), harness side. ground. TEST the system for
normal operation.

K7 CHECK CIRCUIT RH111 (GY/BU) FOR A SHORT TO
CIRCUIT VH436 (YE/VT)
l Disconnect: Defrost/Panel/Floor Mode Door Actuator C2278. Yes
l Measure the resistance between HVAC module — EMTC GO to K13 .
RH111 (GY/BU), harness side and HVAC module — EMTC No
C2357a-8 or HVAC module — DATC C2356a-8, circuit REPAIR circuits RH111
VH436 (YE/VT), harness side. (GY/BU) and VH436
(YE/VT) for a short together.
operation.

K8 CHECK CIRCUIT VH436 (YE/VT) FOR A SHORT TO
VOLTAGE
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. REPAIR circuit VH436
l Disconnect: HVAC Module — DATC C2356a. (YE/VT) for a short to
l Disconnect: HVAC Module — DATC C2356b. voltage. TEST the system
l Ignition ON. for normal operation.
l Measure the voltage between ground and HVAC module —
EMTC C2357a-8 or HVAC module — DATC C2356a-8, No
circuit VH436 (YE/VT), harness side. GO to K9 .
25/06/2011 Page 52 of 104

K9 CHECK CIRCUIT LH111 (BN/WH) FOR A SHORT TO
CIRCUIT VH436 (YE/VT)
l Ignition OFF. Yes
l Disconnect: Defrost/Panel/Floor Mode Door Actuator C2278. GO to K10 .
C2357a-11 or HVAC module — DATC C2356a-11, circuit No
LH111 (BN/WH), harness side and HVAC module — EMTC REPAIR circuits LH111
C2357a-8 or HVAC module — DATC C2356a-8, circuit (BN/WH) and VH436
VH436 (YE/VT), harness side. (YE/VT) for a short together.
operation.

K10 CHECK CIRCUIT VH436 (YE/VT) FOR AN OPEN
l Measure the resistance between HVAC module — EMTC Yes
C2357a-8 or HVAC module — DATC C2356a-8, circuit GO to K11 .
VH436 (YE/VT), harness side and defrost/panel/floor mode
door actuator C2278-9, circuit VH436 (YE/VT), harness side. No
(YE/VT) for an open. TEST
operation.
25/06/2011 Page 53 of 104

K11 CHECK THE ACTUATOR RETURN CIRCUIT RH111
(GY/BU) FOR AN OPEN
RH111 (GY/BU), harness side and defrost/panel/floor mode
door actuator C2278-8, circuit RH111 (GY/BU), harness side. No
(GY/BU) for an open. TEST
operation.

K12 CHECK CIRCUIT LH111 (BN/WH) FOR AN OPEN
LH111 (BN/WH), harness side and defrost/panel/floor mode
door actuator C2278-10, circuit LH111 (BN/WH), harness No
side. REPAIR circuit LH111
(BN/WH) for an open. TEST
operation.

K13 CHECK THE ACTUATOR CONNECTION
l Inspect the connector for: Yes
n corrosion. CARRY OUT the
n pushed-out terminals. Defrost/Panel/Floor Mode
n damaged terminals. Door Actuator component
l Connect and correctly seat the actuator connector. test in this section. If the
l Clear the DTCs. actuator tests OK, GO to
l Operate the system and verify the concern is still present. K14 .
No
25/06/2011 Page 54 of 104

corroded connector. CLEAR
the DTCs. TEST the system
K14 MODULE ACTUATOR POSITION CALIBRATION
NOTE: The purpose of the module actuator position Yes

calibration is to allow the HVAC module to reinitialize and INSTALL a new HVAC
calibrate the actuator stop points. To carry out the calibration, module. REFER to Section
follow the steps below. 412-01 . TEST the system
l Ignition OFF.
l Inspect the module connectors for: No
n corrosion. The system is now operating
n pushed-out terminals. correctly at this time. The
n damaged terminals. concern may have been
l Connect and correctly seat all the HVAC module connectors. caused by a foreign object in
l Ignition ON. the HVAC case or temporary
l Clear the DTCs. binding that restricted
l Select any position except OFF. actuator door travel. CHECK
l NOTE: The HVAC module will now initialize and calibrate the any actuator external
actuators. Calibration of the actuators will take approximately linkage. If condition recurs,
30 seconds. INSPECT actuator linkage
l Operate the system and verify the concern is still present. and door for binding and
l Is the concern still present? CHECK HVAC case for
foreign objects.
Pinpoint Test L: Insufficient, Erratic or No Heat
Normal Operation
Under normal operation, warm coolant flows from the engine through the heater core and back to the
engine.

l Plugged heater core
l Coolant level
l Temperature blend door
PINPOINT TEST L: INSUFFICIENT, ERRATIC OR NO HEAT

L1 CHECK FOR CORRECT ENGINE COOLANT LEVEL
l Ignition OFF. Yes
l Check the engine coolant level when hot and cold. GO to L3 .
l Is the engine coolant at the correct level (hot/cold) as
indicated on the engine coolant recovery reservoir? No
GO to L2 .
L2 CHECK THE ENGINE COOLING SYSTEM FOR LEAKS
l Pressure test the cooling system for leaks. Refer to Section 303- Yes
03A or Section 303-03B . REPAIR the engine
l Does the engine cooling system leak? coolant leak. TEST the
system for normal
operation.
No
25/06/2011 Page 55 of 104

GO to L3 .
L3 CHECK FOR COOLANT FLOW TO THE HEATER CORE
l Run the engine until it reaches normal operation temperature. Yes
Select the FLOOR position on the control assembly. Set the GO to L4 .
temperature control to full warm and the blower to the lowest
setting. No
l Using a suitable temperature measuring device, check the REFER to Section 303-
heater core inlet hose to see if it is hot. 03A or Section 303-03B
to check cooling system
function.
l Is the heater core inlet hose hot?

L4 CHECK FOR A PLUGGED OR RESTRICTED HEATER CORE
l Using a suitable temperature measuring device, measure the Yes
heater core outlet hose temperature. For EMTC systems, GO
to Pinpoint Test P and
diagnose for a
temperature blend door
actuator. For DATC
systems, GO to Pinpoint
Test Q and diagnose for
a temperature blend door
actuator.
No
INSTALL a new heater
core. TEST the system
l Is the heater core outlet hose temperature similar to the inlet

hose temperature (within approximately 6-17°C [10-30°F])?
Pinpoint Test M: The Air Conditioning (A/C) is Inoperative
Normal Operation
Under normal operation, for Fusion equipped with navigation and all MKZ vehicles, when A/C button
is pressed, a message is sent from the Front Controls Interface Module (FCIM) over the Medium Speed
Controller Area Network (MS-CAN) bus to the HVAC module. The HVAC module then sends an A/C
25/06/2011 Page 56 of 104

request message over the MS-CAN bus to the Instrument Cluster (IC), then from the IC through the High
Speed Controller Area Network (HS-CAN) bus to the PCM.
For all vehicles equipped with navigation , when MAX A/C is selected on the touch screen, the Audio
Control Module (ACM) sends a message over the MS-CAN bus to the HVAC module that MAX A/C has
been selected.
For Fusion not equipped with navigation , when A/C is requested, a message is sent over the MS-
CAN bus to the IC , then from the IC through the HS-CAN bus to the PCM.
Ignition voltage is provided to the A/C clutch relay switch through circuit SBB25 (RD). When the PCM
energizes the relay, ignition voltage is supplied to the A/C clutch through circuit CH401 (VT/WH).
Ground is supplied for the A/C clutch through circuit GD121 (BK/YE).
When an A/C request is received by the PCM, the A/C compressor clutch will only be engaged through
the A/C clutch relay if all of the following conditions are met:
l The PCM does not detect excessively high or low refrigerant pressure from the A/C pressure
transducer.
l The PCM does not detect excessively high engine coolant temperature.
l The PCM does not detect an ambient air temperature below -1°C (30°F).
l The PCM has not detected a Wide Open Throttle (WOT) condition.
l The HVAC module does not detect an evaporator discharge air temperature below 2°C (36°F).

l Fuse(s)
l PCM
l HVAC module
l FCIM
l ACM
l A/C evaporator discharge temperature sensor
l A/C pressure transducer
l A/C compressor clutch field coil
l A/C control relay
l A/C clutch air gap
PINPOINT TEST M: THE AIR CONDITIONING (A/C) IS INOPERATIVE
NOTE: Before carrying out the following test, diagnose any HVAC, PCM or Instrument Cluster (IC)
DTCs.
NOTE: Before carrying out the following test, check that the A/C system pressure is above 290 kPa (42
psi). If the pressure is below 290 kPa (42 psi), refer to Fluorescent Dye Leak Detection in this section.
Result / Action to
Test Step
Take
M1 CHECK THE A/C PRESSURE SENSOR (ACP_PRESS) PCM PID
l Ignition ON. Yes
l Enter the following diagnostic mode on the scan tool: ACP_PRESS GO to M2 .
PCM PID.
l With the manifold gauge set connected, compare the pressure No
readings of the manifold gauge set and the ACP_PRESS PID. INSTALL a new A/C
l Are the pressure values of the manifold gauge set and the pressure transducer.
25/06/2011 Page 57 of 104

ACP_PRESS PID similar? TEST the system for
normal operation.
M2 CHECK THE A/C EVAPORATOR TEMPERATURE (EVAP_TEMP)
HVAC PID
l Allow the vehicle exterior and interior to stabilize to an ambient Yes
temperature above 16°C (60°F). For Fusion equipped
l Enter the following diagnostic mode on the scan tool: EVAP_TEMP with navigation and
HVAC PID. all MKZ vehicles, GO
l Does the EVAP_TEMP HVAC PID read similar to the ambient to M4 .
temperature?
For Fusion not
equipped with
navigation , GO to
M3 .
No
INSTALL a new A/C
evaporator discharge
temperature sensor.
TEST the system for
normal operation.
M3 CHECK THE (A/C) SWITCH (CC_SW_AC) HVAC PID WITH THE
A/C ON
l Enter the following diagnostic mode on the scan tool: CC_SW_AC Yes
HVAC PID. GO to M6 .
l Select PANEL press the A/C button (indicator on) on the HVAC
module. No
l Does the CC_SW_AC HVAC PID read Active? GO to M12 .
M4 CHECK THE A/C INDICATOR WITH THE A/C ON
NOTE: Before carrying out this test step, be sure all other FCIM Yes
button functions are operational. If all other buttons operate GO to M6 .
correctly, continue with this test step. If multiple buttons are
inoperative and DTC U0256:00 is not present, install a new FCIM . No
Test the system for normal operation. If DTC U0256:00 is present, GO to M5 .
diagnose the DTC first.
l Select PANEL press the A/C button on the HVAC module.
l Does the A/C indicator illuminate when the A/C button is
pressed?
M5 CHECK THE MAX A/C OPERATION
NOTE: Before carrying out this test step, be sure all other ACM Yes
touch screen functions are operational. If all other touch screen INSTALL a new
functions operate correctly, continue with this test step. If multiple FCIM . TEST the
touch screen functions are inoperative and DTC U0163:00 is not system for normal
present, install a new ACM . Test the system for normal operation. If operation.
DTC U0163:00 is present, diagnose the DTC first.
No
l Select MAX A/C on the next generation navigation screen. GO to M12 .
l Does the A/C operate when MAX A/C is selected?
M6 CHECK THE AIR CONDITIONING COMPRESSOR COMMANDED
STATE (ACC_CMD) PCM PID WITH THE A/C ON
l Enter the following diagnostic mode on the scan tool: ACC_CMD Yes
PCM PID. GO to M7 .
l Does the ACC_CMD PCM PID read ON?
No
GO to M13 .
M7 CHECK THE VOLTAGE AT THE A/C COMPRESSOR CLUTCH
FIELD COIL
25/06/2011 Page 58 of 104

l Ignition OFF. Yes
l Disconnect: A/C Compressor Clutch Field Coil C100. GO to M8 .
l Ignition ON.
l Select PANEL and A/C on the HVAC module. No
l Measure the voltage between A/C compressor clutch field coil GO to M10 .
C100-B, circuit CH401 (VT/WH), harness side and ground.

M8 CHECK THE GROUND AT THE A/C COMPRESSOR CLUTCH
FIELD COIL
l Ignition OFF. Yes
l Measure the resistance between A/C compressor clutch field coil GO to M9 .
C100-A, circuit GD121 (BK/YE), harness side and ground.
No
REPAIR circuit
GD121 (BK/YE) for
an open. TEST the
system for normal
operation.

M9 CHECK THE A/C COMPRESSOR CLUTCH AIR GAP
l Measure the A/C compressor clutch air gap at 3 equally spaced Yes
locations between the clutch hub and the A/C compressor clutch ADJUST the A/C
pulley. compressor clutch
gap. REFER to Air
Conditioning (A/C)
Clutch Air Gap
Adjustment in this
section. TEST the
system for normal
operation.
No
INSTALL a new A/C
compressor clutch
field coil. TEST the
system for normal
operation.
25/06/2011 Page 59 of 104

l Is the A/C compressor clutch air gap greater than 0.6 mm
(0.024 in)?
M10 CHECK THE A/C CLUTCH RELAY FOR VOLTAGE
l Ignition OFF. Yes
l Disconnect: A/C Clutch Relay. GO to M11 .
l Ignition ON.
l Measure the voltage between A/C clutch relay socket, circuit SBB25 No
(RD) and ground. VERIFY Battery
Junction Box (BJB)
fuse 25 (10A) is OK.
If OK, REPAIR circuit
SBB25 (RD) for an
open. TEST the
system for normal
operation. If not OK,
REFER to the Wiring
Diagrams manual to
short.

M11 CHECK CIRCUIT CH401 (VT/WH) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between A/C clutch relay socket, circuit CARRY OUT the A/C
CH401 (VT/WH) and A/C compressor clutch field coil C100-B, clutch relay
circuit CH401 (VT/WH), harness side. component test. If the
relay tests OK, GO to
M13 .
No
REPAIR circuit
CH401 (VT/WH) for
an open. TEST the
system for normal
operation.

M12 CHECK THE MODULE CONNECTION
25/06/2011 Page 60 of 104

No
The system is
this time. The
concern may have
been caused by a
loose or corroded
connector. CLEAR
the DTCs. REPEAT
the self-test. TEST
operation.
M13 CHECK THE PCM CONNECTION
l Clear the DTCs. The system is
l Operate the system and verify the concern is still present. operating correctly at
l Is the concern still present? this time. The
concern may have
been caused by a
loose or corroded
connector.
Pinpoint Test N: The Air Conditioning (A/C) is Always On — A/C Compressor Does Not Cycle
Normal Operation
been selected.
25/06/2011 Page 61 of 104


l PCM
l evaporator discharge air temperature sensor
l A/C control relay
l A/C clutch air gap
l Evaporator core seals
PINPOINT TEST N: THE AIR CONDITIONING (A/C) IS ALWAYS ON — A/C COMPRESSOR DOES
NOT CYCLE
Result / Action to
Test Step
Take
N1 CHECK THE A/C EVAPORATOR TEMPERATURE (EVAP_TEMP)
HVAC PID
NOTE: Before carrying out the following test, diagnose any HVAC, Yes
PCM or Instrument Cluster (IC) DTCs. GO to N3 .
NOTE: CHECK On-Line Automotive Service Information System No
(OASIS) for any applicable Technical Service Bulletins (TSBs). If a GO to N2 .
Technical Service Bulletin (TSB) exists for this concern, discontinue
this test and follow the TSB instructions. If no TSBs address this
concern, continue with this test.
l Ignition ON.
l Allow the vehicle exterior and interior to stabilize to an ambient
temperature between 15°C (60°F) and 32°C (90°F).
l Enter the following diagnostic mode on the scan tool: EVAP_TEMP
HVAC PID.
l Does the EVAP_TEMP HVAC PID read similar to the ambient
temperature?
N2 CHECK THE EVAPORATOR DISCHARGE AIR TEMPERATURE
SENSOR RESISTANCE
l Ignition OFF. Yes
l Disconnect: For Electronic Manual Temperature Control (EMTC) GO to N9 .
Systems, Inline C211.
l Disconnect: For Dual Automatic Temperature Control (DATC) No
Systems, Inline C213. INSTALL a new
l Measure the resistance between: evaporator
n For EMTC Systems, inline C211-13, circuit VH406 (VT/BN), discharge air
HVAC case harness side and inline C211-15, circuit RH111 temperature sensor.
(GY/BU), HVAC case harness side. TEST the system for
n For DATC Systems, inline C213-13, circuit VH406 (VT/BN), normal operation.
HVAC case harness side and inline C213-15, circuit RH111
(GY/BU), HVAC case harness side.
25/06/2011 Page 62 of 104

l Compare the measurement to the chart and table of the Evaporator
Discharge Air Temperature Sensor component test in this section.
temperatures?
N3 CHECK THE AIR CONDITIONING COMPRESSOR COMMANDED
STATE (ACC_CMD) PCM PID WITH THE A/C OFF
l Enter the following diagnostic mode on the scan tool: ACC_CMD Yes
PCM PID. GO to N8 .
l Does the ACC_CMD PCM PID read ON?
No
GO to N4 .
N4 CHECK FOR VOLTAGE TO THE A/C COMPRESSOR CLUTCH
FIELD COIL
l Ignition OFF. Yes
l Disconnect: A/C Compressor Clutch Field Coil C100. GO to N5 .
l Ignition ON.
l Select the OFF position on the HVAC module. No
l Measure the voltage between A/C compressor clutch field coil C100- ADJUST the A/C
B, circuit CH401 (VT/WH), harness side and ground. compressor clutch
gap. REFER to Air
Conditioning (A/C)
Clutch Air Gap
Adjustment in this
section. TEST the
system for normal
operation.

N5 CHECK CIRCUIT CH401 (VT/WH) FOR A SHORT TO VOLTAGE
l Ignition OFF. Yes
l Disconnect: A/C Clutch Relay. REPAIR circuit
l Ignition ON. CH401 (VT/WH) for
l Measure the voltage between A/C compressor clutch field coil C100- a short to voltage.
B, circuit CH401 (VT/WH), harness side and ground. TEST the system for
normal operation.
No
INSTALL a new A/C
clutch relay. TEST
25/06/2011 Page 63 of 104

the system for
normal operation. If
the concern is still
present, GO to N6 .

N6 CHECK THE EVAPORATOR DISCHARGE AIR TEMPERATURE
SENSOR MOUNTING
l Remove the instrument panel. For additional information, refer to Yes
Section 501-12 . GO to N7 .
l Inspect the evaporator discharge air temperature sensor for:
n damage. No
n correct mounting. INSTALL a new
n damaged mounting tabs. evaporator
l Is the sensor and mounting correct and free of damage? discharge air
temperature sensor.
TEST the system for
normal operation.
N7 CHECK THE EVAPORATOR CORE SEALS
l Remove the heater core and evaporator core housing. For additional Yes
information, refer to Section 412-01 . GO to N9 .
l Remove the evaporator core. For additional information, refer to
Section 412-01 . No
l Inspect the evaporator core seals for: CORRECT the
n misalignment. evaporator core seal
n damage. alignment or
n loose fit. INSTALL a new
l Is the evaporator seal mounting tight, correct and free of evaporator core.
damage? REFER to Section
412-01 . TEST the
system for normal
operation.
N8 CHECK THE PCM CONNECTION
l Inspect the module connectors for: INSTALL a new
n corrosion. PCM. TEST the
n pushed-out terminals. system for normal
n damaged terminals. operation.
l Connect and correctly seat all the PCM connectors.
l Clear the DTCs. No
l Operate the system and verify the concern is still present. The system is
l Is the concern still present? operating correctly
at this time. The
concern may have
been caused by a
loose or corroded
connector.
N9 CHECK THE HVAC MODULE CONNECTION
l Inspect the HVACmodule connectors for: Yes
25/06/2011 Page 64 of 104

No
The system is
operating correctly
at this time. The
concern may have
been caused by a
loose or corroded
connector.
Pinpoint Test O: The Air Conditioning (A/C) is Always On — A/C Mode Always Commanded ON
Normal Operation
been selected.

l PCM
l HVAC module
PINPOINT TEST O: THE AIR CONDITIONING (A/C) IS ALWAYS ON — A/C MODE ALWAYS
COMMANDED ON
NOTE: Before carrying out the following test, diagnose any HVAC, PCM or Instrument Cluster (IC)
DTCs.
O1 CHECK THE AIR CONDITIONING REQUEST SIGNAL
25/06/2011 Page 65 of 104

(AC_REQ) PCM PID WITH THE A/C OFF
l Ignition ON. Yes
l Enter the following diagnostic mode on the scan tool: If the vehicle is equipped with
AC_REQ PCM PID. navigation, GO to O3 .
l Select PANEL press the A/C button (indicator off) on the
HVAC module. If the vehicle is not equipped
l Does the AC_REQ PCM PID read YES? with navigation, GO to O2 .
No
GO to O6 .
O2 CHECK THE AIR CONDITIONING SWITCH STATUS
(CC_SW_AC) HVAC PID WITH THE A/C OFF
l Enter the following diagnostic mode on the scan tool: Yes
CC_SW_AC HVAC PID. GO to O6 .
HVAC module. No
l Does the CC_SW_AC HVAC PID read Inactive? GO to O5 .
O3 CHECK THE A/C INDICATOR WITH THE A/C OFF
NOTE: Before carrying out this test step, be sure all other Yes
FCIM button functions are operational. If all other buttons GO to O5 .
operate correctly, continue with this test step. If multiple
buttons are inoperative and DTC U0256:00 is not present, No
install a new FCIM . Test the system for normal operation. GO to O4 .
If DTC U0256:00 is present, diagnose the DTC first.
HVAC module.
l Does the A/C indicator turn off when the A/C button is
pressed?
O4 CHECK THE MAX A/C OPERATION
NOTE: Before carrying out this test step, be sure all other Yes
ACM touch screen functions are operational. If all other INSTALL a new FCIM . TEST
touch screen functions operate correctly, continue with the system for normal operation.
this test step. If multiple touch screen functions are
inoperative and DTC U0163:00 is not present, install a
new ACM . Test the system for normal operation. If DTC No
U0163:00 is present, diagnose the DTC first. GO to O5 .
l Select MAX A/C on the next generation navigation
screen.
l Does the A/C turn off when MAX A/C is selected?
O5 CHECK THE MODULE CONNECTION
n corrosion. INSTALL a new HVAC module.
n pushed-out terminals. REFER to Section 412-01 .
n damaged terminals. TEST the system for normal
l Connect and correctly seat all the HVAC module operation.
connectors.
l Operate the system and verify the concern is still present. The system is operating
l Is the concern still present? correctly at this time. The
concern may have been caused
by a loose or corroded
connector. CLEAR the DTCs.
REPEAT the self-test. TEST the
system for normal operation.
O6 CHECK THE PCM CONNECTION
25/06/2011 Page 66 of 104

l Inspect the module connectors for: INSTALL a new PCM. TEST the
n corrosion. system for normal operation.
n pushed-out terminals.
n damaged terminals. No
l Connect and correctly seat all the PCM connectors. The system is operating
l Clear the DTCs. correctly at this time. The
l Operate the system and verify the concern is still present. concern may have been caused
l Is the concern still present? by a loose or corroded
connector.
Pinpoint Test P: Temperature Control is Inoperative/Does Not Operate Correctly
Normal Operation
Under normal operation, to rotate the temperature blend door actuator clockwise, the HVAC module
supplies voltage to the temperature blend door actuators through the door actuator feed A circuits, and
supplies ground through the door actuator feed B circuits. To rotate the temperature blend door actuator
counterclockwise, the HVAC module reverses the voltage and ground circuits.
The temperature blend door actuator feedback resistors are supplied a ground from the HVAC module
by the temperature blend door actuator return circuits and a 5-volt reference voltage on the temperature
blend door actuator reference circuits. The HVAC module reads the voltage on the temperature blend
door actuator feedback circuits to determine the temperature blend door actuator position by the position
of the actuator feedback resistor wiper arm.
NOTE: For the passenger side temperature setting on hybrid vehicles equipped with dual-zone
Electronic Automatic Temperature Control (EATC) and a Front Controls Interface Module (FCIM) built on
or after 04/08/2009 to be functional, a passenger must be seated in the front passenger seat. If the front
passenger seat is not occupied, the HVAC module will control the system based only on the driver side
temperature setting. The HVAC module receives a Medium Speed Controller Area Network (MS-CAN)
signal from the FCIM to indicate if the front passenger seat is occupied.
Door actuator feed A circuits

n LH blend — CH238 (YE/OG)
n RH blend — CH212 (BU/OG)
Door actuator feed B circuits

n LH blend — CH239 (BU/WH)
n RH blend — CH213 (BN/GN)
Door actuator return circuits

n LH blend — RH111 (GY/BU)
n RH blend — RH111 (GY/BU)
Door actuator reference circuits

n LH blend — LH111 (BN/WH)
n RH blend — LH111 (BN/WH)
Door actuator feedback circuits

n LH blend — VH440 (BU/BN)
n RH blend — VH411 (VT/GN)
25/06/2011 Page 67 of 104

l B1081:07 — Left Temperature Damper The module senses no changes in the feedback circuit
Motor: Mechanical Failures when motor movement is commanded and no motor
DTCs are present.
l B1081:11 — Left Temperature Damper The module senses excessive voltage drop on the
Motor: Circuit Short to Ground sensor reference voltage circuit, indicating a short
directly to ground.
l B1081:12 — Left Temperature Damper The module senses no voltage drop on the sensor
Motor: Circuit Short to Battery reference voltage circuit, indicating an open circuit.
l B1081:13 — Left Temperature Damper The module senses excessive voltage drop on the
Motor: Circuit Open sensor reference voltage circuit, indicating a short
directly to ground.
l B1082:07 — Right Temperature The module senses no changes in the feedback circuit
Damper Motor: Mechanical Failures when motor movement is commanded and no motor
DTCs are present.
l B1082:11 — Right Temperature The module senses excessive voltage drop on the
Damper Motor: Circuit Short to Ground sensor reference voltage circuit, indicating a short
directly to ground.
l B1082:12 — Right Temperature The module senses no voltage drop on the sensor
Damper Motor: Circuit Short to Battery reference voltage circuit, indicating an open circuit.
l B1082:13 — Right Temperature The module senses excessive voltage drop on the
Damper Motor: Circuit Open sensor reference voltage circuit, indicating a short
directly to ground.
l B11E5:11 — Left HVAC Damper The module senses no voltage drop on the sensor
Position Sensor: Circuit Short to reference voltage circuit, indicating an open circuit.
Ground
l B11E5:15 — Left HVAC Damper The module senses excessive voltage drop on the
Position Sensor: Circuit Short to sensor reference voltage circuit, indicating a short
Battery or Open directly to ground.
l B11E6:11 — Right HVAC Damper The module senses no voltage drop on the sensor
Position Sensor: Circuit Short to reference voltage circuit, indicating an open circuit.
Ground
l B11E6:15 — Right HVAC Damper The module senses excessive voltage drop on the
Position Sensor: Circuit Short to sensor reference voltage circuit, indicating a short
Battery or Open directly to ground.

l Temperature blend door actuator
l HVAC module
PINPOINT TEST P: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE

CORRECTLY

P1 CHECK THE HVAC MODULE FOR DTCs
l Ignition ON. Yes
l Check the HVAC module for DTCs. For DTC B1081:07 or
l Are any DTCs present? B1082:07 , INSPECT for
binding/damaged linkage or
door. REPAIR as
25/06/2011 Page 68 of 104

found, INSTALL a new door
actuator. CLEAR the DTCs.
operation.
For DTC B1081:12 or

B1082:12 , GO to P2 .
For DTC B1081:13 or

B1082:13 , GO to P3 .
For DTC B1081:11 or

B1082:11 , GO to P4 .
For DTC B11E5:15 or

B11E6:15 , GO to P6 .
For DTC B11E5:11 or

B11E6:11 , GO to P10 .
No
INSPECT for broken
linkage or door. REPAIR as
found, GO to P13 .
P2 CHECK THE ACTUATOR MOTOR DRIVE CIRCUITS FOR A
SHORT TO POWER
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. REPAIR the circuit(s) for a
l Disconnect: HVAC Module — Dual Automatic Temperature short to power. CLEAR the
Control (DATC) C2356a. DTCs. REPEAT the self-
l Disconnect: HVAC Module — DATC C2356b. test. TEST the system for
l Ignition ON. normal operation.
n For DTC B1081:12 , HVAC module — EMTC C2357a- No
22 or HVAC module — DATC C2356a-22, circuit GO to P5 .
CH238 (YE/OG), harness side.
n For DTC B1082:12 , HVAC module — DATC C2356b-
26, circuit CH212 (BU/OG), harness side.

n For DTC B1081:12 , HVAC module — EMTC C2357a-
21 or HVAC module — DATC C2356a-21, circuit
CH239 (BU/WH), harness side.
25/06/2011 Page 69 of 104

25, circuit CH213 (BN/GN), harness side.
l Are any voltages present?

P3 CHECK THE ACTUATOR MOTOR DRIVE CIRCUITS FOR AN
OPEN
NOTE: Due to limited connector accessibility, before carrying Yes

out this test step, visually inspect the wiring between the GO to P13 .
HVAC module and actuator for opens or shorts. If no damage
is visually evident, proceed with the test. No
REPAIR the circuit(s) for an
l Ignition OFF. open. CLEAR the DTCs.
l Disconnect: HVAC Module — EMTC C2357a. REPEAT the self-test.
l Disconnect: HVAC Module — DATC C2356a. TEST the system for normal
l Disconnect: HVAC Module — DATC C2356b. operation.
l Disconnect: For DTC B1081:00 , LH Temperature Blend Door
Actuator C2091.
l Disconnect: For DTC B1082:00 , RH Temperature Blend
Door Actuator C2092 .
l Measure the resistance between:
CH238 (YE/OG), harness side and LH temperature
blend door actuator C2091-5, circuit CH238 (YE/OG),
harness side.
26, circuit CH212 (BU/OG), harness side and RH
temperature blend door actuator C2092-5, circuit
CH212 (BU/OG), harness side.
l Measure the resistance between:

25/06/2011 Page 70 of 104

CH239 (BU/WH), harness side and LH temperature
blend door actuator C2091-6, circuit CH239 (BU/WH),
harness side.
25, circuit CH213 (BN/GN), harness side and RH
CH213 (BN/GN), harness side.

SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to P5 .
l Measure the resistance between ground and: REPAIR the circuit(s) for a
n For DTC B1081:11 , HVAC module — EMTC C2357a- short to ground. CLEAR the
22 or HVAC module — DATC C2356a-22, circuit DTCs. REPEAT the self-
CH238 (YE/OG), harness side. test. TEST the system for
n For DTC B1082:11 , HVAC module — DATC C2356b- normal operation.
26, circuit CH212 (BU/OG), harness side.
l Measure the resistance between ground and:

CH239 (BU/WH), harness side.
25, circuit CH213 (BN/GN), harness side.
25/06/2011 Page 71 of 104

SHORT TOGETHER

REPAIR circuit(s) for a
l Ignition OFF. short together. CLEAR the
l Disconnect: For DTC B1081:11 , LH Temperature Blend Door DTCs. REPEAT the self-
Actuator C2091. test. TEST the system for
l Disconnect: For DTC B1082:11 , RH Temperature Blend normal operation.
For DTC B1081:11.
l NOTE: For DTC B1081:11 .

CH239 (BU/WH), harness side and HVAC module — EMTC
CH238 (YE/OG), harness side.
For DTC B1082:11.
25/06/2011 Page 72 of 104

l NOTE: For DTC B1082:11 .
l Measure the resistance between HVAC module — DATC
C2356b-25, circuit CH213 (BN/GN), harness side and HVAC
module — DATC C2356b-26, circuit CH212 (BU/OG),
harness side.
P6 CHECK CIRCUIT VH441 (WH/BN) OR VH440 (BU/BN) FOR
AN OPEN

l Ignition OFF. (WH/BN) or VH440
l Disconnect: HVAC Module — EMTC C2357a. (BU/BN) for an open.
l Disconnect: HVAC Module — DATC C2356a. CLEAR the DTCs. REPEAT
l Disconnect: HVAC Module — DATC C2356b. the self-test. TEST the
l Disconnect: For DTC B11E5:15 , LH Temperature Blend system for normal
Door Actuator C2091. operation.
l Disconnect: For DTC B11E6:15 , RH Temperature Blend
l Measure the resistance between the following:
n For DTC B11E5:15 , HVAC module — EMTC C2357a-
7 or HVAC module — DATC C2356a-7, circuit VH440
(BU/BN), harness side and LH temperature blend door
actuator C2091-9, circuit VH440 (BU/BN), harness
side.
n For DTC B11E6:15 , HVAC module — DATC C2356b-
16, circuit VH441 (WH/BN), harness side and RH
VH441 (WH/BN), harness side.
25/06/2011 Page 73 of 104

P7 CHECK CIRCUIT VH440 (BU/BN) OR VH441 (WH/BN) FOR A
SHORT TO POWER
l Ignition ON. Yes
l Measure the voltage between ground and the following: REPAIR circuits VH441
n For DTC B11E5:15 , HVAC module — EMTC C2357a- (WH/BN) or VH440
7 or HVAC module — DATC C2356a-7, circuit VH440 (BU/BN) for a short to
(BU/BN), harness side. power. CLEAR the DTCs.
n For DTC B11E6:15 , HVAC module — DATC C2356b- REPEAT the self-test.
16, circuit VH441 (WH/BN), harness side. TEST the system for normal
operation.
No
GO to P8 .

P8 CHECK CIRCUIT LH111 (BN/WH) FOR A SHORT TO
CIRCUIT VH441 (WH/BN) OR VH440 (BU/BN)
l Ignition OFF. Yes
l Measure the resistance between HVAC module — EMTC GO to P9 .
LH111 (BN/WH) and the following: No
n For DTC B11E5:15 , HVAC module — EMTC C2357a- REPAIR circuits LH111
7 or HVAC module — DATC C2356a-7, circuit VH440 (BN/WH) and VH441
(BU/BN), harness side. (WH/BN) or VH440
n For DTC B11E6:15 , HVAC module — DATC C2356b- (BU/BN) for a short
16, circuit VH441 (WH/BN), harness side. together. CLEAR the DTCs.
operation.

P9 CHECK THE ACTUATOR RETURN CIRCUIT RH111 (GY/BU)
FOR AN OPEN
C2357a-10 or HVAC module — DATC C2356a-10, circuit GO to P13 .
RH111 (GY/BU) and the following:
n For DTC B11E5:15 , LH temperature blend door No
25/06/2011 Page 74 of 104

actuator C2091-8, circuit RH111 (GY/BU), harness REPAIR circuit RH111
side. (GY/BU) for an open.
n For DTC B11E6:15 , RH temperature blend door CLEAR the DTCs. REPEAT
actuator C2092-8, circuit RH111 (GY/BU), harness the self-test. TEST the
side. system for normal
operation.

P10 CHECK CIRCUIT VH440 (BU/BN) OR VH441 (WH/BN) FOR
A SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357a. GO to P11 .
l Measure the resistance between ground and the following: REPAIR circuit VH441
n For DTC B11E5:11 , HVAC module — EMTC C2357a- (WH/BN) or VH440
7 or HVAC module — DATC C2356a-7, circuit VH440 (BU/BN) for a short to
(BU/BN), harness side. ground. CLEAR the DTCs.
n For DTC B11E6:11 , HVAC module — DATC C2356b- REPEAT the self-test.
16, circuit VH441 (WH/BN), harness side. TEST the system for normal
operation.

P11 CHECK CIRCUIT RH111 (GY/BU) FOR A SHORT TO
CIRCUIT VH441 (WH/BN) OR VH440 (BU/BN)

REPAIR circuits RH111
l Disconnect: For DTC B11E5:11 , LH Temperature Blend (GY/BU) and VH441
Door Actuator C2091. (WH/BN) or VH440
l Disconnect: For DTC B11E6:11 , RH Temperature Blend (BU/BN) for a short
25/06/2011 Page 75 of 104

Door Actuator C2092 . together. CLEAR the DTCs.
l Measure the resistance between HVAC module — EMTC REPEAT the self-test.
C2357a-10 or HVAC module — DATC C2356a-10, circuit TEST the system for normal
RH111 (GY/BU) and the following: operation.
n For DTC B11E5:11 , HVAC module — EMTC C2357a-
7 or HVAC module — DATC C2356a-7, circuit VH440
(BU/BN), harness side.
n For DTC B11E6:11 , HVAC module — DATC C2356b-
16, circuit VH441 (WH/BN), harness side.

P12 CHECK CIRCUIT LH111 (BN/WH) FOR AN OPEN
C2357a-11 or HVAC module — DATC C2356a-11, circuit GO to P13 .
LH111 (BN/WH) and the following:
n For DTC B11E5:11 , LH temperature blend door No
actuator C2091-10, circuit LH111 (BN/WH), harness REPAIR circuit LH111
side. (BN/WH) for an open.
n For DTC B11E6:11 , RH temperature blend door CLEAR the DTCs. REPEAT
actuator C2092-10, circuit LH111 (BN/WH), harness the self-test. TEST the
side. system for normal
operation.

P13 CHECK THE ACTUATOR CONNECTION
l Disconnect the actuator connector. Yes
l Check for: CARRY OUT the
n corrosion. Temperature Blend Door
n pushed-out terminals. Actuator component test in
n damaged terminals. this section. If the actuator
l Connect and correctly seat the actuator connector. tests OK, GO to P14 .
l Clear the DTCs.
25/06/2011 Page 76 of 104

l Operate the system and verify the concern is still present. No
l Is the concern still present? The system is operating
corroded connector.
CLEAR the DTCs. TEST
operation.
P14 MODULE ACTUATOR POSITION CALIBRATION
NOTE: The purpose of the module actuator position Yes

calibration is to allow the HVAC module to reinitialize and INSTALL a new HVAC
calibrate the actuator stop points. To carry out the calibration, module. REFER to Section
follow the steps below. 412-01 . TEST the system
l Ignition OFF.
l Inspect the module connectors for: No
n corrosion. The system is now
n pushed-out terminals. operating correctly at this
n damaged terminals. time. The concern may
l Connect and correctly seat all the HVAC module connectors. have been caused by a
l Ignition ON. foreign object in the HVAC
l Clear the DTCs. case or temporary binding
l Select any position except OFF. that restricted actuator door
l NOTE: The HVAC module will now initialize and calibrate the travel. CHECK any actuator
actuators. Calibration of the actuators will take approximately external linkage. If condition
30 seconds. recurs, INSPECT actuator
l Operate the system and verify the concern is still present. linkage and door for binding
l Is the concern still present? and CHECK HVAC case for
foreign objects.
Pinpoint Test Q: The Blower Motor is Inoperative — EMTC
Normal Operation
Under normal operation, the blower motor relay coil receives ignition voltage through circuit CBP45 (YE).
The coil receives ground from the HVAC module — Electronic Manual Temperature Control (EMTC)
through circuit CH123 (VT/GN) if any function selector position but OFF is selected. Voltage is supplied
to the relay switch contact through circuit SBB06 (BN/RD). When the relay coil is energized, voltage is
delivered to the blower motor through circuit CH402 (YE/GN). Ground for the blower motor is provided
through circuit CH426 (YE/OG) from the blower resistor or the blower switch (HI). The blower resistor
and blower switch is grounded through circuit GD115 (BK/GY).
l DTC B10AF:12 (Blower Fan Relay: Circuit Short to Battery) — The module senses excessive
voltage on the relay coil ground circuit, indicating a short directly to voltage.
l DTC B10AF:14 (Blower Fan Relay: Circuit Short to Ground or Open) — The module senses no
voltage on the relay coil ground circuit, indicating an open or a short directly to ground.

l Fuse(s)
l Blower motor
l Blower motor relay
l HVAC module — EMTC
25/06/2011 Page 77 of 104

PINPOINT TEST Q: THE BLOWER MOTOR IS INOPERATIVE — EMTC

Q1 CHECK THE HVAC MODULE FOR DTCs
l Ignition ON. Yes
l Check the HVAC module for DTCs. For B10AF:12 , REPAIR
l Are any DTCs present? circuit CH123 (VT/GN) for
a short to voltage.
CLEAR the DTCs.
TEST the system for
normal operation.
For B10AF:14 , CARRY

OUT the blower motor
relay component test.

Fusion Hybrid/MKZ
testing.
If the relay tests OK, GO

to Q2 .
No
GO to Q3 .
Q2 CHECK THE RELAY COIL SUPPLY VOLTAGE
l Ignition OFF. Yes
l Disconnect: Blower Motor Relay. REPAIR circuit CH123
l Ignition ON. (VT/GN) for an open.
l Measure the voltage between blower motor relay socket pin 86, TEST the system for
circuit CBP45 (YE) and ground. normal operation.
No
VERIFY Smart Junction
Box (SJB) fuse 45 (5A) is
OK. If OK, REPAIR circuit
CBP45 (YE) for an open.
TEST the system for
normal operation.

Q3 CHECK CIRCUIT CH426 (YE/OG) FOR GROUND
l Ignition OFF. Yes
l Disconnect: Blower Motor C288. GO to Q5 .
l Turn the function selector switch to the PANEL position.
l Turn the blower motor switch to the HI position. No
l Measure the resistance between blower motor connector C288- GO to Q4 .
B, circuit CH426 (YE/OG), harness side and ground.
25/06/2011 Page 78 of 104

Q4 CHECK CIRCUIT CH426 (YE/OG) FOR AN OPEN
l Disconnect: HVAC Module — EMTC C2357b. Yes
l Measure the resistance between HVAC module — EMTC REPAIR circuit GD115
C2357b-2, circuit CH426 (YE/OG), harness side and blower (BK/GY) for an open.
motor C288-B, circuit CH426 (YE/OG), harness side. TEST the system for
normal operation.
No
(YE/OG) for an open.
TEST the system for
normal operation.

Q5 CHECK BLOWER MOTOR CIRCUIT CH402 (YE/GN) FOR
VOLTAGE
l Ignition ON. Yes
l Measure the voltage between blower motor C288-A, circuit INSTALL a new blower
CH402 (YE/GN), harness side and ground. motor. REFER to Section
412-01 . TEST the
system for normal
operation.
No
GO to Q6 .

Q6 CHECK CIRCUIT SBB35 (BU/RD) FOR VOLTAGE
25/06/2011 Page 79 of 104

l Ignition OFF. Yes
l Disconnect: Blower Motor Relay. CARRY OUT the blower
l Ignition ON. motor relay component
l Measure the voltage between blower motor relay socket pin 30, test.
circuit SBB35 (BU/RD) and ground.
Fusion Hybrid/MKZ
testing.
If the relay tests OK,

TEST the system for
normal operation.
No
VERIFY Battery Junction
Box (BJB) fuse 35 (40A)
l Is the voltage greater than 10 volts? is OK. If OK, REPAIR
circuit SBB35 (BU/RD)
for an open. TEST the
system for normal
operation.
Pinpoint Test R: The Blower Motor Does Not Operate Correctly — EMTC
Normal Operation
Under normal operation, the blower motor is provided ground from the blower resistor through circuit
CH426 (YE/OG). The resistor gets a ground from circuit GD115 (BK/GY) in the lowest blower setting. In
MED-LO and MED-HI the resistor gets ground from the blower motor switch through circuit CH428
(GN/WH) or CH429 (GY/BN), depending on selected speed. In HI, the blower motor is grounded directly
through the blower motor switch from circuit CH426 (YE/OG) to circuit GD115 (BK/GY). The blower
switch receives its ground from circuit GD115 (BK/GY).

l Blower motor resistor
l HVAC module — Electronic Manual Temperature Control (EMTC)
PINPOINT TEST R: THE BLOWER MOTOR DOES NOT OPERATE CORRECTLY — EMTC
Result / Action to
Test Step
Take
R1 CHECK THE HVAC MODULE FOR DTCs
l Ignition ON. Yes
l Check the HVAC module for DTCs. REPAIR circuit
25/06/2011 Page 80 of 104

l Is DTC B10AF:14 present? CH123 (VT/GN)
for a short to
ground. CLEAR
the DTCs.
REPEAT the self-
test. TEST the
system for normal
operation.
No
GO to R2 .
R2 CHECK THE BLOWER MOTOR OPERATION
l Ignition ON. Yes
l Turn the function selector switch to the FLOOR position. If the blower motor
l Select all blower speed positions. does not operate
l Does the blower motor operate in any position? in HI setting only,
GO to R3 .
If the blower motor

does not operate
in LO setting only,
GO to R4 .
If the blower motor

does not operate
in MED-LO or
MED-HI setting
only, GO to R5 .
If the blower motor

operates in HI
setting only, GO to
R7 .
If the blower motor

operates in LO
setting only, GO to
R8 .
For all other

symptoms, GO to
R9 .
No
GO to Pinpoint
Test Q .
R3 CHECK CIRCUIT CH426 (YE/OG) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357b. INSTALL a new
l Disconnect: Blower Motor C288. HVAC module.
l Measure the resistance between HVAC module — EMTC C2357b-2, TEST the system
circuit CH426 (YE/OG), harness side and blower motor C288-B, circuit for normal
CH426 (YE/OG), harness side. operation.
No
REPAIR circuit
CH426 (YE/OG)
for an open. TEST
the system for
normal operation.
25/06/2011 Page 81 of 104

R4 CHECK BLOWER MOTOR RESISTOR GROUND CIRCUIT GD115
(BK/GY) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: Blower Motor Resistor C1228. INSTALL a new
l Measure the resistance between blower motor resistor C1228-D, circuit blower motor
GD115 (BK/GY), harness side and ground. resistor. REFER to
Section 412-01 .
TEST the system
for normal
operation.
No
REPAIR circuit
GD115 (BK/GY)
for an open. TEST
the system for
normal operation.

R5 CHECK CIRCUIT CH428 (GN/WH) OR CH429 (GY/BN) FOR GROUND
NOTICE: The following step uses a test light to stimulate normal Yes
circuit loads. Use only the test light recommended in the Special INSTALL a new
Tools table at the beginning of this section or equivalent. To avoid blower motor
connector terminal damage, use the Flex Probe kit for the test resistor. TEST the
light probe connection to the vehicle. Do not use the test light system for normal
probe directly on any connector. operation.
l Ignition OFF. No
l Disconnect: Blower Motor Resistor C1228. GO to R6 .
l Ignition ON.
For MED-LO inoperative.
25/06/2011 Page 82 of 104

l For MED-LO inoperative : With the blower motor switch in the MED-
LO speed position, connect a 12-volt test lamp between blower motor
resistor C1228-C, circuit CH426 (YE/OG), harness side and blower
motor resistor C1228-A, circuit CH428 (GN/WH), harness side.
For MED-HI inoperative.
l For MED-HI inoperative : With the blower motor switch in the MED-HI
speed position, connect a 12-volt test lamp between blower motor
resistor C1228-C, circuit CH426 (YE/OG), harness side and blower
motor resistor C1228-B, circuit CH429 (GY/BN), harness side.
l Does the test lamp illuminate?
R6 CHECK CIRCUIT CH428 (GN/WH) OR CH429 (GY/BN) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — EMTC C2357b. CARRY OUT the
Blower Motor
For MED-LO inoperative. Resistor
component test in
this section. If the
resistor tests OK,
INSTALL a new
blower motor
switch. TEST the
system for normal
operation.
No
REPAIR circuit
CH428 (GN/WH)
or CH429 (GY/BN)
for an open. TEST
the system for
normal operation.
25/06/2011 Page 83 of 104

l For MED-LO inoperative , measure the resistance between HVAC
module — EMTC C2357b-4, circuit CH428 (GN/WH), harness side and
blower motor resistor C1228-A, circuit CH428 (GN/WH), harness side.
For MED-HI inoperative.
l For MED-HI inoperative , measure the resistance between HVAC

module — EMTC C2357b-3, circuit CH429 (GY/BN), harness side and
blower motor resistor C1228-B, circuit CH429 (GY/BN), harness side.
R7 CHECK CIRCUIT CH426 (YE/OG) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: Blower Motor Resistor C1228. INSTALL a new
l Disconnect: Blower Motor C288. blower motor
l Measure the resistance between blower motor resister C1228-C, circuit resistor. TEST the
CH426 (YE/OG), harness side and blower motor C288-B, circuit system for normal
CH426 (YE/OG), harness side. operation.
No
REPAIR circuit
CH426 (YE/OG)
for an open. TEST
the system for
normal operation.

R8 CHECK THE BLOWER MOTOR SWITCH CIRCUIT GD115 (BK/GY)
FOR AN OPEN
l Measure the resistance between HVAC Module — EMTC C2357b-1, Yes
circuit GD115 (BK/GY), harness side and ground. INSTALL a new
HVAC module.
TEST the system
for normal
operation.
No
REPAIR circuit
GD115 (BK/GY)
for an open. TEST
25/06/2011 Page 84 of 104

the system for
normal operation.

R9 CHECK CIRCUITS CH426 (YE/OG), CH428 (GN/WH) AND CH429
(GY/BN) FOR A SHORT TO GROUND
l Ignition OFF. Yes
l Disconnect: Blower Motor C288. GO to R10 .
l Disconnect: Blower Motor Resistor C1228.
l Disconnect: HVAC Module — EMTC C2357b. No
l Measure the resistance between ground and blower motor resistor: REPAIR the
n C1228-A, circuit CH428 (GN/WH), harness side. affected circuit for
n C1228-C, circuit CH426 (YE/OG), harness side. a short to ground.
n C1228-B, circuit CH429 (GY/BN), harness side. TEST the system
for normal
operation.

R10 CHECK THE BLOWER MOTOR CIRCUITS FOR SHORTS
TOGETHER
l Measure the resistance between blower motor resistor: Yes
n C1228-A, circuit CH428 (GN/WH), harness side and C1228-C, CARRY OUT the
circuit CH426 (YE/OG), harness side. Blower Motor
n C1228-A, circuit CH428 (GN/WH), harness side and C1228-B, Resistor
circuit CH429 (GY/BN), harness side. component test in
n C1228-C, circuit CH426 (YE/OG), harness side and C1228-B, this section. If the
circuit CH429 (GY/BN), harness side. resistor tests OK,
INSTALL a new
HVAC module.
TEST the system
for normal
operation.
No
REPAIR the
affected circuits.
TEST the system
25/06/2011 Page 85 of 104

for normal
operation.
Pinpoint Test S: The Blower Motor is Inoperative — DATC
Normal Operation
Under normal operation, the blower motor relay coil receives a ground from the HVAC module through
circuit CH123 (VT/GN). The coil receives ignition voltage through circuit CBP45 (YE). Voltage is supplied
delivered to the blower motor speed control through circuit CH402 (YE/GN). Ground for the blower motor
speed control is provided by circuit GD115 (BK/GY). Voltage for the motor is provided through circuit
VH301 (YE/BU) from the blower motor speed control. Ground for the motor is provided through circuit
VH219 (GY) from the blower motor speed control. The HVAC module sends a Pulse-Width Modulation
(PWM) signal to the blower motor speed control through circuit VH101 (WH/VT) to control the blower
speed.
l DTC B10AF:12 (Blower Fan Relay: Circuit Short to Battery) — The module senses excessive
voltage on the relay coil ground circuit, indicating a short directly to voltage.
l DTC B10B9:12 (Blower Control: Circuit Short to Battery) — The module senses excessive
voltage on the blower motor control PWM circuit, indicating a short directly to voltage.
l DTC B10B9:14 (Blower Control: Circuit Short to Ground or Open) — The module senses no
voltage on the blower motor control PWM circuit, indicating an open or a short directly to ground.

l Fuse(s)
l Blower motor relay
l Blower motor speed control
l HVAC module — Dual Automatic Temperature Control (DATC)
l Blower motor
PINPOINT TEST S: THE BLOWER MOTOR IS INOPERATIVE — DATC
Result / Action to
Test Step
Take
S1 CHECK THE HVAC MODULE FOR DTCs
25/06/2011 Page 86 of 104

l Ignition ON. Yes
l Check the HVAC module for DTCs. For DTC B10AF:12 ,
l Are any DTCs present? REPAIR circuit CH123
(VT/GN) for a short to
voltage. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation.
For DTC B10AF:14 ,

CARRY OUT the
Blower Motor Relay
component test.
Refer to Wiring
Diagrams Cell 149
( Fusion/MKZ , Fusion
Hybrid/MKZ Hybrid ) for
component testing.
If the relay tests OK,

GO to S2 .
For DTC B10B9:14 ,

GO to S4 .
No
GO to S6 .
S2 CHECK THE RELAY COIL SUPPLY VOLTAGE
l Ignition OFF. Yes
l Disconnect: Blower Motor Relay. GO to S3 .
l Ignition ON.
l Measure the voltage between blower motor relay socket pin 86, No
circuit CBP45 (YE) and ground. VERIFY Smart Junction
Box (SJB) fuse 45 (5A)
is OK. If OK, REPAIR
circuit CBP45 (YE) for
an open. CLEAR the
DTCs. REPEAT the
self-test. TEST the
system for normal
operation. If not OK,
REFER to the Wiring
Diagrams manual to
short.

S3 CHECK CIRCUIT CH123 (VT/GN) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: HVAC Module — DATC C2356a. GO to S17 .
l Measure the resistance between blower motor relay socket pin
85, circuit CH123 (VT/GN) and HVAC module — DATC C2356a- No
24, circuit CH123 (VT/GN), harness side. REPAIR circuit CH123
(VT/GN) for an open.
CLEAR the DTCs.
TEST the system for
25/06/2011 Page 87 of 104

normal operation.

S4 CHECK CIRCUIT VH101 (WH/VT) FOR AN OPEN
l Ignition OFF. Yes
l Disconnect: Blower Motor Speed Control C271. GO to S5 .
l Measure the resistance between blower motor control C271-B, No
circuit VH101 (WH/VT), harness side and HVAC module — DATC REPAIR circuit VH101
C2356a-14, circuit VH101 (WH/VT), harness side. (WH/VT) for an open.
CLEAR the DTCs.
TEST the system for
normal operation.

S5 CHECK CIRCUIT VH101 (WH/VT) FOR GROUND SIGNAL
l Connect: HVAC Module — DATC C2356a. Yes
l Ignition ON. GO to S16 .
l Press the PANEL button on the HVAC module. Adjust the blower
motor setting to HI. No
l Measure the voltage between blower motor speed control C271- GO to S17 .
B, circuit VH101 (WH/VT), harness side and blower motor speed
control C271-C, circuit CH402 (YE/GN), harness side.
25/06/2011 Page 88 of 104

S6 CHECK FOR VOLTAGE TO THE BLOWER MOTOR
l Ignition OFF. Yes
l Disconnect: Blower Motor C288. INSTALL a new blower
l Ignition ON. motor. TEST the
l Measure the voltage between blower motor C288-A, circuit VH219 system for normal
(GY), harness side and blower motor C288-B, circuit VH301 operation.
(YE/BU), harness side.
No
GO to S7 .

S7 CHECK FOR VOLTAGE TO THE BLOWER MOTOR
CONTROLLER
l Ignition OFF. Yes
l Disconnect: Blower Motor Speed Control C271. GO to S8 .
l Ignition ON.
l Press the PANEL button on the HVAC module. No
l Measure the voltage between blower motor speed control C271- GO to S14 .
C, circuit CH402 (YE/GN), harness side and ground.
25/06/2011 Page 89 of 104

S8 CHECK CIRCUIT GD115 (BK/GY) FOR AN OPEN
l Ignition OFF. Yes
l Measure the resistance between blower motor speed control GO to S9 .
C271-A, circuit GD115 (BK/GY), harness side and ground.
No
REPAIR circuit GD115
(BK/GY) for an open.
TEST the system for
normal operation.

S9 CHECK CIRCUIT VH101 (WH/VT) FOR GROUND SIGNAL
l Ignition ON. Yes
l Press the PANEL button on the HVAC module. Adjust the blower GO to S10 .
motor setting to HI.
l Measure the voltage between blower motor speed control C271-2, No
circuit VH101 (WH/VT), harness side and blower motor speed GO to S17 .
control C271-3, circuit CH402 (YE/GN), harness side.

S10 CHECK CIRCUITS VH219 (GY) AND VH301 (YE/BU) FOR AN
OPEN
25/06/2011 Page 90 of 104

l Measure the resistance between the blower motor connector, Yes
harness side and blower motor speed control, harness side using GO to S11 .
the following chart.
No
Blower Motor Blower Motor Speed REPAIR circuit VH219
Connector Circuit Control Connector (GY) or VH301 (YE/BU)
for an open. TEST the
C288-A VH219 (GY) C271-E system for normal
operation.
C288-B VH301 C271-D
(YE/BU)

S11 CHECK CIRCUITS VH219 (GY) AND VH301 (YE/BU) FOR A
SHORT TOGETHER
l Measure the resistance between blower motor C288-A, circuit Yes
VH219 (GY), harness side and blower motor C288-B, circuit GO to S12 .
VH301 (YE/BU), harness side.
No
REPAIR circuits VH219
(GY) and VH301
(YE/BU) for a short
together. TEST the
system for normal
operation.

S12 CHECK CIRCUIT VH219 (GY) FOR A SHORT TO GROUND
l Measure the resistance between ground and blower motor C288- Yes
A, circuit VH219 (GY), harness side. GO to S13 .
No
(GY) for a short to
ground. TEST the
system for normal
operation.
25/06/2011 Page 91 of 104

S13 CHECK CIRCUIT VH301 (YE/BU) FOR A SHORT TO VOLTAGE
l Ignition ON. Yes
l Measure the voltage between ground and blower motor C288-B, REPAIR circuit VH301
circuit VH301 (YE/BU), harness side. (YE/BU) for a short to
voltage. TEST the
system for normal
operation.
No
GO to S16 .

S14 CHECK THE RELAY SWITCH POWER CIRCUIT FOR AN OPEN
l Measure the voltage between blower motor relay socket pin 30, Yes
circuit SBB35 (BU/RD) and ground. GO to S15 .
No
VERIFY Battery
Junction Box (BJB) fuse
35 (40A) is OK. If OK,
REPAIR circuit SBB35
(BU/RD) for an open.
TEST the system for
normal operation. If not
OK, REFER to the
Wiring Diagrams
manual to identify the
possible causes of the
circuit short.

S15 CHECK THE MODULE OUTPUT
NOTICE: The following step use a test light to simulate Yes

normal circuit loads. Use only the test light recommended in INSTALL a new blower
the Special Tools table at the beginning of this section or motor relay. TEST the
equivalent. To avoid connector terminal damage, use the Flex system for normal
25/06/2011 Page 92 of 104

Probe kit for the test light probe connection to the vehicle. Do operation.
not use the test light probe directly on any connector.
l Ignition ON. No
l With the engine running, connect a 12-volt test lamp between GO to S17 .
blower motor relay socket pin 85, circuit CH123 (VT/GN) and
socket pin 86, circuit CBP45 (YE).
l Does the test lamp illuminate?

S16 CHECK THE BLOWER MOTOR SPEED CONTROL
CONNECTION
l Clear the DTCs. Yes
l Disconnect the blower motor speed control connector. INSTALL a new blower
l Check for: motor speed control.
n corrosion. REFER to Section 412-
n pushed-out terminals. 01 . CLEAR the DTCs.
n damaged terminals. TEST the system for
l Connect and correctly seat the connector. normal operation.
l Carry out the HVAC On-Demand Self Test.
l Operate the system and verify the concern is still present. No
l Is the concern still present? The system is operating
CLEAR the DTCs.
TEST the system for
normal operation.
S17 CHECK THE MODULE CONNECTION
CLEAR the DTCs.
TEST the system for
normal operation.
25/06/2011 Page 93 of 104

Pinpoint Test T: The Blower Motor Does Not Operate Correctly — DATC
Normal Operation
Under normal operation, the blower motor relay coil receives a ground from the HVAC module through
circuit CH123 (VT/GN). The coil receives ignition voltage through circuit CBP45 (YE). Voltage is supplied
delivered to the blower motor speed control through circuit CH402 (YE/GN). Ground for the blower motor
speed control is provided by circuit GD115 (BK/GY). Voltage for the motor is provided through circuit
VH301 (YE/BU) from the blower motor speed control. Ground for the motor is provided through circuit
VH219 (GY) from the blower motor speed control. The HVAC module sends a Pulse-Width Modulation
(PWM) signal to the blower motor speed control through circuit VH101 (WH/VT) to control the blower
speed.
l DTC B10B9:14 (Blower Control: Circuit Short to Ground or Open) — The module senses no
voltage on the blower motor control PWM circuit, indicating an open or a short directly to ground.

l Fuse(s)
l Blower motor speed control
l HVAC module — Dual Automatic Temperature Control (DATC)
PINPOINT TEST T: THE BLOWER MOTOR DOES NOT OPERATE CORRECTLY — DATC

T1 CHECK THE HVAC MODULE FOR DTCs
l Ignition ON. Yes
l Check the HVAC module for DTCs. For DTC B10AF:14 , REPAIR
l Are any DTCs present? circuit CH123 (VT/GN) for a
short to ground. CLEAR the
DTCs. REPEAT the self-test.
operation.
For DTC B10B9:14 , REPAIR

circuit VH101 (WH/VT) for a
short to ground. CLEAR the
DTCs. REPEAT the self-test.
operation.
No
GO to T2 .
T2 VERIFY THE BLOWER MOTOR OPERATION
l Ignition ON. Yes
l Press the panel button on the HVAC module. Adjust the If the blower motor operates
blower motor setting to LO and then to HI. always in HI, GO to T3 .
l Does the blower motor operate at any setting?
If the blower motor is always
ON, CARRY OUT the blower
25/06/2011 Page 94 of 104

motor relay component test.
Refer to Wiring Diagrams Cell

149 ( Fusion/MKZ , Fusion
Hybrid/MKZ Hybrid ) for
component testing.
If the relay tests OK, GO to

T5 .
No
GO to Pinpoint Test S .
T3 CHECK CIRCUIT VH301 (YE/BU) FOR A SHORT TO
VOLTAGE
l Ignition OFF. Yes
l Disconnect: Blower Motor Speed Control C271. REPAIR circuit VH301
l Disconnect: Blower Motor C288. (YE/BU) for a short to voltage.
l Ignition ON. TEST the system for normal
l Measure the voltage between ground and blower motor operation.
speed control C271-E, circuit VH301 (YE/BU), harness side.
No
GO to T4 .

T4 CHECK CIRCUIT VH219 (GY) FOR A SHORT TO GROUND
l Ignition OFF. Yes
l Measure the resistance between ground and blower motor INSTALL a new blower
speed control C271-D, circuit VH219 (GY), harness side. control. TEST the system for
normal operation. If the
condition returns, GO to T5 .
No
REPAIR circuit VH219 (GY)
for a short to voltage. TEST
operation.

T5 CHECK THE MODULE CONNECTION
25/06/2011 Page 95 of 104

n pushed-out terminals. module. REFER to Section
n damaged terminals. 412-01 . TEST the system for
l Connect and correctly seat all the HVAC module normal operation.
connectors.
l Operate the system and verify the concern is still present. The system is operating
l Is the concern still present? correctly at this time. The
corroded connector. CLEAR
the DTCs. REPEAT the self-
normal operation.
Component Tests
Blower Motor Resistor
Blower Motor Resistor Pins Approx. Resistance

C and B 1.27 ohms
C and A 2.45 ohms
C and D 4.5 ohms
Temperature Sensor — In-Vehicle
25/06/2011 Page 96 of 104

Ambient Temperature Resistance
-40°C (-40°F) 869,073-1,061,986 ohms
-15°C (5°F) 196,465-231,213 ohms
0°C (32°F) 89,982-102,514 ohms
15°C (59°F) 44,261-49,503 ohms
25°C (77°F) 28,500-31,500 ohms
35°C (95°F) 18,563-20,751 ohms
60°C (140°F) 6,971-8,001 ohms
85°C (185°F) 2,959-3,474 ohms
Temperature Sensor — Ambient

-40°C (-40°F) 832,519-1,017,523 ohms
-15°C (5°F) 199,325-220,307 ohms
0°C (32°F) 91,058-100,644 ohms
15°C (59°F) 44,435-49,113 ohms
25°C (77°F) 28,500-31,500 ohms
35°C (95°F) 18,730-20,701 ohms
60°C (140°F) 7,171-7,925 ohms
25/06/2011 Page 97 of 104

85°C (185°F) 3,110-3,438 ohms
Air Inlet Mode Door Actuator
Actuator Pins Approx. Resistance

51 and 6 71-85 ohms
Defrost/Panel/Floor Door Actuator

8 and 10 8,000-12,000 ohms
8 and 9 1-10,000 ohms
9 and 10 1-10,000 ohms
5 and 6 38-48 ohms
Temperature Blend Door Actuator
25/06/2011 Page 98 of 104

8 and 10 8,000-12,000 ohms
8 and 9 1-10,000 ohms
9 and 10 1-10,000 ohms
5 and 6 59-73 ohms
Evaporator Discharge Air Temperature Sensor
25/06/2011 Page 99 of 104

-5°C (23°F) 111,677-136,089 ohms
0°C (32°F) 87,028-106,252 ohms
5°C (41°F) 67,969-82,801 ohms
10°C (50°F) 53,505-64,741 ohms
15°C (59°F) 42,389-51,206 ohms
20°C (68°F) 33,860-40,844 ohms
25°C (77°F) 27,058-32,942 ohms
30°C (86°F) 21,443-27,036 ohms
35°C (95°F) 16,583-22,808 ohms
40°C (104°F) 12,177-20,007 ohms
Heater Core
1. NOTE: If a heater core leak is suspected, the heater core must be tested by following the
Plugged Heater Core Component Test before the heater core pressure test. Carry out a system
inspection by checking the heater system thoroughly as follows:
Inspect for evidence of coolant leakage at the heater hose to heater core attachments. A coolant
leak in the heater hose could follow the heater core tube to the heater core and appear as a leak
in the heater core.
2. NOTE: Spring-type clamps are installed as original equipment. Installation and overtightening of
non-specified clamps can cause leakage at the heater hose connection and damage the heater
core.
25/06/2011 Page 100 of 104

Check the integrity of the heater hose clamps.
Heater Core — Plugged
1. Check to see that the engine coolant is at the correct level.
2. Start the engine and turn on the heater.
3. When the engine coolant reaches operating temperature, using a suitable temperature measuring
device, check the core inlet and outlet hoses to see if they are hot.
4. If the outlet only is not hot:

l the heater core may have an air pocket.
l the heater core may be plugged.
5. If the inlet only is not hot:

l the thermostat may not be working correctly.
Heater Core — Pressure Test
WARNING: Before disconnecting any heater water hoses, shut OFF the engine and wait
until engine is fully cool. Failure to comply with this warning may result in serious injury or burns
from hot liquid escaping from the engine cooling system.
Use the Pressure Test Kit to carry out the pressure test.
1. NOTE: Due to space limitations, a bench test may be necessary for pressure testing.
Drain the coolant from the cooling system.
2. Disconnect the heater hoses from the heater core.
3. Install a short piece of heater hose, approximately 101 mm (4 in) long on each heater core tube.
4. Fill the heater core and heater hoses with water and install the plug BT-7422-B and the adapter
BT-7422-A from the Pressure Test Kit. Secure the heater hoses, plug and adapter with hose
clamps.
5. Attach the pump and gauge assembly from the Pressure Test Kit to the adapter.
25/06/2011 Page 101 of 104

6. Close the bleed valve at the base of the gauge. Pump 138 kPa (20 psi) of air pressure into the
heater core.
7. Observe the pressure gauge for a minimum of 3 minutes.
8. If the pressure drops, check the heater hose connections to the core tubes for leaks. If the heater
hoses do not leak, remove the heater core from the vehicle and carry out the bench test.
Heater Core — Bench Test
1. Remove the heater core from the vehicle.
2. Drain all of the coolant from the heater core.
3. Connect the 101 mm (4 in) test heater hoses with plug and adapter to the core tubes. Then
connect the Pressure Test Kit to the adapter.
4. Apply 138 kPa (20 psi) of air pressure to the heater core. Submerge the heater core in water.
5. If a leak is observed, install a new heater core.
Evaporator/Condenser Core — On-Vehicle Leak Test
1. Discharge and recover the refrigerant. Refer to Air Conditioning (A/C) System Recovery,
Evacuation and Charging in this section.
2. Disconnect the suspect evaporator core or condenser core from the A/C system.
3. Clean the manifold fittings.
4. Connect the appropriate test fittings from the A/C Flush Adapter Kit to the condenser or
evaporator core tube connections.
5. NOTE: The automatic shut-off valves on some gauge set hoses do not open when connected to
the test fittings. If available, use hoses without shut-off valves. If hoses with shut-off valves are
used, make sure the valve opens when attached to the test fittings or install an adapter that will
activate the valve. The test is not valid if the shut-off valve does not open.
Connect the red and blue hoses from the R-134a Manifold Gauge Set to the test fittings on the
evaporator core or condenser core. Connect the yellow hose to a known good vacuum pump.
25/06/2011 Page 102 of 104

6. Open both gauge set valves and start the vacuum pump. Allow the vacuum pump to operate for a
minimum of 45 minutes after the gauge set low-pressure gauge indicates 101 kPa (30 in-Hg). The
45-minute evacuation is necessary to remove any refrigerant from oil left in the evaporator core or
condenser core. If the refrigerant is not completely removed from the oil, outgassing will degrade
the vacuum and appear as a refrigerant leak.
7. If the low-pressure gauge reading will not drop to 101 kPa (30 in-Hg) when the valves on the
gauge and manifold set are open and the vacuum pump is operating, close the gauge set valves
and observe the low pressure gauge. If the pressure rises rapidly to zero, a large leak is
indicated. Recheck the test fitting connections and gauge set connections before installing a new
evaporator core or condenser core.
8. After evacuating for 45 minutes, close the gauge set valves and stop the vacuum pump. Observe
the low-pressure gauge; it should remain at the 101 kPa (30 in-Hg) mark.
l If the low-pressure gauge reading rises 34 or more kPa (10 or more in-Hg) of vacuum from
the 101 kPa (30 in-Hg) position in 10 minutes, a leak is indicated.
l If a very small leak is suspected, wait 30 minutes and observe the vacuum gauge.
l If a small amount of vacuum is lost, operate the vacuum pump with gauge valves open for
an additional 30 minutes to remove any remaining refrigerant from the oil in the evaporator
core or condenser core. Then recheck for loss of vacuum.
l If a very small leak is suspected, allow the system to sit overnight with vacuum applied and
check for vacuum loss.
9. If the evaporator core or condenser core does leak, as verified by the above procedure, install a
new evaporator core or condenser core.
A/C Compressor — External Leak Test
1. Install the appropriate adapter from the A/C Flush Adapter Kit on the port of the A/C compressor,
using the existing manifold retaining bolt.
2. Connect the high- and low-pressure lines of a manifold gauge set or a refrigerant
recovery/recycling station to the corresponding fittings on the adapter.
3. Attach the center hose of a manifold gauge set to a refrigerant container standing in an upright
position.
4. Open the low-pressure gauge valve, the high-pressure gauge valve and the valve on the
refrigerant container to allow the refrigerant vapor to flow into the A/C compressor.
5. Using the Refrigerant Leak Detector, check for leaks at the compressor shaft.
6. If a shaft seal leak is found, install a new compressor shaft seal. If an external leak is found,
install a new A/C compressor.
7. When the leak test is complete, recover the refrigerant from the compressor.
25/06/2011 Page 103 of 104

25/06/2011 Page 104 of 104

Pinpoints

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Pinpoints

Uploaded by

Copyright:

Available Formats

SECTION 412-00A: Climate Control System — General 2012 Fusion, MKZ, Fusion Hybrid, MKZ Hybrid

Information and Diagnostics Workshop Manual

Climate Control System

Flex Probe Kit

Fluke 77-IV Digital Multimeter

Heated Pentode Halogen Leak

Pressure Test Kit

R-134a Manifold Gauge Set

Vehicle Communication Module

25/06/2011 Page 1 of 104

Latent Heat of Vaporization

Effects of Pressure on Boiling or Condensation

Compressor Anti-Slugging Strategy (CASS)

CASS is initiated only under specific conditions:

l The ignition is off for more than 8 hours

25/06/2011 Page 2 of 104

The Refrigerant Cycle

Thermostatic Expansion Valve (TXV) Type Refrigerant System

25/06/2011 Page 3 of 104

25/06/2011 Page 4 of 104

Inspection and Verification

2. Inspect to determine if one of the following mechanical or electrical concerns apply:

Visual Inspection Chart

If the scan tool does not communicate with the VCM :

25/06/2011 Page 5 of 104

7. Carry out the network test.

PCM DTC Chart

HVAC Module DTC Chart

25/06/2011 Page 6 of 104

DTC Description Action to Take

Dual Automatic Temperature Control (DATC) systems, GO to

25/06/2011 Page 7 of 104

For EMTC systems, if the blower motor is always on, GO to

For DATC systems, if the blower motor is inoperative, GO to

For DATC systems, if the blower motor relay is always on, GO

25/06/2011 Page 8 of 104

25/06/2011 Page 9 of 104

Symptom Chart — Climate Control Systems

Symptom Chart — Climate Control Systems

25/06/2011 Page 10 of 104

25/06/2011 Page 11 of 104

25/06/2011 Page 12 of 104

CHECK that the A/C system

Symptom Chart — NVH

Symptom Chart — NVH

25/06/2011 Page 13 of 104

Pinpoint Test A: DTC P0532 or P0533

This pinpoint test is intended to diagnose the following:

PINPOINT TEST A: DTC P0532 OR P0533

25/06/2011 Page 14 of 104

l Is the voltage between 4.7 and 5.1 volts?

l Does the ACP_PRESS PCM PID voltage read greater than 4

25/06/2011 Page 15 of 104

l Is the resistance greater than 10,000 ohms?

25/06/2011 Page 16 of 104

l NOTE: For DTC P0533 only.

l Is the resistance greater than 10,000 ohms?

25/06/2011 Page 17 of 104

l For 3.5L only , measure the resistance between A/C pressure

l Is the resistance less than 5 ohms?

Pinpoint Test B: DTC P0645

25/06/2011 Page 18 of 104

This pinpoint test is intended to diagnose the following:
