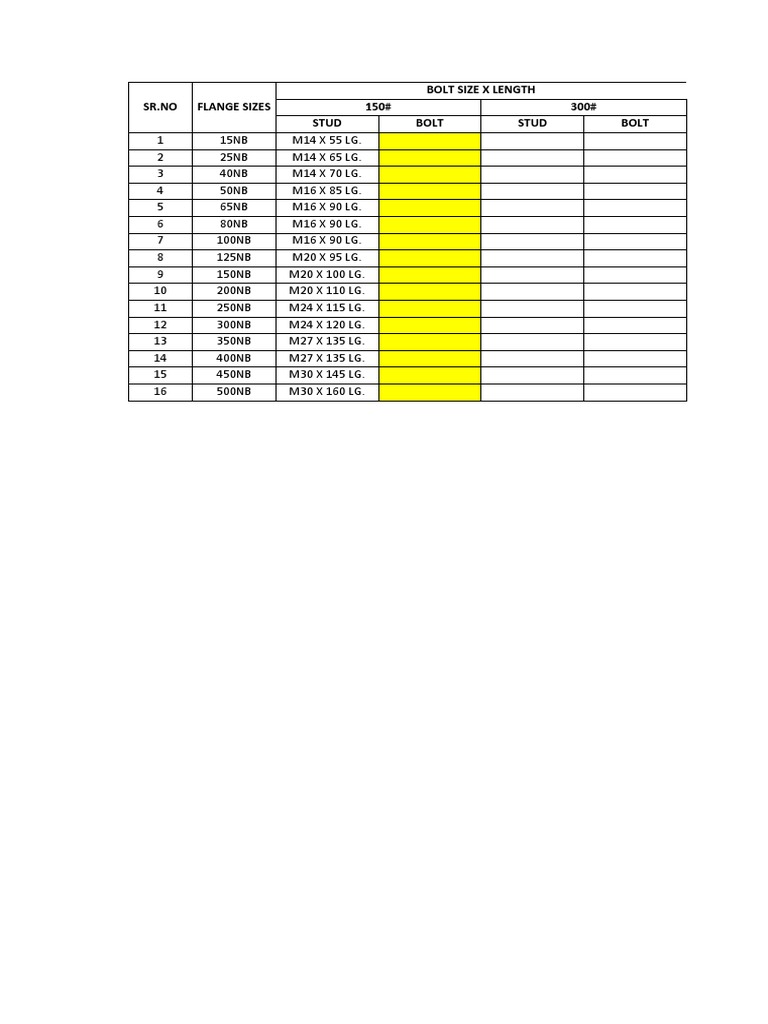

BOLT SIZE X LENGTH

SR.NO FLANGE SIZES 150# 300#


STUD BOLT STUD BOLT
1 15NB M14 X 55 LG.
2 25NB M14 X 65 LG.
3 40NB M14 X 70 LG.
4 50NB M16 X 85 LG.
5 65NB M16 X 90 LG.
6 80NB M16 X 90 LG.
7 100NB M16 X 90 LG.
8 125NB M20 X 95 LG.
9 150NB M20 X 100 LG.
10 200NB M20 X 110 LG.
11 250NB M24 X 115 LG.
12 300NB M24 X 120 LG.
13 350NB M27 X 135 LG.
14 400NB M27 X 135 LG.
15 450NB M30 X 145 LG.
16 500NB M30 X 160 LG.
