Midterm Programming Activity #6

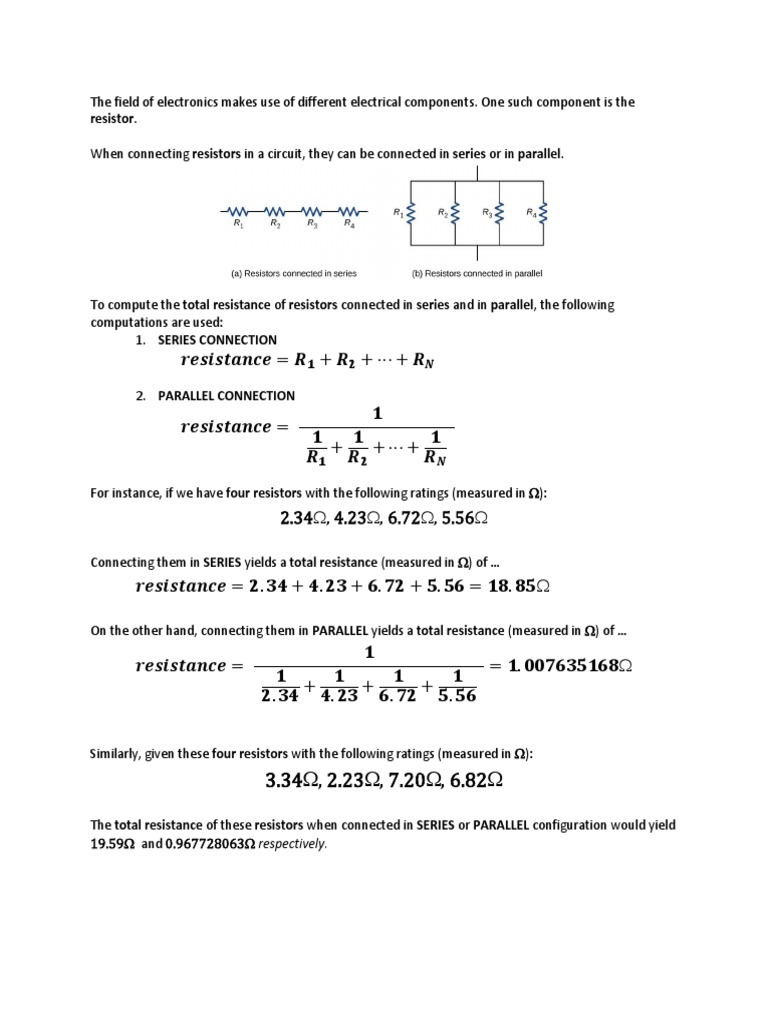

To compute the total resistance of resistors connected in series and in parallel, the following
computations are used:
1. SERIES CONNECTION
𝒓𝒆𝒔𝒊𝒔𝒕𝒂𝒏𝒄𝒆 = 𝑹𝟏 + 𝑹𝟐 + ⋯ + 𝑹𝑵
2. PARALLEL CONNECTION
𝟏
𝒓𝒆𝒔𝒊𝒔𝒕𝒂𝒏𝒄𝒆 =
𝟏 𝟏 𝟏
+ + ⋯+
𝑹𝟏 𝑹𝟐 𝑹𝑵
For instance, if we have four resistors with the following ratings (measured in ):
2.34, 4.23, 6.72, 5.56
On the other hand, connecting them in PARALLEL yields a total resistance (measured in ) of …
𝟏
𝒓𝒆𝒔𝒊𝒔𝒕𝒂𝒏𝒄𝒆 = = 𝟏. 𝟎𝟎𝟕𝟔𝟑𝟓𝟏𝟔𝟖
𝟏 𝟏 𝟏 𝟏
+ + +
𝟐. 𝟑𝟒 𝟒. 𝟐𝟑 𝟔. 𝟕𝟐 𝟓. 𝟓𝟔
Similarly, given these four resistors with the following ratings (measured in ):
The total resistance of these resistors when connected in SERIES or PARALLEL configuration would yield
19.59 and 0.967728063 respectively.
