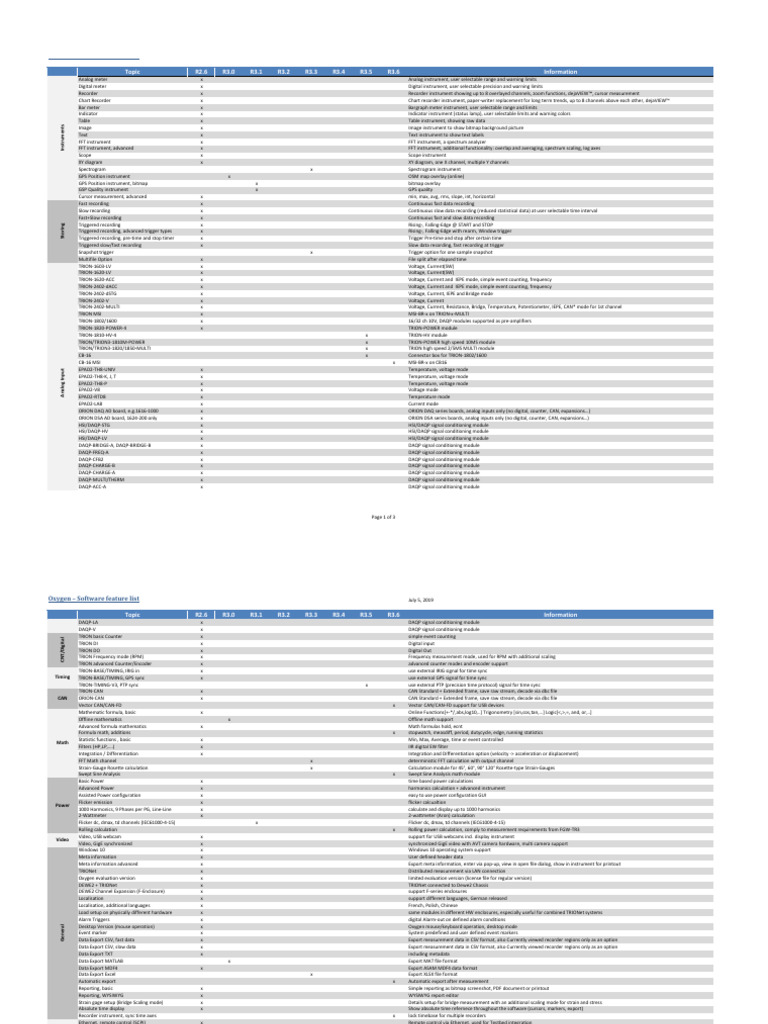

Oxygen – Software feature list July 5, 2019

Topic R2.6 R3.0 R3.1 R3.2 R3.3 R3.4 R3.5 R3.6 Information
Analog meter x Analog instrument, user selectable range and warning limits
Digital meter x Digital instrument, user selectable precision and warning limits
Recorder x Recorder instrument showing up to 8 overlayed channels, zoom functions, dejaVIEW™, cursor measurement
Chart Recorder x Chart recorder instrument, paper-writer replacement for long term trends, up to 8 channels above each other, dejaVIEW™
Bar meter x Bargraph meter instrument, user selectable range and limits
Indicator x Indicator instrument (status lamp), user selectable limits and warning colors
Table x Table instrument, showing raw data
Instruments

Image x Image instrument to show bitmap background picture

Text x Text instrument to show text labels
FFT instrument x FFT instrument, a spectrum analyzer
FFT instrument, advanced x FFT instrument, additional functionality: overlap and averaging, spectrum scaling, log axes
Scope x Scope instrument
XY diagram x XY diagram, one X channel, multiple Y channels
Spectrogram x Spectrogram instrument
GPS Position instrument x OSM map overlay (online)
GPS Position instrument, bitmap x bitmap overlay
GSP Quality instrument x GPS quality
Cursor measurement, advanced x min, max, avg, rms, slope, int, horizontal
Fast recording x Continuous fast data recording
Slow recording x Continuous slow data recording (reduced statistical data) at user selectable time interval
Fast+Slow recording x Continuous fast and slow data recording
Triggered recording x Rising-, Falling-Edge @ START and STOP
Storing

Triggered recording, advanced trigger types x Rising-, Falling-Edge with rearm, Window trigger
Triggered recording, pre-time and stop timer x Trigger Pre-time and stop after certain time
Triggered slow/fast recording x Slow data recording, fast recording at trigger
Snapshot trigger x Trigger option for one sample snapshot
Multifile Option x File split after elapsed time
TRION-1603-LV x Voltage, Current(SW)
TRION-1620-LV x Voltage, Current(SW)
TRION-1620-ACC x Voltage, Current and IEPE mode, simple event counting, frequency
TRION-2402-dACC x Voltage, Current and IEPE mode, simple event counting, frequency
TRION-2402-dSTG x Voltage, Current, IEPE and Bridge mode
TRION-2402-V x Voltage, Current
TRION-2402-MULTI x Voltage, Current, Resistance, Bridge, Temperature, Potentiometer, IEPE, CAN* mode for 1st channel
TRION MSI x MSI-BR-x on TRION-x-MULTI
TRION-1802/1600 x 16/32 ch 10V, DAQP modules supported as pre-amplifiers
TRION-1820-POWER-4 x TRION-POWER module
TRION-1810-HV-4 x TRION-HV module
TRION/TRION3-1810M-POWER x TRION-POWER high speed 10MS module
TRION/TRION3-1820/1850-MULTI x TRION high speed 2/5MS MULTI module
CB-16 x Connector box for TRION-1802/1600
CB-16 MSI x MSI-BR-x on CB16
EPAD2-TH8-UNIV x Temperature, voltage mode
Analog Input

EPAD2-TH8-K, J, T x Temperature, voltage mode

EPAD2-TH8-P x Temperature, voltage mode
EPAD2-V8 x Voltage mode
EPAD2-RTD8 x Temperature mode
EPAD2-LA8 x Current mode
ORION DAQ AD board, e.g.1616-1000 x ORION DAQ series boards, analog inputs only (no digital, counter, CAN, expansions…)
ORION DSA AD board, 1624-200 only x ORION DSA series boards, analog inputs only (no digital, counter, CAN, expansions…)
HSI/DAQP-STG x HSI/DAQP signal conditioning module
HSI/DAQP-HV x HSI/DAQP signal conditioning module
HSI/DAQP-LV x HSI/DAQP signal conditioning module
DAQP-BRIDGE-A, DAQP-BRIDGE-B x DAQP signal conditioning module
DAQP-FREQ-A x DAQP signal conditioning module
DAQP-CFB2 x DAQP signal conditioning module
DAQP-CHARGE-B x DAQP signal conditioning module
DAQP-CHARGE-A x DAQP signal conditioning module
DAQP-MULTI/THERM x DAQP signal conditioning module
DAQP-ACC-A x DAQP signal conditioning module

Page 1 of 3
Oxygen – Software feature list July 5, 2019

Topic R2.6 R3.0 R3.1 R3.2 R3.3 R3.4 R3.5 R3.6 Information
DAQP-LA x DAQP signal conditioning module
DAQP-V x DAQP signal conditioning module
TRION basic Counter x simple event counting
CNT/Digital

TRION DI x Digital input

TRION DO x Digital Out
TRION Frequency mode (RPM) x Frequency measurement mode, used for RPM with additional scaling
TRION advanced Counter/Encoder x advanced counter modes and encoder support
TRION-BASE/TIMING, IRIG in x use external IRIG signal for time sync
Timing TRION-BASE/TIMING, GPS sync x use external GPS signal for time sync
TRION-TIMING-V3, PTP sync x use external PTP (precision time protocol) signal for time sync
TRION-CAN x CAN Standard + Extended frame, save raw stream, decode via dbc file
CAN ORION-CAN x CAN Standard + Extended frame, save raw stream, decode via dbc file
Vector CAN/CAN-FD x Vector CAN/CAN-FD support for USB devices
Mathematic formula, basic x Online Functions[+-*/,abs,log10,..] Trigonometry [sin,cos,tan,…] Logic[<,>,=, and, or,..]
Offline mathematics x Offline math support
Advanced formula mathematics x Math formulas hold, ecnt
Formula math, additions x stopwatch, measdiff, period, dutycycle, edge, running statistics
Statistic functions , basic x Min, Max, Average, time or event controlled
Math
Filters (HP,LP,….) x IIR digital SW filter
Integration / Differentiation x Integration and Differentiation option (velocity -> acceleration or displacement)
FFT Math channel x deterministic FFT calculation with output channel
Strain-Gauge Rosette calculation x Calculation module for 45°, 60°, 90° 120° Rosette-type Strain-Gauges
Swept Sine Analysis x Swept Sine Analysis math module
Basic Power x time based power calculations
Advanced Power x harmonics calculation + advanced instrument
Assisted Power configuration x easy to use power configuration GUI
Flicker emission x flicker calcualtion
Power
1000 Harmonics, 9 Phases per PG, Line-Line x calculate and display up to 1000 harmonics
2-Wattmeter x 2-wattmeter (Aron) calculation
Flicker dc, dmax, td channels (IEC61000-4-15) x Flicker dc, dmax, td channels (IEC61000-4-15)
Rolling calculation x Rolling power calculation, comply to measurement requirements from FGW-TR3
Video, USB webcam x support for USB webcams incl. display instrument
Video
Video, GigE synchronized x synchronized GigE video with AVT camera hardware, multi camera support
Windows 10 x Windows 10 operating system support
Meta information x User defined header data
Meta information advanced x Export meta information, enter via pop-up, view in open file dialog, show in instrument for printout
TRIONet x Distributed measurement via LAN connection
Oxygen evaluation version x limited evaluation version (license file for regular version)
DEWE2 + TRIONet x TRIONet connected to Dewe2 Chassis
DEWE2 Channel Expansion (F-Enclosure) x support F-series enclosures
Localisation x support different languages, German released
Localisation, additional languages x French, Polish, Chinese
Load setup on physically different hardware x same modules in different HW enclosures, especially useful for combined TRIONet systems
Alarm Triggers x digital Alarm-out on defined alarm conditions
Desktop Version (mouse operation) x Oxygen mouse/keyboard operation, desktop mode
General

Event marker x System predefined and user defined event markers

Data Export CSV, fast data x Export measurement data in CSV format, also Currently viewed recorder regions only as an option
Data Export CSV, slow data x Export measurement data in CSV format, also Currently viewed recorder regions only as an option
Data Export TXT x including metadata
Data Export MATLAB x Export MAT file format
Data Export MDF4 x Export ASAM MDF4 data format
Data Export Excel x Export XLSX file format
Automatic export x Automatic export after measurement
Reporting, basic x Simple reporting as bitmap screenshot, PDF document or printout
Reporting, WYSIWYG x WYSIWYG report editor
Strain gage setup (Bridge Scaling mode) x Details setup for bridge measurement with an additional scaling mode for strain and stress
Absolute time display x Show absolute time refernece throughout the software (cursors, markers, export)
Recorder instrument, sync time axes x lock timebase for multiple recorders
Ethernet, remote control (SCPI) x Remote control via Ethernet, used for Testbed integration
Ethernet, SCPI, ELOG x
Remote
and
Data
Transfer
Page 2 of 3
Oxygen – Software feature list July 5, 2019

Topic R2.6 R3.0 R3.1 R3.2 R3.3 R3.4 R3.5 R3.6 Information
Remote Ethernet, XCP Slave x Transfer data via Ethernet using XCP Slave protocol, polling and daqlist
and EtherCAT Data output via TRION-EtherCAT x Transfer data via EtherCAT
Data Ethernet, Datastream Interface via TCP/IP x Full-speed data transfer, multiple streams, each one to multiple receivers
Transfer Ethernet Receiver (UDP) x Generic receiver with XML configuration, listen-only
Ethernet Receiver (UDP), Time sync x Time syncronisation for received Ethernet data
TRION CAN out x TRION CAN out
GPS HW TRION-VGPS x TRION-VGPS position data, 100Hz
TRION-VGPS-V3 x Position, Velocity, Displacement, Heading,
ADAS ADMA V3, Ethernet x ADMA V3 data via Ethernet
OxTS RTx IMU x
Birds Eye, basic package x calculate distances between moving objects in bird's eye view ("Polygon" replacement)
Birds Eye arc object x additional arc object
Oxygen NET Oxygen NET Basic x Synchronized measurement with multiple DEWE2 devices via Ethernet
Oxygen NET Full x Support of remote node setup and measurement data transfer, triggered recording, PC master
