Haca Ladders

MA 5064-UK t Part No.
01/0117000438

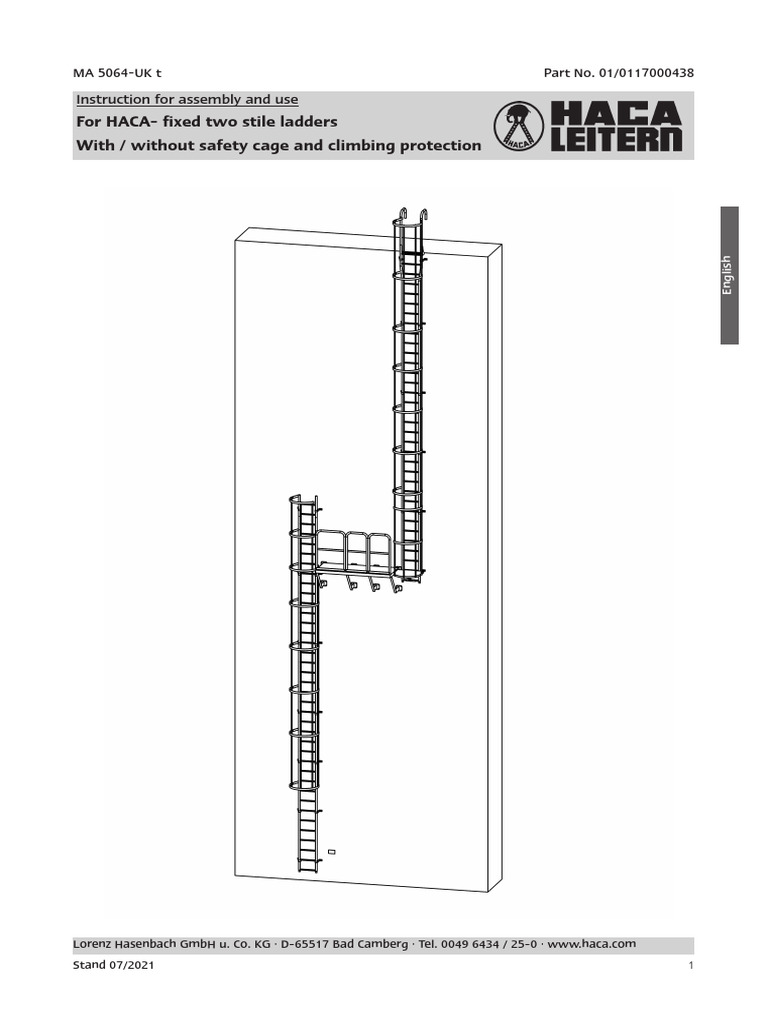

Instruction for assembly and use
For HACA- fixed two stile ladders
With / without safety cage and climbing protection
English
Lorenz Hasenbach GmbH u. Co. KG · D-65517 Bad Camberg · Tel. 0049 6434 / 25-0 · www.haca.com
Stand 07/2021 1
MA 5064-UK t Part No. 01/0117000438
Table of contents
1. introduction
2. general safety instructions
3. intended use
4. technical information
5. scope of delivery
6. standards and regulations
7. general, taking into account the regulations
1. planning aid
2. labelling
3. design examples
8. assembly
1. general
2. transition pieces
3. wall bracket
1. wall mounting for ladders with/without rear protection
2. wall mounting for ladders with fall protection
3. mounting the wall brackets
4. extraction forces
4. dowel
5. exit accessories
1. ladder hook with short side pieces
2. ladder hook with long side pieces
3. stile extensions
4. exit platform
5. connecting bend
6. access accessories
1. foot plates standard
2. foot plates for shortened ladders
3. retractable resting seat, anti-climb device
7. rear protection cage in general
1. rear protection cage entrance below
2. rear protection cage with side exit or transfer
3. aluminium rear protection cage (type 6290)
4. assembly of transfer prosthesis or stand grate
9. additional information shaft ladder
10. notes on regular inspection
11. references to further assembly instructions
12. anchor point for rescue
13. packaging / disposal
14. service life
15. manufacturer
2
MA 5064-UK t Part No. 01/0117000438
Please read before assembly!

Caution: incorrect assembly can lead to a risk of death!
Please contact our head office in Bad Camberg
if you have any queries regarding assembly.
.
The present instructions for use 3. intended use

describes the safe use of:
English
Use contrary to the intended purpose
Fixed ladders according to DIN 18799-1, If used contrary to the intended purpose, hazards
DIN 14094-1, EN ISO 14122-4 and EN 14396 may occur. In particular, the following shall not be
permissible:
• Unauthorized structural modifications or improper
Observe the local, regional and national reg- Repairs
ulations. • Combination with external components on ladder
and Platform facilities
Make sure that the mounting and Instruc- • Misuse of individual parts or the entire system
tions for use to the installer is available and • Use of products other than those supplied by
the information provided, such as notes, HACA or parts released for this purpose
warnings and safety regulations are followed
in every detail. Safety devices
The following safety devices (fall protection) are per-
mitted:
• Climbing protection system
2. general safety instructions • Rear protection
- Risk of suffocation due to packaging Manipulation of the safety devices is prohibited. The
- Changes to the ladder that are not authorized by fixed ladder system must not be used if a defect is
the manufacturer will invalidate the warranty and detected. Depending on the intended use of the
guarantee. fixed ladder system, observe the relevant applicable
- Damage that may impair safety must be eliminat- standards.
ed immediately.
- Incorrect installation of the ladder system may re-
sult in Risk of accident operating instructions and instruction
- For commercial use Use exclusively by competent The operator is obligated to
persons only • prepare an operating instruciotn for the use of the
fixed ladder system. This must contain all the in-
formation required for safe use.
• carry out at least once a year on the basis of the
operating instructions an instruction of the users.
• inform the operators that the emergency ladder
system may only be used in case of fire and main-
tenance.
3
MA 5064-UK t Part No. 01/0117000438
Use 4. technical information
The operator must ensure that only persons familiar The fixed ladder system is a modular construction.
with the fixed ladder system use the fixed ladder. By combining elements that are matched to each
The persons must be physically able to climb the other, any desired climbing height can be reached.
fixed ladder system. Shortening the ladder sections to a certain height is
Persons who are under the influence of drugs, alco- permitted.
hol or medication that affects their ability to react Unless otherwise stated in the measurements, are
must not use the fixed ladder system. the dimensions in [mm].
Assembly 5. scope of delivery

The fixed ladder may only be installed by qualified The scope of delivery is customer-specific and depen-
personnel. dent on the order.
The qualified personnel is authorised by the opera- • Before starting the assembly, check that all the in-
tor. formation mentioned in the order confirmation
Due to their specialist training, knowledge and expe- and all parts in the delivery note are included and
rience as well as their knowledge of the relevant in faultless condition.
regulations, they are able to carry out the work as- Only use faultless original parts for assembly.
signed to them and to recognise and avoid possible
dangers independently.
4
MA 5064-UK t Part No. 01/0117000438
6. Standards and regulations
DIN 18799 Fixed ladders for construction works- Part 1: Ladders with two stiles;
Teil 1: 06-2019 safety requirements and tests
DIN EN ISO 14122 Safety of machinery – Permanent means of access to machinery

Teil 4 : 10-2016
DIN 14094 Firefighting and fire protection – Metal escape ladder installations
English
Teil 1 : 04-2017
DIN EN 14396 Fixed ladders for manholes

04-2004
DIN 19572 Handholds for entrance into accessible manholes
DIN 50308 Wind turbines
DGUV 208-032 choice and use of fixed ladders
ArbStättV regulations governing the workplace
BetrSichV Ordinance on Industrial Health and Safety
7. General information under consideration

of regulations
Fixed ladders must be securely attached to the

building. The foundation must be sufficiently stable.
Proof of this and of correct assembly must be pro-
vided separately for each building project and must
be checked and approved by an expert for structural
stability. The anchor bolt extraction forces can be
seen in Tables 3 and 4. The statics calculations for
the individual components are available on request.
We recommend involving the

responsible authorities at the
earliest possible stage when
planning fixed ladders.
5
MA 5064-UK t Part No. 01/0117000438
7.1 Planning aid

The planning aid (Table 1) provides guidance and help when designing the ladder with/without climbung protec-
tion under consideration of standards.
Fig.1:
6
MA 5064-UK t Part No. 01/0117000438
7.2 Labelling
All fixed ladders must be marked with a label as shown in Fig. 2a.
In addition an identification plate (Fig. 2) must be attached and legibly filled out on every access level of fixed
ladders with fall protection that can be reached without this fall protection system. The plate must be labelled
in the national language. Identification plates may be applied as adhesive film or can be screwed on.
English
Fig. 2: Example identificaton Fig. 2a: Example identification
plate climbing protection plate fixed ladder
7.3 Examples of designs

≤ 10,0 m
≤ 10,0 m
≤ 10,0 m
2,2 m-3,0 m
Fig. 3: Multi-section ladder

with safety cage acc. to DIN Fig. 4: Multi-section ladder with safety cage acc. to
18799-1 DIN 14094-1
7
MA 5064-UK t Part No. 01/0117000438
500
≥ 1100
≥ 1000
<10 m
‹3 m
Fig. 5: Single section ladder without Fig. 6: Single section ladder

safety cage with transition piece acc. with safety cage, drop < 10
To DIN 18799-1/EN ISO 14122-4 m DIN 14094-1
Typ
0529.27.10
ladder hook
pivoting entry aid
Typ
0529.10.10
Folding rest platforms

(spacing: see planning
aid)
>3,0 m
Typ
0529.26.10
Fig. 7: Single section ladder with Fig. 8: Single section ladder on double T-gir-
fall arrest rail, drop > 3 m DIN der with wall mounting, Model 0529.10.10
18799-1 and Model 0529.26.10 and 0529.27.10
8
MA 5064-UK t Part No. 01/0117000438
8. Assembly
8.1 General information

Start from the top when dividing the ladder, so that the top rung is level with the exit level. Assembly of the
ladder can start from the bottom, but should be conducted from the exit level to avoid subsequent differences
in level. The shorter, retracted end of the stile should be at the bottom (Fig. 10). (Fig. 11) should be followed
where there are staggered sections of ladder or where platforms are mounted. The various long standard lad-
der parts can be assembled in any order. Basic ladder parts have the following standard sizes: 7, 10, 13 (see Fig.
10 for working lengths). The step from the upper edge of the lowest rung to the floor is 100-400 mm.). Inter-
sections should generally be coated with zinc thick film coating Type 0052.90.10. It is important to ensureman
English
even rung spacing of 280 mm at the transition point from one ladder section to another (Fig. 10). We recom-
mend inserting two spacers between the last and first rung when combining the individual ladders so that
rungs are 280 mm apart.
The ladder parts are only plugged in and not screwed together (Detail A). This guarantees the precise rung spac-
ing and the required air gap between the separate ladder elements. The purpose of this air gap is to compen-
sate for length when the material expands due to temperature fluctuations.
ladder spacing
s. Table
10 ( 2800 mm),13 ( 3640 mm)
4 ( 1120 mm), 5 ( 1400 mm)
6 ( 1680 mm),7 ( 1960 mm)
ladder spacing
Srung at same height
Gr. working lengths
platoform grating or trans- 760 mm

fer platform
1000 x 1300 to platform centre 880 mm
280
detail A transiti- platform walkway min. 760 mm

on point Detail
A 450 Fig. 11: Distances ladder/platform
500
Fig. 10: working lengths
8.2 Transition pieces
Transition pieces with stiles Ø 34 mm and transition pieces Ø 48 mm made of aluminium
The transition pieces are available in the sizes 4,5,6 and 7 and are constructed in the same grid dimension as the
standard ladder elements (Fig. 10). The assembly of the transition pieces ensures the required 500-700 mm clear
exit opening (Fig. 12). According to the standard, the last rung must be at the same height as the edge of the
building. When using top accessories, the first wall brackets may be mounted up to max. 185 mm below the
edge of the building (Fig. 12). 560 mm below the top wall bracket, a second wall bracket must be placed.
Transition pieces with stiles Ø 48 made of steel and stainless steel
The transition pieces are available in the sizes 4,5,6,7,10 and 13 and are constructed in the same grid dimension
as standard ladder elements (Fig. 10). The assembly of the transition pieces ensures the required 500-700 mm
clear exit opening (Fig. 12). According to the standard, the last rung must be at the same height as the edge of
the building. Transition pieces must be fixed with at least one pair of wall brackets.
In the case of transition pieces sizes 4, 5 and 6, a wall bracket must be mounted under the topmost rung of the
second ladder section from above (Fig.14). This distance can also be less than 1960 mm. Transition pieces size 7,
10 and 13 must be fixed with the standard mounting distance of 1960 mm. If long drawn-in tie-bars are used
(type 1452 00), the distance between the first wall brackets and the edge oft he building may be up to max.
472.5 mm (Fig. 13). When using all other accessories at the top, the first wall brackets may be mounted up to
max. 185 mm below the edge of the building (Fig. 12).
9
MA 5064-UK t Part No. 01/0117000438
LW 500
ladder hook Gr. 4,5,6

edge of building
edge of building
185
472,5
max.
max.185
size 4 ladder
section wall bracket
wall bracket
280
Fig. 12: Ladder exit acc. to DIN 18799, EN Fig. 13: ladder hook with long side Fig. 14: ladder hokk with short side pieces
ISO 14122, DIN 14094 pieces retracted 0529.14.52
8.3 Wall brackets 8.3.1 Wall bracket for ladders with/without

The wall brackets are to be clamped to the ladder rear safety cage
rail directly under the ladder rungs at a maximum The top brackets may be mounted at max. 750 mm
distance of 1.96 m. The angled ends of the wall from the top edge of the building if no subsequent
brackets can point outwards or inwards. There are accessories are mounted. For wall distances greater
fixed and adjustable wall bracket. For the adjustable than 400 mm, the ladder must be fixed to the
wall brackets, the desired wall distance must be set ground with foot plates. Alternatively, tension
(for adjustment range, see Table 3). straps or a wall attachment can be used in a rein-
For this purpose, the wall connection parts must be forced manner (see also 8.6 Base plates).
joined to the ladder connection parts with the two
M10 screw connections. The lower wall mountings 8.3.2 Wall bracket for ladders with fall
may be mounted max. 750 mm from the initial protection
level. The lowest ladder part must be fixed at least The top brackets may be mounted a max. of 500
twice, each additional part at least once. Alterna- mm from the top edge of the building if no subse-
tively, the lower ladder section can be fixed with a quent accessories are mounted. The bottom bracket
wall mounting and a pair of base plates. If this is the must be fitted with tie bars or a reinforced wall fas-
case, the wall bracket must be mounted at a dis- tening (Fig.15 and 17) if the ladder does not rest on
tance of ≤1.96 m from the floor (fixing point of the the floor or no base plates are mounted. At least 4
foot plates). The upper wall brackets must be pairs of wall brackets must be mounted on ladders
mounted max. 185mm from the top edge of the with fall protection.
building, when connecting accessories are attached.
When using the wall mounting 0528 1010 00, 0529 8.3.3 Assembly of the wall brackets,
1010 00, 0629 1010 00, 0588 1010 00 and 0928 1010 e.g. concrete wall, grade > B25 < B55
00 the ladder must, for static reasons be connected The ladder and the preassembled brackets should be
to the floor by means of foot plates. Alternatively a posiioned in the intended place. Holes in the wall
wall mounting should be drilled through the slotted holes of the
0529.2610, 0629.2610, 0528.2610 or 0928.26.10 can bracket. It is essential to heed the assembly instruc-
be mounted as the lowest holder. Should tie-bar tions of the anchor bolt manufacturer.
brackets be mounted, a wall mounting bracket 0529
2710 00, 0588 2710 00 and 0929 2710 00 has to be
mounted as upper bracket. Please observe the possi-
ble combinations (Fig. 8).
10
MA 5064-UK t Part No. 01/0117000438
English
Fig. 15: wall mounting with Fig. 16: wall mounting
one pair of tensile strap reinforced
Table 1: Anchor bolt requirement for the wall bracket

Anchor base Hole connection Hole connection Per wall bracket
(Fig. 17 and 19) (Fig. 20 to 23) (Fig. 18)
Concrete B 25 – B 55 1 or 2 units 4 units 2 units

masonry 1 or 2 units 4 units Not applicable
Ladder moun-
ting screws
Fig. 18
Ladder mounting screws
Stile 48.3 galv. steel DIN 603 M 10 x 80
Stile 34.7 galv. steel DIN 603 M 10 x 65
Fig. 17 Stile 48 aluminium and VA DIN 931 M 10 x 80
Fig. 19 Fig. 20
11
MA 5064-UK t Part No. 01/0117000438
Abb. 21
Abb. 22 Abb. 23
Table 2: Distances between holes (in mm) for wall brackets

Ladder Ø Stile B L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13
model
5289 33,7 400 267 533 400 346 454 400 84 236 344 290 254 299 209
9289 33,7 400 267 533 400 346 454 400 84 236 344 290 254 299 209
5284 33,7 400 267 533 400 346 454 400 84 236 344 290 254 299 209
9284 33,7 400 267 533 400 346 454 400 84 236 344 290 254 299 209
5290 48,3 450 300 600 450 378 522 450 84 268 412 340 322 367 277
6290 48,0 450 300 600 450 378 522 450 - 268 412 340 322 367 277
9290 48,3 450 300 600 450 378 522 450 - 268 412 340 322 367 277
5294 48,3 450 300 600 450 378 522 450 84 268 412 340 322 367 277
9294 48,3 450 300 600 450 378 522 450 - 268 412 340 322 367 277
5288 33,7 434 301 567 434 380 488 434 - 270 378 324 288 333 243
5285 33,7 434 301 567 434 380 488 434 - 270 378 324 288 333 243
4,5,6,7er * 48,3 450/550 300/400 600/700 450/550 378/478 522/622 450/550 - 268/368 412/512 340/440 322/422 367/467 277/377
4,5,6,7er * 33,7 434/534 301/401 567/667 434/534 380/480 488/588 434/534 - 270/370 378/478 324/424 288/388 333/433 243/343
** With assembly of the transition piece for the ladder hook with long side pieces retracted, the top brackets are arranged in
the incline of the ladder. This distance between holes must be determined on site.
12
MA 5064-UK t Part No. 01/0117000438
Tabelle 3
Distance
between Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable
holes bracket bracket bracket bracket bracket bracket bracket bracket
110 mm 100-150mm 180-260mm 270-400mm 270-400mm 400-475mm 400-500mm 570-745mm 770-945mm
English
optimized fpr
Concrete
foundation
No. of anchor bolts 1 2 2 4 4 4 4 4

Rail Ø48mm
Steel - 0529 4400 00 0529 4420 00 0529 4421 00 0529 4425 00 0529 4422 00 0529 4423 00 0529 4424 00
Stainless steel - 0929 4400 00 0929 4420 00 0929 4421 00 --- 0929 4422 00 0929 4423 00 0929 4424 00
Tension [KN] - 0,21 0,22 0,22 0,24 0,24 0,23 0,26
Shearing [KN] - 1,30 1,30 1,30 1,30 1,30 1,30 1,30
Torque [KNm] - -0,35 -0,51 -0,51 -0,59 -0,61 -0,99 -1,20
Rail Ø34mm
Steel 0528 4200 00 0528 4400 00 0528 4421 00 0528 4422 00 --- 0528 4423 00 0528 4424 00 0528 4425 00
Stainless steel 0928 4200 00 0928 4400 00 0928 4421 00 0928 4422 00 --- 0928 4423 00 0928 4424 00 0928 4425 00
Tension [KN] 0,27 0,21 0,22 0,22 --- 0,24 0,23 0,26
Shearing [KN] 1,40 1,30 1,30 1,30 --- 1,30 1,30 1,30
Torque [KNm] 0 -0,35 -0,51 -0,51 --- -0,61 -0,99 -1,20
Distance Tie bar Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable
Tiebar
between insulation bracket bracket bracket bracket bracket bracket bracket
holes 200 mm 0-180mm 180-260mm 270-400mm 270-400mm 400-475mm 400-500mm 570-745mm 770-945mm
optimized for
Concrete
foundation
No. of anchor bolts 2 2 2 2 4 4 4 4 4

Rail Ø48mm
Steel 0529 4705 00 0529 4706 00 0529 4410 00 0529 4411 00 0529 4412 00 0529 4416 00 0529 4413 00 0529 4414 00 0529 4415 00
Stainless steel 0929 4705 00 0929 4706 00 0929 4410 00 0929 4411 00 0929 4412 00 --- 0929 4413 00 0929 4414 00 0929 4415 00
Tension [KN] 1,50 1,50 0,21 0,22 0,23 0,24 0,24 0,23 0,26
Shearing [KN] 3,20 3,20 1,30 1,30 1,30 1,30 1,30 1,30 1,30
Torque [KNm] -0,71 -0,71 -0,35 -0,51 -0,51 -0,59 -0,61 -0,99 -1,20
Rail Ø34mm
Steel 0529470500 0529 4706 00 0528 4410 00 0528441100 0528 4412 00 --- 0528 4413 00 0528 4414 00 0528 4415 00
Stainless steel 0929470500 0929 4706 00 0928 4410 00 0929441100 0928 4412 00 --- 0928 4413 00 0928 4414 00 0928 4415 00
Tension [KN] 1,50 1,50 0,21 0,22 0,23 --- 0,24 0,23 0,26
Shearing [KN] 3,20 3,20 1,30 1,30 1,30 --- 1,30 1,30 1,30
Torque [KNm] -0,71 -0,71 -0,35 -0,51 -0,51 --- -0,61 -0,99 -1,20
13
MA 5064-UK t Part No. 01/0117000438
Tabelle 3
Reinforced
Bracket, wall Bracket, wall
Tie bar Tie bar bracket, wall
Tie bar distance distance
0-180mm distance
200mm 200mm
200 mm
for 0529 1010 00

0528 1010 00
optimized for
Concrete
foundation
No. of anchor bolts 2 2 2 2 2 1

Rail Ø48mm
0529 2610 00
Steel 0529 4703 00 0529 4702 00 0529 4707 00 0529 1010 00 0529 0610 00
0529 2710 00
0929 2610 00
Stainless steel 0929 4703 00 0929 4702 00 0929 4707 00 0929 1010 00 0929 0610 00
0929 2710 00
AL - - - 0629 2610 00 0629 0600 00 -
Tension [KN] 1,50 1,50 0,9 1,20 1.20 0,31
Shearing [KN] 3.20 3,20 3,20 2,60 2,60 1,40
Transverse
- - - - - -
shearing [KN]
Torque [KNm] -0,71 -0,71 0 0 0 0
Rail Ø34mm
0528 2610 00 0528 0400 00
0528 1010 00
Steel 0529 4703 00 0529 4702 00 0529 4707 00 0588 2610 00 0528 0600 00
0588 1010 00
0588 2710 00 0528 0700 00
0928 1010 00 0928 0600 00
VA 0929 4703 00 0929 4702 00 0929 4707 00 0928 2610 00
0988 1010 00 0928 0700 00
Tension [KN] 1,50 1,50 0,9 1,20 1,20 0,31
Shearing [KN] 3,20 3,20 3,20 2,60 2,60 1,40
Transverse
- - - - - -
shearing [KN]
Torque [KNm] -0,71 -0,71 0 0 0 0
Anchoring forces of the top mounting point for ladders with transition piece and accessories attached
at the top (e.g. ladder hook)
Tabelle 4
Up to a = 200 Up to a = 400 Up to a = 945

Tension [KN] 2,20 2,20 2,60
Transverse shearing [KN] 0,70 0,70
Shearing [KN] 1,50 1,50 1,50
Torque [KNm] 0 0,40 0,40
Transverse torque [KNm] 0 0,30 0,60
Anchoring forces foot plates

H,d = 3,17 kN
All forces are per wall bracket.

All forces are calculated values.
All wall mounts can be used on any kind of ground. The assembly material yet has to bear the re-
quired loads.
14
MA 5064-UK t Part No. 01/0117000438
The slotted hole (16x25mm) of the wall bracket must

be covered by a large washer. For stud anchor model
0529.51.09, HACA provides a Ø35 x Ø13 x min. 4 mm
thick washer in stainless steel V4A / ST-tZn. The nut
must be tightened to the torque specified by
the anchor bolt manufacturer. The holes can
also be drilled in advance using a drill template. The
distances between holes required can be found in
Table 4.
English
The tightening torque of the M10 screwed joints on
the ladder and bracket are as follows:
Steel version 35 Nm
Stainless steel version 40 Nm.
15
MA 5064-UK t Part No. 01/0117000438
8.4 Anchors • The effective anchoring depth must be observed.

Anchor characteristic values are given in Table 5. This condition is fulfilled if the setting mark of the
When using anchors other than those from HACA anchor does not protrude beyond the concrete sur-
recommended, the specifications of the anchor face.
manufacturer have to be observed! If the through • Specified edge and axial distances of the through
bolt type 0529.5109 / 0529.5105 are used, then bolt must be observed without minus tolerances.
washers are enclosed: Ø 35 x Ø 13 x at least 4 mm • The arrangement of the boreholes can be checked
thick hot-dip galvanised, or made of V4A stainless without damage. of the reinforcement.
steel, (Fig. 24). • The nuts must be tightened with a tested torque
Stainless steel plugs made of V4A type 0529.5109 wrench and the value given in Table 5 Tighten
are suitable for humid rooms, outdoor and indoor torque.
use (not for indoor swimming pools, road tunnels, • Use a "dowel-suitable" hammer drill.
seawater atmosphere,etc.). • Carbide hammer drills with symbols are to be
Galvanised anchors type 0529.5105 are only suitable used.
for indoor use (exception: damp rooms). The anchors • In case of false drilling, the new drill hole is to be
are approved for cracked and non-cracked concrete. placed at a distance corresponding to at least twice
the depth of the false drilling. If the distance is
Conditions for a proper Installation according smaller, the false hole must be filled with a high-
to dowel approval: strength mortar. This also applies if the transverse
• Installation must be carried out by appropriately or diagonal tensile load is not in the direction of the
trained personnel under the supervision of the site applied load.
manager. • Have it confirmed in writing that the correspond-
• The components must only be installed as supplied ing assembly instructions have been read, under-
by HACA, without replacing individual parts. stood and then assembled.
• The strength of the installation substrate must be
checked.
Then the suitable fixing material must be selected.
• Ensure that the anchoring base is not weakened
by radiators, niches or similar. In this case the an-
choring points must be moved. Alternatively, a sub-
structure planned by an engineer can be can be
used.
• The proper installation is to be carried out by a re- Stud anchor
sponsible experts for stability on check and remove.
washer
• The substrate must be checked to ensure that no 35 x 13 x 4
significant cavities are present.
• The borehole must be freed from drilling dust.
Abb. 24: Anchor bolt with washer 35 x 13 x 4
Tabelle 5: Anchor bolt parameters for anchor bolt Model 0529.5109 and 0529.5105
Anchor Anchor Drill hole Drill Torque Component Axis/edge distance* Axis/edge distance*
bolt lenght bolt depth at rated Nm thickness for cracked concrete for cracked concrete
approx. working least Ø (thickness of at least mm at least mm
mm lenght mm mm anchor base)
max. mm at least mm
115 20 95 12 60 140 70 100 70 130
*) hint: The respective combinations of axis/edge distance are decisive. Cracked concrete is standard and includes non-cracked concrete.
16
MA 5064-UK t Part No. 01/0117000438
8.5 Exit accessories

According to the applicable standards and regula-
tions, double stile ladders must be equipped with
holding devices at their exit point. Three or four
main dimensions (Fig. 25) must be observed when
fitting the ladder hook:
• the distance between the edge of the structure
and the end of the ladder hook (effective length)
must be at least 1100 mm (Fig. 25).
English
• the first wall brackets may be mounted max. 185
mm below the edge of the building with spar
brackets. For ladders with a stile diameter of 34
mm and ladders made of aluminium with a stile
diameter of 48 mm, an additional pair of wall
Max. 185mm respect. 472.5mm for ladder hooks with long sides re-
brackets must be mounted at a distance of 560
mm from the first pair of wall brackets
The tightening torque of the screw

connection is 23 Nm.
edge of building
length of 580mm (alumi-
hooks with an insertion
* only applies to ladder
nium or stile diameter
wall bracket
34mm)
Abb. 25
17
MA 5064-UK t Part No. 01/0117000438
8.5.1 Ladder hook with short side pieces(Fig. 26)

1
The ladder hook (1) is pushed into the upper open end
of the ladder stile (2) and aligned so that the short end
is perpendicular to the ladder and above the edge of the
building. Then use an 8 mm Ø drill bit to drill through
the pre-punched hole at the end of the ladder . With
stainless steel ladder hooks Ø 34 with a long indent, the
bore in the ladder hook is available! The ladder hook is
draw-in length
fastened with one M8 x 60 screw (3), one washer (4)
and a self-locking nut M8 (5).
3
4
Abb. 26
8.5.2 Ladder hook with long side pieces 1

(Fig. 27)
The ladder hook (1) is attached with the longer side
piece into the upper open end of the ladder stile (2).
The shorter retracted end is inserted into base plate
(6). To maintain the main dimensions, the tube of
the foot plate can be shortened. After aligning the
ladder hook, the foot plate is fixed on the roof. 4
3
Then use an 8 mm Ø drill bit to drill the ladder hook 5
through the pre-punched hole at the end of the lad- 6
der stile.
The ladder hook is fastened with a screw M8 x 60 (3),
a washer (4) and a self-locking nut M8 (5).
2
Abb. 27
18
MA 5064-UK t Part No. 01/0117000438
8.5.3 Straight stile extension (Fig. 28) 8.5.4 Exit platform for wall distance 200 mm
The stile extension (1) is inserted into the upper (see also MA 5029)
open end of the ladder stile (2). A wall connection An exit platform must be provided on the top rung.
bend (6) can be pushed onto the other end. After The clear gap between the building and ladder must
aligning the stile extension, the wall connection not exceed 75 mm (DIN 14094 and DIN 18799), here
bend is attached to the wall with two screws. the exit platform 0529 2310 00 or 0529 2302 00 can
The stile extension must then be drilled through the be inserted. For ISO 14122, the gap between the exit
pre-punched hole at the end of the ladder stile using platform and structure must not exceed 20 mm.
an 8 mm Ø drill bit. The stile extension is attached In order to meet all standards, the exit platform
English
with an M8 x 60 screw (3), a washer (4) and a self- 0529 2302 00 must be used.
locking nut M8 (5).
8.5.5 Connection bend

Serves as a conclusion for a ladder, which does not
end at an access level. The connecting bend is not a
wall mounting and therefore static not wearing. The
ladder system must be installed as described under
6 point 8.3 Wall mounting.
5
3
Abb. 29: connection bracket
4
Abb. 28
2
8.5.6 Ladder hook extended with short side

pieces (Fig. 30)
The ladder hook (1) is pushed into the upper open end of
the ladder stile (2) and aligned so that the short end is
perpendicular to the ladder and above the edge of the 1
building. Then use an 8 mm Ø drill bit to drill through the
pre-punched hole at the end of the ladder stile. Secure
the ladder hook with an M8 x 60 bolt (3), a washer (4)
and an M8 self-locking nut (5). 3
4
5
2
Abb. 30
ladder hook with long side pieces retracted
19
MA 5064-UK t Part No. 01/0117000438
8.6 Accessory access 8.6.2 Base plates for shortened ladders

(Fig. 33+34)
The ladder system must be planned so that Ladders are only shortened at the bottom.
the top rung is flush with the exit level. The For footplates 0529 1620 00 for shortened ladders,
bottom entry dimension can be between 100 the footplate tube is inserted into the shortened
and stile end and screwed into place.
400 mm (Fig. 34) The foot plates can only be used on shortened lad-
ders and transition pieces with a stile diameter of 48
mm (inside diameter 44 mm). The foot plates can be
8.6.1 Standard foot plates for uncut ladders shortened if necessary. The interfaces are to be de-
(Fig. 31/32) burred cleanly and coated with a zinc thick-film
Foot plates are required when using extra-long wall paint 0529.01 against corrosion The overlapping of
mountings larger than 400 mm and when installing the ladder stile and foot plate tube must be at least
fall protection. If the ladder does not reach to the 100 mm (Fig. 33). The foot plates must be installed
floor, a pair of tie bars or a reinforced wall attach- before the assembly of the ladder section and be
ment can be mounted on the lowest wall attach- pushed into the ladder stiles. Then the ladder sec-
ments. The tube of the foot plates can be shortened tion can be mounted and the foot plates are
during installation, screwed to the substrate. The foot plates must be
This allows height adjustment to the ladder. The drilled with a drill (Ø 8 mm), a distance from the
step dimension of the first rung specified by the edge of the pipe end of ≥ 10 mm must be observed
standard must be observed (Fig. 25)! (Fig. 33). Ladder and foot plates are fastened with
The foot plates must be firmly fixed to the ground the hexagon head screws M 8 x 60 (1}, the locknuts
and must not just stand up. For foot plates 0529 M 8 (2) and washers (3) (Fig. 28). The tightening
1610 00 for standard ladders, the retracted stile end torque is 23 Nm.
is inserted into the foot plate tube.
100-400
Insert retracted ladder

hook end into base
plate. Base plate can be Abb. 32: Base plate
Abb. 31: Base plate shortened.

100-400
FInsert base plate into

the stile. Base plate can
be shortened
Abb.33 Abb. 34
Base plate for shortened ladders Base plate for shortened ladders
20
MA 5064-UK t Part No. 01/0117000438
8.6.3 Model 0529.12.01 folding rest / Model 0529.12.10 climbing guard (Fig. 35, 36 and 37)
Rests may only be installed if the safety cage has at least four back guard hoops in this area. The back guard
connecting tubes must not be interrupted over this length. It then makes no difference which hoop the rest is
mounted on. The support is secured from the outside of the back guard hoop to the two neighbouring back
guard connecting tubes.
English
8.7 Rear protection in general
einklappbarer Ruhessitz
Fuse element
Folding rest platform Abb. 36
Abb. 35
Screw together with safety cage bracket and

Abb. 37
safety cage connectors
21
MA 5064-UK t Part No. 01/0117000438
8.7 Rear protection in general

Mount the rear safety guards at a maximum dis-
tance of 1.5 m. The uppermost rear safety guard
must be mounted so that the opening points to-
wards the platform or the edge of the structure and
thus there is no danger of falling (e.g. Fig. 38+39).
When using ladder hooks, the rear guard must be
extended to a height of ≥ 1000 mm above the exit
level (Fig. 6). The vertical rear safety tubes must be
≥2,20 m≤ 2,30 m
attached inside the rear safety guards at the pre-
punched points using the bracket bolts and M 8
nuts. The nuts should always be on the outside due
to the risk of injury. The rear safety tubes are deliv-
ered in partial lengths under certain circumstances
and have to be mounted using the enclosed connec-
tors.
The connecting joints shall be arranged at different
heights, i.e. between different rear safety guards.
They must not lie between the two lowest and the
two highest rear safety guards. Abb. 38: Safety cage with a transfer platform acc. to
For safety reasons the rear safety tubes must be DIN 14122
flush with the top and bottom rear safety guads
and must be shortened if necessary. The upper open
tube ends must be closed with plastic caps. The
lower ones should be open to avoid water accumu-
lation in the pipe.
All interfaces have to be painted against corrosion
with zinc thick-film paint type 0052.90.10.
Important: Regardless of the length of the rear pro-
tection at least 3 full rear safety guards have to be
mounted.
5
≥2,20 m≤ 2,30 m
Abb. 39: Safety cage with a transfer platform

acc. to DIN 14094 and DIN 18799
22
MA 5064-UK t Part No. 01/0117000438
English
≤2,2 m to ≤ 2,3 m
5
2
4
2
Abb. 41 Bottom end with lateral entry

Abb. 40 Bottom end on the ground
8.7.1 Bottom access rear safety cage

Start of ladder bottom (Fig. 40)
Fixed ladders must have a rear safety cage from a fall height of 3 m. At the start of the ladder at the bottom there
must be a headroom of 2.2 - 3 m according to all standards.
Bottom closure at the side (Fig. 41)
At the start with side access of a ladder, the railing must be continued. For this purpose, 2 x 3/4 rear safet guards
must be mounted at the height of the knee rail (Fig.41/Pos. 4) and of the handrail (Fig.41/Pos. 5). The first complete
rear safety guard (Fig.41/ pos. 8) must be mounted with sufficient headroom at min. 2.2 - max. 2.3 m above the
stand grate (Fig.41/ pos. 1).
Transfer platform (Fig. 38/39))
The lower rear safety cage must be stabilised at the height of the transfer platform with a complete rear safety
guard (Fig.38+39/Pos.7). The last rear safety guard is a 3/4 and must be at least 1.6 m (ISO 14122 = 2 m) above the
transfer platform (Fig.38/Pos. 5). Between them a further 3/4 back rear safety guard will be mediated. At the height
of the two 3/4 rear safety guard (Fig. 38/Pos. 4+5), another two 3/4 rear safet guards have to be mounted to the
next ladder section and be connected with the connecting strap (Fig. 38/ pos. 2).
The first complete rear safety guard in the following ladder (Fig.38/ pos. 8) must be mounted with sufficient head-
room at min. 2.2 - max. 2.3 m above the transfer platform (Fig. 38/Pos. 1) The upper edge of the last rung of the
incoming ladder may end only 1.68 m (6 rungs), according to ISO 14122 1.96 m (7 rungs), above the transfer plat-
form.
Rear safety cage with side exit or transfer
For side exits and when changing in the ladder section, a rear safety tube must be installed in the area of the
exit/changeover. For the side exit, a stand grate type 0529.20.11 is used and for changing to another ladder section
a transfer platform type 0529.20.03 is required. In case of a lateral exit, fuses must be installed, so that the gap be-
tween the rear safety guard and the railing is closed e.g. telescopic connector (Fig. 41 / Pos. 2). These brackets must
be adjusted and drilled for installation. At the exit points to the next right or left platform or ladder section, the
inner rear safety connecting tubes musted be left out up to the lower edge of the rear safety guard arranged at
min. 2.2 m - max. 2.3 m above the platform (fig. 38+39 / pos. 8). The rear safety guard connecting tubes are at-
tached directly to the stand grate using a U-bolt (Fig. 43 / pos. 10) and nuts. In the case of multiple ladder systems,
the rear guards are to be connected to each other at the transfer point (Fig. 38+39 / Pos. 2). To do this, the 3/4 rear
safety guard of the individual ladder sections are connected with a connecting strap and M8 screw connections.
23
MA 5064-UK t Part No.01/0117000438
8.7.3 Aluminium rear safety cage 8.7.4 Assembly of transfer platform or stand
(Type 6290) (Fig. 42) grate
With an aluminium rear safety guard, a stiffening The lower end of a ladder section is made with a
set type 0629.03 must be fitted to the lower rear stand grate or transfer platform (Fig. 43 / Pos. 1).
safety guard for each ladder section.The stiffening The ladders must be mounted so that the stand
set is bolted to the rear safety guard bracet with the grating / platform (1) is hooked onto the 2nd rung
existing M8 bracket bolt and clamped to the ladder from below. The support is fixed one rung lower. In-
stile with the clamping yoke. sert screws (2) M 10 x 50 mm into the holes in the
U-rail and tighten with nut (3). Place the support (4)
with the U-rail over the lowest rung. Press the
crosspiece (5) of the support against the underside
of the grating until the grating is horizontal. Insert
the fixing plate (6) from above into the standing grid
meshes above the long holes of the support lay.
Screws M 8x45 mm (7) from above and fasten with
washers and nuts (8).
2. Sprosse
Abb.:42
1.Sprosse
Abb. 43: Platform grating for safety cage Model

0529.20.10
24
MA 5064-UK t Part No. 01/0117000438
• The standard ladders of different lengths can be

9. additional information on shaft ladder assembled in any order to each other.
installation according to EN 14396: • For shafts with a shaft cover and a dirt trap, the
• Fixed ladders must be firmly attached and safely upper tie bar ends can be adjusted on site.
accessible. • For ladders with fall protection and when using
• Shaft ladders must have a holding device at their wall brackets with a wall distance of 400 mm or
exit points that allows safe entry and exit. The hold- more, the ladders must be placed on the shaft floor.
ing device is up to 1.0 m beyond the outlet point. If the ladder cannot be routed to the ground, a pair
• Entrances up to a fall height of 5 m without fall of tie bars must be mounted to the lowermost wall
English
protection device can be executed, if the location is mountings.
not dangerous (e.g. sinking). • HACA fall protection rails are attached to the lad-
• Entrances with fall heights over 5 m have to be der rungs in the middle, on the user side. The cur-
equipped with fall protection devices. rent assembly instructions (MA 5017) for HACA safe-
• Rear protection cages are not permitted in shafts. ty rails must be observed.
• Aluminium components must not be installed in • The instructions for assembly MA 5007 must be
sewer manholes. observed for the retractable handles on the shaft
• According to DIN EN 14396, shaft ladders which wall (Fig. 56) and for mounting on the ladder rungs
comply with this rule must be marked with CE. Fixed (Fig. 57). The MA 5042 must be used for the fold-
ladders with fall protection device must be marked down entry aid (Fig. 59) and MA 5112 must be ob-
at each access point. The identification plate type served for mounting the clip-on entry aid on the fall
no. 0176/0175 must permanently be supplemented protection rail (Fig. 58)
with the current entries. • For accessories, additional wall mounts may be re-
• Ladders and accessories must be checked regularly quired.
by a competent person for their proper condition, • All instructions for assembly which have not been
according to their operating conditions. mentioned can be taken from the previously de-
Control sheets are available free of charge on re- scribed chapter.
quest.
• The retention period for assembly documents (e.g.
order, assembly protocol, assembly instructions,
statics, etc.) is at least 30 years.
• The stability of the structure must be ensured for
the anchoring points for the fixed ladder system.
• Each ladder section with two side stiles must have
at least 4 fastening elements (e.g. two pairs of wall
brackets) and anchoring points.
• HACA shaft ladders are designed for vertical fixing
distances up to 2 meters.
• The distance from the middle of the rung to the
fixing surface must be at least 150 mm (Fig. 44).
• The position of the topmost rung (see Fig. 42) in
relation to the access level may have a maximum of
one rung distance below the access level.
25
MA 5064-UK t Part No. 01/0117000438
5. Shaft ladders type 5289, type 9289, 5284, type 9284, type 9284.42
≥1000
≤ 280 *
≤ 1960
climbing height
280
≤ 280
≥150 ≥150
≥150
Abb. 44
* This dimension may vary according to national regulations (e.g. ASR 1.8)
10. note on regular inspection

According to the Industrial Safety Regulation, the operator must determine the corresponding inspection inter-
vals on the basis of a risk assessment. We recommend an annual inspection. Control sheets are available from
us on request.
26
MA 5064-UK t Part No. 01/0117000438
11. references to further assembly instructions
4. Accessories
4.1 Platforms and 4.2 Retractable ladders 4.3 Climbing guard plate
supplementary platforms Provision to prevent climbing Provision to prevent unauthorised
MA 5084 MA 5077 climbing
MA 3700
English
Abb. 45 Abb . 46 Abb. 47
4.4 Ladder hook 4.5 Exit element 4.6 Crossing element

MA 5059 MA 5059 MA 5105
Abb. 50
Abb. 48 Abb. 49
4.7 Gate (self-closing) 4.8 Rest platfomrs 4.9 Counterweights
MA 5076 für 05298311 MA 5101 crossing element
MA 5035 für 05298305 MA 5052a
Abb. 52 Abb. 53
Abb. 51
4.10 Model 0529.23.10 und 4.11 Fall protection equipment
0529.23.02 MA 5029 Fall arrest rail connector and fal arrest rail
MA 5017 und MA 5014
Abb. 54 Abb. 55
27
MA 5064-UK t Part No. 01/0117000438
Abb. 56 Abb.57
MA 5007 MA 5007
Abb.58 Abb. 59
MA 5112 MA 5042
Abb.60
MA 5074a
28
MA 5064-UK t Part No. 01/0117000438
12. anchor point for rescue
To attach a rescue system to a fixed ladder you need two tape loops according to DIN EN 795 type B.
These must be at least 80 cm long and are attached to the side stiles above the rung with an anchor stitch.
English
max. 90°
Abb. 61
The angle between the tape loops must not exceed 90°. Only then can it be ensured that the ladder can absorb
a force of up to 6 KN
13. packaging / disposal

The packaging must be disposed of in accordance with the applicable regulations and laws. After the end of its
useful life, the ladder must be disposed of in accordance with the applicable regulations. Steel, stainless steel
and aluminium is a high quality material and should be recycled.
29
MA 5064-UK t Part No.01/0117000438
14. service life
The ladder is a long-term usable work equipment when maintained and used as intended.
15. manufacturer information
HACA Leitern
Lorenz Hasenbach GmbH u. Co. KG
Dieselstr.12
65520 Bad Camberg
Tel. 06434 / 25-0

Fax 06434 / 25-500
E-Mail: hallo@haca.com
Internet: www.haca.com
30

Haca Ladders

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Haca Ladders

Uploaded by

Copyright:

Available Formats

MA 5064-UK t Part No.

Please read before assembly!

The present instructions for use 3. intended use

Use 4. technical information

Assembly 5. scope of delivery

6. Standards and regulations

DIN EN ISO 14122 Safety of machinery – Permanent means of access to machinery

DIN EN 14396 Fixed ladders for manholes

DIN 19572 Handholds for entrance into accessible manholes

DIN 50308 Wind turbines

DGUV 208-032 choice and use of fixed ladders

ArbStättV regulations governing the workplace

BetrSichV Ordinance on Industrial Health and Safety

7. General information under consideration

Fixed ladders must be securely attached to the

We recommend involving the

7.1 Planning aid

7.3 Examples of designs

Fig. 3: Multi-section ladder

Fig. 5: Single section ladder without Fig. 6: Single section ladder

pivoting entry aid

Folding rest platforms

8.1 General information

platoform grating or trans- 760 mm

detail A transiti- platform walkway min. 760 mm

ladder hook Gr. 4,5,6

8.3 Wall brackets 8.3.1 Wall bracket for ladders with/without

Table 1: Anchor bolt requirement for the wall bracket

Concrete B 25 – B 55 1 or 2 units 4 units 2 units

Table 2: Distances between holes (in mm) for wall brackets

No. of anchor bolts 1 2 2 4 4 4 4 4

No. of anchor bolts 2 2 2 2 4 4 4 4 4

for 0529 1010 00

No. of anchor bolts 2 2 2 2 2 1

Up to a = 200 Up to a = 400 Up to a = 945

Anchoring forces foot plates

All forces are per wall bracket.

The slotted hole (16x25mm) of the wall bracket must

8.4 Anchors • The effective anchoring depth must be observed.

115 20 95 12 60 140 70 100 70 130

8.5 Exit accessories

The tightening torque of the screw

nium or stile diameter

8.5.1 Ladder hook with short side pieces(Fig. 26)

8.5.2 Ladder hook with long side pieces 1

8.5.5 Connection bend

8.5.6 Ladder hook extended with short side

8.6 Accessory access 8.6.2 Base plates for shortened ladders

Insert retracted ladder

Abb. 31: Base plate shortened.

FInsert base plate into

Screw together with safety cage bracket and

8.7 Rear protection in general

Abb. 39: Safety cage with a transfer platform

Abb. 41 Bottom end with lateral entry

8.7.1 Bottom access rear safety cage

Abb. 43: Platform grating for safety cage Model

• The standard ladders of different lengths can be

10. note on regular inspection

11. references to further assembly instructions

4.4 Ladder hook 4.5 Exit element 4.6 Crossing element

12. anchor point for rescue

13. packaging / disposal
