Engine
Engine

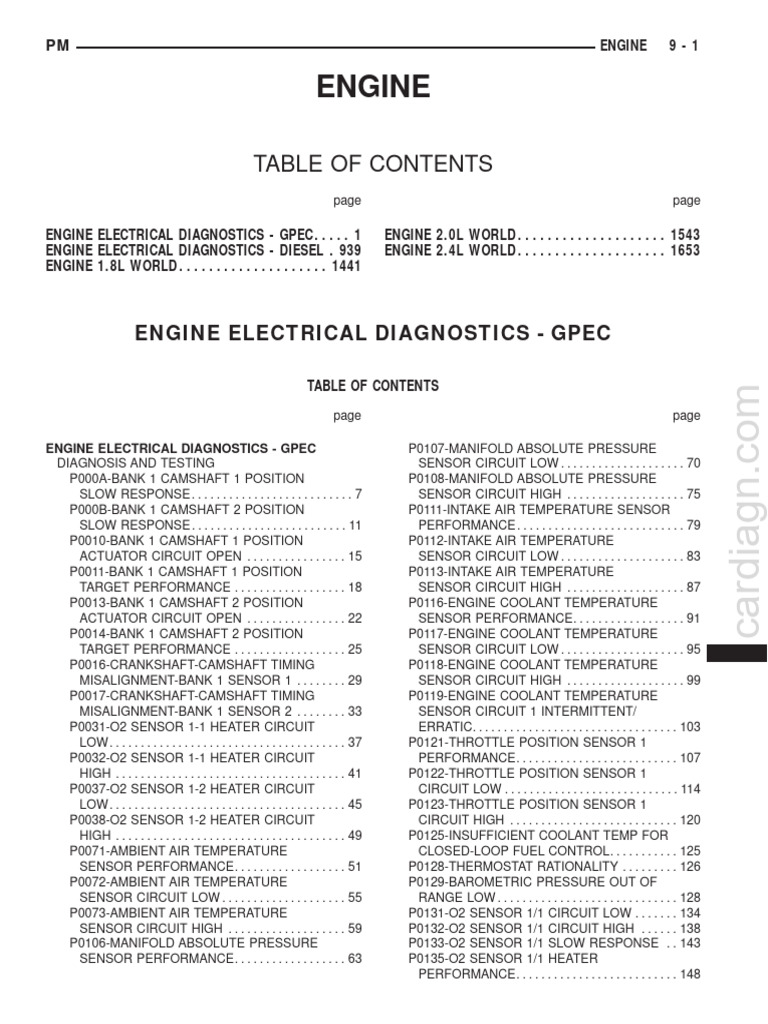

ENGINE
TABLE OF CONTENTS
page page
TABLE OF CONTENTS
cardiagn.com
page page
cardiagn.com
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 P0462-FUEL LEVEL SENSOR 1 LOW
P0223-THROTTLE POSITION SENSOR 2 CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 P0463-FUEL LEVEL SENSOR 1 HIGH
P0261-FUEL INJECTOR 1 CIRCUIT LOW . . . . 220 CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416
P0262-FUEL INJECTOR 1 CIRCUIT HIGH . . . . 224 P0480-COOLING FAN 1 CONTROL CIRCUIT . 420
P0264-FUEL INJECTOR 2 CIRCUIT LOW . . . . 228 P0481-COOLING FAN 2 CONTROL CIRCUIT . 424
P0265-FUEL INJECTOR 2 CIRCUIT HIGH . . . . 232 P0501-VEHICLE SPEED SENSOR 1
P0267-FUEL INJECTOR 3 CIRCUIT LOW . . . . 236 PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 429
P0268-FUEL INJECTOR 3 CIRCUIT HIGH . . . . 240 P0501-VEHICLE SPEED SENSOR 1
P0270-FUEL INJECTOR 4 CIRCUIT LOW . . . . 244 PERFORMANCE (MTX NON-ABS). . . . . . . . . . 431
P0271-FUEL INJECTOR 4 CIRCUIT HIGH . . . . 248 P0501-VEHICLE SPEED SENSOR 1
P0300-MULTIPLE CYLINDER MISFIRE . . . . . . . 252 PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 439
P0301-CYLINDER 1 MISFIRE . . . . . . . . . . . . . . . 259 P0503-VEHICLE SPEED SENSOR 1
P0302-CYLINDER 2 MISFIRE . . . . . . . . . . . . . . . 266 ERRATIC (MTX NON-ABS). . . . . . . . . . . . . . . . . 441
P0303-CYLINDER 3 MISFIRE . . . . . . . . . . . . . . . 273 P0506-IDLE SPEED PERFORMANCE
P0304-CYLINDER 4 MISFIRE . . . . . . . . . . . . . . . 280 LOWER THAN EXCEPTED . . . . . . . . . . . . . . . . 449
P0315-NO CRANK SENSOR LEARNED . . . . . . 287 P0507-IDLE SPEED PERFORMANCE
P0325-KNOCK SENSOR 1 CIRCUIT . . . . . . . . . 290 HIGHER THAN EXCEPTED . . . . . . . . . . . . . . . . 451
P0335-CRANKSHAFT POSITION SENSOR P0513-INVALID SKIM KEY . . . . . . . . . . . . . . . . . . 453
CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294 P0522-ENGINE OIL PRESSURE SWITCH
P0336-CRANKSHAFT POSITION SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 301 P0523-ENGINE OIL PRESSURE SWITCH
P0339-CRANKSHAFT POSITION SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 458
INTERMITTENT. . . . . . . . . . . . . . . . . . . . . . . . . . . 308 P0532-A/C PRESSURE SENSOR CIRCUIT
P0340-CAMSHAFT POSITION SENSOR LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461
CIRCUIT-BANK 1 SENSOR 1. . . . . . . . . . . . . . . 311 P0533-A/C PRESSURE SENSOR CIRCUIT
P0341-CAMSHAFT POSITION SENSOR HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466
PERFORMANCE-BANK 1 SENSOR 1 . . . . . . . 319 P0562-BATTERY VOLTAGE LOW . . . . . . . . . . . . 470
P0344-CAMSHAFT POSITION SENSOR P0563-BATTERY VOLTAGE HIGH . . . . . . . . . . . 473
INTERMITTENT-BANK 1 SENSOR 1 . . . . . . . . 327 P0571-BRAKE SWITCH 1 PERFORMANCE . . 476
P0351-IGNITION COIL 1 CIRCUIT . . . . . . . . . . . 332 P0572-BRAKE SWITCH 1 STUCK ON . . . . . . . . 481
P0352-IGNITION COIL 2 CIRCUIT . . . . . . . . . . . 335 P0573-BRAKE SWITCH 1 STUCK OFF . . . . . . . 486
P0353-IGNITION COIL 3 CIRCUIT . . . . . . . . . . . 338 P0579-SPEED CONTROL SWITCH 1
P0354-IGNITION COIL 4 CIRCUIT . . . . . . . . . . . 341 PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 491
P0365-CAMSHAFT POSITION SENSOR P0580-SPEED CONTROL SWITCH 1
CIRCUIT-BANK 1 SENSOR 2 . . . . . . . . . . . . . . 344 CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496
P0366-CAMSHAFT POSITION SENSOR P0581-SPEED CONTROL SWITCH 1
PERFORMANCE-BANK 1 SENSOR 2 . . . . . . . 352 CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 501
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9-3
cardiagn.com
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 545 P1513-STARTER REQUEST SWITCH STUCK . 646
P061C-ETC LEVEL 2 RPM PERFORMANCE . . 546 P1572-BRAKE PEDAL STUCK ON . . . . . . . . . . . 647
P0622-GENERATOR FIELD CONTROL P1573-BRAKE PEDAL STUCK OFF . . . . . . . . . . 652
CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547 P1593-SPEED CONTROL SWITCH 1/2
P0625-GENERATOR FIELD CONTROL STUCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 657
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551 P1602–PCM NOT PROGRAMMED . . . . . . . . . . . 661
P0626-GENERATOR FIELD CONTROL P1607-PCM INTERNAL SHUTDOWN TIMER
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 555 SLOW RATIONALITY. . . . . . . . . . . . . . . . . . . . . . 662
P0627-FUEL PUMP CONTROL CIRCUIT/ P1618-SENSOR REFERENCE VOLTAGE 1
OPEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559 CIRCUIT ERRATIC . . . . . . . . . . . . . . . . . . . . . . . . 664
P0628-FUEL PUMP CONTROL CIRCUIT P1628-SENSOR REFERENCE VOLTAGE
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 563 CIRCUIT ERRATIC . . . . . . . . . . . . . . . . . . . . . . . . 669
P0629-FUEL PUMP CONTROL CIRCUIT P1696-EEPROM MEMORY WRITE DENIED/
HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 566 INVALID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 674
P062C-ETC LEVEL 2 MPH PERFORMANCE . . 569 P1697–EMR (SRI) MILEAGE NOT STORED . . 676
P0630-VIN NOT PROGRAMMED IN PCM . . . . 570 P1861-SIPHON LINE DISCONNECTED . . . . . . 677
P0632-ODOMETER NOT PROGRAMMED IN P2004-INTAKE MANIFOLD RUNNER
PCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 571 CONTROL STUCK OPEN. . . . . . . . . . . . . . . . . . 680
P0633-SKIM SECRET KEY NOT STORED IN P2006-INTAKE MANIFOLD RUNNER
PCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 572 CONTROL STUCK CLOSED . . . . . . . . . . . . . . . 685
P063A-GENERATOR VOLTAGE SENSE P2009-INTAKE MANIFOLD RUNNER
CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 573 (SWIRL) CONTROL CIRCUIT LOW . . . . . . . . . 690
P0642-SENSOR REFERENCE VOLTAGE 1 P2010-INTAKE MANIFOLD RUNNER
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577 (SWIRL) CONTROL CIRCUIT HIGH . . . . . . . . . 694
P0643-SENSOR REFERENCE VOLTAGE 1 P2016-INTAKE MANIFOLD RUNNER
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 582 POSITION SENSOR CIRCUIT LOW. . . . . . . . . 698
P0646-A/C CONTROL CIRCUIT LOW . . . . . . . . 585 P2017-INTAKE MANIFOLD RUNNER
P0647-A/C CONTROL CIRCUIT HIGH . . . . . . . . 589 POSITION SENSOR CIRCUIT HIGH . . . . . . . . 703
P0652-SENSOR REFERENCE VOLTAGE 2 P2066-FUEL LEVEL SENSOR 2
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . 593 PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 707
P0653-SENSOR REFERENCE VOLTAGE 2 P2067-FUEL LEVEL SENSOR 2 CIRCUIT
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . 597 LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 711
P0700-TRANSMISSION CONTROL SYSTEM P2068-FUEL LEVEL SENSOR 2 CIRCUIT
(MIL REQUEST) . . . . . . . . . . . . . . . . . . . . . . . . . . 600 HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 714
P0703-BRAKE SWITCH 2 PERFORMANCE . . 601 P2072-ELECTRONIC THROTTLE CONTROL
P0850-PARK/NEUTRAL SWITCH SYSTEM - ICE BLOCKAGE . . . . . . . . . . . . . . . . 718
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 606 P2074-MAP/TPS CORRELATION - HIGH
P1115-GENERAL TEMPERATURE AIRFLOW/VACUUM LEAK DETECTED . . . . . . 719
RATIONALITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607
9-4 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
P2110-ELECTRONIC THROTTLE CONTROL P2308-IGNITION COIL 3 SECONDARY
- FORCED LIMITED RPM . . . . . . . . . . . . . . . . . . 759 CIRCUIT-INSUFFICIENT IONIZATION . . . . . . . 869
P2111-ELECTRONIC THROTTLE CONTROL P2310-IGNITION COIL 4 CIRCUIT HIGH . . . . . 873
- UNABLE TO CLOSE . . . . . . . . . . . . . . . . . . . . . 764 P2311-IGNITION COIL 4 SECONDARY
P2112-ELECTRONIC THROTTLE CONTROL CIRCUIT-INSUFFICIENT IONIZATION . . . . . . . 877
- UNABLE TO OPEN . . . . . . . . . . . . . . . . . . . . . . 770 P2503-CHARGING SYSTEM OUTPUT LOW . . 881
P2115-ACCELERATOR PEDAL POSITION P2504-CHARGING SYSTEM OUTPUT HIGH . . 886
SENSOR 1 MINIMUM STOP P1607-PCM INTERNAL SHUTDOWN TIMER
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 775 SLOW RATIONALITY. . . . . . . . . . . . . . . . . . . . . . 890
P2116-ACCELERATOR PEDAL POSITION U0001-CAN C BUS . . . . . . . . . . . . . . . . . . . . . . . . . 892
SENSOR 2 MINIMUM STOP U0101-LOST COMMUNICATION WITH TCM . . 893
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 776 U0121-LOST COMMUNICATION WITH
P2118-ELECTRONIC THROTTLE CONTROL ANTI-LOCK BRAKE MODULE . . . . . . . . . . . . . . 894
MOTOR CURRENT PERFORMANCE . . . . . . . 777 U0140-LOST COMMUNICATION WITH BODY
P2122-ACCELERATOR PEDAL POSITION CONTROL MODULE . . . . . . . . . . . . . . . . . . . . . . 895
SENSOR 1 CIRCUIT LOW . . . . . . . . . . . . . . . . . 782 U0141-LOST COMMUNICATION WITH IPM
P2123-ACCELERATOR PEDAL POSITION (FCM/TIPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 896
SENSOR 1 CIRCUIT HIGH. . . . . . . . . . . . . . . . . 788 U0155-LOST COMMUNICATION WITH
P2127-ACCELERATOR PEDAL POSITION CLUSTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 897
SENSOR 2 CIRCUIT LOW . . . . . . . . . . . . . . . . . 793 U0168-LOST COMMUNICATION WITH
P2128-ACCELERATOR PEDAL POSITION VEHICLE SECURITY MODULE (SKREEM/
SENSOR 2 CIRCUIT HIGH. . . . . . . . . . . . . . . . . 799 WCM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 898
P2135-THROTTLE POSITION SENSOR 12 U110C-LOST FUEL LEVEL MESSAGE . . . . . . . 899
CORRELATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 804 U110E-LOST AMBIENT TEMPERATURE
P2138-ACCELERATOR PEDAL POSITION MESSAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900
SENSOR 1/2 CORRELATION . . . . . . . . . . . . . . 814 U110F-LOST FUEL VOLUME MESSAGE . . . . . 901
P2166-ACCELERATOR PEDAL POSITION U1110-LOST VEHICLE SPEED MESSAGE . . . . 902
SENSOR 1 MAXIMUM STOP U1113-LOST A/C PRESSURE MESSAGE . . . . . 903
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 820 U1120-LOST WHEEL DISTANCE MESSAGE . . 904
P2167-ACCELERATOR PEDAL POSITION U1403-IMPLAUSIBLE FUEL LEVEL SIGNAL . . 905
SENSOR 2 MAXIMUM STOP U1411-IMPLAUSIBLE FUEL VOLUME
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 821 SIGNAL RECEIVED . . . . . . . . . . . . . . . . . . . . . . . 906
P2172-HIGH AIRFLOW/VACUUM LEAK U1412-IMPLAUSIBLE VEHICLE SPEED
DETECTED (INSTANTANEOUS SIGNAL RECEIVED . . . . . . . . . . . . . . . . . . . . . . . 907
ACCUMULATION). . . . . . . . . . . . . . . . . . . . . . . . . 822 U1417-IMPLAUSIBLE LEFT WHEEL
P2173-HIGH AIRFLOW/VACUUM LEAK DISTANCE SIGNAL RECEIVED . . . . . . . . . . . . 909
DETECTED (SLOW ACCUMULATION) . . . . . . 825 U1418-IMPLAUSIBLE RIGHT WHEEL
DISTANCE SIGNAL RECEIVED. . . . . . . . . . . . . 911
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9-5
cardiagn.com
9-6 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9-7
cardiagn.com
Possible Causes
INTERMITTENT DTC
ENGINE OIL DIRTY OR CONTAMINATED
INCORRECT ENGINE OIL VISCOSITY
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT HIGH RESISTANCE
(K76) CMP 1/1 CONTROL CIRCUIT HIGH RESISTANCE
CAMSHAFT 1/1 POSITION SOLENOID
CAMSHAFT PHASER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Theory of Operation
Dual Variable Valve Timing (VVT) allows the PCM to monitor and adjust the position of each camshaft, based on
desired torque levels and engine operating conditions. The PCM controls two solenoid operated control valves, one
for each camshaft, that are used to direct oil pressure to hydraulic actuators mounted between each camshaft and
its driving sprocket. The oil pressure alters the angular position or phasing of each camshaft relative to crankshaft
rotation. A sensor is used to monitor the position of each camshaft.
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
NOTE: Diagnose and repair any CMP sensor or CKP sensor DTCs before continuing with this test.
NOTE: Diagnose and repair any oil pressure or oil pressure sensor DTCs before continuing with this test.
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Test drive the vehicle under the conditions in which the DTC is monitored, as outlined above.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9-9
4.
cardiagn.com
CAMSHAFT 1/1 POSITION SOLENOID CONTROL ACTUATION
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/1 Position Solenoid control to toggle on and off.
Listen for the Camshaft 1/1 Position Solenoid to click open and closed during the actuation.
Does the Camshaft 1/1 Position Solenoid click open and closed during the actuation?
Yes >> Go to 8
No >> Go to 5
cardiagn.com
Inspect the wiring and connectors between the Camshaft 1/1 Position Solenoid and the Powertrain Control Module
(PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Remove the Camshaft 1/1 Position Solenoid in accordance with the Service Information.
Inspect the Camshaft 1/1 Position Solenoid for contamination, foreign material, or any condition that would restrict
movement of the valve.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/1 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
8. CAMSHAFT PHASER
Turn the ignition off.
Remove the appropriate Camshaft Phaser in accordance with the Service information.
Inspect the Phaser for contamination, foreign material, or any condition that would restrict operation of the Phaser.
Inspect the Phaser oil passages for signs of sludge or foreign material.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the appropriate Camshaft Phaser in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 11
cardiagn.com
Possible Causes
INTERMITTENT DTC
ENGINE OIL DIRTY OR CONTAMINATED
INCORRECT ENGINE OIL VISCOSITY
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT HIGH RESISTANCE
(K276) CMP 1/2 CONTROL CIRCUIT HIGH RESISTANCE
CAMSHAFT 1/2 POSITION SOLENOID
CAMSHAFT PHASER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Theory of Operation
Dual Variable Valve Timing (VVT) allows the PCM to monitor and adjust the position of each camshaft, based on
desired torque levels and engine operating conditions. The PCM controls two solenoid operated control valves, one
for each camshaft, that are used to direct oil pressure to hydraulic actuators mounted between each camshaft and
its driving sprocket. The oil pressure alters the angular position or phasing of each camshaft relative to crankshaft
rotation. A sensor is used to monitor the position of each camshaft.
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
NOTE: Diagnose and repair any CMP sensor or CKP sensor DTCs before continuing with this test.
NOTE: Diagnose and repair any oil pressure or oil pressure sensor DTCs before continuing with this test.
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Test drive the vehicle under the conditions in which the DTC is monitored, as outlined above.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 13
4.
cardiagn.com
CAMSHAFT 1/2 POSITION SOLENOID CONTROL ACTUATION
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/2 Position Solenoid control to toggle on and off.
Listen for the Camshaft 1/2 Position Solenoid to click open and closed during the actuation.
Does the Camshaft 1/2 Position Solenoid click open and closed during the actuation?
Yes >> Go to 8
No >> Go to 5
cardiagn.com
Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid and the Powertrain Control Module
(PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Remove the Camshaft 1/2 Position Solenoid in accordance with the Service Information.
Inspect the Camshaft 1/2 Position Solenoid for contamination, foreign material, or any condition that would restrict
movement of the valve.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
8. CAMSHAFT PHASER
Turn the ignition off.
Remove the appropriate Camshaft Phaser in accordance with the Service information.
Inspect the Phaser for contamination, foreign material, or any condition that would restrict operation of the Phaser.
Inspect the Phaser oil passages for signs of sludge or foreign material.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the appropriate Camshaft Phaser in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 15
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K76) CMP 1/1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/1 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. CAMSHAFT 1/1 POSITION SOLENOID
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/1 Position Solenoid control to the ON (100%) position.
Using a 12 volt test light connected to 12 volts, check the (K76) CMP 1/1 Control circuit in the Camshaft 1/1 Posi-
tion Solenoid harness connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Camshaft 1/1 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
ENGINE OIL DIRTY OR CONTAMINATED
INCORRECT ENGINE OIL VISCOSITY
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT HIGH RESISTANCE
(K76) CMP 1/1 CONTROL CIRCUIT HIGH RESISTANCE
CAMSHAFT 1/1 POSITION SOLENOID
CAMSHAFT PHASER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Theory of Operation
Dual Variable Valve Timing (VVT) allows the PCM to monitor and adjust the position of each camshaft, based on
desired torque levels and engine operating conditions. The PCM controls two solenoid operated control valves, one
for each camshaft, that are used to direct oil pressure to hydraulic actuators mounted between each camshaft and
its driving sprocket. The oil pressure alters the angular position or phasing of each camshaft relative to crankshaft
rotation. A sensor is used to monitor the position of each camshaft.
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
NOTE: Diagnose and repair any CMP sensor or CKP sensor DTCs before continuing with this test.
NOTE: Diagnose and repair any oil pressure or oil pressure sensor DTCs before continuing with this test.
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Test drive the vehicle under the conditions in which the DTC is monitored, as outlined above.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 20 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
4.
cardiagn.com
CAMSHAFT 1/1 POSITION SOLENOID CONTROL ACTUATION
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/1 Position Solenoid control to toggle on and off.
Listen for the Camshaft 1/1 Position Solenoid to click open and closed during the actuation.
Does the Camshaft 1/1 Position Solenoid click open and closed during the actuation?
Yes >> Go to 8
No >> Go to 5
cardiagn.com
Inspect the wiring and connectors between the Camshaft 1/1 Position Solenoid and the Powertrain Control Module
(PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Remove the Camshaft 1/1 Position Solenoid in accordance with the Service Information.
Inspect the Camshaft 1/1 Position Solenoid for contamination, foreign material, or any condition that would restrict
movement of the valve.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/1 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
8. CAMSHAFT PHASER
Turn the ignition off.
Remove the appropriate Camshaft Phaser in accordance with the Service information.
Inspect the Phaser for contamination, foreign material, or any condition that would restrict operation of the Phaser.
Inspect the Phaser oil passages for signs of sludge or foreign material.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the appropriate Camshaft Phaser in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 22 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K276) CMP 1/2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/2 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. CAMSHAFT 1/2 POSITION SOLENOID
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/2 Position Solenoid control to the ON (100%) position.
Using a 12 volt test light connected to 12 volts, check the (K276) CMP 1/2 Control circuit in the Camshaft 1/2
Position Solenoid harness connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Camshaft 1/2 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
ENGINE OIL DIRTY OR CONTAMINATED
INCORRECT ENGINE OIL VISCOSITY
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT HIGH RESISTANCE
(K276) CMP 1/2 CONTROL CIRCUIT HIGH RESISTANCE
CAMSHAFT 1/2 POSITION SOLENOID
CAMSHAFT PHASER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Theory of Operation
Dual Variable Valve Timing (VVT) allows the PCM to monitor and adjust the position of each camshaft, based on
desired torque levels and engine operating conditions. The PCM controls two solenoid operated control valves, one
for each camshaft, that are used to direct oil pressure to hydraulic actuators mounted between each camshaft and
its driving sprocket. The oil pressure alters the angular position or phasing of each camshaft relative to crankshaft
rotation. A sensor is used to monitor the position of each camshaft.
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
NOTE: Diagnose and repair any CMP sensor or CKP sensor DTCs before continuing with this test.
NOTE: Diagnose and repair any oil pressure or oil pressure sensor DTCs before continuing with this test.
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Test drive the vehicle under the conditions in which the DTC is monitored, as outlined above.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 27
4.
cardiagn.com
CAMSHAFT 1/2 POSITION SOLENOID CONTROL ACTUATION
Turn the ignition on.
With the scan tool, actuate the Camshaft 1/2 Position Solenoid control to toggle on and off.
Listen for the Camshaft 1/2 Position Solenoid to click open and closed during the actuation.
Does the Camshaft 1/2 Position Solenoid click open and closed during the actuation?
Yes >> Go to 8
No >> Go to 5
cardiagn.com
Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid and the Powertrain Control Module
(PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Remove the Camshaft 1/2 Position Solenoid in accordance with the Service Information.
Inspect the Camshaft 1/2 Position Solenoid for contamination, foreign material, or any condition that would restrict
movement of the valve.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Solenoid in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
8. CAMSHAFT PHASER
Turn the ignition off.
Remove the appropriate Camshaft Phaser in accordance with the Service information.
Inspect the Phaser for contamination, foreign material, or any condition that would restrict operation of the Phaser.
Inspect the Phaser oil passages for signs of sludge or foreign material.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the appropriate Camshaft Phaser in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 29
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool select View DTCs.
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
tion Sensor while monitoring the lab scope screen.
Start the engine.
Monitor the Crankshaft Position Sensor signal on the lab scope screen.
Were any Crankshaft Position Sensor signals irregular or miss-
ing?
Yes >> Go to 6
No >> Go to 5
cardiagn.com
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool select View DTCs.
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Start the engine.
Monitor the Crankshaft Position Sensor signal on the lab scope screen.
Were any Crankshaft Position Sensor signals irregular or missing?
Yes >> Go to 6
No >> Go to 5
cardiagn.com
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K99) O2 1/1 HEATER CONTROL CIRCUIT SHORTED TO GROUND
(K99) O2 1/1 HEATER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K99) O2 1/1 Heater Control circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 41
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K99) O2 1/1 HEATER CONTROL CIRCUIT SHORTED TO VOLTAGE
(K99) O2 1/1 HEATER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. OXYGEN SENSOR 1/1
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Oxygen Sensor 1/1 control to the ON
(100%) position.
Using a 12 volt test light connected to ground, check the (K99) O2 1/1
Heater Control circuit in the Oxygen Sensor 1/1 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Oxygen Sensor 1/1 control to the OFF
(0%) position.
Using a 12 volt test light connected to ground, check the (K99) O2 1/1
Heater Control circuit in the Oxygen Sensor 1/1 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuator ON (100%) and not illuminated with the actua-
tor OFF (0%)?
Yes >> Replace the Oxygen Sensor 1/1 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
9 - 44 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 45
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K299) O2 1/2 HEATER CONTROL CIRCUIT SHORTED TO GROUND
(K299) O2 1/2 HEATER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(Z924) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K299) O2 1/2 Heater Control circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 49
Possible Causes
INTERMITTENT DTC
(K299) O2 1/2 HEATER CONTROL CIRCUIT SHORTED TO VOLTAGE
(K299) O2 1/2 HEATER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Using a 12 volt test light connected to ground, check the (K299) O2 1/2 Heater Control circuit in the Oxygen Sensor
1/2 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuator ON (100%) and not illuminated with the actua-
tor OFF (0%)?
Yes >> Replace the Oxygen Sensor 1/2 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G31) AAT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND
(G31) AAT SIGNAL CIRCUIT SHORTED TO (G931) AAT SENSOR GROUND CIRCUIT
(G31) AAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(G931) AAT SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
AMBIENT AIR TEMPERATURE SENSOR
TOTALLY INTEGRATED POWER MODULE (TIPM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (G31) AAT SIGNAL CIRCUIT SHORTED TO (G931) AAT SENSOR GROUND CIRCUIT
Measure the resistance between the (G31) AAT Signal circuit and the
(G931) AAT Sensor Ground circuit in the Ambient Air Temperature Sen-
cardiagn.com
sor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (G31) AAT Signal circuit for a short to the (G931)
AAT Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. AMBIENT AIR TEMPERATURE SENSOR
Turn the ignition off.
Connect the Totally Integrated Power Module (TIPM) connector.
Connect a jumper wire between the (G931) AAT Sensor Ground circuit
and the (G31) AAT Signal circuit in the Ambient Air Temperature Sensor
harness connector.
Turn the ignition on.
With the scan tool, read the Ambient Air Temperature Sensor signal
voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Ambient Air Temperature Sensor in accordance
with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND
(G31) AAT SIGNAL CIRCUIT SHORTED TO (G931) AAT SENSOR GROUND
(G31) AAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
AMBIENT AIR TEMPERATURE SENSOR
TOTALLY INTEGRATED POWER MODULE (TIPM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (G31) AAT SIGNAL CIRCUIT SHORTED TO (G931) AAT SENSOR GROUND CIRCUIT
Measure the resistance between the (G31) AAT Signal circuit and the
(G931) AAT Sensor Ground circuit in the Ambient Air Temperature Sen-
sor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (G31) AAT Signal circuit for a short to the (G931)
AAT Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
grated Power Module (TIPM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (G31) AAT Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 59
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G31) AAT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(G31) AAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(G931) AAT SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
AMBIENT AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (G931) AAT SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (G931) AAT Sensor Ground circuit
between the Ambient Air Temperature Sensor harness connector and
the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (G931) AAT Sensor Ground circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 62 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Ambient Air Tem-
perature Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 63
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K1) MAP SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K1) MAP SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K1) MAP SIGNAL CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K1) MAP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
MAP SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor Ground in the MAP Sensor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 15
5. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K1) MAP SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K1) MAP Signal circuit in the MAP Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K1) MAP Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 66 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
6. MAP SENSOR
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the MAP Sensor for any condition that would result in an incorrect signal, such as damage or contamination.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
sor harness connector.
Is there any voltage present?
Yes >> Repair the (K857) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the MAP Sensor harness connec-
tor.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the (K857) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K1) MAP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K1) MAP Signal circuit and the
(K900) Sensor Ground circuit in the MAP Sensor harness connector.
cardiagn.com
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K1) MAP Signal circuit for a short to the (K900)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
16. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 70 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K1) MAP SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K1) MAP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K1) MAP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
MAP SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K1) MAP Signal circuit for a short to the (K900)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9. MAP SENSOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K857) 5 Volt Supply circuit and the
(K1) MAP Signal circuit in the MAP Sensor harness connector.
Turn the ignition on.
With the scan tool, read the MAP Sensor signal voltage.
Is the voltage above 4.5 volts with the jumper wire in place?
Yes >> Replace the MAP Sensor in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 75
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K1) MAP SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
(K1) MAP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MAP SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (K1) MAP SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K1) MAP Signal circuit and the
(K857) 5 Volt Supply in the Manifold Absolute Pressure Sensor harness
cardiagn.com
connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K1) MAP Signal circuit for a short to the (K857)
5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. MAP SENSOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K900) Sensor Ground circuit and
the (K1) MAP Signal circuit in the Manifold Absolute Pressure Sensor
harness connector.
Turn the ignition on.
With the scan tool, read the Manifold Absolute Pressure Sensor signal
voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Manifold Absolute Pressure Sensor in accor-
dance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K21) IAT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K21) IAT SIGNAL CIRCUIT SHORTED TO GROUND
(K21) IAT SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND CIRCUIT
(K21) IAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K21) IAT Signal circuit for a short to the (K915)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. INTAKE AIR TEMPERATURE SENSOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K915) Sensor Ground circuit and
the (K21) IAT Signal circuit in the Intake Air Temperature Sensor har-
ness connector.
Turn the ignition on.
With the scan tool, read the Intake Air Temperature Sensor signal volt-
age.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Intake Air Temperature Sensor in accordance
with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K21) IAT SIGNAL CIRCUIT SHORTED TO GROUND
(K21) IAT SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND
(K21) IAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K21) IAT Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 87
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K21) IAT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K21) IAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
INTAKE AIR TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K915) Sensor Ground circuit between
the Intake Air Temperature Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K915) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 90 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Intake Air Temper-
ature Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 91
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO GROUND
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K2) ECT 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor 1 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K2) ECT 1 Signal circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. ENGINE COOLANT TEMPERATURE SENSOR 1
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K900) Sensor Ground circuit and
the (K2) ECT 1 Signal circuit in the Engine Coolant Temperature Sensor
1 harness connector.
Turn the ignition on.
With the scan tool, read the Engine Coolant Temperature Sensor 1 sig-
nal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Engine Coolant Temperature Sensor 1 in
accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO GROUND
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND
(K2) ECT 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K2) ECT 1 Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 99
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K2) ECT 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K900) Sensor Ground circuit between
the Engine Coolant Temperature Sensor 1 harness connector and the
Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K900) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 102 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Coolant Tem-
perature Sensor 1 and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 103
cardiagn.com
9 - 104 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.
• Set Condition:
The PCM detects that the (K2) ECT 1 Signal circuit shorted high.
Possible Causes
INTERMITTENT DTC
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K2) ECT 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K900) Sensor Ground circuit between
the Engine Coolant Temperature Sensor 1 harness connector and the
Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K900) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 106 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Coolant Tem-
perature Sensor 1 and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 107
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K22) TP SIGNAL 1 CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Sensor Ground in the Throttle Body harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 15
6. THROTTLE BODY
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Throttle Body for any condition that would result in an incorrect signal, such as damage or contamina-
tion.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Measure the voltage of the (F855) 5 Volt Supply circuit in the Throttle
Body harness connector.
Is there any voltage present?
Yes >> Repair the (F855) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K922) TP Sensor Ground circuit in the Throttle Body harness con-
nector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the (F855) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K22) TP Signal 1 circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
16. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 114 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
nector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K22) TP Signal 1 circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
8. (K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
Measure the resistance between the (K22) TP Signal 1 circuit and the
(K124) ETC Motor (+) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K124) ETC Motor (+) circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
9 - 118 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
9. (K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Measure the resistance between the (K22) TP Signal 1 circuit and the
(K126) ETC Motor (-) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K22) TP Signal 1 circuit for a short to the
(K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 11
No >> Repair the (K22) TP Signal 1 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 120 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (F855) 5 VOLT SUPPLY CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the (K22) TP Signal 1 circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
Measure the resistance between the (K22) TP Signal 1 circuit and the
(K124) ETC Motor (+) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K124) ETC Motor (+) circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 123
6. (K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Measure the resistance between the (K22) TP Signal 1 circuit and the
(K126) ETC Motor (-) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K22) TP Signal 1 circuit for a short to the
(K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
Body harness connector and the Powertrain Control Module (PCM) har-
ness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K22) TP Signal 1 for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 124 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
9. THROTTLE BODY
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K922) TP Sensor Ground circuit
and the (K22) TP Signal 1 circuit in the Throttle Body harness connec-
tor.
Turn the ignition on.
With the scan tool, read the TP Signal 1 circuit voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Throttle Body in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
Possible Causes
Diagnostic Test
cardiagn.com
1. LOW ENGINE COOLANT LEVEL
Ignition on, engine not running.
With a scan tool, select View DTCs.
NOTE: Diagnose and repair any Engine Coolant Temperature (ECT) sensor DTCs before proceeding with
this test.
NOTE: Inspect the ECT sensor and related PCM connector terminals for corrosion or damage.
NOTE: Extremely cold ambient temperatures may cause this DTC to set.
WARNING: Allow the engine to cool before opening the cooling system. The system may be under pressure.
Extreme burns or scalding may result. Failure to follow these instructions can result in personal injury or
death.
Inspect the cooling system for proper coolant level and condition.
Were any problems found?
Yes >> Inspect the vehicle for a coolant leak. Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 2
P0128-THERMOSTAT RATIONALITY
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
With the engine running and battery voltage greater than 10.4 volts.
• Set Condition:
The PCM detects that the actual engine temperature is significantly different than the desired engine temper-
ature. Two Trip Fault. Three good trips to turn off the MIL.
Possible Causes
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With a scan tool, select View DTCs.
NOTE: Diagnose and repair any temperature sensor DTCs set in the PCM or TIPM before proceeding with
this test.
NOTE: Inspect all temperature sensor and related PCM or TIPM connector terminals for corrosion or dam-
age.
NOTE: Extremely cold ambient temperatures may cause this DTC to set.
WARNING: Allow the engine to cool before opening the cooling system. The system may be under pressure.
Extreme burns or scalding may result. Failure to follow these instructions can result in personal injury or
death.
Inspect the cooling system for proper coolant level and condition.
Were any problems found?
Yes >> Inspect the vehicle for a coolant leak. Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 2
cardiagn.com
9 - 128 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K1) MAP SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K1) MAP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MAP SENSOR
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, select View DTCs.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor Ground in the MAP Sensor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 12
5. MAP SENSOR
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the MAP Sensor for any condition that would result in an incorrect signal, such as damage or contamination.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 131
7. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the MAP Sensor harness connec-
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
10. (K1) MAP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K1) MAP Signal circuit and the
(K900) Sensor Ground circuit in the MAP Sensor harness connector.
cardiagn.com
Is the resistance above 100 ohms?
Yes >> Go to 11
No >> Repair the (K1) MAP Signal circuit for a short to the (K900)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
13. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 134 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. OXYGEN SENSOR 1/1 VOLTAGE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, monitor the Oxygen Sensor 1/1 voltage.
Is the voltage less than 2.52 volts?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the resistance between ground and the (K902) O2 1/1 Return
circuit in the Oxygen Sensor 1/1 harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K902) O2 1/1 Return circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
6. (K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO THE (K902) O2 1/1 RETURN CIRCUIT
Measure the resistance between the (K41) O2 1/1 Signal circuit and the
(K902) O2 1/1 Return circuit in the Oxygen Sensor 1/1 harness connec-
tor.
Is the resistance below 100 ohms?
Yes >> Repair the short between the (K902) O2 1/1 Return circuit
and the (K41) O2 1/1 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short between the (Z916) Ground circuit and the
(K41) O2 1/1 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
cardiagn.com
Diagnostic Test
4. (K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO THE (K99) O2 1/1 HEATER CONTROL CIRCUIT
Turn the ignition off.
Measure the resistance between the (K41) O2 1/1 Signal circuit and the
cardiagn.com
(K99) O2 1/1 Heater Control circuit the Oxygen Sensor 1/1 harness
connector.
Is the resistance below 100.0 ohms?
Yes >> Repair the (K41) O2 1/1 Signal circuit for a short to voltage.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. (K902) O2 1/1 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K902) O2 1/1 Return circuit between the
Oxygen Sensor 1/1 harness connector to the Powertrain Control Module
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K902) O2 1/1 Return circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 142 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 143
cardiagn.com
Possible Causes
INTERMITTENT DTC
EXHAUST LEAK
(K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K902) O2 1/1 RETURN CIRCUIT SHORTED TO VOLTAGE
(K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO GROUND
(K902) O2 1/1 RETURN CIRCUIT SHORTED TO GROUND
(K41) O2 1/1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K902) O2 1/1 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
OXYGEN SENSOR 1/1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. EXHAUST LEAK
NOTE: A thorough exhaust leak test must be completed before removing an O2 Sensor or any other part
from the exhaust system. Do not remove any parts before an exhaust leak check has been completed.
NOTE: An exhaust leak may cause downstream fuel adaptives to rail out, resulting in a false 1/1 O2 Sensor
failure
Turn the ignition off.
Inspect the exhaust system for leaks between the engine and the 1/1 Oxygen Sensor.
Perform a leak test with Miller Tool #8404A Evaporative Emissions Leak Detector (EELD), even if an audible leak is
not heard. Pay particular attention to the exhaust manifold to head surface, exhaust pipe to manifold connection,
and the O2 sensor boss for leaks.
Connect the SMOKE supply tip (black hose) to the exhaust cone adapter (if equipped) and place it into the tail pipe.
Set the smoke/air control switch to SMOKE.
Press the remote smoke/air start button.
While still holding the remote smoke/air start button, use the white light (#8404-CLL) to follow the exhaust system
path and look for a leak, indicated by exiting smoke.
If a leak is concealed from view, release the remote smoke/air start button, and use the ultraviolet (UV) black light
#8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
Were any exhaust leaks found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 145
2. DTC IS ACTIVE
NOTE: Check for contaminants that may have damaged the O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Disconnect the Oxygen Sensor 1/1 harness connector.
Measure the voltage on the (K41) O2 1/1 Signal circuit in the Oxygen
Sensor 1/1 harness connector.
NOTE: Measure the voltage in reference to ground, not the (K902)
O2 1/1 Return circuit.
Is the voltage above 5.2 volts?
Yes >> Repair the (K41) O2 1/1 Signal circuit for a short to voltage.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the (K902) O2 1/1 Return circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
9. OXYGEN SENSOR 1/1
NOTE: Prior to replacing the O2 sensor, verify that the correct part number is being used in order to prevent
improper O2 heater control.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor 1/1
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Oxygen Sensor 1/1 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 148 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Theory of Operation
The PCM performs a continuous check of the O2 sensor heater circuit during operation. The heater circuit is
momentarily disabled to allow a resistance measurement to be taken to infer heater temperature. The current deliv-
ery to the heater is duty cycled to maintain a specific target temperature. The error from the target temperature is
continuously monitored to assess heater performance.
• When Monitored:
With the engine running, O2 sensor heater duty cycle greater than 0%, and battery voltage greater than 11.0
volts.
• Set Condition:
The PCM detects no O2 sensor output when the heater is powered up. Two trip fault. Three good trips to turn
off the MIL.
Possible Causes
cardiagn.com
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
4. (Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Using a 12 volt test light connected to 12 volts, check the (Z916)
Ground circuit in the Oxygen Sensor 1/1 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z916) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. OXYGEN SENSOR 1/2 VOLTAGE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, monitor the Oxygen Sensor 1/2 voltage.
Is the voltage less than 2.52 volts?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the resistance between ground and the (K904) O2 1/2 Return
circuit in the Oxygen Sensor 1/2 harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K904) O2 1/2 Return circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
6. (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 1/2 RETURN CIRCUIT
Measure the resistance between the (K141) O2 1/2 Signal circuit and
the (K904) O2 1/2 Return circuit in the Oxygen Sensor 1/2 harness con-
nector.
Is the resistance below 100 ohms?
Yes >> Repair the short between the (K904) O2 1/2 Return circuit
and the (K141) O2 1/2 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
7. (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K299) O2 1/2 HEATER CONTROL CIRCUIT
Measure the resistance between the (K141) O2 1/2 Signal circuit and
the (K299) O2 1/2 Heater Control circuit in the Oxygen Sensor 1/2 har-
cardiagn.com
ness connector.
Is the resistance below 100 ohms?
Yes >> Repair the short between the (K299) O2 1/2 Heater Control
circuit and the (K141) O2 1/2 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
cardiagn.com
Diagnostic Test
4. (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K299) O2 1/2 HEATER CONTROL CIRCUIT
Turn the ignition off.
Measure the resistance between the (K141) O2 1/2 Signal circuit and
cardiagn.com
the (K299) O2 1/2 Heater Control circuit the Oxygen Sensor 1/2 har-
ness connector.
Is the resistance below 100.0 ohms?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. (K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K904) O2 1/2 Return circuit between the
Oxygen Sensor 1/2 harness connector to the Powertrain Control Module
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K904) O2 1/2 Return circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 159
cardiagn.com
9 - 160 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
EXHAUST LEAK
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO VOLTAGE
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO GROUND
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO GROUND
(K141) O2 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/2
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
1. EXHAUST LEAK
NOTE: A thorough exhaust leak test must be completed before removing an O2 Sensor or any other part
from the exhaust system. Do not remove any parts before an exhaust leak check has been completed.
NOTE: An exhaust leak may cause downstream fuel adaptives to rail out, resulting in a false 1/1 O2 Sensor
failure.
Turn the ignition off.
Inspect the exhaust system for leaks between the engine and the 1/1 Oxygen Sensor.
Perform a leak test with Miller Tool #8404A Evaporative Emissions Leak Detector (EELD), even if an audible leak is
not heard. Pay particular attention to the exhaust manifold to head surface, exhaust pipe to manifold connection,
and the O2 sensor boss for leaks.
Connect the SMOKE supply tip (black hose) to the exhaust cone adapter (if equipped) and place it into the tail pipe.
Set the smoke/air control switch to SMOKE.
Press the remote smoke/air start button.
While still holding the remote smoke/air start button, use the white light (#8404-CLL) to follow the exhaust system
path and look for a leak, indicated by exiting smoke.
If a leak is concealed from view, release the remote smoke/air start button, and use the ultraviolet (UV) black light
#8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
Were any exhaust leaks found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
9 - 162 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
2. DTC IS ACTIVE
NOTE: Check for contaminants that may have damaged the O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Disconnect the Oxygen Sensor 1/2 harness connector.
Measure the voltage on the (K141) O2 1/2 Signal circuit in the Oxygen
Sensor 1/2 harness connector.
NOTE: Measure the voltage in reference to ground, not the (K904)
O2 1/2 Return circuit.
Is the voltage above 5.2 volts?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the (K904) O2 1/2 Return circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
9. OXYGEN SENSOR 1/2
NOTE: Prior to replacing the O2 sensor, verify that the correct part number is being used in order to prevent
improper O2 heater control.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor 1/2
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Oxygen Sensor 1/2 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 165
cardiagn.com
Theory of Operation
The PCM performs a continuous check of the O2 sensor heater circuit during operation. The heater circuit is
momentarily disabled to allow a resistance measurement to be taken to infer heater temperature. The current deliv-
ery to the heater is duty cycled to maintain a specific target temperature. The error from the target temperature is
continuously monitored to assess heater performance.
• When Monitored:
With the engine running, O2 sensor heater duty cycle greater than 0%, and battery voltage greater than 11.0
volts.
• Set Condition:
The PCM detects no O2 sensor output when the heater is powered up. Two trip fault. Three good trips to turn
off the MIL.
Possible Causes
cardiagn.com
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
4. (Z924) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Using a 12 volt test light connected to 12 volts, check the (Z924)
Ground circuit in the Oxygen Sensor 1/2 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z924) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
Possible Causes
INTERMITTENT DTC
O2 SENSOR SIGNAL CIRCUIT
O2 SENSOR RETURN CIRCUIT
ECT SENSOR
MAP SENSOR
O2 SENSOR
cardiagn.com
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP INLET STRAINER PLUGGED
FUEL FILTER/PRESSURE REGULATOR
FUEL PUMP MODULE
ENGINE MECHANICAL PROBLEM
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Diagnose all other trouble codes before continuing with this procedure.
NOTE: Check for contaminants that may have damaged an O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
coolant temperature with a thermometer.
NOTE: As the engine warms up to operating temperature, the actual coolant temperature (thermometer read-
ing) and the coolant temperature value on the scan tool should be relatively close. The thermostat should
not open until the engine reaches the temperature specified in the Service Information.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
4. MAP SENSOR
Turn the ignition off.
Connect a vacuum gauge to a manifold vacuum source.
Start the engine.
Allow the engine to idle.
NOTE: If engine will not idle, maintain a constant RPM above idle.
With the scan tool, read the MAP Sensor vacuum value.
Is the scan tool reading within 1( of the vacuum gauge reading?
Yes >> Go to 5
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
5. O2 SENSOR VOLTAGE
Start the engine.
If necessary, allow the engine to reach normal operating temperature.
With a scan tool, monitor all O2 Sensor voltage readings.
Is the voltage switching between 2.5 and 3.4 volts for all O2 sensors?
Yes >> Go to 6
No >> Go to 8
9 - 170 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
ENGINE VALVE TIMING - must be within specifications
ENGINE COMPRESSION - must be within specifications
ENGINE EXHAUST SYSTEM - must be free of any restrictions or leaks.
ENGINE PCV SYSTEM - must flow freely
TORQUE CONVERTER STALL SPEED - must be within specifications
POWER BRAKE BOOSTER - no internal vacuum leaks
FUEL - must be free of contamination
FUEL INJECTOR - plugged or restricted injector; control wire not connected to correct injector
Are there any engine mechanical problems?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 13
8. O2 SENSOR
Turn the ignition off.
Disconnect the O2 Sensor harness connector for the sensor where the voltage was not switching between 2.5 and
3.4 volts.
Turn the ignition on.
With a scan tool, monitor the O2 Sensor voltage.
NOTE: The voltage should be approximately 5.0 volts with the connector disconnected.
Connect a jumper wire between the signal circuit and the return circuit in the O2 Sensor harness connector.
NOTE: The voltage should drop from 5.0 volts to 2.5 volts with the jumper wire in place.
Did the O2 Sensor voltage change as described above?
Yes >> Replace the O2 Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 171
cardiagn.com
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 13
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 173
Possible Causes
INTERMITTENT DTC
O2 SENSOR SIGNAL CIRCUIT
O2 SENSOR RETURN CIRCUIT
ECT SENSOR
MAP SENSOR
O2 SENSOR
cardiagn.com
EVAP PURGE SOLENOID
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP INLET STRAINER PLUGGED
FUEL FILTER/PRESSURE REGULATOR
FUEL PUMP MODULE
ENGINE MECHANICAL PROBLEM
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Diagnose all other trouble codes before continuing with this procedure.
NOTE: Check for contaminants that may have damaged an O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 174 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
3.
cardiagn.com
EVAP PURGE SOLENOID
Turn the ignition off.
Disconnect the hoses at the EVAP Purge Solenoid.
Using a hand vacuum pump, apply 10 inches of vacuum to the EVAP Purge Solenoid vacuum source port on the
component side.
Did the EVAP Purge Solenoid hold vacuum?
Yes >> Go to 4
No >> Replace the EVAP Purge Solenoid.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
5. MAP SENSOR
Turn the ignition off.
Connect a vacuum gauge to a manifold vacuum source.
Start the engine.
Allow the engine to idle.
NOTE: If engine will not idle, maintain a constant RPM above idle.
With the scan tool, read the MAP Sensor vacuum value.
Is the scan tool reading within 1( of the vacuum gauge reading?
Yes >> Go to 6
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. O2 SENSOR VOLTAGE
Start the engine.
If necessary, allow the engine to reach normal operating temperature.
With a scan tool, monitor all O2 Sensor voltage readings.
cardiagn.com
Is the voltage switching between 2.5 and 3.4 volts for all O2 sensors?
Yes >> Go to 7
No >> Go to 9
cardiagn.com
9. O2 SENSOR
Turn the ignition off.
Disconnect the O2 Sensor harness connector for the sensor where the voltage was not switching between 2.5 and
3.4 volts.
Turn the ignition on.
With a scan tool, monitor the O2 Sensor voltage.
NOTE: The voltage should be approximately 5.0 volts with the connector disconnected.
Connect a jumper wire between the signal circuit and the return circuit in the O2 Sensor harness connector.
NOTE: The voltage should drop from 5.0 volts to 2.5 volts with the jumper wire in place.
Did the O2 Sensor voltage change as described above?
Yes >> Replace the O2 Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the PCM in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 178 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G24) EOT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(G24) EOT SIGNAL CIRCUIT SHORTED TO GROUND
(G24) EOT SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND CIRCUIT
(G24) EOT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE OIL TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (G24) EOT Signal circuit for a short to the
(K915) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. ENGINE OIL TEMPERATURE SENSOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K915) Sensor Ground circuit and
the (G24) EOT Signal circuit in the Engine Oil Temperature Sensor har-
ness connector.
Turn the ignition on.
With the scan tool, read the Engine Oil Temperature Sensor signal volt-
age.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Engine Oil Temperature Sensor in accordance
with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G24) EOT SIGNAL CIRCUIT SHORTED TO GROUND
(G24) EOT SIGNAL CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
(G24) EOT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE OIL TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (G24) EOT Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 186 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G24) EOT SIGNAL CIRCUIT SHORTED TO VOLTAGE
(G24) EOT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE OIL TEMPERATURE SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K915) Sensor Ground 3 circuit between
the Engine Oil Temperature Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K915) Sensor Ground 3 circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 189
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Oil Temper-
ature Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 190 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K11) INJECTOR 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL INJECTOR 1
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 1 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K11) Injector
1 Control circuit in the Fuel Injector 1 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Fuel Injector 1 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K12) INJECTOR 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL INJECTOR 2
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 2 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K12) Injector
2 Control circuit in the Fuel Injector 2 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Fuel Injector 2 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K13) INJECTOR 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL INJECTOR 3
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 3 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K13) Injector
3 Control circuit in the Fuel Injector 3 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Fuel Injector 3 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K14) INJECTOR 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL INJECTOR 4
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 4 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K14) Injector
4 Control circuit in the Fuel Injector 4 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Fuel Injector 4 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K122) TP SIGNAL 2 CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Sensor Ground in the Throttle Body harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 15
6. THROTTLE BODY
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Throttle Body for any condition that would result in an incorrect signal, such as damage or contamina-
tion.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Measure the voltage of the (F855) 5 Volt Supply circuit in the Throttle
Body harness connector.
Is there any voltage present?
Yes >> Repair the (F855) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K922) TP Sensor Ground circuit in the Throttle Body harness con-
nector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the (F855) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K122) TP Signal 2 circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
16. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 209
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
nector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K122) TP Signal 2 circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
8. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
Measure the resistance between the (K122) TP Signal 2 circuit and the
(K124) ETC Motor (+) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K124) ETC Motor (+) circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 213
9. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Measure the resistance between the (K122) TP Signal 2 circuit and the
(K126) ETC Motor (-) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K122) TP Signal 2 circuit for a short to the
(K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 11
No >> Repair the (K122) TP Signal 2 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 215
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (F855) 5 VOLT SUPPLY CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the (K122) TP Signal 2 circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT
Measure the resistance between the (K122) TP Signal 2 circuit and the
(K124) ETC Motor (+) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K124) ETC Motor (+) circuit for a short to the
(F855) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
9 - 218 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
6. (K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Measure the resistance between the (K122) TP Signal 2 circuit and the
(K126) ETC Motor (-) in the Throttle Body harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K122) TP Signal 2 circuit for a short to the
(K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
Body harness connector and the Powertrain Control Module (PCM) har-
ness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K122) TP Signal 2 for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 219
cardiagn.com
9. THROTTLE BODY
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K922) TP Sensor Ground circuit
and the (K122) TP Signal 2 circuit in the Throttle Body harness connec-
tor.
Turn the ignition on.
With the scan tool, read the TP Signal 2 circuit voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Throttle Body in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K11) INJECTOR 1 CONTROL CIRCUIT SHORTED TO GROUND
(K11) INJECTOR 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K11) Injector 1 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 1
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 1 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K11) Injector
1 Control circuit in the Fuel Injector 1 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Fuel Injector 1 control to the OFF (0%)
position.
Using a 12 volt test light connected to 12 volts, check the (K11) Injector
1 Control circuit in the Fuel Injector 1 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 223
tion OFF (0%)?
Yes >> Replace the Fuel Injector 1 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 224 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K11) INJECTOR 1 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K11) INJECTOR 1 CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K11) INJECTOR 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K11) INJECTOR 1 CONTROL CIRCUIT SHORTED TO (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
Measure the resistance between the (K11) Injector 1 Control circuit and
the (K343) Fused Main Relay Output circuit in the Fuel Injector 1 har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K11) Injector 1 Control circuit for a short to the
(K343) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K11) Injector 1 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 1
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 1 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K11) Injector
1 Control circuit in the Fuel Injector 1 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright with the actuation ON
(100%)?
Yes >> Replace the Fuel Injector 1 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 227
cardiagn.com
9 - 228 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K12) INJECTOR 2 CONTROL CIRCUIT SHORTED TO GROUND
(K12) INJECTOR 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K12) Injector 2 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 2
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 2 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K12) Injector
2 Control circuit in the Fuel Injector 2 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Fuel Injector 2 control to the OFF (0%)
position.
Using a 12 volt test light connected to 12 volts, check the (K12) Injector
2 Control circuit in the Fuel Injector 2 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 231
tion OFF (0%)?
Yes >> Replace the Fuel Injector 2 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 232 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K12) INJECTOR 2 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K12) INJECTOR 2 CONTROL CIRCUIT SHORTED TO (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K12) INJECTOR 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K12) INJECTOR 2 CONTROL CIRCUIT SHORTED TO (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
Measure the resistance between the (K12) Injector 2 Control circuit and
the (K343) Fused Main Relay Output circuit in the Fuel Injector 2 har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K12) Injector 2 Control circuit for a short to the
(K343) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K12) Injector 2 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 2
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 2 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K12) Injector
2 Control circuit in the Fuel Injector 2 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright with the actuation ON
(100%)?
Yes >> Replace the Fuel Injector 2 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 235
cardiagn.com
9 - 236 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO GROUND
(K13) INJECTOR 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K13) Injector 3 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 3
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 3 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K13) Injector
3 Control circuit in the Fuel Injector 3 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Fuel Injector 3 control to the OFF (0%)
position.
Using a 12 volt test light connected to 12 volts, check the (K13) Injector
3 Control circuit in the Fuel Injector 3 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 239
tion OFF (0%)?
Yes >> Replace the Fuel Injector 3 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 240 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K13) INJECTOR 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K13) INJECTOR 3 CONTROL CIRCUIT SHORTED TO (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
Measure the resistance between the (K13) Injector 3 Control circuit and
the (K343) Fused Main Relay Output circuit in the Fuel Injector 3 har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K13) Injector 3 Control circuit for a short to the
(K343) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K13) Injector 3 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 3
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 3 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K13) Injector
3 Control circuit in the Fuel Injector 3 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright with the actuation ON
(100%)?
Yes >> Replace the Fuel Injector 3 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 243
cardiagn.com
9 - 244 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K14) INJECTOR 4 CONTROL CIRCUIT SHORTED TO GROUND
(K14) INJECTOR 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K14) Injector 4 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 4
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 4 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K14) Injector
4 Control circuit in the Fuel Injector 4 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Fuel Injector 4 control to the OFF (0%)
position.
Using a 12 volt test light connected to 12 volts, check the (K14) Injector
4 Control circuit in the Fuel Injector 4 harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 247
tion OFF (0%)?
Yes >> Replace the Fuel Injector 4 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 248 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K14) INJECTOR 4 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K14) INJECTOR 4 CONTROL CIRCUIT SHORTED TO (K343) FUSED Main OUTPUT 2 CIRCUIT
(K14) INJECTOR 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K343) FUSED Main OUTPUT 2 CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K14) INJECTOR 4 CONTROL CIRCUIT SHORTED TO (K343) FUSED Main OUTPUT 2 CIRCUIT
Measure the resistance between the (K14) Injector 4 Control circuit and
the (K343) Fused Main Output 2 circuit in the Fuel Injector 4 harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K14) Injector 4 Control circuit for a short to the
(K343) Fused Main Output 2 circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
ule (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K14) Injector 4 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. FUEL INJECTOR 4
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Fuel Injector 4 control to the ON (100%)
position.
Using a 12 volt test light connected to 12 volts, check the (K14) Injector
4 Control circuit in the Fuel Injector 4 harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright with the actuation ON
(100%)?
Yes >> Replace the Fuel Injector 4 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 251
cardiagn.com
9 - 252 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT
INJECTOR CONTROL CIRCUIT
COIL CONTROL CIRCUIT
IGNITION WIRE
SPARK PLUG
FUEL PUMP INLET STRAINER PLUGGED
FUEL SUPPLY LINE RESTRICTED
cardiagn.com
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR
IGNITION COIL
FUEL PUMP MODULE
INTERNAL ENGINE COMPONENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1.
NOTE: Check for any TSB’s that apply to a Misfire condition. Review the vehicle repair history for any mis-
fire condition repairs that have been performed.
Start the engine.
Observe the WHICH CYLINDER IS MISFIRING screen for at least one minute on the scan tool.
Is there a misfire present?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC to set.
Visually inspect the engine for any of the following conditions:
- Worn serpentine belt
- Binding engine driven accessories: A/C compressor, P/S pump, water pump.
- Misalignment of the Water pump, P/S pump or A/C compressor pulleys
- Corroded PCM power or ground circuits.
- Improper CKP, CMP, MAP, or TP Sensor mounting.
- Poor connector/terminal to component connection for CKP, CMP, MAP, or TP sensor, fuel injector, ignition coil, etc.
- Vacuum leaks.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 253
- Restriction in the air induction or exhaust system.
- Internal engine component malfunction.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
cardiagn.com
No >> Repair the (K343) Fused Main Relay Output circuit for high resistance or a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
6. SPARK PLUG
Turn the ignition off.
Remove the spark plug for the cylinder where a misfire is detected.
Inspect the spark plug for the following conditions:
- Cracks
- Carbon tracking
- Foreign material
- Spark plug gap out of specifications
- Loose or broken electrode
NOTE: To check the electrode, lightly tap the bottom of the spark plug on a solid surface. The electrode
should not move.
Were any problems found?
Yes >> Replace the spark plug.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
NOTE: Before continuing, install any components that were removed for testing, and connect all harness
connectors.
WARNING: The fuel system is under a constant pressure, even with the engine off. Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Turn the ignition off.
Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.
NOTE: The fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Select the conclusion that best matches the fuel pressure reading:
Within Specification
Go to 8
Below Specification
Go to 13
Above Specification
Replace the fuel filter/pressure regulator.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Does the fuel pressure drop after the injector is actuated?
Yes >> Go to 10
No >> Go to 11
NOTE: Turn the ignition off, remove the Fuel Pressure gauge, and connect the fuel lines before continuing.
cardiagn.com
Were any problems found?
Yes >> Repair the injector control circuit for high resistance or a shorted condition.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 17
cardiagn.com
personal injury or death.
Turn the ignition off.
Disconnect the ignition coil harness connector for the cylinder where a misfire is detected.
Using a 12 volt test light connected to 12 volts, check the coil control circuit in the ignition coil harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated by the PCM.
Does the test light blink each time the circuit is activated by the PCM?
Yes >> Replace the ignition coil.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 16
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 259
P0301-CYLINDER 1 MISFIRE
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
Any time the engine is running, and the adaptive numerator has been successfully updated.
• Set Condition:
When more than 1% misfire rate is measured during two trips. Three good trips to clear the MIL.
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K11) INJECTOR 1 CONTROL CIRCUIT
(K19) COIL 1 CONTROL CIRCUIT
IGNITION WIRE
SPARK PLUG
FUEL PUMP INLET STRAINER PLUGGED
FUEL SUPPLY LINE RESTRICTED
cardiagn.com
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR 1
IGNITION COIL 1
FUEL PUMP MODULE
INTERNAL ENGINE COMPONENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature.
With the scan tool, monitor the View DTC screen.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC to set.
Visually inspect the engine for any of the following conditions:
- Worn serpentine belt
- Binding engine driven accessories: A/C compressor, P/S pump, water pump.
- Misalignment of the Water pump, P/S pump or A/C compressor pulleys
- Corroded PCM power or ground circuits.
- Improper CKP, CMP, MAP, or TP Sensor mounting.
- Poor connector/terminal to component connection for CKP, CMP, MAP, or TP sensor, fuel injector, ignition coil, etc.
- Vacuum leaks.
- Restriction in the air induction or exhaust system.
9 - 260 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
- Internal engine component malfunction.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
cardiagn.com
resistance or a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. SPARK PLUG
Turn the ignition off.
Remove the spark plug.
Inspect the spark plug for the following conditions:
- Cracks
- Carbon tracking
- Foreign material
- Spark plug gap out of specifications
- Loose or broken electrode
NOTE: To check the electrode, lightly tap the bottom of the spark plug on a solid surface. The electrode
should not move.
Were any problems found?
Yes >> Replace the spark plug.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
7. FUEL PRESSURE OUT OF SPECIFICATION
NOTE: Before continuing, install any components that were removed for testing, and connect all harness
connectors.
WARNING: The fuel system is under a constant pressure, even with the engine off. Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Turn the ignition off.
Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.
NOTE: The fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Select the conclusion that best matches the fuel pressure reading:
Within Specification
Go to 8
Below Specification
Go to 13
Above Specification
Replace the fuel filter/pressure regulator.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Ignition on, engine not running.
Using the scan tool, actuate the Fuel Injector 1 control.
Monitor the fuel pressure gauge.
Does the fuel pressure drop after the injector is actuated?
Yes >> Go to 10
No >> Go to 11
NOTE: Turn the ignition off, remove the Fuel Pressure gauge, and connect the fuel lines before continuing.
12.
cardiagn.com
(K11) INJECTOR 1 CONTROL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Check the (K11) Injector 1 Control circuit for an open circuit, short to
ground, and short to voltage.
Were any problems found?
Yes >> Repair the (K11) Injector 1 Control circuit for high resistance
or a shorted condition.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 17
cardiagn.com
terminal push out. Make sure the ground circuit is functional. If any problems are found, repair as nec-
essary. Otherwise, replace the fuel pump module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
17. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 1, the
Ignition Coil 1, and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 266 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
P0302-CYLINDER 2 MISFIRE
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
Any time the engine is running, and the adaptive numerator has been successfully updated.
• Set Condition:
When more than 1% misfire rate is measured during two trips. Three good trips to clear the MIL.
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K12) INJECTOR 2 CONTROL CIRCUIT
(K17) COIL 2 CONTROL CIRCUIT
IGNITION WIRE
SPARK PLUG
FUEL PUMP INLET STRAINER PLUGGED
FUEL SUPPLY LINE RESTRICTED
cardiagn.com
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR 2
IGNITION COIL 2
FUEL PUMP MODULE
INTERNAL ENGINE COMPONENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature.
With the scan tool, monitor the View DTC screen.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC to set.
Visually inspect the engine for any of the following conditions:
- Worn serpentine belt
- Binding engine driven accessories: A/C compressor, P/S pump, water pump.
- Misalignment of the Water pump, P/S pump or A/C compressor pulleys
- Corroded PCM power or ground circuits.
- Improper CKP, CMP, MAP, or TP Sensor mounting.
- Poor connector/terminal to component connection for CKP, CMP, MAP, or TP sensor, fuel injector, ignition coil, etc.
- Vacuum leaks.
- Restriction in the air induction or exhaust system.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 267
- Internal engine component malfunction.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
cardiagn.com
resistance or a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. SPARK PLUG
Turn the ignition off.
Remove the spark plug.
Inspect the spark plug for the following conditions:
- Cracks
- Carbon tracking
- Foreign material
- Spark plug gap out of specifications
- Loose or broken electrode
NOTE: To check the electrode, lightly tap the bottom of the spark plug on a solid surface. The electrode
should not move.
Were any problems found?
Yes >> Replace the spark plug.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
7. FUEL PRESSURE OUT OF SPECIFICATION
NOTE: Before continuing, install any components that were removed for testing, and connect all harness
connectors.
WARNING: The fuel system is under a constant pressure, even with the engine off. Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Turn the ignition off.
Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.
NOTE: The fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Select the conclusion that best matches the fuel pressure reading:
Within Specification
Go to 8
Below Specification
Go to 13
Above Specification
Replace the fuel filter/pressure regulator.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Ignition on, engine not running.
Using the scan tool, actuate the Fuel Injector 2 control.
Monitor the fuel pressure gauge.
Does the fuel pressure drop after the injector is actuated?
Yes >> Go to 10
No >> Go to 11
NOTE: Turn the ignition off, remove the Fuel Pressure gauge, and connect the fuel lines before continuing.
cardiagn.com
12. (K12) INJECTOR 2 CONTROL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Check the (K12) Injector 2 Control circuit for an open circuit, short to
ground, and short to voltage.
Were any problems found?
Yes >> Repair the (K12) Injector 2 Control circuit for high resistance
or a shorted condition.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 17
cardiagn.com
terminal push out. Make sure the ground circuit is functional. If any problems are found, repair as nec-
essary. Otherwise, replace the fuel pump module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
17. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 2, the
Ignition Coil 2, and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 273
P0303-CYLINDER 3 MISFIRE
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
Any time the engine is running, and the adaptive numerator has been successfully updated.
• Set Condition:
When more than 1% misfire rate is measured during two trips. Three good trips to clear the MIL.
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K13) INJECTOR 3 CONTROL CIRCUIT
(K18) COIL 3 CONTROL CIRCUIT
IGNITION WIRE
SPARK PLUG
FUEL PUMP INLET STRAINER PLUGGED
FUEL SUPPLY LINE RESTRICTED
cardiagn.com
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR 3
IGNITION COIL 3
FUEL PUMP MODULE
INTERNAL ENGINE COMPONENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature.
With the scan tool, monitor the View DTC screen.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC to set.
Visually inspect the engine for any of the following conditions:
- Worn serpentine belt
- Binding engine driven accessories: A/C compressor, P/S pump, water pump.
- Misalignment of the Water pump, P/S pump or A/C compressor pulleys
- Corroded PCM power or ground circuits.
- Improper CKP, CMP, MAP, or TP Sensor mounting.
- Poor connector/terminal to component connection for CKP, CMP, MAP, or TP sensor, fuel injector, ignition coil, etc.
- Vacuum leaks.
- Restriction in the air induction or exhaust system.
9 - 274 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
- Internal engine component malfunction.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
cardiagn.com
resistance or a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. SPARK PLUG
Turn the ignition off.
Remove the spark plug.
Inspect the spark plug for the following conditions:
- Cracks
- Carbon tracking
- Foreign material
- Spark plug gap out of specifications
- Loose or broken electrode
NOTE: To check the electrode, lightly tap the bottom of the spark plug on a solid surface. The electrode
should not move.
Were any problems found?
Yes >> Replace the spark plug.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
7. FUEL PRESSURE OUT OF SPECIFICATION
NOTE: Before continuing, install any components that were removed for testing, and connect all harness
connectors.
WARNING: The fuel system is under a constant pressure, even with the engine off. Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Turn the ignition off.
Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.
NOTE: The fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Select the conclusion that best matches the fuel pressure reading:
Within Specification
Go to 8
Below Specification
Go to 13
Above Specification
Replace the fuel filter/pressure regulator.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Ignition on, engine not running.
Using the scan tool, actuate the Fuel Injector 3 control.
Monitor the fuel pressure gauge.
Does the fuel pressure drop after the injector is actuated?
Yes >> Go to 10
No >> Go to 11
NOTE: Turn the ignition off, remove the Fuel Pressure gauge, and connect the fuel lines before continuing.
12.
cardiagn.com
(K13) INJECTOR 3 CONTROL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Check the (K13) Injector 3 Control circuit for an open circuit, short to
ground, and short to voltage.
Were any problems found?
Yes >> Repair the (K13) Injector 3 Control circuit for high resistance
or a shorted condition.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 17
cardiagn.com
terminal push out. Make sure the ground circuit is functional. If any problems are found, repair as nec-
essary. Otherwise, replace the fuel pump module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
17. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 3, the
Ignition Coil 3, and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 280 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
P0304-CYLINDER 4 MISFIRE
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
Any time the engine is running, and the adaptive numerator has been successfully updated.
• Set Condition:
When more than 1% misfire rate is measured during two trips. Three good trips to clear the MIL.
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K14) INJECTOR 4 CONTROL CIRCUIT
(K15) COIL 4 CONTROL CIRCUIT
IGNITION WIRE
SPARK PLUG
FUEL PUMP INLET STRAINER PLUGGED
FUEL SUPPLY LINE RESTRICTED
cardiagn.com
FUEL PRESSURE LEAK DOWN
FUEL INJECTOR 4
IGNITION COIL 4
FUEL PUMP MODULE
INTERNAL ENGINE COMPONENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature.
With the scan tool, monitor the View DTC screen.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: Anything that affects the speed of the crankshaft can cause a misfire DTC to set.
Visually inspect the engine for any of the following conditions:
- Worn serpentine belt
- Binding engine driven accessories: A/C compressor, P/S pump, water pump.
- Misalignment of the Water pump, P/S pump or A/C compressor pulleys
- Corroded PCM power or ground circuits.
- Improper CKP, CMP, MAP, or TP Sensor mounting.
- Poor connector/terminal to component connection for CKP, CMP, MAP, or TP sensor, fuel injector, ignition coil, etc.
- Vacuum leaks.
- Restriction in the air induction or exhaust system.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 281
- Internal engine component malfunction.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
cardiagn.com
resistance or a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. SPARK PLUG
Turn the ignition off.
Remove the spark plug.
Inspect the spark plug for the following conditions:
- Cracks
- Carbon tracking
- Foreign material
- Spark plug gap out of specifications
- Loose or broken electrode
NOTE: To check the electrode, lightly tap the bottom of the spark plug on a solid surface. The electrode
should not move.
Were any problems found?
Yes >> Replace the spark plug.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
7. FUEL PRESSURE OUT OF SPECIFICATION
NOTE: Before continuing, install any components that were removed for testing, and connect all harness
connectors.
WARNING: The fuel system is under a constant pressure, even with the engine off. Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Turn the ignition off.
Install a fuel pressure gauge to the fuel rail.
Start the engine and observe the fuel pressure reading.
NOTE: The fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Select the conclusion that best matches the fuel pressure reading:
Within Specification
Go to 8
Below Specification
Go to 13
Above Specification
Replace the fuel filter/pressure regulator.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Ignition on, engine not running.
Using the scan tool, actuate the Fuel Injector 4 control.
Monitor the fuel pressure gauge.
Does the fuel pressure drop after the injector is actuated?
Yes >> Go to 10
No >> Go to 11
NOTE: Turn the ignition off, remove the Fuel Pressure gauge, and connect the fuel lines before continuing.
12.
cardiagn.com
(K14) INJECTOR 4 CONTROL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Check the (K14) Injector 4 Control circuit for an open circuit, short to
ground, and short to voltage.
Were any problems found?
Yes >> Repair the (K14) Injector 4 Control circuit for high resistance
or a shorted condition.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 17
cardiagn.com
terminal push out. Make sure the ground circuit is functional. If any problems are found, repair as nec-
essary. Otherwise, replace the fuel pump module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
17. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Injector 4, the
Ignition Coil 4, and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 287
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool select View DTCs.
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the Crankshaft Position Sensor.
Inspect the Crankshaft Position Sensor and mounting area for any condition that would result in an incorrect signal,
such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K42) KS SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K42) KS SIGNAL CIRCUIT SHORTED TO GROUND
(K42) KS SIGNAL CIRCUIT SHORTED TO (K942) KS RETURN
(K42) KS SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K942) KS RETURN CIRCUIT OPEN OR HIGH RESISTANCE
KNOCK SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K42) KS Signal circuit for a short to the (K942)
KS Return circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. KNOCK SENSOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Replace the Knock Sensor in accordance with the Service Information.
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is status Active for this DTC?
Yes >> Go to 8
No >> Test Complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K24) CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K24) CKP SIGNAL CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K24) CKP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K24) CKP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CRANKSHAFT POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor Ground in the Crankshaft Position Sensor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 15
5. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K24) CKP Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 297
cardiagn.com
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (F855) 5 Volt Supply circuit in the Crank-
shaft Position Sensor harness connector.
Is there any voltage present?
Yes >> Repair the (F855) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the Crankshaft Position Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the (F855) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K24) CKP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K24) CKP Signal circuit and the
(K900) Sensor Ground circuit in the Crankshaft Position Sensor harness
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K24) CKP Signal circuit for a short to the (K900)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
16. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position
Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 301
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K24) CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K24) CKP SIGNAL CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K24) CKP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K24) CKP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CRANKSHAFT POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor Ground in the Crankshaft Position Sensor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Go to 15
5. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K24) CKP Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 304 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (F855) 5 Volt Supply circuit in the Crank-
shaft Position Sensor harness connector.
Is there any voltage present?
Yes >> Repair the (F855) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the Crankshaft Position Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the (F855) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K24) CKP SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K24) CKP Signal circuit and the
(K900) Sensor Ground circuit in the Crankshaft Position Sensor harness
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K24) CKP Signal circuit for a short to the (K900)
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
16. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position
Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 308 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool select View DTCs.
cardiagn.com
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the Crankshaft Position Sensor.
Inspect the Crankshaft Position Sensor and mounting area for any condition that would result in an incorrect signal,
such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K44) CMP 1/1 SIGNAL CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K44) CMP 1/1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CAMSHAFT 1/1 POSITION SENSOR
CAMSHAFT 1/2 POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 313
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K44) CMP 1/1 SIGNAL CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K44) CMP 1/1 Signal circuit in the Camshaft 1/1 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K44) CMP 1/1 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor har-
ness connector.
Ignition on, engine not running.
Wiggle the related wire harness and lightly tap on the Camshaft 1/2
Position Sensor while monitoring the lab scope screen.
Start the engine.
Monitor the Camshaft 1/2 Position Sensor signal on the lab scope
screen.
Were any Camshaft 1/2 Position Sensor signals irregular or
missing?
Yes >> Go to 17
No >> Go to 16
9. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the Camshaft 1/1 Position Sensor
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
circuit in the Camshaft 1/1 Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K44) CMP 1/1 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K44) CMP 1/1 Signal circuit and
the (K900) Sensor Ground circuit in the Camshaft 1/1 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K44) CMP 1/1 Signal circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 317
cardiagn.com
15. (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K900) Sensor Ground circuit between
the Camshaft 1/1 Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 18
No >> Repair the (K900) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 318 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
tion Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.
If no other problems are found, remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K44) CMP 1/1 SIGNAL CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K44) CMP 1/1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CAMSHAFT 1/1 POSITION SENSOR
CAMSHAFT 1/2 POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 321
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K44) CMP 1/1 SIGNAL CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K44) CMP 1/1 Signal circuit in the Camshaft 1/1 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K44) CMP 1/1 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor har-
ness connector.
Ignition on, engine not running.
Wiggle the related wire harness and lightly tap on the Camshaft 1/2
Position Sensor while monitoring the lab scope screen.
Start the engine.
Monitor the Camshaft 1/2 Position Sensor signal on the lab scope
screen.
Were any Camshaft 1/2 Position Sensor signals irregular or
missing?
Yes >> Go to 17
No >> Go to 16
9. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K857) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the Camshaft 1/1 Position Sensor
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
circuit in the Camshaft 1/1 Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K44) CMP 1/1 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K44) CMP 1/1 SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K44) CMP 1/1 Signal circuit and
the (K900) Sensor Ground circuit in the Camshaft 1/1 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K44) CMP 1/1 Signal circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 325
cardiagn.com
15. (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K900) Sensor Ground circuit between
the Camshaft 1/1 Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 18
No >> Repair the (K900) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 326 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
tion Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.
If no other problems are found, remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool select View DTCs.
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the Camshaft 1/1 Position Sensor.
Inspect the Camshaft 1/1 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
cardiagn.com
9 - 332 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K19) COIL 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. IGNITION COIL 1
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K19) Coil 1
Control circuit in the Ignition Coil 1 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
the PCM?
Yes >> Replace the Ignition Coil 1 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K17) COIL 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. IGNITION COIL 2
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K17) Coil 2
Control circuit in the Ignition Coil 2 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
the PCM?
Yes >> Replace the Ignition Coil 2 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K18) COIL 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. IGNITION COIL 3
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K18) Coil 3
Control circuit in the Ignition Coil 3 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
the PCM?
Yes >> Replace the Ignition Coil 3 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K15) COIL 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. IGNITION COIL 4
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K15) Coil 4
Control circuit in the Ignition Coil 4 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
the PCM?
Yes >> Replace the Ignition Coil 4 in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K441) CMP 1/2 SIGNAL CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K441) CMP 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CAMSHAFT 1/1 POSITION SENSOR
CAMSHAFT 1/2 POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 346 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K441) CMP 1/2 SIGNAL CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K441) CMP 1/2 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(K44) CMP 1/1 Signal circuit in the Camshaft 1/1 Position Sensor har-
ness connector.
Ignition on, engine not running.
Wiggle the related wire harness and lightly tap on the Camshaft 1/1
Position Sensor while monitoring the lab scope screen.
Start the engine.
Monitor the Camshaft 1/1 Position Sensor signal on the lab scope
screen.
Were any Camshaft 1/1 Position Sensor signals irregular or
missing?
Yes >> Go to 16
No >> Go to 17
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K915) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
nal circuit in the Camshaft 1/2 Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K441) CMP 1/2 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND CIRCUIT
Measure the resistance between the (K441) CMP 1/2 Signal circuit and
the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K441) CMP 1/2 Signal circuit for a short to the
(K915) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 350 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
15. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K915) Sensor Ground circuit between
the Camshaft 1/2 Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 18
No >> Repair the circuit for an (K915) Sensor Ground open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 351
cardiagn.com
tion Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.
If no other problems are found, remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K441) CMP 1/2 SIGNAL CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
(K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K441) CMP 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
CAMSHAFT 1/1 POSITION SENSOR
CAMSHAFT 1/2 POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 354 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K441) CMP 1/2 SIGNAL CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K441) CMP 1/2 Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(K44) CMP 1/1 Signal circuit in the Camshaft 1/1 Position Sensor har-
ness connector.
Ignition on, engine not running.
Wiggle the related wire harness and lightly tap on the Camshaft 1/1
Position Sensor while monitoring the lab scope screen.
Start the engine.
Monitor the Camshaft 1/1 Position Sensor signal on the lab scope
screen.
Were any Camshaft 1/1 Position Sensor signals irregular or
missing?
Yes >> Go to 16
No >> Go to 17
9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K915) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
nal circuit in the Camshaft 1/2 Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K441) CMP 1/2 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND CIRCUIT
Measure the resistance between the (K441) CMP 1/2 Signal circuit and
the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K441) CMP 1/2 Signal circuit for a short to the
(K915) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 358 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
15. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K915) Sensor Ground circuit between
the Camshaft 1/2 Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 18
No >> Repair the (K915) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 359
cardiagn.com
tion Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.
If no other problems are found, remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Camshaft 1/2 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool select View DTCs.
Record the related Freeze Frame data.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the Camshaft 1/2 Position Sensor.
Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Remove the Camshaft 1/1 Position Sensor.
Inspect the Camshaft 1/1 Position Sensor and mounting area for any condition that would result in an incorrect
signal, such as damage, foreign material, or excessive movement.
Were any problems found?
Yes >> Repair as necessary in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
Possible Causes
EXHAUST LEAK
ENGINE MECHANICAL CONDITION
AGING O2 SENSOR
CATALYTIC CONVERTER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. EXHAUST LEAK
NOTE: A thorough exhaust leak test must be completed before removing an O2 Sensor or any other part
from the exhaust system. Do not remove any parts before an exhaust leak check has been completed.
NOTE: An exhaust leak may cause downstream fuel adaptives to rail out, resulting in a false O2 Sensor
failure
Turn the ignition off.
Inspect the exhaust system for leaks between the engine and the 1/1 Oxygen Sensor.
Inspect the exhaust system for leaks between the engine and within 6 inches downstream of the 1/2 Oxygen Sen-
sor.
Perform a leak test with Miller Tool #8404A Evaporative Emissions Leak Detector (EELD), even if an audible leak is
not heard. Pay particular attention to the exhaust manifold to head surface, exhaust pipe to manifold connection,
and the O2 sensor boss for leaks.
Connect the SMOKE supply tip (black hose) to the exhaust cone adapter (if equipped) and place it into the tail pipe.
Set the smoke/air control switch to SMOKE.
Press the remote smoke/air start button.
While still holding the remote smoke/air start button, use the white light (#8404-CLL) to follow the exhaust system
path and look for a leak, indicated by exiting smoke.
If a leak is concealed from view, release the remote smoke/air start button, and use the ultraviolet (UV) black light
#8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
Were any exhaust leaks found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 365
2. ACTIVE DTC
NOTE: A new downstream O2 Sensor and an aging upstream O2 Sensor may cause the DTC to set. Review
the repair history of the vehicle before continuing.
NOTE: If an O2 Sensor DTC is set along with the Catalytic Converter Efficiency DTC, diagnose the O2 Sen-
sor DTC(s) before continuing.
NOTE: Check for contaminants that may have damaged the O2 Sensor and Catalytic Converter: contami-
nated fuel, unapproved silicone, oil and coolant, repair necessary.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
5. UPSTREAM O2 SENSOR
A new downstream O2 Sensor along with an aging upstream O2 Sensor may cause the DTC to set.
Review the vehicle repair history.
Has the downstream O2 Sensor been replaced without replacing the upstream O2 Sensor?
Yes >> Replace the upstream O2 Sensor as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Catalytic Converter.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 366 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
EVAP PURGE SOLENOID VACUUM SUPPLY
EVAP SYSTEM LEAK
EVAP PURGE HOSE/TUBE OBSTRUCTION
(Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(K107) ESM SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
EVAP PURGE SOLENOID
EVAP SYSTEM MONITOR SWITCH
cardiagn.com
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
2. DTC IS ACTIVE
NOTE: Allow the vehicle to cool to ambient temperature before continuing with this procedure.
NOTE: A loose gas cap may have caused this DTC to set. Make sure gas cap is tight and in good condition.
Make sure the gas cap meets OEM specifications.
Start the engine.
Allow the engine to idle.
Using the scan tool, perform the ESIM FORCED MONITOR TEST. Allow the test to complete.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 368 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Inspect the Evap Purge Solenoid vacuum supply hose for proper routing and installation.
Make sure the vacuum supply hose between the throttle body or intake manifold and the EVAP Purge Solenoid is
free from any obstructions or blockage.
Make sure the vacuum port at the throttle body or intake manifold is free from any obstructions or blockage.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Measure the resistance of the (K107) ESM Signal circuit between the
Evap System Monitor Switch harness connector and the Powertrain
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K107) ESM Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Install the service port adapter #8404-14 on the vehicle’s service port (if equipped) or install the #8404-ADP into the
filter line.
Connect the Air supply hose from the EELD to the service port (if equipped) or to the #8404-ADP adapter.
Press the remote button to activate AIR flow.
Compare the flow meter indicator ball reading to the red flag.
ABOVE the red flag indicates that a leak is present.
BELOW the red flag indicates that the system is sealed.
Does the flow meter indicate that a leak is present?
Yes >> Go to 10
No >> Go to 11
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 371
cardiagn.com
behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow when viewed with a UV light.
NOTE: The EVAP System is divided into three zones. A leak from any of these zones can cause this DTC to
set. The lists below specify the possible leak points in the specific zones. For further assistance see the
Zone Identification Charts below.
• — ZONE 1—
1 Fuel Cap
2 Recirculation Check Valve.
3 Vapor Recirculation Line.
4 Signal Vapor Line for FVM.
5 Flow Management Valve.
6 Fuel Tank to Canister Vapor Line.
7 Fuel Tank Vent (Check Valve).
8 Vapor Line to Canister.
9 Flow Control Orifice.
10 Control Valve.
11 Liquid Trap.
12 Fuel Tank.
13 Check valve.
14 Fuel Fill Tube to Tank connector.
15 Fuel Fill Tube
Damaged or disconnected components.
• — ZONE 2 —
1 Filter.
2 ESM.
3 Canister Vent Line.
4 Evap Canister.
5 Chassis Purge Valve.
6 Fuel Tank to Canister Vapor Line connection.
7 Evap Purge connection.
• — ZONE 3 —
1 Evap Purge Vacuum Line.
9 - 372 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
2 Connection to Chassis Line.
3 Connection to Canister.
4 Chassis Purge Line.
5 Evap Purge Vacuum Line.
6 Connection to Evap Purge Harness.
7 Chassis Evap Purge Line connection to Engine Vacuum.
8 Evap Purge Valve.
9 Service Port.
NOTE: Carefully inspect the vent side of the EVAP Canister. Due to
the filtering system in the canister the smoke or dye may or may
not be visible. Introducing smoke into the filtered side of the can-
ister may assist in locating the leak.
Was a leak found?
Yes >> Repair or replace the leaking component as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 11
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 373
cardiagn.com
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Evap System Monitor Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Theory of Operation
The Evap Purge Monitor tests the integrity of the hoses/tube between the throttle body/intake and the fuel tank. The
monitor is a two stage test and runs only after the Evap system passes the small leak test. Stage one is non-
intrusive. The PCM monitors the purge vapor ratio and the ESM switch closed ratio. If the purge vapor ratio is
above a calculated value, the monitor passes. If the ESM switch closed ratio is greater than calculated value when
purge flow is greater than a minimum value, the monitor passes. Stage two is an intrusive test and runs only if
stage one does not pass. The PCM commands the purge solenoid to flow at a specified rate to force the purge
vapor ratio to update. The ratio is compared to a calibrated specification. If it is less than specified, a one trip failure
is recorded. This test can detect if the purge hose is off, obstructed, or the purge valve is not operational.
• When Monitored:
With the engine running, after the Evap System small leak test has passed.
• Set Condition:
If the PCM detects that the purge vapor ratio and the ESM switch closed ratio are below a calculated value,
the PCM commands the purge solenoid to flow at a specified rate to update the purge vapor ratio. If the ratio
remains below a specified value, a one trip failure is recorded. Two Trip Fault. Three good trips to turn off the
MIL.
Possible Causes
INTERMITTENT DTC
cardiagn.com
EVAP PURGE SOLENOID VACUUM SUPPLY
EVAP PURGE HOSE/TUBE OBSTRUCTION
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
2. DTC IS ACTIVE
NOTE: If P0443 is set along with this DTC, perform the diagnostic procedure for P0443 before continuing
with this test.
Start the engine.
Allow the engine to idle.
Using the scan tool, perform the ESIM FORCED MONITOR TEST. Allow the test to complete.
With a scan tool, select View DTCs.
9 - 376 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
NOTE: If any other DTC sets, active or pending, perform the diagnostic procedure for that DTC before pro-
ceeding with this test.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 378 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K70) EVAP PURGE RETURN CIRCUIT SHORTED TO VOLTAGE
(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO GROUND
(K70) EVAP PURGE RETURN CIRCUIT OPEN OR HIGH RESISTANCE
(K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control circuit in the Evap Purge Solenoid harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K52) Evap Purge Control circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. EVAP PURGE SOLENOID
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Evap Purge Solenoid control to the ON
(100%) position.
Using a 12 volt test light connected to ground, check the (K52) Evap
Purge Control circuit in the Evap Purge Solenoid harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Evap Purge Solenoid in accordance with the
Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K70) EVAP PURGE RETURN CIRCUIT OPEN OR HIGH RESISTANCE
(K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. EVAP PURGE SOLENOID
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Evap Purge Solenoid control to the ON
(100%) position.
Using a 12 volt test light connected to ground, check the (K52) Evap
Purge Control circuit in the Evap Purge Solenoid harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Evap Purge Solenoid in accordance with the
Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
EVAP PURGE HOSE/TUBE OBSTRUCTION
(K107) ESIM SWITCH SIGNAL CIRCUIT SHORTED TO GROUND
(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO GROUND
ESM SWITCH
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
cardiagn.com
Diagnostic Test
2. DTC IS ACTIVE
Ignition on, engine not running.
With a scan tool, select Data Display and view the ESIM Switch state.
Is the ESIM Switch state ’Closed’?
Yes >> Go to 3
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
7. ESIM ASSEMBLY
With a scan tool, select Data Display and view the ESIM Switch state.
Disconnect the Evap System Monitor Switch electrical connector.
Does the ESIM Switch state change from CLOSED to OPEN when the switch is disconnected?
Yes >> Replace the ESIM Assembly.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
9 - 388 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 389
Possible Causes
cardiagn.com
Diagnostic Test
2. DTC IS ACTIVE
NOTE: Allow the vehicle to cool to ambient temperature before continuing with this procedure.
NOTE: A loose gas cap may have caused this DTC to set. Make sure gas cap is tight and in good condition.
Make sure the gas cap meets OEM specifications.
Start the engine.
Allow the engine to idle.
Using the scan tool, perform the ESIM FORCED MONITOR TEST. Allow the test to complete.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 390 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
To continue testing you will need Miller Tool #8404A Evaporative Emission Leak Detector (EELD).
WARNING: Keep lit cigarettes, sparks, flames, and other ignition sources away from the test area to prevent
the ignition of explosive gases. Keep the test area well ventilated. Failure to follow these instructions can
result in personal injury or death.
NOTE: The fuel tank should have between 20% and 80% of fuel tank capacity to properly test the EVAP
system.
Connect the red power lead of the EELD to the battery positive terminal and the black ground lead to battery neg-
ative terminal.
Block the vent hose of the canister if using the service port.
Connect shop air to the EELD.
Set the smoke/air control switch to AIR.
Insert the tester’s AIR supply tip (clear hose) into the appropriate calibration orifice on the tester’s control panel
(based on DTC leak size).
Press the remote smoke/air start button.
Position the red flag on the air flow meter so it is aligned with the indicator ball.
When the calibration is complete, release the remote button. The EELD flow meter is now calibrated in liters per
minute to the size leak indicated by the DTC set in the PCM.
Install the service port adapter #8404-14 on the vehicle’s service port and block the vent hose of the EVAP Canister
(if equipped) or install the #8404-ADP service adaptor into the filter line.
Connect the Air supply hose from the EELD to the service port (if equipped) or to the #8404-ADP adapter.
Press the remote button to activate AIR flow.
NOTE: Larger volume fuel tanks, lower fuel levels, vehicles equipped with a Flow Management Valve may
indicate high flow and will require 4 to 5 minutes to fill.
Compare the flow meter indicator ball reading to the red flag.
ABOVE the red flag indicates a leak present.
BELOW the red flag indicates a sealed system.
Is the indicator ball above the red flag?
Yes >> Go to 5
No >> Refer to the Freeze Frame data recorded in step 1. If the data indicates that the vehicle was in motion
when the DTC was set, verify that all hoses are properly connected.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 391
cardiagn.com
violet (UV) black light #8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left
behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
NOTE: The EVAP System is divided into three zones. A leak from any of these zones can cause this DTC to
set. The lists below specify the possible leak points in that specific zone. For further assistance see the
Zone Identification Charts below.
• ZONE 1
1 Fuel Cap
2 Recirculation Check Valve.
3 Vapor Recirculation Line.
4 Signal Vapor Line for FVM.
5 Flow Management Valve.
6 Fuel Tank to Canister Vapor Line.
7 Fuel Tank Vent (Check Valve).
8 Vapor Line to Canister.
9 Flow Control Orifice.
10 Control Valve.
11 Liquid Trap.
12 Fuel Tank.
13 Check valve.
14 Fuel Fill Tube to Tank connector.
15 Fuel Fill Tube
Damaged or disconnected EVAP system components.
• ZONE 2
1 Filter.
2 ESM.
3 Canister Vent Line.
4 EVAP Canister.
5 Chassis Purge Valve.
9 - 392 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
6 Fuel Tank to Canister Vapor Line connection.
7 EVAP Purge connection.
• ZONE 3
1 EVAP Purge Vacuum Line.
2 Connection to Chassis Line.
3 Connection to Canister.
4 Chassis Purge Line.
5 EVAP Purge Vacuum Line.
6 Connection to EVAP Purge Harness.
7 Chassis EVAP Purge Line connection to Engine Vacuum.
8 EVAP Purge Valve.
9 Service Port.
NOTE: Carefully inspect the vent side of the EVAP Canister. Due to
the filtering system in the canister the smoke may not be as thick.
Introducing smoke into the filtered side of the canister may assist
in locating the leak.
Select the appropriate response from the list below:
cardiagn.com
A leak was found in one or more of the EVAP System zones
Repair or replace the leaking component as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
A leak was found at the gas cap or fuel filler tube
Go to 6
No leaks were found
Go to 7
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 393
cardiagn.com
Disconnect the vacuum hoses at the EVAP Purge Solenoid.
To continue testing, you will need Miller Tool #8404A Evaporative Emissions Leak Detector (EELD).
Connect the SMOKE supply tip (black hose) to the “CAN” port of the EVAP Purge Solenoid.
Set the smoke/air control switch to SMOKE.
NOTE: The flow meter indicator ball will not move with the EELD in the smoke mode.
Press the remote smoke/air start button on the EELD.
While holding the remote smoke/air start button, check to see if smoke is leaking through the EVAP Purge Solenoid
port.
NOTE: Smoke should not pass through the solenoid.
Is smoke leaking from the EVAP Purge Solenoid port?
Yes >> Replace the EVAP Purge Solenoid.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
Possible Causes
Diagnostic Test
cardiagn.com
1. EVAP SYSTEM PRETEST
Ignition on, engine not running.
With a scan tool, select View DTCs. Record the Freeze Frame data if any DTC(s) are present.
Review the vehicle repair history for items related to the current condition.
Inspect the vehicle for any aftermarket accessories that may have been installed incorrectly.
Check for any related technical service bulletins (TSBs) and, if any apply, follow the recommended procedure.
Select the appropriate response from the list below:
A technical service bulletin (TSB) repaired the condition.
Test complete.
A DTC is present, no TSBs apply, or the TSB did not repair the condition.
Go to 2
2. DTC IS ACTIVE
NOTE: Allow the vehicle to cool to ambient temperature before continuing with this procedure.
NOTE: A loose gas cap may have caused this DTC to set. Make sure gas cap is tight and in good condition.
Make sure the gas cap meets OEM specifications.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 395
cardiagn.com
4. EVAPORATIVE SYSTEM LEAKING
To continue testing you will need Miller Tool #8404A Evaporative Emission Leak Detector (EELD).
WARNING: Keep lit cigarettes, sparks, flames, and other ignition sources away from the test area to prevent
the ignition of explosive gases. Keep the test area well ventilated. Failure to follow these instructions can
result in personal injury or death.
NOTE: The fuel tank should have between 20% and 80% of fuel tank capacity to properly test the EVAP
system.
Connect the red power lead of the EELD to the battery positive terminal and the black ground lead to battery neg-
ative terminal.
Block the vent hose of the canister if using the service port.
Connect shop air to the EELD.
Set the smoke/air control switch to AIR.
Insert the tester’s AIR supply tip (clear hose) into the appropriate calibration orifice on the tester’s control panel
(based on DTC leak size).
Press the remote smoke/air start button.
Position the red flag on the air flow meter so it is aligned with the indicator ball.
When the calibration is complete, release the remote button. The EELD flow meter is now calibrated in liters per
minute to the size leak indicated by the DTC set in the PCM.
Install the service port adapter #8404-14 on the vehicle’s service port and block the vent hose of the EVAP Canister
(if equipped) or install the #8404-ADP service adaptor into the filter line.
Connect the Air supply hose from the EELD to the service port (if equipped) or to the #8404-ADP adapter.
Press the remote button to activate AIR flow.
NOTE: Larger volume fuel tanks, lower fuel levels, vehicles equipped with a Flow Management Valve may
indicate high flow and will require 4 to 5 minutes to fill.
Compare the flow meter indicator ball reading to the red flag.
ABOVE the red flag indicates a leak present.
BELOW the red flag indicates a sealed system.
Is the indicator ball above the red flag?
Yes >> Go to 5
No >> Refer to the Freeze Frame data recorded in step 1. If the data indicates that the vehicle was in motion
when the DTC was set, verify that all hoses are properly connected.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 396 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
violet (UV) black light #8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left
behind by the smoke.
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
NOTE: The EVAP System is divided into three zones. A leak from any of these zones can cause this DTC to
set. The lists below specify the possible leak points in that specific zone. For further assistance see the
Zone Identification Charts below.
• ZONE 1
1 Fuel Cap
2 Recirculation Check Valve.
3 Vapor Recirculation Line.
4 Signal Vapor Line for FVM.
5 Flow Management Valve.
6 Fuel Tank to Canister Vapor Line.
7 Fuel Tank Vent (Check Valve).
8 Vapor Line to Canister.
9 Flow Control Orifice.
10 Control Valve.
11 Liquid Trap.
12 Fuel Tank.
13 Check valve.
14 Fuel Fill Tube to Tank connector.
15 Fuel Fill Tube
Damaged or disconnected EVAP system components.
• ZONE 2
1 Filter.
2 ESM.
3 Canister Vent Line.
4 EVAP Canister.
5 Chassis Purge Valve.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 397
6 Fuel Tank to Canister Vapor Line connection.
7 EVAP Purge connection.
• ZONE 3
1 EVAP Purge Vacuum Line.
2 Connection to Chassis Line.
3 Connection to Canister.
4 Chassis Purge Line.
5 EVAP Purge Vacuum Line.
6 Connection to EVAP Purge Harness.
7 Chassis EVAP Purge Line connection to Engine Vacuum.
8 EVAP Purge Valve.
9 Service Port.
NOTE: Carefully inspect the vent side of the EVAP Canister. Due to
the filtering system in the canister the smoke may not be as thick.
Introducing smoke into the filtered side of the canister may assist
in locating the leak.
Select the appropriate response from the list below:
cardiagn.com
A leak was found in one or more of the EVAP System zones
Repair or replace the leaking component as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
A leak was found at the gas cap or fuel filler tube
Go to 6
No leaks were found
Go to 7
9 - 398 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
UV light.
Was a leak found at the gas cap adapter?
Yes >> Replace the Fuel Filler tube assembly.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the gas cap.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 400 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If DTC P0455-EVAP SYSTEM LARGE LEAK is set along with this DTC, perform the diagnostic pro-
cedure for P0455 before continuing with this test.
NOTE: Do not replace the gas cap for DTC P0457-EVAP SYSTEM - LOOSE FUEL CAP.
With a scan tool, select View DTCs.
cardiagn.com
Is the status Active for DTC P0455-EVAP SYSTEM LARGE LEAK along with this DTC?
Yes >> Perform the diagnostic procedure for P0455-EVAP SYSTEM LARGE LEAK.
No >> No repair is necessary. Verify that the gas cap is in place and tight. Clear DTCs and reset the odometer
or message center display.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 401
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO GROUND
(K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K70) EVAP PURGE RETURN CIRCUIT OPEN OR HIGH RESISTANCE
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K52) Evap Purge Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 405
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K70) EVAP PURGE RETURN CIRCUIT SHORTED TO VOLTAGE
(K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EVAP PURGE SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K52) Evap Purge Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 409
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO GROUND
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO THE (Z965) GROUND CIRCUIT
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO THE (Z965) GROUND CIRCUIT
Measure the resistance between the (N4) Fuel Level Signal 1 circuit
and the (Z965) Ground circuit in the Fuel Level Sensor harness con-
cardiagn.com
nector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (N4) Fuel Level Signal 1 circuit for a short to the
(Z965) Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Connect a jumper wire between the (Z965) Ground circuit and the (N4)
Fuel Level Signal 1 circuit in the Fuel Level Sensor harness connector.
Turn the ignition on.
With the scan tool, read the Fuel Level Sensor 1 signal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Fuel Level Sensor in accordance with the Ser-
vice Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO GROUND
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL LEVEL SENSOR
Turn the ignition off.
Connect the Instrument Cluster (CCN) connector.
Turn the ignition on.
With the scan tool, read the Fuel Level Sensor 1 signal voltage.
Is the voltage above 4.5 volts with the Fuel Level Sensor harness disconnected?
Yes >> Replace the Fuel Level Sensor in accordance with the service information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(N4) FUEL LEVEL SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance between ground and the (Z965) Ground circuit
in the Fuel Level Sensor harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (Z965) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 420 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. RADIATOR COOLING FAN MODULE OPERATION
Ignition on, engine not running.
With a scan tool, select Radiator Cooling Fan Relay #1 Control State to actuate the Cooling Fan (Low/High).
Is the one Cooling Fan operating?
Yes >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 2
cardiagn.com
4. (N201) LOW/HIGH RAD FAN CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE
Disconnect the TIPM C11 harness connector.
Using a voltmeter, measure the voltage of the (N201) Low/High Rad
Fan Control circuit in the Low/High Rad Relay harness connector.
Is there voltage present?
Yes >> Repair the short to voltage in the (N201) Low/High Rad Fan
Control circuit
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 5
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 423
cardiagn.com
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No >> Replace the Totally Integrated Power Module in accordance
with the Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
9 - 424 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. RADIATOR COOLING FAN MODULE OPERATION
Ignition on, engine not running.
With a scan tool, actuate both the Radiator Cooling Fan Relays #1 and #2.
Are both cooling fan operating at medium speed?
Yes >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 2
cardiagn.com
4. SERIES/PARALLEL RAD FAN RELAY)
Remove the Series/Parallel Rad Fan Relay.
Install the Med/High Rad Fan Relay.
Turn the ignition on, engine not running.
With a scan tool, select Radiator Cooling Fan Relay #2 Control State,
Toggle, to actuate the Cooling Fan (Series/Parallel Rad Fan Relay).
Using a 12-volt test light connected to battery voltage, probe the (N112)
Rad Fan Relay Control circuit at the Series/Parallel Rad Fan Relay.
Does the test light illuminate brightly and flash on and off?
Yes >> Replace the Series/Parallel Rad Fan Relay.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 5
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 427
cardiagn.com
6. (N112) RAD FAN RELAY CONTROL CIRCUIT OPEN
Measure the resistance of the (N112) Rad Fan Relay Control circuit
from the Med/High Rad Fan Relay harness connector to the TIPM C11
harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go To 7
No >> Repair the open in the (N112) Rad Fan Relay Control cir-
cuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
9 - 428 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 429
Theory of Operation
The vehicle speed sensor rationality is a continuous test that monitors the vehicle speed sensor for lack of activity.
The rationality will not run if a limp-in exists for MAP, Throttle Position, and Engine Coolant Temperature. If vehicle
speed sensor is below a minimum threshold for a period of time after the vehicle is operated at a sufficient load, a
failure will be indicated.
• When Monitored:
With the engine running, transmission not in park or neutral, brakes not applied, and engine RPM greater than
1500.
• Set Condition:
This code will set if no vehicle speed signal is received from the ABS Module for more than 11 seconds for 2
consecutive trips. Two Trip Fault. Three good trips to turn off the MIL.
Possible Causes
cardiagn.com
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
Ignition on, engine not running.
NOTE: Check for any Bus Communication DTCs. If no Bus or Communication DTCs are set, check for active
DTCs in the Anti-Lock Brake Module. Any bus, communication, or VSS DTCs in the Anti-Lock Brake Module
must be properly diagnosed before continuing.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: This code can set due to tire circumference differences and from the front or rear wheels being on
a slippery surface while the opposite tires are not.
This code may also set on a hard acceleration on loose gravel or during other off road driving conditions.
Check tire pressure of all the tires.
Check tire wear on all the tires.
Ask the customer what the road and driving conditions were like when the fault set.
Were any problems found?
Yes >> Repair as necessary. If the code set during a front OR rear wheel spin condition, no repair is necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
9 - 430 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 431
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO GROUND
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K75) VEHICLE SPEED SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
VEHICLE SPEED SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 433
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K75) Vehicle Speed Signal circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K75) Vehicle Speed Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Vehicle Speed Sensor for any condition that would result in an incorrect signal, such as damage, cor-
rosion, or contamination.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Vehicle Speed Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K914) Sensor Ground circuit in the Vehicle Speed Sensor harness
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Signal circuit in the Vehicle Speed Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (K75) Vehicle Speed Signal circuit
and the (K914) Sensor Ground circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
the (K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 437
cardiagn.com
15. (K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K914) Sensor Ground circuit between
the Vehicle Speed Sensor harness connector and the Powertrain Con-
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 438 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 439
Theory of Operation
The vehicle speed sensor rationality is a continuous test that monitors the vehicle speed sensor for lack of activity.
The rationality will not run if a limp-in exists for MAP, Throttle Position, and Engine Coolant Temperature. If vehicle
speed sensor is below a minimum threshold for a period of time after the vehicle is operated at a sufficient load, a
failure will be indicated.
• When Monitored:
With the engine running, transmission not in park or neutral, brakes not applied, and engine rpm greater than
1500.
• Set Condition:
This code will set if no vehicle speed signal is received from the ABS Module for more than 11 seconds for 2
consecutive trips. Two Trip Fault. Three good trips to turn off the MIL.
Possible Causes
cardiagn.com
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
Ignition on, engine not running.
NOTE: Check for any Bus Communication DTCs. If no Bus or Communication DTCs are set, check for active
DTCs in the Anti-Lock Brake Module. Any bus, communication, or VSS DTCs in the Anti-Lock Brake Module
must be properly diagnosed before continuing.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: This code can set due to tire circumference differences and from the front or rear wheels being on
a slippery surface while the opposite tires are not.
This code may also set on a hard acceleration on loose gravel or during other off road driving conditions.
Check tire pressure of all the tires.
Check tire wear on all the tires.
Ask the customer what the road and driving conditions were like when the fault set.
Were any problems found?
Yes >> Repair as necessary. If the code set during a front OR rear wheel spin condition, no repair is necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
9 - 440 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 441
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO GROUND
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K75) VEHICLE SPEED SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
VEHICLE SPEED SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 443
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K75) Vehicle Speed Signal circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K75) Vehicle Speed Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Vehicle Speed Sensor for any condition that would result in an incorrect signal, such as damage, cor-
rosion, or contamination.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Vehicle Speed Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K914) Sensor Ground circuit in the Vehicle Speed Sensor harness
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Signal circuit in the Vehicle Speed Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (K75) Vehicle Speed Signal circuit
and the (K914) Sensor Ground circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
the (K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 447
cardiagn.com
15. (K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K914) Sensor Ground circuit between
the Vehicle Speed Sensor harness connector and the Powertrain Con-
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 448 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 449
Theory of Operation
The objective of the Idle Speed Rationality monitor is to evaluate the ability of the idle speed control system to
achieve and maintain a steady idle, by monitoring engine RPM during idle. If engine RPM is not within a calibrated
deadband of target idle speed, a timer is started. If the timer reaches a maximum threshold without any sign of the
RPM trending towards control, a soft failure is generated.
• When Monitored:
With the engine idling in drive (for CVT vehicles) with the brake applied, MAF < 250 mg/tdc, air temp > -17.8°
C (0° F) enable after coolant temp > 70° C (158° F), canister purge < 100% duty cycle, and no VSS, MAF/
MAP, ECT, TPS, ETC, CKP Sensor, fuel system, or injector DTCs present.
• Set Condition:
Engine speed is 100 RPM or more below target idle speed for 30 seconds. Two Trip Fault. Three good trips
to turn off the MIL.
Possible Causes
cardiagn.com
PCV SYSTEM LEAKS OR RESTRICTIONS
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: It is possible for ETC DTCs to be set at the same time as this DTC. Proceed with this test only if the
other DTCs that are present are ETC related, but clear them before proceeding. If any other DTCs are set,
they must be diagnosed and repaired before continuing this test.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. PCV SYSTEM
Inspect the PCV system for the following problems:
Restrictions - sticking valve, collapsed hoses or tubes, obstructed passages or ports, etc.
Leaks - cracked or damaged hoses or tubes, poor hose or tube connections, PCV valve stuck open, etc.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 4
cardiagn.com
While the engine is running, lightly tap on the ETC Motor, and listen for the idle to change.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
Theory of Operation
The objective of the Idle Speed Rationality monitor is to evaluate the ability of the idle speed control system to
achieve and maintain a steady idle, by monitoring engine RPM during idle. If engine RPM is not within a calibrated
deadband of target idle speed, a timer is started. If the timer reaches a maximum threshold without any sign of the
RPM trending towards control, a soft failure is generated.
• When Monitored:
With the engine idling in drive (for CVT vehicles) with the brake applied, MAF < 250 mg/tdc, air temp > -17.8°
C (0° F) enable after coolant temp > 70° C (158° F), canister purge < 100% duty cycle, and no VSS, MAF/
MAP, ECT, TPS, ETC, CKP Sensor, fuel system, or injector DTCs present.
• Set Condition:
If the idle speed is 175 RPM or more above the target idle speed for 30 seconds. Two Trip Fault. Three good
trips to turn off the MIL.
Possible Causes
cardiagn.com
PCV SYSTEM LEAKS OR RESTRICTIONS
VACUUM LEAKS
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: It is possible for ETC DTCs to be set at the same time as this DTC. Proceed with this test only if the
other DTCs that are present are ETC related, but clear them before proceeding. If any other DTCs are set,
they must be diagnosed and repaired before continuing this test.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
3. PCV SYSTEM
Inspect the PCV system for the following problems:
Restrictions - sticking valve, collapsed hoses or tubes, obstructed passages or ports, etc.
Leaks - cracked or damaged hoses or tubes, hose or tube connections disconnected at PCV valve or throttle body,
PCV valve stuck open, etc.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 4
cardiagn.com
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
Possible Causes
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Go to 6
cardiagn.com
nal push out. Repair as necessary. Replace and program the Powertrain Control Module in accordance
with the Service Information.
Perform the SKREEM/WCM VERIFICATION Test.
No >> Test Complete.
6. IGNITION KEY
NOTE: This DTC could have been set if the SKREEM/WCM harness connector was disconnected, or if the
SKREEM/WCM was replaced recently.
NOTE: All of the ignition keys for this vehicle must be tested to verify proper operation.
Ignition on, engine not running.
Verify that the correct VIN is programmed into the PCM and SKREEM/WCM.
Turn the ignition off.
Using each vehicle key, turn the ignition on and start the engine.
With a scan tool, View DTCs for each key.
Is the status Active for this DTC?
Yes >> Replace the ignition key.
Perform the SKREEM/WCM VERIFICATION Test.
No >> Test Complete.
NOTE: If this DTC cannot be reset, it could have been an actual theft attempt.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 455
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G6) EOP SIGNAL CIRCUIT SHORTED TO GROUND
(G6) EOP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE OIL PRESSURE SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. ENGINE OIL PRESSURE SWITCH
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, select View DTCs.
NOTE: The PCM should display an Engine Oil Pressure Sensor Circuit High DTC with the switch discon-
nected.
Is the status Active for an Engine Oil Pressure Sensor Circuit High DTC with the switch disconnected?
Yes >> Replace the Engine Oil Pressure Switch in accordance with the service information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G6) EOP SIGNAL CIRCUIT SHORTED TO VOLTAGE
(G6) EOP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE OIL PRESSURE SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. ENGINE OIL PRESSURE SWITCH
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between ground and the (G6) EOP Signal circuit
in the Engine Oil Pressure Switch harness connector.
Turn the ignition on.
NOTE: The PCM should display an Engine Oil Pressure Sensor Cir-
cuit Low DTC with the jumper wire in place.
Is the status Active for an Engine Oil Pressure Sensor Circuit
High DTC with the jumper wire in place?
Yes >> Replace the Engine Oil Pressure Switch in accordance with
the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C818) A/C PRESSURE SENSOR SUPPLY CIRCUIT SHORTED TO GROUND
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(C818) A/C PRESSURE SENSOR SUPPLY CIRCUIT SHORTED TO (C918) A/C PRESSURE SENSOR GROUND
CIRCUIT
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO (C918) A/C PRESSURE SENSOR GROUND
CIRCUIT
(C818) A/C PRESSURE SENSOR SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
A/C PRESSURE TRANSDUCER
TOTALLY INTEGRATED POWER MODULE (TIPM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (C818) A/C PRESSURE SENSOR SUPPLY CIRCUIT SHORTED TO (C918) A/C PRESSURE SENSOR
GROUND CIRCUIT
Measure the resistance between the (C818) A/C Pressure Sensor Sup-
cardiagn.com
ply circuit and the (C918) A/C Pressure Sensor Ground circuit in the
A/C Pressure Transducer harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (C818) A/C Pressure Sensor Supply circuit for a
short to the (C918) A/C Pressure Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
7. (C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO (C918) A/C PRESSURE SENSOR
GROUND CIRCUIT
Measure the resistance between the (C18) A/C Pressure Sensor Signal
cardiagn.com
circuit and the (C918) A/C Pressure Sensor Ground circuit in the A/C
Pressure Transducer harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (C18) A/C Pressure Sensor Signal circuit for a
short to the (C918) A/C Pressure Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9. AC PRESSURE TRANSDUCER
Turn the ignition off.
Connect the Totally Integrated Power Module (TIPM) connector.
Connect a jumper wire between the (C818) A/C Pressure Sensor Sup-
ply circuit and the (C18) A/C Pressure Sensor Signal circuit in the A/C
Pressure Transducer harness connector.
Turn the ignition on.
With the scan tool, read the AC Pressure Transducer signal voltage.
Is the voltage above 4.5 volts with the jumper wire in place?
Yes >> Replace the A/C Pressure Transducer in accordance with
the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
ducer and the Totally Integrated Power Module (TIPM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Totally Integrated Power Module (TIPM) in accordance with the Service Infor-
mation.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 466 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C818) A/C PRESSURE SENSOR SUPPLY CIRCUIT SHORTED TO VOLTAGE
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (C818) A/C PRESSURE SENSOR
SUPPLY CIRCUIT
(C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(C918) A/C PRESSURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
A/C PRESSURE TRANSDUCER
TOTALLY INTEGRATED POWER MODULE (TIPM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (C18) A/C PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (C818) A/C PRESSURE SENSOR
SUPPLY CIRCUIT
Measure the resistance between the (C18) A/C Pressure Sensor Signal
cardiagn.com
circuit and the (C818) A/C Pressure Sensor Supply in the A/C Pressure
Transducer harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (C18) A/C Pressure Sensor Signal circuit for a
short to the (C818) A/C Pressure Sensor Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Turn the ignition off.
Connect the Totally Integrated Power Module (TIPM) connector.
Connect a jumper wire between the (C918) A/C Pressure Sensor
Ground circuit and the (C18) A/C Pressure Sensor Signal circuit in the
A/C Pressure Transducer harness connector.
Turn the ignition on.
With the scan tool, read the A/C Pressure Transducer signal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the A/C Pressure Transducer in accordance with
the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
BATTERY POSITIVE CIRCUIT HIGH RESISTANCE
GENERATOR CASE GROUND HIGH RESISTANCE
(A931) FUSED B+ CIRCUIT HIGH RESISTANCE
(Z925) GROUND CIRCUIT(S) HIGH RESISTANCE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: Diagnose and repair any charging system DTCs before proceeding with this test.
NOTE: Inspect and test the battery in accordance with the Service Information before continuing with this
test.
NOTE: Inspect the generator drive belt before continuing with this test.
NOTE: Inspect the vehicle for aftermarket accessories that may exceed the Generator System output.
NOTE: Inspect the fuses in the IPM. If an open fuse is found, use the wire diagram/schematic as a guide
and inspect the wiring and connectors for damage.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (A931) Fused B+ circuit for high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A804) GEN SENSE CIRCUIT OPEN OR HIGH RESISTANCE
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO VOLTAGE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: Diagnose and repair any charging system or generator DTCs before continuing with this test.
NOTE: Inspect and test the battery in accordance with the Service Information before continuing with this
test.
NOTE: Inspect the generator drive belt before continuing with this test.
NOTE: Inspect the vehicle for aftermarket accessories that may exceed the Generator System output.
NOTE: Inspect the fuses in the IPM. If an open fuse is found, use the wire diagram/schematic as a guide
and inspect the wiring and connectors for damage.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 476 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the states change from Pressed when the pedal is pressed to Not Pressed when the pedal is
released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go to 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the states change from Pressed when the pedal is pressed to Not Pressed when the pedal is
released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go to 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the Brake Signal states change appropriately as the pedal is pressed and released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go To 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO GROUND
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 harness connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The voltage should be above 4.8 volts with the Steering Control Module (SCM) C5 connector dis-
connected.
Connect a jumper wire between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit at the
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C2 connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The voltage should be above 4.8 volts with the connector
disconnected.
Connect a jumper wire between the (V71) S/C Signal 1 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts
with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Steering Control Module (SCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
7. (V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V71) S/C Signal 1 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (V71) S/C Signal 1 circuit for a short to the
Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 496 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO GROUND
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be above 4.8 volts with the connector disconnected.
Is the (V71) S/C Signal 1 voltage above 4.8 volts with the connector disconnected?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
NOTE: The (V71) S/C Signal 1 voltage should be above 4.8 volts with the connector disconnected.
Is the (V71) S/C Signal 1 voltage above 4.8 volts with the connector disconnected?
Yes >> Replace the Steering Control Module (SCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
6. (V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V71) S/C Signal 1 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 7
No >> Repair the (V71) S/C Signal 1 circuit for a short to the
Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (V71) S/C Signal 1 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 500 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
9. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 501
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 connector.
Connect a jumper wire between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit in the
Steering Control Module (SCM) C5 connector, not at the harness connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts with the jumper wire in place.
Is the (V71) S/C Signal 1 voltage below .2 volts with the jumper wire in place?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts
with the jumper wire in place.
Is the (V71) S/C Signal 1 voltage below .2 volts with the jumper
wire in place?
Yes >> Replace the Steering Control Module (SCM) in accordance
with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. (V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Steering Control Module (SCM) C2 harness connector and
the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 505
cardiagn.com
9 - 506 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO GROUND
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO GROUND
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
cardiagn.com
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 harness connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 and (V72) S/C Signal 2 voltages.
NOTE: The voltages should be above 4.8 volts with the Steering Control Module (SCM) C5 connector dis-
connected.
Connect a jumper wire between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit at the
cardiagn.com
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts with the jumper wire in place.
Connect a jumper wire between the (V72) S/C Signal 2 circuit and the (V937) S/C Switch Ground circuit at the
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
6. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
Measure the voltage of the (V72) S/C Signal 2 circuit in the Steering
Control Module (SCM) C2 harness connector.
Is there any voltage present?
Yes >> Repair the (V72) S/C Signal 2 circuit for a short to voltage.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
9. (V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V71) S/C Signal 1 circuit and the
(V937) S/C Switch Ground circuit in the C2 Steering Control Module
cardiagn.com
(SCM) harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (V71) S/C Signal 1 circuit for a short to the
Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
10. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V72) S/C Signal 2 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 11
No >> Repair the (V72) S/C Signal 2 circuit for a short to the
(V937) S/C Switch Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 511
cardiagn.com
12. (V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (V72) S/C Signal 2 circuit between the
Steering Control Module (SCM) C2 harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 13
No >> Repair the (V72) S/C Signal 2 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 512 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
14. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 513
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO GROUND
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 harness connector.
Turn the ignition on.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The voltage should be above 4.8 volts with the Steering Control Module (SCM) C5 connector dis-
connected.
Connect a jumper wire between the (V72) S/C Signal 2 circuit and the (V937) S/C Switch Ground circuit at the
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C2 connector.
Turn the ignition on.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The voltage should be above 4.8 volts with the connector
disconnected.
Connect a jumper wire between the (V72) S/C Signal 2 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts
with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Steering Control Module (SCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
7. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V72) S/C Signal 2 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
cardiagn.com
harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (V72) S/C Signal 2 circuit for a short to the
Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 518 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO GROUND
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 connector.
Turn the ignition on.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be above 4.8 volts with the connector disconnected.
Is the (V72) S/C Signal 2 voltage above 4.8 volts with the connector disconnected?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
NOTE: The (V72) S/C Signal 2 voltage should be above 4.8 volts with the connector disconnected.
Is the (V72) S/C Signal 2 voltage above 4.8 volts with the connector disconnected?
Yes >> Replace the Steering Control Module (SCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
6. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V72) S/C Signal 2 circuit and the
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 7
No >> Repair the (V72) S/C Signal 2 circuit for a short to the
Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (V72) S/C Signal 2 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 522 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
9. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 523
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 connector.
Connect a jumper wire between the (V72) S/C Signal 2 circuit and the (V937) S/C Switch Ground circuit in the
Steering Control Module (SCM) C5 connector, not at the harness connector.
Turn the ignition on.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts with the jumper wire in place.
Is the (V72) S/C Signal 2 voltage below .2 volts with the jumper wire in place?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
(V937) S/C Switch Ground circuit in the Steering Control Module (SCM)
C2 harness connector.
Turn the ignition on.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts
with the jumper wire in place.
Is the (V72) S/C Signal 2 voltage below .2 volts with the jumper
wire in place?
Yes >> Replace the Steering Control Module (SCM) in accordance
with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. (V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Steering Control Module (SCM) C2 harness connector and
the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 527
cardiagn.com
9 - 528 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER CONTROL CIRCUIT SHORTED TO VOLTAGE
(T752) STARTER CONTROL CIRCUIT SHORTED TO GROUND
(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (T752) Starter Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 539
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER CONTROL CIRCUIT SHORTED TO GROUND
(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE (TIPM)
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Using a 12 volt test light connected to 12 volts, check the (T752) Starter
Control circuit in the Totally Integrated Power Module (TIPM) harness
connector.
NOTE: The test light should not be illuminated.
While monitoring the test light, move the ignition to the start position.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light not illuminated with the ignition in the run
position and illuminated and bright with the ignition in the start
position?
Yes >> Replace the Totally Integrated Power Module (TIPM) in
accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER CONTROL CIRCUIT SHORTED TO VOLTAGE
(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE (TIPM)
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Using a 12 volt test light connected to 12 volts, check the (T752) Starter
Control circuit in the Totally Integrated Power Module (TIPM) harness
connector.
NOTE: The test light should not be illuminated.
While monitoring the test light, move the ignition to the start position.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light not illuminated with the ignition in the run
position and illuminated and bright with the ignition in the start
position?
Yes >> Replace the Totally Integrated Power Module (TIPM) in
accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO VOLTAGE
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO GROUND
(K20) GEN FIELD CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K20) Gen Field Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. GENERATOR
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Generator field control to the ON (100%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Generator field control to the OFF (0%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
9 - 550 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
tion OFF (0%)?
Yes >> Replace the Generator in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 551
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO GROUND
(K20) GEN FIELD CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. GENERATOR
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Generator field control to the ON (100%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Generator field control to the OFF (0%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
tion OFF (0%)?
Yes >> Replace the Generator in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
9 - 554 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 555
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO VOLTAGE
(K20) GEN FIELD CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. GENERATOR
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Generator field control to the ON (100%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Generator field control to the OFF (0%)
position.
Using a 12 volt test light connected to ground, check the (K20) Gen
Field Control circuit in the Generator harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
tion OFF (0%)?
Yes >> Replace the Generator in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
9 - 558 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 559
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO VOLTAGE
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO GROUND
(K31) FUEL PUMP CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K31) Fuel Pump Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 563
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO GROUND
(K31) FUEL PUMP CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE (TIPM)
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, select View DTCs.
NOTE: With the TIPM connector disconnected, the PCM should display a Fuel Pump Control circuit open
DTC.
Is the status Active for the Fuel Pump Control circuit open DTC?
Yes >> Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO VOLTAGE
(K31) FUEL PUMP CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE (TIPM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE (TIPM)
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between ground and the (K31) Fuel Pump Control circuit in the Totally Integrated Power
Module (TIPM) harness connector.
Turn the ignition on.
With the scan tool, select View DTCs.
Is the status Active for the Fuel Pump Control circuit shorted low DTC?
Yes >> Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
VIN NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Start the engine and allow it to reach normal operating temperature.
NOTE: If the engine will not start, crank the engine for 15 seconds. Crank at least 2 times with the ignition
switch returning to the off position each time.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Test complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 571
Possible Causes
MILEAGE NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Using the scan tool, program the vehicle mileage into the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Test complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 572 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
SECRET KEY INFORMATION NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. SECRET KEY INFORMATION NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)
Ignition on, engine not running.
cardiagn.com
Using the scan tool, program the Secret Key information into the Powertrain Control Module (PCM) using the PCM
Replaced function in the WCM.
Start the engine and allow it to reach normal operating temperature.
NOTE: If the engine will not start, crank the engine for 15 seconds. Crank at least 2 times with the ignition
switch returning to the off position each time.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Test complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 573
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A804) GEN SENSE CIRCUIT SHORTED TO VOLTAGE
(A804) GEN SENSE CIRCUIT SHORTED TO GROUND
(A804) GEN SENSE CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Start the engine and allow it reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (A804) Gen Sense circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 576 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
5. GENERATOR
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Generator connector.
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
While backprobing, measure the voltage of the (K20) Gen Field Control
circuit in the Powertrain Control Module (PCM) harness connector.
Start the engine.
With the scan tool, perform the Generator Full Field test.
Monitor the voltage of the (K20) Gen Field Control circuit with the Gen-
erator Full Field test actuated.
NOTE: The voltage should increase more than 1 volt.
Does the voltage increase by at least 1 volt with the Generator
Full Field Test on?
Yes >> Go to 6
cardiagn.com
No >> Replace the Generator in accordance with the Service Infor-
mation.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
ACCELERATOR PEDAL POSITION SENSOR
CAMSHAFT 2 POSITION SENSOR
CRANKSHAFT POSITION SENSOR
THROTTLE POSITION SENSOR
VEHICLE SPEED SENSOR (MTX ONLY)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, clear DTCs.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (F855) 5 Volt Supply circuit.
Is the voltage above 4.6 volts?
Yes >> Replace the Crankshaft Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
8. 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the PCM harness connectors.
Measure the resistance between ground and the (F855) 5 Volt Supply
circuit.
Measure the resistance between ground and the (F856) 5 Volt Supply
circuit.
Is the resistance above 1000 ohms for both circuits?
Yes >> Go to 9
No >> Repair the 5 Volt Supply circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 581
cardiagn.com
No >> Replace the PCM in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 582 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
No >> Replace and program the Powertrain Control Module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 585
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO GROUND
(C27) A/C COMPRESSOR CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
A/C COMPRESSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (C27) A/C Compressor Control circuit for an
open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. A/C COMPRESSOR
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the A/C Compressor control to the ON posi-
tion.
Using a 12 volt test light connected to ground, check the (C27) A/C
Compressor Control circuit in the A/C Compressor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the A/C Compressor control to the OFF
position.
Using a 12 volt test light connected to ground, check the (C27) A/C
Compressor Control circuit in the A/C Compressor harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
9 - 588 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
tion OFF (0%)?
Yes >> Replace the A/C Compressor in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 589
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO VOLTAGE
(C27) A/C COMPRESSOR CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
A/C COMPRESSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Using a 12 volt test light connected to 12 volts, check the (Z916)
Ground circuit in the A/C Compressor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z916) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. A/C COMPRESSOR
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the A/C Compressor control to the ON posi-
tion.
Using a 12 volt test light connected to ground, check the (C27) A/C
Compressor Control circuit in the A/C Compressor harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the A/C Compressor control to the OFF
position.
Using a 12 volt test light connected to ground, check the (C27) A/C
Compressor Control circuit in the A/C Compressor harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuation ON (100%) and not illuminated with the actua-
9 - 592 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
tion OFF (0%)?
Yes >> Replace the A/C Compressor in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 593
cardiagn.com
Possible Causes
INTERMITTENT DTC
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
ACCELERATOR PEDAL POSITION SENSOR
CAMSHAFT 1/1 POSITION SENSOR
MANIFOLD FLOW VALVE
MAP SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, clear DTCs.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (K857) 5 Volt Supply circuit.
Is the voltage above 4.6 volts?
Yes >> Replace the Manifold Flow Valve.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
5. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Turn the ignition on.
Measure the voltage of the (K857) 5 Volt Supply circuit.
Is the voltage above 4.6 volts?
Yes >> Replace the MAP Sensor in accordance with the Service
Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
9 - 596 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Inspect the (K857) 5 Volt Supply circuit between the Camshaft 1/1 Position Sensor harness connector and the PCM
harness connector.
Inspect the (K857) 5 Volt Supply circuit between the Manifold Flow Valve harness connector and the PCM harness
connector.
Inspect the (K857) 5 Volt Supply circuit between the MAP Sensor harness connector and the PCM harness con-
nector.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the PCM in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 597
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K858) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Turn the ignition on.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PCM harness connector.
Inspect the (K857) 5 Volt Supply circuit between the Camshaft 1/1 Position Sensor harness connector and the PCM
harness connector.
Inspect the (K857) 5 Volt Supply circuit between the Manifold Flow Valve harness connector and the PCM harness
connector.
Inspect the (K857) 5 Volt Supply circuit between the MAP Sensor harness connector and the PCM harness con-
nector.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 600 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
TRANSMISSION DTC(S) PRESENT
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: Diagnose and repair any other DTCs that are set in the PCM before continuing.
NOTE: This DTC will set in the PCM to indicate that a DTC is set in the TCM.
NOTE: When all repairs have been completed, clear DTCs in the PCM and TCM.
Ignition on, engine not running.
With the scan tool, select View DTCs in the PCM.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the states change from Pressed when the pedal is pressed to Not Pressed when the pedal is
released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go to 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Possible Causes
INTERMITTENT DTC
P/N SIGNAL CIRCUIT SHORTED TO VOLTAGE OR GROUND
DTCS PRESENT IN THE TRANSMISSION CONTROL MODULE (TCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, select View DTCs in the PCM.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
Ignition on, engine not running.
With a scan tool, select View DTCs.
NOTE: Diagnose and repair any AAT, ECT, and IAT sensor DTCs before continuing with this test.
NOTE: Diagnose and repair P1607 PCM INTERNAL SHUTDOWN TIMER SLOW RATIONALITY or P2610 PCM
INTERNAL SHUTDOWN TIMER FAST RATIONALITY if either code is set before continuing with this test.
NOTE: Using an unapproved block heater in cold temperatures may cause this DTC to set. No repair is
required.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. TEMPERATURE SENSOR
NOTE: If it is necessary to replace the AAT sensor, be sure to drive the vehicle over 30 MPH for at least 5
minutes to update the AAT value.
Ignition on, engine not running.
Disconnect the harness connector for the sensor that had a value which did not increase smoothly and as expected.
With the scan tool, read the sensor voltage with the connected disconnected.
NOTE: The sensor voltage should be approximately 5.0 volts with the connector disconnected.
Connect a jumper wire between the sensor signal circuit and the sensor ground circuit in the harness connector.
With the scan tool, read the sensor voltage with the jumper wire in place.
NOTE: The sensor voltage should be approximately 0 volts with the jumper wire in place.
Does the sensor voltage change as described?
Yes >> Replace the sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
For the AAT sensor, disconnect the TIPM harness connector. Otherwise disconnect the PCM harness connector.
Measure the resistance of the sensor signal circuit from the sensor harness connector to the module harness con-
nector.
Is the resistance above 5.0 ohms.
Yes >> Repair the sensor signal circuit for high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0615, P0616 or P0617 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Replace the Totally Integrated Power Module in accordance with the Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
9 - 612 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
(T750) STARTER CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE
STARTER MOTOR
TIPM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0615, P0616 or P0617 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 615
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0615, P0616 or P0617 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE
NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.
Were any problems found?
Yes >> Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Replace the Totally Integrated Power Module in accordance with the Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
9 - 618 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0615, P0616 or P0617 has set along with this DTC, diagnose those DTC(s) first before continuing.
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 4
cardiagn.com
9 - 622 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE
NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.
Were any problems found?
Yes >> Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Replace the Totally Integrated Power Module in accordance with the Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 625
cardiagn.com
Possible Causes
(N1) FUEL PUMP CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE
FUEL PUMP MOTOR GROUND CIRCUIT
FUEL PUMP MOTOR
TIPM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTC(s) first before continuing.
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL PUMP MODULE
Connect the C7 TIPM harness connectors.
Ignition on, engine not running.
Using the scan tool under the TIPM Actuators, actuate (Toggle) the Fuel
Pump.
With a 12-volt test light connected to ground, probe the (N1) Fuel Pump
Control Output circuit at the Fuel Pump Module harness connector.
Does the test light illuminate brightly and flash on and off?
Yes >> Replace the Fuel Pump Module in accordance with the Ser-
vice Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 5
9 - 628 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 629
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. TOTALLY INTEGRATED POWER MODULE
NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors.
Pay particular attention to all Power and Ground circuits.
Were any problems found?
Yes >> Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Replace the Totally Integrated Power Module in accordance with the Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
9 - 632 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTC(s) first before continuing.
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. FUEL PUMP GROUND CIRCUIT
Using a 12-volt test light to battery voltage, probe the Fuel Pump
Ground circuit in the Fuel Pump harness connector.
NOTE: The test light should be illuminated and bright. Compared
the brightness to that of a direct connection to the battery.
Does the test light illuminate brightly.
Yes >> Go To 5
No >> Repair the excessive resistance in the (Z904) Fuel Pump
Ground circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 635
cardiagn.com
9 - 636 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO VOLTAGE
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO GROUND
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K75) VEHICLE SPEED SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
VEHICLE SPEED SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
NOTE: Check for any Bus Communication DTCs. If no Bus or Communication DTCs are set, check for active
Vehicle Speed Sensor DTCs in the Totally Integrated Power Module. Any bus, communication, or VSS DTCs
in the TIPM must be properly diagnosed before continuing.
NOTE: This code may set after a hard acceleration on loose gravel, during other off road driving conditions,
or by any condition that causes a wheel speed difference between the front and rear wheels.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 638 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 11
5. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K75) VEHICLE SPEED SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K75) Vehicle Speed Signal circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 6
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K75) Vehicle Speed Signal circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Vehicle Speed Sensor for any condition that would result in an incorrect signal, such as damage, cor-
rosion, or contamination.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Vehicle Speed Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9. (F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (F856) 5 Volt Supply circuit and
the (K914) Sensor Ground circuit in the Vehicle Speed Sensor harness
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Signal circuit in the Vehicle Speed Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 13
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
13. (K75) VEHICLE SPEED SIGNAL CIRCUIT SHORTED TO (K914) SENSOR GROUND CIRCUIT
Measure the resistance between the (K75) Vehicle Speed Signal circuit
and the (K914) Sensor Ground circuit in the Vehicle Speed Sensor har-
ness connector.
Is the resistance above 100 ohms?
Yes >> Go to 14
No >> Repair the (K75) Vehicle Speed Signal circuit for a short to
the (K914) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 642 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
15. (K914) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K914) Sensor Ground circuit between
the Vehicle Speed Sensor harness connector and the Powertrain Con-
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 16
No >> Repair the circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 643
cardiagn.com
9 - 644 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
1.
cardiagn.com
ACTIVE DTC
Ignition on, engine not running.
NOTE: Check for any Bus Communication DTCs. If no Bus or Communication DTCs are set, check for active
Vehicle Speed Sensor DTCs in the Totally Integrated Power Module. Any bus, communication, or VSS DTCs
in the TIPM must be properly diagnosed before continuing.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VISUAL INSPECTION
NOTE: This code may set after a hard acceleration on loose gravel, during other off road driving conditions,
or by any condition that causes a wheel speed difference between the front and rear wheels.
Perform a thorough inspection of the rear Wheel Speed Sensor, wiring, connector, attaching hardware, and tone
wheel.
Check tire pressure of all the tires.
Check tire wear on all the tires.
Ask the customer what the road and driving conditions were like when the fault set.
Were any problems found?
Yes >> Repair as necessary. If the code set during a front OR rear wheel spin condition, no repair may be
necessary. Perform a thorough road test to verify proper operation.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 645
cardiagn.com
9 - 646 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
(F963) START ENABLE CIRCUIT SHORTED TO VOLTAGE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
NOTE: This DTC can set by holding the ignition switch in the start position after the engine starts.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the states change from Pressed when the pedal is pressed to Not Pressed when the pedal is
released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go to 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(B15) BRAKE SIGNAL 1 CIRCUIT SHORTED TO GROUND
(B16) BRAKE SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(Z967) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(B15) BRAKE SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(B16) BRAKE SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
STOP LAMP SWITCH
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, monitor the states of Brake Signal 1 and Brake Signal 2 while pressing and releasing the brake
pedal several times.
Do the states change from Pressed when the pedal is pressed to Not Pressed when the pedal is
released?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
No >> Go to 2
cardiagn.com
Using a 12 volt test light connected to 12 volts, check the (Z967)
Ground circuit in the Stop Lamp Switch harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (Z967) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Stop Lamp Switch connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (F202) Fused
Ignition Switch Output (Run-Start) circuit in the Stop Lamp Switch har-
ness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 8
No >> Repair the (F202) Fused Ignition Switch Output (Run-Start)
circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
10. STOP LAMP SWITCH
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Stop Lamp Switch in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Possible Causes
INTERMITTENT DTC
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO GROUND
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO GROUND
(V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
(V71) S/C SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLOCKSPRING
SPEED CONTROL SWITCH
STEERING CONTROL MODULE (SCM)
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. CLOCKSPRING
Turn the ignition off.
Disconnect the Steering Control Module (SCM) C5 harness connector.
Turn the ignition on.
With a scan tool, read the (V71) S/C Signal 1 and (V72) S/C Signal 2 voltages.
NOTE: The voltages should be above 4.8 volts with the Steering Control Module (SCM) C5 connector dis-
connected.
Connect a jumper wire between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit at the
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V71) S/C Signal 1 voltage.
NOTE: The (V71) S/C Signal 1 voltage should be below .2 volts with the jumper wire in place.
Connect a jumper wire between the (V72) S/C Signal 2 circuit and the (V937) S/C Switch Ground circuit at the
cardiagn.com
Steering Control Module (SCM) C5 connector, not at the harness connector.
With a scan tool, read the (V72) S/C Signal 2 voltage.
NOTE: The (V72) S/C Signal 2 voltage should be below .2 volts with the jumper wire in place.
Are the Speed Control voltages displayed as described?
Yes >> Replace the Clockspring in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
cardiagn.com
7. (V71) S/C SIGNAL 1 CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance between ground and the (V71) S/C Signal 1 circuit in the Steering Control Module (SCM)
C2 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (V71) S/C Signal 1 circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9. (V71) S/C SIGNAL 1 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V71) S/C Signal 1 circuit and the (V937) S/C Switch Ground circuit in the C2
Steering Control Module (SCM) harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (V71) S/C Signal 1 circuit for a short to the Steering Control Module (SCM) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 660 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
10. (V72) S/C SIGNAL 2 CIRCUIT SHORTED TO THE (V937) S/C SWITCH GROUND CIRCUIT
Measure the resistance between the (V72) S/C Signal 2 circuit and the (V937) S/C Switch Ground circuit in the
Steering Control Module (SCM) C2 harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 11
No >> Repair the (V72) S/C Signal 2 circuit for a short to the (V937) S/C Switch Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
12.
cardiagn.com
(V72) S/C SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (V72) S/C Signal 2 circuit between the Steering Control Module (SCM) C2 harness
connector and the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 13
No >> Repair the (V72) S/C Signal 2 circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Possible Causes
PCM NOT PROGRAMMED
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Start the engine.
Allow the engine to reach normal operating temperature.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Replace and program the Powertrain Control Module per Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> The PCM has been successfully programmed. Test is complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 662 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
PENDING TEMPERATURE SENSOR DTCS
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(A931) FUSED B+ CIRCUIT OPEN OR HIGH RESISTANCE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Turn the ignition on.
NOTE: If any temperature sensor DTCs are present, allow the vehicle to cool completely before proceeding
with this test.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Are there any pending Engine Coolant Temperature sensor, Ambient Air Temperature sensor, or general
temperature DTCs?
Yes >> Diagnose and repair any temperature sensor DTCs and retest.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
cardiagn.com
9 - 664 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
5-VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
CAMSHAFT 2 POSITION SENSOR
THROTTLE POSITION SENSOR
CRANKSHAFT POSITION SENSOR
VEHICLE SPEED SENSOR (MTX ONLY)
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (F855) 5 Volt Supply circuit in the APP Sen-
sor harness connector.
Is the voltage above 4.8 volts?
Yes >> Replace the Camshaft 1/2 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
Yes >> Go to 8
No >> Go to 9
cardiagn.com
11. POWERTRAIN CONTROL MODULE (PCM)
Inspect the (F855) 5 Volt Supply circuit between the Camshaft 1/2 Position Sensor harness connector and the PCM
harness connector.
Inspect the (F855) 5 Volt Supply circuit between the Crankshaft Position Sensor harness connector and the PCM
harness connector.
Inspect the (F855) 5 Volt Supply circuit between the Throttle Body harness connector and the PCM harness con-
nector.
Inspect the (F856) 5 Volt Supply circuit between the Accelerator Pedal Position Sensor harness connector and the
PCM harness connector.
If the vehicle is equipped with a manual transmission, inspect the (K856) 5 Volt Supply circuit between the Vehicle
Speed Sensor harness connector and the PCM harness connector.
Inspect all PCM power and ground circuits.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the PCM in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 669
cardiagn.com
Possible Causes
INTERMITTENT DTC
5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
5-VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
CAMSHAFT 1/1 POSITION SENSOR
MAP SENSOR
MANIFOLD FLOW VALVE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Turn the ignition on.
With the scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (K858) 5 Volt Supply circuit in the APP Sen-
sor harness connector.
Is the voltage above 4.8 volts?
Yes >> Replace the Camshaft 1/1 Position Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
5. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Turn the ignition on.
Measure the voltage of the (K858) 5 Volt Supply circuit.
Is the voltage above 4.8 volts?
Yes >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
9 - 672 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Turn the ignition off.
Disconnect the PCM harness connectors.
Measure the resistance between ground and the (K857) 5 Volt Supply
circuit.
Measure the resistance between ground and the (K858) 5 Volt Supply
circuit.
Is the resistance above 1000 ohms for both circuits?
Yes >> Go to 8
No >> Repair the 5 Volt Supply circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 674 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Yes >> Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No >> Go To 2
cardiagn.com
9 - 676 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
SRI MILEAGE NOT PROGRAMMED INTO THE PCM
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
With the scan tool, clear DTCs in the PCM.
Start the engine.
Allow the engine to reach normal operating temperature.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Replace and program the Powertrain Control Module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> The SRI mileage has been successfully programmed into the PCM. Test is complete.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 677
cardiagn.com
Possible Causes
DTC IS ACTIVE
FUEL TANK DAMAGE
FUEL LEVEL SIGNAL CIRCUIT SHORTED TO GROUND
FUEL LEVEL SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(Z965) GROUND CIRCUIT OPEN OF HIGH RESISTANCE
INTERNAL DAMAGE TO FUEL TANK OR SIPHON HOSE
FUEL LEVEL SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
NOTE: Diagnose any Fuel Level DTCs before proceeding with this test.
NOTE: The following test must be performed on both Fuel Level Sensors.
Inspect the Fuel Pump Module harness connectors for any corrosion or damage.
Ignition on, engine not running.
With the scan tool, select View DTCs. Record the related Freeze Frame data.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
6.
cardiagn.com
FUEL TANK AND SIPHON HOSE INSPECTION
WARNING: The fuel system is under a constant pressure even with the engine off. Before opening the fuel
system, the fuel pressure must be released in accordance with the service information. Failure to follow
these instructions can result in personal injury or death.
Inspect the following components.
- Siphon hose for restrictions or being disconnected.
- Siphon Inlet and Outlet tube on the Fuel Modules for restrictions.
- Fuel Pump Inlet Strainers for restrictions.
- Fuel Tank for any obstructions or deformities.
- Fuel Pump Module Float arm for damage.
Were any problems found?
Yes >> Repair or replace as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Fuel Level Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 680 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
cardiagn.com
(K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
INTAKE MANIFOLD
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
NOTE: It may be necessary to test drive the vehicle to get this DTC to reset.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 681
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
9.
cardiagn.com
(K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance between ground and the (K602) MFV Signal circuit in the Manifold Flow Valve harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (K602) MFV Signal circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
10. (K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the (K900) Sensor Ground circuit in the Manifold
Flow Valve harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 11
No >> Repair the (K602) MFV Signal circuit for a short to the (K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
13. (K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the (K857) 5 Volt Supply in the Manifold Flow
Valve harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K602) MFV Signal circuit for a short to the (K857) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 14
14.
cardiagn.com
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Using a 12 volt test light connected to 12 volts, check the (Z916) Ground circuit in the Manifold Flow Valve harness
connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
Is the test light illuminated and bright?
Yes >> Go to 15
No >> Repair the (Z916) Ground circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 685
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
cardiagn.com
(K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
INTAKE MANIFOLD
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
NOTE: It may be necessary to test drive the vehicle to get this DTC to reset.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 686 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
9.
cardiagn.com
(K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance between ground and the (K602) MFV Signal circuit in the Manifold Flow Valve harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 10
No >> Repair the (K602) MFV Signal circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
10. (K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the (K900) Sensor Ground circuit in the Manifold
Flow Valve harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 11
No >> Repair the (K602) MFV Signal circuit for a short to the (K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
13. (K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the (K857) 5 Volt Supply in the Manifold Flow
Valve harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K602) MFV Signal circuit for a short to the (K857) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 14
14.
cardiagn.com
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Using a 12 volt test light connected to 12 volts, check the (Z916) Ground circuit in the Manifold Flow Valve harness
connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
Is the test light illuminated and bright?
Yes >> Go to 15
No >> Repair the (Z916) Ground circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 690 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) MFV CONTROL CIRCUIT SHORTED TO GROUND
(K601) MFV CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(Z916) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K601) MFV Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 694 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) MFV CONTROL CIRCUIT SHORTED TO VOLTAGE
(K601) MFV CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. MANIFOLD FLOW VALVE
Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Manifold Flow Valve control to the ON
(100%) position.
Using a 12 volt test light connected to ground, check the (K601) MFV
Control circuit in the Manifold Flow Valve harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
With the scan tool, actuate the Manifold Flow Valve control to the OFF
(0%) position.
Using a 12 volt test light connected to ground, check the (K601) MFV
Control circuit in the Manifold Flow Valve harness connector.
NOTE: The test light should not be illuminated.
Is the test light illuminated and bright with the actuator ON (100%) and not illuminated with the actua-
tor OFF (0%)?
Yes >> Replace the Manifold Flow Valve in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 697
cardiagn.com
9 - 698 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
(K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K857) 5 Volt Supply circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
nector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K602) MFV Signal circuit for a short to the
(K900) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 703
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
(K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MANIFOLD FLOW VALVE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the
(K857) 5 Volt Supply in the Manifold Flow Valve harness connector.
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the (K602) MFV Signal circuit for a short to the
(K857) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
7. MANIFOLD FLOW VALVE
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K900) Sensor Ground circuit and
the (K602) MFV Signal circuit in the Manifold Flow Valve harness con-
nector.
Turn the ignition on.
With the scan tool, read the Manifold Flow Valve signal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Manifold Flow Valve in accordance with the
Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO GROUND
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO THE (Z965) GROUND CIRCUIT
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO THE (Z965) GROUND CIRCUIT
Measure the resistance between the (N5) Fuel Level Signal 2 circuit
and the (Z965) Ground circuit in the Fuel Level Sensor harness con-
cardiagn.com
nector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (N5) Fuel Level Signal 2 circuit for a short to the
(Z965) Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Connect a jumper wire between the (Z965) Ground circuit and the (N5)
Fuel Level Signal 2 circuit in the Fuel Level Sensor harness connector.
Turn the ignition on.
With the scan tool, read the Fuel Level Sensor 2 signal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Fuel Level Sensor in accordance with the Ser-
vice Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO GROUND
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Connect the Instrument Cluster (CCN) connector.
Turn the ignition on.
With the scan tool, read the Fuel Level Sensor 2 signal voltage.
Is the voltage above 4.5 volts with the Fuel Level Sensor harness disconnected?
Yes >> Replace the Fuel Level Sensor in accordance with the service information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(N5) FUEL LEVEL SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
FUEL LEVEL SENSOR
INSTRUMENT CLUSTER (CCN)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the resistance between ground and the (Z965) Ground circuit
at the Fuel Level Sensor harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (Z965) Ground circuit for an open circuit or high
resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 718 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
THROTTLE PLATE OBSTRUCTION
Diagnostic Test
cardiagn.com
NOTE: This DTC will set in extreme cold ambient temperatures when the PCM detects that the throttle plate
is stuck. By the time the vehicle is serviced, the condition may be corrected.
Turn the ignition off.
Remove the air cleaner assembly.
Check for any signs of a foreign material (ice or dirt) on the throttle plate or in the throttle bore that can cause the
throttle plate to stick.
Were any problems found?
Yes >> Repair as necessary. It the throttle blade is frozen, allow the throttle body to thaw naturally in a warm
location.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Test complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 719
Possible Causes
VACUUM LEAK
MAP SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
THROTTLE POSITION SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
MAP SENSOR
THROTTLE POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose and repair any TP Sensor or MAP Sensor DTCs before continuing.
NOTE: Diagnose and repair any VSS or 5 Volt supply circuit DTCs before continuing.
NOTE: The throttle plate and linkage should be free from binding and carbon build up.
NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VACUUM LEAK
NOTE: This code is enabled on engines equipped with a plastic intake manifold to limit engine operation if
a large vacuum leak should occur.
NOTE: A large vacuum leak is the most probable cause of this DTC.
Inspect the intake manifold, power brake booster, and PCV system for any vacuum leaks.
Inspect the throttle plate. If the throttle blade is bent or will not close, the throttle body may need to be replaced.
Inspect the MAP Sensor and Throttle Body for proper installation.
Inspect the engine for any mechanical conditions that can cause low engine vacuum.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
9 - 720 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
4. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
cardiagn.com
Check each of the MAP Sensor circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. THROTTLE BODY
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Check each of the Throttle Body circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
the Powertrain Control Module (PCM) and between the MAP Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 722 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K76) CMP 1/1 CONTROL CIRCUIT SHORTED TO GROUND
(K76) CMP 1/1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/1 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K76) CMP 1/1 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 726 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K76) CMP 1/1 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K76) CMP 1/1 CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K76) CMP 1/1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/1 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K76) CMP 1/1 CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K76) CMP 1/1 Control circuit and
the (K343) Fused Main Relay Output circuit in the Camshaft 1/1 Posi-
tion Solenoid harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K76) CMP 1/1 Control circuit for a short to the
(K343) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K76) CMP 1/1 Control circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 730 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K276) CMP 1/2 CONTROL CIRCUIT SHORTED TO GROUND
(K276) CMP 1/2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/2 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K276) CMP 1/2 Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 734 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K276) CMP 1/2 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K276) CMP 1/2 CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
(K276) CMP 1/2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
CAMSHAFT 1/2 POSITION SOLENOID
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K276) CMP 1/2 CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K276) CMP 1/2 Control circuit and
the (K343) Fused Main Relay Output circuit in the Camshaft 1/2 Posi-
tion Solenoid harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K276) CMP 1/2 Control circuit for a short to the
(K343) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K276) CMP 1/2 Control circuit for an open cir-
cuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 738 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
EXHAUST LEAK
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO VOLTAGE
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 1/2 RETURN CIRCUIT
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO GROUND
cardiagn.com
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO GROUND
(K141) O2 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. EXHAUST LEAK
NOTE: A thorough exhaust leak test must be completed before removing an O2 Sensor or any other part
from the exhaust system. Do not remove any parts before an exhaust leak check has been completed.
NOTE: An exhaust leak may cause downstream fuel adaptives to rail out, resulting in a false 1/1 O2 Sensor
failure
Turn the ignition off.
Inspect the exhaust system for leaks between the engine and the 1/1 Oxygen Sensor.
Perform a leak test with Miller Tool #8404A Evaporative Emissions Leak Detector (EELD), even if an audible leak is
not heard. Pay particular attention to the exhaust manifold to head surface, exhaust pipe to manifold connection,
and the O2 sensor boss for leaks.
Connect the SMOKE supply tip (black hose) to the exhaust cone adapter (if equipped) and place it into the tail pipe.
Set the smoke/air control switch to SMOKE.
Press the remote smoke/air start button.
While still holding the remote smoke/air start button, use the white light (#8404-CLL) to follow the exhaust system
path and look for a leak, indicated by exiting smoke.
If a leak is concealed from view, release the remote smoke/air start button, and use the ultraviolet (UV) black light
#8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left behind by the smoke.
9 - 740 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
Were any exhaust leaks found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
2. DTC IS ACTIVE
NOTE: Check for contaminants that may have damaged the O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
cardiagn.com
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
5. (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 1/2 RETURN CIRCUIT
Turn the ignition off.
Measure the resistance between the (K141) O2 1/2 Signal circuit and
the (K904) O2 1/2 Return circuit the Oxygen Sensor 1/2 harness con-
nector.
Is the resistance below 100.0 ohms?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to the
(K904) O2 1/2 Return.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
circuit in the Oxygen Sensor 1/2 harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
9. (K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K904) O2 1/2 Return circuit between the
Oxygen Sensor 1/2 harness connector to the Powertrain Control Module
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 10
No >> Repair the (K904) O2 1/2 Return circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 743
cardiagn.com
9 - 744 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
EXHAUST LEAK
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO VOLTAGE
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 1/2 RETURN CIRCUIT
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO GROUND
cardiagn.com
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO GROUND
(K141) O2 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
OXYGEN SENSOR 1/2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. EXHAUST LEAK
NOTE: A thorough exhaust leak test must be completed before removing an O2 Sensor or any other part
from the exhaust system. Do not remove any parts before an exhaust leak check has been completed.
NOTE: An exhaust leak may cause downstream fuel adaptives to rail out, resulting in a false 1/1 O2 Sensor
failure
Turn the ignition off.
Inspect the exhaust system for leaks between the engine and the 1/1 Oxygen Sensor.
Perform a leak test with Miller Tool #8404A Evaporative Emissions Leak Detector (EELD), even if an audible leak is
not heard. Pay particular attention to the exhaust manifold to head surface, exhaust pipe to manifold connection,
and the O2 sensor boss for leaks.
Connect the SMOKE supply tip (black hose) to the exhaust cone adapter (if equipped) and place it into the tail pipe.
Set the smoke/air control switch to SMOKE.
Press the remote smoke/air start button.
While still holding the remote smoke/air start button, use the white light (#8404-CLL) to follow the exhaust system
path and look for a leak, indicated by exiting smoke.
If a leak is concealed from view, release the remote smoke/air start button, and use the ultraviolet (UV) black light
#8404-UVL and the yellow goggles 8404-20 to look for residual traces of dye that is left behind by the smoke.
9 - 746 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
The exiting smoke deposits a residual fluid that is either bright green or bright yellow in color when viewed with a
UV light.
Were any exhaust leaks found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
2. DTC IS ACTIVE
NOTE: Check for contaminants that may have damaged the O2 Sensor: contaminated fuel, unapproved sil-
icone, oil and coolant.
NOTE: It may be necessary to test drive the vehicle within the DTC monitoring conditions in order for this
DTC to set.
Start the engine and allow it to reach operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
cardiagn.com
Yes >> Go to 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
5. (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 1/2 RETURN CIRCUIT
Turn the ignition off.
Measure the resistance between the (K141) O2 1/2 Signal circuit and
the (K904) O2 1/2 Return circuit the Oxygen Sensor 1/2 harness con-
nector.
Is the resistance below 100.0 ohms?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to the
(K904) O2 1/2 Return.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
circuit in the Oxygen Sensor 1/2 harness connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K141) O2 1/2 Signal circuit for a short to
ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
9. (K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K904) O2 1/2 Return circuit between the
Oxygen Sensor 1/2 harness connector to the Powertrain Control Module
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 10
No >> Repair the (K904) O2 1/2 Return circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 749
cardiagn.com
9 - 750 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
LOW BATTERY VOLTAGE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO VOLTAGE
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO VOLTAGE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO GROUND
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO GROUND
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(K124) ETC MOTOR (+) CIRCUIT OPEN OR HIGH RESISTANCE
(K126) ETC MOTOR (-) CIRCUIT OPEN OR HIGH RESISTANCE
ETC MOTOR/THROTTLE BODY
cardiagn.com
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: If this DTC sets intermittently, it is possible that the controller is overheating in extremely hot tem-
peratures. This is considered a normal protection operation. No repair is necessary.
NOTE: Low battery voltage can cause excessive current draw in very hot and cold ambient temperatures.
Make sure the battery can pass a load test before continuing. Review Freeze Frame information to deter-
mine the ambient temperature when the DTC set.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair the (K126) ETC Motor (-) circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Turn the ignition off.
Measure the resistance between the (K124) ETC Motor (+) circuit and
the (K126) ETC Motor (-) circuit.
Is the resistance below 100 ohms?
Yes >> Repair the short to between the (K124) ETC Motor (+) cir-
cuit and the (K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 753
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K126) ETC Motor (-) cir-
cuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
10. ETC MOTOR
Reconnect the Throttle Body harness connector.
NOTE: Measure the resistance at the PCM harness connector to avoid damaging throttle body connector
terminals.
Measure the resistance between the (K124) ETC Motor (+) circuit and the (K126) ETC Motor (-) circuit.
Is the resistance between 2.5 and 25 ohms at closed throttle?
Yes >> Go to 11
No >> Replace the Throttle Body Assembly. Disconnect the Battery when replacing the Throttle Body Assem-
bly. After installation is complete, use a scan tool and perform the ETC RELEARN function.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Possible Causes
INTERMITTENT DTC
LOW SYSTEM VOLTAGE
THROTTLE BODY ASSEMBLY
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: If this DTC sets intermittently, it is possible that the controller is overheating in extremely hot tem-
peratures. This is considered a normal protection operation. No repair is necessary.
NOTE: Low system voltage can cause excessive current draw in very hot and cold ambient temperatures.
Make sure the battery can pass a load test before continuing. Review Freeze Frame information to deter-
mine the ambient temperature when the DTC set.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
DIAGNOSIS AND TESTING)
No >> Replace the Throttle Body Assembly. Disconnect the battery when replacing the Throttle Body Assembly.
After installation is complete, use a scan tool and perform the ETC Relearn function.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 757
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING) .
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
Test drive the vehicle for 10 miles on a flat road surface.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any other DTCs are set, they must be diagnosed and repaired before continuing this test.
cardiagn.com
NOTE: An engine vacuum leak may cause this DTC to set. Thoroughly inspect the engine for a vacuum leak
before continuing with this test. Repair as necessary.
NOTE: An intermittent loss of power to the PCM without performing an ETC Relearn procedure may cause
this DTC to set.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition on.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Verify the Powertrain Control Module (PCM) is at the latest calibration (flash level). If necessary, update the Pow-
ertrain Control Module (PCM) in accordance with the Service Information.
Start the engine and allow it to reach operating temperature.
Increase engine speed by pressing the accelerator pedal. Do not exceed 3500 rpm.
Test drive the vehicle for 10 miles on a flat road surface.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: If this DTC sets intermittently, it is possible that the controller is overheating in extremely hot tem-
peratures. This is considered a normal protection operation. No repair is necessary.
NOTE: Low battery voltage can cause excessive current draw in very hot and cold ambient temperatures.
Make sure the battery can pass a load test before continuing. Review Freeze Frame information to deter-
mine the ambient temperature when the DTC set.
NOTE: Diagnose and repair any Throttle Position sensor, system voltage, or 5 volt supply DTCs before con-
tinuing with this test.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair the (K126) ETC Motor (-) circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Turn the ignition off.
Measure the resistance between the (K124) ETC Motor (+) circuit and
the (K126) ETC Motor (-) circuit.
Is the resistance below 100 ohms?
Yes >> Repair the short to between the (K124) ETC Motor (+) cir-
cuit and the (K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
9 - 762 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K126) ETC Motor (-) cir-
cuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
10. ETC MOTOR
Reconnect the Throttle Body harness connector.
NOTE: Measure the resistance at the PCM harness connector to avoid damaging throttle body connector
terminals.
Measure the resistance between the (K124) ETC Motor (+) circuit and the (K126) ETC Motor (-) circuit.
Is the resistance between 2.5 and 25 ohms at closed throttle?
Yes >> Go to 11
No >> Replace the Throttle Body Assembly. Disconnect the Battery when replacing the Throttle Body Assem-
bly. After installation is complete, use a scan tool and perform the ETC RELEARN function.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
THROTTLE PLATE STICKING OR OBSTRUCTED
TP SENSOR CIRCUIT(S) HIGH RESISTANCE OR SHORTED
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO VOLTAGE
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO VOLTAGE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(K124) ETC MOTOR (+) CIRCUIT OPEN OR HIGH RESISTANCE
(K126) ETC MOTOR (-) CIRCUIT OPEN OR HIGH RESISTANCE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO GROUND
cardiagn.com
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO GROUND
THROTTLE BODY ASSEMBLY
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose any TP Sensor or 5-Volt Supply DTCs before continuing.
NOTE: Maximum engine speed could be reduced while this fault is active, based on where the throttle plate
is stuck.
Ignition on, engine not running.
NOTE: The PCM tests the ETC Motor by opening and closing the throttle plate before starting the engine. If
the throttle plate does not return to the closed position this DTC will set.
With a scan tool select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 766 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Yes >> Check the TP Sensor Signal circuits for excessive resistance, being shorted together, or shorted to the
Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 4
6. (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Turn the ignition off.
Measure the resistance between the (K124) ETC Motor (+) circuit and
the (K126) ETC Motor (-) circuit.
Is the resistance below 100 ohms?
Yes >> Repair the short to between the (K124) ETC Motor (+) cir-
cuit and the (K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K124) ETC Motor (+) cir-
cuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
10. (K124) ETC MOTOR (+) CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K124) ETC Motor (+) circuit.
Is the resistance below 5.0 ohms?
Yes >> Go to 11
No >> Repair the (K124) ETC Motor (+) circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 769
cardiagn.com
9 - 770 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
THROTTLE PLATE STICKING OR OBSTRUCTED
TP SENSOR CIRCUIT(S) HIGH RESISTANCE OR SHORTED
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO VOLTAGE
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO VOLTAGE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
(K124) ETC MOTOR (+) CIRCUIT OPEN OR HIGH RESISTANCE
(K126) ETC MOTOR (-) CIRCUIT OPEN OR HIGH RESISTANCE
(K124) ETC MOTOR (+) CIRCUIT SHORTED TO GROUND
cardiagn.com
(K126) ETC MOTOR (-) CIRCUIT SHORTED TO GROUND
THROTTLE BODY ASSEMBLY
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose any TP Sensor or 5-Volt Supply DTCs before continuing.
Ignition on, engine not running.
With a scan tool select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
6. (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Turn the ignition off.
Measure the resistance between the (K124) ETC Motor (+) circuit and
the (K126) ETC Motor (-) circuit.
Is the resistance below 100 ohms?
Yes >> Repair the short to between the (K124) ETC Motor (+) cir-
cuit and the (K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 7
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 773
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K126) ETC Motor (-) cir-
cuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 9
cardiagn.com
11. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module per Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 775
Possible Causes
INTERMITTENT DTC
ETC RELEARN
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: This DTC is set when the APPS values are learned in-plant but do not reach the minimum or max-
imum voltage range.
NOTE: Diagnose any APPS out of range and 5 volt supply DTCs before continuing.
With the scan tool, clear DTCs.
Start the engine.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
ETC RELEARN
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: This DTC is set when the APPS values are learned in-plant but do not reach the minimum or max-
imum voltage range.
NOTE: Diagnose any APPS out of range and 5 volt supply DTCs before continuing.
With the scan tool, clear DTCs.
Start the engine.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: If this DTC sets intermittently, it is possible that the controller is overheating in extremely hot tem-
peratures. This is considered a normal protection operation. No repair is necessary.
NOTE: Low battery voltage can cause excessive current draw in very hot and cold ambient temperatures.
Make sure the battery can pass a load test before continuing. Review Freeze Frame information to deter-
mine the ambient temperature when the DTC set.
NOTE: Diagnose and repair any Throttle Position sensor, system voltage, or 5 volt supply DTCs before con-
tinuing with this test.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair the (K126) ETC Motor (-) circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K124) ETC MOTOR (+) CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT
Turn the ignition off.
Measure the resistance between the (K124) ETC Motor (+) circuit and
the (K126) ETC Motor (-) circuit.
Is the resistance below 100 ohms?
Yes >> Repair the short to between the (K124) ETC Motor (+) cir-
cuit and the (K126) ETC Motor (-) circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
9 - 780 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the resistance below 100 ohms?
Yes >> Repair the short to ground in the (K126) ETC Motor (-) cir-
cuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
10. ETC MOTOR
Reconnect the Throttle Body harness connector.
NOTE: Measure the resistance at the PCM harness connector to avoid damaging throttle body connector
terminals.
Measure the resistance between the (K124) ETC Motor (+) circuit and the (K126) ETC Motor (-) circuit.
Is the resistance between 2.5 and 25 ohms at closed throttle?
Yes >> Go to 11
No >> Replace the Throttle Body Assembly. Disconnect the Battery when replacing the Throttle Body Assem-
bly. After installation is complete, use a scan tool and perform the ETC RELEARN function.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO GROUND
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT
(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (F856) 5 Volt Supply circuit for a short to the
(K167) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (K23) APP SIGNAL 1 CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between ground and the (K23) APP Signal 1
circuit in the Accelerator Pedal Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K23) APP Signal 1 circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 11
No >> Repair the (K23) APP Signal 1 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
9 - 788 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (F856) 5 VOLT SUPPLY CIRCUIT
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (K858) 5 VOLT SUPPLY CIRCUIT
(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K167) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (F856) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K23) APP Signal 1 circuit and the
(F856) 5 Volt Supply in the Accelerator Pedal Position Sensor harness
cardiagn.com
connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K23) APP Signal 1 circuit for a short to the
(F856) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (K858) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K23) APP Signal 1 circuit and the
(K858) 5 Volt Supply in the Accelerator Pedal Position Sensor harness
connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K23) APP Signal 1 circuit for a short to the
(K858) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 791
cardiagn.com
7. (K167) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K167) Sensor Ground circuit between
the Accelerator Pedal Position Sensor harness connector and the Pow-
ertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K167) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 792 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Accelerator Pedal
Position Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 793
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K858) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO GROUND
(K858) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT
(K858) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT
(K858) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
sor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 5
No >> Repair the (K858) 5 Volt Supply circuit for a short to the
(K400) Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
7. (K29) APP SIGNAL 2 CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between ground and the (K29) APP Signal 2
circuit in the Accelerator Pedal Position Sensor harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 8
No >> Repair the (K29) APP Signal 2 circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 11
No >> Repair the (K29) APP Signal 2 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 799
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K858) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO THE (K858) 5 VOLT SUPPLY CIRCUIT
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO THE (K856) 5 VOLT SUPPLY CIRCUIT
(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(K400) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this
test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (K29) APP SIGNAL 2 CIRCUIT SHORTED TO THE (K858) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K29) APP Signal 2 circuit and the
(K858) 5 Volt Supply in the Accelerator Pedal Position Sensor harness
cardiagn.com
connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K29) APP Signal 2 circuit for a short to the
(K858) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
5. (K29) APP SIGNAL 2 CIRCUIT SHORTED TO THE (K856) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K29) APP Signal 2 circuit and the
(K856) 5 Volt Supply in the Accelerator Pedal Position Sensor harness
connector.
Is the resistance below 100 ohms?
Yes >> Repair the (K29) APP Signal 2 circuit for a short to the
(K856) 5 Volt Supply circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
9 - 802 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
7. (K400) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K400) Sensor Ground circuit between
the Accelerator Pedal Position Sensor harness connector and the Pow-
ertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K400) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 803
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Accelerator Pedal
Position Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 804 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO GROUND
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO GROUND
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K22) TP SIGNAL 1 CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K122) TP SIGNAL 2 CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
cardiagn.com
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(K122) TP SIGNAL 2 CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K122) TP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
THROTTLE BODY
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Start the engine.
Allow the engine to reach normal operating temperature.
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with
this test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 806 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Is the voltage between 4.5 and 5.5 volts?
Yes >> Go to 4
No >> Go to 13
cardiagn.com
Is the resistance above 100 ohms?
Yes >> Go to 7
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K22) TP Signal 1 circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
8. THROTTLE BODY
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Inspect the Throttle Body for any condition that would result in an incorrect signal, such as damage or contamina-
tion.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Measure the voltage of the (F855) 5 Volt Supply circuit in the Throttle
Body harness connector.
Is there any voltage present?
Yes >> Repair the (F855) 5 Volt Supply circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
11. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K922) TP SENSOR GROUND CIRCUIT
Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K922) TP Sensor Ground circuit in the Throttle Body harness con-
nector.
Is the resistance above 100 ohms?
Yes >> Go to 12
No >> Repair the (F855) 5 Volt Supply circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 22
No >> Repair the (F855) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
tor.
Is the resistance above 100 ohms?
Yes >> Go to 16
No >> Repair the (K22) TP Signal 1 circuit for a short to the
(K922) TP Sensor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
cuit in the Throttle Body harness connector.
Is the resistance above 100 ohms?
Yes >> Go to 19
No >> Repair the (K122) TP Signal 2 circuit for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
21. (K922) TP SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance of the (K922) TP Sensor Ground circuit
between the Throttle Body harness connector and the Powertrain Con-
trol Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 22
No >> Repair the circuit for an open circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 813
cardiagn.com
9 - 814 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(F856) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K167) APP SENSOR GROUND 1 CIRCUIT OPEN OR HIGH RESISTANCE
(K858) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE
(K400) APP SENSOR GROUND 2 CIRCUIT OPEN OR HIGH RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: Diagnose and repair any APPS, system voltage, or sensor supply voltage DTCs before continuing
with this test.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 816 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
3. (K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K23) APP Signal 1 circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 4
No >> Repair the (K23) APP Signal 1 circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 817
cardiagn.com
5. (K858) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K858) 5 Volt Supply circuit between the
Accelerator Pedal Position Sensor harness connector and the Power-
train Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 6
No >> Repair the (K858) 5 Volt Supply circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 818 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
7. (K400) APP SENSOR GROUND 2 CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K400) APP Sensor Ground 2 circuit
between the Accelerator Pedal Position Sensor harness connector and
the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K400) APP Sensor Ground 2 circuit for an open
circuit or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 819
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Accelerator Pedal
Position Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 820 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
INTERMITTENT DTC
ETC RELEARN
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: This DTC is set when the APPS values are learned in-plant but do not reach the minimum or max-
imum voltage range.
NOTE: Diagnose any APPS out of range and 5 volt supply DTCs before continuing.
With the scan tool, clear DTCs.
Start the engine.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
ETC RELEARN
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
NOTE: This DTC is set when the APP Sensor values are learned in-plant but do not reach the minimum or
maximum voltage range.
NOTE: Diagnose any APPS out of range and 5 volt supply DTCs before continuing.
With the scan tool, clear DTCs.
Start the engine.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
VACUUM LEAK
MAP SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
THROTTLE POSITION SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
MAP SENSOR
THROTTLE POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose and repair any TP Sensor or MAP Sensor DTCs before continuing.
NOTE: Diagnose and repair any VSS or 5 Volt supply circuit DTCs before continuing.
NOTE: The throttle plate and linkage should be free from binding and carbon build up.
NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VACUUM LEAK
NOTE: This code is enabled on engines equipped with a plastic intake manifold to limit engine operation if
a large vacuum leak should occur.
NOTE: A large vacuum leak is the most probable cause of this DTC.
Inspect the intake manifold, power brake booster, and PCV system for any vacuum leaks.
Inspect the throttle plate. If the throttle blade is bent or will not close, the throttle body may need to be replaced.
Inspect the MAP Sensor and Throttle Body for proper installation.
Inspect the engine for any mechanical conditions that can cause low engine vacuum.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 823
4. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
cardiagn.com
Check each of the MAP Sensor circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. THROTTLE BODY
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Check each of the Throttle Body circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
the Powertrain Control Module (PCM) and between the MAP Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 825
Possible Causes
VACUUM LEAK
MAP SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
THROTTLE POSITION SENSOR CIRCUIT(S) OPEN, SHORTED, OR HIGH RESISTANCE
MAP SENSOR
THROTTLE POSITION SENSOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose and repair any TP Sensor or MAP Sensor DTCs before continuing.
NOTE: Diagnose and repair any VSS or 5 Volt supply circuit DTCs before continuing.
NOTE: The throttle plate and linkage should be free from binding and carbon build up.
NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VACUUM LEAK
NOTE: This code is enabled on engines equipped with a plastic intake manifold to limit engine operation if
a large vacuum leak should occur.
NOTE: A large vacuum leak is the most probable cause of this DTC.
Inspect the intake manifold, power brake booster, and PCV system for any vacuum leaks.
Inspect the throttle plate. If the throttle blade is bent or will not close, the throttle body may need to be replaced.
Inspect the MAP Sensor and Throttle Body for proper installation.
Inspect the engine for any mechanical conditions that can cause low engine vacuum.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
9 - 826 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
4. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
cardiagn.com
Check each of the MAP Sensor circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. THROTTLE BODY
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Check each of the Throttle Body circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
the Powertrain Control Module (PCM) and between the MAP Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 828 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose and repair any TP Sensor or MAP Sensor DTCs before continuing.
NOTE: Diagnose and repair any VSS or 5 Volt supply circuit DTCs before continuing.
NOTE: The throttle plate and linkage should be free from binding and carbon build up.
NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VACUUM LEAK
Inspect the intake manifold, power brake booster, and PCV system for any vacuum leaks.
Inspect the throttle plate. If the throttle blade is bent or will not close, the throttle body may need to be replaced.
Inspect the MAP Sensor and Throttle Body for proper installation.
Inspect the air intake system for any restrictions or obstructions.
Inspect the engine for any mechanical conditions that can cause low engine vacuum.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 829
4. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
cardiagn.com
Check each of the MAP Sensor circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. THROTTLE BODY
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Check each of the Throttle Body circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
the Powertrain Control Module (PCM) and between the MAP Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 831
Possible Causes
cardiagn.com
DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose and repair any TP Sensor or MAP Sensor DTCs before continuing.
NOTE: Diagnose and repair any VSS or 5 Volt supply circuit DTCs before continuing.
NOTE: The throttle plate and linkage should be free from binding and carbon build up.
NOTE: Make sure the throttle plate is at the idle position.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. VACUUM LEAK
Inspect the intake manifold, power brake booster, and PCV system for any vacuum leaks.
Inspect the throttle plate. If the throttle blade is bent or will not close, the throttle body may need to be replaced.
Inspect the MAP Sensor and Throttle Body for proper installation.
Inspect the air intake system for any restrictions or obstructions.
Inspect the engine for any mechanical conditions that can cause low engine vacuum.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 3
9 - 832 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
4. MAP SENSOR
Turn the ignition off.
Disconnect the MAP Sensor harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
cardiagn.com
Check each of the MAP Sensor circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the MAP Sensor.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
6. THROTTLE BODY
Turn the ignition off.
Disconnect the Throttle Body harness connector.
Disconnect the PCM harness connector.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and
the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Check each of the Throttle Body circuits for high resistance or a shorted condition.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Throttle Body in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
the Powertrain Control Module (PCM) and between the MAP Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 834 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
LOW COOLANT LEVEL
THERMOSTAT
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO GROUND
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND 1 CIRCUIT
(K2) ECT 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) SENSOR GROUND 1 CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 1
POWERTRAIN CONTROL MODULE (PCM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With a scan tool, select View DTCs.
NOTE: Diagnose and repair any Engine Coolant Temperature (ECT) sensor DTCs before proceeding with
this test.
NOTE: Inspect the ECT sensor and related PCM connector terminals for corrosion or damage.
NOTE: Extremely cold ambient temperatures may cause this DTC to set.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. THERMOSTAT
Ignition on, engine not running.
NOTE: Allow the engine to cool to ambient temperature before proceeding with this test.
Using the appropriate service information, determine the proper opening temperature of the thermostat.
With a scan tool, read the ECT sensor value. If the engine was allowed to cool completely, the value should be
approximately equal to the ambient temperature.
Start the engine and allow it to reach operating temperature while monitoring the ECT sensor value. The sensor
value change should be a smooth transition from start up to normal operating temperature. Monitor the actual cool-
ant temperature with a thermometer.
NOTE: As the engine warms up to operating temperature, the actual coolant temperature (thermometer read-
ing) and the coolant temperature value on the scan tool should be relatively close. The thermostat should
not open until the engine reaches the temperature specified in the Service Information.
Does the thermostat open at the temperature specified in the Service Information?
Yes >> Go to 4
No >> Replace the thermostat in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
4.
cardiagn.com
(K2) ECT 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
Turn the ignition off.
Disconnect the Engine Coolant Temperature Sensor 1 connector.
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (K2) ECT 1 Signal circuit in the Engine
Coolant Temperature Sensor 1 harness connector.
Is there any voltage present?
Yes >> Repair the (K2) ECT 1 Signal circuit for a short to voltage.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
cardiagn.com
ertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 8
No >> Repair the (K2) ECT 1 Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 838 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
9. ENGINE COOLANT TEMPERATURE SENSOR 1
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K900) Sensor Ground 1 circuit and
the (K2) ECT 1 Signal circuit in the Engine Coolant Temperature Sensor
1 harness connector.
Turn the ignition on.
With the scan tool, read the Engine Coolant Temperature Sensor 1 sig-
nal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes >> Replace the Engine Coolant Temperature Sensor 1 in
accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 10
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K222) ECT 2 SIGNAL CIRCUIT SHORTED TO GROUND
(K222) ECT 2 SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND
(K222) ECT 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
ertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K222) ECT 2 Signal circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 843
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K222) ECT 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K222) ECT 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K915) Sensor Ground circuit between
the Engine Coolant Temperature Sensor 2 harness connector and the
Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K915) Sensor Ground circuit for an open circuit
or high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 846 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Coolant Tem-
perature Sensor 2 and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 847
Possible Causes
INTERMITTENT DTC
BRAKE SWITCH AND ACCELERATOR PEDAL PRESSED AT THE SAME TIME
STOP LAMP SWITCH
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If a accelerator pedal assembly becomes mechanically stuck, the output voltage will stay fixed. If
this is followed by a long application of the brakes, this DTC will set.
NOTE: Diagnose any stop lamp switch or APPS DTCs before continuing with this test.
NOTE: This DTC will set if the PCM detects that the accelerator pedal and the brake switch are both pressed
for a specific amount of time.
With a scan tool, select View DTCs. Record the related Freeze Frame data.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 849
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K19) COIL 1 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K19) COIL 1 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K19) COIL 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K19) COIL 1 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K19) Coil 1 Control circuit and the
(K344) Fused Main Relay Output circuit in the Ignition Coil 1 harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K19) Coil 1 Control circuit for a short to the
(K344) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K19) Coil 1 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 1
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K19) Coil 1
Control circuit in the Ignition Coil 1 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 852 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 1 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 853
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K19) COIL 1 CONTROL CIRCUIT SHORTED TO GROUND
(K19) COIL 1 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 1
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K19) Coil 1 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 1
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K19) Coil 1
Control circuit in the Ignition Coil 1 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 856 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 1 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 857
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K17) COIL 2 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K17) COIL 2 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K17) COIL 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K17) COIL 2 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K17) Coil 2 Control circuit and the
(K344) Fused Main Relay Output circuit in the Ignition Coil 2 harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K17) Coil 2 Control circuit for a short to the
(K344) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K17) Coil 2 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 2
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K17) Coil 2
Control circuit in the Ignition Coil 2 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 860 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 2 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 861
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K17) COIL 2 CONTROL CIRCUIT SHORTED TO GROUND
(K17) COIL 2 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 2
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K17) Coil 2 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 2
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K17) Coil 2
Control circuit in the Ignition Coil 2 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 864 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 2 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 865
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K18) COIL 3 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K18) COIL 3 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K18) COIL 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K18) COIL 3 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K18) Coil 3 Control circuit and the
(K344) Fused Main Relay Output circuit in the Ignition Coil 3 harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K18) Coil 3 Control circuit for a short to the
(K344) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K18) Coil 3 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 3
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K18) Coil 3
Control circuit in the Ignition Coil 3 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 868 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 3 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 869
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K18) COIL 3 CONTROL CIRCUIT SHORTED TO GROUND
(K18) COIL 3 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 3
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K18) Coil 3 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 3
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K18) Coil 3
Control circuit in the Ignition Coil 3 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 872 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 3 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 873
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K15) COIL 4 CONTROL CIRCUIT SHORTED TO VOLTAGE
(K15) COIL 4 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
(K15) COIL 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K15) COIL 4 CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT CIRCUIT
Turn the ignition off.
Measure the resistance between the (K15) Coil 4 Control circuit and the
(K344) Fused Main Relay Output circuit in the Ignition Coil 4 harness
connector.
Is the resistance above 100 ohms?
Yes >> Go to 4
No >> Repair the (K15) Coil 4 Control circuit for a short to the
(K344) Fused Main Relay Output circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K15) Coil 4 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 4
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K15) Coil 4
Control circuit in the Ignition Coil 4 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 876 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 4 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 877
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K15) COIL 4 CONTROL CIRCUIT SHORTED TO GROUND
(K15) COIL 4 CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
IGNITION COIL 4
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
(PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes >> Go to 5
No >> Repair the (K15) Coil 4 Control circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
5. IGNITION COIL 4
WARNING: When the engine is operating, do not stand in direct
line with the fan. Do not put your hands near the pulleys, belts, or
fan. Do not wear loose clothing. Failure to follow these instruc-
tions can result in personal injury or death.
Connect the Powertrain Control Module (PCM) connector.
Using a 12 volt test light connected to 12 volts, check the (K15) Coil 4
Control circuit in the Ignition Coil 4 harness connector.
Crank the engine for 5 seconds.
NOTE: The test light should blink each time the circuit is activated
by the PCM.
Does the test light blink each time the circuit is activated by
9 - 880 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
the PCM?
Yes >> Replace the Ignition Coil 4 in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 881
cardiagn.com
Possible Causes
EXCESSIVE RESISTANCE IN THE B(+) CIRCUIT BETWEEN THE GENERATOR AND THE BATTERY
EXCESSIVE RESISTANCE BETWEEN THE GENERATOR CASE AND GROUND
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO VOLTAGE
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO GROUND
(K20) GEN FIELD CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(A804) GEN SENSE CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING).
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Inspect the vehicle for aftermarket accessories that may exceed the generator system output.
NOTE: Inspect the condition and tension of the generator belt before continuing.
NOTE: Inspect the battery before continuing.
Ignition on, engine not running.
With a scan tool, select View DTCs. Record DTC and Freeze Frame information
With a scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the voltage of the (K20) Gen Field Control circuit.
Is there any voltage present?
Yes >> Repair the (K20) Gen Field Control circuit for a short to volt-
age.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
7. (A804) GEN SENSE CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (A804) Gen Sense between the Gener-
ator harness connector and the Powertrain Control Module (PCM) har-
ness connector.
Is the resistance above 5.0 ohms?
Yes >> Go to 8
No >> Repair the (A804) Gen Sense circuit for an open circuit or
high resistance.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
8. GENERATOR
Turn the ignition off.
Connect the Powertrain Control Module (PCM) harness connector.
Turn the ignition on.
With a scan tool, actuate the Generator Field to toggle on and off.
Using a 12-volt test light connected to ground, check the (K20) Gen Field Control in the Generator harness con-
nector.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 885
NOTE: The test light should be illuminated and bright when toggled on. Compare the brightness to that of
a direct connection to the battery.
Does the test light toggle on and off correctly during the actuator test?
Yes >> Replace the Generator in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
cardiagn.com
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 886 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Possible Causes
EXCESSIVE RESISTANCE IN THE B(+) CIRCUIT BETWEEN THE GENERATOR AND THE BATTERY
EXCESSIVE RESISTANCE BETWEEN THE GENERATOR CASE AND GROUND
(A804) GEN SENSE CIRCUIT SHORTED TO VOLTAGE
(K20) GEN FIELD CONTROL CIRCUIT SHORTED TO VOLTAGE
GENERATOR
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
NOTE: Inspect the vehicle for aftermarket accessories that may exceed the Generator system output.
NOTE: Inspect the Generator harness connector and the Generator eyelet for corrosion or damage before
continuing.
NOTE: Inspect the condition and tension of the Generator belt before continuing.
NOTE: Inspect the battery before continuing.
Ignition on, engine not running.
With a scan tool, select View DTCs. Record DTC and Freeze Frame information
With a scan tool, clear DTCs.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the voltage of the (A804) Gen Sense circuit.
Is there any voltage present?
Yes >> Repair the (A804) Gen Sense circuit for a short to voltage.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
6. GENERATOR
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Turn the ignition off.
Connect the Generator harness connector.
Connect the Powertrain Control Module (PCM) harness connector.
NOTE: Make sure all test equipment and cables are clear of any belts, pulleys, or other moving parts.
Measure the voltage between the Generator Eyelet terminal and the (A804) Gen Sense circuit in the Generator
harness connector.
Start the engine and allow it to reach operating temperature.
Is the voltage above 0.1 volts?
Yes >> Replace the Generator in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Generator and the
Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 890 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
PENDING TEMPERATURE SENSOR DTCS
(F202) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR HIGH RESISTANCE
(A931) FUSED B+ CIRCUIT OPEN OR HIGH RESISTANCE
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Turn the ignition on.
NOTE: If any temperature sensor DTCs are present, allow the vehicle to cool completely before proceeding
with this test.
Start the engine and allow it to reach operating temperature.
With the scan tool, select View DTCs.
Are there any pending Engine Coolant Temperature sensor, Ambient Air Temperature sensor, or general
temperature DTCs?
Yes >> Diagnose and repair any temperature sensor DTCs and retest.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 2
cardiagn.com
9 - 892 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
U0001-CAN C BUS
For a complete wiring diagram Refer to Section 8W.
• When Monitored:
Ignition run time is greater than 1 second. Battery voltage between 9 and 16 volts. Engine run time greater
than 3 seconds.
• Set Condition:
The PCM loses communication over the CAN C Bus circuit. The circuit is continuously monitored.
Possible Causes
CAN C BUS OPEN OR SHORTED CONDITION
POWERTRAIN CONTROL MODULE (PCM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diagnostic
procedures and for further possible causes.
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 893
Possible Causes
CAN C BUS OPEN OR SHORTED CONDITION
POWERTRAIN CONTROL MODULE (PCM)
Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diagnostic
procedures and for further possible causes.
Diagnostic Test
1. ACTIVE DTC
cardiagn.com
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 894 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 895
Possible Causes
Diagnostic Test
1. ACTIVE DTC
cardiagn.com
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 896 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
1. ACTIVE DTC
cardiagn.com
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 897
Possible Causes
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 898 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 899
Possible Causes
Theory of Operation
The fuel level signal is a direct input to the Cluster. The fuel level signal is sent to the TIPM over the CAN B bus
circuit. The PCM receives the fuel level signal from the TIPM over the CAN C bus circuit.
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The ambient temperature sensor signal is a direct input to the TIPM. The TIPM sends the PCM the ambient tem-
perature signal over the CAN C bus.
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The fuel level signal is a direct input to the Cluster. The fuel level signal is sent to the TIPM over the CAN B bus
circuit. The PCM receives the fuel level signal from the TIPM over the CAN C bus circuit.
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The PCM receives the vehicle speed signal over the CAN C bus from the Anti-lock Brake Module.
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The A/C Pressure Transducer signal is a direct input to the TIPM. The TIPM sends the PCM the A/C pressure signal
over the CAN C bus.
cardiagn.com
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The PCM receives the vehicle speed signal over the CAN C bus from the Anti-lock Brake Module.
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The TIPM receives a fuel level signal over CAN B from the Cluster. The TIPM transmits the fuel level message to
cardiagn.com
the PCM over the CAN C bus.
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose all CAN B and C communication DTCs before continuing.
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
The Front Control Module isn’t receiving a fuel volume signal over CAN B from the Cluster Module. The TIPM has
cardiagn.com
to send the PCM a fuel volume signal over CAN C. The signal the TIPM sends over CAN C is implausible.
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Theory of Operation
cardiagn.com
The ABS Module sends vehicle speed information over the CAN C Bus circuit to the PCM.
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 909
Possible Causes
Theory of Operation
cardiagn.com
The ABS Module sends an implausible distance signal over the CAN C Bus circuit to the PCM.
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 911
Possible Causes
Theory of Operation
cardiagn.com
The ABS Module sends an implausible distance signal over the CAN C Bus circuit to the PCM.
Diagnostic Test
1. ACTIVE DTC
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red. Selecting
any of the network components allows access to the source of the problem.
Ignition on, engine not running.
With a scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 913
Diagnostic Test
1. NO RESPONSE
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red.
Does the scan tool display a Vehicle Network problem or NO RESPONSE condition?
Yes >> Refer to the appropriate BUS Communication test in Section 8 ELECTRONIC CONTROL MODULES -
ELECTRICAL DIAGNOSTICS.
No >> Go To 2
2. NO START
cardiagn.com
If no DTC(s) are present that relate to a no-start condition, refer to the Non DTC Diagnostic Procedures
that relate to Fuel and Starting.
No >> Go To 3
4. VEHICLE INSPECTION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
Based on the diagnostic condition that applies, review the following list and perform any tests that relate to the
condition:
If multiple DTCs are set in the PCM, review the wiring schematics for problems in any shared supply or ground
circuits. Refer to the diagnostic procedure for Checking the PCM Power and Ground Circuits.
Inspect the air intake system and related tubes for damage, restriction, or poor connection.
Inspect the exhaust system and related tubes for damage, restriction, or poor connection.
Remove and inspect the Air Filter for excessive dirt and debris which may cause an air flow restriction.
If the PCM detects and stores a DTC, the PCM also stores the environmental conditions under which the DTC was
set.
Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when
checking for an active DTC.
With the scan tool, Clear the stored DTC(s).
9 - 914 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Attempt to duplicate the environmental conditions under which the DTC was set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the vehicle conditions under which
the DTC conditions will be monitored. Operate the vehicle under those conditions.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the component and the
module.
If the DTC(s) are fuel or air related, check the fuel level and quality.
Were any repairs made that corrected the DTC or condition?
Yes >> Test complete.
Perform the PCM Verification Test Ver. 1.
No >> Refer to the diagnostic test procedure related to the DTC.
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 915
*INTERMITTENT DTC
For a complete wiring diagram Refer to Section 8W
Diagnostic Test
1. INTERMITTENT DTC
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
The conditions necessary to set this DTC are not present at this time.
Review the scan tool environmental data. If possible, try to duplicate the conditions under which the DTC set.
If applicable, actuate the component with the scan tool.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change, the actuation to be interrupted, or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins (TSBs) that may apply.
Turn the ignition off.
Visually inspect the related wire harness. Disconnect all the related harness connectors. Look for any chafed,
pierced, pinched, partially broken wires and broken, bent, pushed out, or corroded terminals.
cardiagn.com
Perform a voltage drop test on the related circuits between the suspected component and the PCM.
Inspect and clean all PCM, engine, and chassis grounds that are related to the most current DTC.
If numerous trouble codes were set, use a schematic and inspect any common ground or supply circuits.
For intermittent Misfire DTCs check for restrictions in the Intake and Exhaust system, proper installation of Sensors,
vacuum leaks, and binding components that are run by the accessory drive belt.
Use the scan tool to perform a System Test if one applies to the component.
A co-pilot, data recorder, and/or lab scope should be used to help diagnose intermittent conditions.
Were any problems found during the above inspections?
Yes >> Perform the necessary repairs.
Perform the PCM Verification Test Ver. 1.
No >> Test Complete.
9 - 916 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
cardiagn.com
the pump has excessive noise such as grinding, the pump should be replaced.
CAUTION: Stop All Actuations.
Does the Fuel Pump sound to be operate normally?
Yes >> Go to 2
No >> Go to 7
2. FUEL PRESSURE
Turn the ignition off.
WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Install a fuel pressure gauge.
Ignition on, engine not running.
With the scan tool, actuate the Fuel Pump and observe the fuel pressure gauge.
NOTE: Fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
CAUTION: Stop All Actuations.
Choose a conclusion that best matches your fuel pressure reading.
Below Specification
Go to 3
Within Specification
Test Complete.
Above Specification
Replace the Fuel Pump Module in accordance with the Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 917
cardiagn.com
Is the vehicle equipped with a saddle type fuel tank?
Yes >> Go to 5
No >> Go to 6
cardiagn.com
Does the test light illuminate brightly.
Yes >> Replace the Fuel Pump Module in accordance with the Ser-
vice information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the Fuel Pump Motor Ground circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 919
Possible Causes
NO START PRE-TEST
POWERTRAIN FUSES OPEN
SECONDARY INDICATORS PRESENT
ENGINE MECHANICAL PROBLEM
FUEL CONTAMINATION
Diagnostic Test
1. NO START PRE-TEST
NOTE: The following list of items must be checked before continuing with any no start tests.
The battery must be fully charged and in good condition. A low charged battery may produce invalid test results. If
the battery is low, charge the battery and then attempt to start the vehicle by cranking the engine for 15 seconds,
3 consecutive times. This will allow any DTCs to set that may have been erased due to a dead battery.
cardiagn.com
Attempt to communicate with the PCM using the scan tool. If the PCM is experiencing a no response condition,
refer to section 8 Electrical Electronic Control Module Electrical Diagnostics for the proper tests.
Read the PCM DTCs with the scan tool. If any DTCs are present, they must be repaired before continuing with any
other No Start diagnostic tests. Refer to the Table of Contents for the related P-code that is reported by the PCM.
Inspect all fuses in the TIPM and the Junction Box. If an open fuse(s) is found, check the related circuit(s) for a
short to ground or high resistance.
Using a test light, check the Powers and Ground to the PCM. The test light must illuminate brightly as if jumpered
across a battery.
Attempt to communicate with the Instrument Cluster and VTSS. If you are unable to establish communications refer
to 8 Electrical Electronic Control Module Electrical Diagnostics for the proper Diagnostic procedures.
The Sentry Key Immobilizer System must be operating properly. Check for proper communication with the scan tool
and check for DTCs that may be stored in the Sentry Key Immobilizer Module (SKREEM). Repair the DTC(s) before
continuing.
If no DTCs are found, using the scan tool, select Clear PCM (BATT Disconnect).
Crank the engine several times. Using the scan tool, read DTCs. If a DTC is present perform the DTC diagnostics
before continuing.
Were any problems found?
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 2
2. OPEN FUSE
Check for any open fuses in both TIPM or Junction Block that may be related to the no start condition.
NOTE: If an open fuse is found, inspect the related circuit(s) for a short to ground or high resistance.
Are any of the fuses open?
Yes >> Replace the open fuse and check the related circuit(s) for a short to ground.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
9 - 920 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
Yes >> Repair as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
Possible Causes
FUEL PUMP MODULE
FUEL INJECTOR(S)
Diagnostic Test
cardiagn.com
Start the engine and allow the fuel system to reach maximum pressure.
Turn the ignition off.
NOTE: Fuel specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi). If the fuel pressure is not within specifi-
cation refer to Checking The Fuel Delivery System.
Using special tool #C4390, Hose Clamp Pliers, pinch the rubber fuel line between the fuel pressure gauge and the
engine.
Monitor the fuel pressure gauge for a minimum of 5 minutes.
NOTE: The pressure should not fall below 241 KPa (35 psi)
Does the fuel pressure drop?
Yes >> Replace Fuel Pump Module.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 2
2. FUEL INJECTOR(S)
WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Remove special tool #C4390.
Start the engine and allow the fuel system to reach maximum pressure.
Turn the ignition off.
NOTE: NOTE: Fuel specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Using special tool #C4390, Hose Clamp Pliers, pinch the rubber fuel line between the fuel pressure gauge and fuel
pump module.
Monitor the fuel pressure gauge for a minimum of 5 minutes.
NOTE: The pressure should not fall below 241 KPa (35 psi)
Does the fuel pressure drop?
Yes >> Replace the leaking fuel injectors.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
9 - 922 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
FUEL CONTAMINATION
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP INLET STRAINER PLUGGED
FUEL PUMP MODULE
FAULTY FUEL PUMP MODULE
FUEL INJECTOR(S)
Diagnostic Test
cardiagn.com
these instructions can result in personal injury or death.
Install a fuel pressure gauge at the engine.
Ignition on, engine not running.
With a scan tool, actuate the Fuel Pump and observe the fuel pressure gauge.
NOTE: NOTE: Fuel pressure specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Choose a conclusion that best matches your fuel pressure reading.
Below Specification
Go to 2
Within Specification
Go to 4
cardiagn.com
WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Install special tool #6539 (5/169) or #6631 (3/89) fuel line adapter.
Install the fuel pressure gauge.
Start the engine and allow the fuel system to reach maximum pressure.
Turn the ignition off.
NOTE: Fuel specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Using special tool #C4390, Hose Clamp Pliers, pinch the rubber fuel line between the fuel pressure gauge and the
engine.
Monitor the fuel pressure gauge for a minimum of 5 minutes.
NOTE: The pressure should not fall below 241 KPa (35 psi).
Does the fuel pressure drop below 241 KPa (35 psi)?
Yes >> Replace Fuel Pump Module.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
5. FUEL INJECTOR(S)
WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Remove special tool #C4390.
Start the engine and allow the fuel system to reach maximum pressure.
Turn the ignition off.
NOTE: Fuel specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).
Using special tool #C4390, Hose Clamp Pliers, pinch the rubber fuel line between the fuel pressure gauge and fuel
pump module.
Monitor the fuel pressure gauge for a minimum of 5 minutes.
9 - 924 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
NOTE: The pressure should not fall below 241 KPa (35 psi)
Does the fuel pressure drop below 241 KPa (35 psi)?
Yes >> Replace the leaking fuel injectors.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Check the fuel for contaminants.
Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 925
Possible Causes
MECHANICAL CONDITION
BATTERY CIRCUIT RESISTANCE TOO HIGH
START ENABLE CIRCUITS
TRANSMISSION RANGE SENSOR
FUSED IGNITION SWITCH OUT (START)
CLUTCH INTERLOCK SWITCH SIGNAL CIRCUIT
CLUTCH INTERLOCK SWITCH GROUND CIRCUIT
CLUTCH INTERLOCK SWITCH
STARTER
Diagnostic Test
1. MECHANICAL CONDITION
cardiagn.com
NOTE: Check and diagnose all the TIPM DTC(s) before continuing.
NOTE: Ensure the Gear selector is in Park or Neutral.
NOTE: Verify the battery is fully charged and capable of passing a load test before continuing.
WARNING: Make sure the battery is disconnected, then wait two minutes before proceeding. Failure to do
so may result in personal injury or possible death.
Turn the engine over by hand to make sure the engine is not seized.
Is the engine able to turn over?
Yes >> Go to 2
No >> Repair the mechanical condition preventing the starter motor from cranking.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
3. MANUAL TRANSMISSION
cardiagn.com
tion.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
cardiagn.com
8. START ENABLE OPERATION (MTX)
Turn ignition on.
Using a scan tool, monitor the Ignition Start Switch Sense.
Turn the ignition switch to the crank position.
Does the Ignition Start Switch Sense state change from Low to High?
Yes >> Go to 10
No >> Go to 9
cardiagn.com
Yes >> Replace the PCM in accordance with the Service informa-
tion.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 12
cardiagn.com
9 - 930 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
Possible Causes
Diagnostic Test
cardiagn.com
1. (A931) FUSED B+ CIRCUIT (PCM)
NOTE: The scan tool and cable must be operating properly for the
results of this test to be valid.
NOTE: Make sure the ignition switch was on while trying to com-
municate with the PCM.
Turn the ignition off.
Disconnect the C1 PCM harness connectors.
Using a 12-volt test light connected to ground, probe the (A931) Fused
B+ circuit in the PCM harness connector.
NOTE: The test light should be illuminated and bright. Compared
the brightness to that of a direct connection to the battery.
Does the test light illuminate brightly?
Yes >> Go to 2
No >> Repair the open or short to ground in the (A931) Fused B+
circuit. Inspect and replace fuses as necessary.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 931
cardiagn.com
Turn the ignition off.
Using a 12-volt test light connected to battery voltage, probe both the
(Z925) PCM ground circuits
NOTE: The test light should be illuminated and bright. Compared
the brightness to that of a direct connection to the battery.
Does the test light illuminate brightly at both terminals?
Yes >> Go to 4
No >> Repair the Ground circuit(s).
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 932 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
5. (A935) FUSED B+ CIRCUIT (MAIN RELAY)
Using a 12-volt test light connected to ground, probe the (A935) Fused
B+ circuit at the Main Relay terminal.
NOTE: The test light should be illuminated and bright. Compared
the brightness to that of a direct connection to the battery.
Does the test light illuminate brightly?
Yes >> Go to 6
No >> Repair the (A935) Fused B+ circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 933
cardiagn.com
7. (K542) MAIN RELAY OUTPUT CIRCUIT
Jumper wire still installed.
Disconnect the C8 TIPM harness connector.
Using a 12-volt test light connected to ground, probe the (K542) Main
Relay Output circuit in the TIPM harness connector.
NOTE: The test light should be illuminated and bright. Compared
the brightness to that of a direct connection to the battery.
Does the test light illuminate brightly?
Yes >> Repair the (K542) Main Relay Output circuit between the
TIPM and the Main Relay. Inspect the related fuses.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (F342) Main Relay Output circuit(s).
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9. MAIN RELAY
NOTE: To continue the following test, leave the jumper wire in
place with the ignition on.
Using the scan tool, actuate the Main Relay.
Using a 12-volt test light connected to battery voltage, probe the (K51)
Main Relay Control circuit in the Main Relay connector.
Does the test light illuminate and flash on and off?
Yes >> Replace the Main Relay.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 10
cardiagn.com
10. (K51) MAIN RELAY CONTROL CIRCUIT
Turn the ignition off.
Disconnect the PCM harness connector.
Disconnect the C1 PCM harness connector.
Measure the resistance of the (K51) Main Relay Control circuit between
the PCM harness connector and the Main relay connector.
Is the resistance below 5.0 ohms?
Yes >> Repair the open in the (K51) Main Relay Control circuit.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Replace and program the Powertrain Control Module per
Service Information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 935
cardiagn.com
12. (D64) CAN C BUS (-) CIRCUIT OPEN
Measure the resistance of the (D64) CAN C Bus (-) circuit between the
TIPM connector and the PCM harness connector.
Is the resistance below 5.0 ohms?
Yes >> Replace and program the Powertrain Control Module in
accordance with the service information.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (D64) CAN C Bus (-) circuit for an open.
Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 936 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
VERIFICATION TEST
For a complete wiring diagram Refer to Section 8W.
Diagnostic Test
Select the verification test for the repair that has been completed:
Speed Control repair
Go To 2
Charging System repair
Go To 3
No Start repair
Go To 4
All other repairs
Go To 5
cardiagn.com
reconnect components as necessary.
2. With the scan tool, erase all diagnostic trouble codes (DTCs).
3. Road test the vehicle at a speed above 60 km/h (35 MPH).
4. Press the Cruise On/Off switch to turn the speed control on.
5. Move the speed control switch to the Set/Decel position. If the speed control does not engage, the repair is not
complete, continue with step 12.
6. Move the speed control switch to the Resume/Accel position. If the vehicle speed does not increase by 3 km/h
(2 MPH), the repair is not complete, continue with step 12.
7. Using caution, press and release the brake pedal. If the speed control does not disengage, the repair is not
complete, continue with step 12.
8. With the vehicle speed at least 60 km/h (35 MPH), move the speed control switch to the Resume/Accel position.
If the speed control does not resume at the previously set speed, the repair is not complete, continue with step 12.
9. Move the speed control switch to the Set/Decel position. If the vehicle does not decelerate, the repair is not
complete, continue with step 12.
10. Hold the speed control switch in the Set/Decel position and release the switch with the vehicle speed above 60
km/h (35 MPH). If the vehicle speed does not adjust and set a new vehicle speed, the repair is not complete,
continue with step 12.
11. With the speed control engaged, press the Cruise On/Off switch. If the speed control does not disengage, the
repair is not complete, continue with step 12.
12. If the vehicle did not successfully perform all of the previous steps, check for Technical Service Bulletins (TSBs)
that pertain to this speed control problem and then, if necessary, return to the Symptom List.
13. If the vehicle successfully performed all of the previous steps, the speed control system is now functioning as
designed. The repair is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - GPEC 9 - 937
4.
cardiagn.com
NO START VERIFICATION TEST
NOTE: IMPORTANT! If the Powertrain Control Module or Sentry Key Immobilizer Module has been replaced,
verify the programming procedure for the module has been performed in accordance with the Service Infor-
mation.
2. Inspect the vehicle to verify that all engine components are properly installed and connected. Reassemble and
reconnect components as necessary.
3. Inspect the engine oil for contamination. If it is contaminated, change the oil and filter.
4. With the scan tool, erase all diagnostic trouble codes (DTCs).
5. Turn the ignition off for at least 10 seconds.
6. Attempt to start the engine.
7. If the engine will not start, refer to any Technical Service Bulletins (TSBs) that may relate to this condition. Return
to the Symptom List if necessary.
8. If the engine starts and continues to run, the repair is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
9 - 938 ENGINE ELECTRICAL DIAGNOSTICS - GPEC PM
cardiagn.com
condition, drive the vehicle for at least 5 minutes with the A/C on.
12. At some point, stop the vehicle and turn the engine off for at least 10 seconds, then restart the engine and
continue.
13. Upon completion of the road test, turn the engine off and check for DTCs with the scan tool.
14. If the repaired DTC has set again, the repair is not complete. Check for any pertinent Technical Service Bulletins
(TSBs) and return to the Symptom List. If there are no DTCs, the repair was successful and is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 939
TABLE OF CONTENTS
page page
cardiagn.com
SIGNAL VOLTAGE TOO LOW . . . . . . . . . . . . . . 963 P0335-CRANKSHAFT POSITION SENSOR
P0073-AMBIENT AIR TEMPERATURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1076
SIGNAL VOLTAGE TOO HIGH. . . . . . . . . . . . . . 966 P0339-CRANKSHAFT POSITION SENSOR
P0101-MASS AIR FLOW SENSOR INTERMITTENT . . . . . . . . . . . . . . . . . . . . . . . . . 1084
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 969 P0340-CAMSHAFT POSITION SENSOR
P0102-MASS AIR FLOW SENSOR CIRCUIT CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1092
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 975 P0344-CAMSHAFT POSITION SENSOR
P0103-MASS AIR FLOW SENSOR CIRCUIT INTERMITTENT — BANK 1 SENSOR 1 . . . . 1100
HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 980 P0383-GLOW PLUG CONTROL MODULE
P0112-INTAKE AIR TEMPERATURE CONTROL CIRCUIT LOW. . . . . . . . . . . . . . . . . 1108
SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . . . . 984 P0401- EGR SYSTEM PERFORMANCE . . . . . 1111
P0113-INTAKE AIR TEMPERATURE P0402- EGR EXCESSIVE FLOW DETECTED . . 1112
SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . . . 987 P0403-EGR SOLENOID CIRCUIT OPEN . . . . . 1113
P0117-ENGINE COOLANT TEMPERATURE P0480-COOLING FAN 1 CONTROL CIRCUIT . 1117
SENSOR CIRCUIT LOW . . . . . . . . . . . . . . . . . . . 992 P0481-COOLING FAN 2 CONTROL CIRCUIT . 1121
P0118-ENGINE COOLANT TEMPERATURE P0487-EGR AIRFLOW THROTTLE
SENSOR CIRCUIT HIGH . . . . . . . . . . . . . . . . . . 995 CONTROL CIRCUIT A OPEN. . . . . . . . . . . . . . 1125
P0128-THERMOSTAT RATIONALITY . . . . . . . . 1000 P0488-EGR AIRFLOW THROTTLE
P0181–FUEL TEMPERATURE SENSOR CONTROL CIRCUIT PERFORMANCE. . . . . . 1130
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . 1001 P0489-EGR CONTROL CIRCUIT LOW . . . . . . 1135
P0182-FUEL TEMPERATURE SENSOR P0490-EGR CONTROL CIRCUIT HIGH . . . . . . 1139
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . 1004 P0501–VEHICLE SPEED SENSOR #1
P0183-FUEL TEMPERATURE SENSOR PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . 1143
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . 1007 P0504-BRAKE SWITCH SIGNAL CIRCUITS
P0201-FUEL INJECTOR 1 CIRCUIT / OPEN . 1012 PLAUSIBILITY WITH REDUNDANT
P0202-FUEL INJECTOR 2 CIRCUIT / OPEN . 1017 CONTACT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1145
P0203-FUEL INJECTOR 3 CIRCUIT / OPEN . 1022 P0513-INVALID SKIM KEY . . . . . . . . . . . . . . . . . 1151
P0204-FUEL INJECTOR 4 CIRCUIT / OPEN . 1027 P0521-ENGINE OIL PRESSURE SENSOR
P0234-TURBOCHARGER OVERBOOST PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . 1153
CONDITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1032 P0524- ENGINE OIL PRESSURE IS TOO
P0236-BOOST PRESSURE SENSOR LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1157
PERFORMANCE. . . . . . . . . . . . . . . . . . . . . . . . . 1035 P0562-ECM VOLTAGE TOO LOW . . . . . . . . . . 1161
P0237-TURBO BOOST PRESSURE SENSOR P0563-ECM VOLTAGE TOO HIGH . . . . . . . . . . 1164
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . 1039 P0573 BRAKE SWITCH 1 STUCK OFF . . . . . . 1167
P0238-TURBO BOOST PRESSURE SENSOR P0574–CRUISE CONTROL SYSTEM-
CIRCUIT HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . 1045 VEHICLE SPEED TOO HIGH. . . . . . . . . . . . . . 1173
P0263-CYLINDER 1 CONTRIBUTION/ P0578-SPEED CONTROL SWITCH 1 STUCK . . 1174
BALANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1050
9 - 940 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
P0616-STARTER CONTROL CIRCUIT LOW . 1233 SENSOR 2 CIRCUIT HIGH . . . . . . . . . . . . . . . 1355
P0617-STARTER CONTROL CIRCUIT HIGH . 1236 P2138-ACCELERATOR PEDAL POSITION
P0621-GENERATOR LAMP/L-TERMINAL SENSOR 1 / 2 CORRELATION . . . . . . . . . . . . 1360
CONTROL CIRCUIT OPEN . . . . . . . . . . . . . . . 1239 P2141-EGR AIRFLOW THROTTLE
P0627-FUEL PUMP CONTROL CIRCUIT CONTROL CIRCUIT A LOW. . . . . . . . . . . . . . . 1363
OPEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1242 P2142-EGR AIRFLOW THROTTLE
P0628-FUEL PUMP CONTROL CIRCUIT CONTROL CIRCUIT A HIGH . . . . . . . . . . . . . . 1367
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1245 P2147-FUEL INJECTOR GROUP 1 SUPPLY
P0629-FUEL PUMP CONTROL CIRCUIT VOLTAGE CIRCUIT LOW . . . . . . . . . . . . . . . . . 1372
HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1248 P2148-FUEL INJECTOR GROUP 1 SUPPLY
P062F — INTERNAL CONTROL MODULE VOLTAGE CIRCUIT HIGH. . . . . . . . . . . . . . . . . 1376
EEPROM ERROR. . . . . . . . . . . . . . . . . . . . . . . . 1251 P2425-EGR COOLING VALVE CONTROL
P0642-SENSOR REFERENCE VOLTAGE 1 CIRCUIT OPEN. . . . . . . . . . . . . . . . . . . . . . . . . . 1379
CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . 1252 P2426-EGR COOLING VALVE CONTROL
P0643-SENSOR REFERENCE VOLTAGE 1 CIRCUIT LOW . . . . . . . . . . . . . . . . . . . . . . . . . . . 1383
TOO HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1256 P2427-EGR EGR COOLING VALVE
P0645-A/C CLUTCH CONTROL CIRCUIT CONTROL CIRCUIT HIGH . . . . . . . . . . . . . . . . 1387
OPEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1259 P2500-GENERATOR LAMP/L-TERMINAL
P0646-A/C CLUTCH CONTROL CIRCUIT CONTROL CIRCUIT LOW . . . . . . . . . . . . . . . . 1390
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1262 P2501-GENERATOR LAMP/L-TERMINAL
P0647-A/C CLUTCH CONTROL CIRCUIT CONTROL CIRCUIT HIGH . . . . . . . . . . . . . . . . 1393
HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1265 P2533-IGNITION SWITCH RUN/START
P0652-SENSOR REFERENCE VOLTAGE 2 POSITION CIRCUIT . . . . . . . . . . . . . . . . . . . . . . 1396
TOO LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1268 P2534-IGNITION SWITCH RUN/START
P0653-SENSOR REFERENCE VOLTAGE 2 POSITION CIRCUIT LOW. . . . . . . . . . . . . . . . . 1398
TOO HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1272 P2535-IGNITION SWITCH RUN/START
P065A- GENERATOR PERFORMANCE . . . . . 1276 POSITION CIRCUIT HIGH . . . . . . . . . . . . . . . . 1400
P066A-CYLINDER 1 GLOW PLUG CIRCUIT B10B3 - CABIN HEATER 1 CONTROL
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1279 CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1402
P066C-CYLINDER 2 GLOW PLUG CIRCUIT B10B7 - CABIN HEATER 2 CONTROL
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1283 CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1403
P066E-CYLINDER 3 GLOW PLUG CIRCUIT B1C32- AIRBAG DEPLOYMENT DETECTED . 1404
LOW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1287 B2189-IGNITION START CONTROL CIRCUIT
P0383-GLOW PLUG CONTROL MODULE HIGH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1405
CONTROL CIRCUIT LOW . . . . . . . . . . . . . . . . 1291 U0002–CAN C BUS OFF PERFORMANCE . . 1406
P0671-CYLINDER 1 GLOW PLUG CIRCUIT . 1294 U0121-LOST COMMUNICATION WITH
P0672-CYLINDER 2 GLOW PLUG CIRCUIT . 1298 ANTI-LOCK BRAKE MODULE . . . . . . . . . . . . . 1407
P0673-CYLINDER 3 GLOW PLUG CIRCUIT . 1302 U0141-LOST COMMUNICATION WITH
P0674-CYLINDER 4 GLOW PLUG CIRCUIT . 1306 FRONT CONTROL MODULE (TIPM) . . . . . . . 1408
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 941
cardiagn.com
9 - 942 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 943
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. ACTIVE DTC
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool clear the DTC(s).
Start the engine and run until operating temp is reached.
If the DTC does not reset it may be necessary to test drive the vehicle.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair or replace the Tone Wheel/Pulse Ring as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
cardiagn.com
Turn the ignition off.
Visually inspect the related wire harness. Look for any chafed, pierced, pinched, or partially broken wires.
Visually inspect the related wire harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Make sure the Crankshaft Position Sensor and the Camshaft Position Sensor are properly installed and the mount-
ing bolt(s) are torqued to their proper specification.
Refer to any TSBs that may apply.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 9
cardiagn.com
9 - 948 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K137) BOOST PRESSURE CONTROL CIRCUIT SHORTED TO GROUND
(K137) BOOST PRESSURE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Boost Pressure at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the resistance of the (K137) Boost Pressure Control circuit
between the Valve Block Assembly harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K137) Boost Pressure Control circuit for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 952 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K137) BOOST PRESSURE CONTROL CIRCUIT SHORTED TO GROUND
(K137) BOOST PRESSURE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Boost Pressure at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Measure the resistance of the (K137) Boost Pressure Control circuit
between the Valve Block Assembly harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K137) Boost Pressure Control circuit for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 956 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K137) BOOST PRESSURE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K137) BOOST PRESSURE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Boost Pressure at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. VALVE BLOCK ASSEMBLY
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, actuate the Boost Pressure (Boost Pressure Actuator) to 100%.
Using a 12 volt test light connected to 12 volts, check the (K137) Boost Pressure Control circuit in the Valve Block
Assembly harness connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
NOTE: The circuit will remain actuated by the controller for 30 seconds. Be certain the actuation is active
when checking the circuit.
Is the test light illuminated and bright with the actuation at 100%?
Yes >> Replace the Valve Block Assembly in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase TIPM DTCs.
Turn the ignition off for 10 seconds.
Turn the ignition on.
Monitor the scan tool for TIPM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (G31) AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Measure the resistance between ground and the (G31) Ambient Air
Temperature Sensor Signal circuit at the AAT Sensor harness connec-
tor.
Is the resistance above 1000 ohms?
Yes >> Go To 5
No >> Repair the (G31) Ambient Air Temperature Sensor Signal
circuit for a short to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 962 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Turn the ignition off.
Disconnect the TIPM harness connectors.
Measure the resistance of the (G931) Ambient Air Temp Sensor Ground
circuit between the TIPM harness connector and the Ambient Air Tem-
perature Sensor harness connector.
Is the resistance below 10.0 ohms?
Yes >> Replace and program the Totally Integrated Power Module
in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the (G931) Ambient Air Temperature Sensor Ground
circuit for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 963
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase TIPM DTCs.
Monitor the scan tool for TIPM DTCs for at least 2 minutes.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (G31) AMBIENT AIR TEMP SENSOR SIGNAL CIRCUIT SHORTED TO (G931) SENSOR GROUND
cardiagn.com
Turn the ignition off.
Measure the resistance between the (G31) Ambient Air Temperature
Sensor Signal circuit and the (G931) Sensor Ground circuit.
Is the resistance above 1000 ohms?
Yes >> Replace and program the TIPM in accordance with the Ser-
vice Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the (G31) Ambient Air Temperature Sensor Signal
circuit for a short to the (G931) Sensor Ground circuit.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 966 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase TIPM DTCs.
Turn the ignition off for 10 seconds.
Turn the ignition on.
Monitor the scan tool for TIPM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Does the scan tool display P0070 AMB TEMP. SENSOR CIR-
CUIT SIGNAL VOLTAGE TOO LOW?
Yes >> Replace the Ambient Air Temperature Sensor.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K957) MASS AIR FLOW SENSOR
GROUND CIRCUIT
MASS AIR FLOW SENSOR
ENGINE CONTROL MODULE (ECM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Using a 12 volt test light connected to ground, check the (K344) Fused
Main Relay Output circuit in the Mass Air Flow Sensor harness connec-
tor.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Go to 5
No >> Repair the (K344) Fused Main Relay Output circuit for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 972 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
5. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K157) Mass Air Flow Sensor Signal cir-
cuit between the Mass Air Flow Sensor harness connector and the
Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 6
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
6. (K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K957) Mass Air Flow Sensor Ground cir-
cuit between the Mass Air Flow Sensor harness connector and the
Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 7
No >> Repair the (K957) Mass Air Flow Sensor Ground circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 973
8. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K957) MASS AIR FLOW
cardiagn.com
SENSOR GROUND CIRCUIT
Measure the resistance between the (K157) Mass Air Flow Sensor Sig-
nal circuit and the (K957) Mass Air Flow Sensor Ground circuit in the
Mass Air Flow Sensor harness connector.
Is the resistance above 10.0 ohms?
Yes >> Go to 9
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for a
short to the (K957) Mass Air Flow Sensor Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 975
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(F855) MASS AIR FLOW SENSOR 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K957) MASS AIR FLOW SENSOR
GROUND CIRCUIT
MASS AIR FLOW SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 977
2. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the Mass Air Flow Sensor harness connector.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (K157) Mass Air Flow Sensor Signal cir-
cuit between the Mass Air Flow Sensor connector and the Engine Con-
trol Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 3
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
3. (K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K957) Mass Air Flow Sensor Ground cir-
cuit between the Mass Air Flow Sensor harness connector and the
Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 4
No >> Repair the (K957) Mass Air Flow Sensor Ground circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 978 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
4. (F855) MASS AIR FLOW SENSOR 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (F855) Mass Air Flow Sensor 5 Volt Sup-
ply circuit between the Mass Air Flow Sensor harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (F855) Mass Air Flow Sensor 5 Volt Supply cir-
cuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
5. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K157) Mass Air Flow
Sensor Signal circuit in the Mass Air Flow Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 6
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 979
6. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K957) MASS AIR FLOW
SENSOR GROUND CIRCUIT
Measure the resistance between the (K157) Mass Air Flow Sensor Sig-
nal circuit and the (K957) Mass Air Flow Sensor Ground circuit in the
Mass Air Flow Sensor harness connector.
Is the resistance above 1000.0 ohms?
Yes >> Go to 7
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for a
short to the (K957) Mass Air Flow Sensor Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. MASS AIR FLOW SENSOR
Turn the ignition off.
Connect the Engine Control Module (ECM) connector.
Replace the Mass Air Flow Sensor in accordance with the Service Information.
Turn the ignition on.
With the scan tool, Clear DTCs.
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 8
No >> Test Complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
MASS AIR FLOW SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.
4. (K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (K157) Mass Air Flow Sensor Signal cir-
cuit between the Mass Air Flow Sensor connector and the Engine Con-
trol Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K157) Mass Air Flow Sensor Signal circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 983
5. (K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K957) Mass Air Flow Sensor Ground cir-
cuit between the Mass Air Flow Sensor connector and the Engine Con-
trol Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 6
No >> Repair the (K957) Mass Air Flow Sensor Ground circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
6. MASS AIR FLOW SENSOR
Turn the ignition off.
Connect the Engine Control Module (ECM) connector.
Replace the Mass Air Flow Sensor in accordance with the Service Information.
Turn the ignition on.
With the scan tool, Clear DTCs.
Start the engine and allow it to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 7
No >> Test Complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K48) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K48) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K656) INTAKE AIR
TEMPERATURE SENSOR GROUND
INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K48) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K656) INTAKE AIR
TEMPERATURE SENSOR GROUND CIRCUIT
Measure the resistance between the (K48) Intake Air Temperature Sen-
sor Signal circuit and the (K656) Intake Air Temperature Sensor Ground
circuit in the Intake Air Temperature/Boost Pressure Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Go to 4
No >> Repair the (K48) Intake Air Temperature Sensor Signal cir-
cuit for a short to the (K656) Intake Air Temperature Sensor
Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
4. INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
Turn the ignition off.
Connect the Engine Control Module (ECM) connector.
Turn the ignition on.
With the scan tool, clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Intake Air Temperature Sensor high voltage or open circuit DTC with
the Intake Air Temperature Sensor connector disconnected.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Intake Air Temperature/Boost Pressure Sensor in accordance with the service information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K48) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K656) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K48) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K656) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
INTAKE AIR TEMPERATURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K656) Intake Air Temperature Sen-
sor Ground circuit and the (K48) Intake Air Temperature Sensor Signal
circuit in the Intake Air Temperature/Boost Pressure Sensor harness
connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Intake Air Temperature
Sensor low voltage or short to ground DTC with the jumper wire in
place.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Intake Air Temperature/Boost Pressure Sensor
in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
9 - 990 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. (K656) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K656) Intake Air Temperature Sensor
Ground circuit between the Intake Air Temperature/Boost Pressure Sen-
sor harness connector and the Engine Control Module (ECM) harness
connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 7
No >> Repair the (K656) Intake Air Temperature Sensor Ground
circuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 991
cardiagn.com
9 - 992 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K915) ENGINE COOLANT
TEMPERATURE SENSOR GROUND CIRCUIT
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K915) ENGINE
COOLANT TEMPERATURE SENSOR GROUND CIRCUIT
Measure the resistance between the (K2) Engine Coolant Temperature
Sensor Signal circuit and the (K915) Engine Coolant Temperature Sen-
sor Ground circuit in the Engine Coolant Temperature Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Go to 4
No >> Repair the (K2) Engine Coolant Temperature Sensor Signal
circuit for a short to the (K915) Engine Coolant Temperature
Sensor Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
4. ENGINE COOLANT TEMPERATURE SENSOR
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Engine Coolant Temperature Sensor high voltage or open circuit
DTC with the connector disconnected.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Engine Coolant Temperature Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K915) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K915) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
NOTE: Remove the jumper wire.
Turn the ignition off.
Connect the Engine Control Module (ECM) connector.
Connect a jumper wire between the (K915) Engine Coolant Tempera-
ture Sensor Ground circuit and the (K2) Engine Coolant Temperature
Sensor Signal circuit in the Engine Coolant Temperature Sensor har-
ness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Engine Coolant Tempera-
ture Sensor low voltage or short to ground DTC with the jumper
wire in place.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Engine Coolant Temperature Sensor in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
9 - 998 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. (K915) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K915) Engine Coolant Temperature Sen-
sor Ground circuit between the Engine Coolant Temperature Sensor
harness connector and the Engine Control Module (ECM) harness con-
nector.
Is the resistance below 10.0 ohms?
Yes >> Go to 7
No >> Repair the (K915) Engine Coolant Temperature Sensor
Ground circuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 999
cardiagn.com
9 - 1000 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
P0128-THERMOSTAT RATIONALITY
For a complete wiring diagram Refer to Section 8W
• When Monitored:
Engine temperature is at or below 19.9°C. With the engine running and no other ECT Sensor related DTC’s
present.
• Set Condition:
Engine temperature does not increase by 10°C within 5 minutes.
Possible Causes
Diagnostic Test
cardiagn.com
Start the engine.
With the scan tool, set the engine RPM to 1500 and allow the engine to warm up for 10-15 minutes.
With the scan tool, monitor the Engine Coolant Temperature value during the warm up cycle. Make sure the tran-
sition of temperature change is smooth.
Did the engine temperature reach a minimum of 80° C (176° F)?
Yes >> Test Complete.
No >> Refer to the Service Information for cooling system performance diagnosis. The most probable cause is
a Thermostat problem. Also, refer to any related TSBs.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1001
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
No >> Go To 2
cardiagn.com
9 - 1004 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K156) FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K156) FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K900) FUEL TEMPERATURE
SENSOR GROUND
FUEL TEMPERATURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. (K156) FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO (K900) FUEL TEMPERATURE
cardiagn.com
SENSOR GROUND CIRCUIT
Measure the resistance between the (K156) Fuel Temperature Sensor
Signal circuit and the (K900) Fuel Temperature Sensor Ground circuit in
the Fuel Temperature Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K156) Fuel Temperature Sensor Signal circuit
for a short to the (K900) Fuel Temperature Sensor Ground
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K156) FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K900) FUEL TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K156) FUEL TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K900) FUEL TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
FUEL TEMPERATURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
NOTE: Remove the jumper wire.
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K900) Fuel Temperature Sensor
Ground circuit and the (K156) Fuel Temperature Sensor Signal circuit in
the Fuel Temperature Sensor harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display a Fuel Temperature Sensor
Low voltage or short to ground DTC with the jumper wire in place.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Fuel Temperature Sensor in accordance with
the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
9 - 1010 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. (K900) FUEL TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K900) Fuel Temperature Sensor Ground
circuit between the Fuel Temperature Sensor harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 7
No >> Repair the (K900) Fuel Temperature Sensor Ground circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1011
cardiagn.com
9 - 1012 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K663) FUEL INJECTOR 1 HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K611) FUEL INJECTOR 1 LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K663) FUEL INJECTOR 1 HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K611) FUEL INJECTOR 1 LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K663) FUEL INJECTOR 1 HIGH-SIDE CONTROL CIRCUIT SHORTED TO (K611) FUEL INJECTOR 1 LOW-
SIDE CONTROL CIRCUIT
(K663) FUEL INJECTOR 1 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K611) FUEL INJECTOR 1 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 1
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module.
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the jumper wire in the Main Relay Connector.
Measure the resistance between ground and the (K663) Fuel Injector
High-Side Common circuit in the Fuel Injector 1 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT SHORTED TO (K611) FUEL INJECTOR 1
LOW-SIDE CONTROL CIRCUIT
Measure the resistance between the (K663) Fuel Injector High-Side
Common circuit and the (K611) Fuel Injector 1 Low-Side Control circuit
in the Fuel Injector 1 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 7
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to the (K611) Fuel Injector 1 Low-Side Control
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K663) Fuel Injector High-Side Common
circuit between the Fuel Injector 1 harness connector and the Engine
Control Module harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1016 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1017
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K663) FUEL INJECTOR 2 HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K612) FUEL INJECTOR 2 LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K663) FUEL INJECTOR 2 HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K612) FUEL INJECTOR 2 LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K663) FUEL INJECTOR 2 HIGH-SIDE CONTROL CIRCUIT SHORTED TO (K612) FUEL INJECTOR 2 LOW-
SIDE CONTROL CIRCUIT
(K663) FUEL INJECTOR 2 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K612) FUEL INJECTOR 2 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 2
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module.
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the jumper wire in the Main Relay Connector.
Measure the resistance between ground and the (K663) Fuel Injector
High-Side Common circuit in the Fuel Injector 2 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT SHORTED TO (K612) FUEL INJECTOR 2
LOW-SIDE CONTROL CIRCUIT
Measure the resistance between the (K663) Fuel Injector High-Side
Common circuit and the (K612) Fuel Injector 2 Low-Side Control circuit
in the Fuel Injector 2 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 7
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to the (K612) Fuel Injector 2 Low-Side Control
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K663) Fuel Injector High-Side Common
circuit between the Fuel Injector 2 harness connector and the Engine
Control Module harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1021
cardiagn.com
9 - 1022 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K663) FUEL INJECTOR 3 HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K613) FUEL INJECTOR 3 LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K663) FUEL INJECTOR 3 HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K613) FUEL INJECTOR 3 LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K663) FUEL INJECTOR 3 HIGH-SIDE CONTROL CIRCUIT SHORTED TO (K613) FUEL INJECTOR 3 LOW-
SIDE CONTROL CIRCUIT
(K663) FUEL INJECTOR 3 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K613) FUEL INJECTOR 3 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 3
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module.
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the jumper wire in the Main Relay Connector.
Measure the resistance between ground and the (K663) Fuel Injector
High-Side Common circuit in the Fuel Injector 3 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT SHORTED TO (K613) FUEL INJECTOR 3
LOW-SIDE CONTROL CIRCUIT
Measure the resistance between the (K663) Fuel Injector High-Side
Common circuit and the (K613) Fuel Injector 3 Low-Side Control circuit
in the Fuel Injector 3 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 7
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to the (K613) Fuel Injector 3 Low-Side Control
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K663) Fuel Injector High-Side Common
circuit between the Fuel Injector 3 harness connector and the Engine
Control Module harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1026 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1027
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K663) FUEL INJECTOR 4 HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K614) FUEL INJECTOR 4 LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K663) FUEL INJECTOR 4 HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K614) FUEL INJECTOR 4 LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND
(K663) FUEL INJECTOR 4 HIGH-SIDE CONTROL CIRCUIT SHORTED TO (K614) FUEL INJECTOR 4 LOW-
SIDE CONTROL CIRCUIT
(K663) FUEL INJECTOR 4 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K614) FUEL INJECTOR 4 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR 4
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
cardiagn.com
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module.
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Remove the jumper wire in the Main Relay Connector.
Measure the resistance between ground and the (K663) Fuel Injector
High-Side Common circuit in the Fuel Injector 4 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT SHORTED TO (K614) FUEL INJECTOR 4
LOW-SIDE CONTROL CIRCUIT
Measure the resistance between the (K663) Fuel Injector High-Side
Common circuit and the (K614) Fuel Injector 4 Low-Side Control circuit
in the Fuel Injector 4 harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 7
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for a short to the (K614) Fuel Injector 4 Low-Side Control
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. (K663) FUEL INJECTOR HIGH-SIDE COMMON CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K663) Fuel Injector High-Side Common
circuit between the Fuel Injector 4 harness connector and the Engine
Control Module harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (K663) Fuel Injector High-Side Common circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1031
cardiagn.com
9 - 1032 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
INTAKE AIR RESTRICTION
INTAKE AIR LEAK
VACUUM HOSES/TUBES
BOOST PRESSURE ACTUATOR
TURBOCHARGER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
Turn the ignition on.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1035
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Turn the ignition off, wait 30 seconds, then start and idle the engine for at least 30 seconds.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1037
cardiagn.com
3. (K656) BOOST PRESSURE SENSOR GROUND CIRCUIT OPEN
Measure the resistance of the (K656) Boost Pressure Sensor Ground
circuit between the Intake Air Temp/Boost Pressure Sensor harness
connector and the ECM harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the Boost Pressure Sensor Ground circuit for an
open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 1038 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
5. INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
Replace the Intake Air Temperature/Boost Pressure Sensor.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Test drive the vehicle, pausing several times to cycle the ignition.
Monitor the scan tool for ECM DTCs.
Did this DTC set again?
Yes >> Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> The repair is complete.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1039
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
(K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO (K656) BOOST PRESSURE
SENSOR GROUND
(K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO (K656) BOOST PRESSURE SENSOR
GROUND
(K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
(K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
ENGINE CONTROL MODULE (ECM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1041
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance between ground and the (K854) Boost Pressure
Sensor 5 Volt Supply circuit in the Intake Air Temp/Boost Pressure Sen-
sor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 4
No >> Repair the (K854) Boost Pressure Sensor 5 Volt Supply cir-
cuit for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
4. (K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO (K656) BOOST PRESSURE
SENSOR GROUND CIRCUIT
Measure the resistance between the (K854) Boost Pressure Sensor 5
Volt Supply circuit and the (K656) Boost Pressure Sensor Ground circuit
in the Intake Air Temp/Boost Pressure Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K854) Boost Pressure Sensor 5 Volt Supply cir-
cuit for a short to the (K656) Boost Pressure Sensor
Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1042 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
5. (K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K854) Boost Pressure Sensor 5 Volt
Supply circuit between the Intake Air Temp/Boost Pressure Sensor har-
ness connector and the Engine Control Module (ECM) harness connec-
tor.
Is the resistance below 10.0 ohms?
Yes >> Go to 10
No >> Repair the (K854) Boost Pressure Sensor 5 Volt Supply cir-
cuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
6. INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
With the scan tool, Clear DTCs.
With the scan tool, select View DTCs.
NOTE: The scan tool should display a Boost Pressure Sensor high voltage or open DTC with the Boost
Pressure Sensor connector disconnected.
Does the scan tool display the DTC(s) as described above?
Yes >> Replace the Intake Air Temp/Boost Pressure Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 7
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1043
8. (K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO (K656) BOOST PRESSURE SENSOR
cardiagn.com
GROUND CIRCUIT
Measure the resistance between the (K37) Boost Pressure Sensor Sig-
nal circuit and the (K656) Boost Pressure Sensor Ground circuit in the
Intake Air Temp/Boost Pressure Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (K37) Boost Pressure Sensor Signal circuit for a
short to the (K656) Boost Pressure Sensor Ground circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1044 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
10. ENGINE CONTROL MODULE (ECM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Boost Pressure Sen-
sor and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1045
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K656) BOOST PRESSURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K37) BOOST PRESSURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K656) BOOST PRESSURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE
BOOST PRESSURE SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
NOTE: The jumper wire should still be in place.
Measure the voltage of the (K656) Boost Pressure Sensor Ground cir-
cuit in the Intake Air Temp/Boost Pressure Sensor harness connector.
Is there any voltage present?
Yes >> Repair the (K656) Boost Pressure Sensor Ground circuit for
a short to voltage.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 5
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1049
cardiagn.com
8. ENGINE CONTROL MODULE (ECM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Boost Pressure Sen-
sor and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1050 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
P0263-CYLINDER 1 CONTRIBUTION/BALANCE
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the engine running.
• Set Condition:
The Engine Control Module (ECM) detects multiple misfires from cylinder #1.
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1051
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
P0266-CYLINDER 2 CONTRIBUTION/BALANCE
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the engine running.
• Set Condition:
The ECM detects multiple misfires from cylinder #2.
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1053
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
P0269-CYLINDER 3 CONTRIBUTION/BALANCE
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the engine running.
• Set Condition:
The ECM detects multiple misfires from cylinder #3.
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1055
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
P0272-CYLINDER 4 CONTRIBUTION/BALANCE
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the engine running.
• Set Condition:
The ECM detects multiple misfires from cylinder #4.
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1057
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Possible Causes
INTERMITTENT DTC
CLOGGED AIR FILTER
INTAKE AIR RESTRICTION
INTAKE AIR LEAK
VACUUM HOSES/TUBES
BOOST PRESSURE ACTUATOR
TURBOCHARGER
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. CHECK FOR ACTIVE DTC
Turn the ignition on.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1061
P0300-MISFIRE DETECTED
cardiagn.com
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR
FUEL SUPPLY CONTAMINATION
LOW SIDE FUEL PRESSURE
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Diagnostic Test
cardiagn.com
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the Fuel Injector circuit(s) that measured above 10.0 ohms for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1064 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the Fuel Injector circuit(s) that measured above 10.0 ohms for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1067
cardiagn.com
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the Fuel Injector circuit(s) that measured above 10.0 ohms for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1070 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the Fuel Injector circuit(s) that measured above 10.0 ohms for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1073
cardiagn.com
Possible Causes
ENGINE COMPRESSION
FUEL INJECTOR QUANTITY
FUEL SUPPLY CONTAMINATION
INJECTOR LEAKAGE
INTERMITTENT CONDITION
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
With the scan tool, erase ECM DTCs.
Test drive the vehicle and attempt to duplicate the problem.
With the scan tool, read ECM DTC’s.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
2. FUEL CONTAMINATION
Refer to the Service Information and inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 3
4. ENGINE COMPRESSION
Ignition on, engine off.
Refer to the Service Information and perform the Cylinder Compression Test.
Is the cylinder compression within specification for all cylinders?
Yes >> Go To 5
No >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the Fuel Injector circuit(s) that measured above 10.0 ohms for an open.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1076 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
cardiagn.com
(K24) CKP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
CRANKSHAFT POSITION SENSOR
(K853) CKP SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K925) CKP SENSOR GROUND CIRCUIT
(K24) CKP SENSOR SIGNAL CIRCUIT SHORTED TO THE (K925) CKP SENSOR GROUND CIRCUIT
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
2. TEST DRIVE
With the scan tool, erase the ECM DTCs.
Test drive the vehicle.
With the scan tool, read the ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go To 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Voltage is above 5.4 volts.
Go To 4
Voltage is between 4.7 and 5.4 volts.
Go To 5
Voltage is below 4.7 volts.
Go To 12
cardiagn.com
Turn the ignition off.
Connect one end of a jumper wire to the (K2) ECT Sensor signal circuit
in the ECT Sensor harness connector.
Connect the other end of the jumper wire to the (K925) CKP Sensor
Ground circuit in the Crankshaft Position Sensor harness connector.
Turn the ignition on.
With the scan tool in Engine, Sensors, read the Engine Coolant Temp
volts.
Is the voltage below 0.5 volt?
Yes >> Go To 8
No >> Go To 7
9 - 1080 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
8. DAMAGED CRANKSHAFT POSITION SENSOR OR CRANKSHAFT
Remove the CKP Sensor.
Inspect the CKP Sensor for conditions such as loose mounting screws, damage, or cracks.
Inspect the Crankshaft for conditions such as damage, debris or cracked teeth.
Is there any evidence of these conditions?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Crankshaft Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1081
cardiagn.com
10. (K853) CRANKSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K853) CKP Sensor
5-Volt Supply circuit at the CKP Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 11
No >> Repair the (K853) CKP Sensor 5-Volt Supply circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1082 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
11. (K853) CRANKSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K925) CKP
SENSOR GROUND CIRCUIT
Measure the resistance between the (K853) CKP Sensor 5-Volt Supply
circuit and the (K925) CKP Sensor Ground circuit at the CKP Sensor
harness connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K853) CKP Sensor 5-Volt Supply circuit and
(K925) CKP Sensor Ground circuits for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
12. (K24) CRANKSHAFT POSITION SENSOR SIGNAL CIRCUIT OPEN
Turn the ignition off
Disconnect the ECM harness connector.
Measure the resistance of the (K24) CKP Sensor Signal circuit between
the ECM harness connector and the CKP Sensor harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 13
No >> Repair the (K24) CKP Sensor Signal circuit for an open
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1083
14. (K24) CRANKSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORTED TO THE (K925) CKP SENSOR
cardiagn.com
GROUND CIRCUIT
Measure the resistance between the (K24) CKP Sensor Signal circuit
and the (K925) CKP Sensor Ground circuit at the CKP Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K24) CKP Sensor Signal circuit and the (K925)
CKP Sensor Ground circuit for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1084 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
cardiagn.com
CRANKSHAFT POSITION SENSOR
(K853) CKP SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K925) CKP SENSOR GROUND CIRCUIT
(K24) CKP SENSOR SIGNAL CIRCUIT SHORTED TO THE (K925) CKP SENSOR GROUND CIRCUIT
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
2. TEST DRIVE
With the scan tool, erase the ECM DTCs.
Test drive the vehicle.
With the scan tool, read the ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go To 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Voltage is above 5.4 volts.
Go To 4
Voltage is between 4.7 and 5.4 volts.
Go To 5
Voltage is below 4.7 volts.
Go To 12
cardiagn.com
Turn the ignition off.
Disconnect the ECT Sensor harness connector.
Connect one end of a jumper wire to the (K2) ECT Sensor signal circuit
in the ECT Sensor harness connector.
Connect the other end of the jumper wire to the (K925) CKP Sensor
Ground circuit in the Crankshaft Position Sensor harness connector.
Turn the ignition on.
With the scan tool in Engine, Sensors, read the Engine Coolant Temp
volts.
Is the voltage below 0.5 volt?
Yes >> Go To 8
No >> Go To 7
9 - 1088 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
8. DAMAGED CRANKSHAFT POSITION SENSOR OR CRANKSHAFT
Turn the ignition off.
Remove the CKP Sensor.
Inspect the CKP Sensor for conditions such as loose mounting screws, damage, or cracks.
Inspect the Crankshaft for conditions such as damage, debris or cracked teeth.
Is there any evidence of these conditions?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Crankshaft Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1089
cardiagn.com
10. (K853) CRANKSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K853) CKP Sensor
5-Volt Supply circuit at the CKP Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 11
No >> Repair the (K853) CKP Sensor 5-Volt Supply circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1090 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
11. (K853) CRANKSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K925) CKP
SENSOR GROUND CIRCUIT
Measure the resistance between the (K853) CKP Sensor 5-Volt Supply
circuit and the (K925) CKP Sensor Ground circuit at the CKP Sensor
harness connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K853) CKP Sensor 5-Volt Supply circuit and
(K925) CKP Sensor Ground circuits for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
12. (K24) CRANKSHAFT POSITION SENSOR SIGNAL CIRCUIT OPEN
Turn the ignition off.
Disconnect the ECM harness connector.
Measure the resistance of the (K24) CKP Sensor Signal circuit between
the ECM harness connector and the CKP Sensor harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 13
No >> Repair the (K24) CKP Sensor Signal circuit for an open
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1091
14. (K24) CRANKSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORTED TO THE (K925) CKP SENSOR
cardiagn.com
GROUND CIRCUIT
Measure the resistance between the (K24) CKP Sensor Signal circuit
and the (K925) CKP Sensor Ground circuit at the CKP Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K24) CKP Sensor Signal circuit and the (K925)
CKP Sensor Ground circuit for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1092 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
cardiagn.com
(K44) CMP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
CAMSHAFT POSITION SENSOR
(K844) CMP 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K944) CMP SENSOR GROUND CIRCUIT
(K44) CMP SENSOR SIGNAL CIRCUIT SHORTED TO THE (K944) CMP SENSOR GROUND CIRCUIT
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
2. TEST DRIVE
Turn the ignition on.
With the scan tool, erase the ECM DTCs.
Test drive the vehicle.
With the scan tool, read the ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go To 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Voltage is above 5.4 volts.
Go To 4
Voltage is between 4.7 and 5.4 volts.
Go To 5
Voltage is below 4.7 volts.
Go To 12
cardiagn.com
Turn the ignition on.
Disconnect the ECT Sensor harness connector.
Connect one end of a jumper wire to the (K2) ECT Sensor signal circuit
in the ECT Sensor harness connector.
Connect the other end of the jumper wire to the (K944) CMP Sensor
Ground circuit in the Camshaft Position Sensor harness connector.
With the scan tool in Engine, Sensors, read the Engine Coolant Temp
volts.
Is the voltage below 0.5 volt?
Yes >> Go To 8
No >> Go To 7
9 - 1096 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
8. DAMAGED CAMSHAFT POSITION SENSOR OR CAMSHAFT
Turn the ignition off.
Remove the CMP Sensor.
Inspect the CMP Sensor for conditions such as loose mounting screws, damage, or cracks.
Inspect the camshaft for conditions such as damage, debris or cracked teeth.
Is there any evidence of these conditions?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Camshaft Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1097
cardiagn.com
10. (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K844) CMP Sensor
5-Volt Supply circuit at the CMP Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 11
No >> Repair the (K844) CMP Sensor 5-Volt Supply circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1098 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
11. (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K944) CMP
SENSOR GROUND CIRCUIT
Measure the resistance between the (K844) CMP Sensor 5-Volt Supply
circuit and the (K944) CMP Sensor Ground circuit at the CMP Sensor
harness connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K844) CMP Sensor 5-Volt Supply circuit and
(K944) CMP Sensor Ground circuits for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
12. (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT OPEN
Turn the ignition off.
Disconnect the CMP Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the (K44) CMP Sensor Signal circuit between
the ECM harness connector and the CMP Sensor harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 13
No >> Repair the (K44) CMP Sensor Signal circuit for an open
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1099
14. (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORTED TO THE (K944) CAMSHAFT
cardiagn.com
POSITION SENSOR GROUND CIRCUIT
Measure the resistance between the (K44) CMP Sensor Signal circuit
and the (K944) CMP Sensor Ground circuit at the CMP Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K44) CMP Sensor Signal circuit and the (K944)
CMP Sensor Ground circuit for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1100 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
cardiagn.com
CAMSHAFT POSITION SENSOR
(K844) CMP 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K944) CMP SENSOR GROUND CIRCUIT
(K44) CMP SENSOR SIGNAL CIRCUIT SHORTED TO THE (K944) CMP SENSOR GROUND CIRCUIT
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
2. TEST DRIVE
Turn the ignition on.
With the scan tool, erase the ECM DTCs.
Test drive the vehicle.
With the scan tool, read the ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go To 3
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Voltage is above 5.4 volts.
Go To 4
Voltage is between 4.7 and 5.4 volts.
Go To 5
Voltage is below 4.7 volts.
Go To 12
cardiagn.com
Turn the ignition off.
Disconnect the ECT Sensor harness connector.
Connect one end of a jumper wire to the (K2) ECT Sensor signal circuit
in the ECT Sensor harness connector.
Connect the other end of the jumper wire to the (K944) CMP Sensor
Ground circuit in the Camshaft Position Sensor harness connector.
Turn the ignition on.
With the scan tool in Engine, Sensors, read the Engine Coolant Temp
volts.
Is the voltage below 0.5 volt?
Yes >> Go To 8
No >> Go To 7
9 - 1104 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
8. DAMAGED CAMSHAFT POSITION SENSOR OR CAMSHAFT
Turn the ignition off.
Remove the CMP Sensor.
Inspect the CMP Sensor for conditions such as loose mounting screws, damage, or cracks.
Inspect the camshaft for conditions such as damage, debris or cracked teeth.
Is there any evidence of these conditions?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Camshaft Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1105
cardiagn.com
10. (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K844) CMP Sensor
5-Volt Supply circuit at the CMP Sensor harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 11
No >> Repair the (K844) CMP Sensor 5-Volt Supply circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1106 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
11. (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K944)
CAMSHAFT POSITION SENSOR GROUND CIRCUIT
Measure the resistance between the (K844) CMP Sensor 5-Volt Supply
circuit and the (K944) CMP Sensor Ground circuit at the CMP Sensor
harness connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K844) CMP Sensor 5-Volt Supply Circuit and
(K944) CMP Sensor Ground circuits for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
12. (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT OPEN
Turn the ignition off.
Disconnect the CMP Sensor harness connector.
Disconnect the ECM harness connectors.
Measure the resistance of the (K44) CMP Sensor Signal circuit between
the ECM harness connector and the CMP Sensor harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 13
No >> Repair the (K44) CMP Sensor Signal circuit for an open
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1107
14. (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORTED TO THE (K944) CAMSHAFT
cardiagn.com
POSITION SENSOR GROUND CIRCUIT
Measure the resistance between the (K44) CMP Sensor Signal circuit
and the (K944) CMP Sensor Ground circuit at the CMP Sensor harness
connector.
Is the resistance above 1000 ohms?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K44) CMP Sensor Signal circuit and the (K944)
CMP Sensor Ground circuit for a short together.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1108 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K202) GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO GROUND
(K202) GLOW PLUG MODULE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
GLOW PLUG MODULE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Glow Plugs.
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1111
Possible Causes
INTERMITTENT CONDITION
EGR VALVE
INTAKE OR EXHAUST SYSTEM PROBLEM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
With the scan tool, erase ECM DTC’s
Test drive the vehicle.
With the scan tool, read ECM DTC’s
Did this DTC set again?
Yes >> Refer to symptom CHECKING THE EGR SYSTEM for further diagnosis.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1112 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
INTERMITTENT CONDITION
EGR VALVE
INTAKE OR EXHAUST SYSTEM PROBLEM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
With the scan tool, erase ECM DTC’s
Test drive the vehicle.
With the scan tool, read ECM DTC’s
Did this DTC set again?
Yes >> Refer to symptom CHECKING THE EGR SYSTEM for further diagnosis.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1113
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K35) EGR SOLENOID CONTROL CIRCUIT SHORTED TO GROUND
(K35) EGR SOLENOID CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
EGR VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Exhaust Gas Recirc Positioner.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
Connect the Engine Control Module (ECM) connector.
Turn the ignition on.
Using a 12 volt test light connected to ground, check the (K344) Fused
Main Relay Outputs circuit at the Valve Block Assembly harness con-
nector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright for each circuit?
Yes >> Go to 5
No >> Repair the (K344) Fused Main Relay Output circuit(s) for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
5. EGR VALVE
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, actuate the Exhaust Gas Recirc Positioner to 100%.
Using a 12 volt test light connected to 12 volts, check the (K35) EGR Solenoid Control circuit in the Valve Block
Assembly harness connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
9 - 1116 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
NOTE: The circuit will remain actuated by the controller for 30 seconds. Be certain the actuation is active
when checking the circuit.
Is the test light illuminated and bright?
Yes >> Replace the EGR Valve in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1117
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. RADIATOR FAN CONTROL RELAY OPERATION
NOTE: When actuating the radiator fan relays, the Radiator Fan(s) may have a delay in operation and ramp
up slowly.
Ignition on, engine not running.
With a scan tool, select Radiator Cooling Fan Relay #1 Control State to actuate the Radiator Fan Control Relay.
Is the Cooling Fan Relay operating?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 2
cardiagn.com
4. (N201) LOW/HIGH RADIATOR FAN CONTROL RELAY CONTROL CIRCUIT OPEN
Turn the ignition off.
Measure the resistance of the (N201) Low/High Radiator Fan Control
Relay Control circuit between the Rad Fan Control Relay #1 connector
and the TIPM C11 harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 5
No >> Replace the PDM in accordance with the Service informa-
tion.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)
9 - 1120 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
5. (N201) LOW/HIGH RADIATOR FAN CONTROL RELAY CONTROL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (N201) Low/High Radi-
ator Fan Control Relay #1 Control circuit at the TIPM C11 harness con-
nection.
Is the resistance below 1000 ohms?
Yes >> Replace the TIPM in accordance with the Service informa-
tion.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)
No >> Replace Front Control Module in accordance with the Ser-
vice Information.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1121
cardiagn.com
Possible Causes
FUSED B+ CIRCUITS
(N112) RADIATOR FAN RELAY CONTROL CIRCUIT OPEN
(N112) RADIATOR FAN RELAY CONTROL CIRCUIT SHORTED TO GROUND
RADIATOR FAN MEDIUM/HIGH RELAY
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With a scan tool, select Radiator Cooling Fan Relay #2 Control State, to actuate the Radiator Fan Medium/High
Relay.
Is the Cooling Fan Relay operating?
Yes >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 2
2. FUSED B+ CIRCUITS
Turn the ignition off.
Remove the Radiator Medium/High Fan Relay.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the (A935) and
(A16) Fused B+ circuits in the Relay connection.
Does the test light illuminate brightly?
Yes >> Go To 4
No >> Go To 3
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1123
cardiagn.com
Using a 12–volt test light connected to battery voltage, probe the (N112)
Radiator Fan High Relay Control circuit in the TIPM C-11 harness con-
nector.
Does the test light illuminate and flash on and off?
Yes >> Replace the Radiator Fan Medium/High Relay.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)
No >> Go To 5
9 - 1124 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. (N112) RADIATOR FAN RELAY CONTROL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (N112) Radiator Fan
Relay Control circuit at the Relay connection.
Is the resistance below 100 ohms?
Yes >> Go To 7
No >> Replace the Totally Integrated Power Module in accordance
with the Service Information.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO GROUND
(K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT SHORTED TO GROUND
EGR AIRFLOW CONTROL VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Airflow Control Valve at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1127
2. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.
Disconnect the EGR Airflow Control Valve connector.
Disconnect the Engine Control Module (ECM) connector.
Measure the resistance of the (K601) EGR Airflow Control Valve Control
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 3
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
3. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (K601) EGR Airflow
Control Valve Control circuit.
Is the resistance below above 1000 ohms?
Yes >> Go to 4
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1128 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
5. (K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
cardiagn.com
Measure the resistance of the (K604) EGR Airflow Control Valve Signal
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 6
No >> Repair the (K604) EGR Airflow Control Valve Signal for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1129
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1130 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO VOLTAGE
(k604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO GROUND
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO (K604) EGR AIRFLOW CONTROL
VALVE SIGNAL
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(k604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
EGR AIRFLOW CONTROL VALVE
ENGINE CONTROL MODULE (ECM)
cardiagn.com
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Airflow Control Valve at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Measure the resistance between ground and the (K601) EGR Airflow
Control Valve Control circuit in the EGR Airflow Control Valve harness
connector.
Is the resistance above 1000 ohms?
Yes >> Go to 5
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
5. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO (K604) EGR AIRFLOW
CONTROL VALVE SIGNAL CIRCUIT
Measure the resistance between the (K601) EGR Airflow Control Valve
Control circuit and the (K604) EGR Airflow Control Valve Signal circuit
in the EGR Airflow Control Valve harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 6
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for a short to the (K604) EGR Airflow Control Valve Signal
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1133
6. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K601) EGR Airflow Control Valve Control
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 7
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. (K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K604) EGR Airflow Control Valve Signal
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (K604) EGR Airflow Control Valve Signal circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1134 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1135
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K35) EGR SOLENOID CONTROL CIRCUIT SHORTED TO GROUND
(K35) EGR SOLENOID CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EGR VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Solenoid at 100%.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. EGR VALVE
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, actuate the Exhaust Gas Recirc Positioner to 100%.
Using a 12 volt test light connected to 12 volts, check the (K35) EGR Solenoid Control circuit in the Valve Block
Assembly harness connector.
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
NOTE: The circuit will remain actuated by the controller for 30 seconds. Be certain the actuation is active
when checking the circuit.
With the scan tool, actuate the Exhaust Gas Recirc Positioner to 0%.
Using a 12 volt test light connected to 12 volts, check the (K35) EGR Solenoid Control circuit in the EGR Valve
harness connector.
NOTE: The test light should not be illuminated.
NOTE: The circuit will remain actuated by the controller for 30 seconds. Be certain the actuation is active
when checking the circuit.
Is the test light illuminated and bright with the actuation at 100% and not illuminated with the actuation
at 0%?
Yes >> Replace the EGR Valve in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 5
9 - 1138 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1139
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K35) EGR SOLENOID CONTROL CIRCUIT SHORTED TO VOLTAGE
(K35) EGR SOLENOID CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT 2
CIRCUIT
(K35) EGR SOLENOID CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EGR VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Solenoid at 100%.
Monitor the scan tool for at least two minutes.
Start the engine.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K35) EGR SOLENOID CONTROL CIRCUIT SHORTED TO THE (K344) FUSED MAIN RELAY OUTPUT
CIRCUIT
NOTE: Remove the jumper wire.
Turn the ignition off.
Measure the resistance between the (K35) EGR Solenoid Control cir-
cuit, terminal 6, and the (K344) Fused Main Relay Output circuits, ter-
minals 1, 3, 4, in the Valve Block Assembly harness connector.
Is the resistance above 1000 ohms for each measurement?
Yes >> Go to 4
No >> Repair the (K35) EGR Solenoid Control circuit for a short to
the (K344) Fused Main Relay Output circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
4. (K35) EGR SOLENOID CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K35) EGR Solenoid Control circuit
between the Valve Block Assembly harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K35) EGR Solenoid Control circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
5. EGR VALVE
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, actuate the Exhaust Gas Recirc Positioner to 100%.
Using a 12 volt test light connected to 12 volts, check the (K35) EGR Solenoid Control circuit in the Valve Block
Assembly harness connector.
9 - 1142 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connec-
tion to the battery.
NOTE: The circuit will remain actuated by the controller for 30 seconds. Be certain the actuation is active
when checking the circuit.
Is the test light illuminated and bright?
Yes >> Replace the EGR Valve in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 6
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1143
cardiagn.com
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
ANTI-LOCK BRAKE MODULE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. ACTIVE DTC
NOTE: Diagnose all CAN B and C communication DTCs before continuing.
Test drive the vehicle
cardiagn.com
With a scan tool, view DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)
Perform the ECM Verification Test Ver. 1.
cardiagn.com
9 - 1146 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the ignition on.
• Set Condition:
The Brake Switch Signal 1 and Brake Switch Signal 2 inputs to the ECM do not agree for 2 minutes.
Possible Causes
INTERMITTENT CONDITION
BRAKE SWITCH SIGNAL 2 - SWITCH 2 CKT OPEN
(A924) FUSED B+ CIRCUIT OPEN
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT SHORTED TO GROUND
BRAKE SWITCH SIGNAL 1 - SWITCH 1 CKT OPEN
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT OPEN
(Z967) STOP LAMP SWITCH GROUND CIRCUIT OPEN
(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT OPEN
ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 2
cardiagn.com
ENGINE CONTROL MODULE - INTERNAL
ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 1
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
3. INTERMITTENT CONDITION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
4.
cardiagn.com
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT VOLTAGE
Turn the ignition off.
Disconnect the Stop Lamp Switch harness connector.
Turn the ignition on.
Measure the voltage between the (B215) Brake Switch Signal 2 circuit
and ground at the Stop Lamp Switch harness connector.
Is the voltage above 9.0 volts?
Yes >> Go To 5
No >> Go To 8
cardiagn.com
If there are no possible causes remaining, view repair.
Repair
Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
10. ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 2
cardiagn.com
and ground.
Is the voltage above 1.0 volt?
Yes >> Repair the (B15) Brake Switch Signal 1 circuit for a short to
voltage.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 14
Possible Causes
INTERMITTENT DTC
UNPROGRAMMED IGNITION KEYS
SKREEM
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.
cardiagn.com
CHECK FOR SKREEM COMMUNICATION AND DTCS
Ignition on, engine not running.
With the scan tool, check for proper communication and active DTCs in the SKREEM.
Are any SKREEM communication problems or DTCs present?
Yes >> Refer to the symptom list for problems related to SKREEM Communication and DTCs before continuing.
No >> Go To 2
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1153
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Incorrect engine oil level may cause this DTC to set. Check and verify that the engine oil level is filled to the proper
specification.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Turn the ignition off, wait 30 seconds, then start and idle the engine for at least 2 minutes.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1155
cardiagn.com
3. (G6) ENGINE OIL PRESSURE SWITCH SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (G6) Engine Oil Pres-
sure Switch Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go To 4
No >> Repair the (G6) Engine Oil Pressure Switch Signal circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1157
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
assist when checking for an active DTC.
Incorrect engine oil level may cause this DTC to set. Check and verify that the engine oil level is filled to the proper
specification.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Turn the ignition off, wait 30 seconds, then start and idle the engine for at least 2 minutes.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1159
cardiagn.com
3. (G6) ENGINE OIL PRESSURE SWITCH SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (G6) Engine Oil Pres-
sure Switch Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go To 4
No >> Repair the (G6) Engine Oil Pressure Switch Signal circuit
for a short to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 1160 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1161
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
proper charging system operation before continuing.
Test drive the vehicle.
Turn the ignition on.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Go To 3
3. INTERMITTENT CONDITION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1163
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
cardiagn.com
9 - 1164 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
proper charging system operation before continuing.
Test drive the vehicle.
Turn the ignition on.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Go To 3
3. INTERMITTENT CONDITION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
9 - 1166 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1167
cardiagn.com
Possible Causes
INTERMITTENT CONDITION
BRAKE SWITCH SIGNAL 2 - SWITCH 2 CKT OPEN
(A924) FUSED B+ CIRCUIT OPEN
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT SHORTED TO GROUND
BRAKE SWITCH SIGNAL 1 - SWITCH 1 CKT OPEN
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT OPEN
(Z967) STOP LAMP SWITCH GROUND CIRCUIT OPEN
(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT OPEN
ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 2
cardiagn.com
ENGINE CONTROL MODULE - INTERNAL
ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 1
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
3. INTERMITTENT CONDITION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
4.
cardiagn.com
(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT VOLTAGE
Turn the ignition off.
Disconnect the Stop Lamp Switch harness connector.
Turn the ignition on.
Measure the voltage between the (B215) Brake Switch Signal 2 circuit
and ground at the Stop Lamp Switch harness connector.
Is the voltage above 9.0 volts?
Yes >> Go To 5
No >> Go To 8
cardiagn.com
If there are no possible causes remaining, view repair.
Repair
Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
10. ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 2
cardiagn.com
and ground.
Is the voltage above 1.0 volt?
Yes >> Repair the (B15) Brake Switch Signal 1 circuit for a short to
voltage.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 14
Diagnostic Test
1. DTC EXPLANATION
NOTE: This DTC indicates that the vehicle speed has gone above the upper limit of speed control function.
View Repair.
Yes >> Test Complete.
cardiagn.com
9 - 1174 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1177
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1178 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V71) S/C Switch 1
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V71) S/C Switch 1 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1179
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1180 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1183
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1184 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V71) S/C Switch 1
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V71) S/C Switch 1 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1185
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1186 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1189
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1190 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V71) S/C Switch 1
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V71) S/C Switch 1 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1191
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1192 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1195
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switches in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1196 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V71) S/C Switch 1
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V71) S/C Switch 1 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1197
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1198 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
cardiagn.com
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
While monitoring the scan tool, connect a jumper wire between the
(V72) S/C Switch 2 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt for each circuit with
the jumper wire in place?
Yes >> Replace the Speed Control Switches in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1205
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V72) S/C Switch 2 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1206 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V72) S/C Switch 2
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V72) S/C Switch 2 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1207
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1208 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms for both circuits?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1211
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the (V72) S/C Switch 2 Signal circuit and the (V937)
S/C Switch Ground circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire in place?
Yes >> Replace the Speed Control Switch in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1212 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V72) S/C Switch 2
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V72) S/C Switch 2 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1213
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1214 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1217
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V72) S/C Switch 2 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1218 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V72) S/C Switch 2
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V72) S/C Switch 2 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1219
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1220 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE
(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
SPEED CONTROL SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
SIGNAL 1 SIGNAL 2
KEY
LO LIMIT HI LIMIT LO LIMIT HI LIMIT
cardiagn.com
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 4
No >> Repair the (V937) S/C Switch Ground circuit for an open
circuit or high resistance.
Perform the ECM Verification Test Ver. 4. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1223
5. S/C SWITCH
cardiagn.com
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, monitor the S/C Switch Voltage.
While monitoring the scan tool, connect a jumper wire between the
(V72) S/C Switch 2 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.
Does the scan tool display below 0.1 volt with the jumper wire
in place?
Yes >> Replace the Speed Control Switch in accordance with the
Service Information.
Perform the ECM Verification Test Ver. 4. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 9
9 - 1224 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
7. (V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (V72) S/C Switch 2
Signal circuit.
Is the resistance above 1000 ohms?
Yes >> Go to 9
No >> Repair the (V72) S/C Switch 2 Signal circuit for a short to
ground.
Perform the ECM Verification Test Ver. 4. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1225
cardiagn.com
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 4. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 4. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1226 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle
leaving the ignition on.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle
leaving the ignition on.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle
leaving the ignition on.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle
leaving the ignition on.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER CONTROL CIRCUIT SHORTED TO GROUND
(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Attempt to start the engine several times.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1233
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER CONTROL CIRCUIT SHORTED TO GROUND
(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Attempt to start the engine several times.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
9 - 1236 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T752) STARTER RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
(T752) STARTER RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Attempt to start the engine several times.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1239
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G329) CHARGE INDICATOR SIGNAL CIRCUIT SHORTED TO GROUND
(G329) CHARGE INDICATOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Test drive the vehicle
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. GENERATOR
Turn the ignition off.
Replace the Generator.
With the scan tool, Clear DTCs.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 5
No >> Test complete
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO GROUND
(K31) FUEL PUMP CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
With the scan tool, actuate the Fuel Pump.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1245
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP CONTROL CIRCUIT SHORTED TO GROUND
(K31) FUEL PUMP CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
With the scan tool, actuate the Fuel Pump.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
9 - 1248 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K31) FUEL PUMP RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
(K31) FUEL PUMP RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
TOTALLY INTEGRATED POWER MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1251
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
CAMSHAFT POSITION SENSOR
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Theory of Operation
The ECM contains 3 internal 5–Volt Sensor Supply sources. Each 5–Volt Supply source is split into parallel circuits
to provide 5 volts to multiple sensors. Sensor Supply 1 provides 5 volts to the Camshaft Position Sensor and the
Accelerator Pedal Position Sensor No. 1.
cardiagn.com
Diagnostic Test
cardiagn.com
Turn the ignition off.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the (K844) Camshaft Posi-
tion Sensor 5 Volt Supply circuit.
Measure the resistance between ground and the (K852) Accelerator
Pedal Position Sensor No. 1 5 Volt Supply circuit.
Is the resistance above 1000 ohms for each circuit?
Yes >> Go To 5
No >> Repair the 5-Volt Supply circuit that measures below 1000
ohms for a short to ground.
Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1255
cardiagn.com
9 - 1256 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K852) ACCELERATOR PEDAL POSITION NO. 1 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K844) CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Theory of Operation
The ECM contains 3 internal 5–Volt Sensor Supply sources. Each 5–Volt Supply source is split into parallel circuits
to provide 5 volts to multiple sensors. Sensor Supply 2 provides 5 volts to the Accelerator Pedal Position Sensor
No. 1 and the Camshaft Position Sensor.
cardiagn.com
Diagnostic Test
2. (K852) ACCELERATOR PEDAL POSITION SENSOR NO. 1 5-VOLT SUPPLY CIRCUIT SHORTED TO
VOLTAGE
Turn the ignition off.
Disconnect the Accelerator Pedal Position Sensor harness connector.
Disconnect the ECM harness connectors.
Remove the Main Relay.
Connect a jumper wire between cavity B7 and cavity B9 of the Main
Relay connector.
Turn the ignition on.
Measure the voltage on the (K852) Accelerator Pedal Position Sensor
No. 1 5-Volt Supply circuit.
Is the voltage below 1.0 volt?
Yes >> Go To 3
No >> Repair the (K852) Accelerator Pedal Position Sensor No. 1
5 Volt Supply circuit for a short to voltage.
Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1258 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Turn the ignition off.
Inspect the (K852) Accelerator Pedal Position Sensor No. 1 5 Volt Supply circuit between the Accelerator Pedal
Position Sensor and the ECM.
Inspect the (K844) Camshaft Position Sensor 5 Volt Supply circuit between the Camshaft Position Sensor and the
ECM.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1259
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO GROUND
(C27) A/C COMPRESSOR CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K343) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
A/C COMPRESSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the A/C Compressor.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
5. A/C COMPRESSOR
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, actuate the A/C Compressor.
cardiagn.com
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 6
No >> Replace the A/C Compressor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO GROUND
(C27) A/C COMPRESSOR CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
A/C COMPRESSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the A/C Compressor.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. A/C COMPRESSOR
Connect the Engine Control Module (ECM) harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, actuate the A/C Compressor.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 5
No >> Replace the A/C Compressor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1265
cardiagn.com
Possible Causes
INTERMITTENT DTC
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO VOLTAGE
(C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT
CIRCUIT
(C27) A/C COMPRESSOR CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
A/C COMPRESSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the A/C Compressor.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (C27) A/C COMPRESSOR CONTROL CIRCUIT SHORTED TO THE (K343) FUSED MAIN RELAY OUTPUT
CIRCUIT
Turn the ignition off.
Measure the resistance between the (C27) A/C Compressor Control circuit and the (K343) Fused Main Relay Output
circuit in the A/C Compressor harness connector.
Is the resistance above 10.0 ohms?
Yes >> Go to 4
No >> Repair the (C27) A/C Compressor Control circuit for a short to the (K343) Fused Main Relay Output
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
5. A/C COMPRESSOR
Connect the Engine Control Module (ECM) harness connector.
Install a known good relay in place of the vehicle’s A/C Compressor.
Turn the ignition on.
With the scan tool, Clear DTCs.
With the scan tool, actuate the A/C Compressor.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 6
No >> Replace the A/C Compressor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
CRANKSHAFT POSITION SENSOR
INTAKE AIR TEMPERATURE/BOOST PRESSURE SENSOR
ACCELERATOR PEDAL POSITION SENSOR
MASS AIRFLOW SENSOR
5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Theory of Operation
cardiagn.com
The ECM contains 2 internal 5–Volt Sensor Supply sources. Each 5–Volt Supply source is split into parallel circuits
to provide 5 volts to multiple sensors. Sensor Supply 2 provides 5 volts to the Crankshaft Position Sensor, the Boost
Pressure Sensor, Accelerator Pedal Position Sensor No. 2, and the Mass Airflow Sensor.
Diagnostic Test
cardiagn.com
Turn the ignition off.
Disconnect the Accelerator Pedal Position harness connector.
Turn the ignition on.
Measure the voltage of the (K854) Accelerator Pedal Position Sensor
No. 2 5 Volt Supply circuit at the Accelerator Pedal Position Sensor har-
ness connector.
Is the voltage above 4.6 volts?
Yes >> Replace the Accelerator Pedal Position Sensor.
Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
cardiagn.com
Inspect the (K854) Boost Pressure Sensor 5 Volt Supply circuit between the Intake Air Temperature/Boost Pressure
Sensor and the ECM.
Inspect the (K854) Accelerator Pedal Position Sensor No. 2 5 Volt Supply circuit between the Accelerator Pedal
Position Sensor and the ECM.
Inspect the (F855) Mass Airflow Sensor 5 Volt Supply circuit between the Mass Airflow Sensor and the ECM.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1272 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT CONDITION
(K853) CRANKSHAFT POSITION SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K854) BOOST PRESSURE SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K854) ACCELERATOR PEDAL POSITION SENSOR NO. 2 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(F855) MASS AIRFLOW SENSOR 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Theory of Operation
The ECM contains 2 internal 5–Volt Sensor Supply sources. Each 5–Volt Supply source is split into parallel circuits
cardiagn.com
to provide 5 volts to multiple sensors. Sensor Supply 2 provides 5 volts to the Crankshaft Position Sensor, the Boost
Pressure Sensor, Accelerator Pedal Position Sensor No. 2, and the Mass Airflow Sensor.
Diagnostic Test
4. (K854) ACCELERATOR PEDAL POSITION SENSOR NO. 2 5 VOLT SUPPLY CIRCUIT SHORTED TO
cardiagn.com
VOLTAGE
Turn the ignition off.
Disconnect the Accelerator Pedal Position Sensor harness connector.
Turn the ignition on.
Measure the voltage of the (K854) Accelerator Pedal Position Sensor
No. 2 5 Volt Supply circuit.
Is there any voltage present?
Yes >> Repair the (K854) Accelerator Pedal Position Sensor No. 2
5 Volt Supply circuit for a short to voltage at the Accelerator
Pedal Position Sensor harness connector.
Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
cardiagn.com
9 - 1276 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
GENERATOR BELT
GENERATOR BELT TENSIONER
(k92) GENERATOR OUTPUT SIGNAL CIRCUIT SHORT TO VOLTAGE
(k92) GENERATOR OUTPUT SIGNAL CIRCUIT OPEN
(A801) GENERATOR B+ CIRCUIT OPEN
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
With the scan tool, check the ECM for Generator Lamp/L Terminal related DTC’s.
Are there any Generator Lamp/L Terminal related DTCs?
Yes >> Repair other DTCs before continuing.
No >> Go To 2
cardiagn.com
5. (K92) GENERATOR OUTPUT SIGNAL CIRCUIT SHORT TO VOLTAGE
Remove the Main Relay.
Connect a jumper wire between cavity B7 and cavity B9 of the Main
Relay connector.
Turn the ignition on.
Measure the voltage of the (K92) Generator Output Signal circuit.
Is the voltage above 1.0 volt?
Yes >> Repair the (K92) Generator Output Signal circuit for a short
to voltage.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 6
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A202) GLOW PLUG 1 CONTROL CIRCUIT OPEN
(A202) GLOW PLUG 1 CONTROL CIRCUIT SHORTED TO GROUND
(A202) GLOW PLUG 1 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 1
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A202) Glow Plug 1 Control circuit at the
Glow Plug 1 harness connector.
Is there voltage present on the (A202) Glow Plug 1 Control cir-
cuit?
Yes >> Repair the (A202) Glow Plug 1 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 1
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 1.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1282 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1283
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A203) GLOW PLUG 2 CONTROL CIRCUIT OPEN
(A203) GLOW PLUG 2 CONTROL CIRCUIT SHORTED TO GROUND
(A203) GLOW PLUG 2 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 2
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A203) Glow Plug 2 Control circuit at the
Glow Plug 2 harness connector.
Is there voltage present on the (A203) Glow Plug 2 Control cir-
cuit?
Yes >> Repair the (A203) Glow Plug 2 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 2
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 2.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1286 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1287
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A204) GLOW PLUG 3 CONTROL CIRCUIT OPEN
(A204) GLOW PLUG 3 CONTROL CIRCUIT SHORTED TO GROUND
(A204) GLOW PLUG 3 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 3
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A204) Glow Plug 3 Control circuit at the
Glow Plug 3 harness connector.
Is there voltage present on the (A204) Glow Plug 3 Control cir-
cuit?
Yes >> Repair the (A204) Glow Plug 3 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 3
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 3.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1290 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1291
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K202) GLOW PLUG MODULE CONTROL CIRCUIT SHORTED TO GROUND
(K202) GLOW PLUG MODULE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Glow Plugs.
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
9 - 1294 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A202) GLOW PLUG 1 CONTROL CIRCUIT OPEN
(A202) GLOW PLUG 1 CONTROL CIRCUIT SHORTED TO GROUND
(A202) GLOW PLUG 1 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 1
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A202) Glow Plug 1 Control circuit at the
Glow Plug 1 harness connector.
Is there voltage present on the (A202) Glow Plug 1 Control cir-
cuit?
Yes >> Repair the (A202) Glow Plug 1 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 1
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 1.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1297
cardiagn.com
9 - 1298 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A203) GLOW PLUG 2 CONTROL CIRCUIT OPEN
(A203) GLOW PLUG 2 CONTROL CIRCUIT SHORTED TO GROUND
(A203) GLOW PLUG 2 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 2
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A203) Glow Plug 2 Control circuit at the
Glow Plug 2 harness connector.
Is there voltage present on the (A203) Glow Plug 2 Control cir-
cuit?
Yes >> Repair the (A203) Glow Plug 2 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 2
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 2.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1301
cardiagn.com
9 - 1302 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A204) GLOW PLUG 3 CONTROL CIRCUIT OPEN
(A204) GLOW PLUG 3 CONTROL CIRCUIT SHORTED TO GROUND
(A204) GLOW PLUG 3 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 3
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A204) Glow Plug 3 Control circuit at the
Glow Plug 3 harness connector.
Is there voltage present on the (A204) Glow Plug 3 Control cir-
cuit?
Yes >> Repair the (A204) Glow Plug 3 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 3
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 3.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1305
cardiagn.com
9 - 1306 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A208) GLOW PLUG 4 CONTROL CIRCUIT OPEN
(A208) GLOW PLUG 4 CONTROL CIRCUIT SHORTED TO GROUND
(A208) GLOW PLUG 4 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 4
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A208) Glow Plug 4 Control circuit at the
Glow Plug 4 harness connector.
Is there voltage present on any of the Glow Plug Control cir-
cuits?
Yes >> Repair the (A208) Glow Plug 4 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG
Turn the ignition off.
Connect each Glow Plug connector.
Connect the Glow Plug Module connector.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Refer to the Service Information and perform the Glow Plug Test on each Glow plug.
Did each Glow Plug pass the test?
Yes >> Go to 6
No >> Replace the appropriate Glow Plug in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1309
cardiagn.com
9 - 1310 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(A208) GLOW PLUG 4 CONTROL CIRCUIT OPEN
(A208) GLOW PLUG 4 CONTROL CIRCUIT SHORTED TO GROUND
(A208) GLOW PLUG 4 CONTROL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG 4
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Perform several ignition cycles leaving the ignition on for at least 10 seconds then off for 10 seconds.
With the scan tool, read the ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition on.
Measure the voltage of the (A208) Glow Plug 4 Control circuit at the
Glow Plug 4 harness connector.
Is there voltage present on the (A208) Glow Plug 4 Control cir-
cuit?
Yes >> Repair the (A208) Glow Plug 4 Control circuit for a short to
voltage
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
5. GLOW PLUG 4
Turn the ignition off.
Refer to the Service Information and replace the Glow Plug 4.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles leaving the ignition on for at least 10 seconds per cycle.
With the scan tool, read ECM DTCs.
Does the scan tool display this DTC?
Yes >> Go to 6
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1313
cardiagn.com
9 - 1314 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(D330) GLOW PLUG MODULE SIGNAL CIRCUIT SHORTED TO GROUND
(D330) GLOW PLUG MODULE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K202) GLOW PLUG RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(D330) GLOW PLUG MODULE SIGNAL CIRCUIT SHORTED TO VOLTAGE
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Glow Plugs.
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. (K202) GLOW PLUG RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K202) Glow Plug Relay Control circuit
between the Glow Plug Module harness connector and the Engine Con-
trol Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go To 5
No >> Repair the (K202) Glow Plug Relay Control circuit for an
open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1317
cardiagn.com
9 - 1318 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
Turn the ignition on.
With the scan tool, check for additional DTCs.
Are other DTCs present?
Yes >> Refer to the Symptom List for diagnosis of the other DTCs before continuing.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 2
3. MAIN RELAY
Turn the ignition off.
Install a known good relay in place of the Main Relay.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition key cycles, pausing for at least 10 seconds between each cycle.
Turn the ignition on.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 4
No >> Replace the Main Relay.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1320 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1321
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
1. CHECK FOR OTHER DTCS
Turn the ignition on.
With the scan tool, check for additional DTCs.
Are other DTCs present?
Yes >> Refer to the Symptom List for diagnosis of the other DTCs before continuing.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 2
3. MAIN RELAY
Turn the ignition off.
Install a known good relay in place of the Main Relay.
Turn the ignition on.
With the scan tool, erase DTCs.
Perform several ignition key cycles, pausing for at least 10 seconds between each cycle.
Turn the ignition on.
With the scan tool, read ECM DTCs.
Did this DTC set again?
Yes >> Go To 4
No >> Replace the Main Relay.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1323
cardiagn.com
Turn the ignition on.
Measure the voltage of the (K542) Main Relay Output circuit at the Main
Relay connector.
Is the voltage below 1.0 volt?
Yes >> Replace and program the Engine Control Module in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (K542) Main Relay Output circuit for a short to
voltage.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
6. INTERMITTENT CONDITION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
Were any of the above conditions present?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
9 - 1324 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(T141) CLUTCH INTERLOCK SWITCH SIGNAL CIRCUIT SHORTED TO VOLTAGE
(T141) CLUTCH INTERLOCK SWITCH SIGNAL CIRCUIT SHORTED TO GROUND
(T141) CLUTCH INTERLOCK SWITCH SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(Z925) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
CLUTCH INTERLOCK SWITCH
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Press and release the clutch pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Connect a jumper wire between the (Z925) Ground circuit and the (T141) Clutch Interlock Switch Signal circuit in
the Clutch Interlock Switch harness connector.
Turn the ignition on.
With the scan tool, monitor the Clutch Interlock status.
NOTE: The scan tool should display the Clutch Interlock status as pressed with the jumper wire in place
and not pressed with the jumper wire removed.
Does the scan tool display the status as described above?
Yes >> Replace the Clutch Interlock Switch in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go to 8
cardiagn.com
Measure the resistance of the (T141) Clutch Interlock Switch Signal cir-
cuit between the Clutch Interlock Switch harness connector and the
Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 8
No >> Repair the (T141) Clutch Interlock Switch Signal circuit for
an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 1328 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1329
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K344) FUSED MAIN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
(A29) FUSED B+ CIRCUIT OPEN OR HIGH RESISTANCE
(Z924) GROUND CIRCUIT OPEN OR HIGH RESISTANCE
GLOW PLUG MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: Diagnose and repair any system voltage or Main Relay DTCs before continuing with this test.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the Glow Plugs.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Using a 12 volt test light connected to B+, check the (Z924) Ground
circuit in the Glow Plug Module harness connector.
NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.
Is the test light illuminated and bright?
Yes >> Replace the Glow Plug Module in accordance with the Ser-
vice Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
No >> Repair the (Z924) Ground circuit for an open circuit or high
resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1332 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
INTERMITTENT DTC
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
P1685-SKIM SYSTEM
For a complete wiring diagram Refer to Section 8W
• When Monitored:
With the ignition on.
• Set Condition:
A communication error occurs between the ECM and SKREEM.
Possible Causes
INTERMITTENT DTC
SKREEM
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
Ignition on, engine not running.
With the scan tool, check for proper communication and active DTCs in the SKREEM.
Are any SKREEM communication problems or DTCs present?
Yes >> Refer to the symptom list for problems related to SKREEM Communication and DTCs before continuing.
No >> Go To 2
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K852)
ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K854)
ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K167)
ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K400)
ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT
cardiagn.com
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO GROUND
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any Sensor reference or supply voltage DTCs are present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1336 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Yes >> Repair the appropriate circuit that has voltage present.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
3. (K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO 5 VOLT SUPPLY
CIRCUIT
Turn the ignition off.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K852) Accelerator Pedal Position Sen-
sor 1 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K854) Accelerator Pedal Position Sen-
sor 2 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Is the resistance above 1000.0 ohms for both of the circuits?
Yes >> Go to 4
No >> Repair the shorted (K23) Accelerator Pedal Position Sensor
1 Signal circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1337
cardiagn.com
ENGINE - DIAGNOSIS AND TESTING)
6. (K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO SENSOR GROUND
CIRCUIT
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K167) Accelerator Pedal Position Sen-
sor 1 Sensor Ground circuit in the Accelerator Pedal Position Sen-
sor harness connector.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K400) Accelerator Pedal Position Sen-
sor 2 Sensor Ground circuit in the Accelerator Pedal Position Sensor
harness connector.
Is the resistance between ground and both of the circuits
above 1000.0 ohms?
Yes >> Go to 7
No >> Repair the appropriate circuit for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
7. ACCELERATOR PEDAL POSITION SENSOR
Turn the ignition off.
Remove the jumper wire and install the Main Relay.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K167) Accelerator Pedal Position
Sensor 1 Sensor Ground circuit and the (K23) Accelerator Pedal Posi-
tion Sensor 1 Signal circuit in the Accelerator Pedal Position Sensor
harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Accelerator Pedal Position
Sensor 1 low voltage or short to ground DTC with the jumper wire
in place.
Turn the ignition off.
Connect a jumper wire between the (K852) Accelerator Pedal Position
Sensor 1 5 Volt Supply circuit and the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit in the Accelerator Pedal Position Sensor harness
connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Accelerator Pedal Position Sensor 1 high voltage or open DTC with
the Accelerator Pedal Position Sensor connector disconnected.
Does the scan tool display the DTCs as described in BOTH cases listed above?
Yes >> Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 8
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1339
cardiagn.com
9 - 1340 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO GROUND
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K167)
ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K400)
ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT
cardiagn.com
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If a Sensor reference or supply voltage DTC is also present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1342 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
4. (K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE SENSOR
GROUND CIRCUIT
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K167) Accelerator Pedal Position Sen-
sor 1 Sensor Ground circuit in the Accelerator Pedal Position Sensor
harness connector.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K400) Accelerator Pedal Position Sen-
sor 2 Sensor Ground circuit in the Accelerator Pedal Position Sensor
harness connector.
Is the resistance between ground and both of the circuits
above 1000 ohms?
Yes >> Go to 5
No >> Repair the appropriate circuit for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
5. ACCELERATOR PEDAL POSITION SENSOR
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K852) Accelerator Pedal Position
Sensor 1 5 Volt Supply circuit and the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit in the Accelerator Pedal Position Sensor harness
connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Accelerator Pedal Position
Sensor 1 high voltage or open DTC with the Accelerator Pedal
Position Sensor connector disconnected.
Does the scan tool display the DTC as described above?
Yes >> Replace the Accelerator Pedal Position Sensor in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
9 - 1344 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1345
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE (K852)
ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT OR (F856) ACCELERATOR PEDAL
POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
cardiagn.com
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any Sensor reference or supply voltage DTCs are present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1347
cardiagn.com
Yes >> Repair the appropriate circuit that has voltage present.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
3. (K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT SHORTED TO THE 5 VOLT
SUPPLY CIRCUIT
Turn the ignition off.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (K852) Accelerator Pedal Position Sen-
sor 1 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Measure the resistance between the (K23) Accelerator Pedal Position
Sensor 1 Signal circuit and the (F856) Accelerator Pedal Position Sen-
sor 2 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Is the resistance above 10.0 ohms for both of the circuits?
Yes >> Go to 4
No >> Repair the shorted (K23) Accelerator Pedal Position Sensor
1 Signal circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1348 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
5. ACCELERATOR PEDAL POSITION SENSOR
Remove the jumper wire and install the Main Relay.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K167) Accelerator Pedal Position
Sensor 1 Sensor Ground circuit and the (K23) Accelerator Pedal Posi-
tion Sensor 1 Signal circuit in the Accelerator Pedal Position Sensor
harness connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Accelerator Pedal Position
Sensor 1 low voltage or short to ground DTC with the jumper wire
in place.
Does the scan tool display the DTC as described above?
Yes >> Replace the Accelerator Pedal Position Sensor in accor-
dance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1349
cardiagn.com
9 - 1350 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K854) ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K400) ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
(K854) ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO GROUND
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO THE (K400)
ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO THE (K167)
ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT
cardiagn.com
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If a Sensor reference or supply voltage DTC is also present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1352 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
4. (K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO THE SENSOR
GROUND CIRCUIT
Measure the resistance between the (K29) Accelerator Pedal Position
Sensor 2 Signal circuit and the (K400) Accelerator Pedal Position Sen-
sor 2 Sensor Ground circuit in the Accelerator Pedal Position Sensor
harness connector.
Measure the resistance between the (K29) Accelerator Pedal Position
Sensor 2 Signal circuit and the (K167) Accelerator Pedal Position Sen-
sor 1 Sensor Ground circuit in the Accelerator Pedal Position Sensor
harness connector.
Is the resistance between ground and both of the circuits
above 1000 ohms?
Yes >> Go to 5
No >> Repair the appropriate circuit for a short to ground.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
5. ACCELERATOR PEDAL POSITION SENSOR
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Connect a jumper wire between the (K854) Accelerator Pedal Position
Sensor 2 5 Volt Supply circuit and the (K29) Accelerator Pedal Position
Sensor 2 Signal circuit in the Accelerator Pedal Position Sensor harness
connector.
Turn the ignition on.
With the scan tool, Clear DTCs.
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
NOTE: The scan tool should display an Accelerator Pedal Position
Sensor 2 high voltage or open DTC with the Accelerator Pedal
Position Sensor connector disconnected and the jumper wire in
place.
Does the scan tool display the DTC as described above?
Yes >> Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 6
9 - 1354 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1355
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K854) ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K400) ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO THE (K854)
ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT OR (K852) ACCELERATOR PEDAL
POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT
(K854) ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K400) ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
cardiagn.com
ACCELERATOR PEDAL POSITION SENSOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any Sensor reference or supply voltage DTCs are present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Fully depress and release the Accelerator Pedal several times.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1357
cardiagn.com
Yes >> Repair the appropriate circuit that has voltage present.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go to 3
3. (K29) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT SHORTED TO THE 5 VOLT
SUPPLY CIRCUIT
Turn the ignition off.
Disconnect the Engine Control Module (ECM) harness connector.
Measure the resistance between the (K29) Accelerator Pedal Position
Sensor 2 Signal circuit and the (K854) Accelerator Pedal Position Sen-
sor 2 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Measure the resistance between the (K29) Accelerator Pedal Position
Sensor 2 Signal circuit and the (K852) Accelerator Pedal Position Sen-
sor 1 5 Volt Supply circuit in the Accelerator Pedal Position Sensor har-
ness connector.
Is the resistance above 1000.0 ohms for both of the circuits?
Yes >> Go to 4
No >> Repair the shorted (K29) Accelerator Pedal Position Sensor
2 Signal circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1358 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
9 - 1360 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Theory of Operation
The Accelerator Pedal Position Sensor contains two independent three wire sensors. Each sensor provides inde-
pendent pedal position signals to the ECM. The raw voltage signal from APP #1 sensor is 2 times the raw voltage
signal from APP #2. Although the raw voltage signals differ, the scan tool converts and displays these voltages as
matching percentages of pedal travel.
• When Monitored:
With the ignition on. No other APP DTC’s set. No Sensor Reference Voltage DTC’s set.
• Set Condition:
APP Sensor #1 and APP Sensor #2 signals do not agree for 0.26 seconds.
Possible Causes
INTERMITTENT DTC
(K852) ACCELERATOR PEDAL POSITION SENSOR 1 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
RESISTANCE
(K23) ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K167) ACCELERATOR PEDAL POSITION SENSOR 1 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
(K854) ACCELERATOR PEDAL POSITION SENSOR 2 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH
cardiagn.com
RESISTANCE
(K12) ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
(K400) ACCELERATOR PEDAL POSITION SENSOR 2 SENSOR GROUND CIRCUIT OPEN OR HIGH
RESISTANCE
ACCELERATOR PEDAL POSITION SENSOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
NOTE: If any Sensor reference or supply voltage DTCs are present, perform the applicable diagnostic pro-
cedure before continuing with this test.
NOTE: The APP Sensor is a device that contains two separate potentiometer type sensors. Each sensor has
its own 5-volt supply circuit, sensor ground circuit and signal circuit. The APP Sensor no longer incorpo-
rates a low-idle switch.
NOTE: The APP Sensor 2 signal should always be approximately 1/2 the voltage of the APP Sensor 1 signal.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1362 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
No >> Repair the circuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1363
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO GROUND
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO (K604) EGR AIRFLOW CONTROL
VALVE SIGNAL
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
EGR AIRFLOW CONTROL VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Airflow Control Valve.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO (K604) EGR AIRFLOW
CONTROL VALVE SIGNAL CIRCUIT
Measure the resistance between the (K601) EGR Airflow Control Valve
Control circuit and the (K604) EGR Airflow Control Valve Signal circuit
in the EGR Airflow Control Valve harness connector.
Is the resistance above 1000 ohms?
Yes >> Go to 4
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for a short to the (K604) EGR Airflow Control Valve Signal
circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
4. (K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE
Measure the resistance of the (K601) EGR Airflow Control Valve Control
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1366 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1367
cardiagn.com
Possible Causes
INTERMITTENT DTC
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT SHORTED TO VOLTAGE
(K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT SHORTED TO VOLTAGE
(K601) EGR AIRFLOW CONTROL VALVE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
(K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
EGR AIRFLOW CONTROL VALVE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Airflow Control Valve.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Measure the resistance of the (K601) EGR Airflow Control Valve Control
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 5
No >> Repair the (K601) EGR Airflow Control Valve Control circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
9 - 1370 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
5. (K604) EGR AIRFLOW CONTROL VALVE SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of the (K604) EGR Airflow Control Valve Signal
circuit between the EGR Airflow Control Valve harness connector and
the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes >> Go to 6
No >> Repair the (K604) EGR Airflow Control Valve Signal circuit
for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
6. EGR AIRFLOW CONTROL VALVE
Turn the ignition off.
Connect the Engine Control Module (ECM) harness connector.
Replace the EGR Airflow Control Valve in accordance with the Service Information.
Turn the ignition on.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the EGR Airflow Control Valve.
Monitor the scan tool for at least two minutes.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 7
No >> Test complete.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1371
cardiagn.com
9 - 1372 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND
FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND
FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO FUEL INJECTOR LOW-SIDE CONTROL
CIRCUIT
FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Diagnostic Test
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
4. FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO FUEL INJECTOR LOW-SIDE CONTROL
CIRCUIT
Measure the resistance between the Fuel Injector High-Side Control circuit and the Fuel Injector Low-Side Control
circuit in each Fuel Injector harness connector.
Is the resistance above 1000 ohms between the circuits in each harness connector?
Yes >> Go to 5
No >> Repair the Fuel Injector High-Side Control circuit for a short to the Fuel Injector Low-Side Control circuit.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
5. FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of each Fuel Injector High-Side Control circuit between the Fuel Injector harness connector
and the ECM harness connector.
Is the resistance below 10.0 ohms for each measurement?
Yes >> Go to 6
No >> Repair the Fuel Injector High-Side Control circuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
7. FUEL INJECTOR
Measure the resistance between the terminals of each Fuel Injector.
Is the resistance approximately 185k ohms (+/- 0.5%) for each injector?
Yes >> Go to 8
No >> Replace Fuel Injector in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1375
cardiagn.com
9 - 1376 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE
FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
FUEL INJECTOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
cardiagn.com
1. DTC IS ACTIVE
NOTE: This DTC can set as a result of a fault in any of the injector circuits. Be sure to check all injector
circuits before replacing an injector and all injectors before replacing a module.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Attempt to start the engine and test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
5. FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE
Measure the resistance of each Fuel Injector Low-Side Control circuit between the Fuel Injector harness connector
and the ECM connector.
Is the resistance below 10.0 ohms for each circuit?
Yes >> Go to 6
No >> Repair the Fuel Injector Low-Side Control circuit for an open circuit or high resistance.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
6. FUEL INJECTOR
Measure the resistance between the terminals of each Fuel Injector.
Is the resistance approximately 185k ohms (+/- 0.5%) for all injectors?
Yes >> Go to 7
No >> Replace Fuel Injector in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT CONDITION
(K344) MAIN RELAY OUTPUT CIRCUITS OPEN
(K53) EGR COOLER BYPASS CONTROL CIRCUIT SHORTED TO GROUND
(K53) EGR COOLER BYPASS CONTROL CIRCUIT OPEN
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE
Diagnostic Test
cardiagn.com
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition cycles, turning the ignition off for at least 10 seconds between each ignition cycle.
Monitor the scan tool for ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the (K53) EGR Cooler
Bypass Control circuit at the Valve Block Assembly harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 5
No >> Repair the (K53) EGR Cooler Bypass Control circuit for a
short to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 1382 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. VALVE BLOCK ASSEMBLY
Install a substitute Valve Block Assembly in place of the vehicle’s Valve Block Assembly.
NOTE: Ensure the ECM and Valve Block Assembly harness connectors are connected.
Turn the ignition on.
With the scan tool, check for this DTC to set again.
Did this DTC set again?
Yes >> Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Valve Block Assembly.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1383
cardiagn.com
Possible Causes
INTERMITTENT CONDITION
(K344) MAIN RELAY OUTPUT CIRCUITS OPEN
(K53) EGR COOLER BYPASS CONTROL CIRCUIT SHORTED TO GROUND
(K53) EGR COOLER BYPASS CONTROL CIRCUIT OPEN
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE
Diagnostic Test
cardiagn.com
under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the
DTC is displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition cycles, turning the ignition off for at least 10 seconds between each ignition cycle.
Monitor the scan tool for ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Turn the ignition off.
Disconnect the ECM harness connectors.
Measure the resistance between ground and (K53) EGR Cooler Bypass
Control circuit at Valve Block Assembly harness connector.
Is the resistance above 1000 ohms?
Yes >> Go To 5
No >> Repair (K53) EGR Cooler Bypass Control circuit for a short
to ground.
Perform the ECM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).
9 - 1386 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
6. VALVE BLOCK ASSEMBLY
Install a substitute Valve Block Assembly in place of the vehicle’s Valve Block Assembly.
NOTE: Ensure the ECM and Valve Block Assembly harness connectors are connected.
Turn the ignition on.
With the scan tool, check for this DTC to set again.
Did this DTC set again?
Yes >> Replace and program the Engine Control Module in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Replace the Valve Block Assembly.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1387
cardiagn.com
Possible Causes
INTERMITTENT CONDITION
(K53) EGR COOLER BYPASS CONTROL CIRCUIT SHORTED TO VOLTAGE
VALVE BLOCK ASSEMBLY
ENGINE CONTROL MODULE
Diagnostic Test
cardiagn.com
assist when checking for an active DTC.
Turn the ignition on.
With the scan tool, erase ECM DTCs.
Perform several ignition cycles, turning the ignition off for at least 10 seconds between each ignition cycle.
Monitor the scan tool for ECM DTCs.
Did this DTC set again?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1390 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G329) CHARGE INDICATOR SIGNAL CIRCUIT SHORTED TO GROUND
(G329) CHARGE INDICATOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
GENERATOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
cardiagn.com
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Test drive the vehicle
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
cardiagn.com
4. GENERATOR
Turn the ignition off.
Replace the Generator.
With the scan tool, Clear DTCs.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 5
No >> Test complete
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Possible Causes
INTERMITTENT DTC
(G329) CHARGE INDICATOR SIGNAL CIRCUIT SHORTED TO VOLTAGE
GENERATOR
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
cardiagn.com
Test drive the vehicle
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
3. GENERATOR
Turn the ignition off.
Replace the Generator.
With the scan tool, Clear DTCs.
Test drive the vehicle.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go to 4
No >> Test complete
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Were any problems found?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Replace the Engine Control Module (ECM) in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
9 - 1396 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
Refer to symptom Checking the ECM Power and Grounds.
Are the ECM Power and Ground circuits o.k.?
Yes >> Replace the ECM in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair as necessary.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1398 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
Refer to symptom Checking the ECM Power and Grounds.
Are the ECM Power and Ground circuits o.k.?
Yes >> Replace the ECM in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair as necessary.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1400 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
Diagnostic Test
cardiagn.com
Refer to symptom Checking the ECM Power and Grounds.
Are the ECM Power and Ground circuits o.k.?
Yes >> Replace the ECM in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair as necessary.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1402 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
INTERMITTENT DTC
DTC SET IN TOTALLY INTEGRATED POWER MODULE (TIPM)
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: This DTC will set if the Engine Control Module (ECM) receives a message from the TIPM indicating
that a PTC Heater Relay DTC is present.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the PTC Heater Relay 1.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
DTC SET IN TOTALLY INTEGRATED POWER MODULE (TIPM)
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
cardiagn.com
NOTE: This DTC will set if the Engine Control Module (ECM) receives a message from the Totally Integrated
Power Module indicating that a PTC Heater Relay DTC is present.
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
With the scan tool, actuate the PTC Heater Relay 2.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC EXPLANATION
NOTE: This DTC indicates that the vehicle has been in an accident and the airbag module has deployed the
airbags.
View Repair.
Yes >> Test Complete.
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1405
Possible Causes
Diagnostic Test
cardiagn.com
With the scan tool, read the active DTC’s.
Does the scan tool display this DTC as active?
Yes >> Go To 2
No >> If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide,
visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded
terminals.
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
TOTALLY INTEGRATED POWER MODULE (TIPM)
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1. DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
cardiagn.com
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1407
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
ANTI-LOCK BRAKE MODULE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.
cardiagn.com
DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
9 - 1408 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
TOTALLY INTEGRATED POWER MODULE (TIPM)
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.
cardiagn.com
DTC IS ACTIVE
Ignition on, engine not running.
With the scan tool, Clear DTCs in the Engine Control Module (ECM).
Monitor the scan tool for at least two minutes.
Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.
Start the engine.
Allow the engine to reach normal operating temperature.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes >> Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING for diag-
nostic procedures and for further possible causes.
No >> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1409
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
ANTI-LOCK BRAKE MODULE
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.
cardiagn.com
ACTIVE DTC
NOTE: Diagnose all CAN B and C communication DTCs before continuing.
Ignition on, engine not running.
With a scan tool, view DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
INTERMITTENT DTC
CAN BUS OPEN OR SHORTED CONDITION
TOTALLY INTEGRATED POWER MODULE (TIPM)
ENGINE CONTROL MODULE (ECM)
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
Diagnostic Test
1.
cardiagn.com
ACTIVE DTC
NOTE: Diagnose all CAN B and C communication DTCs before continuing.
Ignition on, engine not running.
With a scan tool, view DTCs.
Is the status Active for this DTC?
Yes >> Go To 2
No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS
AND TESTING)
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Diagnostic Test
cardiagn.com
1. ECM CODES PRESENT
NOTE: The ECM must have proper power and ground connections for the following tests to be valid. Refer
to Checking the ECM Power and Grounds in the symptom list.
Turn the ignition on.
With the scan tool, read the ECM DTCs.
Does the scan tool display any ECM DTCs?
Yes >> Refer to symptom list for problems related to ECM DTC.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 2
4. ECT SENSOR
Using a temperature probe, check the vehicle temperature near the ECT Sensor.
Turn the ignition on.
With the scan tool in Sensors, read the ECT Sensor temperature.
Compare the temperature probe reading with the scan tool reading.
Are the two readings within 10°C of each other?
Yes >> Go To 5
No >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
5. GLOW PLUGS
NOTE: Prior to performing this test, be sure to check the Glow Plug Relay operation. Refer to CHECKING
GLOW PLUG OPERATION for the related symptom(s).
Refer to the Service Information and check the Glow Plugs for proper operation.
Are the Glow Plugs operating properly?
Yes >> Go To 6
cardiagn.com
No >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
7. FUEL CONTAMINATION
Inspect the fuel supply for contamination.
Is the fuel contaminated?
Yes >> Refer to the Service Information to remove and replace fuel throughout the fuel system.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 8
cardiagn.com
9 - 1414 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Possible Causes
BATTERY CABLES
LOW BATTERY/POOR BATTERY CONNECTION
CLUTCH INTERLOCK SWITCH INPUT
MECHANICAL PROBLEM
SKIM CODES PRESENT
STARTER MOTOR
TOTALLY INTEGRATED POWER MODULE
(T750) STARTER CONTROL OUTPUT CIRCUIT SHORT TO GROUND
(T750) STARTER CONTROL OUTPUT CIRCUIT OPEN
Diagnostic Test
1. BATTERY CABLES
NOTE: Ensure there are no Active DTC’s in the ECM or TIPM. If the ECM or TIPM have Active DTC’s, repair
these DTC’s before continuing with No Crank diagnosis.
Turn the ignition off.
cardiagn.com
NOTE: The battery must be fully charged before diagnosing a no crank condition.
Inspect the battery cables for corrosion, looseness or other problems.
Is there evidence of problems?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Go To 2
5. MECHANICAL PROBLEM
Turn the ignition off.
Attempt to manually rotate the crankshaft 360°.
Is the crankshaft able to rotate 360°?
cardiagn.com
Yes >> Replace the Starter Motor.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
No >> Repair the engine mechanical problem.
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
cardiagn.com
Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
9 - 1418 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
cardiagn.com
TURBOCHARGER
Diagnostic Test
3. EGR SYSTEM
Refer to the symptom list and perform the CHECKING THE EGR SYSTEM test.
Were any problems found during the EGR System test?
Yes >> Repair or replace as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> 4
cardiagn.com
Yes >> Repair as necessary in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 5
8. ENGINE COMPRESSION
Start and idle the engine.
With the scan tool, perform the Cylinder Compression Test.
Does the Cylinder Compression Test indicate low compression in any of the cylinders?
Yes >> Using the Service Information, repair the engine as necessary to regain proper cylinder compression.
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 9
9. FUEL INJECTOR
NOTE: An injector that sticks open can cause this symptom. A sticking injector will cause the engine to
misfire and emit excessive black smoke from the exhaust system.
Start and idle the engine.
With the scan tool, perform the Cylinder Fuel Quantity Correction Test.
NOTE: A problem injector will be indicated by a significant change in correction quantity as compared to
the rest of the injectors.
Are any of the injectors displaying a significant amount of injection quantity correction?
Yes >> Using the Service Information, remove and inspect the Fuel Injectors for signs of damage or debris that
may cause the injector to stick. Sticking injectors may cause the combustion chamber to become black
and oil soaked. Replace Injector(s) as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 10
cardiagn.com
9 - 1422 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
APP SENSOR 1
APP SENSOR 2
Diagnostic Test
cardiagn.com
Turn the ignition on.
With the scan tool, read the APP Sensor 1 and APP Sensor 2 Volts with the accelerator pedal in the at rest position.
Does the scan tool display between 0.79 and 0.95 volt for sensor 1 and 0.39 and 0.48 volt for sensor
2?
Yes >> Go To 2
No >> Check the APP Sensor circuits for proper resistance. If o.k., replace the APP Sensor in accordance with
the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2. APP SENSOR 1
While back probing, measure the voltage of the APP Sensor 1 Signal circuit at the ECM.
Monitor the voltmeter while slowly pressing the accelerator pedal completely down.
NOTE: APP signals are displayed in voltage and percentage on the scan tool. Although APP 1 voltage is
double APP 2 voltage, the percentage display of APP 1 and APP 2 should be within 2.5% of each other
during all phases of accelerator pedal travel.
Did the voltage increase smoothly with pedal travel?
Yes >> Go To 3
No >> Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
3. APP SENSOR 2
While back probing, measure the voltage of the APP Sensor 2 Signal circuit at the ECM.
Monitor the voltmeter while slowly pressing the accelerator pedal completely down.
NOTE: APP signals are displayed in voltage and percentage on the scan tool. Although APP 1 voltage is
double APP 2 voltage, the percentage display of APP 1 and APP 2 should be equal during all phases of
accelerator pedal travel.
Did the voltage increase smoothly with pedal travel?
Yes >> Go To 4
No >> Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1423
cardiagn.com
9 - 1424 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
Diagnostic Test
cardiagn.com
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1425
Possible Causes
TURBOCHARGER ASSEMBLY
BOOST PRESSURE ACTUATOR SUPPLY HOSE
BOOST PRESSURE ACTUATOR
INTAKE OR EXHAUST SYSTEM PROBLEM
cardiagn.com
While observing the armature, apply 20 inches of vacuum.
NOTE: The armature should move counterclockwise from the 10 o’clock position to the 9 o’clock position.
Is the Boost Pressure Actuator operating from the 10 o’clock to the 9 o’clock position when 20 inches
of vacuum is applied?
Yes >> Go to 4
No >> Go To 2
cardiagn.com
With the scan tool, observe and note the Boost Pressure hpa reading.
While observing the scan tool, apply 15 inches of vacuum.
NOTE: The Boost Pressure hpa reading should increase more than 100 hpa as well as an audible engine
tone change when 15 inches of vacuum is applied.
Does the Boost Pressure hpa reading increase more than 100 hpa when 15 inches of vacuum is
applied?
Yes >> Test complete.
No >> Refer to the Service Information and replace the Turbocharger assembly.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1427
Possible Causes
Diagnostic Test
cardiagn.com
No >> Check the wiring and connectors associated with the ECT Sensor for corrosion, damage or other prob-
lems. Repair as necessary. If wiring and connectors are o.k., replace the Engine Coolant Temperature
Sensor.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
VACUUM HOSES/TUBES
VACUUM SUPPLY SYSTEM
EGR VALVE
VALVE BLOCK ASSEMBLY
cardiagn.com
2 inches.
Does the vacuum read above 16 inches for 2 minutes then drop to below 2 inches?
Yes >> Go to 2
No >> Go to 3
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2. EGR VALVE
cardiagn.com
NOTE: Problems with this hose will cause incorrect vacuum to the EGR Valve resulting in driveability prob-
lems.
Were any problems found?
Yes >> Repair or replace as necessary.
No >> Go to 5
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Possible Causes
Diagnostic Test
cardiagn.com
Engine Exhaust System - must be free of any restriction
Engine Drive Chains and Sprockets - must be properly positioned
Vacuum System - must operate properly and be free of any vacuum leaks
Fuel - must have adequate supply and must be free of contamination (ie. debris, water and gasoline)
Fuel Injectors - must not be plugged or restricted
Fuel Lift Pump - must operate properly (where applicable)
Fuel Injection Pump - must be producing the correct output volume and pressure
Inspect the Fuel Lines, Fuel Filter and Fuel Pressure Relief Valve for signs of restriction and leaks
NOTE: Check for any Technical Service Bulletins that may relate to the problem.
Are there any problems evident?
Yes >> Repair as necessary.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1431
cardiagn.com
9 - 1432 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Possible Causes
Diagnostic Test
cardiagn.com
Disconnect the ECM harness connectors.
Using a 12-volt test light connected to 12-volts, check each of the ECM ground circuits in ECM harness connector
C1 cavities 1, 2 and 4.
Did the test light illuminate for each cavity?
Yes >> Go To 2
No >> Repair the ECM Ground circuit(s) for an open.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
cardiagn.com
Yes >> Go To 6
No >> Repair the Fused Main Relay Battery Supply circuit(s) for an open.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
7. MAIN RELAY
Turn the ignition off.
Install a known good relay in place of the Main Relay.
Connect a jumper wire between ground and the Main Relay Control circuit in ECM C1 harness connector cavity 49.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fused Main Relay Output circuits at the ECM C1 harness
connector cavities 3, 5 and 6.
Did the test light illuminate brightly for each circuit?
Yes >> Replace the Main Relay.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Go To 8
9 - 1434 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1435
*INTERMITTENT DTC
For a complete wiring diagram Refer to Section 8W
Diagnostic Test
1. INTERMITTENT DTC
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
The conditions necessary to set this DTC are not present at this time.
Review the scan tool environmental data. If possible, try to duplicate the conditions under which the DTC set.
If applicable, actuate the component with the scan tool.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change, the actuation to be interrupted, or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins (TSBs) that may apply.
Turn the ignition off.
Visually inspect the related wire harness. Disconnect all the related harness connectors. Look for any chafed,
pierced, pinched, partially broken wires and broken, bent, pushed out, or corroded terminals.
cardiagn.com
Perform a voltage drop test on the related circuits between the suspected component and the ECM.
Inspect and clean all ECM, engine, and chassis grounds that are related to the most current DTC.
If numerous trouble codes were set, use a schematic and inspect any common ground or supply circuits.
For intermittent Misfire DTCs check for restrictions in the Intake and Exhaust system, proper installation of Sensors,
vacuum leaks, and binding components that are run by the accessory drive belt.
Use the scan tool to perform a System Test if one applies to the component.
A co-pilot, data recorder, and/or lab scope should be used to help diagnose intermittent conditions.
Were any problems found during the above inspections?
Yes >> Perform the necessary repairs.
Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No >> Test Complete.
9 - 1436 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Diagnostic Test
1. NO RESPONSE
NOTE: For vehicle communication problems, use the scan tool to refer to the Network Review Screen. The
screen depicts a high level view of the vehicle network. Fault and problem areas appear in red.
Does the scan tool display a Vehicle Network problem or NO RESPONSE condition?
Yes >> Refer to the appropriate BUS Communication test in Section 8 ELECTRONIC CONTROL MODULES -
ELECTRICAL DIAGNOSTICS.
No >> Go To 2
2. NO START
cardiagn.com
If no DTC(s) are present that relate to a no-start condition, refer to the Non DTC Diagnostic Procedures
that relate to Fuel and Starting.
No >> Go To 3
4. VEHICLE INSPECTION
WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
Based on the diagnostic condition that applies, review the following list and perform any tests that relate to the
condition:
If multiple DTCs are set in the ECM, review the wiring schematics for problems in any shared supply or ground
circuits. Refer to the diagnostic procedure for Checking the ECM Power and Ground Circuits.
Inspect the air intake system and turbocharger related tubes for damage, restriction, or poor connection.
Inspect the exhaust system and related tubes for damage, restriction, or poor connection.
Remove and inspect the Air Filter for soiling or excessive dirt and debris which may cause an air flow restriction.
If the ECM detects and stores a DTC, the ECM also stores the environmental conditions under which the DTC was
set.
Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when
checking for an active DTC.
With the scan tool, Clear the stored DTC(s).
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1437
Attempt to duplicate the environmental conditions under which the DTC was set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the vehicle conditions under which
the DTC conditions will be monitored. Operate the vehicle under those conditions.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the component and the
module.
If the DTC(s) are fuel or air related, check the fuel level and quality.
Were any repairs made that corrected the DTC or condition?
Yes >> Test complete.
Perform the ECM Verification Test Ver. 1.
No >> Refer to the diagnostic test procedure related to the DTC.
STANDARD PROCEDURE
cardiagn.com
9 - 1438 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
Diagnostic Test
Select the verification test for the repair that has been completed:
Speed Control repair
Go To 2
Charging System repair
Go To 3
No Start repair
Go To 4
DTC and all other repairs
Go To 5
cardiagn.com
reconnect components as necessary.
2. With the scan tool, erase all diagnostic trouble codes (DTCs).
3. Road test the vehicle at a speed above 60 km/h (35 MPH).
4. Turn the speed control ON/OFF switch on.
5. Depress and release the SET switch. If the speed control does not engage, the repair is not complete, continue
with step 12.
6. Quickly depress and release the RESUME/ACCEL switch. If the vehicle speed does not increase by 3 km/h (2
MPH), the repair is not complete, continue with step 12.
7. Using caution, depress and release the brake pedal. If the speed control does not disengage, the repair is not
complete, continue with step 12.
8. With the vehicle speed at least 60 km/h (35 MPH), depress the RESUME/ACCEL switch. If the speed control
does not resume at the previously set speed, the repair is not complete, continue with step 12.
9. Hold down the COAST switch. If the vehicle does not decelerate, the repair is not complete, continue with step
12.
10. While still holding down the COAST switch, ensure the vehicle speed is at least 60 km/h (35 MPH) and release
the COAST switch. If the vehicle does not adjust and set a new vehicle speed, the repair is not complete, continue
with step 12.
11. With the speed control engaged, depress the ON/OFF switch. If the speed control does not disengage, the
repair is not complete, continue with step 12.
12. If the vehicle did not successfully perform all of the previous steps, check for Technical Service Bulletins (TSBs)
that pertain to this speed control problem and then, if necessary, return to the Symptom List.
13. If the vehicle successfully performed all of the previous steps, the speed control system is now functioning as
designed. The repair is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
PM ENGINE ELECTRICAL DIAGNOSTICS - DIESEL 9 - 1439
4.
cardiagn.com
NO START VERIFICATION TEST
NOTE: IMPORTANT! If the Engine Control Module or Sentry Key Immobilizer Module has been replaced,
ensure the programming procedure for the module has been performed in accordance with the Service
Information.
2. Inspect the vehicle to ensure that all engine components are properly installed and connected. Reassemble and
reconnect components as necessary.
3. Inspect the engine oil for contamination. If it is contaminated, change the oil and filter.
4. With the scan tool, erase all diagnostic trouble codes (DTCs).
5. Turn the ignition off for at least 10 seconds.
6. Attempt to start the engine.
7. If the engine is unable to start, look for any Technical Service Bulletins (TSBs) that may relate to this condition.
Return to the Symptom List if necessary.
8. If the engine starts and continues to run, the repair is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
9 - 1440 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL PM
cardiagn.com
Control Circuit, drive the vehicle for at least 5 minutes with the A/C on.
12. At some point, stop the vehicle and turn the engine off for at least 10 seconds, then restart the engine and
continue.
13. Upon completion of the road test, turn the engine off and check for DTCs with the scan tool.
14. If the repaired DTC has set again, the repair is not complete. Check for any pertinent Technical Service Bulletins
(TSBs) and return to the Symptom List. If there are no DTCs, the repair was successful and is now complete.
Are any DTCs or symptoms remaining?
Yes >> Repair is not complete, refer to the appropriate diagnostic procedure.
No >> Repair is complete.
PM ENGINE 1.8L WORLD 9 - 1441
TABLE OF CONTENTS
page page
cardiagn.com
REPAIR OF DAMAGED OR WORN OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1489
THREADS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1450 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1489
HYDROSTATIC LOCKED ENGINE . . . . . . . . . . 1450 SPRINGS & SEALS-VALVE
FORM-IN-PLACE GASKETS AND SEALERS . 1451 REMOVAL
ENGINE GASKET SURFACE PREPARATION . 1452 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1490
MEASURING BEARING CLEARANCE USING CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1490
PLASTIGAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 1452 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1490
CYLINDER HEAD CORE PLUGS . . . . . . . . . . . 1453 INSTALLATION
REMOVAL - ENGINE ASSEMBLY . . . . . . . . . . . . . 1453 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1491
INSTALLATION - ENGINE ASSEMBLY . . . . . . . . 1457 CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1491
SPECIFICATIONS PHASERS-CAMSHAFT
TORQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1459 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1493
SPECIAL TOOLS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1493
2.4L ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1461 ENGINE BLOCK
ELEMENT-AIR CLEANER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1494
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1464 STANDARD PROCEDURE
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1465 CYLINDER BORE HONING . . . . . . . . . . . . . . . . 1494
HOUSING-AIR CLEANER CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1495
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1467 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1495
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1468 CRANKSHAFT
CYLINDER HEAD STANDARD PROCEDURE
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1469 MEASURING CRANKSHAFT END PLAY . . . . 1496
DIAGNOSIS AND TESTING REMOVAL - CRANKSHAFT . . . . . . . . . . . . . . . . . . 1496
CYLINDER HEAD GASKET . . . . . . . . . . . . . . . . 1469 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1497
REMOVAL - CYLINDER HEAD . . . . . . . . . . . . . . . 1470 INSTALLATION - CRANKSHAFT . . . . . . . . . . . . . . 1497
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1471 SEAL-CRANKSHAFT OIL FRONT
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1471 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1499
INSTALLATION - CYLINDER HEAD . . . . . . . . . . . 1472 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1499
CAMSHAFT(S) SEAL-CRANKSHAFT OIL REAR
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1476 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1501
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1476 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1502
STANDARD PROCEDURE ROD-PISTON & CONNECTING
MEASURING CAMSHAFT END PLAY . . . . . . . 1476 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1503
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1476 STANDARD PROCEDURE
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1479 PISTON TO CYLINDER BORE FITTING . . . . . 1503
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1479 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1503
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1480 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1504
9 - 1442 ENGINE 1.8L WORLD PM
cardiagn.com
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1513 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1530
MOUNT-LEFT INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1530
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1514 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1530
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1514 VALVE TIMING
MOUNT-FRONT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1532
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1515 STANDARD PROCEDURE
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1515 VALVE TIMING VERIFICATION . . . . . . . . . . . . . 1532
MOUNT-REAR COVER-TIMING CHAIN
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1516 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1533
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1516 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1533
LUBRICATION CHAIN AND SPROCKETS-TIMING
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1517 REMOVAL
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1517 TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1535
DIAGNOSIS AND TESTING CAMSHAFT SPROCKET(S) . . . . . . . . . . . . . . . . 1535
CHECKING ENGINE OIL PRESSURE . . . . . . . 1517 CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1536
FILTER-OIL INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1536
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1518 INSTALLATION
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1518 CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1537
PAN-OIL TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1537
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1519 TIMING-CHAIN TENSIONER
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1519 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541
PUMP-OIL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1541
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1521 ADJUSTMENTS
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1521 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1542
PM ENGINE 1.8L WORLD 9 - 1443
cardiagn.com
of malfunctions (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING - MECHANICAL) (Refer to 9 - ENGINE - DIAG-
NOSIS AND TESTING - PERFORMANCE).
For fuel system diagnosis, (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY - DIAGNOSIS AND TESTING).
Additional tests and diagnostic procedures may be necessary for specific engine malfunctions that cannot be iso-
lated with the Service Diagnosis charts. Information concerning additional tests and diagnosis is provided within the
following:
• Cylinder Compression Pressure Test
• Cylinder Combustion Pressure Leakage Test
• Engine Cylinder Head Gasket Failure Diagnosis
• Lash Adjuster Noise Diagnosis
• Engine Oil Leak Inspection
9 - 1444 ENGINE 1.8L WORLD PM
ENGINE PERFORMANCE
ENGINE WILL NOT START 1. Weak battery. 1. Test battery. Charge or replace as
necessary. (Refer to 8 -
ELECTRICAL/BATTERY SYSTEM -
DIAGNOSIS AND TESTING)
2. Corroded or loose battery 2. Clean and tighten battery
connections. connections. Apply a coat of light
mineral grease to terminals.
3. Faulty starter. 3. Test starting system. (Refer to 8 -
ELECTRICAL/STARTING -
DIAGNOSIS AND TESTING)
4. Faulty coil(s) or control unit. 4. Test and replace as needed.
(Refer to Appropriate Diagnostic
Information)
5. Incorrect spark plug gap. 5. Set gap. (Refer to 8 -
ELECTRICAL/IGNITION CONTROL
cardiagn.com
- SPECIFICATIONS)
6. Contamination in fuel system. 6. Clean system and replace fuel
filter.
7. Faulty fuel pump. 7. Test fuel pump and replace as
needed. (Refer to Appropriate
Diagnostic Information)
8. Incorrect engine timing. 8. Check for a skipped timing chain.
ENGINE LOSS OF POWER 1. Dirty or incorrectly gapped plugs. 1. Clean plugs and set gap.
ENGINE MISSES ON 1. Dirty or incorrectly gapped spark 1. Clean spark plugs and set gap.
ACCELERATION plugs.
ENGINE MISSES AT HIGH SPEED 1. Dirty or incorrect spark plug gap. 1. Clean spark plugs and set gap.
2. Faulty ignition coil(s). 2. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
3. Dirty fuel injector(s). 3. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
cardiagn.com
4. Contamination in fuel system. 4. Clean system and replace fuel
filter.
ENGINE MECHANICAL
VALVETRAIN NOISE 1. High or low oil level in 1. Check and correct engine oil
crankcase. level.
CONNECTING ROD NOISE 1. Insufficient oil supply. 1. Check engine oil level.
MAIN BEARING NOISE 1. Insufficient oil supply. 1. Check engine oil level.
cardiagn.com
2. Low oil pressure. 2. Check engine oil level. Inspect oil
pump relief valve and spring.
3. Thin or diluted oil. 3. Change oil to correct viscosity.
4. Thick oil 4. (a) Change engine oil and filter.
(b) Run engine to operating
temperature.
(c) Change engine oil and filter
again.
5. Excessive bearing clearance. 5. Measure bearings for correct
clearance. Repair as necessary.
6. Excessive end play. 6. Check thrust bearing for wear on
flanges.
7. Crankshaft journal out-of-round 7. Replace crankshaft or grind
or worn. journals.
8. Loose flywheel or torque 8. Tighten to correct torque.
converter.
OIL PRESSURE DROP 1. Low oil level. 1. Check engine oil level.
OIL CONSUMPTION OR SPARK 1. PCV system malfunction. 1. Check system and repair as
PLUGS FOULED necessary. (Refer to 25 -
EMISSIONS CONTROL/
EVAPORATIVE EMISSIONS/PCV
VALVE - DIAGNOSIS AND
TESTING)
2. Worn, scuffed or broken rings. 2. Hone cylinder bores. Install new
rings.
3. Carbon in oil ring slots. 3. Install new rings.
4. Rings fitted too tightly in grooves. 4. Remove rings and check
cardiagn.com
grooves. If groove is not proper
width, replace piston.
5. Worn valve guide(s). 5. Replace cylinder head.
6. Valve stem seal(s) worn or 6. Replace seal(s).
damaged.
WARNING: DO NOT REMOVE THE PRESSURE CAP WITH THE SYSTEM HOT AND UNDER PRESSURE
BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
Check the coolant level and fill as required. DO NOT install the pressure cap.
Start and operate the engine until it attains normal operating temperature, then turn the engine OFF.
Clean spark plug recesses with compressed air.
Remove the spark plugs.
Remove the oil filler cap.
Remove the air cleaner.
Calibrate the tester according to the manufacturer’s instructions. The shop air source for testing should maintain 483
kPa (70 psi) minimum, 1,379 kPa (200 psi) maximum, with 552 kPa (80 psi) recommended.
Perform the test procedures on each cylinder according to the tester manufacturer’s instructions. While testing, lis-
ten for pressurized air escaping through the throttle body, tailpipe and oil filler cap opening. Check for bubbles in the
cardiagn.com
coolant.
All gauge pressure indications should be equal, with no more than 25% leakage per cylinder.
FOR EXAMPLE: At 552 kPa (80 psi) input pressure, a minimum of 414 kPa (60 psi) should be maintained in the
cylinder.
With the engine cool, remove the coolant pressure cap. Start the engine and allow it to warm up until thermostat
opens.
If a large combustion/compression pressure leak exists, bubbles will be visible in the coolant.
PM ENGINE 1.8L WORLD 9 - 1449
WARNING: WITH COOLING SYSTEM TESTER IN PLACE, PRESSURE WILL BUILD UP FAST. EXCESSIVE
PRESSURE BUILT UP, BY CONTINUOUS ENGINE OPERATION, MUST BE RELEASED TO A SAFE PRESSURE
POINT. NEVER PERMIT PRESSURE TO EXCEED 138 kPa (20 psi).
Install Cooling System Tester 7700 or equivalent to pressure cap neck. Start the engine and observe the tester’s
pressure gauge. If gauge pulsates with every power stroke of a cylinder a combustion pressure leak is evident.
Combustion leaks into the cooling system can also be checked by using Bloc-Chek Kit C-3685-A or equivalent.
Perform test following the procedures supplied with the tool kit.
cardiagn.com
minutes. Check the oil dipstick to make sure the dye is thoroughly mixed as indicated with a bright yellow color
under a black light.
3. Using a black light, inspect the entire engine for fluorescent dye, particularly at the suspected area of oil leak. If
the oil leak is found and identified, repair as necessary.
4. If dye is not observed, drive the vehicle at various speeds for approximately 24 km (15 miles), and repeat inspec-
tion.
5. If the oil leak source is not positively identified at this time, proceed with the air leak detection test method
as follows:
• Disconnect the fresh air hose (make-up air) at the cylinder head cover and plug or cap the nipple on the cover.
• Remove the PCV valve hose from the cylinder head cover. Cap or plug the PCV valve nipple on the cover.
• Attach an air hose with pressure gauge and regulator to the dipstick tube.
CAUTION: Do not subject the engine assembly to more than 20.6 kpa (3 PSI) of test pressure.
• Gradually apply air pressure from 1 psi to 2.5 psi maximum while applying soapy water at the suspected
source. Adjust the regulator to the suitable test pressure that provides the best bubbles which will pinpoint the
leak source. If the oil leak is detected and identified, repair per service manual procedures.
• If the leakage occurs at the crankshaft rear oil seal area, refer to the section, Inspection for Rear Seal Area
Leak.
6. If no leaks are detected, turn off the air supply. Remove the air hose, all plugs, and caps. Install the PCV valve
and fresh air hose (make-up air). Proceed to next step.
7. Clean the oil off the suspect oil leak area using a suitable solvent. Drive the vehicle at various speeds approx-
imately 24 km (15 miles). Inspect the engine for signs of an oil leak by using a black light.
NOTE: If oil leakage is observed at the dipstick tube to block location; remove the tube, clean and reseal
using MoparT Stud & Bearing Mount (press fit tube applications only), and for O-ring style tubes, remove
tube and replace the O-ring seal.
3. Remove torque converter or clutch housing cover and inspect rear of block for evidence of oil. Use a black light
to check for the oil leak. If a leak is present in this area, remove transmission for further inspection.
a. Circular spray pattern generally indicates seal leakage or crankshaft damage.
b. Where leakage tends to run straight down, possible causes are a porous block, oil gallery cup plug, bedplate
to cylinder block mating surfaces and seal bore. See proper repair procedures for these items.
4. If no leaks are detected, pressurize the crankcase as previously described.
5. If the leak is not detected, very slowly turn the crankshaft and watch for leakage. If a leak is detected between
the crankshaft and seal while slowly turning the crankshaft, it is possible the crankshaft seal surface is damaged.
The seal area on the crankshaft could have minor nicks or scratches that can be polished out with emery cloth.
CAUTION: Use extreme caution when crankshaft polishing is necessary to remove minor nicks and
scratches. The crankshaft seal flange is especially machined to complement the function of the rear oil seal.
6. For bubbles that remain steady with shaft rotation, no further inspection can be done until disassembled.
7. After the oil leak root cause and appropriate corrective action have been identified, replace component(s) as
necessary.
cardiagn.com
STANDARD PROCEDURE
REPAIR OF DAMAGED OR WORN THREADS
Damaged or worn threads (excluding spark plug and camshaft bearing cap attaching threads) can be repaired.
Essentially, this repair consists of drilling out worn or damaged threads, tapping the hole with a special Heli-Coil Tap,
(or equivalent) and installing an insert into the tapped hole. This brings the hole back to its original thread size.
CAUTION: Be sure that the tapped holes maintain the original center line.
Heli-Coil tools and inserts are readily available from automotive parts jobbers.
CAUTION: DO NOT use starter motor to rotate the engine, severe damage may occur.
1. Inspect air cleaner, induction system and intake manifold to insure system is dry and clear of foreign material.
2. Remove negative battery cable.
3. Place a shop towel around the spark plugs when removing them from the engine. This will catch any fluid that
may possibly be in the cylinder under pressure.
4. With all spark plugs removed, rotate engine crankshaft using a breaker bar and socket.
5. Identify the fluid in the cylinder(s) (i.e., coolant, fuel, oil or other).
6. Make sure all fluid has been removed from the cylinders. Inspect engine for damage (i.e., connecting rods, pis-
tons, valves, etc.)
7. Repair engine or components as necessary to prevent this problem from re-occurring.
CAUTION: Squirt approximately one teaspoon of oil into the cylinders, rotate engine to lubricate the cylin-
der walls to prevent damage on restart.
cardiagn.com
inspect the package for the expiration date before use.
MOPART GASKET MAKER is an anaerobic type gasket material. The material cures in the absence of air when
squeezed between two metallic surfaces. It will not cure if left in the uncovered tube. The anaerobic material is for
use between two machined surfaces. Do not use on flexible metal flanges.
MOPART BED PLATE SEALANT is a unique (green-in-color) anaerobic type gasket material that is specially made
to seal the area between the bed plate and cylinder block without disturbing the bearing clearance or alignment of
these components. The material cures slowly in the absence of air when torqued between two metallic surfaces,
and will rapidly cure when heat is applied.
MOPART GASKET SEALANT is a slow drying, permanently soft sealer. This material is recommended for sealing
threaded fittings and gaskets against leakage of oil and coolant. Can be used on threaded and machined parts
under all temperatures. This material also will prevent corrosion. MoparT Gasket Sealant is available in a 13 oz.
aerosol can or 4oz./16 oz. can w/applicator.
SEALER APPLICATION
MoparT Gasket Maker material should be applied sparingly 1 mm (0.040 in.) diameter or less of sealant to one
gasket surface. Be certain the material surrounds each mounting hole. Excess material can easily be wiped off.
Components should be torqued in place within 15 minutes. The use of a locating dowel is recommended during
assembly to prevent smearing material off the location.
MoparT Engine RTV GEN II or ATF RTV gasket material should be applied in a continuous bead approximately 3
mm (0.120 in.) in diameter. All mounting holes must be circled. For corner sealing, a 3.17 or 6.35 mm (1/8 or 1/4 in.)
drop is placed in the center of the gasket contact area. Uncured sealant may be removed with a shop towel. Com-
ponents should be torqued in place while the sealant is still wet to the touch (within 10 minutes). The usage of a
locating dowel is recommended during assembly to prevent smearing material off the location.
MoparT Gasket Sealant in an aerosol can should be applied using a thin, even coat sprayed completely over both
surfaces to be joined, and both sides of a gasket. Then proceed with assembly. Material in a can w/applicator can
be brushed on evenly over the sealing surfaces.
9 - 1452 ENGINE 1.8L WORLD PM
cardiagn.com
• Drill motor with 3M Roloc™ Bristle Disc (white or yellow)
CAUTION: Excessive pressure or high RPM (beyond the recommended speed), can damage the sealing sur-
faces. The mild (white, 120 grit) bristle disc is recommended. If necessary, the medium (yellow, 80 grit) bris-
tle disc may be used on cast iron surfaces with care.
NOTE: Plastigage is available in a variety of clearance ranges. Use the most appropriate range for the spec-
ifications you are checking.
4. Install the proper crankshaft bearings to achieve the specified bearing clearances.
PM ENGINE 1.8L WORLD 9 - 1453
cardiagn.com
REMOVAL - ENGINE ASSEMBLY
1. Perform fuel pressure release procedure, then dis-
connect and remove fuel line (Refer to 14 - FUEL
SYSTEM/FUEL DELIVERY - STANDARD PROCE-
DURE).
2. Remove air cleaner housing assembly (1) and
clean air hose (Refer to 9 - ENGINE/AIR INTAKE
SYSTEM/AIR CLEANER HOUSING - REMOVAL).
3. Disconnect both cables from battery.
4. Remove battery and battery tray.
5. Discharge air conditioning system, if equipped
(Refer to 24 - HEATING & AIR CONDITIONING -
STANDARD PROCEDURE).
6. Drain cooling system (Refer to 7 - COOLING/EN-
GINE - STANDARD PROCEDURE).
9 - 1454 ENGINE 1.8L WORLD PM
cardiagn.com
19. Remove dipstick.
20. Remove throttle body support bracket.
21. Remove intake bolts and remove intake.
22. Disconnect coolant temperature sensor at block, Knock sensor, oil pressure sensor, generator, starter, block
heater, A/C compressor, and block ground.
23. Remove accessory drive belt.
24. Remove power steering reservoir (2).
25. Remove power steering line support.
26. Remove power steering pump and set aside.
27. Remove upper idler pulley.
28. Remove transaxle filler tube.
29. Disconnect transmission linkage and electrical
connectors.
30. Remove transmission vent hose.
31. Remove ground strap near right tower.
32. Remove rear heat shield.
33. Remove maniverter heat shields.
34. Raise vehicle.
35. Remove wheels.
36. Remove right front splash shield.
37. Remove axle nuts.
38. Remove ball joint pinch bolts and separate steering knuckle from ball joint.
39. Remove axles.
40. Drain oil.
41. Mark drive shaft and flange.
42. Remove carrier bearing and heat shield.
43. Remove driveshaft.
44. Remove exhaust pipe to maniverter bolts.
45. Remove maniverter support bracket.
46. Lower vehicle.
47. Remove coolant manifold.
48. Remove maniverter bolts.
PM ENGINE 1.8L WORLD 9 - 1455
cardiagn.com
63. Remove A/C mounting bracket.
cardiagn.com
70. Position dolly under engine and lower vehicle.
1. Position engine and transmission assembly under vehicle and slowly lower the vehicle over the
assembly.
engine/transaxle
cardiagn.com
2. Continue lowering vehicle until engine/transaxle aligns to mounting locations.
3. Install mounting bolts at the right and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).
4. Install mounting bolts at the right and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).
5. Remove safety straps from engine/transaxle assembly. Slowly raise vehicle enough to remove the engine dolly
and cradle.
6. Remove Adapter 9704.
7. Install pcm bracket.
8. Install maniverter assembly and upper lower heat shields.
9. Install oxygen sensor and connect electrical connector.
10. Install coolant manifold assembly.
9 - 1458 ENGINE 1.8L WORLD PM
cardiagn.com
25. Connect CKP electrical connector.
26. Install maniverter to exhaust pipe bolts and tighten.
27. Align driveshaft marks and install and heat shield.
28. Install generator
29. Install A/C bracket.
30. Install A/C lines on compressor and install compressor.
31. Install lower bell housing bolts and tighten.
32. Align torque converter and flex plate mark and install torque converter bolts and tighten.
33. Install inspection cover.
34. Install transaxle connector.
35. Connect trans cooler lines.
36. Install coolant hoses at transmission cooler.
37. Install axles.
38. Install ball joint pinch bolts and tighten.
39. Install axle nuts and tighten.
40. Install splash shields.
41. Install wheels.
42. Install new oil filter.
43. Lower vehicle.
44. Install transaxle filler tube.
45. Install upper idler pulley.
46. Install power steering pump.
47. Install power steering line support bracket.
48. Install power steering pump.
49. Install accessory drive belt.
50. Connect electrical connectors at block ground, starter, A/C compressor, knock sensor, Oil pressure sensor, gen-
erator, Coolant temperature sensor at block, and block heater.
51. Install intake manifold. Install intake manifold retaining bolts and tighten.
52. Install throttle body support bracket.
53. Install engine oil dip stick.
54. Install PCV hose to valve cover.
PM ENGINE 1.8L WORLD 9 - 1459
55. Connect manifold flow control valve and electronic throttle control electrical connectors and fasten harness to
intake.
56. Install vacuum lines at throttle body.
57. Install intake air tube on throttle body.
58. Connect variable valve timing solenoids, oil temperature sensor, coolant temperature sensor, intake air temper-
ature sensor, injectors, coils, manifold absolute pressure sensor, cam position sensors, oxygen sensor, and
capacitor electrical connectors.
59. Install upper radiator support bracket.
60. Install coolant hoses at coolant manifold.
61. Install grill trim panel.
62. Install coolant reservoir and connect hose.
63. Connect fuel line to fuel rail.
64. Install battery tray and battery.
65. Connect battery cables.
66. Install air cleaner housing and connect inlet air hose.
67. Install fresh air inlet.
68. Fill with coolant.
cardiagn.com
69. Fill with oil.
CAUTION: Do NOT run the engine with a vacuum pump in operation or with a vacuum present within the
A/C system. Failure to follow this caution will result in serious A/C compressor damage.
70. Evacuate the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD
PROCEDURE - REFRIGERANT SYSTEM EVACUATE).
71. Charge the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD PRO-
CEDURE - REFRIGERANT SYSTEM CHARGE).
72. Start engine and check for leaks.
SPECIFICATIONS
TORQUE
cardiagn.com
PM ENGINE 1.8L WORLD 9 - 1461
SPECIAL TOOLS
2.4L ENGINE
cardiagn.com
9 - 1462 ENGINE 1.8L WORLD PM
cardiagn.com
1.8L SPROCKET HOLDER 9711
cardiagn.com
REAR CRANKSHAFT SEAL GUIDE 9509
ELEMENT-AIR CLEANER
REMOVAL
1. Turn Lock Retainers (5) and remove fresh air inlet
(2) from air cleaner housing (1).
cardiagn.com
2. Disconnect intake air temperature sensor connector
(4).
3. Remove Air inlet tube (5) from air cleaner housing
(1).
4. Unfasten clasps (2) on sides of air cleaner housing
cover (1).
PM ENGINE 1.8L WORLD 9 - 1465
INSTALLATION
1. Install new filter element.
cardiagn.com
2. Place cover over air cleaner housing. Snap clasps
(2) in place.
3. Install air inlet tube (5).
4. Connect intake air temperature sensor connector
(4).
9 - 1466 ENGINE 1.8L WORLD PM
cardiagn.com
PM ENGINE 1.8L WORLD 9 - 1467
HOUSING-AIR CLEANER
REMOVAL
1. Remove fresh air inlet (2) from air cleaner housing
(1).
cardiagn.com
2. Remove intake air temperature sensor electrical
connector (4).
3. Remove air inlet tube (5) from housing (1).
4. Pull housing (1) upward to remove.
9 - 1468 ENGINE 1.8L WORLD PM
INSTALLATION
1. Make sure the rubber grommets, for the air cleaner
housing lower pins, are in place when reinstalling
the air cleaner housing. The rubber grommets
mount to the PDC bracket.
2. Push air cleaner housing (1) down while aligning
pins into the grommets.
3. Connect the throttle body air inlet hose (5) to the
air cleaner housing (1).
4. Connect intake air temperature sensor connector
(4).
cardiagn.com
5. Install fresh air inlet (2) and lock retainers (5).
PM ENGINE 1.8L WORLD 9 - 1469
CYLINDER HEAD
DESCRIPTION
The cross flow designed, aluminum cylinder head contains dual over-head camshafts with four valves per cylinder.
The valves are arranged in two in-line banks. The intake valves face toward the front of the vehicle. The exhaust
valves face the dash panel. The cylinder head incorporates powdered metal valve guides and seats. The cylinder
head is sealed to the block using a multi-layer steel head gasket and retaining bolts.
Integral oil galleries provide lubrication passages to the variable camshaft timing phasers, camshafts, and valve
mechanisms.
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
cardiagn.com
Possible indications of the cylinder head gasket leaking between adjacent cylinders are:
• Loss of engine power
• Engine misfiring
• Poor fuel economy
Possible indications of the cylinder head gasket leaking between a cylinder and an adjacent water jacket are:
• Engine overheating
• Loss of coolant
• Excessive steam (white smoke) emitting from exhaust
• Coolant foaming
With the engine cool, remove the coolant pressure cap. Start the engine and allow it to warm up until thermostat
opens.
If a large combustion/compression pressure leak exists, bubbles will be visible in the coolant.
WARNING: WITH COOLING SYSTEM TESTER IN PLACE, PRESSURE WILL BUILD UP FAST. EXCESSIVE
PRESSURE BUILT UP, BY CONTINUOUS ENGINE OPERATION, MUST BE RELEASED TO A SAFE PRESSURE
POINT. NEVER PERMIT PRESSURE TO EXCEED 138 kPa (20 psi).
Install Cooling System Tester 7700 or equivalent to pressure cap neck. Start the engine and observe the tester’s
pressure gauge. If gauge pulsates with every power stroke of a cylinder a combustion pressure leak is evident.
9 - 1470 ENGINE 1.8L WORLD PM
Combustion leaks into the cooling system can also be checked by using Bloc-Chek Kit C-3685-A or equivalent.
Perform test following the procedures supplied with the tool kit.
cardiagn.com
12. Remove valve cover.
13. Raise vehicle.
14. Remove right splash shield.
15. Set engine to TDC.
16. Remove accessory drive belts (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor bolts if equiped.
18. Remove lower A/C compressor mount.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft and water pump pulleys.
21. Remove right side engine mount bracket lower bolt.
22. Remove timing chain cover lower bolts.
23. Disconnect oxygen sensor electrical connectors.
24. Remove exhaust pipe at manaverter (AWD).
25. Remove manaverter support bracket retaining bolts (AWD).
26. Lower vehicle.
27. Remove power steering pump and set aside.
28. Support engine with suitable jack.
29. Remove right engine mount.
30. Remove accessory drive upper idler pulley.
31. Remove right upper engine mount bracket.
32. Remove accessory drive belt tensioner.
33. Remove upper timing chain cover retaining bolts.
34. Remove timing chain cover.
35. Remove timing chain tensioner.
36. Remove timing chain.
37. Remove timing chain guides.
38. Disconnect fuel line at the fuel rail.
39. Disconnect fuel injector electrical connectors.
40. Disconnect top engine electrical connectors and reposition harness.
41. Remove fuel rail.
42. Remove lower intake manifold support bracket retaining bolt.
PM ENGINE 1.8L WORLD 9 - 1471
cardiagn.com
57. Remove cylinder head from engine block.
58. Inspect and clean cylinder head and block sealing
surfaces. Refer to Cleaning and Inspection in this
section for procedures.
CLEANING
To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of alumi-
num engine components and multi-layer steel cylinder head gaskets.
NOTE: Multi-Layer Steel (MLS) head gaskets require a scratch free sealing surface.
Remove all gasket material from cylinder head and block (Refer to 9 - ENGINE - STANDARD PROCEDURE). Be
careful not to gouge or scratch the aluminum head sealing surface.
Clean all engine oil passages.
INSPECTION
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
9 - 1472 ENGINE 1.8L WORLD PM
cardiagn.com
sure valve guides in 3 places top (1), middle (2),
and bottom (3). (Refer to 9 - ENGINE - SPECIFI-
CATIONS) Replace guides if they are not within
specification.
5. Check valve guide height.
6. Prior to installing cylinder head, the cylinder block
should be checked for flatness (Refer to 9 -
ENGINE/ENGINE BLOCK - INSPECTION).
cardiagn.com
3. Position the new cylinder head gasket on engine
block with the part number facing up. Ensure gas-
ket is seated over the locating dowels in block.
4. Place two pea size dots of RTV (1) on cylinder
head gasket as shown.
cardiagn.com
7. Before installing the bolts, the threads should be
lightly coated with engine oil.
8. Install the cylinder head bolts and torque in the
sequence shown above.
• First: All to 30 N·m (25 ft. lbs.)
• Second: All to 61 N·m (50 ft. lbs.)
• Third: All to 61 N·m (45 ft. lbs.)
• Fourth: All an additional 90°
cardiagn.com
31. Connect fuel supply line quick-connect at the fuel rail assembly (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
QUICK CONNECT FITTING - STANDARD PROCEDURE).
32. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
33. Connect negative cable to battery.
34. Install clean air hose and air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER
HOUSING - INSTALLATION).
9 - 1476 ENGINE 1.8L WORLD PM
CAMSHAFT(S)
DESCRIPTION
Both camshafts have six bearing journal surfaces and two cam lobes per cylinder. Flanges on the third journal con-
trol camshaft end play. Cam position sensors are located on the intake and exhaust camshafts on the rear of the
cylinder head.
OPERATION
The camshaft is driven by the crankshaft via drive sprockets and a chain. The camshaft has precisely machined
lobes to provide accurate valve timing and duration.
STANDARD PROCEDURE
MEASURING CAMSHAFT END PLAY
1. Using a suitable tool, move camshaft as far rear-
ward as it will go.
2. Zero dial indicator.
3. Move camshaft as far forward as it will go.
cardiagn.com
4. Record reading on dial indicator. For end play
specification, (Refer to 9 - ENGINE - SPECIFICA-
TIONS).
5. If end play is excessive, check cylinder head and
camshaft for wear; replace as necessary.
REMOVAL
1. Remove engine cover by pulling upward.
2. Disconnect negative battery cable.
3. Remove cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
4. Raise vehicle.
5. Remove right splash shield.
PM ENGINE 1.8L WORLD 9 - 1477
cardiagn.com
6. Remove timing tensioner plug from front cover.
7. Insert small allen wrench and lift ratchet (2) upward to release the tensioner. Leave the allen wrench installed
during the remainder of this procedure.
8. Insert wedge 9701 (1).
9 - 1478 ENGINE 1.8L WORLD PM
cardiagn.com
sequence.
14. Lift the timing chain (2) off the sprocket (1).
15. Remove exhaust camshaft.
cardiagn.com
CLEANING
Clean camshafts with a suitable solvent.
INSPECTION
1. Inspect camshaft bearing journals for damage and
binding. If journals are binding, check the cylinder
head for damage. Also check cylinder head oil
holes for clogging.
2. Check the cam lobe and bearing surfaces for
abnormal wear and damage. Replace camshaft if
defective.
INSTALLATION
1. Identify which front cam cap (1) is installed on the
engine you are working on.
2. The cam cap (1) is numbered (2) either one, two,
or three, this corresponds to the select fit bearing
to use.
cardiagn.com
also be numbered (1) one, two, or three.
4. Oil all of the camshaft journals with clean engine
oil.
5. Install exhaust camshaft and position on bearing
journals in the cylinder head.
cardiagn.com
9. Align the timing marks (1) on the intake cam
sprocket with the mark in the chain.
10. Position the intake camshaft into the bearing jour-
nals in the cylinder head.
11. Verify that the timing marks (1) are aligned on
both camshafts and that the timing marks (3) are
parallel with the cylinder head.
CAUTION: Install the front intake and exhaust camshaft bearing cap last. Ensure that the dowels are seated
and follow torque sequence or damage to engine could result.
9 - 1482 ENGINE 1.8L WORLD PM
NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.
cardiagn.com
13. Install the front intake and exhaust bearing cap
and torque bolts in the sequence shown.
14. Verify that all timing marks are aligned.
15. Remove allen wrench from timing chain tensioner.
16. Remove locking wedge 9701.
17. Apply MOPART thread sealant to timing tensioner
plug and Install.
18. Install right splash shield.
19. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
20. Install engine cover.
21. Connect negative battery cable.
22. Fill cooling system.
23. Fill with oil.
24. Start engine and check for leaks.
PM ENGINE 1.8L WORLD 9 - 1483
COVER-CYLINDER HEAD
REMOVAL
1. Remove engine cover.
2. Disconnect ignition coil electrical connectors.
3. Disconnect PCV and make-up air hoses from cylin-
der head cover.
4. Use compressed air to blow dirt and debris off the
cylinder head cover prior to removal.
5. Remove cylinder head cover bolts.
6. Remove cylinder head cover from cylinder head.
cardiagn.com
INSTALLATION
1. Install new cylinder head cover gaskets (1,2).
9 - 1484 ENGINE 1.8L WORLD PM
cardiagn.com
5. Install cylinder head cover assembly to cylinder
head and install all bolts, ensuring the studs are
located as shown.
6. Tighten bolts in sequence shown in Using a 2 step
torque method as follows:
a. Tighten all bolts to 4.5 N·m (40 in. lbs.)
b. Tighten all bolts to 10 N·m (90 in. lbs.).
7. Install ignition coils. Tighten fasteners to 8 N·m (70
in. lbs.).
8. If the PCV valve was removed, tighten PCV valve
to 4.5 N·m (40 in. lbs.).
9. Connect PCV and make-up air hoses to cylinder
head cover.
10. Install engine cover.
PM ENGINE 1.8L WORLD 9 - 1485
TAPPETS-VALVE
DIAGNOSIS AND TESTING
MECHANICAL VALVE TAPPET NOISE DIAGNOSIS
A tappet-like noise may be produced from several items. Check the following items.
cardiagn.com
1. Remove engine cover.
2. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
3. Rotate camshaft so lobes are vertical.
4. Check clearance using feeler gauges.
5. Repeat for all tappets.
6. If clearance was too small Clearance too Small .
7. If clearance was too large Clearance too Large .
9 - 1486 ENGINE 1.8L WORLD PM
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. spec – measured = delta
3. Decrease bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
PM ENGINE 1.8L WORLD 9 - 1487
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. Measured – spec = delta
3. Increase bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
REMOVAL
NOTE: This procedure is for in-vehicle service with camshafts installed.
NOTE: Camshaft buckets must be replaced if cylinder head or camshafts are replaced.
INSTALLATION
NOTE: If reinstalling original buckets they must go back in their original location or engine damage could
result.
1. Apply a light coat of clean engine oil to camshafts buckets prior to assembly.
2. Install camshaft bucket into cylinder head.
3. Repeat installation procedure for each camshaft bucket.
NOTE: If installing new buckets, the valve lash procedure must be performed.
9 - 1488 ENGINE 1.8L WORLD PM
cardiagn.com
PM ENGINE 1.8L WORLD 9 - 1489
OPERATION
The four valves per cylinder (two intake and two exhaust) are opened by using direct acting buckets which are
actuated by the camshaft.
CLEANING
1. Clean all valves thoroughly and discard burned, warped and cracked valves.
cardiagn.com
9 - 1490 ENGINE 1.8L WORLD PM
cardiagn.com
seal tool.
INSPECTION
1. Whenever valves have been removed for inspection, reconditioning or replacement, valve springs should be
tested for correct tension. Discard the springs that do not meet specifications. The following specifications apply
to both intake and exhaust valves springs:
• Valve Closed Nominal Tension—75 lbs. @ 38.0 mm (1.50 in.)
• Valve Open Nominal Tension—134 lbs. @ 29.75 mm (1.17 in.)
2. Inspect each valve spring for squareness with a steel square and surface plate, test springs from both ends. If
the spring is more than 1.5 mm (1/16 inch) out of square, install a new spring.
PM ENGINE 1.8L WORLD 9 - 1491
INSTALLATION
CYLINDER HEAD ON
1. Install valve seal/valve spring seat (3) assembly.
Push the assembly down with appropriate size
socket to seat it onto the valve guide.
2. Install valve spring (2) and retainer (4) with keep-
ers (1).
cardiagn.com
3. Place the valve keepers in the retainer. Using Snap
On metric valve keeper installer (2) and remover
(1) as a handle, install valve keepers with a down-
ward push.
4. Remove air hose and install spark plugs.
5. Install camshafts (Refer to 9 - ENGINE/CYLINDER
HEAD/CAMSHAFT(S) - INSTALLATION).
6. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
cardiagn.com
tom surface of spring retainer. If height is greater
than 38.75 mm (1.525 in.), install a 0.762 mm
(0.030 in.) spacer under the valve spring seat to
bring spring height back within specification.
PM ENGINE 1.8L WORLD 9 - 1493
PHASERS-CAMSHAFT
REMOVAL
1. Remove camshafts (Refer to 9 - ENGINE/CYLIN-
DER HEAD/CAMSHAFT(S) - REMOVAL).
2. Remove camshaft phaser (2) retaining bolt while
holding the camshaft in place with a wrench (1).
3. Remove phaser (2) assembly from camshaft.
cardiagn.com
INSTALLATION
CAUTION: Do not use an impact wrench to tighten
camshaft sprocket bolts. Damage to the camshaft-
to-sprocket locating dowel pin and camshaft
phaser may occur.
ENGINE BLOCK
DESCRIPTION
The die cast aluminum cylinder block is a two-piece assembly, consisting of the cylinder block and ladder frame.
The block is an open deck design with cast in place cast iron cylinder liners. The cast iron cylinder liners are
recessed below the aluminum deck surface. The ladder frame bolts to the cylinder block and does not incorporate
the main bearing caps. This design offers a much stronger lower end and increased cylinder block and transaxle
rigidity. The rear oil seal retainer is integral with the block and ladder frame. The ladder frame and block are ser-
viced as an assembly.
The engine build date is located on the bottom of the
ladder frame just behind the oil pan. The date can be
seen with the oil pan in place.
cardiagn.com
STANDARD PROCEDURE
CYLINDER BORE HONING
1. Used carefully, a quality commercially available cyl-
inder bore resizing hone equipped with 220 grit
stones, is the best tool for this honing procedure. In
addition to deglazing, it will reduce taper and out-
of-round as well as removing light scuffing, scoring
or scratches. Usually a few strokes will clean up a
bore and maintain the required limits.
2. Deglazing of the cylinder walls may be done using
a quality commercially available cylinder surfacing
hone, recommended tool C-3501 or equivalent,
equipped with 280 grit stones, if the cylinder bore
is straight and round. 20–60 strokes depending on
the bore condition, will be sufficient to provide a
satisfactory surface. Use a light honing oil. Do not
use engine or transmission oil, mineral spirits
or kerosene. Inspect cylinder walls after each 20
strokes.
3. Honing should be done by moving the hone up and
down fast enough to get a cross-hatch pattern.
When hone marks intersect at 30-50 degrees, the
cross hatch angle is most satisfactory for proper seating of rings.
4. A controlled hone motor speed between 200–300 RPM is necessary to obtain the proper cross-hatch angle. The
number of up and down strokes per minute can be regulated to get the desired 40–60 degree angle. Faster up
and down strokes increase the cross-hatch angle.
5. After honing, it is necessary that the block be cleaned again to remove all traces of abrasive.
PM ENGINE 1.8L WORLD 9 - 1495
CAUTION: Ensure all abrasives are removed from engine parts after honing. It is recommended that a solu-
tion of soap and hot water be used with a brush and the parts then thoroughly dried. The bore can be
considered clean when it can be wiped clean with a white cloth and cloth remains clean. Oil the bores after
cleaning to prevent rusting.
CLEANING
Clean cylinder block thoroughly using a suitable cleaning solvent.
INSPECTION
ENGINE BLOCK
1. Clean cylinder block thoroughly and check all core
hole plugs for evidence of leaking.
2. If new core plugs are to be installed, (Refer to 9 -
ENGINE - STANDARD PROCEDURE - ENGINE
CORE AND OIL GALLERY PLUGS).
3. Examine block and cylinder bores for cracks or
fractures.
cardiagn.com
4. Check block deck surfaces for flatness. Deck sur-
face must be within service limit of 0.050 mm
(0.002 in.).
CYLINDER BORE
NOTE: The cylinder bores should be measured at
normal room temperature, 21°C (70°F).
CRANKSHAFT
STANDARD PROCEDURE
MEASURING CRANKSHAFT END PLAY
1. Mount a dial indicator (2) to front of engine with
the locating probe on nose of crankshaft (1).
2. Move crankshaft all the way to the rear of its
travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front and read
the dial indicator. (Refer to 9 - ENGINE - SPECIFI-
CATIONS) for end play specification.
cardiagn.com
REMOVAL - CRANKSHAFT
NOTE: Crankshaft can not be removed when engine is in vehicle.
NOTE: If piston/connecting rod replacement is necessary, remove cylinder head (Refer to 9 - ENGINE/CYL-
INDER HEAD - REMOVAL).
PM ENGINE 1.8L WORLD 9 - 1497
18. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods. Damage to connecting rod
could occur.
19. Remove all connecting rod bolts and caps. Care should be taken not to damage the fracture rod and cap sur-
faces.
CAUTION: Use extreme care when handling crankshaft. Tone wheel damage can occur if crankshaft is mis-
handled.
21. Lift out crankshaft from cylinder block. Do not damage the main bearings or journals when removing the crank-
shaft.
INSPECTION
The crankshaft journals should be checked for exces-
sive wear, taper and scoring. Limits of taper or out of
cardiagn.com
round on any crankshaft journals should be held to
0.025 mm (0.001 in.). Journal grinding should not
exceed 0.305 mm (0.012 in.) under the standard jour-
nal diameter. DO NOT grind thrust faces of No. 3 main
bearing. DO NOT nick crank pin or bearing fillets. After
grinding, remove rough edges from crankshaft oil
holes and clean out all passages.
INSTALLATION - CRANKSHAFT
The crankshaft is supported in five main bearings. All upper bearing shells in the crankcase have oil grooves and
holes. All lower bearing shells are smooth. Crankshaft end play is controlled by a two piece thrust bearing on the
number three main bearing journal.
1. Install the main bearing upper shells with the lubrication groove and oil hole in the engine block.
2. Make certain oil holes in block line up with oil hole in bearings and bearing tabs seat in the block tab slots.
NOTE: If the crankshaft is sent out for machine work, it must be balanced as an assembly with the target
ring installed.
3. Clean crankshaft and target ring with MOPART Brake Parts cleaner and dry with compressed air to ensure that
the crankshaft mating surface and target ring mounting holes are free from oil and lock patch debris.
NOTE: Always use NEW mounting screws whether installing original or new target ring.
4. Install NEWmounting screws finger tight starting with the #1 location. Make sure engagement occurs with the
shoulder of the screws and mounting hole before starting all other screws.
5. Torque all mounting screws with T30 torx bit to 13 Nm (110 in-lbs) following the torque sequence.
NOTE: Lightly apply trans gel to thrust bearings to hold bearings in block.
9 - 1498 ENGINE 1.8L WORLD PM
cardiagn.com
• Step 3: Then, move crankshaft forward to limits of travel.
• Step 4: Wedge an appropriate tool between the rear of the cylinder block and the rear crankshaft counter-
weight. This will hold the crankshaft in it’s furthest forward position.
12. Tighten bolts (1–10) again to 41 N·m (30 ft. lbs.) in sequence shown.
13. Remove wedge tool used to hold crankshaft.
14. Check the crankshaft turning torque, it should not exceed 5.6 N·m (50 in. lbs.).
15. Check crankshaft end play (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT - STANDARD PROCE-
DURE).
16. Install connecting rod bearings and caps. Do Not Reuse Connecting Rod Bolts. Torque connecting rod bolts
to 27 N·m (20 ft. lbs.) plus 1/4 turn.
17. Install the ladder frame assembly (Refer to 9 - ENGINE/ENGINE BLOCK/LADDER FRAME - INSTALLATION).
18. Install the balance shaft module (Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - INSTALLATION).
19. Install the oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).
20. Install crankshaft position sensor.
21. Install cylinder head if it was removed (Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION).
22. Install front crankshaft sprocket.
23. Install the timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
24. Install the timing chain front cover.
25. Install front crankshaft oil seal.
26. Install engine mount support bracket.
27. Install crankshaft vibration damper (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLA-
TION).
28. Remove engine from repair stand and position on Special Tools 6135 and 6710 Engine Dolly and Cradle. Install
safety straps around the engine to cradle and tighten and lock them into position.
29. Install crankshaft rear oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR -
INSTALLATION).
30. Install drive plate/flex plate. Apply MoparT Lock & Seal Adhesive to bolt threads and tighten to 95 N·m (70 ft.
lbs.).
31. Attach transaxle to engine. Tighten attaching bolts to 101 N·m (75 ft. lbs.).
32. Install the engine assembly (Refer to 9 - ENGINE - INSTALLATION).
33. Install new oil filter and fill with oil.
34. Start engine and check for leaks.
PM ENGINE 1.8L WORLD 9 - 1499
cardiagn.com
INSTALLATION
1. Place seal (1) onto Seal installer 9506 (2) with seal
spring towards the inside of engine.
9 - 1500 ENGINE 1.8L WORLD PM
cardiagn.com
5. Install crankshaft vibration damper (Refer to 9 -
ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION.
PM ENGINE 1.8L WORLD 9 - 1501
cardiagn.com
4. Insert a 3/16 flat bladed screwdriver (7) between
the dust lip (8) and the metal case (4) of the crank-
shaft seal (1). Angle the screwdriver through the
dust lip against metal case of the seal. Pry out
seal.
INSTALLATION
CAUTION: If a burr or scratch is present on the
crankshaft edge (chamfer), cleanup with 400 grit
sand paper to prevent seal damage during instal-
lation of new seal.
cardiagn.com
4. Install flex plate (1). Install new flex plate bolts and
torque to 95 N·m (70 ft. lbs.).
5. Install transaxle. Refer to TRANSMISSION/TRANS-
AXLE - INSTALLATION for procedure.
PM ENGINE 1.8L WORLD 9 - 1503
STANDARD PROCEDURE
PISTON TO CYLINDER BORE FITTING
NOTE: Pistons and cylinder bores should be mea-
sured at normal room temperature, 21°C (70°F).
cardiagn.com
shown in.
REMOVAL
NOTE: Pistons, rings, and rods are serviced as an assembly.
CAUTION: All four piston/rod assemblies must be replaced as a set or engine damage may result.
6. Remove top ridge of cylinder bores with a reliable ridge reamer before removing pistons from cylinder block. Be
sure to keep tops of pistons covered during this operation.
7. Rotate crankshaft so that each connecting rod is centered in cylinder bore.
8. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods, as damage to connecting rod
could occur.
CAUTION: Care must be taken not to damage the fractured rod and cap joint surfaces, as engine damage
many occur.
cardiagn.com
10. Carefully push each piston and rod assembly out of cylinder bore. Re-install bearing cap on the mating rod.
11. Repeat procedure for each piston and connecting rod assembly.
INSTALLATION
1. Install piston rings on piston (Refer to 9 - ENGINE/
ENGINE BLOCK/PISTON RINGS - INSTALLA-
TION).
2. Before installing pistons and connecting rod
assemblies into the bore, be sure that compression
ring gaps are staggered so that neither is in line
with oil ring rail gap.
3. Before installing the ring compressor, make sure
the oil ring expander ends are butted and the rail
gaps located as shown above. As viewed from the
top of the piston.
4. Immerse the piston head and rings in clean engine
oil, slide the ring compressor, over the piston. Be
sure position of rings does not change during
this operation.
5. The directional arrow stamped on the piston should face toward the front of the engine.
6. Rotate crankshaft so that the connecting rod journal is on the center of the cylinder bore. Lubricate connecting
rod journal with clean engine oil.
NOTE: There are three different size rod bearings, perform rod bearing selection procedure.
7. The rod bearing sizes are indicated on the nose of the crankshaft.
8. Install connecting rod upper bearing half into connecting rod.
9. Tap the piston down in cylinder bore, using a hammer handle. At the same time, guide connecting rod into posi-
tion on connecting rod journal.
10. Before installing the NEW bolts, the threads should be coated with clean engine oil.
11. Install connecting rod lower bearing half into connecting rod cap. Install connecting rod cap.
12. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
13. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:
PM ENGINE 1.8L WORLD 9 - 1505
cardiagn.com
9 - 1506 ENGINE 1.8L WORLD PM
BEARINGS-CRANKSHAFT MAIN
STANDARD PROCEDURE - MAIN BEARING SELECTION
NOTE: There are three different possibilities for the upper main bearings and five different lower main bear-
ings. The upper and lower bearing shells are not interchangeable.
The lower main bearing identification is stamped in the nose of the crankshaft (1). There are 5 different bearing
sizes available 0 through 4.
cardiagn.com
The upper main bearing shell identification is located in the middle of cylinder block on the right side of the engine
when viewing from the flywheel. There are three different size bearings available.
BEARINGS-CONNECTING ROD
STANDARD PROCEDURE
CONNECTING ROD - FITTING
There are three different sizes of rod bearings available. Connecting rod bearing identification can be found on the
nose of the crankshaft. Use the table below for proper bearing selection.
CONNECTING ROD BEARING SELECTION
CONNECTING ROD
CRANKSHAFT PIN CONNECTING ROD
DIMENSION BEARING
DIAMETER GRADE BEARING DIMENSION
CLASSIFICATION
1 48 mm 1 (Black) 1.5 mm
2 48 mm 2 (No Color) 1.5 mm
3 48 mm 3 (Green) 1.5 mm
cardiagn.com
procedure and use of Plastigage (Refer to 9 -
ENGINE - STANDARD PROCEDURE) For bearing
clearance refer to Engine Specifications. (Refer to
9 - ENGINE - SPECIFICATIONS).
RINGS-PISTON
STANDARD PROCEDURE
PISTON RING - FITTING
1. Wipe cylinder bore clean. Insert ring and push
down with piston to ensure it is square in bore. The
ring gap measurement must be made with the ring
positioning at least 12 mm (0.50 inch) from bottom
of cylinder bore. Check gap with feeler gauge.
Refer to Engine Specifications.
cardiagn.com
2. Check piston ring to groove side clearance. Refer
to Engine Specifications.
PM ENGINE 1.8L WORLD 9 - 1509
REMOVAL
1. Using a suitable ring expander, remove upper and
intermediate piston rings.
2. Remove the upper oil ring side rail, lower oil ring
side rail and then oil ring expander from piston.
3. Clean ring grooves of any carbon deposits.
INSTALLATION
cardiagn.com
NOTE: The identification mark on face of upper
and intermediate piston rings must point toward
top of piston.
NOTE: The compression rings are marked Y1 for the upper compression ring and Y2 for the second com-
pression ring. These markings must face upward.
DAMPER-VIBRATION
REMOVAL
1. Remove accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL).
2. Install Damper holder 9707 (1).
3. Remove crankshaft damper bolt.
4. Pull damper off crankshaft.
cardiagn.com
INSTALLATION
1. Install crankshaft damper.
2. Apply clean engine oil crankshaft damper bolt
threads and between bolt head and washer. Torque
bolt to 210 N·m (155 ft. lbs.).
3. Install accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION).
PM ENGINE 1.8L WORLD 9 - 1511
FRAME-LADDER
REMOVAL
1. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
2. Remove oil pump/balance shaft assembly (Refer to
9 - ENGINE/LUBRICATION/OIL PUMP -
REMOVAL).
3. Remove ladder frame retaining bolts.
4. Remove ladder frame using pry points cast in the
rear of the block (1).
cardiagn.com
5. To assist in removing the ladder frame another (1)
pry points cast in the left side of the block.
CLEANING
Clean ladder frame with a plastic or wooden scraper and a suitable solvent.
9 - 1512 ENGINE 1.8L WORLD PM
INSTALLATION
1. Apply a 2 mm bead of sealant as shown.
cardiagn.com
step method.
• First: All to 20 N·m (15 ft. lbs.)
• Second: All to 49 N·m (36 ft. lbs.)
• Third: All to 49 N·m (36 ft. lbs.)
3. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
PM ENGINE 1.8L WORLD 9 - 1513
MOUNT-RIGHT
REMOVAL
1. Remove coolant reservoir and set aside.
2. Remove power steering reservoir and set aside.
3. Remove windshield washer bottle.
4. Remove power steering line support bracket from
engine mount.
5. Support transaxle with a block of wood and a suit-
able jack.
6. Remove engine mount through bolt (4).
7. Remove engine mount bracket bolts (3).
8. Remove engine mount retaining bolts.
9. Remove engine mount.
cardiagn.com
INSTALLATION
1. Install engine mount.
2. Install engine mount retaining bolts and torque to
28 N·m (250 in. lbs.).
3. Install engine mount bracket and torque bolts (3) to
68 N·m (50 ft. lbs.).
4. Install engine mount through bolt (4) and torque to
115 N·m (85 ft. lbs.).
5. Remove jack.
6. Install power steering line support bracket at
engine mount.
7. Install windshield washer bottle.
8. Install power steering reservoir.
9. Install coolant reservoir.
9 - 1514 ENGINE 1.8L WORLD PM
MOUNT-LEFT
REMOVAL
1. Remove air cleaner assembly.
2. Disconnect negative cable from battery.
3. Remove PCM.
4. Remove PCM mounting bracket.
5. Support transaxle with a suitable jack.
6. Remove left mount through bolt (3).
7. Remove mount to transaxle bolts (5).
8. Remove left mount bracket (4).
9. Remove left mount bracket to body frame rail fas-
teners.
10. Remove mount.
cardiagn.com
INSTALLATION
1. Install mount.
2. Install left mount to frame rail bolts and torque to
28N·m (250 in. lbs.).
3. Install left mount bracket (4).
4. Install mount to transaxle bolts (5) and torque to 68
N·m (50 ft.lbs.).
5. Install mount through bolt (3) and torque to 115
N·m (85 ft.lbs.).
6. Remove jack.
7. Install PCM mounting bracket.
8. Install PCM.
9. Connect negative battery cable.
10. Install air cleaner assembly.
PM ENGINE 1.8L WORLD 9 - 1515
MOUNT-FRONT
REMOVAL
1. Raise vehicle.
2. Remove fore aft member (3) to mount (4) bolts.
3. Remove mount through bolt (1).
4. Remove fore aft member (3) mounting bolts and
remove.
5. Remove front mount (4).
cardiagn.com
INSTALLATION
1. Install mount (4) and tighten bolts.
2. Install fore aft member (3) and tighten bolts.
3. Install mount through bolt (1) and tighten.
4. Lower vehicle.
9 - 1516 ENGINE 1.8L WORLD PM
MOUNT-REAR
REMOVAL
1. Remove rear mount retaining bolts (4).
2. Remove rear mount through bolt (1).
3. Remove oxygen sensor connector (2) from mount.
4. Remove rear mount (3).
cardiagn.com
INSTALLATION
1. Install rear mount (3).
2. Install rear mount retaining bolts (4) and tighten.
3. Install rear mount through bolt (1) and tighten.
4. Install oxygen sensor connector (2) retainer to
mount (3).
PM ENGINE 1.8L WORLD 9 - 1517
LUBRICATION
DESCRIPTION
The lubrication system is a full-flow filtration, pressure feed type. The oil pump is chain driven by the crankshaft. Oil
pressure is controlled by a relief valve mounted inside the oil pump housing.
OPERATION
Engine oil is drawn up through the pickup tube and is pressurized by the oil pump and routed through the oil filter
to the main oil gallery running the length of the cylinder block. A diagonal hole in each bulkhead feeds oil to each
main bearing. Drilled passages within the crankshaft route oil from the main bearing journals to the connecting rod
journals. The main oil gallery also feeds oil pressure to the timing chain tensioner. A vertical hole at the number
three main bearing area routes pressurized oil through a restrictor up into the cylinder head. The restrictor that is
integral to the cylinder head gasket, provides increased oil flow to the main gallery. Upper engine lubrication is
provided by one main feed to the number three camshaft bearing cap. Oil is then routed through the rocker shafts
to the remaining camshaft bearing caps and rocker arms/hydraulic lash adjusters. Oil returning to the oil pan from
the pressurized components supplies lubrication to the valve stems. The cylinder bores and wrist pins are splash
lubricated from directed slots on the connecting rod thrust collar.
cardiagn.com
CHECKING ENGINE OIL PRESSURE
Check oil pressure using a gauge at oil pressure switch location.
1. If equipped with A/C remove accessory drive belt and A/C compressor.
2. Remove pressure sending unit.
3. Install oil pressure test gauge, Special Tool C-3292 with Adapter 8406.
FILTER-OIL
REMOVAL
1. Turn oil filter cap counterclockwise 2 1⁄2 turns and wait one minute.
NOTE: A drain back valve incorporated into the oil filter cartridge housing allows oil to drain back into the
crankcase as the oil filter cartridge is removed.
2. Continue turning the oil filter cap counterclockwise. Remove cap slowly to avoid spill of oil.
3. Remove oil filter cartridge from the cap.
NOTE: If the center tube separates from the cap and stays inside the filter cartridge, you must remove the
center tube from the filter element and snap it back onto the cap with the spring.
INSTALLATION
1. Install new o-ring on cap.
2. Install new oil filter cartridge over center tube of cap.
cardiagn.com
NOTE: Before installation, make sure no grommet is left on the center post of the oil filter housing from the
previous filter.
3. Align the grommet hole of the oil filter cartridge with the center post of the filter housing.
4. Press in and turn oil filter cap clockwise. Tighten cap to 25 N·m (18 ft. lbs). Cap flange should sit tightly on the
housing flange.
5. Fill oil to proper level.
6. Start engine. Check for leaks.
PM ENGINE 1.8L WORLD 9 - 1519
PAN-OIL
REMOVAL
1. Raise vehicle on hoist.
2. Drain engine oil.
3. Remove accessory drive belt splash shield.
4. Remove lower A/C compressor mounting bolt (if
equipped).
5. Remove A/C mounting bracket.
cardiagn.com
INSTALLATION
1. Apply MoparT Engine RTV GEN II at the front
cover to engine block parting lines (1).
9 - 1520 ENGINE 1.8L WORLD PM
cardiagn.com
5. Lower vehicle and fill engine crankcase with proper oil to correct level.
6. Start engine and check for leaks.
PM ENGINE 1.8L WORLD 9 - 1521
PUMP-OIL
REMOVAL
1. Remove timing chain cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN COVER - REMOVAL).
INSPECTION
1. Remove pressure relief valve.
2. Inspect pressure relief valve for scoring or damage. If scored or damaged, replace valve.
3. Inspect oil pump housing bore for damage or scoring, if found replace pump.
4. Remove oil pump drive sprocket using holder 9711
(2).
5. Remove oil pump housing retaining bolts.
6. Remove oil pump housing.
cardiagn.com
7. Measure outer rotor (2) to housing (3) clearance
with feeler gauge (1).
9 - 1522 ENGINE 1.8L WORLD PM
cardiagn.com
10. Measure clearance over rotors with a straight
edge and feeler gauge.
PM ENGINE 1.8L WORLD 9 - 1523
cardiagn.com
13. Inspect pump housing for scoring, replace as needed.
14. If pump passes inspections, install pump cover.
15. Install retaining bolts and tighten.
9 - 1524 ENGINE 1.8L WORLD PM
INSTALLATION
1. Install timing chain cover (Refer to 9 - ENGINE/VALVE TIMING/TIMING CHAIN COVER - INSTALLATION).
cardiagn.com
PM ENGINE 1.8L WORLD 9 - 1525
OPERATION
The oil pressure switch is normally “Closed.” The switch changes from a 9Closed9 circuit to an 9Open9 circuit, on
increasing pressure of 7 psig. The oil pressure switch changes from an 9Open9 circuit to a 9Closed9 circuit, on
decreasing pressure, between 2 psig and 4 psig.
REMOVAL
1. Raise vehicle.
2. Disconnect electrical connector.
3. Remove oil pressure sending unit using oil pressure socket C-4597.
cardiagn.com
INSTALLATION
1. Install oil pressure sending unit using oil pressure socket C-4597.
2. Connect electrical connector.
9 - 1526 ENGINE 1.8L WORLD PM
cardiagn.com
INSTALLATION
1. Lubricate valve (2) and pump (1) bore with clean
engine oil.
2. Install valve (2) and spring (3).
3. Install cap (4) and tighten.
4. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
PM ENGINE 1.8L WORLD 9 - 1527
MANIFOLD-INTAKE
DIAGNOSIS AND TESTING
INTAKE MANIFOLD LEAKS
An intake manifold air leak is characterized by lower than normal manifold vacuum. Also, one or more cylinders may
not be functioning.
WARNING: USE EXTREME CAUTION WHEN THE ENGINE IS OPERATING. DO NOT STAND IN A DIRECT LINE
WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR THE FAN. DO NOT WEAR
LOOSE CLOTHING.
REMOVAL
cardiagn.com
LOWER INTAKE MANIFOLD
WARNING: RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING SYSTEM COMPONENTS. SERVICE
VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVIC-
ING THE VEHICLE.
CLEANING
1. Discard gasket(s).
2. Clean all sealing surfaces.
INSPECTION
1. Inspect manifold for cracks, distortion, or mounting surface warpage. Replace manifold if necessary.
2. Inspect manifold gasket for surface damage or excessive swelling. Replace gaskets as necessary.
INSTALLATION
LOWER INTAKE MANIFOLD
1. Clean all gasket surfaces.
2. Replace intake manifold gasket.
3. Install intake manifold, torque bolts to 25 N·m (220 in. lbs.).
4. Install the fuel rail assembly to intake manifold. Tighten screws to 23 N·m (200 in. lbs.).
5. Connect fuel injector electrical connectors.
6. Inspect quick connect fittings for damage, replace if necessary (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
cardiagn.com
QUICK CONNECT FITTING - STANDARD PROCEDURE). Connect fuel supply hose to fuel rail assembly. Check
connection by pulling on connector to insure it locked into position.
7. Connect negative cable to battery.
8. Fill the cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
PM ENGINE 1.8L WORLD 9 - 1529
MANIFOLD-EXHAUST
REMOVAL
1. Remove engine cover.
2. Remove clean air hose and air cleaner housing.
3. Disconnect negative cable from battery.
4. Disconnect throttle and speed control cables from
the throttle lever and bracket.
5. Disconnect MAP sensor electrical connector.
6. Remove fasteners securing power steering fluid
reservoir to cylinder head.
7. Remove coolant recovery container (Refer to 7 -
COOLING/ENGINE/COOLANT RECOVERY CON-
TAINER - REMOVAL).
8. Remove bolts attaching upper heat shield.
9. Remove upper heat shield.
10. Raise vehicle.
cardiagn.com
11. Disconnect exhaust pipe from manifold.
12. Remove engine wiring heat shield.
13. Remove manifold support bracket.
14. Remove lower exhaust manifold heat shield.
15. Disconnect oxygen sensor electrical connector.
16. Remove exhaust manifold lower retaining fasteners.
17. Lower vehicle and remove the upper exhaust manifold retaining fasteners.
18. Remove exhaust manifold from above/between the engine and cowl panel.
19. Remove and discard manifold gasket.
20. Mark prop shaft and differential for proper installation (if equipped).
21. Remove the rear prop shaft (if equipped) (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT -
REMOVAL).
22. Remove the two exhaust to maniverter (exhaust manifold with catalytic converter) bolts.
23. Unplug the down - stream O2 sensor connector.
24. Remove the exhaust system (Refer to 11 - EXHAUST SYSTEM/MUFFLER - REMOVAL).
25. Lower the vehicle on the hoist.
26. Unplug the up - stream O2 sensor connector.
27. Remove up - stream O2 sensor from the maniverter (exhaust manifold with catalytic converter) using o2 sensor
socket 8439 (2).
28. Remove the four maniverter heat shield bolts (1).
29. Remove the two retaining bolts and one nut from the maniverter side heat shield (3).
30. Remove the seven maniverter to head retaining bolts.
31. Slide the maniverter up and to the right, The support the maniverter (1) with the help of a bungie cord.
32. Raise the vehicle on the hoist.
33. Remove the four (1) engine to maniverter bracket bolts.
34. Remove the rear engine mount through bolt (2).
35. Remove the three front engine mount to frame bolts and the mount through bolt.
36. Remove the PTU mounting bolts.
37. Install a screw jack (2)on front engine mount bracket (1).
38. Raise the front of the engine until the rear mount has dropped (1,2).
39. Separate the PTU from the transaxle.
9 - 1530 ENGINE 1.8L WORLD PM
40. Remove and discard old O-ring between Transmission and PTU
41. Roll the PTU (1) forward and down to remove.
CLEANING
1. Discard gasket (if equipped) and clean all surfaces of manifold and cylinder head.
INSPECTION
1. Inspect manifold gasket surfaces for flatness with straight edge. Surface must be flat within 0.15 mm per 300 mm
(0.006 in. per foot) of manifold length.
2. Inspect manifolds for cracks or distortion. Replace manifold as necessary.
INSTALLATION
1. Install a new exhaust manifold gasket. DO NOT APPLY SEALER.
2. Position exhaust manifold in place. Tighten fasteners, starting at center and progressing outward in both direc-
tions to 23 N·m (200 in. lbs.). Raise and lower vehicle for fastener access as necessary. Repeat tightening pro-
cedure until all fasteners are at specified torque.
3. Install exhaust manifold heat shields. Tighten bolts to 12 N·m (105 in. lbs.).
4. Install exhaust manifold support bracket.
cardiagn.com
5. Install engine wiring heat shield.
6. Connect oxygen sensor electrical connector.
7. Install exhaust pipe to manifold. Tighten fasteners to 28 N·m (250 in. lbs.).
8. Install coolant recovery container (Refer to 7 - COOLING/ENGINE/COOLANT RECOVERY CONTAINER -
INSTALLATION).
9. Install fasteners securing power steering fluid reservoir to cylinder head.
10. Connect MAP sensor electrical connector.
11. Connect throttle and speed control cables to the throttle lever and bracket.
12. Connect negative cable to battery.
13. Install clean air hose and air cleaner housing.
14. Roll the PTU in moving from front to back.
15. Rest the PTU on the frame while the engine and transaxle are raised back into position.
16. Lower screw jack until rear mount through bolt can be installed.
17. Install rear mount through bolt and torque bolt to 75 Nm (55 ft. lbs.).
18. Install the transmission crossmember and bolts, torque to 75 Nm (55 ft. lbs.).
19. Install the through bolt at the front transmission mount and torque to 75 Nm (55 ft. lbs.)
20. Insure that the O-ring between the PTU and transaxle is in place.
21. Slide the PTU into place.
22. Install and torque PTU mounting bolts to 58 N-m (43 lbf-ft).
23. Lower the hoist.
24. Place the maniverter back into place and install the seven bolts.
25. Torque the maniverter bolts.
26. Install the maniverter side heat shield into place.
27. Install the two retaining bolts and one retaining nut.
28. Install the maniverter heat shield and the four retaining bolts.
29. Torque the maniverter heat shield bolts.
30. Using tool 8439 install the O2 sensor.
31. Install the air box.
32. Install engine trim cover.
33. Raise the vehicle on the hoist.
34. Install the maniverter to block bracket and four mounting bolts.
PM ENGINE 1.8L WORLD 9 - 1531
cardiagn.com
9 - 1532 ENGINE 1.8L WORLD PM
VALVE TIMING
DESCRIPTION
The timing drive system consists of the following:
• Timing Chain (2)
• Camshaft Sprockets (1,3)
• Crankshaft Sprocket
• Right Timing Chain Guide (Moveable) (6)
• Left Timing Chain Guide (Fixed) (4)
• Timing Chain Tensioner (5)
The camshaft sprockets are attached to the cam
phasers which are attached to the front of the cam-
shafts and is used with the timing chain and crank-
shaft sprocket to turn the camshafts. The camshaft
position sensors target is part of the camshafts and is
used with the camshaft position sensors to provide the
PCM with valvetrain position information.
The timing chain tensioner is installed in the right side
cardiagn.com
of the engine block. Using engine oil pressure, the
tensioner applies constant pressure to the right side
(movable) timing chain guide, which in turn applies pressure to the timing chain. Also as the tensioner extends, it
rachet locks in position to provide constant timing chain tension.
STANDARD PROCEDURE
VALVE TIMING VERIFICATION
1. Remove engine cover.
2. Remove cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER -
REMOVAL).
3. Set engine to TDC.
4. Using a dial indicator, set number one cylinder to
TDC on the compression stroke.
5. The mark on the camshaft sprocket should be in
line with the cylinder head cover sealing surface.
6. Using a suitable light, look down into the timing
chain cavity at the crankshaft sprocket. A paint
mark on the crankshaft sprocket should align with
the edge of the engine block boss indicated in.
7. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
PM ENGINE 1.8L WORLD 9 - 1533
COVER-TIMING CHAIN
REMOVAL
1. Remove engine cover.
2. Perform fuel pressure bleed procedure.
3. Remove air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
4. Disconnect negative battery cable.
5. Drain cooling system
6. Remove coolant recovery bottle.
7. Remove windshield washer bottle.
8. Remove power steering reservoir and set aside.
9. Remove make up air hose.
10. Remove PCV hose.
11. Disconnect ignition coil electrical connectors.
12. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
cardiagn.com
13. Raise vehicle.
14. Remove right lower splash shield.
15. Set engine to TDC.
16. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor retaining bolts.
18. Remove A/C compressor lower bracket.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft pulley.
21. Remove water pump pulley.
22. Remove timing chain cover lower bolts.
23. Lower vehicle.
24. Remove power steering pump and set aside.
25. Support engine with a suitable jack.
26. Remove right engine mount.
27. Remove accessory drive belt upper idler pulley.
28. Remove right engine mount bracket.
29. Remove accessory drive belt tensioner.
30. Remove timing chain cover upper retaining bolts.
31. Remove timing chain cover.
INSTALLATION
1. Clean all sealing surfaces.
2. Apply RTV as shown at the cylinder head to block parting line.
3. Apply RTV as shown in the corner of the oil pan and block.
4. Apply 2mm bead of RTV as shown.
5. Install timing chain cover.
6. Install timing chain cover upper retaining bolts and torque bolts.
7. Install accessory drive belt tensioner.
8. Install right engine mount bracket and torque.
9. Install accessory drive belt upper idler pulley.
10. Install right engine mount and torque bolts.
9 - 1534 ENGINE 1.8L WORLD PM
cardiagn.com
27. Connect make up air hose.
28. Install power steering reservoir.
29. Install windshield washer bottle.
30. Install coolant recovery bottle.
31. Fill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE).
32. Connect negative battery cable.
33. Install air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLA-
TION).
34. Install engine cover.
PM ENGINE 1.8L WORLD 9 - 1535
cardiagn.com
NOTE: If the timing chain plated links can no
longer be seen, the timing chain links correspond-
ing the timing marks must be marked prior to
removal if the chain is to be reused.
CAMSHAFT SPROCKET(S)
Refer to camshaft phasor removal (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
9 - 1536 ENGINE 1.8L WORLD PM
CRANKSHAFT SPROCKET
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
2. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
3. Remove oil pump drive chain tensioner.
4. Remove oil pump drive chain.
5. Remove crankshaft sprocket (1).
cardiagn.com
INSPECTION
Inspect timing chain for stretching prior to removal.
1. Rotate engine while watching timing chain ten-
sioner plunger. When the plunger reaches its max-
imum travel stop rotating engine.
2. Measure the distance from the tensioner body and
the edge of the chain guide as shown.
3. If the distance is greater than 20.5 mm (0.81 in.)
inspect guide shoes for excessive wear.
4. If guides are okay, replace timing chain.
PM ENGINE 1.8L WORLD 9 - 1537
INSTALLATION
CRANKSHAFT SPROCKET
1. Install crankshaft sprocket (1) onto crankshaft.
2. Install oil pump drive chain. Verify that Oil pump is
correctly timed.
3. Reset oil pump drive chain tensioner by pushing
plunger inward and install Tensioner Pin 8514.
4. Install oil pump drive chain tensioner and remove
Tensioner Pin 8514.
5. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
6. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
7. Fill engine with oil (Refer to 9 - ENGINE/LUBRICA-
TION/OIL - STANDARD PROCEDURE).
8. Start engine and check for leaks.
cardiagn.com
TIMING CHAIN
1. Verify that the crankshaft sprocket keyway is at the
9 o’clock position.
9 - 1538 ENGINE 1.8L WORLD PM
cardiagn.com
4. Install timing chain so plated links on chain align
with timing marks on camshaft sprockets (1).
PM ENGINE 1.8L WORLD 9 - 1539
cardiagn.com
6. Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner
body (4). Insert tensioner pin 8514 into slot (1) to hold tensioner plunger in the retracted position.
9 - 1540 ENGINE 1.8L WORLD PM
cardiagn.com
8. Install the moveable timing chain pivot guide (6)
and torque bolt to 12 N·m (105 in. lbs.).
TIMING-CHAIN TENSIONER
REMOVAL
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
cardiagn.com
INSTALLATION
1. Reset tensioner.
2. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
9 - 1542 ENGINE 1.8L WORLD PM
ADJUSTMENTS
ADJUSTMENT
cardiagn.com
1. Raise ratchet (2) with small screw driver.
2. Push plunger (3) towards tensioner body (4).
3. Insert tensioner pin 8514 into slot (1). This will hold the tensioner in the retracted position.
PM ENGINE 2.0L WORLD 9 - 1543
TABLE OF CONTENTS
page page
cardiagn.com
THREADS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1552 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1596
HYDROSTATIC LOCKED ENGINE . . . . . . . . . . 1552 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1596
FORM-IN-PLACE GASKETS AND SEALERS . 1553 SPRINGS & SEALS-VALVE
ENGINE GASKET SURFACE PREPARATION . 1554 REMOVAL
CYLINDER HEAD CORE PLUGS . . . . . . . . . . . 1554 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1597
MEASURING BEARING CLEARANCE USING CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1597
PLASTIGAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 1555 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1597
REMOVAL - ENGINE ASSEMBLY . . . . . . . . . . . . . 1555 INSTALLATION
INSTALLATION - ENGINE ASSEMBLY . . . . . . . . 1559 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1598
SPECIFICATIONS CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1598
2.4L ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1562 PHASERS-CAMSHAFT
TORQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1567 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600
SPECIAL TOOLS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600
2.4L ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1568 ENGINE BLOCK
ELEMENT-AIR CLEANER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1601
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1571 STANDARD PROCEDURE
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1572 CYLINDER BORE HONING . . . . . . . . . . . . . . . . 1601
HOUSING-AIR CLEANER CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1574 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1602
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1575 CRANKSHAFT
CYLINDER HEAD STANDARD PROCEDURE
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1576 MEASURING CRANKSHAFT END PLAY . . . . 1603
DIAGNOSIS AND TESTING REMOVAL - CRANKSHAFT . . . . . . . . . . . . . . . . . . 1603
CYLINDER HEAD GASKET . . . . . . . . . . . . . . . . 1576 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1604
REMOVAL - CYLINDER HEAD . . . . . . . . . . . . . . . 1577 INSTALLATION - CRANKSHAFT . . . . . . . . . . . . . . 1604
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1578 SEAL-CRANKSHAFT OIL FRONT
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1578 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1606
INSTALLATION - CYLINDER HEAD . . . . . . . . . . . 1579 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1606
CAMSHAFT(S) SEAL-CRANKSHAFT OIL REAR
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1583 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1608
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1583 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1609
STANDARD PROCEDURE PISTON & ROD-CONNECTING
MEASURING CAMSHAFT END PLAY . . . . . . . 1583 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1610
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1583 STANDARD PROCEDURE
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1586 PISTON TO CYLINDER BORE FITTING . . . . . 1610
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1586 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1610
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1587 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1611
9 - 1544 ENGINE 2.0L WORLD PM
cardiagn.com
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1620 REMOVAL
MOUNT-LEFT LOWER INTAKE MANIFOLD . . . . . . . . . . . . . . . 1639
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1640
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1621 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1640
MOUNT-RIGHT INSTALLATION
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1622 LOWER INTAKE MANIFOLD . . . . . . . . . . . . . . . 1640
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1622 MANIFOLD-EXHAUST
MOUNT-FRONT REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1641
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1623 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1642
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1623 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1642
MOUNT-REAR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1642
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1624 COVER-TIMING CHAIN
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1624 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1644
LUBRICATION INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1644
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1625 CHAIN AND SPROCKETS-TIMING
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1625 REMOVAL
DIAGNOSIS AND TESTING TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1646
CHECKING ENGINE OIL PRESSURE . . . . . . . 1625 CAMSHAFT SPROCKET(S) . . . . . . . . . . . . . . . . 1646
OIL CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1647
STANDARD PROCEDURE INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1647
ENGINE OIL LEVEL CHECK . . . . . . . . . . . . . . . 1626 INSTALLATION
ENGINE OIL AND FILTER CHANGE . . . . . . . . 1627 CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1648
FILTER-OIL CAMSHAFT SPROCKET(S) . . . . . . . . . . . . . . . . 1648
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1629 TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1648
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1629 TENSIONER-TIMING CHAIN
PAN-OIL REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1652
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1630 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1652
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1630
PM ENGINE 2.0L WORLD 9 - 1545
cardiagn.com
of malfunctions (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING - MECHANICAL) (Refer to 9 - ENGINE - DIAG-
NOSIS AND TESTING - PERFORMANCE).
For fuel system diagnosis, (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY - DIAGNOSIS AND TESTING).
Additional tests and diagnostic procedures may be necessary for specific engine malfunctions that cannot be iso-
lated with the Service Diagnosis charts. Information concerning additional tests and diagnosis is provided within the
following:
• Cylinder Compression Pressure Test
• Cylinder Combustion Pressure Leakage Test
• Engine Cylinder Head Gasket Failure Diagnosis
• Intake Manifold Leakage Diagnosis
• Mechanical Valve Tappet Noise Diagnosis
• Engine Oil Leak Inspection
9 - 1546 ENGINE 2.0L WORLD PM
ENGINE WILL NOT START 1. Weak battery. 1. Test battery. Charge or replace as
necessary. (Refer to 8 -
ELECTRICAL/BATTERY SYSTEM -
DIAGNOSIS AND TESTING)
2. Corroded or loose battery 2. Clean and tighten battery
connections. connections. Apply a coat of light
mineral grease to terminals.
3. Faulty starter. 3. Test starting system. (Refer to 8 -
ELECTRICAL/STARTING -
DIAGNOSIS AND TESTING)
4. Faulty coil(s) or control unit. 4. Test and replace as needed.
(Refer to Appropriate Diagnostic
Information)
5. Incorrect spark plug gap. 5. Set gap. (Refer to 8 -
ELECTRICAL/IGNITION CONTROL
cardiagn.com
- SPECIFICATIONS)
6. Contamination in fuel system. 6. Clean system and replace fuel
filter.
7. Faulty fuel pump. 7. Test fuel pump and replace as
needed. (Refer to Appropriate
Diagnostic Information)
8. Incorrect engine timing. 8. Check for a skipped timing
belt/chain.
ENGINE STALLS OR IDLES 1. Idle speed too low. 1. Test minimum air flow. (Refer to
ROUGH Appropriate Diagnostic Information)
ENGINE LOSS OF POWER 1. Dirty or incorrectly gapped plugs. 1. Clean plugs and set gap.
cardiagn.com
(Refer to Appropriate Diagnostic
Information)
ENGINE MISSES ON 1. Dirty or incorrectly gapped spark 1. Clean spark plugs and set gap.
ACCELERATION plugs.
ENGINE MISSES AT HIGH SPEED 1. Dirty or incorrect spark plug gap. 1. Clean spark plugs and set gap.
2. Faulty ignition coil(s). 2. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
3. Dirty fuel injector(s). 3. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
4. Contamination in fuel system. 4. Clean system and replace fuel
filter.
9 - 1548 ENGINE 2.0L WORLD PM
VALVETRAIN NOISE 1. High or low oil level in 1. Check and correct engine oil
crankcase. level.
cardiagn.com
7. Worn valve guides. 7. Ream guides and install new
valves with oversize stems.
8. Excessive runout of valve seats 8. Grind valve seats and valves.
on valve faces.
CONNECTING ROD NOISE 1. Insufficient oil supply. 1. Check engine oil level.
MAIN BEARING NOISE 1. Insufficient oil supply. 1. Check engine oil level.
cardiagn.com
8. Loose flywheel or torque 8. Tighten to correct torque.
converter.
OIL PRESSURE DROP 1. Low oil level. 1. Check engine oil level.
OIL CONSUMPTION OR SPARK 1. PCV system malfunction. 1. Check system and repair as
PLUGS FOULED necessary. (Refer to 25 -
EMISSIONS CONTROL/
EVAPORATIVE EMISSIONS/PCV
VALVE - DIAGNOSIS AND
TESTING)
2. Worn, scuffed or broken rings. 2. Hone cylinder bores. Install new
rings.
3. Carbon in oil ring slots. 3. Install new rings.
4. Rings fitted too tightly in grooves. 4. Remove rings and check
grooves. If groove is not proper
width, replace piston.
5. Worn valve guide(s). 5. Ream guide(s) and replace
valve(s) with oversize valve(s) and
seal(s).
6. Valve stem seal(s) worn or 6. Replace seal(s).
damaged.
cardiagn.com
CYLINDER COMBUSTION PRESSURE LEAKAGE TEST
The combustion pressure leakage test provides an accurate means for determining engine condition.
Combustion pressure leakage testing will detect:
• Exhaust and intake valve leaks (improper seating).
• Leaks between adjacent cylinders or into water jacket.
• Any causes for combustion/compression pressure loss.
WARNING: DO NOT REMOVE THE PRESSURE CAP WITH THE SYSTEM HOT AND UNDER PRESSURE
BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
Check the coolant level and fill as required. DO NOT install the pressure cap.
Start and operate the engine until it attains normal operating temperature, then turn the engine OFF.
Clean spark plug recesses with compressed air.
Remove the spark plugs.
Remove the oil filler cap.
Remove the air cleaner.
Calibrate the tester according to the manufacturer’s instructions. The shop air source for testing should maintain 483
kPa (70 psi) minimum, 1,379 kPa (200 psi) maximum, with 552 kPa (80 psi) recommended.
Perform the test procedures on each cylinder according to the tester manufacturer’s instructions. While testing, lis-
ten for pressurized air escaping through the throttle body, tailpipe and oil filler cap opening. Check for bubbles in the
coolant.
All gauge pressure indications should be equal, with no more than 25% leakage per cylinder.
FOR EXAMPLE: At 552 kPa (80 psi) input pressure, a minimum of 414 kPa (60 psi) should be maintained in the
cylinder.
cardiagn.com
ENGINE OIL LEAK INSPECTION
Begin with a thorough visual inspection of the engine, particularly at the area of the suspected leak. If an oil leak
source is not readily identifiable, the following steps should be followed:
1. Do not clean or degrease the engine at this time because some solvents may cause rubber to swell, temporarily
stopping the leak.
2. Add an oil soluble dye (use as recommended by manufacturer). Start the engine and let idle for approximately 15
minutes. Check the oil dipstick to make sure the dye is thoroughly mixed as indicated with a bright yellow color
under a black light.
3. Using a black light, inspect the entire engine for fluorescent dye, particularly at the suspected area of oil leak. If
the oil leak is found and identified, repair as necessary.
4. If dye is not observed, drive the vehicle at various speeds for approximately 24 km (15 miles), and repeat inspec-
tion.
5. If the oil leak source is not positively identified at this time, proceed with the air leak detection test method
as follows:
• Disconnect the fresh air hose (make-up air) at the cylinder head cover and plug or cap the nipple on the cover.
• Remove the PCV valve hose from the cylinder head cover. Cap or plug the PCV valve nipple on the cover.
• Attach an air hose with pressure gauge and regulator to the dipstick tube.
CAUTION: Do not subject the engine assembly to more than 20.6 kpa (3 PSI) of test pressure.
• Gradually apply air pressure from 1 psi to 2.5 psi maximum while applying soapy water at the suspected
source. Adjust the regulator to the suitable test pressure that provides the best bubbles which will pinpoint the
leak source. If the oil leak is detected and identified, repair per service manual procedures.
• If the leakage occurs at the crankshaft rear oil seal area, refer to the section, Inspection for Rear Seal Area
Leak.
6. If no leaks are detected, turn off the air supply. Remove the air hose, all plugs, and caps. Install the PCV valve
and fresh air hose (make-up air). Proceed to next step.
7. Clean the oil off the suspect oil leak area using a suitable solvent. Drive the vehicle at various speeds approx-
imately 24 km (15 miles). Inspect the engine for signs of an oil leak by using a black light.
9 - 1552 ENGINE 2.0L WORLD PM
NOTE: If oil leakage is observed at the dipstick tube to block location; remove the tube, clean and reseal
using MoparT Stud & Bearing Mount (press fit tube applications only), and for O-ring style tubes, remove
tube and replace the O-ring seal.
cardiagn.com
CAUTION: Do not exceed 20.6 kPa (3 psi).
5. If the leak is not detected, very slowly turn the crankshaft and watch for leakage. If a leak is detected between
the crankshaft and seal while slowly turning the crankshaft, it is possible the crankshaft seal surface is damaged.
The seal area on the crankshaft could have minor nicks or scratches that can be polished out with emery cloth.
CAUTION: Use extreme caution when crankshaft polishing is necessary to remove minor nicks and
scratches. The crankshaft seal flange is especially machined to complement the function of the rear oil seal.
6. For bubbles that remain steady with shaft rotation, no further inspection can be done until disassembled.
7. After the oil leak root cause and appropriate corrective action have been identified, replace component(s) as
necessary.
STANDARD PROCEDURE
REPAIR OF DAMAGED OR WORN THREADS
Damaged or worn threads (excluding spark plug and camshaft bearing cap attaching threads) can be repaired.
Essentially, this repair consists of drilling out worn or damaged threads, tapping the hole with a special Heli-Coil Tap,
(or equivalent) and installing an insert into the tapped hole. This brings the hole back to its original thread size.
CAUTION: Be sure that the tapped holes maintain the original center line.
Heli-Coil tools and inserts are readily available from automotive parts jobbers.
CAUTION: DO NOT use starter motor to rotate the engine, severe damage may occur.
1. Inspect air cleaner, induction system and intake manifold to insure system is dry and clear of foreign material.
2. Remove negative battery cable.
3. Place a shop towel around the spark plugs when removing them from the engine. This will catch any fluid that
may possibly be in the cylinder under pressure.
4. With all spark plugs removed, rotate engine crankshaft using a breaker bar and socket.
5. Identify the fluid in the cylinder(s) (i.e., coolant, fuel, oil or other).
PM ENGINE 2.0L WORLD 9 - 1553
6. Make sure all fluid has been removed from the cylinders. Inspect engine for damage (i.e., connecting rods, pis-
tons, valves, etc.)
7. Repair engine or components as necessary to prevent this problem from re-occurring.
CAUTION: Squirt approximately one teaspoon of oil into the cylinders, rotate engine to lubricate the cylin-
der walls to prevent damage on restart.
cardiagn.com
proper width is essential to obtain a leak-free gasket.
There are numerous types of form-in-place gasket materials that are used in the engine area. MoparT Engine RTV
GEN II, MoparT ATF-RTV, and MoparT Gasket Maker gasket materials, each have different properties and can not
be used in place of the other.
MOPART ENGINE RTV GEN II is used to seal components exposed to engine oil. This material is a specially
designed black silicone rubber RTV that retains adhesion and sealing properties when exposed to engine oil. Mois-
ture in the air causes the material to cure. This material is available in three ounce tubes and has a shelf life of one
year. After one year this material will not properly cure. Always inspect the package for the expiration date before
use.
MOPART ATF RTV is a specifically designed black silicone rubber RTV that retains adhesion and sealing properties
to seal components exposed to automatic transmission fluid, engine coolants, and moisture. This material is avail-
able in three ounce tubes and has a shelf life of one year. After one year this material will not properly cure. Always
inspect the package for the expiration date before use.
MOPART GASKET MAKER is an anaerobic type gasket material. The material cures in the absence of air when
squeezed between two metallic surfaces. It will not cure if left in the uncovered tube. The anaerobic material is for
use between two machined surfaces. Do not use on flexible metal flanges.
MOPART BED PLATE SEALANT is a unique (green-in-color) anaerobic type gasket material that is specially made
to seal the area between the bed plate and cylinder block without disturbing the bearing clearance or alignment of
these components. The material cures slowly in the absence of air when torqued between two metallic surfaces,
and will rapidly cure when heat is applied.
MOPART GASKET SEALANT is a slow drying, permanently soft sealer. This material is recommended for sealing
threaded fittings and gaskets against leakage of oil and coolant. Can be used on threaded and machined parts
under all temperatures. This material also will prevent corrosion. MoparT Gasket Sealant is available in a 13 oz.
aerosol can or 4oz./16 oz. can w/applicator.
SEALER APPLICATION
MoparT Gasket Maker material should be applied sparingly 1 mm (0.040 in.) diameter or less of sealant to one
gasket surface. Be certain the material surrounds each mounting hole. Excess material can easily be wiped off.
Components should be torqued in place within 15 minutes. The use of a locating dowel is recommended during
assembly to prevent smearing material off the location.
MoparT Engine RTV GEN II or ATF RTV gasket material should be applied in a continuous bead approximately 3
mm (0.120 in.) in diameter. All mounting holes must be circled. For corner sealing, a 3.17 or 6.35 mm (1/8 or 1/4 in.)
drop is placed in the center of the gasket contact area. Uncured sealant may be removed with a shop towel. Com-
ponents should be torqued in place while the sealant is still wet to the touch (within 10 minutes). The usage of a
locating dowel is recommended during assembly to prevent smearing material off the location.
9 - 1554 ENGINE 2.0L WORLD PM
MoparT Gasket Sealant in an aerosol can should be applied using a thin, even coat sprayed completely over both
surfaces to be joined, and both sides of a gasket. Then proceed with assembly. Material in a can w/applicator can
be brushed on evenly over the sealing surfaces.
cardiagn.com
Only use the following for cleaning gasket surfaces:
• Solvent or a commercially available gasket
remover
• Plastic or wood scraper
• Drill motor with 3M Roloc™ Bristle Disc (white or yellow)
CAUTION: Excessive pressure or high RPM (beyond the recommended speed), can damage the sealing sur-
faces. The mild (white, 120 grit) bristle disc is recommended. If necessary, the medium (yellow, 80 grit) bris-
tle disc may be used on cast iron surfaces with care.
cardiagn.com
ences in readings between the ends indicate the
amount of taper present. Record all readings taken. Compare clearance measurements to specs found in engine
specifications (Refer to 9 - ENGINE - SPECIFICATIONS). Plastigage generally is accompanied by two
scales. One scale is in inches, the other is a metric scale.
NOTE: Plastigage is available in a variety of clearance ranges. Use the most appropriate range for the spec-
ifications you are checking.
4. Install the proper crankshaft bearings to achieve the specified bearing clearances.
cardiagn.com
19. Remove dipstick.
20. Remove throttle body support bracket.
21. Remove intake bolts and remove intake.
22. Disconnect coolant temperature sensor at block, Knock sensor, oil pressure sensor, generator, starter, block
heater, A/C compressor, and block ground.
23. Remove accessory drive belt.
24. Remove power steering reservoir.
25. Remove power steering line support.
26. Remove power steering pump and set aside.
27. Remove upper idler pulley.
28. Remove transaxle filler tube.
29. Disconnect transmission linkage.
30. Disconnect transmission range sensor, TIS and TOS.
31. Remove transmission vent hose.
32. Remove ground strap near right tower.
33. Remove rear heat shield.
34. Remove maniverter heat shields.
35. Raise vehicle.
36. Remove wheels.
37. Remove right front splash shield.
38. Remove axle nuts.
39. Remove ball joint pinch bolts and separate steering knuckle from ball joint.
40. Remove axles.
41. Drain oil.
42. Mark drive shaft and flange.
43. Remove carrier bearing and heat shield.
44. Remove driveshaft.
45. Remove exhaust pipe to maniverter/exhaust manifold bolts.
46. Remove maniverter/exhaust manifold support bracket.
47. Lower vehicle.
48. Remove coolant manifold.
PM ENGINE 2.0L WORLD 9 - 1557
cardiagn.com
A/C compressor.
64. Remove A/C mounting bracket.
cardiagn.com
71. Position dolly (4,8) under engine and lower vehicle.
1. Position engine and transmission assembly under vehicle and slowly lower the vehicle over the engine/transaxle
assembly. cardiagn.com
2. Continue lowering vehicle until engine/transaxle aligns to mounting locations. Install mounting bolts at the right
and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).
3. Remove safety straps from engine/transaxle assembly. Slowly raise vehicle enough to remove the engine dolly
and cradle.
9 - 1560 ENGINE 2.0L WORLD PM
cardiagn.com
PTU assembly.
cardiagn.com
46. Install accessory drive belt.
47. Connect electrical connectors at block ground, starter, A/C compressor, knock sensor, Oil pressure sensor, gen-
erator, Coolant temperature sensor at block, and block heater.
48. Install intake manifold and tighten bolts.
49. Install throttle body support bracket (1).
50. Install engine oil dip stick.
51. Install PCV hose to valve cover.
52. Connect manifold flow control valve and electronic
throttle control electrical connectors and fasten
harness to intake.
53. Install vacuum lines at throttle body and intake
manifold.
54. Install intake air tube on throttle body.
55. Connect engine harness electrical connectors.
56. Install upper radiator support bracket.
57. Install coolant hoses at coolant manifold.
58. Install grill trim panel.
59. Install coolant reservoir and connect hose.
60. Connect fuel line to fuel rail.
61. Install battery tray and battery.
62. Connect battery cables.
63. Install air cleaner housing and connect inlet air hose.
64. Install fresh air inlet.
65. Fill with coolant.
66. Fill with oil.
CAUTION: Do NOT run the engine with a vacuum pump in operation or with a vacuum present within the
A/C system. Failure to follow this caution will result in serious A/C compressor damage.
67. Evacuate the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD
PROCEDURE - REFRIGERANT SYSTEM EVACUATE).
68. Charge the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD PRO-
CEDURE - REFRIGERANT SYSTEM CHARGE).
69. Start engine and check for leaks.
9 - 1562 ENGINE 2.0L WORLD PM
SPECIFICATIONS
2.4L ENGINE
GENERAL SPECIFICATIONS
DESCRIPTION SPECIFICATION
Metric Standard
Type In-Line OHV, DOHC
Number of Cylinders 4
Firing Order 1-3-4-2
Compression Ratio 9.5:1
cardiagn.com
CYLINDER BLOCK
DESCRIPTION SPECIFICATION
Metric Standard
Material Cast Aluminum
Cylinder Bore Diameter 87.4924-87.5076 mm 3.4446-3.4452 in.
A 88.0-88.010 3.4645-3.4649 in.
B 88.010-88.020 3.4649-3.4653 in.
C 88.020-88.030 3.4653-3.4657 in.
Out-of-Round (Max.) 0.051 mm 0.002 in.
Taper (Max.) 0.051 mm 0.002 in.
PISTONS
DESCRIPTION SPECIFICATION
Metric Standard
DESCRIPTION SPECIFICATION
Metric Standard
PISTON RINGS
DESCRIPTION SPECIFICATION
Metric Standard
cardiagn.com
Wear Limit 1.0 mm 0.039 in.
CONNECTING ROD
DESCRIPTION SPECIFICATION
Metric Standard
Bearing Clearance 0.025–0.071 mm 0.0009–0.0027 in.
Wear Limit 0.075 mm 0.003 in.
Bore Diameter-Piston Pin 20.96–20.98 mm 0.8252–0.8260 in.
CRANKSHAFT
SPECIFICATION
DESCRIPTION
Metric Standard
Connecting Rod Journal Diameter 49.984 - 50.000 mm 1.968 - 1.9685 in.
Main Bearing Journal Diameter 59.992 - 60.008 mm 2.362 - 2.3625 in.
Journal Out-of-Round (Max.) 0.0035 mm 0.0003 in.
Journal Taper (Max.) 0.007 mm 0.0001 in.
9 - 1564 ENGINE 2.0L WORLD PM
SPECIFICATION
DESCRIPTION
Metric Standard
End Play 0.09 - 0.24 mm 0.0035 - 0.0094 in.
Wear Limit 0.38 mm 0.015 in.
Main Bearing Diametrical Clearance 0.018 - 0.062 mm 0.0007 - 0.0024 in.
DSECRIPTION SPECIFICATION
Metric Standard
Front Journal
Intake 30.000 - 30.021 mm 1.1810 - 1.1819 in.
Exhaust 40.000 - 40.021 mm 1.5747 - 1.5756 in.
Journals No. 1-4 24.000 - 24.021 mm 0.9448 - 0.9457 in.
CAMSHAFT
cardiagn.com
DESCRIPTION SPECIFICATION
Metric Standard
Journal Diameter No. 1 29.964 - 29.980 mm 1.179 - 1.180 in.
Journal Diameter No. 2-5 23.954 - 23.970 mm 0.943 - 0.944 in.
Bearing Clearance - Diametrical 0.030 - 0.067 mm 0.0011 - 0.0026 in.
End Play 0.11 - 0.25 mm 0.004 - 0.009 in.
Max Lift @ 0.2mm (0.007 in.) lash
Intake 9.2 mm (0.362 in.)
Max Lift @ 0.28mm (0.011 in.) lash
Exhaust 8.42 mm (0.331 mm)
Intake Valve Timing*
Closes (ABDC) 49.3°
Opens (ATDC) 10.3°
Duration 219°
Exhaust Valve Timing*
Closes (BTDC) 8.45°
Opens (BBDC) 45°
Duration 216.55°
Valve Overlap @ 0.5mm (0.019 in.) 18.75°
w/ VVT in lock-pin position
*
All reading in crankshaft degrees at 0.5 mm (0.019 in.) valve lift.
PM ENGINE 2.0L WORLD 9 - 1565
CYLINDER HEAD
DESCRIPTION SPECIFICATION
Metric Standard
Material Cast Aluminum - Heat treated
Gasket Thickness (Compressed) 0.54 mm 0.021 in.
VALVE SEAT
DESCRIPTION SPECIFICATION
Metric Standard
Angle 44.75° - 45.10°
Seat Diameter - Intake 34.45 - 34.61mm 1.3562 - 1.3625 in.
Seat Diameter - Exhaust 28.04 - 28.20 mm 1.1039 - 1.1102 in.
Runout (Max.) 0.05 mm 0.002 in.
Valve Seat Width
Intake 1.16 - 1.46 mm 0.0456 - 0.0574 in.
cardiagn.com
Exhaust 1.35 - 1.65 mm 0.0531 - 0.0649 in.
Service Limit - Intake 2.0 mm 0.079 in.
Service Limit - Exhaust 2.5 mm 0.098 in.
VALVE GUIDE
DESCRIPTION SPECIFICATION
Metric Standard
Diameter I.D. 5.500 - 5.512 mm 0.2165 -0.2170 in.
Guide Bore Diameter 10.983 - 11.001 mm 0.432 - 0.4331 in.
Guide Height (spring seat to guide
14.6 - 15.2 mm 0.5748 - 0.5984 in.
tip)
VALVES
DESCRIPTION SPECIFICATION
Metric Standard
Face Angle - Intake and Exhaust 45.25° - 45.75°
Head Diameter - Intake 34.9 - 35.1 mm 1.374 -1.3818 in.
Head Diameter - Exhaust 28.9 - 29.1 mm 1.1377 - 1.1456 in.
Valve Length (Overall)
Intake 112.76 - 113.32 mm 4.439 - 4.461 in.
Exhaust 110.89 - 111.69 mm 4.365 - 4.397 in.
Valve Stem Diameter
Intake 5.465 - 5.480 mm 0.2151 - 0.2157 in.
Exhaust 5.458 - 5.470 mm 0.2148 - 0.2153 in.
9 - 1566 ENGINE 2.0L WORLD PM
VALVE MARGIN
DESCRIPTION SPECIFICATION
Metric Standard
Intake 0.672 mm 0.0264 in.
Service Limit 0.95 mm 0.0037 in.
Exhaust 0.744 mm 0.02929 in.
Service Limit 1.05 mm 0.039 in.
DESCRIPTION SPECIFICATION
Metric Standard
Intake 48.04 mm 1.891 in.
Exhaust 47.99 mm 1.889 in.
cardiagn.com
DESCRIPTION SPECIFICATION
Metric Standard
VALVE SPRINGS
DESCRIPTION SPECIFICATION
Metric Standard
Free Length (Approx.) 47.0 mm 1.850 in.
Nominal Force (Valve Closed) 179.5 N ± 9 @ 35.0 mm 40.35 lbs. @ 2.023 in.
Nominal Force (Valve Open) 364.8 N ± 17 N @ 29.25 mm 82.01 lbs. ± 3.82 lbs. @ 1.152 in.
Installed Height 35.00 mm 1.378 in.
Number of Coils 8.5 ± 0.1
Wire Diameter 2.90 mm ± 0.03 0.114 in ± 0.001 in.
OIL PRESSURE
DESCRIPTION SPECIFICATION
Metric Standard
At Curb Idle Speed* 25 kPa 4 psi
At 3000 rpm 170 - 550 kPa 25 - 80 psi
CAUTION:
*If pressure is ZERO at curb idle, DO NOT run engine at 3000 rpm.
PM ENGINE 2.0L WORLD 9 - 1567
TORQUE
cardiagn.com
Flex Plate to Crankshaft-Bolts 95 70 -
Intake Manifold 24 18 -
Ladder Frame 28 21 -
Oil Cooler Connector Bolt 49 36 -
Oil Filter 14 10 -
Oil Filter Nipple 49 36 -
Oil Jet Fastener 12 - 105
Oil Pan-Bolts
M6 Bolts 12 N·m - 105
M8 Bolts 24 N·m 18- -0
Oil Pan Drain-Plug 40 30 -
PCV Valve 5 - 40
Spark Plugs 27 20 -
Timing Chain Cover
M6 Bolts 12 N·m - 105
M8 Bolts 23 N·m 17 250?
Timing Chain Tensioner Assembly-Bolts 12 N·m - 105
Timing Chain Guides 12 N·m - 105
9 - 1568 ENGINE 2.0L WORLD PM
SPECIAL TOOLS
2.4L ENGINE
cardiagn.com
PM ENGINE 2.0L WORLD 9 - 1569
cardiagn.com
LOCKING WEDGE 9701
cardiagn.com
TENSIONER PIN 9703
PM ENGINE 2.0L WORLD 9 - 1571
ELEMENT-AIR CLEANER
REMOVAL
1. Turn Lock Retainers (5) and remove fresh air inlet
(2) from air cleaner housing (1).
cardiagn.com
2. Disconnect intake air temperature sensor connector
(4).
3. Remove Air inlet tube (5) from air cleaner housing
(1).
4. Unfasten clasps (2) on sides of air cleaner housing
cover (1).
9 - 1572 ENGINE 2.0L WORLD PM
INSTALLATION
1. Install new filter element.
cardiagn.com
2. Place cover over air cleaner housing. Snap clasps
(2) in place.
3. Install air inlet tube (5).
4. Connect intake air temperature sensor connector
(4).
PM ENGINE 2.0L WORLD 9 - 1573
cardiagn.com
9 - 1574 ENGINE 2.0L WORLD PM
HOUSING-AIR CLEANER
REMOVAL
1. Remove fresh air inlet (2) from air cleaner housing
(1).
cardiagn.com
2. Remove intake air temperature sensor electrical
connector (4).
3. Remove air inlet tube (5) from housing (1).
4. Pull housing (1) upward to remove.
PM ENGINE 2.0L WORLD 9 - 1575
INSTALLATION
1. Make sure the rubber grommets, for the air cleaner
housing lower pins, are in place when reinstalling
the air cleaner housing. The rubber grommets
mount to the PDC bracket.
2. Push air cleaner housing (1) down while aligning
pins into the grommets.
3. Connect the throttle body air inlet hose (5) to the
air cleaner housing (1).
4. Connect intake air temperature sensor connector
(4).
cardiagn.com
5. Install fresh air inlet (2) and lock retainers (5).
9 - 1576 ENGINE 2.0L WORLD PM
CYLINDER HEAD
DESCRIPTION
The cross flow designed, aluminum cylinder head contains dual over-head camshafts with four valves per cylinder.
The valves are arranged in two in-line banks. The intake valves face toward the front of the vehicle. The exhaust
valves face the dash panel. The cylinder head incorporates powdered metal valve guides and seats. The cylinder
head is sealed to the block using a multi-layer steel head gasket and retaining bolts.
Integral oil galleries provide lubrication passages to the variable camshaft timing phasers, camshafts, and valve
mechanisms.
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
cardiagn.com
Possible indications of the cylinder head gasket leaking between adjacent cylinders are:
• Loss of engine power
• Engine misfiring
• Poor fuel economy
Possible indications of the cylinder head gasket leaking between a cylinder and an adjacent water jacket are:
• Engine overheating
• Loss of coolant
• Excessive steam (white smoke) emitting from exhaust
• Coolant foaming
With the engine cool, remove the coolant pressure cap. Start the engine and allow it to warm up until thermostat
opens.
If a large combustion/compression pressure leak exists, bubbles will be visible in the coolant.
WARNING: WITH COOLING SYSTEM TESTER IN PLACE, PRESSURE WILL BUILD UP FAST. EXCESSIVE
PRESSURE BUILT UP, BY CONTINUOUS ENGINE OPERATION, MUST BE RELEASED TO A SAFE PRESSURE
POINT. NEVER PERMIT PRESSURE TO EXCEED 138 kPa (20 psi).
Install Cooling System Tester 7700 or equivalent to pressure cap neck. Start the engine and observe the tester’s
pressure gauge. If gauge pulsates with every power stroke of a cylinder a combustion pressure leak is evident.
PM ENGINE 2.0L WORLD 9 - 1577
Combustion leaks into the cooling system can also be checked by using Bloc-Chek Kit C-3685-A or equivalent.
Perform test following the procedures supplied with the tool kit.
cardiagn.com
12. Remove valve cover.
13. Raise vehicle.
14. Remove right splash shield.
15. Set engine to TDC.
16. Remove accessory drive belts (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor bolts if equiped.
18. Remove lower A/C compressor mount.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft and water pump pulleys.
21. Remove right side engine mount bracket lower bolt.
22. Remove timing chain cover lower bolts.
23. Disconnect oxygen sensor electrical connectors.
24. Remove exhaust pipe at manaverter (AWD).
25. Remove manaverter support bracket retaining bolts (AWD).
26. Lower vehicle.
27. Remove power steering pump and set aside.
28. Support engine with suitable jack.
29. Remove right engine mount.
30. Remove accessory drive upper idler pulley.
31. Remove right upper engine mount bracket.
32. Remove accessory drive belt tensioner.
33. Remove upper timing chain cover retaining bolts.
34. Remove timing chain cover.
35. Remove timing chain tensioner.
36. Remove timing chain.
37. Remove timing chain guides.
38. Disconnect fuel line at the fuel rail.
39. Disconnect fuel injector electrical connectors.
40. Disconnect top engine electrical connectors and reposition harness.
41. Remove fuel rail.
42. Remove lower intake manifold support bracket retaining bolt.
9 - 1578 ENGINE 2.0L WORLD PM
cardiagn.com
57. Remove cylinder head from engine block.
58. Inspect and clean cylinder head and block sealing
surfaces. Refer to Cleaning and Inspection in this
section for procedures.
CLEANING
To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of alumi-
num engine components and multi-layer steel cylinder head gaskets.
NOTE: Multi-Layer Steel (MLS) head gaskets require a scratch free sealing surface.
Remove all gasket material from cylinder head and block (Refer to 9 - ENGINE - STANDARD PROCEDURE). Be
careful not to gouge or scratch the aluminum head sealing surface.
Clean all engine oil passages.
INSPECTION
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
PM ENGINE 2.0L WORLD 9 - 1579
cardiagn.com
sure valve guides in 3 places top (1), middle (2),
and bottom (3). (Refer to 9 - ENGINE - SPECIFI-
CATIONS) Replace guides if they are not within
specification.
5. Check valve guide height.
6. Prior to installing cylinder head, the cylinder block
should be checked for flatness (Refer to 9 -
ENGINE/ENGINE BLOCK - INSPECTION).
cardiagn.com
3. Position the new cylinder head gasket on engine
block with the part number facing up. Ensure gas-
ket is seated over the locating dowels in block.
4. Place two pea size dots of RTV (1) on cylinder
head gasket as shown.
cardiagn.com
7. Before installing the bolts, the threads should be
lightly coated with engine oil.
8. Install the cylinder head bolts and torque in the
sequence shown above.
• First: All to 30 N·m (25 ft. lbs.)
• Second: All to 61 N·m (50 ft. lbs.)
• Third: All to 61 N·m (45 ft. lbs.)
• Fourth: All an additional 90°
10. Install cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER - INSTALLA-
TION).
11. Install maniverter/exhaust manifold to cylinder head. Torque fasteners to 34 N·m (25 ft.lbs.).
12. Install heat shields.Torque fasteners to 9 N·m ( ).
9 - 1582 ENGINE 2.0L WORLD PM
cardiagn.com
29. Install heater tube support bracket to cylinder head.
30. Install fastener attaching dipstick tube to lower intake manifold
31. Connect fuel supply line quick-connect at the fuel rail assembly (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
QUICK CONNECT FITTING - STANDARD PROCEDURE).
32. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
33. Connect negative cable to battery.
34. Install clean air hose and air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER
HOUSING - INSTALLATION).
PM ENGINE 2.0L WORLD 9 - 1583
CAMSHAFT(S)
DESCRIPTION
Both camshafts have six bearing journal surfaces and two cam lobes per cylinder. Flanges on the third journal con-
trol camshaft end play. Cam position sensors are located on the intake and exhaust camshafts on the rear of the
cylinder head.
OPERATION
The camshaft is driven by the crankshaft via drive sprockets and a chain. The camshaft has precisely machined
lobes to provide accurate valve timing and duration.
STANDARD PROCEDURE
MEASURING CAMSHAFT END PLAY
1. Using a suitable tool, move camshaft as far rear-
ward as it will go.
2. Zero dial indicator.
3. Move camshaft as far forward as it will go.
cardiagn.com
4. Record reading on dial indicator. For end play
specification, (Refer to 9 - ENGINE - SPECIFICA-
TIONS).
5. If end play is excessive, check cylinder head and
camshaft for wear; replace as necessary.
REMOVAL
1. Remove engine cover by pulling upward.
2. Disconnect negative battery cable.
3. Remove cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
4. Raise vehicle.
5. Remove right splash shield.
9 - 1584 ENGINE 2.0L WORLD PM
cardiagn.com
6. Remove timing tensioner plug from front cover.
7. Insert small allen wrench and lift ratchet (2) upward to release the tensioner. Leave the allen wrench installed
during the remainder of this procedure.
8. Insert wedge 9701 (1).
PM ENGINE 2.0L WORLD 9 - 1585
cardiagn.com
sequence.
14. Lift the timing chain (2) off the sprocket (1).
15. Remove exhaust camshaft.
cardiagn.com
CLEANING
Clean camshafts with a suitable solvent.
INSPECTION
1. Inspect camshaft bearing journals for damage and
binding. If journals are binding, check the cylinder
head for damage. Also check cylinder head oil
holes for clogging.
2. Check the cam lobe and bearing surfaces for
abnormal wear and damage. Replace camshaft if
defective.
INSTALLATION
1. Identify which front cam cap (1) is installed on the
engine you are working on.
2. The cam cap (1) is numbered (2) either one, two,
or three, this corresponds to the select fit bearing
to use.
cardiagn.com
also be numbered (1) one, two, or three.
4. Oil all of the camshaft journals with clean engine
oil.
5. Install exhaust camshaft and position on bearing
journals in the cylinder head.
cardiagn.com
9. Align the timing marks (1) on the intake cam
sprocket with the mark in the chain.
10. Position the intake camshaft into the bearing jour-
nals in the cylinder head.
11. Verify that the timing marks (1) are aligned on
both camshafts and that the timing marks (3) are
parallel with the cylinder head.
CAUTION: Install the front intake and exhaust camshaft bearing cap last. Ensure that the dowels are seated
and follow torque sequence or damage to engine could result.
PM ENGINE 2.0L WORLD 9 - 1589
NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.
cardiagn.com
13. Install the front intake and exhaust bearing cap
and torque bolts in the sequence shown.
14. Verify that all timing marks are aligned.
15. Remove allen wrench from timing chain tensioner.
16. Remove locking wedge 9701.
17. Apply MOPART thread sealant to timing tensioner
plug and Install.
18. Install right splash shield.
19. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
20. Install engine cover.
21. Connect negative battery cable.
22. Fill cooling system.
23. Fill with oil.
24. Start engine and check for leaks.
9 - 1590 ENGINE 2.0L WORLD PM
COVER-CYLINDER HEAD
REMOVAL
1. Remove engine cover.
2. Disconnect ignition coil electrical connectors.
3. Disconnect PCV and make-up air hoses from cylin-
der head cover.
4. Use compressed air to blow dirt and debris off the
cylinder head cover prior to removal.
5. Remove cylinder head cover bolts.
6. Remove cylinder head cover from cylinder head.
cardiagn.com
INSTALLATION
1. Install new cylinder head cover gaskets (1,2).
PM ENGINE 2.0L WORLD 9 - 1591
cardiagn.com
5. Install cylinder head cover assembly to cylinder
head and install all bolts, ensuring the studs are
located as shown.
6. Tighten bolts in sequence shown in Using a 2 step
torque method as follows:
a. Tighten all bolts to 4.5 N·m (40 in. lbs.)
b. Tighten all bolts to 10 N·m (90 in. lbs.).
7. Install ignition coils. Tighten fasteners to 8 N·m (70
in. lbs.).
8. If the PCV valve was removed, tighten PCV valve
to 4.5 N·m (40 in. lbs.).
9. Connect PCV and make-up air hoses to cylinder
head cover.
10. Install engine cover.
9 - 1592 ENGINE 2.0L WORLD PM
TAPPETS-VALVE
DIAGNOSIS AND TESTING
MECHANICAL VALVE TAPPET NOISE DIAGNOSIS
A tappet-like noise may be produced from several items. Check the following items.
cardiagn.com
1. Remove engine cover.
2. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
3. Rotate camshaft so lobes are vertical.
4. Check clearance using feeler gauges.
5. Repeat for all tappets.
6. If clearance was too small Clearance too Small .
7. If clearance was too large Clearance too Large .
PM ENGINE 2.0L WORLD 9 - 1593
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. spec – measured = delta
3. Decrease bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
9 - 1594 ENGINE 2.0L WORLD PM
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. Measured – spec = delta
3. Increase bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
REMOVAL
NOTE: This procedure is for in-vehicle service with camshafts installed.
NOTE: Camshaft buckets must be replaced if cylinder head or camshafts are replaced.
INSTALLATION
NOTE: If reinstalling original buckets they must go back in their original location or engine damage could
result.
1. Apply a light coat of clean engine oil to camshafts buckets prior to assembly.
2. Install camshaft bucket into cylinder head.
3. Repeat installation procedure for each camshaft bucket.
NOTE: If installing new buckets, the valve lash procedure must be performed.
PM ENGINE 2.0L WORLD 9 - 1595
cardiagn.com
9 - 1596 ENGINE 2.0L WORLD PM
OPERATION
The four valves per cylinder (two intake and two exhaust) are opened by using direct acting buckets which are
actuated by the camshaft.
CLEANING
1. Clean all valves thoroughly and discard burned, warped and cracked valves.
cardiagn.com
PM ENGINE 2.0L WORLD 9 - 1597
cardiagn.com
seal tool.
INSPECTION
1. Whenever valves have been removed for inspection, reconditioning or replacement, valve springs should be
tested for correct tension. Discard the springs that do not meet specifications. The following specifications apply
to both intake and exhaust valves springs:
• Valve Closed Nominal Tension—75 lbs. @ 38.0 mm (1.50 in.)
• Valve Open Nominal Tension—134 lbs. @ 29.75 mm (1.17 in.)
2. Inspect each valve spring for squareness with a steel square and surface plate, test springs from both ends. If
the spring is more than 1.5 mm (1/16 inch) out of square, install a new spring.
9 - 1598 ENGINE 2.0L WORLD PM
INSTALLATION
CYLINDER HEAD ON
1. Install valve seal/valve spring seat (3) assembly.
Push the assembly down with appropriate size
socket to seat it onto the valve guide.
2. Install valve spring (2) and retainer (4) with keep-
ers (1).
cardiagn.com
3. Place the valve keepers in the retainer. Using Snap
On metric valve keeper installer (2) and remover
(1) as a handle, install valve keepers with a down-
ward push.
4. Remove air hose and install spark plugs.
5. Install camshafts (Refer to 9 - ENGINE/CYLINDER
HEAD/CAMSHAFT(S) - INSTALLATION).
6. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
cardiagn.com
tom surface of spring retainer. If height is greater
than 38.75 mm (1.525 in.), install a 0.762 mm
(0.030 in.) spacer under the valve spring seat to
bring spring height back within specification.
9 - 1600 ENGINE 2.0L WORLD PM
PHASERS-CAMSHAFT
REMOVAL
1. Remove camshafts (Refer to 9 - ENGINE/CYLIN-
DER HEAD/CAMSHAFT(S) - REMOVAL).
2. Remove camshaft phaser (2) retaining bolt while
holding the camshaft in place with a wrench (1).
3. Remove phaser (2) assembly from camshaft.
cardiagn.com
INSTALLATION
CAUTION: Do not use an impact wrench to tighten
camshaft sprocket bolts. Damage to the camshaft-
to-sprocket locating dowel pin and camshaft
phaser may occur.
ENGINE BLOCK
DESCRIPTION
The die cast aluminum cylinder block is a two-piece assembly, consisting of the cylinder block and ladder frame.
The block is an open deck design with cast in place cast iron cylinder liners. The cast iron cylinder liners are
recessed below the aluminum deck surface. The ladder frame bolts to the cylinder block and does not incorporate
the main bearing caps. This design offers a much stronger lower end and increased cylinder block and transaxle
rigidity. The rear oil seal retainer is integral with the block and ladder frame. The ladder frame and block are ser-
viced as an assembly.
The engine build date is located on the bottom of the
ladder frame just behind the oil pan. The date can be
seen with the oil pan in place.
cardiagn.com
STANDARD PROCEDURE
CYLINDER BORE HONING
1. Used carefully, a quality commercially available cyl-
inder bore resizing hone equipped with 220 grit
stones, is the best tool for this honing procedure. In
addition to deglazing, it will reduce taper and out-
of-round as well as removing light scuffing, scoring
or scratches. Usually a few strokes will clean up a
bore and maintain the required limits.
2. Deglazing of the cylinder walls may be done using
a quality commercially available cylinder surfacing
hone, recommended tool C-3501 or equivalent,
equipped with 280 grit stones, if the cylinder bore
is straight and round. 20–60 strokes depending on
the bore condition, will be sufficient to provide a
satisfactory surface. Use a light honing oil. Do not
use engine or transmission oil, mineral spirits
or kerosene. Inspect cylinder walls after each 20
strokes.
3. Honing should be done by moving the hone up and
down fast enough to get a cross-hatch pattern.
When hone marks intersect at 30-50 degrees, the
cross hatch angle is most satisfactory for proper seating of rings.
4. A controlled hone motor speed between 200–300 RPM is necessary to obtain the proper cross-hatch angle. The
number of up and down strokes per minute can be regulated to get the desired 40–60 degree angle. Faster up
and down strokes increase the cross-hatch angle.
5. After honing, it is necessary that the block be cleaned again to remove all traces of abrasive.
9 - 1602 ENGINE 2.0L WORLD PM
CAUTION: Ensure all abrasives are removed from engine parts after honing. It is recommended that a solu-
tion of soap and hot water be used with a brush and the parts then thoroughly dried. The bore can be
considered clean when it can be wiped clean with a white cloth and cloth remains clean. Oil the bores after
cleaning to prevent rusting.
CLEANING
Clean cylinder block thoroughly using a suitable cleaning solvent.
INSPECTION
ENGINE BLOCK
1. Clean cylinder block thoroughly and check all core
hole plugs for evidence of leaking.
2. If new core plugs are to be installed, (Refer to 9 -
ENGINE - STANDARD PROCEDURE - ENGINE
CORE AND OIL GALLERY PLUGS).
3. Examine block and cylinder bores for cracks or
fractures.
cardiagn.com
4. Check block deck surfaces for flatness. Deck sur-
face must be within service limit of 0.050 mm
(0.002 in.).
CYLINDER BORE
NOTE: The cylinder bores should be measured at
normal room temperature, 21°C (70°F).
CRANKSHAFT
STANDARD PROCEDURE
MEASURING CRANKSHAFT END PLAY
1. Mount a dial indicator (2) to front of engine with
the locating probe on nose of crankshaft (1).
2. Move crankshaft all the way to the rear of its
travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front and read
the dial indicator. (Refer to 9 - ENGINE - SPECIFI-
CATIONS) for end play specification.
cardiagn.com
REMOVAL - CRANKSHAFT
NOTE: Crankshaft can not be removed when engine is in vehicle.
NOTE: If piston/connecting rod replacement is necessary, remove cylinder head (Refer to 9 - ENGINE/CYL-
INDER HEAD - REMOVAL).
9 - 1604 ENGINE 2.0L WORLD PM
18. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods. Damage to connecting rod
could occur.
19. Remove all connecting rod bolts and caps. Care should be taken not to damage the fracture rod and cap sur-
faces.
CAUTION: Use extreme care when handling crankshaft. Tone wheel damage can occur if crankshaft is mis-
handled.
21. Lift out crankshaft from cylinder block. Do not damage the main bearings or journals when removing the crank-
shaft.
INSPECTION
The crankshaft journals should be checked for exces-
sive wear, taper and scoring. Limits of taper or out of
cardiagn.com
round on any crankshaft journals should be held to
0.025 mm (0.001 in.). Journal grinding should not
exceed 0.305 mm (0.012 in.) under the standard jour-
nal diameter. DO NOT grind thrust faces of No. 3 main
bearing. DO NOT nick crank pin or bearing fillets. After
grinding, remove rough edges from crankshaft oil
holes and clean out all passages.
INSTALLATION - CRANKSHAFT
The crankshaft is supported in five main bearings. All upper bearing shells in the crankcase have oil grooves and
holes. All lower bearing shells are smooth. Crankshaft end play is controlled by a two piece thrust bearing on the
number three main bearing journal.
1. Install the main bearing upper shells with the lubrication groove and oil hole in the engine block.
2. Make certain oil holes in block line up with oil hole in bearings and bearing tabs seat in the block tab slots.
NOTE: If the crankshaft is sent out for machine work, it must be balanced as an assembly with the target
ring installed.
3. Clean crankshaft and target ring with MOPART Brake Parts cleaner and dry with compressed air to ensure that
the crankshaft mating surface and target ring mounting holes are free from oil and lock patch debris.
NOTE: Always use NEW mounting screws whether installing original or new target ring.
4. Install NEWmounting screws finger tight starting with the #1 location. Make sure engagement occurs with the
shoulder of the screws and mounting hole before starting all other screws.
5. Torque all mounting screws with T30 torx bit to 13 Nm (110 in-lbs) following the torque sequence.
NOTE: Lightly apply trans gel to thrust bearings to hold bearings in block.
PM ENGINE 2.0L WORLD 9 - 1605
cardiagn.com
• Step 3: Then, move crankshaft forward to limits of travel.
• Step 4: Wedge an appropriate tool between the rear of the cylinder block and the rear crankshaft counter-
weight. This will hold the crankshaft in it’s furthest forward position.
12. Tighten bolts (1–10) again to 41 N·m (30 ft. lbs.) in sequence shown.
13. Remove wedge tool used to hold crankshaft.
14. Check the crankshaft turning torque, it should not exceed 5.6 N·m (50 in. lbs.).
15. Check crankshaft end play (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT - STANDARD PROCE-
DURE).
16. Install connecting rod bearings and caps. Do Not Reuse Connecting Rod Bolts. Torque connecting rod bolts
to 27 N·m (20 ft. lbs.) plus 1/4 turn.
17. Install the ladder frame assembly (Refer to 9 - ENGINE/ENGINE BLOCK/LADDER FRAME - INSTALLATION).
18. Install the balance shaft module (Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - INSTALLATION).
19. Install the oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).
20. Install crankshaft position sensor.
21. Install cylinder head if it was removed (Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION).
22. Install front crankshaft sprocket.
23. Install the timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
24. Install the timing chain front cover.
25. Install front crankshaft oil seal.
26. Install engine mount support bracket.
27. Install crankshaft vibration damper (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLA-
TION).
28. Remove engine from repair stand and position on Special Tools 6135 and 6710 Engine Dolly and Cradle. Install
safety straps around the engine to cradle and tighten and lock them into position.
29. Install crankshaft rear oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR -
INSTALLATION).
30. Install drive plate/flex plate. Apply MoparT Lock & Seal Adhesive to bolt threads and tighten to 95 N·m (70 ft.
lbs.).
31. Attach transaxle to engine. Tighten attaching bolts to 101 N·m (75 ft. lbs.).
32. Install the engine assembly (Refer to 9 - ENGINE - INSTALLATION).
33. Install new oil filter and fill with oil.
34. Start engine and check for leaks.
9 - 1606 ENGINE 2.0L WORLD PM
cardiagn.com
INSTALLATION
1. Place seal (1) onto Seal installer 9506 (2) with seal
spring towards the inside of engine.
PM ENGINE 2.0L WORLD 9 - 1607
cardiagn.com
5. Install crankshaft vibration damper (Refer to 9 -
ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION.
9 - 1608 ENGINE 2.0L WORLD PM
cardiagn.com
4. Insert a 3/16 flat bladed screwdriver (7) between
the dust lip (8) and the metal case (4) of the crank-
shaft seal (1). Angle the screwdriver through the
dust lip against metal case of the seal. Pry out
seal.
INSTALLATION
CAUTION: If a burr or scratch is present on the
crankshaft edge (chamfer), cleanup with 400 grit
sand paper to prevent seal damage during instal-
lation of new seal.
cardiagn.com
4. Install flex plate (1). Install new flex plate bolts and
torque to 95 N·m (70 ft. lbs.).
5. Install transaxle. Refer to TRANSMISSION/TRANS-
AXLE - INSTALLATION for procedure.
9 - 1610 ENGINE 2.0L WORLD PM
STANDARD PROCEDURE
PISTON TO CYLINDER BORE FITTING
NOTE: Pistons and cylinder bores should be mea-
sured at normal room temperature, 21°C (70°F).
cardiagn.com
shown in.
REMOVAL
NOTE: Pistons, rings, and rods are serviced as an assembly.
CAUTION: All four piston/rod assemblies must be replaced as a set or engine damage may result.
6. Remove top ridge of cylinder bores with a reliable ridge reamer before removing pistons from cylinder block. Be
sure to keep tops of pistons covered during this operation.
7. Rotate crankshaft so that each connecting rod is centered in cylinder bore.
8. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods, as damage to connecting rod
could occur.
CAUTION: Care must be taken not to damage the fractured rod and cap joint surfaces, as engine damage
many occur.
cardiagn.com
10. Carefully push each piston and rod assembly out of cylinder bore. Re-install bearing cap on the mating rod.
11. Repeat procedure for each piston and connecting rod assembly.
INSTALLATION
1. Install piston rings on piston (Refer to 9 - ENGINE/
ENGINE BLOCK/PISTON RINGS - INSTALLA-
TION).
2. Before installing pistons and connecting rod
assemblies into the bore, be sure that compression
ring gaps are staggered so that neither is in line
with oil ring rail gap.
3. Before installing the ring compressor, make sure
the oil ring expander ends are butted and the rail
gaps located as shown above. As viewed from the
top of the piston.
4. Immerse the piston head and rings in clean engine
oil, slide the ring compressor, over the piston. Be
sure position of rings does not change during
this operation.
5. The directional arrow stamped on the piston should face toward the front of the engine.
6. Rotate crankshaft so that the connecting rod journal is on the center of the cylinder bore. Lubricate connecting
rod journal with clean engine oil.
NOTE: There are three different size rod bearings, perform rod bearing selection procedure.
7. The rod bearing sizes are indicated on the nose of the crankshaft.
8. Install connecting rod upper bearing half into connecting rod.
9. Tap the piston down in cylinder bore, using a hammer handle. At the same time, guide connecting rod into posi-
tion on connecting rod journal.
10. Before installing the NEW bolts, the threads should be coated with clean engine oil.
11. Install connecting rod lower bearing half into connecting rod cap. Install connecting rod cap.
12. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
13. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:
9 - 1612 ENGINE 2.0L WORLD PM
cardiagn.com
PM ENGINE 2.0L WORLD 9 - 1613
BEARINGS-MAIN
STANDARD PROCEDURE - MAIN BEARING SELECTION
NOTE: There are three different possibilities for the upper main bearings and five different lower main bear-
ings. The upper and lower bearing shells are not interchangeable.
The lower main bearing identification is stamped in the nose of the crankshaft (1). There are 5 different bearing
sizes available 0 through 4.
cardiagn.com
The upper main bearing shell identification is located in the middle of cylinder block on the right side of the engine
when viewing from the flywheel. There are three different size bearings available.
BEARINGS-CONNECTING ROD
STANDARD PROCEDURE
CONNECTING ROD - FITTING
There are three different sizes of rod bearings available. Connecting rod bearing identification can be found on the
nose of the crankshaft. Use the table below for proper bearing selection.
CONNECTING ROD BEARING SELECTION
CONNECTING ROD
CRANKSHAFT PIN CONNECTING ROD
DIMENSION BEARING
DIAMETER GRADE BEARING DIMENSION
CLASSIFICATION
1 48 mm 1 (Black) 1.5 mm
2 48 mm 2 (No Color) 1.5 mm
3 48 mm 3 (Green) 1.5 mm
cardiagn.com
procedure and use of Plastigage (Refer to 9 -
ENGINE - STANDARD PROCEDURE) For bearing
clearance refer to Engine Specifications. (Refer to
9 - ENGINE - SPECIFICATIONS).
RINGS-PISTON
STANDARD PROCEDURE
PISTON RING - FITTING
1. Wipe cylinder bore clean. Insert ring and push
down with piston to ensure it is square in bore. The
ring gap measurement must be made with the ring
positioning at least 12 mm (0.50 inch) from bottom
of cylinder bore. Check gap with feeler gauge.
Refer to Engine Specifications.
cardiagn.com
2. Check piston ring to groove side clearance. Refer
to Engine Specifications.
9 - 1616 ENGINE 2.0L WORLD PM
REMOVAL
1. Using a suitable ring expander, remove upper and
intermediate piston rings.
2. Remove the upper oil ring side rail, lower oil ring
side rail and then oil ring expander from piston.
3. Clean ring grooves of any carbon deposits.
INSTALLATION
cardiagn.com
NOTE: The identification mark on face of upper
and intermediate piston rings must point toward
top of piston.
NOTE: The compression rings are marked Y1 for the upper compression ring and Y2 for the second com-
pression ring. These markings must face upward.
DAMPER-VIBRATION
REMOVAL
1. Remove accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL).
2. Install Damper holder 9707 (1).
3. Remove crankshaft damper bolt.
4. Pull damper off crankshaft.
cardiagn.com
INSTALLATION
1. Install crankshaft damper.
2. Apply clean engine oil crankshaft damper bolt
threads and between bolt head and washer. Torque
bolt to 210 N·m (155 ft. lbs.).
3. Install accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION).
9 - 1618 ENGINE 2.0L WORLD PM
FRAME-LADDER
REMOVAL
1. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
2. Remove oil pump/balance shaft assembly (Refer to
9 - ENGINE/LUBRICATION/OIL PUMP -
REMOVAL).
3. Remove ladder frame retaining bolts.
4. Remove ladder frame using pry points cast in the
rear of the block (1).
cardiagn.com
5. To assist in removing the ladder frame another (1)
pry points cast in the left side of the block.
CLEANING
Clean ladder frame with a plastic or wooden scraper and a suitable solvent.
PM ENGINE 2.0L WORLD 9 - 1619
INSTALLATION
1. Apply a 2 mm bead of sealant as shown.
cardiagn.com
step method.
• First: All to 20 N·m (15 ft. lbs.)
• Second: All to 49 N·m (36 ft. lbs.)
• Third: All to 49 N·m (36 ft. lbs.)
3. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
9 - 1620 ENGINE 2.0L WORLD PM
ENGINE MOUNTING
DESCRIPTION
The engine mounting system consists of a four-point system utilizing two load-carrying mounts and two torque con-
trolling mounts. The load-carrying mounts are located on each frame rail. The right mount is a hydro-elastic mount
and left mount is a conventional elastomeric isolator. The two torque controlling mounts are attached to a fore/aft
member and the front and rear of the engine.
OPERATION
The four-point engine mounting system minimizes the transmission of structure-borne engine noise to the passenger
compartment. The load-carrying right and left mounts dampen and isolate vertical motion and vibration. The front
and rear mount absorb torque reaction forces and torsional vibrations.
cardiagn.com
PM ENGINE 2.0L WORLD 9 - 1621
MOUNT-LEFT
REMOVAL
1. Remove air cleaner assembly.
2. Disconnect negative cable from battery.
3. Remove PCM.
4. Remove PCM mounting bracket.
5. Support transaxle with a suitable jack.
6. Remove left mount through bolt (3).
7. Remove mount to transaxle bolts (5).
8. Remove left mount bracket (4).
9. Remove left mount bracket to body frame rail fas-
teners.
10. Remove mount.
cardiagn.com
INSTALLATION
1. Install mount.
2. Install left mount to frame rail bolts and torque to
28N·m (250 in. lbs.).
3. Install left mount bracket (4).
4. Install mount to transaxle bolts (5) and torque to 68
N·m (50 ft.lbs.).
5. Install mount through bolt (3) and torque to 115
N·m (85 ft.lbs.).
6. Remove jack.
7. Install PCM mounting bracket.
8. Install PCM.
9. Connect negative battery cable.
10. Install air cleaner assembly.
9 - 1622 ENGINE 2.0L WORLD PM
MOUNT-RIGHT
REMOVAL
1. Remove coolant reservoir and set aside.
2. Remove power steering reservoir and set aside.
3. Remove windshield washer bottle.
4. Remove power steering line support bracket from
engine mount.
5. Support transaxle with a block of wood and a suit-
able jack.
6. Remove engine mount through bolt (4).
7. Remove engine mount bracket bolts (3).
8. Remove engine mount retaining bolts.
9. Remove engine mount.
cardiagn.com
INSTALLATION
1. Install engine mount.
2. Install engine mount retaining bolts and torque to
28 N·m (250 in. lbs.).
3. Install engine mount bracket and torque bolts (3) to
68 N·m (50 ft. lbs.).
4. Install engine mount through bolt (4) and torque to
115 N·m (85 ft. lbs.).
5. Remove jack.
6. Install power steering line support bracket at
engine mount.
7. Install windshield washer bottle.
8. Install power steering reservoir.
9. Install coolant reservoir.
PM ENGINE 2.0L WORLD 9 - 1623
MOUNT-FRONT
REMOVAL
1. Raise vehicle.
2. Remove fore aft member (3) to mount (4) bolts.
3. Remove mount through bolt (1).
4. Remove fore aft member (3) mounting bolts and
remove.
5. Remove front mount (4).
cardiagn.com
INSTALLATION
1. Install mount (4) and tighten bolts.
2. Install fore aft member (3) and tighten bolts.
3. Install mount through bolt (1) and tighten.
4. Lower vehicle.
9 - 1624 ENGINE 2.0L WORLD PM
MOUNT-REAR
REMOVAL
1. Remove rear mount retaining bolts (4).
2. Remove rear mount through bolt (1).
3. Remove oxygen sensor connector (2) from mount.
4. Remove rear mount (3).
cardiagn.com
INSTALLATION
1. Install rear mount (3).
2. Install rear mount retaining bolts (4) and tighten.
3. Install rear mount through bolt (1) and tighten.
4. Install oxygen sensor connector (2) retainer to
mount (3).
PM ENGINE 2.0L WORLD 9 - 1625
LUBRICATION
DESCRIPTION
The lubrication system is a full-flow filtration, pressure feed type. The oil pump is mounted in the ladder frame and
chain driven by the crankshaft.
OPERATION
Engine oil drawn up through the pickup tube and is pressurized by the oil pump and routed through the full-flow filter
to the main oil gallery running the length of the cylinder block. A diagonal hole in each bulkhead feeds oil to each
main bearing. Drilled passages within the crankshaft route oil from main bearing journals to connecting rod journals.
Balance shaft lubrication is provided through an internal oil passage. A vertical hole at the number one bulkhead
routes pressurized oil through a filter screen and head gasket up to the cylinder head. The oil then divides into three
passages; one to the intake cam phaser, one to the exhaust cam phaser and one to the camshafts. The passage
to the camshafts divides to feed both of the hollow camshafts at the second cam journal.The rest of cam journals
are feed oil through the hollow camshafts. The #1 cam journals are feed oil through the VVT oil passages. Oil
passages to the phasers are directed through the OCV (oil control valves) to the #1 journals. The oil then flows
through the camshafts then to the cam phasers. Oil returning to the pan from pressurized components supplies
lubrication to the valve stems, cam lobes, and tappets. Cylinder bores and wrist pins are splash lubricated from
directed slots on the connecting rod thrust collars.
cardiagn.com
DIAGNOSIS AND TESTING
CHECKING ENGINE OIL PRESSURE
1. Disconnect and remove oil pressure switch. (Refer to 9 - ENGINE/LUBRICATION/OIL PRESSURE SENSOR/
SWITCH - REMOVAL)
2. Install Special Tools C-3292 Gauge with 8406 Adaptor fitting.
3. Start engine and record oil pressure. Refer to Specifications for correct oil pressure requirements. (Refer to 9 -
ENGINE - SPECIFICATIONS)
CAUTION: If oil pressure is 0 at idle, do not perform the 3000 RPM test
4. If oil pressure is 0 at idle, shut off engine. check for pressure relief valve stuck open, a clogged oil pick-up
screen or a damaged oil pick-up tube O-ring.
5. Remove oil pan and inspect for debris.
6. Remove pressure relief valve and inspect, if damaged replace pressure relief valve.
7. If pressure relief valve is ok, replace balance shaft module assembly.
8. After test is complete, remove test gauge and fitting.
9. Install oil pressure switch and connector. (Refer to 9 - ENGINE/LUBRICATION/OIL PRESSURE SENSOR/
SWITCH - INSTALLATION).
9 - 1626 ENGINE 2.0L WORLD PM
OIL
STANDARD PROCEDURE
ENGINE OIL LEVEL CHECK
cardiagn.com
NOTE: The engine must be HOT when checking oil level.
The best time to check engine oil level is after the engine is at operating temperature. Allow the engine to be shut
off for at least 5 minutes before checking oil level.
Checking the oil while the vehicle is on level ground
will improve the accuracy of the oil level reading.
Remove dipstick (1), and observe oil level. Add oil
only when the level is at or below the SAFE mark. If
the oil level is in the safe (2) range, do not add oil.
cardiagn.com
1. Run engine until achieving normal operating temperature.
2. Position the vehicle on a level surface and turn engine off.
3. Remove oil fill cap.
4. Raise vehicle on hoist.
5. Place a suitable oil collecting container under oil pan drain plug (2).
6. Remove oil pan drain plug (2) or and allow oil to drain into collecting container. Inspect drain plug threads for
stretching or other damage. Replace drain plug and gasket if damaged.
7. Remove oil filter (1) (Refer to 9 - ENGINE/LUBRI-
CATION/OIL FILTER - REMOVAL).
9 - 1628 ENGINE 2.0L WORLD PM
cardiagn.com
type and amount of engine oil (Refer to LUBRI-
CATION & MAINTENANCE/SPECIFICATIONS -
FLUID CAPACITIES) and (Refer to LUBRICA-
TION & MAINTENANCE/FLUID TYPES -
DESCRIPTION).
11. Install oil fill cap.
12. Start engine and inspect for leaks.
13. Stop engine and inspect oil level.
FILTER-OIL
REMOVAL
CAUTION: When servicing the oil filter avoid
deforming the filter can by installing the remove/
install tool band strap against the can to base lock
seam. The lock seam joining the can to the base is
reinforced by the base plate.
cardiagn.com
INSTALLATION
1. Clean and check filter mounting surface. The sur-
face must be smooth, flat and free of debris or
pieces of gasket.
2. Lubricate new oil filter gasket.
3. Screw oil filter (1) on until the gasket contacts
base. Tighten to 21 N·m (15 ft. lbs.).
9 - 1630 ENGINE 2.0L WORLD PM
PAN-OIL
REMOVAL
1. Raise vehicle on hoist.
2. Drain engine oil.
3. Remove accessory drive belt splash shield.
4. Remove lower A/C compressor mounting bolt (if
equipped).
5. Remove A/C mounting bracket.
cardiagn.com
INSTALLATION
1. Apply MoparT Engine RTV GEN II at the front
cover to engine block parting lines (1).
PM ENGINE 2.0L WORLD 9 - 1631
cardiagn.com
5. Lower vehicle and fill engine crankcase with proper oil to correct level.
6. Start engine and check for leaks.
9 - 1632 ENGINE 2.0L WORLD PM
cardiagn.com
INSPECTION
NOTE: Pressure regulating valve (4) can be ser-
vice separately from the oil pump assembly.
INSTALLATION
1. Lightly coat pressure regulating valve with clean
engine oil and install valve (4).
2. Install spring (3) and cap (2).
3. Torque cap to 42 N·m (31 lbs.ft.).
cardiagn.com
9 - 1634 ENGINE 2.0L WORLD PM
PUMP-OIL
DESCRIPTION
The oil pump is integral to the balance shaft module
(BSM) (2). The oil pump cannot be disassembled for
inspection. The pressure relief valve is serviceable
and can be removed and inspected. The BSM can be
identified by the plastic end caps (1).
cardiagn.com
REMOVAL
1. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
2. Mark the chain (4) and the sprocket (5) for
reassembly.
PM ENGINE 2.0L WORLD 9 - 1635
cardiagn.com
6. Lower the back of the BSM and remove sprocket
from chain.
7. Remove BSM from the engine.
INSTALLATION
CAUTION: Do not reuse Balance Shaft Module
(BSM) to engine block bolts. Always discard bolts
after removing. Failure to replace bolts can result
in engine damage.
cardiagn.com
10. Fill with oil.
11. Start engine and check for leaks.
PM ENGINE 2.0L WORLD 9 - 1637
OPERATION
The oil pressure switch is normally “Closed.” The switch changes from a 9Closed9 circuit to an 9Open9 circuit, on
increasing pressure of 7 psig. The oil pressure switch changes from an 9Open9 circuit to a 9Closed9 circuit, on
decreasing pressure, between 2 psig and 4 psig.
REMOVAL
1. Raise vehicle.
2. Disconnect electrical connector.
3. Remove oil pressure sending unit using oil pressure socket C-4597.
cardiagn.com
INSTALLATION
1. Install oil pressure sending unit using oil pressure socket C-4597.
2. Connect electrical connector.
9 - 1638 ENGINE 2.0L WORLD PM
COOLER-OIL
DESCRIPTION
An engine oil cooler is used on some 2.4L engine packages. The cooler is a coolant-to-oil type and mounted
between the oil filter and oil filter adapter.
REMOVAL
1. Raise vehicle on hoist.
2. Drain cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
3. Disconnect oil cooler coolant hoses.
4. Remove oil filter.
5. Remove oil cooler connector bolt.
6. Remove oil cooler.
INSTALLATION
1. Replace oil cooler seal.
2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
cardiagn.com
3. Install oil cooler connector bolt. Torque connector bolt to 55 N·m (41 ft. lbs.).
4. Install oil filter.
5. Connect oil cooler coolant hose.
6. Lower vehicle.
7. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
PM ENGINE 2.0L WORLD 9 - 1639
MANIFOLD-INTAKE
DIAGNOSIS AND TESTING
INTAKE MANIFOLD LEAKS
An intake manifold air leak is characterized by lower than normal manifold vacuum. Also, one or more cylinders may
not be functioning.
WARNING: USE EXTREME CAUTION WHEN THE ENGINE IS OPERATING. DO NOT STAND IN A DIRECT LINE
WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR THE FAN. DO NOT WEAR
LOOSE CLOTHING.
REMOVAL
cardiagn.com
LOWER INTAKE MANIFOLD
WARNING: RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING SYSTEM COMPONENTS. SERVICE
VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVIC-
ING THE VEHICLE.
CLEANING
1. Discard gasket(s).
2. Clean all sealing surfaces.
INSPECTION
1. Inspect manifold for cracks, distortion, or mounting surface warpage. Replace manifold if necessary.
2. Inspect manifold gasket for surface damage or excessive swelling. Replace gaskets as necessary.
INSTALLATION
LOWER INTAKE MANIFOLD
1. Clean all gasket surfaces.
2. Replace intake manifold gasket.
3. Install intake manifold, torque bolts to 25 N·m (220 in. lbs.).
4. Install the fuel rail assembly to intake manifold. Tighten screws to 23 N·m (200 in. lbs.).
5. Connect fuel injector electrical connectors.
6. Inspect quick connect fittings for damage, replace if necessary (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
cardiagn.com
QUICK CONNECT FITTING - STANDARD PROCEDURE). Connect fuel supply hose to fuel rail assembly. Check
connection by pulling on connector to insure it locked into position.
7. Connect negative cable to battery.
8. Fill the cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
PM ENGINE 2.0L WORLD 9 - 1641
MANIFOLD-EXHAUST
REMOVAL
1. Remove engine cover.
2. Remove clean air hose and air cleaner housing.
3. Disconnect negative cable from battery.
4. Disconnect throttle and speed control cables from
the throttle lever and bracket.
5. Disconnect MAP sensor electrical connector.
6. Remove fasteners securing power steering fluid
reservoir to cylinder head.
7. Remove coolant recovery container (Refer to 7 -
COOLING/ENGINE/COOLANT RECOVERY CON-
TAINER - REMOVAL).
8. Remove bolts attaching upper heat shield.
9. Remove upper heat shield.
10. Raise vehicle.
cardiagn.com
11. Disconnect exhaust pipe from manifold.
12. Remove engine wiring heat shield.
13. Remove manifold support bracket.
14. Remove lower exhaust manifold heat shield.
15. Disconnect oxygen sensor electrical connector.
16. Remove exhaust manifold lower retaining fasteners.
17. Lower vehicle and remove the upper exhaust manifold retaining fasteners.
18. Remove exhaust manifold from above/between the engine and cowl panel.
19. Remove and discard manifold gasket.
20. Mark prop shaft and differential for proper installation (if equipped).
21. Remove the rear prop shaft (if equipped) (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT -
REMOVAL).
22. Remove the two exhaust to maniverter (exhaust manifold with catalytic converter) bolts.
23. Unplug the down - stream O2 sensor connector.
24. Remove the exhaust system (Refer to 11 - EXHAUST SYSTEM/MUFFLER - REMOVAL).
25. Lower the vehicle on the hoist.
26. Unplug the up - stream O2 sensor connector.
27. Remove up - stream O2 sensor from the maniverter (exhaust manifold with catalytic converter) using o2 sensor
socket 8439 (2).
28. Remove the four maniverter heat shield bolts (1).
29. Remove the two retaining bolts and one nut from the maniverter side heat shield (3).
30. Remove the seven maniverter to head retaining bolts.
31. Slide the maniverter up and to the right, The support the maniverter (1) with the help of a bungie cord.
32. Raise the vehicle on the hoist.
33. Remove the four (1) engine to maniverter bracket bolts.
34. Remove the rear engine mount through bolt (2).
35. Remove the three front engine mount to frame bolts and the mount through bolt.
36. Remove the PTU mounting bolts.
37. Install a screw jack (2)on front engine mount bracket (1).
38. Raise the front of the engine until the rear mount has dropped (1,2).
39. Separate the PTU from the transaxle.
9 - 1642 ENGINE 2.0L WORLD PM
40. Remove and discard old O-ring between Transmission and PTU
41. Roll the PTU (1) forward and down to remove.
CLEANING
1. Discard gasket (if equipped) and clean all surfaces of manifold and cylinder head.
INSPECTION
1. Inspect manifold gasket surfaces for flatness with straight edge. Surface must be flat within 0.15 mm per 300 mm
(0.006 in. per foot) of manifold length.
2. Inspect manifolds for cracks or distortion. Replace manifold as necessary.
INSTALLATION
1. Install a new exhaust manifold gasket. DO NOT APPLY SEALER.
2. Position exhaust manifold in place. Tighten fasteners, starting at center and progressing outward in both direc-
tions to 23 N·m (200 in. lbs.). Raise and lower vehicle for fastener access as necessary. Repeat tightening pro-
cedure until all fasteners are at specified torque.
3. Install exhaust manifold heat shields. Tighten bolts to 12 N·m (105 in. lbs.).
4. Install exhaust manifold support bracket.
cardiagn.com
5. Install engine wiring heat shield.
6. Connect oxygen sensor electrical connector.
7. Install exhaust pipe to manifold. Tighten fasteners to 28 N·m (250 in. lbs.).
8. Install coolant recovery container (Refer to 7 - COOLING/ENGINE/COOLANT RECOVERY CONTAINER -
INSTALLATION).
9. Install fasteners securing power steering fluid reservoir to cylinder head.
10. Connect MAP sensor electrical connector.
11. Connect throttle and speed control cables to the throttle lever and bracket.
12. Connect negative cable to battery.
13. Install clean air hose and air cleaner housing.
14. Roll the PTU in moving from front to back.
15. Rest the PTU on the frame while the engine and transaxle are raised back into position.
16. Lower screw jack until rear mount through bolt can be installed.
17. Install rear mount through bolt and torque bolt to 75 Nm (55 ft. lbs.).
18. Install the transmission crossmember and bolts, torque to 75 Nm (55 ft. lbs.).
19. Install the through bolt at the front transmission mount and torque to 75 Nm (55 ft. lbs.)
20. Insure that the O-ring between the PTU and transaxle is in place.
21. Slide the PTU into place.
22. Install and torque PTU mounting bolts to 58 N-m (43 lbf-ft).
23. Lower the hoist.
24. Place the maniverter back into place and install the seven bolts.
25. Torque the maniverter bolts.
26. Install the maniverter side heat shield into place.
27. Install the two retaining bolts and one retaining nut.
28. Install the maniverter heat shield and the four retaining bolts.
29. Torque the maniverter heat shield bolts.
30. Using tool 8439 install the O2 sensor.
31. Install the air box.
32. Install engine trim cover.
33. Raise the vehicle on the hoist.
34. Install the maniverter to block bracket and four mounting bolts.
PM ENGINE 2.0L WORLD 9 - 1643
cardiagn.com
9 - 1644 ENGINE 2.0L WORLD PM
COVER-TIMING CHAIN
REMOVAL
1. Remove engine cover.
2. Perform fuel pressure bleed procedure.
3. Remove air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
4. Disconnect negative battery cable.
5. Drain cooling system
6. Remove coolant recovery bottle.
7. Remove windshield washer bottle.
8. Remove power steering reservoir and set aside.
9. Remove make up air hose.
10. Remove PCV hose.
11. Disconnect ignition coil electrical connectors.
12. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
cardiagn.com
13. Raise vehicle.
14. Remove right lower splash shield.
15. Set engine to TDC.
16. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor retaining bolts.
18. Remove A/C compressor lower bracket.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft pulley.
21. Remove water pump pulley.
22. Remove timing chain cover lower bolts.
23. Lower vehicle.
24. Remove power steering pump and set aside.
25. Support engine with a suitable jack.
26. Remove right engine mount.
27. Remove accessory drive belt upper idler pulley.
28. Remove right engine mount bracket.
29. Remove accessory drive belt tensioner.
30. Remove timing chain cover upper retaining bolts.
31. Remove timing chain cover.
INSTALLATION
1. Clean all sealing surfaces.
2. Apply RTV as shown at the cylinder head to block parting line.
3. Apply RTV as shown in the corner of the oil pan and block.
4. Apply 2mm bead of RTV as shown.
5. Install timing chain cover.
6. Install timing chain cover upper retaining bolts and torque bolts.
7. Install accessory drive belt tensioner.
8. Install right engine mount bracket and torque.
9. Install accessory drive belt upper idler pulley.
10. Install right engine mount and torque bolts.
PM ENGINE 2.0L WORLD 9 - 1645
cardiagn.com
27. Connect make up air hose.
28. Install power steering reservoir.
29. Install windshield washer bottle.
30. Install coolant recovery bottle.
31. Fill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE).
32. Connect negative battery cable.
33. Install air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLA-
TION).
34. Install engine cover.
9 - 1646 ENGINE 2.0L WORLD PM
cardiagn.com
NOTE: If the timing chain plated links can no
longer be seen, the timing chain links correspond-
ing the timing marks must be marked prior to
removal if the chain is to be reused.
CAMSHAFT SPROCKET(S)
Refer to camshaft phasor removal (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
PM ENGINE 2.0L WORLD 9 - 1647
CRANKSHAFT SPROCKET
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
2. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
3. Remove oil pump drive chain tensioner.
4. Remove oil pump drive chain.
5. Remove crankshaft sprocket (1).
cardiagn.com
INSPECTION
Inspect timing chain for stretching prior to removal.
1. Rotate engine while watching timing chain ten-
sioner plunger. When the plunger reaches its max-
imum travel stop rotating engine.
2. Measure the distance from the tensioner body and
the edge of the chain guide as shown.
3. If the distance is greater than 20.5 mm (0.81 in.)
inspect guide shoes for excessive wear.
4. If guides are okay, replace timing chain.
9 - 1648 ENGINE 2.0L WORLD PM
INSTALLATION
CRANKSHAFT SPROCKET
1. Install crankshaft sprocket (1) onto crankshaft.
2. Install oil pump drive chain. Verify that Oil pump is
correctly timed.
3. Reset oil pump drive chain tensioner by pushing
plunger inward and install Tensioner Pin 8514.
4. Install oil pump drive chain tensioner and remove
Tensioner Pin 8514.
5. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
6. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
7. Fill engine with oil (Refer to 9 - ENGINE/LUBRICA-
TION/OIL - STANDARD PROCEDURE).
8. Start engine and check for leaks.
cardiagn.com
CAMSHAFT SPROCKET(S)
NOTE: The camshaft sprockets and the camshaft phasers are an assembly and cannot be serviced sepa-
rately.
CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-
sprocket locating dowel pin and camshaft phaser may occur.
TIMING CHAIN
1. Verify that the crankshaft sprocket keyway is at the
9 o’clock position.
PM ENGINE 2.0L WORLD 9 - 1649
cardiagn.com
4. Install timing chain so plated links on chain align
with timing marks on camshaft sprockets (1).
9 - 1650 ENGINE 2.0L WORLD PM
cardiagn.com
6. Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner
body (4). Insert tensioner pin 8514 into slot (1) to hold tensioner plunger in the retracted position.
PM ENGINE 2.0L WORLD 9 - 1651
cardiagn.com
8. Install the moveable timing chain pivot guide (6)
and torque bolt to 12 N·m (105 in. lbs.).
TENSIONER-TIMING CHAIN
REMOVAL
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
cardiagn.com
INSTALLATION
1. Reset tensioner.
2. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
PM ENGINE 2.4L WORLD 9 - 1653
TABLE OF CONTENTS
page page
cardiagn.com
THREADS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1662 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1706
HYDROSTATIC LOCKED ENGINE . . . . . . . . . . 1662 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1706
FORM-IN-PLACE GASKETS AND SEALERS . 1663 SPRINGS & SEALS-VALVE
ENGINE GASKET SURFACE PREPARATION . 1664 REMOVAL
CYLINDER HEAD CORE PLUGS . . . . . . . . . . . 1664 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1707
MEASURING BEARING CLEARANCE USING CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1707
PLASTIGAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 1665 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1707
REMOVAL - ENGINE ASSEMBLY . . . . . . . . . . . . . 1665 INSTALLATION
INSTALLATION - ENGINE ASSEMBLY . . . . . . . . 1669 CYLINDER HEAD ON . . . . . . . . . . . . . . . . . . . . . 1708
SPECIFICATIONS CYLINDER HEAD OFF . . . . . . . . . . . . . . . . . . . . 1708
2.4L ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1672 PHASERS-CAMSHAFT
TORQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1677 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1710
SPECIAL TOOLS INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1710
2.4L ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1678 ENGINE BLOCK
ELEMENT-AIR CLEANER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1711
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1681 STANDARD PROCEDURE
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1682 CYLINDER BORE HONING . . . . . . . . . . . . . . . . 1711
HOUSING-AIR CLEANER CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1712
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1684 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1712
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1685 CRANKSHAFT
CYLINDER HEAD STANDARD PROCEDURE
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1686 MEASURING CRANKSHAFT END PLAY . . . . 1713
DIAGNOSIS AND TESTING REMOVAL - CRANKSHAFT . . . . . . . . . . . . . . . . . . 1713
CYLINDER HEAD GASKET . . . . . . . . . . . . . . . . 1686 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1714
REMOVAL - CYLINDER HEAD . . . . . . . . . . . . . . . 1687 INSTALLATION - CRANKSHAFT . . . . . . . . . . . . . . 1714
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1688 SEAL-FRONT CRANKSHAFT OIL
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1688 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1716
INSTALLATION - CYLINDER HEAD . . . . . . . . . . . 1689 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1716
CAMSHAFT(S) SEAL- REAR CRANKSHAFT OIL
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1693 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1718
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1693 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1719
STANDARD PROCEDURE PISTON & ROD-CONNECTING
MEASURING CAMSHAFT END PLAY . . . . . . . 1693 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1720
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1693 STANDARD PROCEDURE
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1696 PISTON TO CYLINDER BORE FITTING . . . . . 1720
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1696 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1720
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1697 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1721
9 - 1654 ENGINE 2.4L WORLD PM
cardiagn.com
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1730 REMOVAL
MOUNT-LEFT LOWER INTAKE MANIFOLD . . . . . . . . . . . . . . . 1749
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1731 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1750
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1731 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1750
MOUNT-RIGHT INSTALLATION
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1732 LOWER INTAKE MANIFOLD . . . . . . . . . . . . . . . 1750
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1732 MANIFOLD-EXHAUST
MOUNT-FRONT REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1751
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1733 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1752
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1733 INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1752
MOUNT-REAR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1752
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1734 COVER-TIMING CHAIN
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1734 REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1754
LUBRICATION INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1754
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1735 CHAIN AND SPROCKETS-TIMING
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1735 REMOVAL
DIAGNOSIS AND TESTING TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1756
CHECKING ENGINE OIL PRESSURE . . . . . . . 1735 CAMSHAFT SPROCKET(S) . . . . . . . . . . . . . . . . 1756
OIL CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1757
STANDARD PROCEDURE INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1757
ENGINE OIL LEVEL CHECK . . . . . . . . . . . . . . . 1736 INSTALLATION
ENGINE OIL AND FILTER CHANGE . . . . . . . . 1737 CRANKSHAFT SPROCKET . . . . . . . . . . . . . . . . 1758
FILTER-OIL CAMSHAFT SPROCKET(S) . . . . . . . . . . . . . . . . 1758
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1739 TIMING CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 1758
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1739 TENSIONER-TIMING CHAIN
PAN-OIL REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1762
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1740 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1762
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1740
PM ENGINE 2.4L WORLD 9 - 1655
cardiagn.com
of malfunctions (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING - MECHANICAL) (Refer to 9 - ENGINE - DIAG-
NOSIS AND TESTING - PERFORMANCE).
For fuel system diagnosis, (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY - DIAGNOSIS AND TESTING).
Additional tests and diagnostic procedures may be necessary for specific engine malfunctions that cannot be iso-
lated with the Service Diagnosis charts. Information concerning additional tests and diagnosis is provided within the
following:
• Cylinder Compression Pressure Test
• Cylinder Combustion Pressure Leakage Test
• Engine Cylinder Head Gasket Failure Diagnosis
• Intake Manifold Leakage Diagnosis
• Mechanical Valve Tappet Noise Diagnosis
• Engine Oil Leak Inspection
9 - 1656 ENGINE 2.4L WORLD PM
ENGINE WILL NOT START 1. Weak battery. 1. Test battery. Charge or replace as
necessary. (Refer to 8 -
ELECTRICAL/BATTERY SYSTEM -
DIAGNOSIS AND TESTING)
2. Corroded or loose battery 2. Clean and tighten battery
connections. connections. Apply a coat of light
mineral grease to terminals.
3. Faulty starter. 3. Test starting system. (Refer to 8 -
ELECTRICAL/STARTING -
DIAGNOSIS AND TESTING)
4. Faulty coil(s) or control unit. 4. Test and replace as needed.
(Refer to Appropriate Diagnostic
Information)
5. Incorrect spark plug gap. 5. Set gap. (Refer to 8 -
ELECTRICAL/IGNITION CONTROL
cardiagn.com
- SPECIFICATIONS)
6. Contamination in fuel system. 6. Clean system and replace fuel
filter.
7. Faulty fuel pump. 7. Test fuel pump and replace as
needed. (Refer to Appropriate
Diagnostic Information)
8. Incorrect engine timing. 8. Check for a skipped timing
belt/chain.
ENGINE STALLS OR IDLES 1. Idle speed too low. 1. Test minimum air flow. (Refer to
ROUGH Appropriate Diagnostic Information)
ENGINE LOSS OF POWER 1. Dirty or incorrectly gapped plugs. 1. Clean plugs and set gap.
cardiagn.com
(Refer to Appropriate Diagnostic
Information)
ENGINE MISSES ON 1. Dirty or incorrectly gapped spark 1. Clean spark plugs and set gap.
ACCELERATION plugs.
ENGINE MISSES AT HIGH SPEED 1. Dirty or incorrect spark plug gap. 1. Clean spark plugs and set gap.
2. Faulty ignition coil(s). 2. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
3. Dirty fuel injector(s). 3. Test and replace as necessary.
(Refer to Appropriate Diagnostic
Information)
4. Contamination in fuel system. 4. Clean system and replace fuel
filter.
9 - 1658 ENGINE 2.4L WORLD PM
VALVETRAIN NOISE 1. High or low oil level in 1. Check and correct engine oil
crankcase. level.
cardiagn.com
7. Worn valve guides. 7. Ream guides and install new
valves with oversize stems.
8. Excessive runout of valve seats 8. Grind valve seats and valves.
on valve faces.
CONNECTING ROD NOISE 1. Insufficient oil supply. 1. Check engine oil level.
MAIN BEARING NOISE 1. Insufficient oil supply. 1. Check engine oil level.
cardiagn.com
8. Loose flywheel or torque 8. Tighten to correct torque.
converter.
OIL PRESSURE DROP 1. Low oil level. 1. Check engine oil level.
OIL CONSUMPTION OR SPARK 1. PCV system malfunction. 1. Check system and repair as
PLUGS FOULED necessary. (Refer to 25 -
EMISSIONS CONTROL/
EVAPORATIVE EMISSIONS/PCV
VALVE - DIAGNOSIS AND
TESTING)
2. Worn, scuffed or broken rings. 2. Hone cylinder bores. Install new
rings.
3. Carbon in oil ring slots. 3. Install new rings.
4. Rings fitted too tightly in grooves. 4. Remove rings and check
grooves. If groove is not proper
width, replace piston.
5. Worn valve guide(s). 5. Ream guide(s) and replace
valve(s) with oversize valve(s) and
seal(s).
6. Valve stem seal(s) worn or 6. Replace seal(s).
damaged.
cardiagn.com
CYLINDER COMBUSTION PRESSURE LEAKAGE TEST
The combustion pressure leakage test provides an accurate means for determining engine condition.
Combustion pressure leakage testing will detect:
• Exhaust and intake valve leaks (improper seating).
• Leaks between adjacent cylinders or into water jacket.
• Any causes for combustion/compression pressure loss.
WARNING: DO NOT REMOVE THE PRESSURE CAP WITH THE SYSTEM HOT AND UNDER PRESSURE
BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
Check the coolant level and fill as required. DO NOT install the pressure cap.
Start and operate the engine until it attains normal operating temperature, then turn the engine OFF.
Clean spark plug recesses with compressed air.
Remove the spark plugs.
Remove the oil filler cap.
Remove the air cleaner.
Calibrate the tester according to the manufacturer’s instructions. The shop air source for testing should maintain 483
kPa (70 psi) minimum, 1,379 kPa (200 psi) maximum, with 552 kPa (80 psi) recommended.
Perform the test procedures on each cylinder according to the tester manufacturer’s instructions. While testing, lis-
ten for pressurized air escaping through the throttle body, tailpipe and oil filler cap opening. Check for bubbles in the
coolant.
All gauge pressure indications should be equal, with no more than 25% leakage per cylinder.
FOR EXAMPLE: At 552 kPa (80 psi) input pressure, a minimum of 414 kPa (60 psi) should be maintained in the
cylinder.
cardiagn.com
ENGINE OIL LEAK INSPECTION
Begin with a thorough visual inspection of the engine, particularly at the area of the suspected leak. If an oil leak
source is not readily identifiable, the following steps should be followed:
1. Do not clean or degrease the engine at this time because some solvents may cause rubber to swell, temporarily
stopping the leak.
2. Add an oil soluble dye (use as recommended by manufacturer). Start the engine and let idle for approximately 15
minutes. Check the oil dipstick to make sure the dye is thoroughly mixed as indicated with a bright yellow color
under a black light.
3. Using a black light, inspect the entire engine for fluorescent dye, particularly at the suspected area of oil leak. If
the oil leak is found and identified, repair as necessary.
4. If dye is not observed, drive the vehicle at various speeds for approximately 24 km (15 miles), and repeat inspec-
tion.
5. If the oil leak source is not positively identified at this time, proceed with the air leak detection test method
as follows:
• Disconnect the fresh air hose (make-up air) at the cylinder head cover and plug or cap the nipple on the cover.
• Remove the PCV valve hose from the cylinder head cover. Cap or plug the PCV valve nipple on the cover.
• Attach an air hose with pressure gauge and regulator to the dipstick tube.
CAUTION: Do not subject the engine assembly to more than 20.6 kpa (3 PSI) of test pressure.
• Gradually apply air pressure from 1 psi to 2.5 psi maximum while applying soapy water at the suspected
source. Adjust the regulator to the suitable test pressure that provides the best bubbles which will pinpoint the
leak source. If the oil leak is detected and identified, repair per service manual procedures.
• If the leakage occurs at the crankshaft rear oil seal area, refer to the section, Inspection for Rear Seal Area
Leak.
6. If no leaks are detected, turn off the air supply. Remove the air hose, all plugs, and caps. Install the PCV valve
and fresh air hose (make-up air). Proceed to next step.
7. Clean the oil off the suspect oil leak area using a suitable solvent. Drive the vehicle at various speeds approx-
imately 24 km (15 miles). Inspect the engine for signs of an oil leak by using a black light.
9 - 1662 ENGINE 2.4L WORLD PM
NOTE: If oil leakage is observed at the dipstick tube to block location; remove the tube, clean and reseal
using MoparT Stud & Bearing Mount (press fit tube applications only), and for O-ring style tubes, remove
tube and replace the O-ring seal.
cardiagn.com
CAUTION: Do not exceed 20.6 kPa (3 psi).
5. If the leak is not detected, very slowly turn the crankshaft and watch for leakage. If a leak is detected between
the crankshaft and seal while slowly turning the crankshaft, it is possible the crankshaft seal surface is damaged.
The seal area on the crankshaft could have minor nicks or scratches that can be polished out with emery cloth.
CAUTION: Use extreme caution when crankshaft polishing is necessary to remove minor nicks and
scratches. The crankshaft seal flange is especially machined to complement the function of the rear oil seal.
6. For bubbles that remain steady with shaft rotation, no further inspection can be done until disassembled.
7. After the oil leak root cause and appropriate corrective action have been identified, replace component(s) as
necessary.
STANDARD PROCEDURE
REPAIR OF DAMAGED OR WORN THREADS
Damaged or worn threads (excluding spark plug and camshaft bearing cap attaching threads) can be repaired.
Essentially, this repair consists of drilling out worn or damaged threads, tapping the hole with a special Heli-Coil Tap,
(or equivalent) and installing an insert into the tapped hole. This brings the hole back to its original thread size.
CAUTION: Be sure that the tapped holes maintain the original center line.
Heli-Coil tools and inserts are readily available from automotive parts jobbers.
CAUTION: DO NOT use starter motor to rotate the engine, severe damage may occur.
1. Inspect air cleaner, induction system and intake manifold to insure system is dry and clear of foreign material.
2. Remove negative battery cable.
3. Place a shop towel around the spark plugs when removing them from the engine. This will catch any fluid that
may possibly be in the cylinder under pressure.
4. With all spark plugs removed, rotate engine crankshaft using a breaker bar and socket.
5. Identify the fluid in the cylinder(s) (i.e., coolant, fuel, oil or other).
PM ENGINE 2.4L WORLD 9 - 1663
6. Make sure all fluid has been removed from the cylinders. Inspect engine for damage (i.e., connecting rods, pis-
tons, valves, etc.)
7. Repair engine or components as necessary to prevent this problem from re-occurring.
CAUTION: Squirt approximately one teaspoon of oil into the cylinders, rotate engine to lubricate the cylin-
der walls to prevent damage on restart.
cardiagn.com
proper width is essential to obtain a leak-free gasket.
There are numerous types of form-in-place gasket materials that are used in the engine area. MoparT Engine RTV
GEN II, MoparT ATF-RTV, and MoparT Gasket Maker gasket materials, each have different properties and can not
be used in place of the other.
MOPART ENGINE RTV GEN II is used to seal components exposed to engine oil. This material is a specially
designed black silicone rubber RTV that retains adhesion and sealing properties when exposed to engine oil. Mois-
ture in the air causes the material to cure. This material is available in three ounce tubes and has a shelf life of one
year. After one year this material will not properly cure. Always inspect the package for the expiration date before
use.
MOPART ATF RTV is a specifically designed black silicone rubber RTV that retains adhesion and sealing properties
to seal components exposed to automatic transmission fluid, engine coolants, and moisture. This material is avail-
able in three ounce tubes and has a shelf life of one year. After one year this material will not properly cure. Always
inspect the package for the expiration date before use.
MOPART GASKET MAKER is an anaerobic type gasket material. The material cures in the absence of air when
squeezed between two metallic surfaces. It will not cure if left in the uncovered tube. The anaerobic material is for
use between two machined surfaces. Do not use on flexible metal flanges.
MOPART BED PLATE SEALANT is a unique (green-in-color) anaerobic type gasket material that is specially made
to seal the area between the bed plate and cylinder block without disturbing the bearing clearance or alignment of
these components. The material cures slowly in the absence of air when torqued between two metallic surfaces,
and will rapidly cure when heat is applied.
MOPART GASKET SEALANT is a slow drying, permanently soft sealer. This material is recommended for sealing
threaded fittings and gaskets against leakage of oil and coolant. Can be used on threaded and machined parts
under all temperatures. This material also will prevent corrosion. MoparT Gasket Sealant is available in a 13 oz.
aerosol can or 4oz./16 oz. can w/applicator.
SEALER APPLICATION
MoparT Gasket Maker material should be applied sparingly 1 mm (0.040 in.) diameter or less of sealant to one
gasket surface. Be certain the material surrounds each mounting hole. Excess material can easily be wiped off.
Components should be torqued in place within 15 minutes. The use of a locating dowel is recommended during
assembly to prevent smearing material off the location.
MoparT Engine RTV GEN II or ATF RTV gasket material should be applied in a continuous bead approximately 3
mm (0.120 in.) in diameter. All mounting holes must be circled. For corner sealing, a 3.17 or 6.35 mm (1/8 or 1/4 in.)
drop is placed in the center of the gasket contact area. Uncured sealant may be removed with a shop towel. Com-
ponents should be torqued in place while the sealant is still wet to the touch (within 10 minutes). The usage of a
locating dowel is recommended during assembly to prevent smearing material off the location.
9 - 1664 ENGINE 2.4L WORLD PM
MoparT Gasket Sealant in an aerosol can should be applied using a thin, even coat sprayed completely over both
surfaces to be joined, and both sides of a gasket. Then proceed with assembly. Material in a can w/applicator can
be brushed on evenly over the sealing surfaces.
cardiagn.com
Only use the following for cleaning gasket surfaces:
• Solvent or a commercially available gasket
remover
• Plastic or wood scraper
• Drill motor with 3M Roloc™ Bristle Disc (white or yellow)
CAUTION: Excessive pressure or high RPM (beyond the recommended speed), can damage the sealing sur-
faces. The mild (white, 120 grit) bristle disc is recommended. If necessary, the medium (yellow, 80 grit) bris-
tle disc may be used on cast iron surfaces with care.
cardiagn.com
ences in readings between the ends indicate the
amount of taper present. Record all readings taken. Compare clearance measurements to specs found in engine
specifications (Refer to 9 - ENGINE - SPECIFICATIONS). Plastigage generally is accompanied by two
scales. One scale is in inches, the other is a metric scale.
NOTE: Plastigage is available in a variety of clearance ranges. Use the most appropriate range for the spec-
ifications you are checking.
4. Install the proper crankshaft bearings to achieve the specified bearing clearances.
cardiagn.com
19. Remove dipstick.
20. Remove throttle body support bracket.
21. Remove intake bolts and remove intake.
22. Disconnect coolant temperature sensor at block, Knock sensor, oil pressure sensor, generator, starter, block
heater, A/C compressor, and block ground.
23. Remove accessory drive belt.
24. Remove power steering reservoir.
25. Remove power steering line support.
26. Remove power steering pump and set aside.
27. Remove upper idler pulley.
28. Remove transaxle filler tube.
29. Disconnect transmission linkage.
30. Disconnect transmission range sensor, TIS and TOS.
31. Remove transmission vent hose.
32. Remove ground strap near right tower.
33. Remove rear heat shield.
34. Remove maniverter heat shields.
35. Raise vehicle.
36. Remove wheels.
37. Remove right front splash shield.
38. Remove axle nuts.
39. Remove ball joint pinch bolts and separate steering knuckle from ball joint.
40. Remove axles.
41. Drain oil.
42. Mark drive shaft and flange.
43. Remove carrier bearing and heat shield.
44. Remove driveshaft.
45. Remove exhaust pipe to maniverter/exhaust manifold bolts.
46. Remove maniverter/exhaust manifold support bracket.
47. Lower vehicle.
48. Remove coolant manifold.
PM ENGINE 2.4L WORLD 9 - 1667
cardiagn.com
A/C compressor.
64. Remove A/C mounting bracket.
cardiagn.com
71. Position dolly (4,8) under engine and lower vehicle.
1. Position engine and transmission assembly under vehicle and slowly lower the vehicle over the engine/transaxle
assembly. cardiagn.com
2. Continue lowering vehicle until engine/transaxle aligns to mounting locations. Install mounting bolts at the right
and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).
3. Remove safety straps from engine/transaxle assembly. Slowly raise vehicle enough to remove the engine dolly
and cradle.
9 - 1670 ENGINE 2.4L WORLD PM
cardiagn.com
PTU assembly.
cardiagn.com
46. Install accessory drive belt.
47. Connect electrical connectors at block ground, starter, A/C compressor, knock sensor, Oil pressure sensor, gen-
erator, Coolant temperature sensor at block, and block heater.
48. Install intake manifold and tighten bolts.
49. Install throttle body support bracket (1).
50. Install engine oil dip stick.
51. Install PCV hose to valve cover.
52. Connect manifold flow control valve and electronic
throttle control electrical connectors and fasten
harness to intake.
53. Install vacuum lines at throttle body and intake
manifold.
54. Install intake air tube on throttle body.
55. Connect engine harness electrical connectors.
56. Install upper radiator support bracket.
57. Install coolant hoses at coolant manifold.
58. Install grill trim panel.
59. Install coolant reservoir and connect hose.
60. Connect fuel line to fuel rail.
61. Install battery tray and battery.
62. Connect battery cables.
63. Install air cleaner housing and connect inlet air hose.
64. Install fresh air inlet.
65. Fill with coolant.
66. Fill with oil.
CAUTION: Do NOT run the engine with a vacuum pump in operation or with a vacuum present within the
A/C system. Failure to follow this caution will result in serious A/C compressor damage.
67. Evacuate the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD
PROCEDURE - REFRIGERANT SYSTEM EVACUATE).
68. Charge the refrigerant system (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - STANDARD PRO-
CEDURE - REFRIGERANT SYSTEM CHARGE).
69. Start engine and check for leaks.
9 - 1672 ENGINE 2.4L WORLD PM
SPECIFICATIONS
2.4L ENGINE
GENERAL SPECIFICATIONS
DESCRIPTION SPECIFICATION
Metric Standard
Type In-Line OHV, DOHC
Number of Cylinders 4
Firing Order 1-3-4-2
Compression Ratio 9.5:1
cardiagn.com
CYLINDER BLOCK
DESCRIPTION SPECIFICATION
Metric Standard
Material Cast Aluminum
Cylinder Bore Diameter 87.4924-87.5076 mm 3.4446-3.4452 in.
A 88.0-88.010 3.4645-3.4649 in.
B 88.010-88.020 3.4649-3.4653 in.
C 88.020-88.030 3.4653-3.4657 in.
Out-of-Round (Max.) 0.051 mm 0.002 in.
Taper (Max.) 0.051 mm 0.002 in.
PISTONS
DESCRIPTION SPECIFICATION
Metric Standard
DESCRIPTION SPECIFICATION
Metric Standard
PISTON RINGS
DESCRIPTION SPECIFICATION
Metric Standard
cardiagn.com
Wear Limit 1.0 mm 0.039 in.
CONNECTING ROD
DESCRIPTION SPECIFICATION
Metric Standard
Bearing Clearance 0.025–0.071 mm 0.0009–0.0027 in.
Wear Limit 0.075 mm 0.003 in.
Bore Diameter-Piston Pin 20.96–20.98 mm 0.8252–0.8260 in.
CRANKSHAFT
SPECIFICATION
DESCRIPTION
Metric Standard
Connecting Rod Journal Diameter 49.984 - 50.000 mm 1.968 - 1.9685 in.
Main Bearing Journal Diameter 59.992 - 60.008 mm 2.362 - 2.3625 in.
Journal Out-of-Round (Max.) 0.0035 mm 0.0003 in.
Journal Taper (Max.) 0.007 mm 0.0001 in.
9 - 1674 ENGINE 2.4L WORLD PM
SPECIFICATION
DESCRIPTION
Metric Standard
End Play 0.09 - 0.24 mm 0.0035 - 0.0094 in.
Wear Limit 0.38 mm 0.015 in.
Main Bearing Diametrical Clearance 0.018 - 0.062 mm 0.0007 - 0.0024 in.
DSECRIPTION SPECIFICATION
Metric Standard
Front Journal
Intake 30.000 - 30.021 mm 1.1810 - 1.1819 in.
Exhaust 40.000 - 40.021 mm 1.5747 - 1.5756 in.
Journals No. 1-4 24.000 - 24.021 mm 0.9448 - 0.9457 in.
CAMSHAFT
cardiagn.com
DESCRIPTION SPECIFICATION
Metric Standard
Journal Diameter No. 1 29.964 - 29.980 mm 1.179 - 1.180 in.
Journal Diameter No. 2-5 23.954 - 23.970 mm 0.943 - 0.944 in.
Bearing Clearance - Diametrical 0.030 - 0.067 mm 0.0011 - 0.0026 in.
End Play 0.11 - 0.25 mm 0.004 - 0.009 in.
Max Lift @ 0.2mm (0.007 in.) lash
Intake 9.2 mm (0.362 in.)
Max Lift @ 0.28mm (0.011 in.) lash
Exhaust 8.42 mm (0.331 mm)
Intake Valve Timing*
Closes (ABDC) 49.3°
Opens (ATDC) 10.3°
Duration 219°
Exhaust Valve Timing*
Closes (BTDC) 8.45°
Opens (BBDC) 45°
Duration 216.55°
Valve Overlap @ 0.5mm (0.019 in.) 18.75°
w/ VVT in lock-pin position
*
All reading in crankshaft degrees at 0.5 mm (0.019 in.) valve lift.
PM ENGINE 2.4L WORLD 9 - 1675
CYLINDER HEAD
DESCRIPTION SPECIFICATION
Metric Standard
Material Cast Aluminum - Heat treated
Gasket Thickness (Compressed) 0.54 mm 0.021 in.
VALVE SEAT
DESCRIPTION SPECIFICATION
Metric Standard
Angle 44.75° - 45.10°
Seat Diameter - Intake 34.45 - 34.61mm 1.3562 - 1.3625 in.
Seat Diameter - Exhaust 28.04 - 28.20 mm 1.1039 - 1.1102 in.
Runout (Max.) 0.05 mm 0.002 in.
Valve Seat Width
Intake 1.16 - 1.46 mm 0.0456 - 0.0574 in.
cardiagn.com
Exhaust 1.35 - 1.65 mm 0.0531 - 0.0649 in.
Service Limit - Intake 2.0 mm 0.079 in.
Service Limit - Exhaust 2.5 mm 0.098 in.
VALVE GUIDE
DESCRIPTION SPECIFICATION
Metric Standard
Diameter I.D. 5.500 - 5.512 mm 0.2165 -0.2170 in.
Guide Bore Diameter 10.983 - 11.001 mm 0.432 - 0.4331 in.
Guide Height (spring seat to guide
14.6 - 15.2 mm 0.5748 - 0.5984 in.
tip)
VALVES
DESCRIPTION SPECIFICATION
Metric Standard
Face Angle - Intake and Exhaust 45.25° - 45.75°
Head Diameter - Intake 34.9 - 35.1 mm 1.374 -1.3818 in.
Head Diameter - Exhaust 28.9 - 29.1 mm 1.1377 - 1.1456 in.
Valve Length (Overall)
Intake 112.76 - 113.32 mm 4.439 - 4.461 in.
Exhaust 110.89 - 111.69 mm 4.365 - 4.397 in.
Valve Stem Diameter
Intake 5.465 - 5.480 mm 0.2151 - 0.2157 in.
Exhaust 5.458 - 5.470 mm 0.2148 - 0.2153 in.
9 - 1676 ENGINE 2.4L WORLD PM
VALVE MARGIN
DESCRIPTION SPECIFICATION
Metric Standard
Intake 0.672 mm 0.0264 in.
Service Limit 0.95 mm 0.0037 in.
Exhaust 0.744 mm 0.02929 in.
Service Limit 1.05 mm 0.039 in.
DESCRIPTION SPECIFICATION
Metric Standard
Intake 48.04 mm 1.891 in.
Exhaust 47.99 mm 1.889 in.
cardiagn.com
DESCRIPTION SPECIFICATION
Metric Standard
VALVE SPRINGS
DESCRIPTION SPECIFICATION
Metric Standard
Free Length (Approx.) 47.0 mm 1.850 in.
Nominal Force (Valve Closed) 179.5 N ± 9 @ 35.0 mm 40.35 lbs. @ 2.023 in.
Nominal Force (Valve Open) 364.8 N ± 17 N @ 29.25 mm 82.01 lbs. ± 3.82 lbs. @ 1.152 in.
Installed Height 35.00 mm 1.378 in.
Number of Coils 8.5 ± 0.1
Wire Diameter 2.90 mm ± 0.03 0.114 in ± 0.001 in.
OIL PRESSURE
DESCRIPTION SPECIFICATION
Metric Standard
At Curb Idle Speed* 25 kPa 4 psi
At 3000 rpm 170 - 550 kPa 25 - 80 psi
CAUTION:
*If pressure is ZERO at curb idle, DO NOT run engine at 3000 rpm.
PM ENGINE 2.4L WORLD 9 - 1677
TORQUE
cardiagn.com
Flex Plate to Crankshaft-Bolts 95 70 -
Intake Manifold 24 18 -
Ladder Frame 28 21 -
Oil Cooler Connector Bolt 49 36 -
Oil Filter 14 10 -
Oil Filter Nipple 49 36 -
Oil Jet Fastener 12 - 105
Oil Pan-Bolts
M6 Bolts 12 N·m - 105
M8 Bolts 24 N·m 18- -0
Oil Pan Drain-Plug 40 30 -
PCV Valve 5 - 40
Spark Plugs 27 20 -
Timing Chain Cover
M6 Bolts 12 N·m - 105
M8 Bolts 23 N·m 17 250?
Timing Chain Tensioner Assembly-Bolts 12 N·m - 105
Timing Chain Guides 12 N·m - 105
9 - 1678 ENGINE 2.4L WORLD PM
SPECIAL TOOLS
2.4L ENGINE
cardiagn.com
PM ENGINE 2.4L WORLD 9 - 1679
cardiagn.com
LOCKING WEDGE 9701
cardiagn.com
TENSIONER PIN 9703
PM ENGINE 2.4L WORLD 9 - 1681
ELEMENT-AIR CLEANER
REMOVAL
1. Turn Lock Retainers (5) and remove fresh air inlet
(2) from air cleaner housing (1).
cardiagn.com
2. Disconnect intake air temperature sensor connector
(4).
3. Remove Air inlet tube (5) from air cleaner housing
(1).
4. Unfasten clasps (2) on sides of air cleaner housing
cover (1).
9 - 1682 ENGINE 2.4L WORLD PM
INSTALLATION
1. Install new filter element.
cardiagn.com
2. Place cover over air cleaner housing. Snap clasps
(2) in place.
3. Install air inlet tube (5).
4. Connect intake air temperature sensor connector
(4).
PM ENGINE 2.4L WORLD 9 - 1683
cardiagn.com
9 - 1684 ENGINE 2.4L WORLD PM
HOUSING-AIR CLEANER
REMOVAL
1. Remove fresh air inlet (2) from air cleaner housing
(1).
cardiagn.com
2. Remove intake air temperature sensor electrical
connector (4).
3. Remove air inlet tube (5) from housing (1).
4. Pull housing (1) upward to remove.
PM ENGINE 2.4L WORLD 9 - 1685
INSTALLATION
1. Make sure the rubber grommets, for the air cleaner
housing lower pins, are in place when reinstalling
the air cleaner housing. The rubber grommets
mount to the PDC bracket.
2. Push air cleaner housing (1) down while aligning
pins into the grommets.
3. Connect the throttle body air inlet hose (5) to the
air cleaner housing (1).
4. Connect intake air temperature sensor connector
(4).
cardiagn.com
5. Install fresh air inlet (2) and lock retainers (5).
9 - 1686 ENGINE 2.4L WORLD PM
CYLINDER HEAD
DESCRIPTION
The cross flow designed, aluminum cylinder head contains dual over-head camshafts with four valves per cylinder.
The valves are arranged in two in-line banks. The intake valves face toward the front of the vehicle. The exhaust
valves face the dash panel. The cylinder head incorporates powdered metal valve guides and seats. The cylinder
head is sealed to the block using a multi-layer steel head gasket and retaining bolts.
Integral oil galleries provide lubrication passages to the variable camshaft timing phasers, camshafts, and valve
mechanisms.
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
cardiagn.com
Possible indications of the cylinder head gasket leaking between adjacent cylinders are:
• Loss of engine power
• Engine misfiring
• Poor fuel economy
Possible indications of the cylinder head gasket leaking between a cylinder and an adjacent water jacket are:
• Engine overheating
• Loss of coolant
• Excessive steam (white smoke) emitting from exhaust
• Coolant foaming
With the engine cool, remove the coolant pressure cap. Start the engine and allow it to warm up until thermostat
opens.
If a large combustion/compression pressure leak exists, bubbles will be visible in the coolant.
WARNING: WITH COOLING SYSTEM TESTER IN PLACE, PRESSURE WILL BUILD UP FAST. EXCESSIVE
PRESSURE BUILT UP, BY CONTINUOUS ENGINE OPERATION, MUST BE RELEASED TO A SAFE PRESSURE
POINT. NEVER PERMIT PRESSURE TO EXCEED 138 kPa (20 psi).
Install Cooling System Tester 7700 or equivalent to pressure cap neck. Start the engine and observe the tester’s
pressure gauge. If gauge pulsates with every power stroke of a cylinder a combustion pressure leak is evident.
PM ENGINE 2.4L WORLD 9 - 1687
Combustion leaks into the cooling system can also be checked by using Bloc-Chek Kit C-3685-A or equivalent.
Perform test following the procedures supplied with the tool kit.
cardiagn.com
12. Remove valve cover.
13. Raise vehicle.
14. Remove right splash shield.
15. Set engine to TDC.
16. Remove accessory drive belts (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor bolts if equiped.
18. Remove lower A/C compressor mount.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft and water pump pulleys.
21. Remove right side engine mount bracket lower bolt.
22. Remove timing chain cover lower bolts.
23. Disconnect oxygen sensor electrical connectors.
24. Remove exhaust pipe at manaverter (AWD).
25. Remove manaverter support bracket retaining bolts (AWD).
26. Lower vehicle.
27. Remove power steering pump and set aside.
28. Support engine with suitable jack.
29. Remove right engine mount.
30. Remove accessory drive upper idler pulley.
31. Remove right upper engine mount bracket.
32. Remove accessory drive belt tensioner.
33. Remove upper timing chain cover retaining bolts.
34. Remove timing chain cover.
35. Remove timing chain tensioner.
36. Remove timing chain.
37. Remove timing chain guides.
38. Disconnect fuel line at the fuel rail.
39. Disconnect fuel injector electrical connectors.
40. Disconnect top engine electrical connectors and reposition harness.
41. Remove fuel rail.
42. Remove lower intake manifold support bracket retaining bolt.
9 - 1688 ENGINE 2.4L WORLD PM
cardiagn.com
57. Remove cylinder head from engine block.
58. Inspect and clean cylinder head and block sealing
surfaces. Refer to Cleaning and Inspection in this
section for procedures.
CLEANING
To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of alumi-
num engine components and multi-layer steel cylinder head gaskets.
NOTE: Multi-Layer Steel (MLS) head gaskets require a scratch free sealing surface.
Remove all gasket material from cylinder head and block (Refer to 9 - ENGINE - STANDARD PROCEDURE). Be
careful not to gouge or scratch the aluminum head sealing surface.
Clean all engine oil passages.
INSPECTION
NOTE: Replacement cylinder heads will come complete with valves, seals, springs, retainers, keepers, lash
buckets, and camshafts.
PM ENGINE 2.4L WORLD 9 - 1689
cardiagn.com
sure valve guides in 3 places top (1), middle (2),
and bottom (3). (Refer to 9 - ENGINE - SPECIFI-
CATIONS) Replace guides if they are not within
specification.
5. Check valve guide height.
6. Prior to installing cylinder head, the cylinder block
should be checked for flatness (Refer to 9 -
ENGINE/ENGINE BLOCK - INSPECTION).
cardiagn.com
3. Position the new cylinder head gasket on engine
block with the part number facing up. Ensure gas-
ket is seated over the locating dowels in block.
4. Place two pea size dots of RTV (1) on cylinder
head gasket as shown.
cardiagn.com
7. Before installing the bolts, the threads should be
lightly coated with engine oil.
8. Install the cylinder head bolts and torque in the
sequence shown above.
• First: All to 30 N·m (25 ft. lbs.)
• Second: All to 61 N·m (50 ft. lbs.)
• Third: All to 61 N·m (45 ft. lbs.)
• Fourth: All an additional 90°
10. Install cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER - INSTALLA-
TION).
11. Install maniverter/exhaust manifold to cylinder head. Torque fasteners to 34 N·m (25 ft.lbs.).
12. Install heat shields.Torque fasteners to 9 N·m ( ).
9 - 1692 ENGINE 2.4L WORLD PM
cardiagn.com
29. Install heater tube support bracket to cylinder head.
30. Install fastener attaching dipstick tube to lower intake manifold
31. Connect fuel supply line quick-connect at the fuel rail assembly (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
QUICK CONNECT FITTING - STANDARD PROCEDURE).
32. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
33. Connect negative cable to battery.
34. Install clean air hose and air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER
HOUSING - INSTALLATION).
PM ENGINE 2.4L WORLD 9 - 1693
CAMSHAFT(S)
DESCRIPTION
Both camshafts have six bearing journal surfaces and two cam lobes per cylinder. Flanges on the third journal con-
trol camshaft end play. Cam position sensors are located on the intake and exhaust camshafts on the rear of the
cylinder head.
OPERATION
The camshaft is driven by the crankshaft via drive sprockets and a chain. The camshaft has precisely machined
lobes to provide accurate valve timing and duration.
STANDARD PROCEDURE
MEASURING CAMSHAFT END PLAY
1. Using a suitable tool, move camshaft as far rear-
ward as it will go.
2. Zero dial indicator.
3. Move camshaft as far forward as it will go.
cardiagn.com
4. Record reading on dial indicator. For end play
specification, (Refer to 9 - ENGINE - SPECIFICA-
TIONS).
5. If end play is excessive, check cylinder head and
camshaft for wear; replace as necessary.
REMOVAL
1. Remove engine cover by pulling upward.
2. Disconnect negative battery cable.
3. Remove cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
4. Raise vehicle.
5. Remove right splash shield.
9 - 1694 ENGINE 2.4L WORLD PM
cardiagn.com
6. Remove timing tensioner plug from front cover.
7. Insert small allen wrench and lift ratchet (2) upward to release the tensioner. Leave the allen wrench installed
during the remainder of this procedure.
8. Insert wedge 9701 (1).
PM ENGINE 2.4L WORLD 9 - 1695
cardiagn.com
sequence.
14. Lift the timing chain (2) off the sprocket (1).
15. Remove exhaust camshaft.
cardiagn.com
CLEANING
Clean camshafts with a suitable solvent.
INSPECTION
1. Inspect camshaft bearing journals for damage and
binding. If journals are binding, check the cylinder
head for damage. Also check cylinder head oil
holes for clogging.
2. Check the cam lobe and bearing surfaces for
abnormal wear and damage. Replace camshaft if
defective.
INSTALLATION
1. Identify which front cam cap (1) is installed on the
engine you are working on.
2. The cam cap (1) is numbered (2) either one, two,
or three, this corresponds to the select fit bearing
to use.
cardiagn.com
also be numbered (1) one, two, or three.
4. Oil all of the camshaft journals with clean engine
oil.
5. Install exhaust camshaft and position on bearing
journals in the cylinder head.
cardiagn.com
9. Align the timing marks (1) on the intake cam
sprocket with the mark in the chain.
10. Position the intake camshaft into the bearing jour-
nals in the cylinder head.
11. Verify that the timing marks (1) are aligned on
both camshafts and that the timing marks (3) are
parallel with the cylinder head.
CAUTION: Install the front intake and exhaust camshaft bearing cap last. Ensure that the dowels are seated
and follow torque sequence or damage to engine could result.
PM ENGINE 2.4L WORLD 9 - 1699
NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.
cardiagn.com
13. Install the front intake and exhaust bearing cap
and torque bolts in the sequence shown.
14. Verify that all timing marks are aligned.
15. Remove allen wrench from timing chain tensioner.
16. Remove locking wedge 9701.
17. Apply MOPART thread sealant to timing tensioner
plug and Install.
18. Install right splash shield.
19. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
20. Install engine cover.
21. Connect negative battery cable.
22. Fill cooling system.
23. Fill with oil.
24. Start engine and check for leaks.
9 - 1700 ENGINE 2.4L WORLD PM
COVER-CYLINDER HEAD
REMOVAL
1. Remove engine cover.
2. Disconnect ignition coil electrical connectors.
3. Disconnect PCV and make-up air hoses from cylin-
der head cover.
4. Use compressed air to blow dirt and debris off the
cylinder head cover prior to removal.
5. Remove cylinder head cover bolts.
6. Remove cylinder head cover from cylinder head.
cardiagn.com
INSTALLATION
1. Install new cylinder head cover gaskets (1,2).
PM ENGINE 2.4L WORLD 9 - 1701
cardiagn.com
5. Install cylinder head cover assembly to cylinder
head and install all bolts, ensuring the studs are
located as shown.
6. Tighten bolts in sequence shown in Using a 2 step
torque method as follows:
a. Tighten all bolts to 4.5 N·m (40 in. lbs.)
b. Tighten all bolts to 10 N·m (90 in. lbs.).
7. Install ignition coils. Tighten fasteners to 8 N·m (70
in. lbs.).
8. If the PCV valve was removed, tighten PCV valve
to 4.5 N·m (40 in. lbs.).
9. Connect PCV and make-up air hoses to cylinder
head cover.
10. Install engine cover.
9 - 1702 ENGINE 2.4L WORLD PM
TAPPETS-VALVE
DIAGNOSIS AND TESTING
MECHANICAL VALVE TAPPET NOISE DIAGNOSIS
A tappet-like noise may be produced from several items. Check the following items.
cardiagn.com
1. Remove engine cover.
2. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
3. Rotate camshaft so lobes are vertical.
4. Check clearance using feeler gauges.
5. Repeat for all tappets.
6. If clearance was too small Clearance too Small .
7. If clearance was too large Clearance too Large .
PM ENGINE 2.4L WORLD 9 - 1703
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. spec – measured = delta
3. Decrease bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
9 - 1704 ENGINE 2.4L WORLD PM
cardiagn.com
1. Remove camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
2. Measured – spec = delta
3. Increase bucket thickness by delta.
4. Install camshafts (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - INSTALLATION).
5. Verify that valve lash is correct.
REMOVAL
NOTE: This procedure is for in-vehicle service with camshafts installed.
NOTE: Camshaft buckets must be replaced if cylinder head or camshafts are replaced.
INSTALLATION
NOTE: If reinstalling original buckets they must go back in their original location or engine damage could
result.
1. Apply a light coat of clean engine oil to camshafts buckets prior to assembly.
2. Install camshaft bucket into cylinder head.
3. Repeat installation procedure for each camshaft bucket.
NOTE: If installing new buckets, the valve lash procedure must be performed.
PM ENGINE 2.4L WORLD 9 - 1705
cardiagn.com
9 - 1706 ENGINE 2.4L WORLD PM
OPERATION
The four valves per cylinder (two intake and two exhaust) are opened by using direct acting buckets which are
actuated by the camshaft.
CLEANING
1. Clean all valves thoroughly and discard burned, warped and cracked valves.
cardiagn.com
PM ENGINE 2.4L WORLD 9 - 1707
cardiagn.com
seal tool.
INSPECTION
1. Whenever valves have been removed for inspection, reconditioning or replacement, valve springs should be
tested for correct tension. Discard the springs that do not meet specifications. The following specifications apply
to both intake and exhaust valves springs:
• Valve Closed Nominal Tension—75 lbs. @ 38.0 mm (1.50 in.)
• Valve Open Nominal Tension—134 lbs. @ 29.75 mm (1.17 in.)
2. Inspect each valve spring for squareness with a steel square and surface plate, test springs from both ends. If
the spring is more than 1.5 mm (1/16 inch) out of square, install a new spring.
9 - 1708 ENGINE 2.4L WORLD PM
INSTALLATION
CYLINDER HEAD ON
1. Install valve seal/valve spring seat (3) assembly.
Push the assembly down with appropriate size
socket to seat it onto the valve guide.
2. Install valve spring (2) and retainer (4) with keep-
ers (1).
cardiagn.com
3. Place the valve keepers in the retainer. Using Snap
On metric valve keeper installer (2) and remover
(1) as a handle, install valve keepers with a down-
ward push.
4. Remove air hose and install spark plugs.
5. Install camshafts (Refer to 9 - ENGINE/CYLINDER
HEAD/CAMSHAFT(S) - INSTALLATION).
6. Install cylinder head cover (Refer to 9 - ENGINE/
CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).
cardiagn.com
tom surface of spring retainer. If height is greater
than 38.75 mm (1.525 in.), install a 0.762 mm
(0.030 in.) spacer under the valve spring seat to
bring spring height back within specification.
9 - 1710 ENGINE 2.4L WORLD PM
PHASERS-CAMSHAFT
REMOVAL
1. Remove camshafts (Refer to 9 - ENGINE/CYLIN-
DER HEAD/CAMSHAFT(S) - REMOVAL).
2. Remove camshaft phaser (2) retaining bolt while
holding the camshaft in place with a wrench (1).
3. Remove phaser (2) assembly from camshaft.
cardiagn.com
INSTALLATION
CAUTION: Do not use an impact wrench to tighten
camshaft sprocket bolts. Damage to the camshaft-
to-sprocket locating dowel pin and camshaft
phaser may occur.
ENGINE BLOCK
DESCRIPTION
The die cast aluminum cylinder block is a two-piece assembly, consisting of the cylinder block and ladder frame.
The block is an open deck design with cast in place cast iron cylinder liners. The cast iron cylinder liners are
recessed below the aluminum deck surface. The ladder frame bolts to the cylinder block and does not incorporate
the main bearing caps. This design offers a much stronger lower end and increased cylinder block and transaxle
rigidity. The rear oil seal retainer is integral with the block and ladder frame. The ladder frame and block are ser-
viced as an assembly.
The engine build date is located on the bottom of the
ladder frame just behind the oil pan. The date can be
seen with the oil pan in place.
cardiagn.com
STANDARD PROCEDURE
CYLINDER BORE HONING
1. Used carefully, a quality commercially available cyl-
inder bore resizing hone equipped with 220 grit
stones, is the best tool for this honing procedure. In
addition to deglazing, it will reduce taper and out-
of-round as well as removing light scuffing, scoring
or scratches. Usually a few strokes will clean up a
bore and maintain the required limits.
2. Deglazing of the cylinder walls may be done using
a quality commercially available cylinder surfacing
hone, recommended tool C-3501 or equivalent,
equipped with 280 grit stones, if the cylinder bore
is straight and round. 20–60 strokes depending on
the bore condition, will be sufficient to provide a
satisfactory surface. Use a light honing oil. Do not
use engine or transmission oil, mineral spirits
or kerosene. Inspect cylinder walls after each 20
strokes.
3. Honing should be done by moving the hone up and
down fast enough to get a cross-hatch pattern.
When hone marks intersect at 30-50 degrees, the
cross hatch angle is most satisfactory for proper seating of rings.
4. A controlled hone motor speed between 200–300 RPM is necessary to obtain the proper cross-hatch angle. The
number of up and down strokes per minute can be regulated to get the desired 40–60 degree angle. Faster up
and down strokes increase the cross-hatch angle.
5. After honing, it is necessary that the block be cleaned again to remove all traces of abrasive.
9 - 1712 ENGINE 2.4L WORLD PM
CAUTION: Ensure all abrasives are removed from engine parts after honing. It is recommended that a solu-
tion of soap and hot water be used with a brush and the parts then thoroughly dried. The bore can be
considered clean when it can be wiped clean with a white cloth and cloth remains clean. Oil the bores after
cleaning to prevent rusting.
CLEANING
Clean cylinder block thoroughly using a suitable cleaning solvent.
INSPECTION
ENGINE BLOCK
1. Clean cylinder block thoroughly and check all core
hole plugs for evidence of leaking.
2. If new core plugs are to be installed, (Refer to 9 -
ENGINE - STANDARD PROCEDURE - ENGINE
CORE AND OIL GALLERY PLUGS).
3. Examine block and cylinder bores for cracks or
fractures.
cardiagn.com
4. Check block deck surfaces for flatness. Deck sur-
face must be within service limit of 0.050 mm
(0.002 in.).
CYLINDER BORE
NOTE: The cylinder bores should be measured at
normal room temperature, 21°C (70°F).
CRANKSHAFT
STANDARD PROCEDURE
MEASURING CRANKSHAFT END PLAY
1. Mount a dial indicator (2) to front of engine with
the locating probe on nose of crankshaft (1).
2. Move crankshaft all the way to the rear of its
travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front and read
the dial indicator. (Refer to 9 - ENGINE - SPECIFI-
CATIONS) for end play specification.
cardiagn.com
REMOVAL - CRANKSHAFT
NOTE: Crankshaft can not be removed when engine is in vehicle.
NOTE: If piston/connecting rod replacement is necessary, remove cylinder head (Refer to 9 - ENGINE/CYL-
INDER HEAD - REMOVAL).
9 - 1714 ENGINE 2.4L WORLD PM
18. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods. Damage to connecting rod
could occur.
19. Remove all connecting rod bolts and caps. Care should be taken not to damage the fracture rod and cap sur-
faces.
CAUTION: Use extreme care when handling crankshaft. Tone wheel damage can occur if crankshaft is mis-
handled.
21. Lift out crankshaft from cylinder block. Do not damage the main bearings or journals when removing the crank-
shaft.
INSPECTION
The crankshaft journals should be checked for exces-
sive wear, taper and scoring. Limits of taper or out of
cardiagn.com
round on any crankshaft journals should be held to
0.025 mm (0.001 in.). Journal grinding should not
exceed 0.305 mm (0.012 in.) under the standard jour-
nal diameter. DO NOT grind thrust faces of No. 3 main
bearing. DO NOT nick crank pin or bearing fillets. After
grinding, remove rough edges from crankshaft oil
holes and clean out all passages.
INSTALLATION - CRANKSHAFT
The crankshaft is supported in five main bearings. All upper bearing shells in the crankcase have oil grooves and
holes. All lower bearing shells are smooth. Crankshaft end play is controlled by a two piece thrust bearing on the
number three main bearing journal.
1. Install the main bearing upper shells with the lubrication groove and oil hole in the engine block.
2. Make certain oil holes in block line up with oil hole in bearings and bearing tabs seat in the block tab slots.
NOTE: If the crankshaft is sent out for machine work, it must be balanced as an assembly with the target
ring installed.
3. Clean crankshaft and target ring with MOPART Brake Parts cleaner and dry with compressed air to ensure that
the crankshaft mating surface and target ring mounting holes are free from oil and lock patch debris.
NOTE: Always use NEW mounting screws whether installing original or new target ring.
4. Install NEWmounting screws finger tight starting with the #1 location. Make sure engagement occurs with the
shoulder of the screws and mounting hole before starting all other screws.
5. Torque all mounting screws with T30 torx bit to 13 Nm (110 in-lbs) following the torque sequence.
NOTE: Lightly apply trans gel to thrust bearings to hold bearings in block.
PM ENGINE 2.4L WORLD 9 - 1715
cardiagn.com
• Step 3: Then, move crankshaft forward to limits of travel.
• Step 4: Wedge an appropriate tool between the rear of the cylinder block and the rear crankshaft counter-
weight. This will hold the crankshaft in it’s furthest forward position.
12. Tighten bolts (1–10) again to 41 N·m (30 ft. lbs.) in sequence shown.
13. Remove wedge tool used to hold crankshaft.
14. Check the crankshaft turning torque, it should not exceed 5.6 N·m (50 in. lbs.).
15. Check crankshaft end play (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT - STANDARD PROCE-
DURE).
16. Install connecting rod bearings and caps. Do Not Reuse Connecting Rod Bolts. Torque connecting rod bolts
to 27 N·m (20 ft. lbs.) plus 1/4 turn.
17. Install the ladder frame assembly (Refer to 9 - ENGINE/ENGINE BLOCK/LADDER FRAME - INSTALLATION).
18. Install the balance shaft module (Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - INSTALLATION).
19. Install the oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).
20. Install crankshaft position sensor.
21. Install cylinder head if it was removed (Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION).
22. Install front crankshaft sprocket.
23. Install the timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
24. Install the timing chain front cover.
25. Install front crankshaft oil seal.
26. Install engine mount support bracket.
27. Install crankshaft vibration damper (Refer to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLA-
TION).
28. Remove engine from repair stand and position on Special Tools 6135 and 6710 Engine Dolly and Cradle. Install
safety straps around the engine to cradle and tighten and lock them into position.
29. Install crankshaft rear oil seal (Refer to 9 - ENGINE/ENGINE BLOCK/CRANKSHAFT OIL SEAL - REAR -
INSTALLATION).
30. Install drive plate/flex plate. Apply MoparT Lock & Seal Adhesive to bolt threads and tighten to 95 N·m (70 ft.
lbs.).
31. Attach transaxle to engine. Tighten attaching bolts to 101 N·m (75 ft. lbs.).
32. Install the engine assembly (Refer to 9 - ENGINE - INSTALLATION).
33. Install new oil filter and fill with oil.
34. Start engine and check for leaks.
9 - 1716 ENGINE 2.4L WORLD PM
cardiagn.com
INSTALLATION
1. Place seal (1) onto Seal installer 9506 (2) with seal
spring towards the inside of engine.
PM ENGINE 2.4L WORLD 9 - 1717
cardiagn.com
5. Install crankshaft vibration damper (Refer to 9 -
ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION.
9 - 1718 ENGINE 2.4L WORLD PM
cardiagn.com
4. Insert a 3/16 flat bladed screwdriver (7) between
the dust lip (8) and the metal case (4) of the crank-
shaft seal (1). Angle the screwdriver through the
dust lip against metal case of the seal. Pry out
seal.
INSTALLATION
CAUTION: If a burr or scratch is present on the
crankshaft edge (chamfer), cleanup with 400 grit
sand paper to prevent seal damage during instal-
lation of new seal.
cardiagn.com
4. Install flex plate (1). Install new flex plate bolts and
torque to 95 N·m (70 ft. lbs.).
5. Install transaxle. Refer to TRANSMISSION/TRANS-
AXLE - INSTALLATION for procedure.
9 - 1720 ENGINE 2.4L WORLD PM
STANDARD PROCEDURE
PISTON TO CYLINDER BORE FITTING
NOTE: Pistons and cylinder bores should be mea-
sured at normal room temperature, 21°C (70°F).
cardiagn.com
shown in.
REMOVAL
NOTE: Pistons, rings, and rods are serviced as an assembly.
CAUTION: All four piston/rod assemblies must be replaced as a set or engine damage may result.
6. Remove top ridge of cylinder bores with a reliable ridge reamer before removing pistons from cylinder block. Be
sure to keep tops of pistons covered during this operation.
7. Rotate crankshaft so that each connecting rod is centered in cylinder bore.
8. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.
CAUTION: DO NOT use a number stamp or a punch to mark connecting rods, as damage to connecting rod
could occur.
CAUTION: Care must be taken not to damage the fractured rod and cap joint surfaces, as engine damage
many occur.
cardiagn.com
10. Carefully push each piston and rod assembly out of cylinder bore. Re-install bearing cap on the mating rod.
11. Repeat procedure for each piston and connecting rod assembly.
INSTALLATION
1. Install piston rings on piston (Refer to 9 - ENGINE/
ENGINE BLOCK/PISTON RINGS - INSTALLA-
TION).
2. Before installing pistons and connecting rod
assemblies into the bore, be sure that compression
ring gaps are staggered so that neither is in line
with oil ring rail gap.
3. Before installing the ring compressor, make sure
the oil ring expander ends are butted and the rail
gaps located as shown above. As viewed from the
top of the piston.
4. Immerse the piston head and rings in clean engine
oil, slide the ring compressor, over the piston. Be
sure position of rings does not change during
this operation.
5. The directional arrow stamped on the piston should face toward the front of the engine.
6. Rotate crankshaft so that the connecting rod journal is on the center of the cylinder bore. Lubricate connecting
rod journal with clean engine oil.
NOTE: There are three different size rod bearings, perform rod bearing selection procedure.
7. The rod bearing sizes are indicated on the nose of the crankshaft.
8. Install connecting rod upper bearing half into connecting rod.
9. Tap the piston down in cylinder bore, using a hammer handle. At the same time, guide connecting rod into posi-
tion on connecting rod journal.
10. Before installing the NEW bolts, the threads should be coated with clean engine oil.
11. Install connecting rod lower bearing half into connecting rod cap. Install connecting rod cap.
12. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
13. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:
9 - 1722 ENGINE 2.4L WORLD PM
cardiagn.com
PM ENGINE 2.4L WORLD 9 - 1723
BEARINGS-MAIN
STANDARD PROCEDURE - MAIN BEARING SELECTION
NOTE: There are three different possibilities for the upper main bearings and five different lower main bear-
ings. The upper and lower bearing shells are not interchangeable.
The lower main bearing identification is stamped in the nose of the crankshaft (1). There are 5 different bearing
sizes available 0 through 4.
cardiagn.com
The upper main bearing shell identification is located in the middle of cylinder block on the right side of the engine
when viewing from the flywheel. There are three different size bearings available.
BEARINGS-CONNECTING ROD
STANDARD PROCEDURE
CONNECTING ROD - FITTING
There are three different sizes of rod bearings available. Connecting rod bearing identification can be found on the
nose of the crankshaft. Use the table below for proper bearing selection.
CONNECTING ROD BEARING SELECTION
CONNECTING ROD
CRANKSHAFT PIN CONNECTING ROD
DIMENSION BEARING
DIAMETER GRADE BEARING DIMENSION
CLASSIFICATION
1 48 mm 1 (Black) 1.5 mm
2 48 mm 2 (No Color) 1.5 mm
3 48 mm 3 (Green) 1.5 mm
cardiagn.com
procedure and use of Plastigage (Refer to 9 -
ENGINE - STANDARD PROCEDURE) For bearing
clearance refer to Engine Specifications. (Refer to
9 - ENGINE - SPECIFICATIONS).
RINGS-PISTON
STANDARD PROCEDURE
PISTON RING - FITTING
1. Wipe cylinder bore clean. Insert ring and push
down with piston to ensure it is square in bore. The
ring gap measurement must be made with the ring
positioning at least 12 mm (0.50 inch) from bottom
of cylinder bore. Check gap with feeler gauge.
Refer to Engine Specifications.
cardiagn.com
2. Check piston ring to groove side clearance. Refer
to Engine Specifications.
9 - 1726 ENGINE 2.4L WORLD PM
REMOVAL
1. Using a suitable ring expander, remove upper and
intermediate piston rings.
2. Remove the upper oil ring side rail, lower oil ring
side rail and then oil ring expander from piston.
3. Clean ring grooves of any carbon deposits.
INSTALLATION
cardiagn.com
NOTE: The identification mark on face of upper
and intermediate piston rings must point toward
top of piston.
NOTE: The compression rings are marked Y1 for the upper compression ring and Y2 for the second com-
pression ring. These markings must face upward.
DAMPER-VIBRATION
REMOVAL
1. Remove accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL).
2. Install Damper holder 9707 (1).
3. Remove crankshaft damper bolt.
4. Pull damper off crankshaft.
cardiagn.com
INSTALLATION
1. Install crankshaft damper.
2. Apply clean engine oil crankshaft damper bolt
threads and between bolt head and washer. Torque
bolt to 210 N·m (155 ft. lbs.).
3. Install accessory drive belts (Refer to 7 - COOL-
ING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION).
9 - 1728 ENGINE 2.4L WORLD PM
FRAME-LADDER
REMOVAL
1. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
2. Remove oil pump/balance shaft assembly (Refer to
9 - ENGINE/LUBRICATION/OIL PUMP -
REMOVAL).
3. Remove ladder frame retaining bolts.
4. Remove ladder frame using pry points cast in the
rear of the block (1).
cardiagn.com
5. To assist in removing the ladder frame another (1)
pry points cast in the left side of the block.
CLEANING
Clean ladder frame with a plastic or wooden scraper and a suitable solvent.
PM ENGINE 2.4L WORLD 9 - 1729
INSTALLATION
1. Apply a 2 mm bead of sealant as shown.
cardiagn.com
step method.
• First: All to 20 N·m (15 ft. lbs.)
• Second: All to 49 N·m (36 ft. lbs.)
• Third: All to 49 N·m (36 ft. lbs.)
3. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
9 - 1730 ENGINE 2.4L WORLD PM
ENGINE MOUNTING
DESCRIPTION
The engine mounting system consists of a four-point system utilizing two load-carrying mounts and two torque con-
trolling mounts. The load-carrying mounts are located on each frame rail. The right mount is a hydro-elastic mount
and left mount is a conventional elastomeric isolator. The two torque controlling mounts are attached to a fore/aft
member and the front and rear of the engine.
OPERATION
The four-point engine mounting system minimizes the transmission of structure-borne engine noise to the passenger
compartment. The load-carrying right and left mounts dampen and isolate vertical motion and vibration. The front
and rear mount absorb torque reaction forces and torsional vibrations.
cardiagn.com
PM ENGINE 2.4L WORLD 9 - 1731
MOUNT-LEFT
REMOVAL
1. Remove air cleaner assembly.
2. Disconnect negative cable from battery.
3. Remove PCM.
4. Remove PCM mounting bracket.
5. Support transaxle with a suitable jack.
6. Remove left mount through bolt (3).
7. Remove mount to transaxle bolts (5).
8. Remove left mount bracket (4).
9. Remove left mount bracket to body frame rail fas-
teners.
10. Remove mount.
cardiagn.com
INSTALLATION
1. Install mount.
2. Install left mount to frame rail bolts and torque to
28N·m (250 in. lbs.).
3. Install left mount bracket (4).
4. Install mount to transaxle bolts (5) and torque to 68
N·m (50 ft.lbs.).
5. Install mount through bolt (3) and torque to 115
N·m (85 ft.lbs.).
6. Remove jack.
7. Install PCM mounting bracket.
8. Install PCM.
9. Connect negative battery cable.
10. Install air cleaner assembly.
9 - 1732 ENGINE 2.4L WORLD PM
MOUNT-RIGHT
REMOVAL
1. Remove coolant reservoir and set aside.
2. Remove power steering reservoir and set aside.
3. Remove windshield washer bottle.
4. Remove power steering line support bracket from
engine mount.
5. Support transaxle with a block of wood and a suit-
able jack.
6. Remove engine mount through bolt (4).
7. Remove engine mount bracket bolts (3).
8. Remove engine mount retaining bolts.
9. Remove engine mount.
cardiagn.com
INSTALLATION
1. Install engine mount.
2. Install engine mount retaining bolts and torque to
28 N·m (250 in. lbs.).
3. Install engine mount bracket and torque bolts (3) to
68 N·m (50 ft. lbs.).
4. Install engine mount through bolt (4) and torque to
115 N·m (85 ft. lbs.).
5. Remove jack.
6. Install power steering line support bracket at
engine mount.
7. Install windshield washer bottle.
8. Install power steering reservoir.
9. Install coolant reservoir.
PM ENGINE 2.4L WORLD 9 - 1733
MOUNT-FRONT
REMOVAL
1. Raise vehicle.
2. Remove fore aft member (3) to mount (4) bolts.
3. Remove mount through bolt (1).
4. Remove fore aft member (3) mounting bolts and
remove.
5. Remove front mount (4).
cardiagn.com
INSTALLATION
1. Install mount (4) and tighten bolts.
2. Install fore aft member (3) and tighten bolts.
3. Install mount through bolt (1) and tighten.
4. Lower vehicle.
9 - 1734 ENGINE 2.4L WORLD PM
MOUNT-REAR
REMOVAL
1. Remove rear mount retaining bolts (4).
2. Remove rear mount through bolt (1).
3. Remove oxygen sensor connector (2) from mount.
4. Remove rear mount (3).
cardiagn.com
INSTALLATION
1. Install rear mount (3).
2. Install rear mount retaining bolts (4) and tighten.
3. Install rear mount through bolt (1) and tighten.
4. Install oxygen sensor connector (2) retainer to
mount (3).
PM ENGINE 2.4L WORLD 9 - 1735
LUBRICATION
DESCRIPTION
The lubrication system is a full-flow filtration, pressure feed type. The oil pump is mounted in the ladder frame and
chain driven by the crankshaft.
OPERATION
Engine oil drawn up through the pickup tube and is pressurized by the oil pump and routed through the full-flow filter
to the main oil gallery running the length of the cylinder block. A diagonal hole in each bulkhead feeds oil to each
main bearing. Drilled passages within the crankshaft route oil from main bearing journals to connecting rod journals.
Balance shaft lubrication is provided through an internal oil passage. A vertical hole at the number one bulkhead
routes pressurized oil through a filter screen and head gasket up to the cylinder head. The oil then divides into three
passages; one to the intake cam phaser, one to the exhaust cam phaser and one to the camshafts. The passage
to the camshafts divides to feed both of the hollow camshafts at the second cam journal.The rest of cam journals
are feed oil through the hollow camshafts. The #1 cam journals are feed oil through the VVT oil passages. Oil
passages to the phasers are directed through the OCV (oil control valves) to the #1 journals. The oil then flows
through the camshafts then to the cam phasers. Oil returning to the pan from pressurized components supplies
lubrication to the valve stems, cam lobes, and tappets. Cylinder bores and wrist pins are splash lubricated from
directed slots on the connecting rod thrust collars.
cardiagn.com
DIAGNOSIS AND TESTING
CHECKING ENGINE OIL PRESSURE
1. Disconnect and remove oil pressure switch. (Refer to 9 - ENGINE/LUBRICATION/OIL PRESSURE SENSOR/
SWITCH - REMOVAL)
2. Install Special Tools C-3292 Gauge with 8406 Adaptor fitting.
3. Start engine and record oil pressure. Refer to Specifications for correct oil pressure requirements. (Refer to 9 -
ENGINE - SPECIFICATIONS)
CAUTION: If oil pressure is 0 at idle, do not perform the 3000 RPM test
4. If oil pressure is 0 at idle, shut off engine. check for pressure relief valve stuck open, a clogged oil pick-up
screen or a damaged oil pick-up tube O-ring.
5. Remove oil pan and inspect for debris.
6. Remove pressure relief valve and inspect, if damaged replace pressure relief valve.
7. If pressure relief valve is ok, replace balance shaft module assembly.
8. After test is complete, remove test gauge and fitting.
9. Install oil pressure switch and connector. (Refer to 9 - ENGINE/LUBRICATION/OIL PRESSURE SENSOR/
SWITCH - INSTALLATION).
9 - 1736 ENGINE 2.4L WORLD PM
OIL
STANDARD PROCEDURE
ENGINE OIL LEVEL CHECK
cardiagn.com
NOTE: The engine must be HOT when checking oil level.
The best time to check engine oil level is after the engine is at operating temperature. Allow the engine to be shut
off for at least 5 minutes before checking oil level.
Checking the oil while the vehicle is on level ground
will improve the accuracy of the oil level reading.
Remove dipstick (1), and observe oil level. Add oil
only when the level is at or below the SAFE mark. If
the oil level is in the safe (2) range, do not add oil.
cardiagn.com
1. Run engine until achieving normal operating temperature.
2. Position the vehicle on a level surface and turn engine off.
3. Remove oil fill cap.
4. Raise vehicle on hoist.
5. Place a suitable oil collecting container under oil pan drain plug (2).
6. Remove oil pan drain plug (2) or and allow oil to drain into collecting container. Inspect drain plug threads for
stretching or other damage. Replace drain plug and gasket if damaged.
7. Remove oil filter (1) (Refer to 9 - ENGINE/LUBRI-
CATION/OIL FILTER - REMOVAL).
9 - 1738 ENGINE 2.4L WORLD PM
cardiagn.com
type and amount of engine oil (Refer to LUBRI-
CATION & MAINTENANCE/SPECIFICATIONS -
FLUID CAPACITIES) and (Refer to LUBRICA-
TION & MAINTENANCE/FLUID TYPES -
DESCRIPTION).
11. Install oil fill cap.
12. Start engine and inspect for leaks.
13. Stop engine and inspect oil level.
FILTER-OIL
REMOVAL
CAUTION: When servicing the oil filter avoid
deforming the filter can by installing the remove/
install tool band strap against the can to base lock
seam. The lock seam joining the can to the base is
reinforced by the base plate.
cardiagn.com
INSTALLATION
1. Clean and check filter mounting surface. The sur-
face must be smooth, flat and free of debris or
pieces of gasket.
2. Lubricate new oil filter gasket.
3. Screw oil filter (1) on until the gasket contacts
base. Tighten to 21 N·m (15 ft. lbs.).
9 - 1740 ENGINE 2.4L WORLD PM
PAN-OIL
REMOVAL
1. Raise vehicle on hoist.
2. Drain engine oil.
3. Remove accessory drive belt splash shield.
4. Remove lower A/C compressor mounting bolt (if
equipped).
5. Remove A/C mounting bracket.
cardiagn.com
INSTALLATION
1. Apply MoparT Engine RTV GEN II at the front
cover to engine block parting lines (1).
PM ENGINE 2.4L WORLD 9 - 1741
cardiagn.com
5. Lower vehicle and fill engine crankcase with proper oil to correct level.
6. Start engine and check for leaks.
9 - 1742 ENGINE 2.4L WORLD PM
cardiagn.com
INSPECTION
NOTE: Pressure regulating valve (4) can be ser-
vice separately from the oil pump assembly.
INSTALLATION
1. Lightly coat pressure regulating valve with clean
engine oil and install valve (4).
2. Install spring (3) and cap (2).
3. Torque cap to 42 N·m (31 lbs.ft.).
cardiagn.com
9 - 1744 ENGINE 2.4L WORLD PM
PUMP-OIL
DESCRIPTION
The oil pump is integral to the balance shaft module
(BSM) (2). The oil pump cannot be disassembled for
inspection. The pressure relief valve is serviceable
and can be removed and inspected. The BSM can be
identified by the plastic end caps (1).
cardiagn.com
REMOVAL
1. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
2. Mark the chain (4) and the sprocket (5) for
reassembly.
PM ENGINE 2.4L WORLD 9 - 1745
cardiagn.com
6. Lower the back of the BSM and remove sprocket
from chain.
7. Remove BSM from the engine.
INSTALLATION
CAUTION: Do not reuse Balance Shaft Module
(BSM) to engine block bolts. Always discard bolts
after removing. Failure to replace bolts can result
in engine damage.
cardiagn.com
10. Fill with oil.
11. Start engine and check for leaks.
PM ENGINE 2.4L WORLD 9 - 1747
OPERATION
The oil pressure switch is normally “Closed.” The switch changes from a 9Closed9 circuit to an 9Open9 circuit, on
increasing pressure of 7 psig. The oil pressure switch changes from an 9Open9 circuit to a 9Closed9 circuit, on
decreasing pressure, between 2 psig and 4 psig.
REMOVAL
1. Raise vehicle.
2. Disconnect electrical connector.
3. Remove oil pressure sending unit using oil pressure socket C-4597.
cardiagn.com
INSTALLATION
1. Install oil pressure sending unit using oil pressure socket C-4597.
2. Connect electrical connector.
9 - 1748 ENGINE 2.4L WORLD PM
COOLER-OIL
DESCRIPTION
An engine oil cooler is used on some 2.4L engine packages. The cooler is a coolant-to-oil type and mounted
between the oil filter and oil filter adapter.
REMOVAL
1. Raise vehicle on hoist.
2. Drain cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
3. Disconnect oil cooler coolant hoses.
4. Remove oil filter.
5. Remove oil cooler connector bolt.
6. Remove oil cooler.
INSTALLATION
1. Replace oil cooler seal.
2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
cardiagn.com
3. Install oil cooler connector bolt. Torque connector bolt to 55 N·m (41 ft. lbs.).
4. Install oil filter.
5. Connect oil cooler coolant hose.
6. Lower vehicle.
7. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
PM ENGINE 2.4L WORLD 9 - 1749
MANIFOLD-INTAKE
DIAGNOSIS AND TESTING
INTAKE MANIFOLD LEAKS
An intake manifold air leak is characterized by lower than normal manifold vacuum. Also, one or more cylinders may
not be functioning.
WARNING: USE EXTREME CAUTION WHEN THE ENGINE IS OPERATING. DO NOT STAND IN A DIRECT LINE
WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR THE FAN. DO NOT WEAR
LOOSE CLOTHING.
REMOVAL
cardiagn.com
LOWER INTAKE MANIFOLD
WARNING: RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING SYSTEM COMPONENTS. SERVICE
VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVIC-
ING THE VEHICLE.
CLEANING
1. Discard gasket(s).
2. Clean all sealing surfaces.
INSPECTION
1. Inspect manifold for cracks, distortion, or mounting surface warpage. Replace manifold if necessary.
2. Inspect manifold gasket for surface damage or excessive swelling. Replace gaskets as necessary.
INSTALLATION
LOWER INTAKE MANIFOLD
1. Clean all gasket surfaces.
2. Replace intake manifold gasket.
3. Install intake manifold, torque bolts to 25 N·m (220 in. lbs.).
4. Install the fuel rail assembly to intake manifold. Tighten screws to 23 N·m (200 in. lbs.).
5. Connect fuel injector electrical connectors.
6. Inspect quick connect fittings for damage, replace if necessary (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/
cardiagn.com
QUICK CONNECT FITTING - STANDARD PROCEDURE). Connect fuel supply hose to fuel rail assembly. Check
connection by pulling on connector to insure it locked into position.
7. Connect negative cable to battery.
8. Fill the cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
PM ENGINE 2.4L WORLD 9 - 1751
MANIFOLD-EXHAUST
REMOVAL
1. Remove engine cover.
2. Remove clean air hose and air cleaner housing.
3. Disconnect negative cable from battery.
4. Disconnect throttle and speed control cables from
the throttle lever and bracket.
5. Disconnect MAP sensor electrical connector.
6. Remove fasteners securing power steering fluid
reservoir to cylinder head.
7. Remove coolant recovery container (Refer to 7 -
COOLING/ENGINE/COOLANT RECOVERY CON-
TAINER - REMOVAL).
8. Remove bolts attaching upper heat shield.
9. Remove upper heat shield.
10. Raise vehicle.
cardiagn.com
11. Disconnect exhaust pipe from manifold.
12. Remove engine wiring heat shield.
13. Remove manifold support bracket.
14. Remove lower exhaust manifold heat shield.
15. Disconnect oxygen sensor electrical connector.
16. Remove exhaust manifold lower retaining fasteners.
17. Lower vehicle and remove the upper exhaust manifold retaining fasteners.
18. Remove exhaust manifold from above/between the engine and cowl panel.
19. Remove and discard manifold gasket.
20. Mark prop shaft and differential for proper installation (if equipped).
21. Remove the rear prop shaft (if equipped) (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT -
REMOVAL).
22. Remove the two exhaust to maniverter (exhaust manifold with catalytic converter) bolts.
23. Unplug the down - stream O2 sensor connector.
24. Remove the exhaust system (Refer to 11 - EXHAUST SYSTEM/MUFFLER - REMOVAL).
25. Lower the vehicle on the hoist.
26. Unplug the up - stream O2 sensor connector.
27. Remove up - stream O2 sensor from the maniverter (exhaust manifold with catalytic converter) using o2 sensor
socket 8439 (2).
28. Remove the four maniverter heat shield bolts (1).
29. Remove the two retaining bolts and one nut from the maniverter side heat shield (3).
30. Remove the seven maniverter to head retaining bolts.
31. Slide the maniverter up and to the right, The support the maniverter (1) with the help of a bungie cord.
32. Raise the vehicle on the hoist.
33. Remove the four (1) engine to maniverter bracket bolts.
34. Remove the rear engine mount through bolt (2).
35. Remove the three front engine mount to frame bolts and the mount through bolt.
36. Remove the PTU mounting bolts.
37. Install a screw jack (2)on front engine mount bracket (1).
38. Raise the front of the engine until the rear mount has dropped (1,2).
39. Separate the PTU from the transaxle.
9 - 1752 ENGINE 2.4L WORLD PM
40. Remove and discard old O-ring between Transmission and PTU
41. Roll the PTU (1) forward and down to remove.
CLEANING
1. Discard gasket (if equipped) and clean all surfaces of manifold and cylinder head.
INSPECTION
1. Inspect manifold gasket surfaces for flatness with straight edge. Surface must be flat within 0.15 mm per 300 mm
(0.006 in. per foot) of manifold length.
2. Inspect manifolds for cracks or distortion. Replace manifold as necessary.
INSTALLATION
1. Install a new exhaust manifold gasket. DO NOT APPLY SEALER.
2. Position exhaust manifold in place. Tighten fasteners, starting at center and progressing outward in both direc-
tions to 23 N·m (200 in. lbs.). Raise and lower vehicle for fastener access as necessary. Repeat tightening pro-
cedure until all fasteners are at specified torque.
3. Install exhaust manifold heat shields. Tighten bolts to 12 N·m (105 in. lbs.).
4. Install exhaust manifold support bracket.
cardiagn.com
5. Install engine wiring heat shield.
6. Connect oxygen sensor electrical connector.
7. Install exhaust pipe to manifold. Tighten fasteners to 28 N·m (250 in. lbs.).
8. Install coolant recovery container (Refer to 7 - COOLING/ENGINE/COOLANT RECOVERY CONTAINER -
INSTALLATION).
9. Install fasteners securing power steering fluid reservoir to cylinder head.
10. Connect MAP sensor electrical connector.
11. Connect throttle and speed control cables to the throttle lever and bracket.
12. Connect negative cable to battery.
13. Install clean air hose and air cleaner housing.
14. Roll the PTU in moving from front to back.
15. Rest the PTU on the frame while the engine and transaxle are raised back into position.
16. Lower screw jack until rear mount through bolt can be installed.
17. Install rear mount through bolt and torque bolt to 75 Nm (55 ft. lbs.).
18. Install the transmission crossmember and bolts, torque to 75 Nm (55 ft. lbs.).
19. Install the through bolt at the front transmission mount and torque to 75 Nm (55 ft. lbs.)
20. Insure that the O-ring between the PTU and transaxle is in place.
21. Slide the PTU into place.
22. Install and torque PTU mounting bolts to 58 N-m (43 lbf-ft).
23. Lower the hoist.
24. Place the maniverter back into place and install the seven bolts.
25. Torque the maniverter bolts.
26. Install the maniverter side heat shield into place.
27. Install the two retaining bolts and one retaining nut.
28. Install the maniverter heat shield and the four retaining bolts.
29. Torque the maniverter heat shield bolts.
30. Using tool 8439 install the O2 sensor.
31. Install the air box.
32. Install engine trim cover.
33. Raise the vehicle on the hoist.
34. Install the maniverter to block bracket and four mounting bolts.
PM ENGINE 2.4L WORLD 9 - 1753
cardiagn.com
9 - 1754 ENGINE 2.4L WORLD PM
COVER-TIMING CHAIN
REMOVAL
1. Remove engine cover.
2. Perform fuel pressure bleed procedure.
3. Remove air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
4. Disconnect negative battery cable.
5. Drain cooling system
6. Remove coolant recovery bottle.
7. Remove windshield washer bottle.
8. Remove power steering reservoir and set aside.
9. Remove make up air hose.
10. Remove PCV hose.
11. Disconnect ignition coil electrical connectors.
12. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).
cardiagn.com
13. Raise vehicle.
14. Remove right lower splash shield.
15. Set engine to TDC.
16. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
17. Remove lower A/C compressor retaining bolts.
18. Remove A/C compressor lower bracket.
19. Remove accessory drive belt lower idler pulley.
20. Remove crankshaft pulley.
21. Remove water pump pulley.
22. Remove timing chain cover lower bolts.
23. Lower vehicle.
24. Remove power steering pump and set aside.
25. Support engine with a suitable jack.
26. Remove right engine mount.
27. Remove accessory drive belt upper idler pulley.
28. Remove right engine mount bracket.
29. Remove accessory drive belt tensioner.
30. Remove timing chain cover upper retaining bolts.
31. Remove timing chain cover.
INSTALLATION
1. Clean all sealing surfaces.
2. Apply RTV as shown at the cylinder head to block parting line.
3. Apply RTV as shown in the corner of the oil pan and block.
4. Apply 2mm bead of RTV as shown.
5. Install timing chain cover.
6. Install timing chain cover upper retaining bolts and torque bolts.
7. Install accessory drive belt tensioner.
8. Install right engine mount bracket and torque.
9. Install accessory drive belt upper idler pulley.
10. Install right engine mount and torque bolts.
PM ENGINE 2.4L WORLD 9 - 1755
cardiagn.com
27. Connect make up air hose.
28. Install power steering reservoir.
29. Install windshield washer bottle.
30. Install coolant recovery bottle.
31. Fill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE).
32. Connect negative battery cable.
33. Install air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLA-
TION).
34. Install engine cover.
9 - 1756 ENGINE 2.4L WORLD PM
cardiagn.com
NOTE: If the timing chain plated links can no
longer be seen, the timing chain links correspond-
ing the timing marks must be marked prior to
removal if the chain is to be reused.
CAMSHAFT SPROCKET(S)
Refer to camshaft phasor removal (Refer to 9 - ENGINE/CYLINDER HEAD/CAMSHAFT(S) - REMOVAL).
PM ENGINE 2.4L WORLD 9 - 1757
CRANKSHAFT SPROCKET
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
2. Remove oil pan (Refer to 9 - ENGINE/LUBRICA-
TION/OIL PAN - REMOVAL).
3. Remove oil pump drive chain tensioner.
4. Remove oil pump drive chain.
5. Remove crankshaft sprocket (1).
cardiagn.com
INSPECTION
Inspect timing chain for stretching prior to removal.
1. Rotate engine while watching timing chain ten-
sioner plunger. When the plunger reaches its max-
imum travel stop rotating engine.
2. Measure the distance from the tensioner body and
the edge of the chain guide as shown.
3. If the distance is greater than 20.5 mm (0.81 in.)
inspect guide shoes for excessive wear.
4. If guides are okay, replace timing chain.
9 - 1758 ENGINE 2.4L WORLD PM
INSTALLATION
CRANKSHAFT SPROCKET
1. Install crankshaft sprocket (1) onto crankshaft.
2. Install oil pump drive chain. Verify that Oil pump is
correctly timed.
3. Reset oil pump drive chain tensioner by pushing
plunger inward and install Tensioner Pin 8514.
4. Install oil pump drive chain tensioner and remove
Tensioner Pin 8514.
5. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
6. Install oil pan (Refer to 9 - ENGINE/LUBRICATION/
OIL PAN - INSTALLATION).
7. Fill engine with oil (Refer to 9 - ENGINE/LUBRICA-
TION/OIL - STANDARD PROCEDURE).
8. Start engine and check for leaks.
cardiagn.com
CAMSHAFT SPROCKET(S)
NOTE: The camshaft sprockets and the camshaft phasers are an assembly and cannot be serviced sepa-
rately.
CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-
sprocket locating dowel pin and camshaft phaser may occur.
TIMING CHAIN
1. Verify that the crankshaft sprocket keyway is at the
9 o’clock position.
PM ENGINE 2.4L WORLD 9 - 1759
cardiagn.com
4. Install timing chain so plated links on chain align
with timing marks on camshaft sprockets (1).
9 - 1760 ENGINE 2.4L WORLD PM
cardiagn.com
6. Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner
body (4). Insert tensioner pin 8514 into slot (1) to hold tensioner plunger in the retracted position.
PM ENGINE 2.4L WORLD 9 - 1761
cardiagn.com
8. Install the moveable timing chain pivot guide (6)
and torque bolt to 12 N·m (105 in. lbs.).
TENSIONER-TIMING CHAIN
REMOVAL
1. Remove timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
REMOVAL).
cardiagn.com
INSTALLATION
1. Reset tensioner.
2. Install timing chain (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT/CHAIN AND SPROCKETS -
INSTALLATION).
