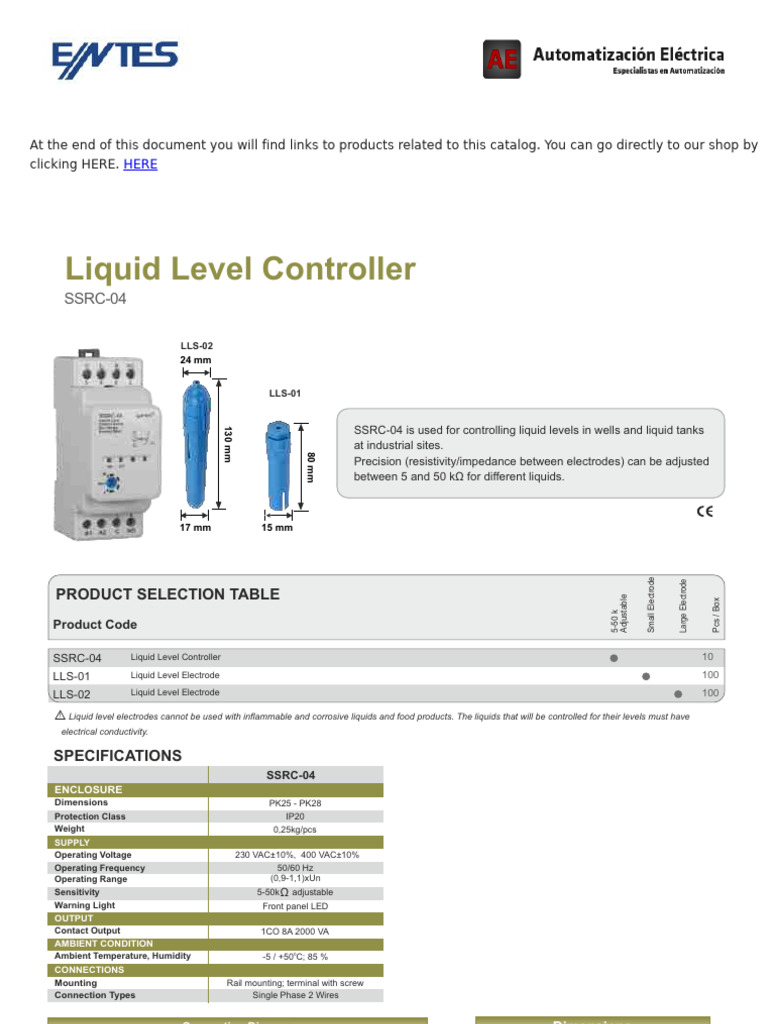

 Liquid Level Controller
SSRC-04

LLS-02
24 mm

LLS-01

SSRC-04 is used for controlling liquid levels in wells and liquid tanks
130 mm at industrial sites.

80 mm
Precision (resistivity/impedance between electrodes) can be adjusted
between 5 and 50 kΩ for different liquids.

17 mm 15 mm

Small Electrode

Large Electrode
PRODUCT SELECTION TABLE

Adjustable

Pcs / Box
5-50 k
Product Code

SSRC-04 Liquid Level Controller 10

LLS-01 Liquid Level Electrode 100
LLS-02 Liquid Level Electrode 100

! Liquid level electrodes cannot be used with inflammable and corrosive liquids and food products. The liquids that will be controlled for their levels must have
electrical conductivity.

SPECIFICATIONS
SSRC-04
ENCLOSURE
Dimensions PK25 - PK28
Protection Class IP20
Weight 0,25kg/pcs
SUPPLY
Operating Voltage 230 VAC±10%, 400 VAC±10%
Operating Frequency 50/60 Hz
Operating Range (0,9-1,1)xUn
Sensitivity 5-50k Ω adjustable
Warning Light Front panel LED
OUTPUT
Contact Output 1CO 8A 2000 VA
AMBIENT CONDITION
Ambient Temperature, Humidity -5 / +500C; 85 %
CONNECTIONS
Mounting Rail mounting; terminal with screw
Connection Types Single Phase 2 Wires

Connection Diagram Dimensions

48
34
U U
P
L L
U L B NC U L B NC
B B P
5 6 8 2 5 6 8 2
Protection & Control
35.3

45.4
61.8
90

M M
3~ 3~
1 4 1 4

A1 A2 C NO A1 A2 C NO
T T
Un Un
C1 C1 59.7 36
L1
L2
L1
L2
TYPE PK 28
L3 L3
N N

Connection diagrams are given for reference. Please always check the latest user manual given with product or download from www.entes.com.tr

87
Print Date: 03.2014
