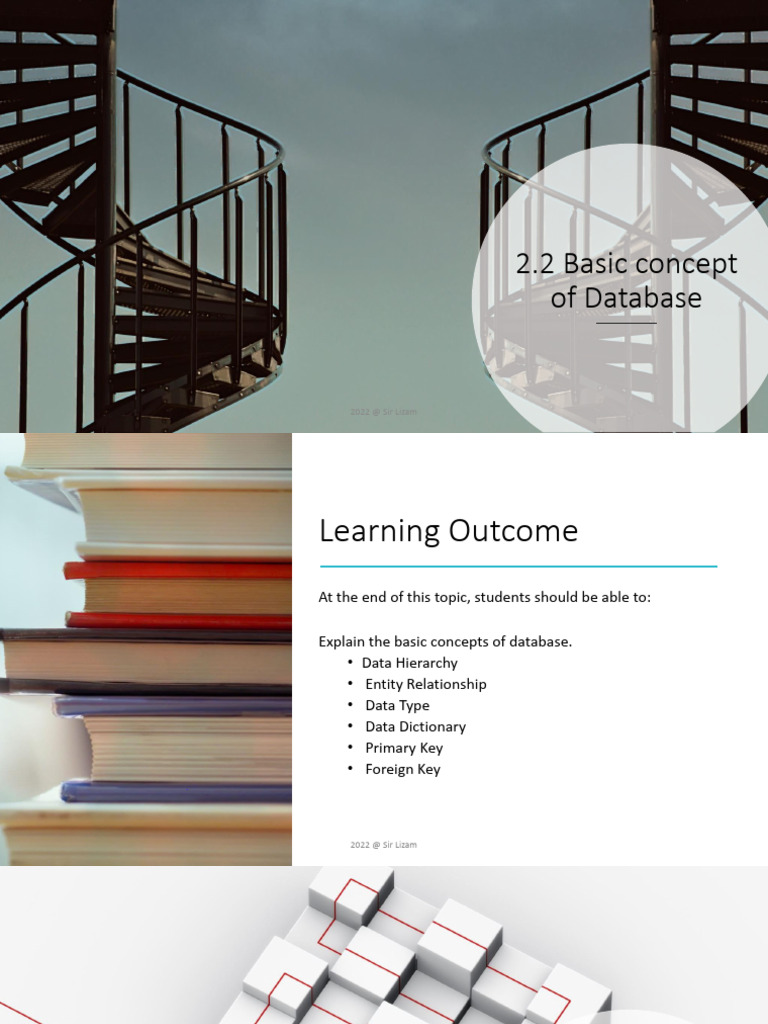

2.

2 Basic concept
of Database

2022 @ Sir Lizam

Learning Outcome
At the end of this topic, students should be able to:

Explain the basic concepts of database.

• Data Hierarchy
• Entity Relationship
• Data Type
• Data Dictionary
• Primary Key
• Foreign Key

2022 @ Sir Lizam

 Data Hierarchy
Data Hierarchy refers to the systematic
organization of data.

2022 @ Sir Lizam

 Database

Table Table … Table

Record … Record

Field … Field

Character …. Character

Byte … Byte

Bit

….

Bit

2022 @ Sir Lizam

Database
Database
Collection of table (Student Database)

Table 1 Table 2 Table 3

Tbl_student_info Tbl_course Tbl_hostel

2022 @ Sir Lizam

Table / File
Contains a set of records. Organize in row

Students_id Name Class_id Adress

Record 1 MS1550 Jamal Ahmad BC3T21 Sabah
Record 2 MS1551 Faridah Karim BC3T20 Sabah
Record 3 MS1552 Cristine Jery CP3T14 Sarawak
Record 4 MS1553 Suriyati Ali CP3T21 Sabah

2022 @ Sir Lizam

Fields
A single items of data common to all records

Fields 1

Students_id
MS1550
MS1551
MS1552
MS1553

2022 @ Sir Lizam

Characters
Consists of letter numbers and special character.

Field Name and

data on table is
Students_id
a combination
MS1550 of characters

MS1551

MS1552

MS1553

2022 @ Sir Lizam

Bytes
Combination of 8 bits to represent a character

Students_id

Character S come from combination

of 8 bits ( 1 bytes)

2022 @ Sir Lizam

Bits
Binary digit is a basic unit that use to represent an electric state on (1)
/ off (0).

Character S come from combination

of 01101100

2022 @ Sir Lizam

End of Data Hierarchy

2022 @ Sir Lizam

 Entity
Relationship
Diagram (ERD)
Tool that graphically shows the
connections among entities in a
system

2022 @ Sir Lizam

Entities
• An object in the system that has data.
• Examples: School have students, teachers, classroom and
students grades

2022 @ Sir Lizam

 Aka ER diagrams or Entity Relationship
Models.

Entity visualizes the relationships between

entities like people, things, or concepts in a
Relationship database.

Diagram visualize the attributes of these entities.

(ERD)
illustrate the logical structure of
databases.

2022 @ Sir Lizam

2022 @ Sir Lizam
How to construct ERD
• Identify the entities
• Look at two entities, are they related? If so draw a solid
line connecting the two entities and add a diamond
between them with a brief description of how they are
related
• Add attributes
• Any key attributes of entities should be added using oval-
shaped symbols.
• Complete the diagram
• Continue to connect the entities with lines, and adding
diamonds to describe each relationship until all
relationships have been described.

2022 @ Sir Lizam

ERD Symbols

Entity Relationship

Entity
Combination
of Entity and
Attribute Attribute
Attribute
2022 @ Sir Lizam
 One to One, 1:1

Cardinality One to Many, 1:M

of
Relationship Many to One, M:1

Many to Many, M:M

2022 @ Sir Lizam
 EDR notation Crow's Foot
Chen Style
styles Notation

2022 @ Sir Lizam

Crow's Foot
Notation

2022 @ Sir Lizam

Chen Style

2022 @ Sir Lizam

Example

• An employee manages a store,

and each store is managed by an
employee.
• Customer has an account, and
each account belongs to a
customer.
• Lecturer teaches a course, and
each course is taught by a
Lecturer.

2022 @ Sir Lizam

An employee manages a store, and each store is managed by an employee.

2022 @ Sir Lizam

Customer has an account, and each account belongs to a customer.

2022 @ Sir Lizam

Lecturer teaches a course, and each course is taught by a Lecturer.

2022 @ Sir Lizam

End of ERD
2022 @ Sir Lizam
 Data Types
Specifies the kind of data a field can
contain and how the field is use

2022 @ Sir Lizam

 Text Memo Number Date / Time
Enter letter,
Number or Enter lenghtly Enter number Enter date or
special text entries only time
character

Currency Auto Number Yes / No OLE Object

Enter dollar and Unique number
Enter photo,
cent amounts or automatically Only enter
audio, video or
numbers assigned by the value Yes or No
other documents
containing DBMS to each (True or False) in other program
decimal values added record

Hyperlink Attachment
Enter email Documents or
address or web image that is
address that link attach to the
to a web pages field
2022 @ Sir Lizam
Data Dictionary /
Repository
• Contains data about each file/table
in the database and each fields in
those file
• Information about table

2022 @ Sir Lizam

Data Dictionary example
Student table

2022 @ Sir Lizam

 • Data dictionary for Student Table

Field name Data type Field size Description Default value

2022 @ Sir Lizam

eot
