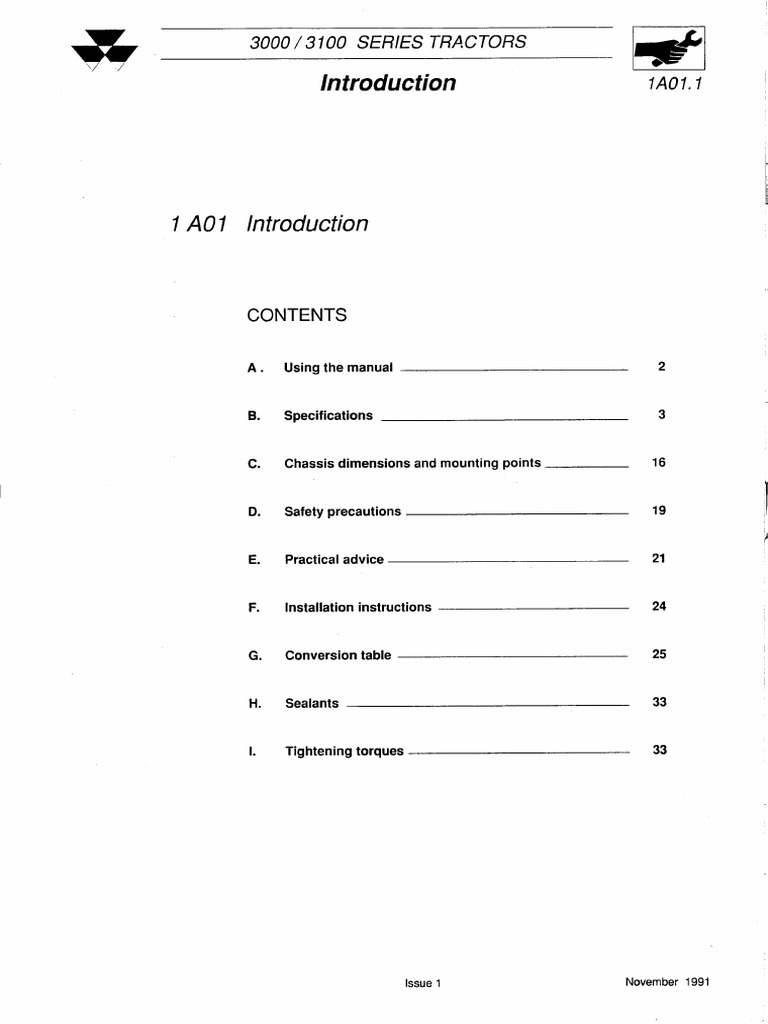

wa 3000/3100 SERIESTRACTORS mee Introduction 1A01.1 1A01 Introduction CONTENTS A. Using the manual —________________ 2 B. Specifications 3 C. Chassis dimensions and mounting points 16 D. Safety precautions —_________________ 19 Practical advice a1 F. Installation instructions ——________________24 G. Conversion table — 25 H. Sealants —___________________ 33 1. Tightening torques ———_____________._ 33 Issue 1 Noverber 1991me 1A01.2 A.. Using the manual General The purpose of this manuals to assist Distributors and Dealers in the efficient installation, maintenance and repair of MASSEY FERGUSON machinery. Carrying out the procedures as detailed, together with the use of special tools wnere appropriate, will enable the opera- tions to be completed within the time stated in the repair time schedule Page numbering Example : 7C01-3 This manual is divided into parts and sections. Each age contains the following information 7 = Section C = Pat 01 = Sequence number within the Part 3 = Page number within the Part The issue number and the date are indicated at the bottom of the page. Using the manual To assist with locating information, each section of the manual is preceded by an index listing the Parts con- tained in that section The preliminary operations to be carried out in order to reach the item involved are listed at the beginning of ‘each Part. Items are indicated by means of identification marks (circles, squares, triangles). Meaning of identification marks circle OQ (.) identifies part only square O [.] identifies part and indicates an adjustment triangle A .\_ identifies part and indicates an important point to be noted during removal or refitment Amendments Amended pages will beissued carrying the same page number as previous pages : only the issue number and the date will change. Old pages should be destroyed. Special tools Where the use of a special tool is necessary in an operation, the tool number is shown following the ins- truction requiring its use. lesue 1 November 1991 3000/3100 SERIES TRACTORS Introduction Repairs and replacements When parts have to be replaced, itis essential that only genuine MASSEY FERGUSON parts are used, Attention is particularly drawn to the following points concerning repairs and the fitting of replacement parts and accessories. Safety features embodied in the tractor may be impai- red if other than genuine parts are fitted In certain territories, legislation prohibits ihe fiting of parts not to the tractor manutacturer's specification. Torque wrench setting figures given in the Workshop Manual must be strictly adhered to. Locking devices must be fitted where specified. If the eficiency of a locking device is impaired during removat it must be renewed, The tractor warranty may be invalidated by the fting of other than genuine MASSEY FERGUSON parts. All MASSEY FERGUSON replacement parts have the full backing of the manufacturer's warranty. MASSEY FERGUSON Distributors and Dealers are obliged to supply only genuine service parts, Repair time schedule ‘The sections in the repair time schedule are identicalto those in the workshop manual. The Repair Time Sche- dule is available, under publication number 1646918M 1wy 3000/3100 SERIES TRACTORS me Introduction 1A01.3 B . Specifications Engine { soso | 306s een | 200s | sv1ea0 [ren Wover Aaze [aazws loan 63648] rooserA | 1006018 [numero yinders 4 2 F 4 ¢ [es 6 Fiabocharae : 5 bes [ves 4 ve bore rem cea? [rose fosar[oear | oear [rm (a0 ‘| 100 Soke om) =7aaan 2am 27m =| zoe | = (ous capaci em) wea |onso [sen S500 Fane enn | 00 [Waxmum engine power DIN (kw) | 52 5 e258 eS 735 785 as 5 Maxon oaco (Ny we [am area aes a Eo apes a aT aE OO | Tea oo 200 rams 00 8 idling speed (revimin) 850 [eso (250 350, 50 350 Taso 350 Marron aoa peed aio | zan0Yezoo | za00 | 2200 Yza00|2a00 | e200 town Toraue aaa speed Nr) ee es ee [Maximum ro oad speed revimin | aro [eso | ea [asi 2a ‘| 2ar0, ITO power DI My a fs |v le |e | |e es Itengine speedotreuirin | 2000 | 2000 feano | 2000 | azo | 2200 _|2a00 ‘| avo IrermasbietortPTO power [se [se eas feas |@ [m= |e |v lomo = Fron PTO rata pombe Tra wae poner ms torve tal speeds) Nn aves Overned,pussod operated hates cesrances _ (cots fa tor _froor) freor) | wor | (e006) | oe jr0c0e) | toons, Eiraus a os0 oxo Joso fos [ow loss jos [ous i feo [roo {feo | oor | wor loo loo | wow Engine ro. no ves__| yes yes [no i yes Fuel system and air cleaner 300 | 3060 | 3065 | 3070 | 3080 | 3095 | st1sizo | s12540 Luitoume ‘AC DELCO ACDELCO Type LU [Prefer av Fuel iter with sediment bowl cay ~ [Numer of elements 1 1 1 [2 2 2 [Fuetinecten pump CA Vrotary with mechanical governor iieeien wring e Eg Ea ee i TF Injectors and nozze nolo TAY [Gold weather sarting Thermostat or ether, according to market lar cleaner “Two-stage, cy element, with centifugalpelite and blockage indicator lesue 1 November 1991—_ 1A01.4 Electrical system Voltage : Batteries : - 3050-3060-3065, - 3070-3080-3096-31 15/20-3125/40 Safety start : Bulbs : headlights sidelights rear/brake lights direction indicators ‘number plate light work lamps instrument panel lighting and warning lights roof lights Cooling system Operation : Fan : Belt deflection (on the longest span) Transmission Clutch : Gearbox : Final reduction units Reduction unit : Reduction ratios : Issue 1 Noveriber 1991 3000/3100 SERIES TRACTORS w Introduction 12 volt, negative earth 112 volt maintenance free battery or 2 12 volt maintenance free batteries (cold climates) 2 12 volt maintenance free batteries. operated by the clutch pedal European code 40/45W 5W 21/5 W 21W 10W 55 W-H3 3W-2W-1.2W 2x10W Pressurized system with centrifugal pump. Thermostat opening temperature : 83°C (182°F) Centrifugal water pump belt driven (3050-3060-3065-3070-3080) - gear driven (3095-3115-3120-3125-3140) belt driven 10 mm (3/8') (6 cyl. engine) 19 mm (2/4") (4eyl. engine) single disc, dry, 330 mm (13 in), diaphragm type automatic adjustment. push-type (3000) pulltype (3100) - 8- 16 oF 32 front speed - with creeper gearbox (ratio 4 to 1) 24 speed (16 speed gearbox) 48 speed (32 speed gearbox) - reverse shuttle epioyclic, in the rear axie housings. MF 3050-3060-3065 4714101 MF 3070-3080-3095-3120 5077 to1 MF 3115-3125-3140 S871 to1wa 3000/3100 SERIES TRACTORS me Introduction ROAD SPEEDS AT 2200 rev/min MF 3050/3060/3065 TRACTORS - 16.9 - 34 TYRES. GEARBOX 4 x 4 (16 speed) | 30 KPH GEARBOX 40 KPH GEARBOX A 6 SPEED 32 SPEED 32 SPEED A |__ errata |e etee| | cea range | S| ehit [FORWARD] Reverse |FoRWanD| REVERSE [FORWARD] REVERSE E pr - pH [RPA MPH [ KPH MH | KPH MPH | RPA MPR | KPH MPH 1 sow | 176 109] 167 116| 222 198] 205 sar | ot] Fat | 220 150] 235 145] 222 138] 205 140) 279 174| 297 186 2 | sow | * SS) oor 123| 220 157) 2c8 ter| 206 179 ©] Fen | 26a 167] 206 178] 208 ier] 200 173/359 212] 961 228 3 eee Slow 249 155) 264 164) 315 197| 334 209 | Rl Fest | 315 196] a34 208] 315 196] 334 208] 400 250| 422 264 ‘ Lg] sow fe eT") 255 142] at2 194] 369 250] a9 248 lo Fast | 370 290) 304 245] 370 200] 904 245| 466 291| «a7 311 1 sow | a - | 356 221| 332 206) 261 | lw | Fast | 449 279] 418 260 249 279| 418 260 330 oie Sow | 425 26 ae a | 8] Fe | sar a34] sce a1] 537 312 395 a sow | ‘sr 28 aer | e| Fest | 69 991] ser 965] 629 391] ser S65 463 4 Sow |“ =| a5 364] 846 599 a3 My | Fe | rar 460] 609 ax] 741 £60] 695 431 a 1 sow | - - | rar 442] 757 470] 900 62] a59 599) Fest | 900 559/959 595] 900 559] 959 Saofr15 7oo|12i2 755 2 sow | 2°) 349 528| 906 $63) 1071 Sealtiae 7.15] | lee Foot [1073 ser|r1as 714{1073 sor|r109 714|1359 eel i445 903) 3 Sow 957 505/069 661/126) 768|1342 29] | Ho uf fat [reer reafroae eaejr2ci realize 894) 1583 996[1896 1060) 4 sow | : 730] 1254 779] 1485 928] 1564 990 1 al_Fat_|1495_923|1s80 988 1869 908|1877 1179|2002 1281 aa Rl sow | : 1939 928/190¢ 1128| 1665 1059) | Fes [1804 1121]1685 1047 1685 r047|2320 1452|2090 1931] | 2 He] sow | 1591 989[21.00 1343 [2008 1254) | 8 F taasho.0s 247 20.10 1249|27 15 1697|2537 1566 | 3 Fi ‘eee 1160|2625 16.41 [soe 1s68 ez0se9 15.20 230 1520 «|5170 1981 4 e211 irafoazy ieei|orer 1738 sasolpres 1728 ras 1726[9762 2351]35 10 2198 Issue 1 November 1991me 3000/3100 SERIES TRACTORS we 1A01.6 Introduction ROAD SPEEDS AT 2200 rev/min MF 3070/3080/3095/3120 TRACTORS - 16.9 - 38 TYRES GEARBOX 4 x 4 (16 speed) 30 KPH GEARBOX | 40 KPH GEARBOX Ts re SPEED ee | Speed | “8 Nn | Speed- S 7 | Range |g ‘shit |FORWARO | REVERSE |FORWARD| REVERSE |FORWARD| REVERSE | | E KPH- MPH | KPH- MPH | KPH~MPH | KPH-MPH | KPH- MPH | KPH- MPH | | Siow = | 176 110f 18 1.417] 222 140] 238 180] tT] Fox | 222 139] 237 t4a| 222 129/297 148) 279 176] 260 108] Siow 2] 209 120] 224 140] 26¢ 166] 262 178 ©} fast | 266 100] 205 170) 268 ‘65) 265 176/994 210) 956 220 3 a ‘Siow - | 246 154] 263 164] 682 4.30) 330 2.08) Ry Fast 311 164) 333 208] 3.11 1.64] 333 208) 392 247/ 418 263 4 Lyf Sow | “| 200 tsi] 310 194| 367 231] 392 247 7 Fast | 967 220] 900 245| 967 220| 399 245| «ee 202] 495 2.12 1 OT sow . - | 348 216] 323 201| 444 280] 414 261 Wy] Fast | aaa 276] cr zor] aaa 276] 414 257| 561 359] 521 328 2 Sow =| 420 261] ase 244] $90 O34] 405 312 7 Fast | 830 929] 495 900] 530 329| 495 905] 671 423] 626 394 3 Sow =| 493 306] 460 288] 623 992) 5e1 366 fast | 623 967| 581 o61| 623 3a7| 591 961] 768 96) 795 465, 4 sow | Sat 361] $43 997) 735 463) 66 «a2 Fast | 795 457] 666 476| 795 57| G84 425/923 Ses) 867 S46 1 | sow 701 437| 750 466| 891 sei] 950 Fast | 891 554] 950 S90] e91 $54] 950 s20/1i26 700] 1201 2 sow |" | 840 522| 895 $56|1063 670/119 A Fast |1069 661|1139 7o4}1069 Sai|ria9 704|1942 845] 1432 sow | 988 8 14[1054 655) 1250 798) 1930 Hy Fat fr280 7 77|ra91 o27|250 T77|1331 s27/s580 995| 1685 4 | Sow Tee 7z|t24i 771/14 72 927] 15.60 1 al Fast faa 91s{is09 o75|t472 915 [1569 975/861 1172| 1082 1 6 | Sow : 412 77|1020 020|1766 11.25] wooo Fast |1786 11 10|1668 1096] 1786 1110) 669 106]2257 1422) 21.08 2 Hel Sow : 1685 1047|1673 97 [2132 1243] 1091 8 | Fast j21g2 13.25}1991 1237/2192 1325/1991 12.97|2695 16.98] 25.17 3 Sow 2 PSV i995 1240] 1863 1158|2507 15.76)2534 Fost 2501 1654]2094 1¢50)2601 1558 sa91|2050 ‘ 23 1250|22 78 1250)2048 18872754 glersa i7silenaa tas2)a7 54 17 ni|or27 2340) 9469 Issue t November 1991ww 3000/3100 SERIES TRACTORS ge ” Introduction ROAD SPEEDS AT 2200 rev/min - MF 3115 - 3125 - 3140 20.8 - 38 TYRES asrecoaoKPH ] T6SPEEDSOKPH | 16SPEEDAOKPH speed | Range | S286 Tronwano | Reverse | rorwano | REVERSE | FORWARD | REVERSE I | wea [wen [KPH | wPw KPH [oma Teme [wre wee [wee nea [wm , 7] Soe ~Yasefisr | 258| v7 | ase par | ess | var 3) Ser | s20} 2s | a5 | ooo | 538 | 60 | 353 | 150 | S22 | 200 | 3am | 130 al RL Sew | 282 | Bae | San | 251 | aes | 238 | aee | 2ar 8] FS | aes| ane | 48s | oan | 0 | 302 | £a3 | San | ee | Soe | tas | 30 3 (ool sw | 8 355 | $83 | 3s | ie | 350 | sas | 20 ° | ex | 67a) aie | eco 23 | 8 | 23 |e | | 800 | as ; 7 : 48 [$e | Se | S23 | tas | See | S78 | wm | or | 505 | 00 663 | 683 | Gaz | ara | 60s | oe | coe | 7 ‘Slow : - 6.35 | 10.16| 6.31 | 10.22] 6.35 | 10.16] 631 Fast | 12.91] 8.02 | 1284 | 8.02 | 1284] 7.98 | 1291) 8.02 | 1284] 7.98 nop Sew | 291) 097 325 | tase] os | 550 | 900 | tose | 05s 1 A Fast | 19.81 | 12,12 | 19.99 12.12 | 19.99 | 12.05 | 19.51 | 12.12] 19.99 | 12.05 jie 4] & ee BE] BS Joven] sere| zeae 00/3700 70 |osee| 18as | arco | 1o70) asst | teas |e | & 392 [toon | | 0 | 92] ost] cove | ei Power take off Independent power take off (IPTO) Proportional to the engine speed. Hydraulic clutch. PTO ratio 540 revimin at 1980 engine revimin - 3.667 : 1 1000 revimin at 2000 engine revimin = 2: 1 Speed changing Either by changing shafts, or by lever selection. (according to mode!) = 540 revimin shaft, 35 mm (1.3/8 in) diameter, 6 splines. = 1000 rev/min shaft, 35 mm (1.318 in) diameter, 21 splines Economy” Independent power take off The normal 540 and 1000 revimin PTO speeds (optional extra) can be obtained at the above stated engine speeds or at 1850 engine revimin by selecting the “Econo- my" ratio, Control Lever in the cab. Issue 1 November 19913000/3100 SERIES TRACTORS Ss 4 1A01.8 Introduction Ground speed PTO (optional extra) An addition to the independent PTO Control From the normal IPTO operating lever. Speed MF 3050-3060-3065. 540 rev/min - 7.87 revolutions of the PTO shaft for ‘one revolution of the rear wheel 1000 rev/min - 14.83 revolutions of the PTO shaft, for one revolution of the rear wheel, MF 3070-3080-3095 540 revimin - 8.48 revolutions of the PTO shaft for one revolution of the rear wheel 4000 revimin - 18.54 revolutions of the PTO shaft, for one revolution of the rear wheel. MF 3118-3120-3125-3140 540 revimin - 8.23 revolutions of the PTO shaft for ane. revolution of the rear wheel, 11000 revimin - 15.08 revolutions of the PTO shaft for one revolution of the rear wheel. Front power take off (optional extra) Control Hydraulic clutch mechanism contralleg oy a button in the cab Ratio 1000 revimin at 2040 engine revimin. - 204: 1 Four wheel drive front axle Clutch mechanism Hydraulic, electrically actuated by push button in the cab Ditferential Lock Front and rear differential lock-hydraulic with electrical contro! Hydraulics Two stage gear pump, driven directly by the engine, supplies 1st Stage 1. Hydrostatic steering This circuit supplies 29 limin (6.4 Imp. gal/min) AB range geat (7.6 US galimin) at maximum engine speed. Here/Tortoise range gear Maximum pressure : 17 bar Ditferential lock IPTO clutch PTO brake Front PTO (it fitted) Four-wheel drive (if fitted) Hydraulic brakes Clutch Lubrication of gearbox, PTO and Rear Axle Issue 1 November 1991we 3000/3100 SERIES TRACTORS me Introduction and Stage 2, Trailer brake supply This circuit supplies 50 I/min (11 Imp. gal/min) Auxiliary hydraulic system (13.2 US gal/min) Hydraulic iift. Maximum pressure : 185 bar Filtration (2 filters) -One external 150 micron throwaway, canister type filter on the suction circuit -One extemal 15 micron high pressure filter on the low flow circuit Brakes Main brake Type Cil-immersed single disc per wheel, 365 mm (13.9 in) outside diameter. Inside diameter of fining : 3080-3060-3065 : 310 mm (12.20 in) 3070-3080-3095-3115/20-3125/40 : 290 mm (11.41 in) Operation Hydraulic, from two master cylinders, automatic adjustment. Handbrake Operates on the rear axle bevel drive pinion, Trailer brake According to model by hydraulic vaive Differential lock - Rear axle Type Positive clutch Control Hydraulic, with electrical control Issue 1 Novernber 19911A01.1 Hydrauli 0 3000 / 3100 SERIES TRACTORS Introduction we Type: 3-point, Category 2, with fixed, telescopic or quick attach hook ball ends (according to mode) Rams : Twin externally mounted Lifting force (see charts) MF 3050 - 60 - 65 - Ram diameter 50 mm (1.96 in) or 57 mm (2.24 in) Flam clameter 60 mm Flam diameter 67 mm Position of | Length litrodon | oft | Cowerlinks | —Lowerlinks | Lowertinks | Lower inks | ower links | rods | horizontal full raised horizontal full raised [mm | mm [Ko | Ub | ko | tb | Ko | tb | ko | UO [soe se5 | 2207 | 4e70 | 2026 | oas7 | 2005 | 367 | se25 | esi | 765 | 2002 | 5000 | 2421 | 5043 | soto | 6643 | 3165 | 6985 | | 608 ses | - - | 3205 | 7073 | - = | 4190 | gear | 7e5_| 2623 | s7ee_| 2666 | sees | 2430 | 7570 | s4e5 | 7004 MF 3070 - 80 - Ram di liameter 57 mm (2.24 in) Position of [Length | Lower links Lower links {trod on | oti | _horizontat tullraised lower links | rods mm | mm | Ko | tb | Ko | lb 550 595 | 3192 | rosa | sata | sata 827 | 3138 | 6925 | 3162 | 6978 650 sos | - | 4175 | 9214 sa7_| 514] 7755 | 3452 | 7618 MF 3070 - 80 - 95 - Ram diameter 66 mm (2.60 in) Position of [Length | Lower links Lower links [irod.on | of it horizontal full raised lower links | rods mm | mm | ko | tb | Ka | tb 550 595 | 4350 | 9600 | st94 | 11463 a27 | 4276 | 9437 | 4308 | 9507 650 95 | 5740 | 12668 | seao | 12555 | 827 | aves | 10567 | 4703 | 10379 MF 3115/20 - 3125/40 - Ram diameter 73 mm (2.87 in) Position of [Length | Lowerlinks | Lower links {ited en ) of it horizontal | full raised lower links | rods T mm | mm | Ko | te | Ko [| tb 550 595 ] 5425 [11975 | e510 | 14370 827 | 5000 | 11037 | 5087 | 11230 650 s95 | 8130 | 17950 | 7117 | 15710 g27_| 5727 | 12640 | 5595 | 12350 Issue 1 November 1991w 3000 / 3100 SERIES TRACTORS = Introduction 1A01.11 ‘Steering Type Hydrostatic Fixed otitable telescopic steering column, One double action central ram. Front axle (2 WD) ‘TRACTOR MODEL 3050-3060-3065-3070 3070-3080-3095-3115/20-3125/40 | CHARACTERISTICS NORMAL DUTY HEAVY DUTY Steering ram | ~ Ram diam. (mm) S57 | 68 = Rod iam. (mm) 40 | 45 = Total stroke (mm) 236 | 236 = Volumetric displacement (co) 306 | 482 Steering pressure (bar) | — = at steering valve 160 166 ~ at return port 16 | 16 + effective 150 | 150 Steering valve Make Danfoss Dantoss - Volumetric displacement (cc) 80 | 125, = Checkisatety vaive wth j wth | | Steering wheet | - Diameter (mm) 400 400 = Nb of turn (lock to lock) 3.80 3.86 | Steering angle = Inner whee! 56° 56° ~ Outer wheel 43° 43° Turing circle 3050/60/65 3070 3070 | 3080/95/31 15/20|3125/40| = Without braking (mm) 370 | —a750 3850 4320 | 4320 = With braking (mm) 3250 | 3300 3400 3750 4000 Angle + Axle swinging (max) 1" ne - Wheel castor oO 0 ~ Wheel camber 3°30 5°10 Maximum permissible load 3900 7900 capacity (Kg) at track setting 1383 mm 1484 mm Issue 1 November 1991= 3000 / 3100 SERIES TRACTORS 1A01.12 Introduction Front axle (4WD) TRACTOR MODEL 3050 3060-3065 3080-3070 | «3125 3095-3115/20 3140 4 WD axle 1 2 25 3 Steering ram | - Ram diam. (mm) 57 57 63 68 ~ Rod diam. (mm) 32 32 | 32 45 - Ram stroke (mm) 2x7 2x17 | 2x9 2x 139 - Volumetric displacement (cc) 408 408 ‘550 567 ‘Steering pressure (bar) | - At steering valve | 166, 166 166 166 = At return port 16 16 16 16 - effective L 150, 150 150 150 Steering valve - Make Danfoss. Danfoss Danfoss Danfoss - Volumetric displacement (cc) 100, 100 125 125 = Check vaive with wth with with Steering wheel ~ Diameter (mm) 400 400 400 400 | ~ Nb of turn (lock to lock) 4.08 4.08 44 45 | Steering angle | ~ Inner wheel 50° 50° 50° | se | ~ Outer wheel 38.5° 38.5° 38.5° 38.6° -| ‘Turning circle 3070 2/95 | - Without braking (mm) 4200 4200 “4300 | 4700 4800 = With braking (men) 3800 3800 3900 | 4300 4400 Angle | ~ Axle swinging (max) wo | ae 1 } ae - Whee! castor 2°30 2°30 2°30 I 2°30 - Whee! camber 1 1 ; 1 | 1 ‘Maximum permissible load 4500 4500 | 5870 6640 capacity (Kg) at track setting | 1416 mm 1416 mm — | 186mm 1686 mm Issue 1 November 1991Ww Wheels FRONT REAR Tyres Compatibility of rontirear tyres of 4-wheel drive tractors, 3000 / 3100 SERIES TRACTORS Introduction 2-wheel drive A-wheel drive ae 1A01.13 pressed steel pressed steel or cast with power adjust variable track (PAVT) or fixed cast type pressed steel with manual adjustment or cast with power adjust variable track (PAVT), or manual adjustment. MF 3050 up to 3095 MF 3115 - 3120 - 3125 - 3140 | Front Rear Front Rear Front Rear Front Rear baa | 199-00 | 112-2 [10-00 | faz | 6-28 | wea | 90-08 12.4 - 24 16.9 - 30 16.9 - 34 16.9 - 38 18.4 - 34 tea-a0 ‘e528 teasat ta-a8 13.6 - 24 18.4-34 12.4-28 15.5 - 38 12.4- 28 16.9 - 38 14.9-24 16.9-38 | 'ae-28 | 120-8 | te0-c8 teasae teat | 16.9-34 14.9 - 28 18.4 - 38 18.4 - 38 18.4-38 | jao-2 | ia tae-a8 | wo-20 | teo-ae | | 155-38 136-24 | 136-38 184-38 | i 16.9 - 34 16.9 -34 20.8 - 38 te9-28 tae 184-34 | 169-22 | 208-38 | ater lasing —T ae cote a a | om | ee | 8, | BE | BE Front | (1238 | ‘srs | 218 | 238 | Tyres | i2428 | 124 ora | SB 136-28 1575 36] ate | tee | 230 0 | 80 | 149.38 235 si7 | 620 | Rear | i694 | 3075 er7, a2 | Issue 1 November 1991al 3000 / 3100 SERIES TRACTORS we 1401.14 Introduction Dimensions and weights wemeso | Mesme | urovm | uraom | wesoes avo [ avo | av | «wo [ano | «wo | avo [ wo | ao | 0 a Aveotasen aan | aare | zon | aare | ate | zac | aap | 2a | oe | 20 (93.34) | (93.5) | (93:34)| (93.35) |(96.85) | (97.0) | (106.1) { 106.25) (106.1) 106.25} 8 Overa ngh wen rower Sas | Sd | ‘Sas | ‘cas | age | zap | zo | sere | sae | sere rr G70] Ge90)| ar Geom |deoe|ces.n| CO | Gre | Gre | Gre ogo rot mm ey Soar | Sear | ‘Sar | ‘Sar (rae rae | Sree | Grae | Greg | Sieg (cap ven (i03«| 3034] 103.9] ase dor | or | gra | ora | oes | oss) pSvra wath ro | sro | sro | ‘sso 870 | sere | era | 870 | oar | sare ¢io12| 012] or 2] cH 2 jdo129| ot | O12 | ora |cor2y|or 2) EGrounacararee wart | rt | art | Sort | oes | Sac | Ses | ‘ous | ses | Sos (enor cw Fao) Gra1| cre) | era)| cre | oe | oe) | ar | ara | ara | ers Fart osterrg unex nme) as) | ee | | as) a | Bs) | Sas) |S) | ag) es {plattorm models) (15.21 | (15.2) | (15.2) | (15.2) | (15.2) | (15.2) | (15:2) | (15.2) | (17.5) | (17.5) Bawour wth can warow | Uses | Seu | ses | ese Sass | Sic | Sis | Ses | Sto | See rae stel ran) gto) | 55 | ee) | (a5) | (He) | 40 | 00 | 220 |r| 00 | 00] (LRasive amerare feos] eae | veooe [ieee | ~ ieee wrarieata0 | wrsrzsarao | These dimensions are for @ actor set at maximum rack | awo | awo | awo | awo | Avineobssemnin 2695 | 20 | 200 | 2030 Cieen] ios] os] oe mm (in) [173.39] (173.3) | (178.2)] (178.2) | ogo rot- mm) | see ree | aoe | oe | (co tac Gio | fea |iea| se] Searawern Sra | Sra | se ose | (ore cara) cade) | EGounaceaance poe oer sc so {under drawbar Frame) (97.4) | (17.4) | (19.8) | (19.8) | IF Height to stooring whol - mm (in) | e1i0 | 21t0 | 220 | 2280 | (stem resent | ‘em | 60 go | Fewer tank, wibout io | dean | be | Sao | entra welt steel whoe's) 4g (D) (249) |(r0132)| roe0n|cr112| [Rear tyre dimensions 16.9.8 2080 | Issue 1 November 1991wo 3000/3100 SERIES TRACTORS me Introduction 1A01.15 Capacities Description Litre Imp.Gal | _US Gai Fuel tank MF 3050/3060/3065, 148 | 32.56 39.10 MF 3070/3080/3095/3115/3120 173 38.10 45.60 MF 3125/3140 220 48.5 58 Cooling systen. MF 3050/3060/3065 16 35 42 MF 3070 20 44 5.3 ‘MF 8080/3095,81 15/9120/8125/3140 5 55 66 Engine sumo MF 3050/3060/3065/3070 75 1.65 2 1F 3080/3090/3 1 15/3120/3125/3140 165 36 43 | Transmission MF 3050 to 3095 «| 132 159 Rearaxle’ MF. 3115/3120/3125/3140_ ei 14.4 169 Front axle assembly MF 3050/3060/3065, 58 | 13 15 MF 3070/3080/3095/3 115/3120 65 14 17 MF 3125/3140 WV 24 29 Front final recuetion MF s0s0/a060/3065 14 03 04 units (each) MF 3070/3080/3095/3115/20/25/40 18 0.4 05 “When wi Issue 1 ing on steep slopes 10 | (2.2 Imp Gal) (2.7 Us Gal) of oil must be added. November 19911A01.16 3000 / 3100 SERIES TRACTORS Introduction C . Chassis dimensions and mounting points " 13 14 15 16 17 8 19 20 21 22 23 24 25 er 28 29 30 31 32 33 34 35 36 onmoon> Issue 1 3050/3060 3065 0 20,00 101,60 44,45 60,30 101,60 481.00 112,40 25.28 70,00 698,00 340,00 87175 896 867 267 127 53 101,60 31,40 101,60 100 260) 8 106 224 128 s774 185 3070 301,50 20,00 101,60 44,45 60,30 101,60 570,00 201,40 25,25 70,00 787,00 429.05 811,75 596 890 567 267 127 53 101,60 31,40 101.60 100 260 43 106 224 128 1774 155 6 holes M20 through 8 holes M20 x 38 deep 12 holes M20 x 38 deep 2 holes M20 through Bholes M16 x 25 deep 2holes diam. 37 - 37.16 Bholes M18 x31 deep 3080/3095 3120 301,50 20,00 61.60 621.40 49,60 630 101.60 44,45 60.0 10160 798.80 370,60 771,50 896 890 567 94 267 127 53 101,60 31,40 101,60 100 260 43 108 224 128 1774 155 Re-r November 1991 3115 3125/40 301,50 20,00 61,60 621,40 49,60 6.30 101,60 44,45 60,30 101,60 736,80 370,60 771,50 296, 890 867 94 287 127 53 101,60 31,40 101,60 161 280 43 106 224 128 1835 2208 2870 188 37 38 39 40 22 43 48 46 a7 48 49 70 studs M18 - 1.5 4 holes M16 x 25 deep S holes M20 x 35 deep 4 holes M16 x 30 deep holes diam. 20.70 + 0.12 through 3050/3060 3065 155 125 125 62 52 79.582 48 190 100 206 92 2149.35 an 320 110 130 6 142,75 20 an 310 142,75 223 315 00 65 65 40 or 66 3086 9203.20.3 we 3070 3080/3095 3115 3120 3125/40 185 155 185 105 125 125 125 125 125 52 52 52 52 52 52 79542 79542 96,642 46 46 46 190 190 190 100 100 100 208 226 206 92 92 123 9149.95 9149.25 9149.95 371 am 3m 320 320 320 110 110 110 130 130 130 65 6 65 142,75 142,78 142,75 20 20 20 air 817 817 310 310 310 14275 142,78 142,75 223 223 203 315 318 324 100 100 65 65 65 65 400r86 40066 400 8 : : 323,90 : 76,20 . 120,60 ; 241,30 3142 3388 (3388 9203,2#0,3 9203,2+0,30203,2#0,3 AWD centerline Crankshaft centerline Differential centerline Trumpet centerline PTO centerline Nexe<wo 3000 / 3100 SERIES TRACTORS me) Introduction” 6cvr. 1A01.17 3100 A el | 39, [38 [9 10 lit 28 cw ae | 6 A 8 Po Pe ot. s wt Fae jo. _. — 2 a is Jf Q/ 3 v 3070 se | alD . Safety precautions Do not remove or obscure Caution, Warning or Instruc. tion Decals (Yellow). Replace any Caution, Warning or * WARNING der aernciorse ees Ss Stesoeoe Bratt cnr oben 70 cama’ 7 WARNING fr removing ths cover clacone feel rogaine” fade tosh CAUTION by 19 not short across starter to. ‘nats start onan. over start engine while stan Sing on the grown. Star angie ony wih start key that gearbox’ sna" PO" are in reves th ving Brake 3000 / 3100 SERIES TRACTORS Introduction WARNING CAUTION Do, not stand between tractor na Squipment when operating Tow only with ME approved Uractor drawbar or teh 7 WARNING A Noid onlostecrng whet Issue 1 1A01.19 Instruction Decals that are not readable or are missing See here under the actual location of these decals. November 19913000/3100 SERIES TRACTORS we 1A01.20 Introductionwo E . Practical advice Safety Your safety and that of others must always be the first consideration when working around machines of any type. Safety is a matter of thoroughly understanding the job to be cone, the correct use of tools and equipment, and the application of good common sense. Introduction Trouble-shooting The following procedure, combined with the informa- tion contained in the workshop manual will be helpful in tracing faults accurately. it consists of following a number of logical steps to locate and correct the problem. 1.Determine the problem 2. List possible causes, 3. Differentiate the causes. 4,Conduct checks in logical order to determine the exact cause. 5,Consider approximate remaining service lite against cost of parts and labour. 6.Make any necessary rep: 7.Recheck the parts and functions for correct opera- tion. Handling of heavy components Unless otherwise specified, all removals should be accomplished using adjustable lifting equipment. All supporting slings must be paralel to each other and as near vertical as possible in relation to the object being ited However, where slings are ofa far greater cape- city than the weight of the load to be lifted, a triangular iting arrangement may be used (2, 304 strands trom a single ring beneath the hoist hook). When removing a component at an angle, remember that the capacity of an eyebot is reduced when the angle between the supporting members andthe objectbecomes|ess than 90° (correct and incorrect method of iting) Eyebolts and brackets must never be bent and must only workunder tension. A length of pipe anda washer may be used to reduce tension on eyeboits 3000/3100 SERIES TRACTORS 1A01.21 CORRECT INCORRECT Forged eyebolt support A Load -B Lifing shackle -C Shackle retaining plate (mmtnick)-D Sleeve (may or may not be welded to plate) in some cases, special liting fixtures are available to obtain correct balance and provide for safe handling Consult the relevant section of the Workshop Manual Warning if a part resists removal, check that all nuts and bolts have been removed and that there is no interference - from adjacent parts Issue 1 November 19911A01.22 Cleanliness To ensure long life of a machine, itis important to keep dirt and foreign material out of its vital working compo- nents. Precautions must be taken to safeguard against this. Enciosed compartments, seals and filters have been provided to keep the supply of air, fuel and lubricant clean. These protective devices must not be removed Whenever hydraulic fluid, fuel, lubricating oi ora ines are disconnected, clean the point of disconnection and the surrounding area. As soon as a line has been disconnected, cap, plug or tape the line or opening to prevent the ingress of foreign material The same cleaning and covering precautions should be taken when access covers or inspection plates are removed Clean and inspect all parts. Make sure that all passa- ges and holes are clear. Cover all parts to keep them Clean. Make sure parts are clean when they are reas- sembled. Leave new parts in their wrapping until they are actually needed for reassembly. Assembly When reassembling a machine, complete each step in sequence. Never partially assemble one part then start to assemble another. Make all recommended adjust- ments. Always check the job on completion to ensure that nothing has been overlooked Recheck the various adjustments before putting the machine back into service. Note : Before fitting new parts, remove rust preven- tative compound from all machined surfaces (usually «peet-off» substances). Lubrication Where applicable, fil he compartments of repaired or renewed components with the quantity, tyoeand grade of clean lubricant recommended in the routine mainte- nance section of the Operation Instruction Book. Shims When shims are removed, tie them together and iden- tify their location. Keep shims clean and take care not to bend them before refitting them, Issue 1 November 1991 3000/ 3 100 SERIES TRACTORS Introduction Gaskets Make sure that the holes in gaskets line up with lubrica- ting oil passages in the mating parts. if gaskets have to be made, use material of the correct type and thickness. Make sure that holes are punched in the right places. Incorrectly punched gaskets can cause serious da- mage. Lip type rubber seals. Lubricate the lips of lip-type seals with oil before fit- ment, Do not use grease on seals, except for grease seals, The main pars ofa lip-type seal are the case 1) the sealing elerent (2) and the ring spring (3). The figure shows the construction of a simple lip-type seal The cross section shows the «heel» (4) and the «toe» (6), used to identity the sides of a single element seal With a few exceptions, the toe of a single-lip seal is located on the lubricant side. Some seals have a second auxiliary lip which has no springwo 3000/3100 SERIES TRACTORS = Introduction 1A01.23 Cables and wires When removing or disconnecting a group of cables or wires, label each one to ensure correct rafitment. Locking devices Slackening of nuts and bolts is prevented by mechani cal means such as lockwashers, tab washers and cotter pins, or by Loctite-type locking agents. Flat retainers must be installed properly to be effective. Bend one end of the retainer against the edge of the part Bend the other end against one of the flats on the nut or bolt head! Always fit new retainers in compartments which house moving parts. When fitting lockwashers on aluminium housings, place a flat washer between the lockwasher and the housing Note: 1) Never fit a lockwasher (Grower, fan, spring, etc..) under a nut or bolt to which a specified torque has to be applied (however, see Recommended Stan- dard Torque charts). 2) Always thoroughly degrease components before applying Loctite type locking agents. Bushes and press fits Do not ft bushes with ahammer alone, Use a suitable fitting tool and a hammer or, better still, a press if possible When using a press, ensure that pressure is applied directly in line with the bore. If the ring has an oil hole, take care to align it wih the oll hole in the mating part \When press fitting a partinto another pat, lubricate the mating surfaces. Tapered parts should be assembled ayy Before assembly, check that the tapers are dry andifree from burs. Fitting bolts in blind holes Use bolts of the correct length. A bolt whichis too long may «bottom» before the head comes into contact with the part it is to hold; this will cause damage to the ‘ead, If @ bolt is too short, there may not be enough threads engaged to hold the part securely. oye Carrect and incorrect use of retainers Issue 1 24 Correct and incorrect method of fiting and bending locking tabs. November 19911A01.24 F. Installation instructions Pre-delivery checks The following items must be checked by the Distributor before delivery to a Dealer and by the Dealer before delivery to an Owner or Operator 1 . General Installation Clean the battery top and smear the terminals with petroleum jelly Charge the batteries it necessary. Check all electrical connections, cable and ducting clips and ight fitings. Check and top up the engine and transmission hou- sing oil levels Lubricate ali grease points. Checkand adjust belt tensionsas necessary (alterna- tor, fan, auxillary pump and air-conditioning compres- sor) Except when it contains antifreeze, flush the cooling system and refill with soft water. ifthe clutch pedal has been held down to prevent the disc sticking, remove the keeper. Check that the fuel tank contains a sufficient amount of fuel of the correct type Remove air from the fuel system and tighten all fuel pipe connections. Check that the engine air fiter hoses are secure. Check that engine control linkages are correctly ad- justed and are operating freely. Start the engine Check the instruments and warning lights for correct operation. Check engine speed at the tachometer with both hand and foot throttes. Attach a mounted implement and check the tractor hydraulics for correct operation. Check and adjust tyre pressures (road or field work), Check all nuts bolts, studs, pipe unions and clips for tightness. Check all pipes and hoses for leaks. Check and adjust headlamp alignment. Road test the tractor, checking the brakes and all instruments and services for correct operation. 2. Electronic systems Check the electronic linkage for correct operation, Carry out the quick check procedure in section 11801 Check all the Autotronic procedure in 12B01 Check the on-board computer installation (Datatro- nic) using procedure 13A01 functions, using the test Issue 1 November 1991 3000/3100 SERIES TRACTORS — we Introduction 3, Tightening Torques Check the torque of all chassis fixing nuts and bolt: + Front axle/Engine - Engine/Gearbox = Gearbox/Rear axle - Axle housings/Rear axle Check the torque of all wheel and rim nuts and botts Instructions to the driver Instructions must be given to the driver on the items listed below 1. Safety precautions when starting the engine. 2, Location and significance of tractor and engine serial numbers. Instruments and controls. Punning-in Starting and stopping the engine. Selection of correct operating gear ratio and use of gearshift levers and reverse shuttle lever. Danger of towing downhill without engine braking and correct use of gearbox. 8. Use and adjustment of brakes and brake pedal latch 9. Use of clutch, 10. Use of hydraulic differential lock. 11, Use of hydraulically operated PTO - Clutch and brake, 12, Operation of hydraulic lft system. 48. Attaching and detaching towed implements, 14, Grease points, 15. Changing grades of oil 16. Replacement of engine and transmission ol fiter elements, 17. Operation of fuel system. Removal of air from the system. Air filter - clogging indicator. 18. Cooling system. Frost precautions, Tension of twin fan belts. 19. Maintenance of electrical equipment (batteries) Negative earth system. 20. Adjustment of front and rear track wiaths. 21. Tyre pressures, 22. Tightness of all nuts and bolts 23, Fuel handling and storage. 24, Use of auxiliary hydraulic equipment. 26. Fillintractor and engine serial number details in the Operator instruction Book 26. Read the Operator Instruction Book.we 3000/3100 SERIES TRACTORS me Introduction 1A01.25 G . Conversion table Z Pressure units 1 PS! = 1 Ibffin? = 0,0689 bar 1 bar = 14,512 Ibffin’ = 14,512 PSI Bar If / in? Bar Ibt / in? Bar It /in? 0s 7,256 95 1379 35 508 1 1451 10 145 40 588 18 auq7 " 1596 48 3 | 2 2 2 174 50 726 25 36,28 13 189 60 871 3 43,54 14 203 70 1029 35 50,8 15 218 80 1161 | 4 58 16 232 90 1306 45 653 7 2ar 100 1451 5 726 18 261 200 2003 55 79.8 19 276 300 4384 6 87,1 20 290 400 5805, 65 943 at 309 500 787 7 1016 22 319 600 9708 78 108.8 2a 334 700 10160 | 8 116,1 24 348 800 11614 85 123,4 25 368 900 13235 Issue 1 November 19913000/3100 SERIES TRACTORS we 1A01.26 Introduction Torque units 1. Nm = 0,7376 Ibi/tt 1 Ioffe = 1.3558 Nm Nm ttt [Nm | ioe Nm leit | 19858 | 1] 07376 460972 | 34 | 25a7e4 | soea06 | 67 | 49,4012 arte | 2] 14752 47.4530 | 35 | 26,8160 | 92,1944 | 68] 50,1568 aosra | 3] 2.2128 4ggoss | 36 | 26,5536 | 93,5802 | 69) so,go4a sazs2 | 4 | 2.9504 501648 | a7 | z72o12 | 94060 | 70) 51,6320 67790 | 5 | 36880 | 515204 | 38] 280288 | 96,2618 | 71) 52,3696 8.1348 | 6 | 4.4256 s2e7e2 | 39} 287684 | 976176 | 72] 53,1072 | 9006 | 7 | 5.1632 54.2320 | 40 | 295040 | 98,9734 | 73) 53,8448 10.864 | 8 | 5.9008 555678 | 41 | 02416 | 100,320 | 74| 54,sa24 122022 | 9 | 66364 s60436 | 42 | 30,9792 | 101,685 | 75 | 55,3200 13,5580 | 10) 7.3760 sezo0e | 43 | 31,7168 | 103,041 | 76 | 56,0576 149138 | 11 | 8.1198 59.6552 | a4 | 32,4544 | 104,307 | 77 | 56,7952 | 162606 | 12] 8512 e110 | 45 | 33,1920 | 105,752 | 78| 57,5908 y7e254 | 13] 95888 62,3668 | 46 | 33,9296 | 107,108 | 79) 58,2704 189812 | 14 | 10,3264 63,7226 | 47 | 34,6672 | 108.464 | 80] 59,0080 20,2370 | 18 | 11,0840 65,0784 | 48 | 35,4048 | 109,820 | 81 | 59,7456 21e008 | 16 | 11,8016 664342 | 49] 36,1424 | 111,176 | 82 | 60.4832 zaoass | 17 | 12,5392 67,7900 | so] a6ea00 | 112681 | 83| 61,2008 | 244044 | 18 | 13,2768 e918 | 51 | s7.e176 | 113,867 | 84 | 61,9584 257602 | 19 | 140144 7oso1e | 52] 38,9552 | 115,243 | 85 | 62,6960 ara160 | 20 | 14,7520 7igs7a | 53 | 39,0928 | 116,600 | 86 | 63,4996 aearie | 21 | 15,4896 7a2is2 | s¢| 98304 | 117,955 | 87 | 64,1712 | essere | 22 | se.2072 745690 | 55 | 40,5680 | 119,10 | 88 | 64,9088 siteaa | 23 | 16968 | 75,9248 | 56) 47,9086 | 120666 | 89 | 65,6464 sesse2 | 24 | 17,7024 7r2e06 | 87 | 420432 | 122.022 | 90] 66,3840 33,8950 | 25 | 18,4400 7a.6364 | 58 | 42,7808 | 123,978 | 91 | 67,1216 35,2508 | 26 | 19,1776 rege | 59 | 43,5184 | 124,734 | 92] 67,8502 366068 | 27 | 19,0152 4s0 | 60 | 44,2560 | 126,089 | 93| 68,5968 | 37,9624 | 28 | 20,6528 82,7038 | 61 | 44,0036 | 127,445 | 94 | 69,3344 | s9,182 | 29 | 21,3008 s4osoe | 62 | 45.7312 | 128,801 | 95) 70,0720 40,6740 | 30 | 22,1280 a54is4 | 63 | 46,4688 | 120,157 | 96 | 70,8096 4208 | 31 | 22,8656 6712 | 64 | 47,2064 | 131,513 | 97 | 71,5472 43,3856 | 32 | 23,6032 261270 | 65 | 47.040 | 132868 | 98) 72,2848, 447414 | 33 | 24,3408 04828 | 66 | 486816 | 124.224 | 99] 73.0204 Issue 1 November 1991we 3000/3100 SERIES TRACTORS = Introduction 1A01.27 Capacity units Note: 4 litre = 0.2199 gallon imp. 1 US gallon = 3.79 res + gallon imp. = 4,5459 litres imp. gal. Litres | imp. gal. Litres | Imp. gal. Lives | o2iga | 1) 45459 zares | 34 | 184581 | 14,793 | 67 | 304,575 0,4398 2 9,0918 7,6965 35 159,107, 14,9532 68 309,127 | 0,6597 3 13,6377 79164 36 | 163,652 15,1731 69 313,667 os7ee | 4 | 13,1896 21963 | 37| 168,198 | 15,2990 | 70| 318,213 1095 | 5 | 22,7295 aasez | 38) 172,744 | 156129 | 71] 922,769 | 1,3194 6 27,2754 8.5761 39 177,290 15,8328 72 327,305 11,5393 7 31,8213 8,7960 40 181,836 16,0527 73 331,851 1,7592 8 | 36,3672 9,0159 4a 186,382 16,2726 74 336,397 x71 | 9 | 40.9131 gzase | 42| 19000 | 164025 | 75) sa0.04s 2,190 | 10 | 45,4590 9.ass7 | 43 | 195,474 | 16,7124 | 76 | 345,488 2.4189 11 | 50,0049 9.6756 44 200,019 16,9323 7 350,034 26388 | 12 | 54,5508 gssss | 45 | 204566 | 17,1522 | 78} 354580 | 2aser | 13 | seoce7 | 10.1154 | 46) 209111 | i7a721 | 79 | 359,126 3o7es | 14) 636426 | 10.9353 | 47 | 213657 | 17.5020 | 80 | 363672 32085 | 15 | 68,1885 10.5552 | 48 | 218203 | erro | o1| acezte | astea | 16 | 72,7344 | 10,7751 | 49] 222,749 | 190318 | 82 | 372,764 37ae3 | 17 | 77,2003 | 10.9950 | 50 | 207,205 | 182517 | ea | 77,10 | 3,9582 18 81,8262 11,2149 51 (231,841 18,4716 84 381,856 aire | 19 | 96.3721 114948 | 52 | 236.987 | 196015 | as | 386,402 4.3980 20 | 90,9180 11,6547 53 240,933 18,9114 86 390,947 aei7a | 21 | 954639 | 118746 | s4| 245,470 | 19,1913 | 87 | 395.408 4378 | 22 | 100,000 100 | 55 | 250,026 | 19.0512 |" 88 | 400.039 50577 | 23 | 104.556 yates | 56] 254570 | 195711 | 69 | 404,505 s.a776 | 24 | 109,102 125363 | 57 | 250,116 | 19,7010 | 90 | 409,131 54975 | 25 | 113,648 127542 | sa | 263.662 | 200109 | 91] 419.677 s7i74 | 26 | 118,193 v29741 | 53 | 268,209 | 202008 | 92| 418.223 sea7a_| a7 | 122730 | 13,1940 | €0 | 272.764 | 04507 | 99 | 422,769 61872. | 28 | 127,205 134139 | 61 | 277,200 | 206706 | 94 | 427.315 63771 29 | 131,831 13,6338 62 | 281,846 20,8905 95 431,861 6so70 | 20 | 196,377 138597 | 63 | 286.092 | 21,1108 | 96 | 436,406 satea | 31 | 140.923 140736 | 64 | 200938 | 219303 | 97 | 440,952 70368 | 32 | 145,469 142005 | 65 | 205.483 | 21.6502 | 08 | 445,408 7.2567 | 33 | 150015 145134 | 66 | 300029 | 21,7701 | 99 | 450,044 Issue 1 November 1991ome 3000/3100 SERIES TRACTORS 1A01.28 Introduction Capacity units Note : 1 litre = 1.7599 pinte imp. 1 pinte imp. =0,5682 litre 1 Litre = 2.113 US pints we imp. pt. Litres Imp. pt. Litres Imp. pt. Litres | 17590 | 1 | os682 sos3es | 34) 19.3188 | 117913 | 67 | 38,0604 35198 | 2] 1.1364 61.5965 | 35 | 19.8870 | 119673 | 68 | 38,6376 sare7 | 3} 1.7046 63.3564 | 36 | 20.4852 | 121.433 | 69} 39,2058 7osse | 4 | 22728 65,1163 | 97 | 21,0234 | 123,193 | 70 | 39,7740 a7os | 5] 28400 668762 | 38 | 21,5016 | 124953 | 71 | 40,3422 | 105500 | 6 | 3.4902 eseae1 | 39 | 22,1598 | 126713 | 72] 40,9104 y23i93. | 7 | 39774 70,3960 | 40 | 22,7280 | 128,473 | 73] 41,4786 sao7e2 | 8 | 45456 72,1869 | 41 | 23,2062 | 190,283 | 74 | 42,0468 sseag1 | 9 | 5.1138 7agiss | 42| 23,8644 | 131,993 | 75] 42,6150 17.5990 | 10 | 5,6820 75,6757 | 43 | 24,4326 | 133,752 | 76] 43,1892 19.ass9 | 11 | 6.2502 774386 | 44 | 25,0008 | 195512 | 7 | 43,7514 2iites | 12 | 68184 79,1985 | 45 | 25,5690 | 137.272 | 78] 44,3196 zes7s7 | 13] 7.3866 o.05sa | 46 | 26,1972 | 139.032 | 79} 44,8878 246386 | 14 | 7.9548 a2.71s3 | 47 | 26,7054 | 140,792 | 80 | 45,4560 263985 | 15] 8.5290 94.4752 | 48 | 27,2796 | 142,552 | 81 | 46,0242 28,1854 | 16 | 9.0912 862351 | 49 | 27.eais | 144.12 | e2| 46,5924 zogies | 17 | 96594 87,9950 | 50 | 28,4100 | 146,072 | 83 | 47,1606 316762 | 18 | 10,2076 eo.7sag | 51 | 28.9782 | 147,892 | 84 | 47,7288 aaase1 | 19 | 10,7958 915148 | 52 | 29,5464 | 149592 | 85 | 48,2970 36,1980 | 20 | 11,3640 s3747 | 53 | 30,1146 | 151,351 | 86) 48,6052 36579 | 21 | 11,9922 95,0346 | 54 | 30,6828 | 193,111 | 87 | 49,4334 38,7178 | 22 | 12,5004 96.7045 | 55 | 31,2510 | 154871 | 88 | 50,0016 40.4770 | 23 | 13,0686 98.5644 | sé | 31,8192 | 156631 | a9 | 50,5698 42.2376 | 24| 136368 | 100314 | 57 | 32,9874 | 158,391 | 90] 51,1980 43.9075 | 25 | 142050 | 102074 | 58] 32,9556 | 160,151 | 91| 51,7062 45,7574 | 26 | 14,7732 | 103834 | 59 | 335298 | te1912 | 92| 52,2744 97.5173 | 27 | 15,3414 | 105,504 | 60 | 34,0920 | 163671 | 93) 52,8426 492772 | 28 | 159096 | 107,054 | 61 | 34,6602 | 165,431 | 94] 53,4108 51.0371 | 29 | 16.4778 | 109,114 | 62 | 35,2084 | 167.191 | 95| 53,9790 52,7970 | 30 | 17.0460 | 110674 | 63} 35,7966 | 16950 | 96| 54,5472 | sasseo | a1 | 7142 | tr2634 | 64 | seae8 | 170710 | 97 | 55,1154 se3168 | 32 | 181824 | 114304 | 65 | 369330 | 172470 | 98| 55,6836 seo7er | 33} 19,7506 | 116153 | 66 | 37,5012 | 174,230 | 99] 56,2518 Issue 1 November 1991we 3000/3100 SERIES TRACTORS = Introduction 1A01.29 Length units sim = 9.2608 ft +t =0.304am ™ ft m ft m | | 0,3048 1 3,2808 10,3632 34 111,549 20,4216 67 219,816 oes | 2| 65617 | 10660 | 95 | 114829 | 20,7264 | 68 | 223,097 ooa | 3) acs | t09720 | 96] 110,110 | 210812 | 9 | 226878 rage | 4] ta2a4 | tere | a7 | terae1 | 24.3360 | 70 659 asec | 5 | teaoc2 | 11,5824 | 38] 124672 | 2rea08 | 71] 252.000 rszse | 6] 196860 | 119872 | 39 | tar953 | 21,046 | 72 | 236,220 2.1336, 7 22,9659 12,1920 40 131,234 22,2504 73 239,501 zasea | @ | 262407 | 124068 | 41 | 134514 | 2assse | 74 | 24a.702 27as2 | 9) 2aso7e | i2e016 | 42 | 197.705 | 22,8600 | 75| 246063 30480 | 10) 32e084 | 13,1064 | 43 | 141076 | 23.1648 | 76| 240,040 3.3528 1 36,0892 13,4112 44 144,357 23,4696 7 252,625 aes7e | 12) saa701 | 137160 | 45 | 147.608 | 23.7744 | 72 | 255,906 39624 | 13) 426509 | 140208 | 46 | 150919 | 240702 | 79} 259,186 42672 | 14] asoate | 149056 | 47 | 154109 | 243840 | a0 | 262,467 4.5720 15 49,2126 14,6304 48 157,480 (24,6888 81 265,748 are | 16) e904 | 149352 | 49 | 100.761 | 24,9906 | a2 | 269,020 sists | 17 | 55.7743 | 152400 | so | te40a2 | 25,2084 | a3 | 272,310 seca | ta) saosst | 155448 | 51 | t6r.aea | 25,032 | 84 | 275591 saz | 19) 623360 | 158406 | se | 170604 | 25,900 | 85 | 27ae71 60960 | 20) sets | 16,1544 | 53 | 173808 | 2a2128 | 06 | 280,152 6400s | 21 | eseo7e | te4soe | 54 | 177168 | 265176 | 87 | 285,438 670s | 22) 721785 | 167640 | 65 | 120446 | 268204 | é8 | 280,714 70104 | 23] 75.4893 | 17068 | 56 | 123.727 | 271272 | 89 | 291,905 7ais2 | 24) e742 | 17.9736 187,008 | 27.4320 | 90 | 205,276 76200 | 25] 820210 | 176764 | 50 | 190.269 | 27,7368 | 91 | 28.556 79243 | 26] asaote | 179802 | 59 | 193570 | 280816 | 92 | 301,897 2206 | 27 | 985827 | 10.2060 | 60 | 196850 | 2sa464 | 93 | 306,118 assis | 28) 01,8635 | 185028 | 61 | 200,131 | 226512 | 94 | 308,309 aeso2 | 20) 95,1404 | isea7e | 61 | 203.412 | 280560 | 95 | 311,680 9.140 | 30) 98.425¢ | 19.2024 | 63 | 206603 | 20,2608 | 96 | 314.961 ovaes | 31 | 101.7060 | 195072 | 6a | 2oa974 | 295686 | 97 | siazai 97636 | 32 | 1049870 | 198120 | 65 | 213,265 | 2aa7os | 08 | 301,522 10,0584 | 33 | 108.2680 2o.1t6s | 66 | 216535 | 30,1752 | 99 | 324,803 Issue 1 November 19913000/3100 SERIES TRACTORS 1A01.30 Introduction Weight units tkg = 22046 lo 1 Ib = 014536 kg kg tb kg T tb kg Ib | 04896 | 1 | 2.2046 15,4204 | 34| 74,9564 | 30,3912 | 67 | 147,708 ovo72 | 2| 44002 | 158760 | 25] 77,1610 | soeaee | 68} 149,018 19608 | 3| 6613s | 163206 | 96| 793656 | si.298¢ | 69 | 152,117 raia4 | 4] setea | 167092 | a7] 915702 | 31,7520 | 70] 154.322 220 | 5 | 110200 | 17.2368 | 33 | 93,7748 | 32,2086 | 71 | 156527 ares | 6| 132276 | 17.6004 | 39] asg7oa | s2es02 | 72] 158,731 ai7sz_ | 7 | 15,4322 ve1aa0 | 40} 86,te40 | 23.1128 | 73] 160,996 30288 | 8 | 17,6368 1so7e | 41} 90886 | 33.5664 | 74] 163,120 4ca24 | 9| 198414 | 90512 | 42] 925002 | 34,0200 | 75 | 165,345, 4.5360 10 22,0460 19,5048 43 94,7978 34,4736 76 167,549 4906 | 11 | 242508 | t995e4 | 44] o7o02a | 34.9272 | 77| 169.754 s4as2 | 12| 264552 | 204120 | 45] 99,207 | 25,9808 | 78] 171,958 sacce | 13 | 206508 | 208056 | 46] torai2 | 350044 | 79 | 174,103 63504 | 14] s0e64s | 213102 | 47| 103616 | 62880 | 80 | 176,268 egos | 15 | 230600 | 217728 | 48 | 105821 | s67aie | 81 | 178573 7.2576 | 16 | 952796 | 22,2264 | 49| 108025 | 37,1952 | a2| 180,777 zzz | 17 | 37.4762 | 22,6800 | 50] 110280 | s76de8 | 83 | 182,002 aieaa | 18 | 396028 | 23,1936 | 51 | 112,495 | 98,024 | a4 | 105,186 aeres | 19 | aiee7a | 235072 | 52 | 114639 | sessco | es | 147.901 90720 | 20 | 44,0920 | 240408 | s3| 116644 | 30,0096 | a6 | 109,506 95256 | 21 | 46,2066 | 244044 | 54] 119048 | 39,4632 | 97 | 191,800 99792 | 22 48,5012 24,9489 55 121,253 39,9168 88 194,005, | 10,4328 | 23 | 507058 | 25,4016 | 56| 123458 | 40,9704 | a0 | 196,209 10,8864 24 52,9104 25,8552 57 125,662 40,8240 90 198,414 113400 | 25] 851180 | 262008 | 58 | 27867 | ara7z6 | 91 | 200619 117936 | 26 | s7ai96 | 267624 | 59 | 20071 | ar7a12 | 92] 202.803 12,2472 27 59,5242 27,2160 60 | 132,276 42,1848 93 205,028 127008 | 28 | 61,7288 | 27,6098 | 61 | 12481 | 426384 | 94 | 207.202 | 13,1644 | 20 | 63.9094 | 28,232 | 62] 196685 | 43,0920 | 95 | 209,497 13,6080 | 30 | 66,1300 | 2as7es | 63| 10,60 | 4asas6 | 96 | 217,682 140616 | 31 | 68.3426 | 20,0302 | 6a | t4t00a | 43,9902 | 97 | 213,806 14sts2 | 32) 7osa72 | zo4e40 | 65] 143200 | 444528 | 98 | 216.051 ie9688 | 33 | 727518 | 29.9376 | 66 | 145504 | 44,0064 | 99 | 218,255 Issue 1 November 1991wo 3000/3100 SERIES TRACTORS me Introduction 1A01.31 a nvosa _ ‘TEMPERATURE rans |owcmae] mm [__lehesto mim | mm‘oinahes Fahverhet to Gass Teches [mm | mm | rehes | =F] -c [ce [oF wes | 015025 | 0.0000 -20 |-2e |-0 | -22 ize | osteso | o7ea7 es |-261 f-28 | 184 ayes | 488750 | 1.1906 -10 |-200 | -26 | -148 sine | osaso0 | 15875 | oco0r | o00ese | 000s | oooos| - 5 |-206 | 24 | 12 sis | 07ers | 984 | co02 | .c0808 | os | ovote] 0 | -iz8 | -22 76 ae | oes7s0 | 2aste | coos | 0762 | 0006 | ooces) 1 |-172 | -2 4 nes | s00875 | 27781 | 0004 | or016 | aoor | oo0er] 2 |-107 | -te | - 08 we | 125000} 3.1750 | 005 | 01270 | ooo | coos] 3 | -161 | -16 32 se | 140625 | as7i9 | 0006 | 01824 | 0.00 | 00s) 4 |-t56 | -14 88 sise | 136280 | aa6s7 | 0007 | 01778 | oor | ooo} 8 |-130 | -12 | 104 res | -17ie75 | 3686 | 0008 | ‘02032 | 002 | ovore] 10 |-122 |-10 | 14 arte | 187500 | 47625 | 0000 | 02280 | 00s | corte} ts |- 94 |-8 | ize saws | zostas | sso | oor | 0254 | oo¢ | ootsr] 2 |-e7 |-6 | are rez | 210760 | 53862 | 002 | 0808 | 00s | oter] as |- a0 |-4 | 248 tse | 204375 | 5051 | 003 | 0762 | oce | coe] ao |-11 |-2 | asa ww | 250000 | 6.3500 | 08 | 1016 | oor | coors] as | 17 | 0 | oe sree | 2ssezs | 67400 | 00s | ‘1270 | oe | ooars| 4 | a4 | 2 | as arse | 2ei2s0 | 7.1497 | 006 | ‘see | aoe | ooase] a5 | 72 | 4 | coz same | 2eeers | 78408 | .c07 | 1778 | 010 | onset] so | 100 | 6 | 42s se | 12800 | 73978 | 08 | 20a | 020 | oe) ss | we |. 8 | 454 euea | 26125 | esos | ov | 2086 | oso | ote] 60 | 156 | 10 | 50 wee | as7e0 | azoie | or | ase | oo | otss] os | 13s | 2 | s36 casa | 350875 | 9.1281 | 2 | sos | oso | ove) 70 | aur | 4 | sre ae | 76000 | 9250 | 3 | 762 | oso | oxse2) 75 | 220 | 16 | cos vspa | 300625 | oaaia | oe [1018 | a7 | 00756} 80 | 2c7 | 12 | oa vase | 06250 [103167 | 0s [127 | og | oats) 0s | 20a | 20 | o8 area | aore7s 1078s | 06 | 15a | os | ovsas) 909 | 202 | 22 | 70 re | aars00 |ai.t15 | 07 arma | 1 | cao] os | aso | 2 | 752 zoe | 453125 | 11000 | 08 |20se | 2 | ovsra] 100 | ore | 2 | 708 1ss2_| 40a750 | r1c082 | 09 [220 | 3 riatt] 108 | aoe | 23 | sou sues | ases7s |vzensi | 10 [asa | 4 | tsra| 10 | aaa | 0 | oe 1 | s00000 | 127000 | 20 |s0a | 5 | 9605] ts | 41 | a2 | ane saa | sis62s |130069 | 20 |7620 | 6 | 2622) 120 | a0 | a | 932 sae | ars |raaoar | ao fore | 7 | ares) is | sir | a6 | 68 Issue 1 November 1991me 3000/3100 SERIES TRACTORS we 1A01.32 Introduction — LENGTH ] 1 inch = 25,4 mm TEMPERATURE awe Jomma) mm [_retesio nm | rimieinae | Fatantitio Cae Tiches | mmm | wntos | >F[ =e | 6 [oF 546875 | 13,8906 05: 12,70 | 8 0,31498 130 544 38 100,4 seosoo |ia207s | 6 | ize} 9 | sass) tas | sve | ao | tos ‘sreras |isesaa | 7 | a77e| 10 | 0570) vo | ooo | «2 | tore 593750 | 15,0812 8 20,32 qt | 43307 145, 628 44 112.2 cosors |isa7e1 | 9 | 2206) 12 | 72a) 150 | oso | co | 1149 6250 | 15,8750 1 | 25,4 13 51181 185, 68.3, 48 118,4 saoses |isario| 2 | soe | 14 | sore] too | ria | so | ze jese050 | 60067 | 9 | raz | 18 | sooss| ies | 73a | so | tase riers |vvoes | 2 | oie | 16 | 62002 170 | 7a7 | se | 1292 687500 | 17,4625 5 127 7 66929 | 175 794 56 132.8 rosres |s7asce | ¢ | sca | ve | rose) 120 | c22 | se | to08 ‘y1e750 |1a2seo| 7 | 77a | co | r4e0a| tas | a50 | 60 | 140 raeors |ieeso: | 8 | 2082 | 20 | era) roo | are |e | vase reco |ig0s | 9 | 226 | 21 | 0677) 1s | ooo | oe | tara | 765625 | 19,4469 | 10 254 22 86814 200 | 93,3 66 150.8 | 781250 | 19,8437 | 11 279.4 23 90551 205, 961 68 154.4 | ‘7e6875 |202000 | 12 | oa | 24 | o4e0) 210 | ona | 70 | 155 ras00 |2oas7s | 19 | sao2 | 25 | seas] 212 | 1000 | 75 | 167 26125 |zioo% |r | ass0 | 26 | ioceee) 25 | torr | o | 176 aeo7so areare | 15 | ser | 27 | tosaa0 | 220 | roe | as | tas asos7s arses: | 1 | 4oea | 28 | r10036} 225 | tore | 0 | 194 ‘ers000 }222060 | 17 | asia | 29 | ctaiza| 230 | i100 | 05 | ans o06es |20ez10 | 1@ | asr2 | ao | tierto| 25 | i128 | 10 | ate ‘soeeso |asore7 | 19 | aazs | 31 | tze0ar| aw | t166 | 10s | zen 921875 | 23,4156 | 20 ‘508 a2 | 1.25084 245 1183 110, 230 sarsoo |2aeres | 21 | sana | sa | szo021| 250 | rata fis | 230 sesoras [242058 | 22 | ssa | ot | scones ,968750 | 24,6062 | 23 84,2 a4 1,37795 | seas7s [2scos: | 2 | coos | as | sairae 1 | 1,00 25,40 25 635 7 145669 2s | oso | 56 | 1.se05 oo | tases wo | 157480 Issue 1 November 1991we H. Sealants ‘The Loctite sealants quoted in this Workshop Service Manual are under their industrial names. For repair use the commercial name according to the chart below or where applicable use the power part equivalent. Introduction Loctite ‘Commercial Part Industrial Name Ne Name 221-244 Lock and Seal 3405350M1 242-542 | | 270 Stud lock 3405352 M3 510-518 Instant Gasket 3405355 M2 638-648 | Retainer 3405387 M1 Silicomet Superflex sealant RT, silicone sealant (clear) Note : Silicomet can be replaced by Hylosil (Powerpart). Use the product "Form A gasket 2” when sealing between plastic material and iron (or steel). Example : PTO sensor, vehicle speed sensor,. Loctite products may be ordered from Massey Ferguson Central Parts Operation. Application method for Loctite sealants 1. Remove all traces of previous sealants or corrosion by mechanical process : wire brush or emery cloth = by chemical application : use ‘Decaploc 88° Leave the productto take effect then scrap off and wipe clean. 2, Degrease the components witha solvent. Preferably use the ‘Loctite 706 Dry Super Solvent" or power part safely solvent. 3, Allow the solvent to vaporize 4, Apply the recommended type of sealant = for blind holes, coat only latest threads to the bottom ofthe hole, - for components which need to be pressed together, apply sealant on mating surfaces only using a clean brush, Wipe off excess sealants. = for gasket faces, apply a bead on one face only. Pass around the holes, then tighten as rapidly as possible. IMPORTANT : If the ambient temperature is below 10° C, in order to accelerate the action of the sealant (except for 3000/3100 SERIES TRACTORS me 1A01.33 Silicomet) after operation 2, use Loctite activator 1747 onatleastone surface, Excess sealant, outside the joint vill not harden (anaerobic curing of product) i.e. curing occurs only because of the absence of oxygen Therefore wipe the excess off. Note a) Do not attempt to retighten after 5 minutes of curing as this may break the bead of product. b) Donotuse too much product to avoid blocking of mating parts. Grease When grease is used in components which are in contact with transmission oil, use @ grease which is miscible with oil to avoid blocking the hydraulic filters, Use "Amber Technical" grease supplied by WITCO company, 76320 Saint-Pierre des Elfes, France , or equivalent. L. Tightening torques When reassembling components, use the ‘standard Torque’ charts as a general quide when tightening fasteners that OO NOT HAVE SPECIFIC TIGHTENING recommendations -1and2 : for metric fasteners -3.and4 : for inch fasteners When a specific torque is necessary, itis mentioned in the text Charts 1 and 3 show normal torque loadings applied to galvanized threaded fasteners with normal nuts with a coarse or fine thread, with or without flat or lockwashers, and weld nuts deeper than 0.8 d. Charts 2 and 4 show reduced torque loadings appiied to threaded fasteners in assemblies with self-locking galvanized nuts, phosphated nuts or bolts, shallow nuts and weld nuts shallower than 0,8 Torques recommended in these charts are for dry parts. If the threads are oiled, reduce the torque, NOTE: a} Read the strength classification on the boll head and determine the torque loading required. ) The size is the diameter of the shank - not the head width, EG Issue 1 November 19911A01.34 Introduction CHART 1 Standard torque values : zinc plated metric threads STRENGTH CLASSIFICATION STRENGTH CLASSIFICATION so88 10 109 Nominal (SAE 5 BS S) (SAE 8 BS V) Size Torque Nm Torque Nim Max Min Max Min M3 17 Fe oa 8 Ma 4a 31 57 43 Ms. 8 6 118 85 Me 14 10 20 “4 MB 35, 25 46 36 | Mio 70 50 96 72 me 120 90 160 120 M16 260 200 400 300 M20 560 420 800 600 2a 960 720 +300 1000 M30 1800 1400 2800 2100 M36 3300 2500 4800 23600 CHART 2 Standard reduced torque values : metric threads | STRENGTH CLASSIFICATION | STRENGTH CLASSIFICATION sO 8.8 ISO 10.9 Nominal (SAE 5 BS S) (SAE 8 BS V) | Size ‘orque Nm que N. Max Min Max Min 14 Tt 1.9 15 33 25 46 34 64 48 92 68 | 8 16 12 20 7 29 40 7 57 | 72 130 100 160 320 240 340 640 480 570 | 1040 200 1100 2200 1700 2000 3800 Issue 1 November 1991wa 3000/3100 SERIES TRACTORS - =e Introduction 1A01.35 CHART 3 Standard torque values : zinc plated inch threads ‘STRENGTH CLASSIFICATION _| STRENGTH CLASSIFICATION SAES SAEE Nominal (ISO 8.8 BSS) (ISO 10,985 V) Size rorquue Nem rorque _ Max Min Min 6 24 18 25 #8 4g 3.4 a7 #10 63 47 67 4 18 4 16 site 30 22 31 38 53 39 55 7116 86 64 120 80 2 130 100 180 140 5/8 260 200 370 280 3/4 | 460 350 660 490 718 760 560 | 1060 800 1 1120 840 1600 1200 1118 1390 1050 | 2200 1700 144 2000 1500 3200 2400 112 3400 2600 5400 4100 CHART 4 Standard reduced torque values : inch threads STRENGTH CLASSIFICATION | _ STRENGTH CLASSIFICATION SAE 5 SAE S Nominal ____(1S0.8,8 BS S) (ISO 10,9 BS V) Size ‘Torque N.m Torque N.m_ 7 _ Max Min Max Min #6 1.9 15 26 2 8 35 27 5 38 #10 5 38 7 53 14 12 a8 18 13 5/16 24 18 34 25 3/8 42 31 60 44 | 76 69 51 96 72 12 104 80 140, 110 5/8 210 160 } 300 220 314 | 370 280 530 390 718 610 450, 850 640 1 900 670 1280 960 118 100 840 1760 1360 11a 1600 1200 2560 1920 12 2700 2100 4320 3280 Issue 1 November 1991
