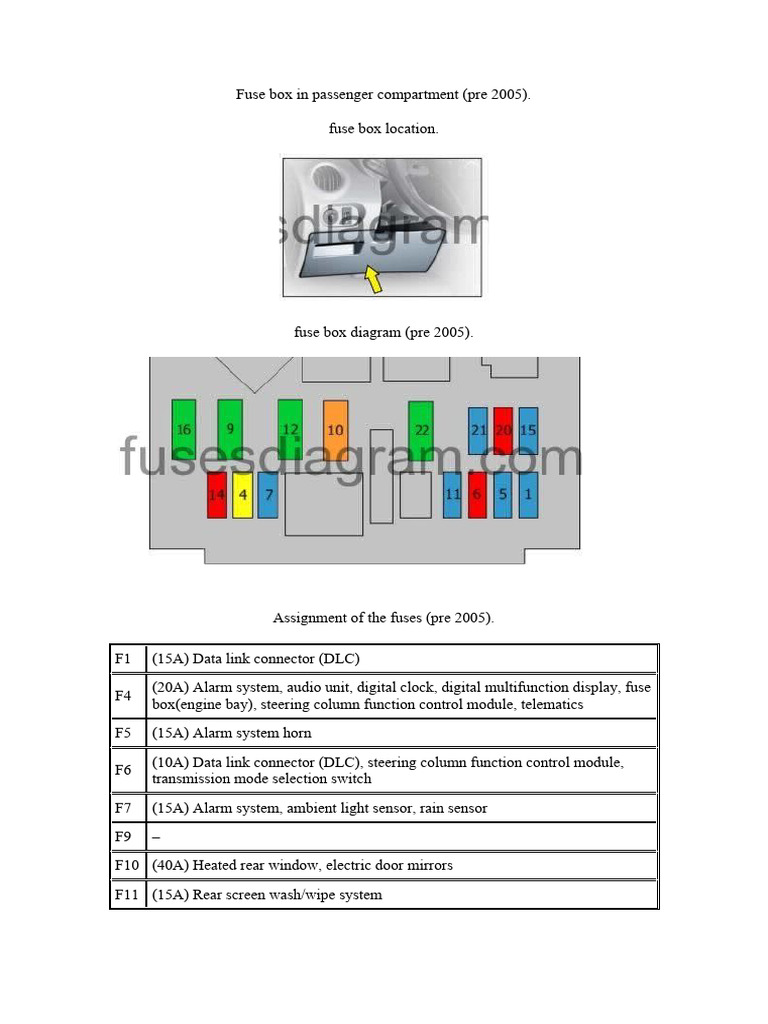

Fuse box in passenger compartment (pre 2005).

fuse box location.

fuse box diagram (pre 2005).

Assignment of the fuses (pre 2005).

F1 (15A) Data link connector (DLC)

(20A) Alarm system, audio unit, digital clock, digital multifunction display, fuse
F4
box(engine bay), steering column function control module, telematics
F5 (15A) Alarm system horn
(10A) Data link connector (DLC), steering column function control module,
F6
transmission mode selection switch
F7 (15A) Alarm system, ambient light sensor, rain sensor
F9 –
F10 (40A) Heated rear window, electric door mirrors
F11 (15A) Rear screen wash/wipe system
F12 (30A) Electric windows
(10A) Fuse box (engine bay), SRS control module, steering column function
F14
control module
(15A) Audio unit, digital multifunction display, heater/air conditioning (AC),
F15
instrument panel, parking aid control module, telematics
F16 (30A) Central locking
F20 (10A) RH tail lamp
F21 (15A) LH tail lamp, stop lamp (high level)
(30A) Accessories connector – front, audio system, cigarette lighter, electric
F22 door mirrors, interior lamp, digital clock, licence plate lamps, vanity mirror
lamps

Fuse box in engine compartment (pre 2005).

To access the fusebox located in the engine compartment, remove the battery cover and
detach the lid.

fuse box diagram (pre 2005).

 egend (pre 2005).

(10A) Electronic stability program (ESP) control module, fuel/water separator

1 sensor, glow plugs, reversing lamp, transmission control module (TCM),
vehicle speed sensor (VSS)
2 (15A) Fuel pump
3 (10A) ABS control module, electronic stability program (ESP) control module
(10A) Brake pedal position (BPP) switch, clutch pedal position(CPP) switch,
cruise control, engine control module (ECM), engine coolant heater relays,
4
engine coolant ‘low’ sensor, power steering control module, starter motor
inhibitor switch relay
5 (10A) Fuel additive control module – (if fitted)
6 (15A) Front fog lamps
7 (20A) Headlamp washer pump
8 (20A) Engine management
9 (15A) LH headlamp – low beam
10 (15A) RH headlamp – low beam
11 (10A) LH headlamp – high beam
12 (10A) RH headlamp – high beam
13 (15A) Horn
14 (10A) Windscreen/rear screen washer pump
15 (30A) Engine management
16 (30A) Secondary air injection (AIR) pump
17 (30A) Windscreen wiper motor
18 (40A) Heater/air conditioning (AC)
MF1 (30A) Engine coolant blower motor
MF2 (30A) Anti-lock brake system (ABS)
MF3 (30A) Anti-lock brake system (ABS)
MF4 (60A) Multifunction control module 1
MF5 (70A) Multifunction control module 1
MF6 (20A) Heated seats
MF7 (30A) Ignition switch
MF8 (80A) Power steering
