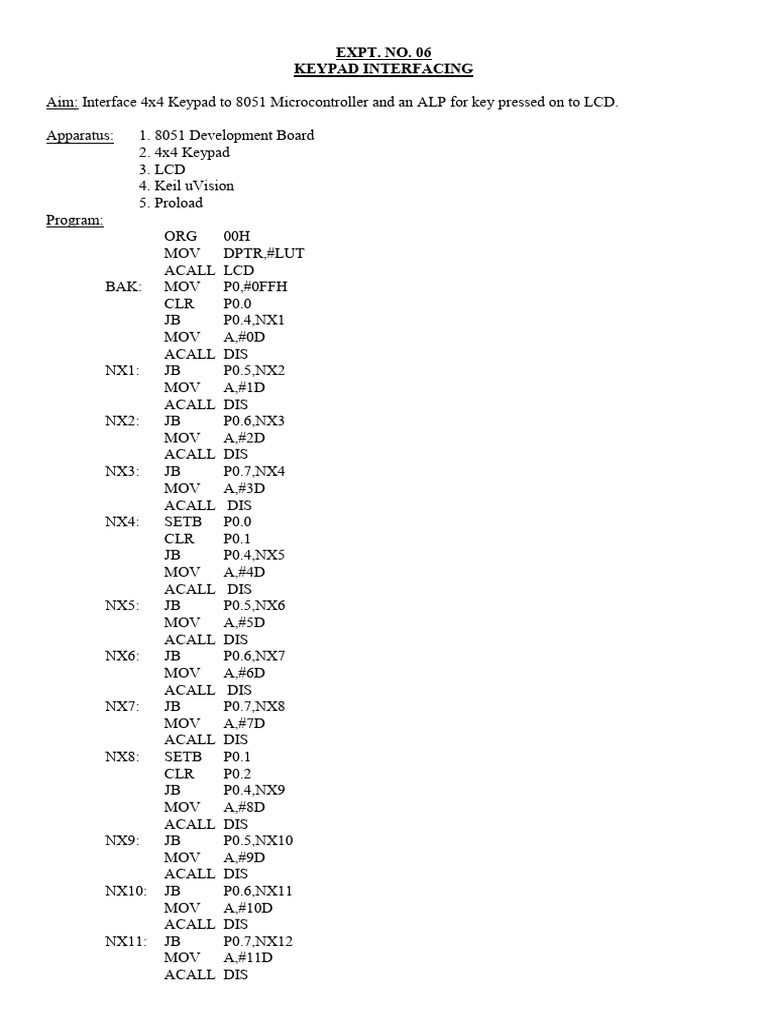

EXPT. NO.

06
KEYPAD INTERFACING

Aim: Interface 4x4 Keypad to 8051 Microcontroller and an ALP for key pressed on to LCD.

Apparatus: 1. 8051 Development Board


2. 4x4 Keypad
3. LCD
4. Keil uVision
5. Proload
Program:
ORG 00H
MOV DPTR,#LUT
ACALL LCD
BAK: MOV P0,#0FFH
CLR P0.0
JB P0.4,NX1
MOV A,#0D
ACALL DIS
NX1: JB P0.5,NX2
MOV A,#1D
ACALL DIS
NX2: JB P0.6,NX3
MOV A,#2D
ACALL DIS
NX3: JB P0.7,NX4
MOV A,#3D
ACALL DIS
NX4: SETB P0.0
CLR P0.1
JB P0.4,NX5
MOV A,#4D
ACALL DIS
NX5: JB P0.5,NX6
MOV A,#5D
ACALL DIS
NX6: JB P0.6,NX7
MOV A,#6D
ACALL DIS
NX7: JB P0.7,NX8
MOV A,#7D
ACALL DIS
NX8: SETB P0.1
CLR P0.2
JB P0.4,NX9
MOV A,#8D
ACALL DIS
NX9: JB P0.5,NX10
MOV A,#9D
ACALL DIS
NX10: JB P0.6,NX11
MOV A,#10D
ACALL DIS
NX11: JB P0.7,NX12
MOV A,#11D
ACALL DIS
NX12: SETB P0.2
CLR P0.3
JB P0.4,NX13
MOV A,#12D
ACALL DIS
NX13: JB P0.5,NX14
MOV A,#13D
ACALL DIS
NX14: JB P0.6,NX15
MOV A,#14D
ACALL DIS
NX15: JB P0.7,BAK
MOV A,#15D
ACALL DIS
LJMP BAK
LCD: MOV A,#38H
ACALL CMN
MOV A,#0FH
ACALL CMN
MOV A,#01H
ACALL CMN
MOV A,#06H
ACALL CMN
MOV A,#82H
ACALL CMN
RET
CMN: MOV P1,A
CLR P3.5
CLR P3.4
SETB P3.3
CLR P3.3
ACALL DEY
RET
DIS: MOVC A,@A+DPTR
MOV P1,A
SETB P3.5
CLR P3.4
SETB P3.3
CLR P3.3
ACALL DEY
RET
DEY: CLR P3.3
CLR P3.5
SETB P3.4
MOV P1,#0FFH
SETB P3.3
MOV A,P1
JB ACC.7,DEY
CLR P3.3
CLR P3.3
RET
LUT: DB '1','2','3','A'
DB '4','5','6','B'
DB '7','8','9','C'
DB '*','0','#','D'
END

Output:
