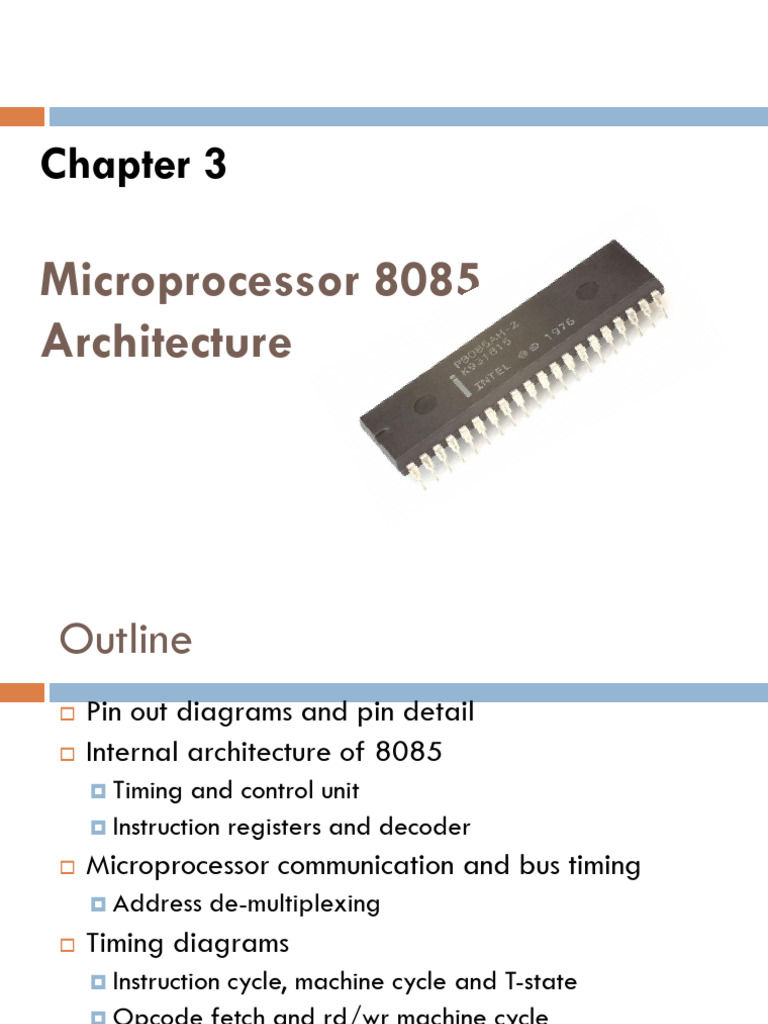

Chapter 3

Microprocessor 8085
Architecture
Outline
 Pin out diagrams and pin detail
 Internal architecture of 8085
 Timing and control unit
 Instruction registers and decoder

 Microprocessor communication and bus timing

 Address de-multiplexing
 Timing diagrams
 Instruction
cycle, machine cycle and T-state
 Opcode fetch and rd/wr machine cycle

 Generation of control signals

 Memory rd/wr and I/O rd/wr
Intel 8085 Pin Configuration
Pin out diagrams and pin details
 The 8085 is an 8-bit general purpose microprocessor
that can address 64K Byte of memory.
 It has 40 pins and uses +5V for power. It can run at a
maximum frequency of 3 MHz.
 The pins on the chip can be grouped into 6 groups:
 Address Bus.
 Data Bus.
 Control and Status Signals.
 Power supply and frequency.
 Externally Initiated Signals.
 Serial I/O ports.
 The 8085 pin out and Signals
GND
. X1 1 40 Vcc
Serial 1 2
+5V
40 20
X2 2 39 HOLD I/O X1 X2 Vcc Vss
3 HLDA SID 4
RESET OUT 38 ports A15 28
SOD 4 37 CLK (OUT) SOD 5
High-order
SID 5 36 RESET IN Address bus

TRAP 6 35 READY TRAP 6 A8 21

RST 7.5 7 8085A 34 IO/M RST 7.5 7 AD7 19

8085A
RST 6.5 8 P 33 S1 RST 6.5 8 Address/Data
RD
P bus
RST 5.5 9 32 Externally RST 5.5 9
INTR 10 31 WR initiated AD0 12
INTR 10
ALE signals
INTA 11 30 READY 35
AD0 12 29 S0 HOLD 39 30 ALE
AD1 13 28 A15 29 S0 Control
RESET IN 36
AD2 14 27 A14 33 S1 &
AD3 15 A13 status
26 34 IO/M
External INTA 11 signals
AD4 16 25 A12 32 RD
signals HLDA 38
AD5 17 24 A11 31 WR
Acknowledg
AD6 18 23 A10 ment
AD7 19 22 A9 3 37
Vss 20 21 A8
RESET OUT CLK (OUT)
The Address and Data Bus Systems
 The address bus has 8 signal lines A8 – A15
which are unidirectional.
 The other 8 address bits are multiplexed (time

shared) with the 8 data bits.

 So, the bits AD0 – AD7 are bi-directional and serve as A0 –
A7 and D0 – D7 at the same time.
 During the execution of the instruction, these lines carry
the address bits during the early part, then during the
late parts of the execution, they carry the 8 data bits.
The Control and Status Signals

 There are 4 main control and status signals.

These are:
 ALE: Address Latch Enable. This signal is a pulse that
become 1 when the AD0 – AD7 lines have an address on
them. It becomes 0 after that. This signal can be used to
enable a latch to save the address bits from the AD lines.
 It is a positive going pulse generated every time the
8085 begins an operation (machine cycle).
 It goes high during the first clock cycle of a m/c and
enables the low-order address to be latched thus
generate the A0-A7 address lines.
The Control and Status Signals Cont…

 IO/M(output):
This signal specifies whether the operation
is a memory operation (IO/M=0) or an I/O operation
(IO/M=1).
 when it goes high, the address on the bus is for I/O device –thus
it indicates an I/O operation
 when it goes low, the address on the bus is for the memory
location-thus it indicates a memory operation
 S1 and S0(output) : Status signals to specify the kind of
operation being performed. Usually not used in small
systems
 The Control and Status Signals Cont…

 RD (output): is a READ control signal (active low).

 when it goes low, the selected memory location or I/P
device is read and data is available on the data bus
 WR (output): it is a Write control signal (active low).
 when it goes low, the data on the data bus is written in
to the selected memory location or o/p device
 IO/M Operations Operations Status
(machine cycle) Control Signal
0 Memory Operation IO/M S1 S0
1 I/O Operation Opcode Fetch 0 1 1 RD=0
Table: Memory and I/O operations Memory Read 0 1 0 RD=0
Memory write 0 0 1 WR=0
S1 S0 Operations
I/O Read 1 1 0 RD=0
0 0 HALT
0 1 WRITE I/O Write 1 0 1 WR=0
1 0 READ Interrupt Ack 1 1 1 INTA=0
1 1 FETCH Halt z 0 0 RD, WR=z, INTA=1
HOLD z x x RD, WR=z, INTA=1
Table: status codes for 8085
RESET z x x RD, WR=z, INTA=1

Table: 8085 m/c status and control signals

Power supply and Frequency Control
Signals
 There are 3 important pins in the frequency
control group.
 X0 and X1 are the inputs from the crystal or clock
generating circuit.
 The frequency is internally divided by 2.
 So, to run the microprocessor at 3 MHz, a clock
running at 6 MHz should be connected to the X0 and
X1 pins.

 CLK (OUT): An output clock pin to drive the clock of the rest
of the system(to other digital Ics).
 VCC: +5Vdc, Vss: GND
Externally generated signals
 READY (input): used to synchronize slower
peripherals with the MP.
 That is it is used by the MP to sense whether a
peripheral is ready to transfer data or not.
 If high- ready, else MP get into wait state

 HOLD (output): This signal is used to indicate

whether a device (e.g. DMA) is requesting
system bus
 HOLD signal is High, the MP relinquishes the bus for the
requesting device using HLDA
Externally generated signals…
 INTR (input): Interrupt request signal.
 INTA (output): Interrupt Acknowledge signal. It is
active low.
 RST 5.5, RST 6.5, RST 7.5, TRAP (inputs): they
are external vectored interrupt signals.
 RESET IN (input): All internal operations are
suspended and resets the PC to 0000H. The buses
are tri-state and the MP is reset.
 itdoes not affect any other flag or register except the
instruction register (IR).
. INTR INTA RST 5.5 RST 6.5 RST 7.5 TRAP SID SOD

Serial I/O
Interrupt Control Control

8-bit internal data bus

MUX
IR (8)
W (8) Z (8)

Reg. select. decod

Temp. B (8) C(8)
ACC (8)
Reg (8) Flags (5) D (8) E (8)
Instruction
H (8) L (8)
Decoder &
M/code SP (16)
ALU encoder PC (16)
(8)
Incrementer/
+5V decrementer
GND Address latch
X1 Timing & Control
X2 Control Status DMA Reset

IO/M
AB(8) ADB (8)
WR ALE HOLD HLDA RESET OUT
CLK OUT READY RD S0 S1 RESET IN
A15-A8 AD7-AD0
Fig. The 8085A MP functional block diagram
Timing & Control Unit
 This unit synchronizes all the MP operations with
the clock and generates the control signals
necessary for communication between the MP &
peripherals
 it generates timing and control signals which are necessary
for the execution of instructions.
 it provides status, control and timing signals which are
required for the operation of memory and I/O devices
 it controls the entire operations of the MP and
peripherals connected to it
 CU acts as the brain of the computer system
Instruction Register & Decoder

 IR and the decoder are part of the ALU

 IR holds the instruction fetched from memory

 The decoder decodes the instruction and

establishes the sequences of events to follow
 IR is not accessible and can not be
programmed through any instruction
 Microprocessor communication and
Bus timings

Figure : Moving data form memory to MP using instruction MOV C, A

(code machine 4FH = 0100 1111)
Microprocessor communication and Bus
timings…
 The Fetch Execute Sequence :
1. The μp placed a 16 bit memory address from PC
(program counter) to address bus.
– Figure : at T1
– The high order address, 20H, is placed at A15 – A8.
– the low order address, 05H, is placed at AD7 - AD0 and ALE
is active high.
– Synchronously the IO/M is in active low condition to show it is
a memory operation.
2. At T2 the active low control signal, RD, is activated so
as to activate read operation; it is to indicate that the
MP is in fetch mode operation.
Microprocessor communication and Bus
timings…
Microprocessor communication and Bus
timings…
3. T3: The active low RD signal enabled the byte
instruction, 4FH, to be placed on AD7 – AD0 and
transferred to the MP. While RD high, the data bus
will be in high impedance mode.
4. T4: The machine code, 4FH, will then be decoded in
instruction decoder. The content of accumulator (A)
will then copied into C register at time state, T4.
De-multiplexing the Bus AD7-AD0
 From the above description, it becomes obvious that
the AD7–AD0lines are serving a dual purpose and
that they need to be demultiplexed to get all the
information.
 The high order bits of the address remain on the
bus for three clock periods. However, the low order
bits remain for only one clock period and they
would be lost if they are not saved externally.
De-multiplexing the Bus AD7-AD0…

 To make sure we have the entire address for the full

three clock cycles, we will use an external latch to
save the value of AD7–AD0 when it is carrying the
address bits. We use the ALE signal to enable this
latch.
 Given that ALE operates as a pulse during T1, we
will be able to latch the address. Then when ALE
goes low, the address is saved and the AD7–AD0
lines can be used for their purpose as the bi-
directional data lines
De-multiplexing the Bus AD7-AD0…
De-multiplexing the Bus AD7-AD0…
A15 A15

High-order
8085 Address Bus
MP

A8 A8
ALE
G
CLK
AD7 D Q A7
74LS373
Low-order
Octal Latch
Address Bus

AD0 OC A0

D7
8-bit
Data Bus

D0
Timing Diagrams
 It is a representation of Various Control signals generated during Execution
of an Instruction
Instruction Cycle : the necessary steps that a CPU carries out to fetch an
opcode from memory and decode it and read necessary data from
memory and execute it and store the result back to memory (if any)
constitute an instruction cycle.
- an instruction cycle consists of a fetch cycle and execute cycle. Thus
the total time required to execute an instruction is given by
IC = FC + EC
Fetch cycle:- constitute the necessary steps which are carried out to
fetch an opcode from the memory
Execute cycle:- constitute the necessary steps which are carried out to
get (read) data, if any, from the memory and to perform the specific
operation(s) specified in the instruction and stored the result, if any.
After the instruction is decoded , execution begins.
- In the execute operation: after the instruction is decoded (during fetch cycle)
execution begins.
• If the operand is in GPRs, execution is immediately performed---the time
taken in decoding and executing is one clock cycle.
• If an instruction contains data or operand or address which are still in
memory, the CPU has to perform memory read operations to get the
desired data. After receiving the data it performs execute operation. i.e., in
some instructions an execute cycle may involve one or more Read or Write
cycles or both.

Wait Cycle:- clock cycle(s) for which the MP waits till, incase, a slow memory sends the
opcode. Most of the CPUs have been designed to introduce WAIT cycles to cope with
slow memories.

Machine cycle: constitute necessary steps carried out to perform an operation such as
fetch operation, memory read/write, I/O read/write operations.
- an instruction cycle may consist 1 to 5 machine cycles.

T-sate: one clock cycle of the system clock. One m/c may consist 3 to 6 T-states.
 • Most fetch cycles have 4 T-states. Some can be 5 or 6 T-
states.
Opcode Fetch (M1)
• IO/M goes low indicating that the address is for memory
CLK
T1 T2 T3 T4 • S1=1, S0=1 for fetch operation.
• A8-A15 transmits the 8-MSBs of the memory address of
opcode.
A8-A15 PCH unspecified
• During T1, the 8-LSB of address are sent on AD0-AD7
OUT IN and are latched during T2, thus AD0-AD7 are made
AD0-AD7 PCL Opcode free for opcode fetching during T2 & T3.
D0-D7 • RD is asserted low during T2, to enable the memory for
IO/M fetch operation. Now opcode is placed on AD-bus.
Memory operation
• During T3 the opcode is placed in IR , RD goes High and
Fetch
disables the memory.
S1,S0 • The fetch cycle is completed during T3.
• The opcode is decoded during T4.
ALE Note: The MP examines READY signal in T2, and if it is
high, the MP enters into T3, otherwise if it is low the
RD MP enters a WAIT state between T2 and T3.
Note: if the operands are in GPRs, the decoding of the
opcode and its execution takes only one machine cycle
and 4 T-states. Examples of such instructions include:
Fig. Timing diagram for memory fetch operation MOV r1, r2 ADD r SUB r RAL
etc.
 Memory Write . Memory write cycle has 3 T-states.
T1 T2 T3 . IO/M goes low indicating that the
CLK
address is for memory.
.S1=0, S0=1 for write operation.
A8-A15 High-order address
OUT
. A8-A15 transmits the 8-MSBs of the
OUT
AD0-AD7 A0-A7 Data
memory address of data.
D0-D7 . During T1, the 8-LSB of address are sent
IO/M
Memory operation on AD0-AD7 and are latched during T2
thus AD0-AD7 are made free for data
S1
Write transfer.
S0
. Data is placed on AD0-AD7 bus during
T2 by the CPU.
ALE
. WR is asserted low during T2, to enable
WR the memory for Write operation.
. During T3 the data enters into memory,
WR goes High and terminates the write
Fig. Timing diagram for memory Write operation
operation
 Memory Read . Memory read cycle has 3 T-states.
T1 T2 T3 . IO/M goes low indicating that the address is for
CLK memory.
. S1=1, S0=0 for read operation.
A8-A15 High-order address . A8-A15 transmits the 8-MSBs of the memory
OUT IN address of data.
AD0-AD7 A0-A7 Data
. During T1, the 8-LSB of address are sent on AD0-
D0-D7
IO/M AD7 and are latched during T2 thus AD0-AD7
Memory operation are made free for data transfer.
S0 . RD is asserted low during T2, to enable the
Read
S1 memory for read operation. Now data is
placed on data bus.
. During T3 the data enters into CPU, RD goes High
ALE
and disables the memory.
RD

Fig. Timing diagram for memory read operation

 Instruction Cycle

Opcode Fetch (M1) Memory Read (M2)

CLK
T1 T2 T3 T4 T1 T2 T3

A8-A15 PCH unspecified High-order address

OUT IN OUT IN
AD0-AD7 PCL Opcode A0-A7 Data8

D0-D7 D0-D7

Fetch M. Read
IO/M
Status IO/M=0, S1=1,S0=1 IO/M = 0, S1=1,S0=0
S1,S0

ALE

RD

Fig. Timing diagram for execution of the instruction MVI r, data8

 Generation of Control Signal

• The following fig. shows how memory and I/O control signals are generated using
RD, WR, and IO/M and logic gates.

IO/M RD WR control signal 74LS32

Quadruple 2-i/p
0 0 1 MEMR OR Gates
0 1 0 MEMW
MEMR
1 0 1 IOR
8085 MP MEMW
1 1 0 IOW
IO/M
IOR
RD

IOW
WR

Fig. Schematic to generate Read/Write Control Signals for memory and I/O
74LS04
Hex converter
- Memory read operation takes place when IO/M and RD both are LOW.
- Memory Write operation takes place when IO/M and WR both are LOW.
- I/O read operation takes place when IO/M is HIGH and RD is LOW.
- I/O write Takes place when IO/M is HIGH and WR is LOW.
