1 Solution description

1.1 Central Issuance System

1.2 Central Issuance System

MX6100 CONFIGURATION AND FOOTPRINT

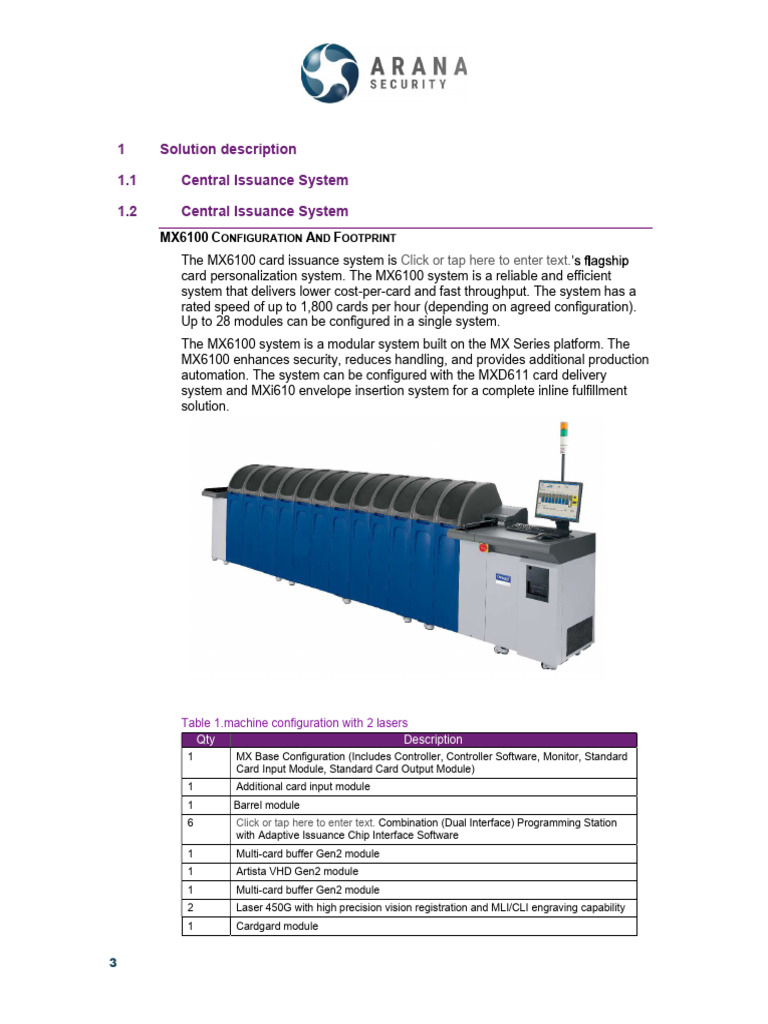

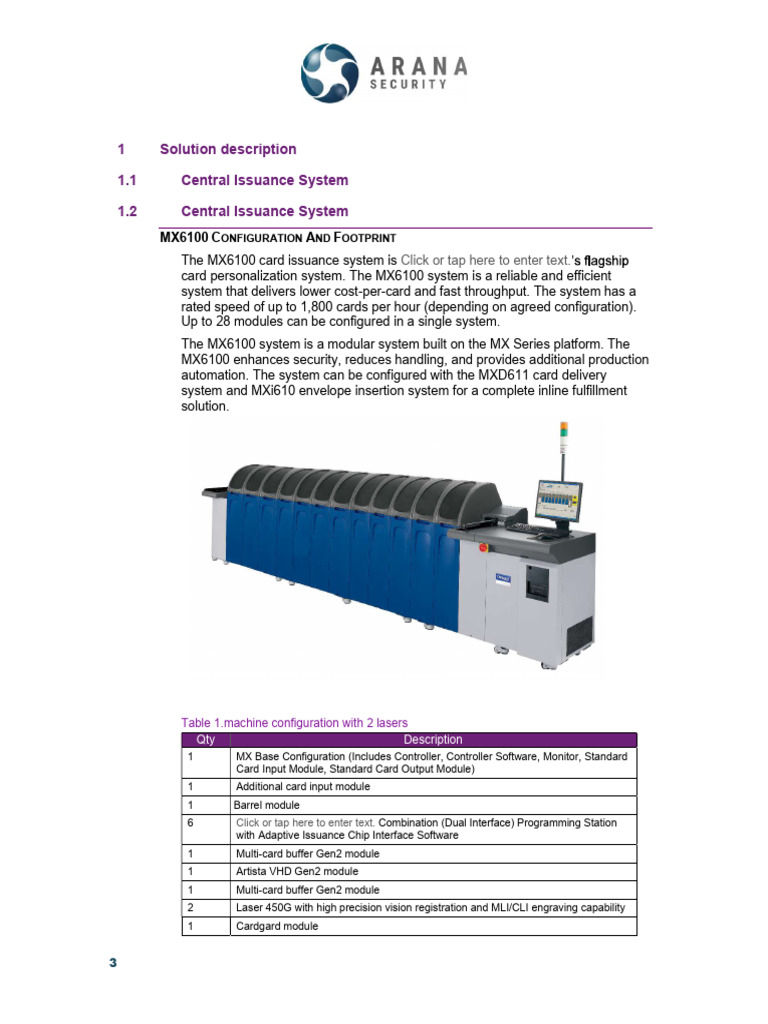

The MX6100 card issuance system is Click or tap here to enter text.
card personalization system. The MX6100 system is a reliable and efficient
system that delivers lower cost-per-card and fast throughput. The system has a
rated speed of up to 1,800 cards per hour (depending on agreed configuration).
Up to 28 modules can be configured in a single system.
The MX6100 system is a modular system built on the MX Series platform. The
MX6100 enhances security, reduces handling, and provides additional production
automation. The system can be configured with the MXD611 card delivery
system and MXi610 envelope insertion system for a complete inline fulfillment
solution.

Table 1.machine configuration with 2 lasers

Qty Description
1 MX Base Configuration (Includes Controller, Controller Software, Monitor, Standard
Card Input Module, Standard Card Output Module)
1 Additional card input module
1 Barrel module
6 Click or tap here to enter text. Combination (Dual Interface) Programming Station
with Adaptive Issuance Chip Interface Software
1 Multi-card buffer Gen2 module
1 Artista VHD Gen2 module
1 Multi-card buffer Gen2 module
2 Laser 450G with high precision vision registration and MLI/CLI engraving capability
1 Cardgard module

3
 Table 2.machine configuration with 1 laser

Qty Description
1 MX Base Configuration (Includes Controller, Controller Software, Monitor, Standard
Card Input Module, Standard Card Output Module)
1 Additional card input module
1 Barrel module
3 Click or tap here to enter text. Combination (Dual Interface) Programming Station
with Adaptive Issuance Chip Interface Software
1 Multi-card buffer Gen2 module
1 Artista VHD Gen2 module
1 Multi-card buffer Gen2 module
1 Laser 450G with high precision vision registration and MLI/CLI engraving capability
1 Cardgard module

4
 Electrical Requirements: 230V, 50/60 Hz, 15 Amps
Operating Requirements: Room temperature: 18° to 27° C and constant
Humidity: 20% to 85% (non-condensing) and constant
Clearance around the machine: 1 meter
The environmental conditions shall be constant and homogeneous around the
machine.
No air conditioning close to the machine. No air flow close and in the direction of
the machine.

5
 1.2.1 MX6100 System key features
Features Advantages
Multi-level Protects data elements and
security system access at varying levels
Common Field-proven and upgradable
software software minimizes operator
training and helps prevent
operator mistakes
Proven Reduces time associated with
reliability maintaining the system
Lowers per-card costs of
service and maintenance
Details
MX Series Controller Software and Microsoft
Windows 10 provide long-term compliance
with audit requirements.
PC, ports, and network connections are
physically contained.
Optional standard capacity modules with
locking input/output trays and module covers
are available.
Operator screens are easy-to-use and
understand.
System interaction is performed easily and
quickly.
Easy access for service technicians
because common components used
throughout the system.

Maximized Reliable, efficient system allows
production you to take advantage of
efficiency system speed and small job
processes to increase system
and operator throughput
Lowers labor cost per card
Supply conservation methods
help lower supply cost-per-card
Protects capital System can be configured to
investment meet your current needs and
then be upgraded as needed
Modules can be added to
increase speed or add
functionality
Card quality and All personalization functions are
system integrity designed to deliver the highest
possible card production quality
The system checks and verifies
operator activities to minimize
mistakes impacting quality
production
Designed to help ensure high system uptime
and minimize time associated with activities
that cause the system to stop or pause.
Maximizes yields when using Entrust®
Certified Supplies.
Designed to be easily upgraded or
reconfigured in the field to accommodate
dynamic production needs.
Modules meet ISO specifications for
embossing and card printing.
Highest quality supplies provide visual
quality and durability.
System constantly tracks cards to reduce
data and production errors.

1.2.2 MX6100 System component descriptions

Prime Purpose Module Name Notes
To control the System Controller The (single) user interface for configuring system
system and Gen 2 components.
manage data The module offers:
System pause and change feature.
An efficiency feature that allows the operator to run
multiple jobs that require different supplies as one job,
thus increasing the average job size.
Mandatory component.

6
 Prime Purpose Module Name Notes
To feed card into Standard Capacity The module includes 1 non-removable tray. The tray
the system Card Input Module holds up to 550 cards (fewer for embossed).
Gen 2 Can configure up to 5 modules.
Either the high capacity or standard capacity input module
is mandatory.
To enhance quality Card Cleaning The module removes dust from the card.
Module Gen 2
To personalize Barrel Smart Card Without limiting system throughput, the module allows
contact, Personalization smart card capacity to grow to accommodate longer
contactless, dual Module Gen 2 encoding times.
interface, and The module also:
hybrid cards in a Eliminates the need for separate contact and
single module
contactless smart card modules, reducing the capital
investment while keeping quality accuracy high.
Supports up to 24 contact smart card encoding heads,
or 12 contactless or dual smart card encoding heads,
supported by up to 4 smart card couplers.
System can be upgraded by adding couplers and heads,
or by adding modules.
This module is required for EMV programs.
To enhance system Multi-Card Buffer The module:
throughput Module Gen 2 Holds or passes cards to increase system efficiency.
In systems where speed disparities exist, holds cards to
improve efficiency without compromising throughput or
quality.
Stores up to 35 cards.
The module can be used to:
Maintain cards in serial order for inline and offline card
delivery.
Mitigate (unnecessary) rejects if a card goes out of
order when being remade.
Meet specific program requirements.
To print full-color, Artista® VHD The module:
high-resolution Retransfer Color Allows front-side color, full-card printing using pigment
photos and images Printing Module retransfer technology.
using pigment Gen 2 Offers 600 dpi for precision printing of extremely fine
retransfer lines and detailed characters.
technology Artista® VHD Gen 2 Uses CMYK single-color ribbons with an optional 5th
Detection Monitor print station for spot colors, including UV, metallic gold,
Kit (optional) metallic silver and white.
Enables a wide range of colors and designs.
To reduce waste of cards and supplies, and production
time, the optional Artista VHD Gen 2 Detection Monitor Kit
enables quality levels to be tailored to the needs of a
specific customer or operation.

7
 Prime Purpose Module Name Notes
To personalize a Laser 450G The module:
card using laser Module Is specifically engineered for the government market.
engraving Has a single controller that supports multiple MX Series
systems.
Features state-of-the art, grayscale laser technology
that produces high-quality tonal images.
Allows engraving of both the front and rear of the card
in a single module via the card rotation mechanism.
Allows tilted image engraving (CLI and MLI) for
enhanced visual security.
Allows precise alignment between engraved elements
and pre-printed cards via optional vision registration.
Can be upgraded in the field in less than 1 hour.
The air-cooled fiber laser provides powerful technology
within a compact module, does not require an external
power or cooling unit
For increased throughput, multiple modules can be
inserted in the system.
To protect printed CardGard UV- Applies a full-card clear, protective, durable topcoat to one
images for higher Curing Topcoat side of the card to protect printed images. The coating
security Module flexes with the card, which reduces cracking and chipping.
The topcoat provides outstanding chemical and abrasion
resistance and excellent tamper-evidence characteristics.
The topcoat is designed for high-speed production of
embossed, indented, and flat cards.
An ultraviolet light is used to cure the topcoat.
Designed for front-side application, the module also can
be used for rear application when the system is
configured with card flipper module(s).
To stack Standard Capacity First module contains 1 output tray for good cards and 1
personalized Card Output output tray for rejected cards.
cards Module Gen 2 To enhance operator efficiency, the module has a pause-
resume button so the operator can pause or resume
production without having to return to the system
controller area.
Up to 4 additional standard capacity output modules can
be added for extra capacity.
Either the high capacity or standard capacity output
module is mandatory.
